0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#155169) — 45 parça

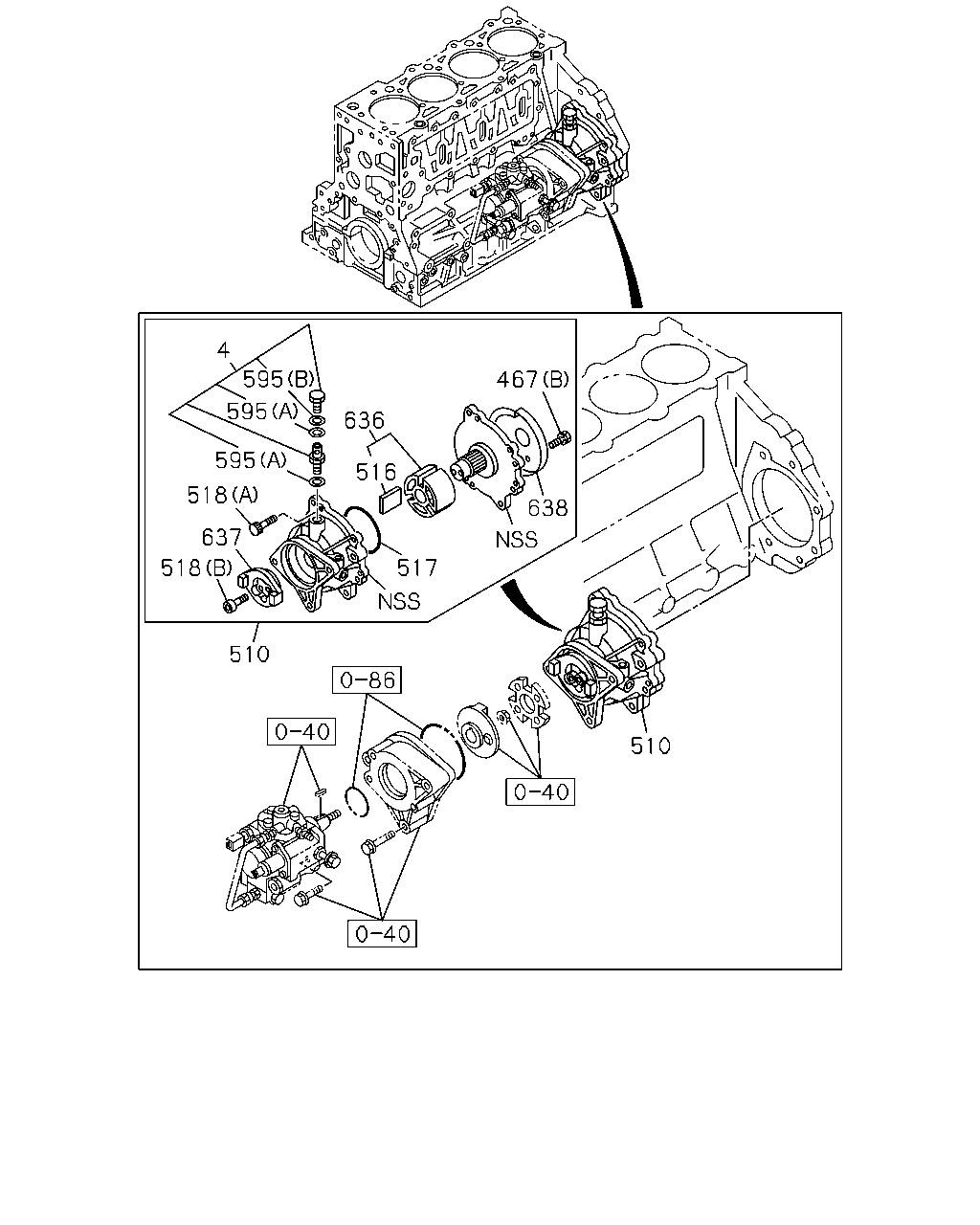

467 638 636 595 4 595 595 518 517 516 510 510 637 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	1501-
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	1501-
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	1501-
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	1501-
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	1501-
517	04.895 GASKET; VAC PUMP	8-98051-280-0	01	1	1501-
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	1501-
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	1501-
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	1501-
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	1501-
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	1501-
637	00.206 COUPLING; VAC PUMP	8-98051-278-0	01	1	1501-
638	00.206 PLATE KIT; VAC PUMP	8-98051-276-0	01	1	1501-

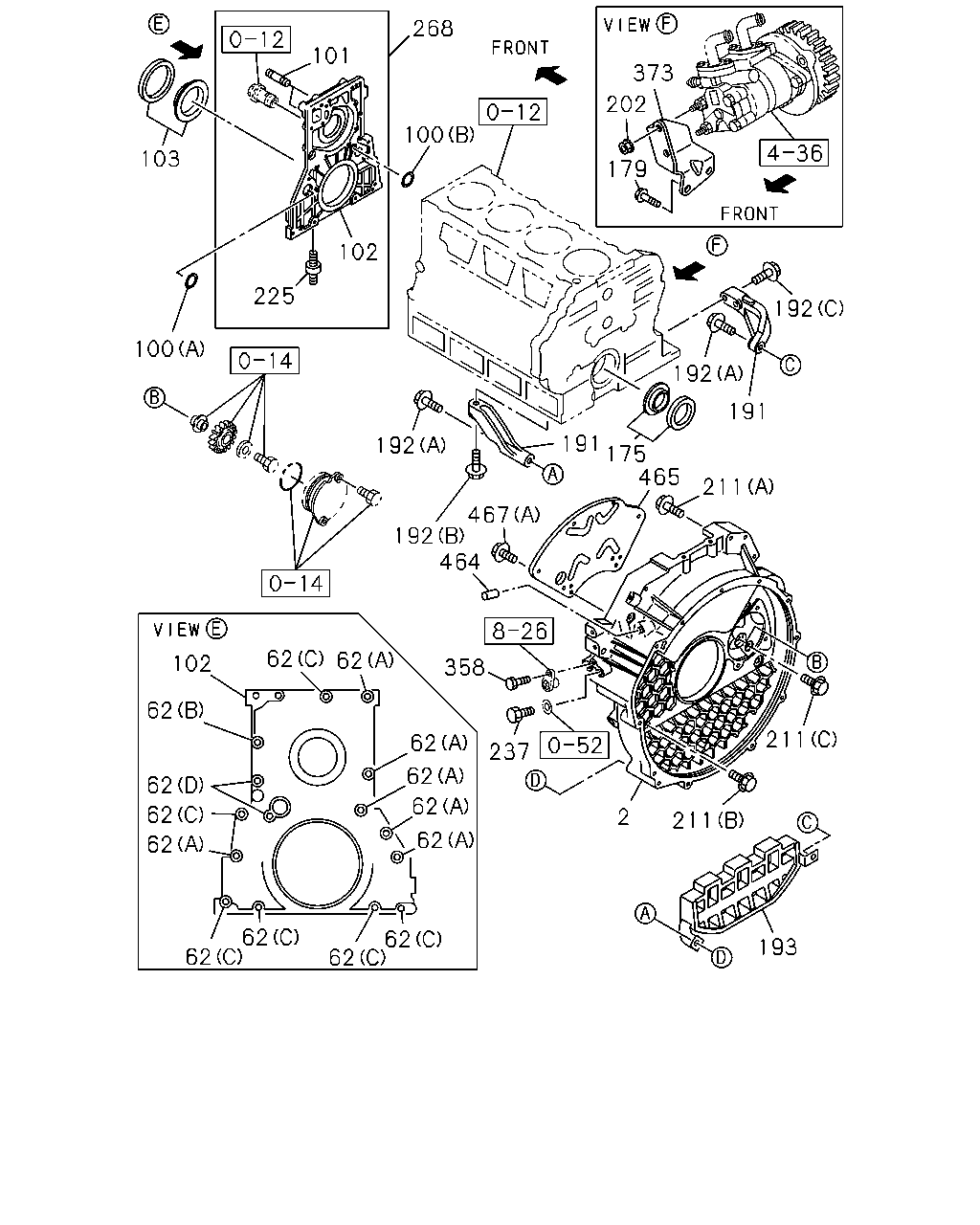

103 100 225 102 100 268 101 192 464 358 237 2 211 193 211 211 465 175 191 467 191 192 192 179 202 373 102 62 62 62 62 62 62 62 62 62 62 62 192 62 62 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	00.683 HOUSING; FLYWHEEL	8-97364-901-5	01	1	1501-
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE	0-28650-825-0	06	1	1501-
62	00.206 BOLT; COVER 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	1501-
62	00.206 BOLT; COVER 01.060 (C) M8X35 FLANGE	0-28650-835-0	06	1	1501-
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	1501-
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	1501-
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	1501-
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	1501-
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	1501-
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	1501-
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	1501-
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1501-
179	00.206 BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) 03.417 M10X20 FLANGE	0-28151-020-0	02	1	1501-
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	1501-
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	1501-
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X40 FLANGE	0-28151-040-0	02	1	1501-
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	1501-
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	1501-
193	01.428 SPACER; STAY TO OIL,PAN	8-97259-536-0	01	1	1501-
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1501-
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	1501-
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	02	1	1501-
211	00.669 BOLT; HSG (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1501-
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	1501-
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	1501-
268	00.206 COVER; FRT	8-98039-931-2	01	1	1501-
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	1501-
373	00.206 BRACKET; PUMP HYDRO BRAKE BOOSTER(7QQ)	8-97149-333-0	01	1	1501-
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	1501-
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	1501-
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	1501-
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	1501-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
