Isuzu WW
▶
TRUCKS
▶
NPS
▶
51607 - NPS EURO5 AUST/NZ
▶
0 - Engine, Emission, Engine Electrical
▶
0-12 - CYLINDER BLOCK
▶
0-12 — CYLINDER BLOCK
(#155165) — 39 parça
◀

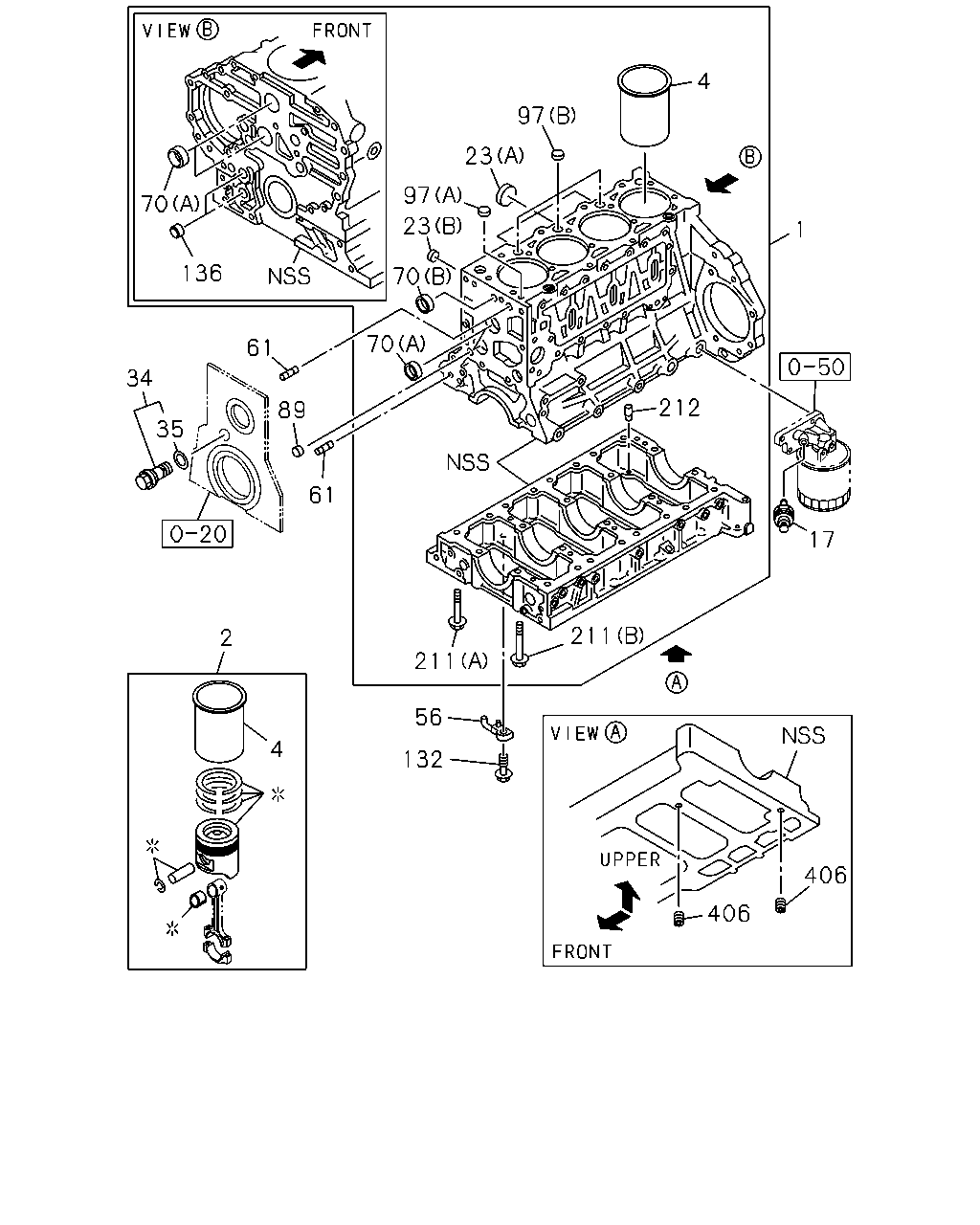

[012A] NO.1 (24 parça)

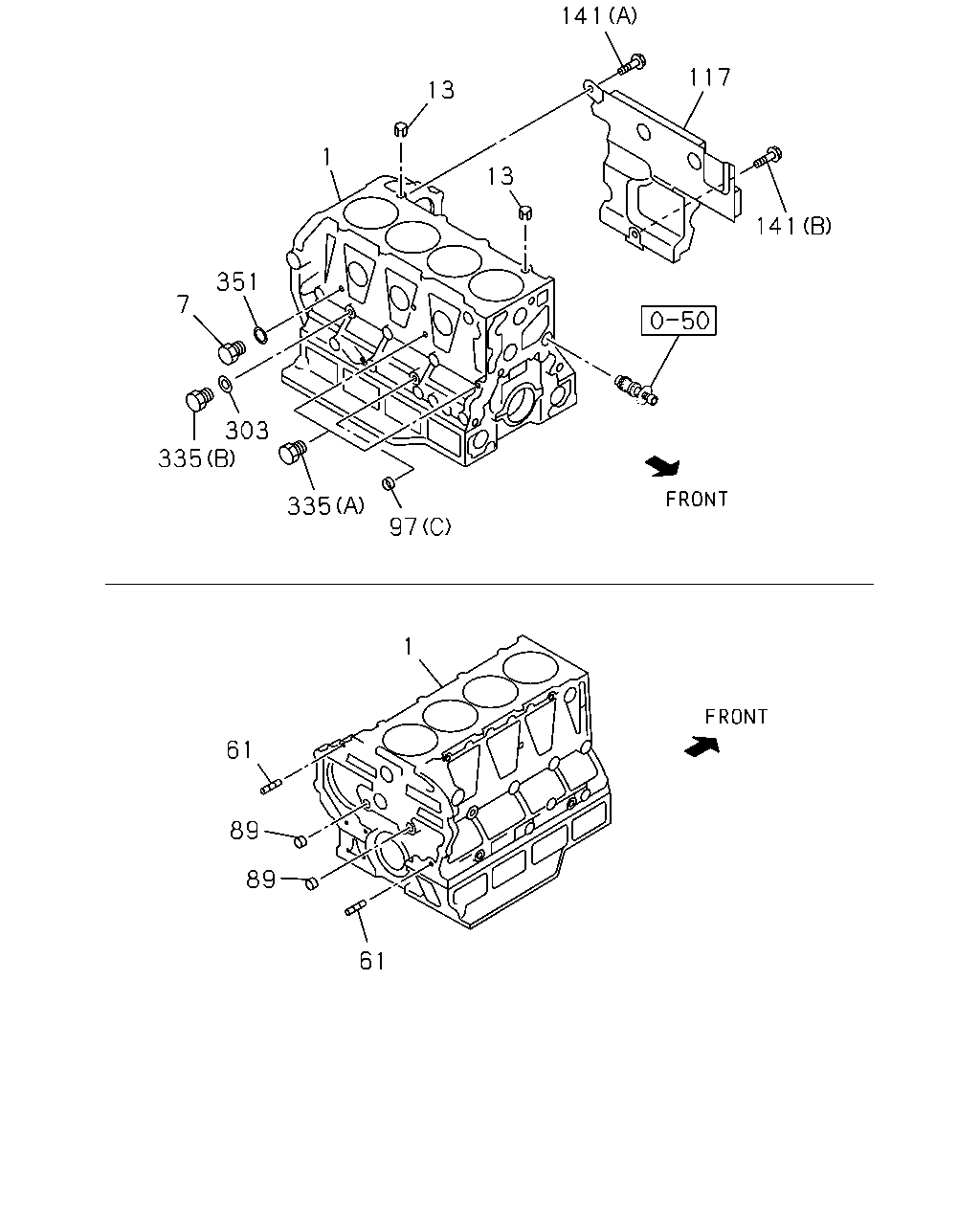

[012A] NO.2 (15 parça)
▶
97
4
1
23
97
23
70
70
212
17
211
211
56
132
4
2
61
89
61
34
35
136
70
406
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.033 BLOCK ASM; CYL
8-98204-528-0
01
1
1501-
2
00.030 LINER SET; ENG CYL
GRADE=1X
1-87814-726-0
04
1
1501-
2
00.030 LINER SET; ENG CYL
GRADE=3X
1-87814-727-0
04
1
1501-
4
00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON
8-94391-602-1
04
1
1501-
4
00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON
8-94391-603-1
04
1
1501-
17
01.800 SWITCH; OIL PRESSURE
8-97176-230-0
01
1
1501-
23
00.034 CUP; SEALING,C/BL FRT & RR
00.293 (B) OD=25
1-09600-016-0
01
1
1501-
23
00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45
8-97036-550-1
03
1
1501-
34
01.609 VALVE; OIL RELIEF
00.213
8-97328-859-0
01
1
1501-
35
01.609 GASKET; RELIEF VLV
ID=23.3
8-94173-412-0
01
1
1501-
56
01.519 JET; OIL,PISTON COOLING
8-98173-342-0
04
1
1501-
61
00.206 PIN; STRAIGHT
L=22
8-94483-674-0
04
1
1501-
70
00.034 CUP; SEALING,FRT & RR
00.293 (B) OD=25
1-09600-016-0
01
1
1501-
70
00.034 CUP; SEALING,FRT & RR
(A) OD=40
8-97096-824-0
04
1
1501-
89
00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20
9-11129-128-0
03
1
1501-
97
00.034 CUP; SEALING
00.253 (A) OD=16
5-11129-006-0
01
1
1501-
97
00.034 CUP; SEALING
00.253 (C) OD=12
8-97036-335-1
01
1
1501-
97
00.034 CUP; SEALING
00.253 (B) OD=22
8-97209-609-0
03
1
1501-
132
01.519 VALVE; CHECK,OIL
M10X18.5
8-97329-618-0
04
1
1501-
136
01.639 BUSHING; DRIVE SHAFT,OIL PUMP
8-98091-566-0
02
1
1501-
211
01.428 BOLT; CRANKCASE
(A) M10X82
8-94399-553-2
17
1
1501-
211
01.428 BOLT; CRANKCASE
00.293 (B) M14X115 W/FLANGE
8-97077-638-0
10
1
1501-
212
01.428 PIN; CRANKCASE
04.510 OD=10 L=20
8-97135-423-0
02
1
1501-
406
01.531 PLUG; CRANK CASE
01.073 PT3/8
5-09605-005-0
02
1
1501-
13
13
1
351
7
303
335
335
117
141
141
97
61
1
89
89
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.033 BLOCK ASM; CYL
8-98204-528-0
01
1
1501-
7
00.034 PLUG; WATER DRAIN
M10X10
8-97352-537-0
01
1
1501-
13
00.293 DOWEL; C/BL TO HD
OD=18.15
8-94399-688-1
02
1
1501-
61
00.206 PIN; STRAIGHT
L=22
8-94483-674-0
04
1
1501-
89
00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20
9-11129-128-0
03
1
1501-
97
00.034 CUP; SEALING
00.253 (A) OD=16
5-11129-006-0
01
1
1501-
97
00.034 CUP; SEALING
00.253 (C) OD=12
8-97036-335-1
01
1
1501-
97
00.034 CUP; SEALING
00.253 (B) OD=22
8-97209-609-0
03
1
1501-
117
00.030 COVER ASM; C/BL
8-98039-564-0
01
1
1501-
141
01.531 BOLT; COVER
02.343 (A) M8X12 FLANGE
0-28050-812-0
01
1
1501-
141
01.531 BOLT; COVER
00.029 (B) M10X16 FLANGE
0-28151-016-0
01
1
1501-
303
01.531 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2
8-98251-345-0
01
1
1501-
335
01.531 PLUG; C/BL,SIDE
(A) M14X16.5
8-97329-617-0
02
1
1501-
335
01.531 PLUG; C/BL,SIDE
04.866 (B) M14X18
8-98038-403-0
01
1
1501-
351
01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2
1-09630-083-0
01
1
1501-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
