Isuzu WW
▶
TRUCKS
▶
FYH
▶
11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#155160) — 47 parça
◀
[110A] NO.4 (4 parça)
[110A] NO.1 (20 parça)
[110A] NO.2 (10 parça)
[110A] NO.3 (13 parça)
▶

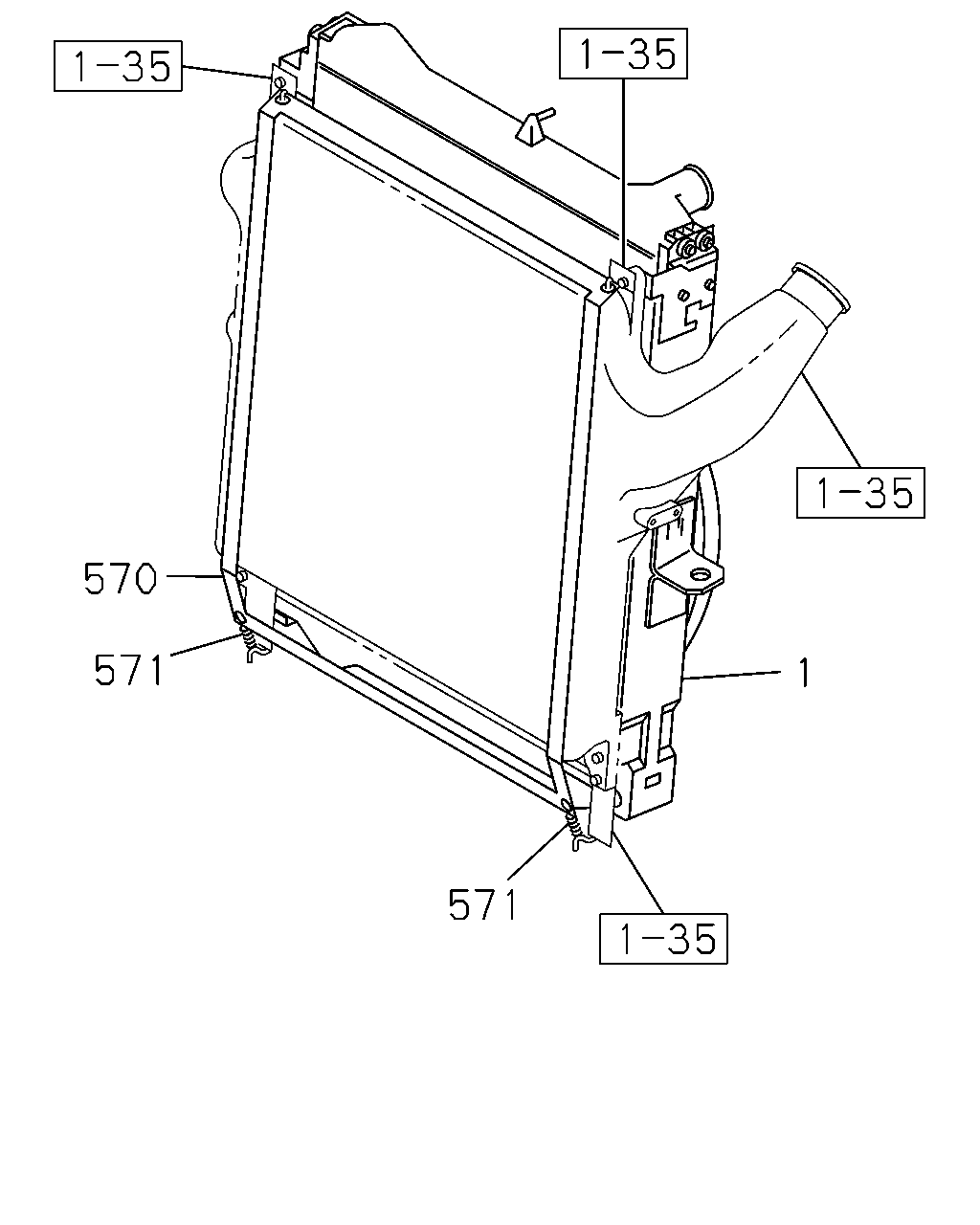

570
571
571
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98203-777-0
01
1
1304-
570
SCREEN ASM; RADIATOR
RADIATOR PROTECTOR<YC6>
8-98202-048-1
01
1
1304-1501
570
SCREEN ASM; RADIATOR
RADIATOR PROTECTOR<YC6>
8-98287-800-0
01
1
1502-
571
SPRING; RADIATOR SCREEN
RADIATOR PROTECTOR<YC6>
8-98211-362-0
02
1
1304-

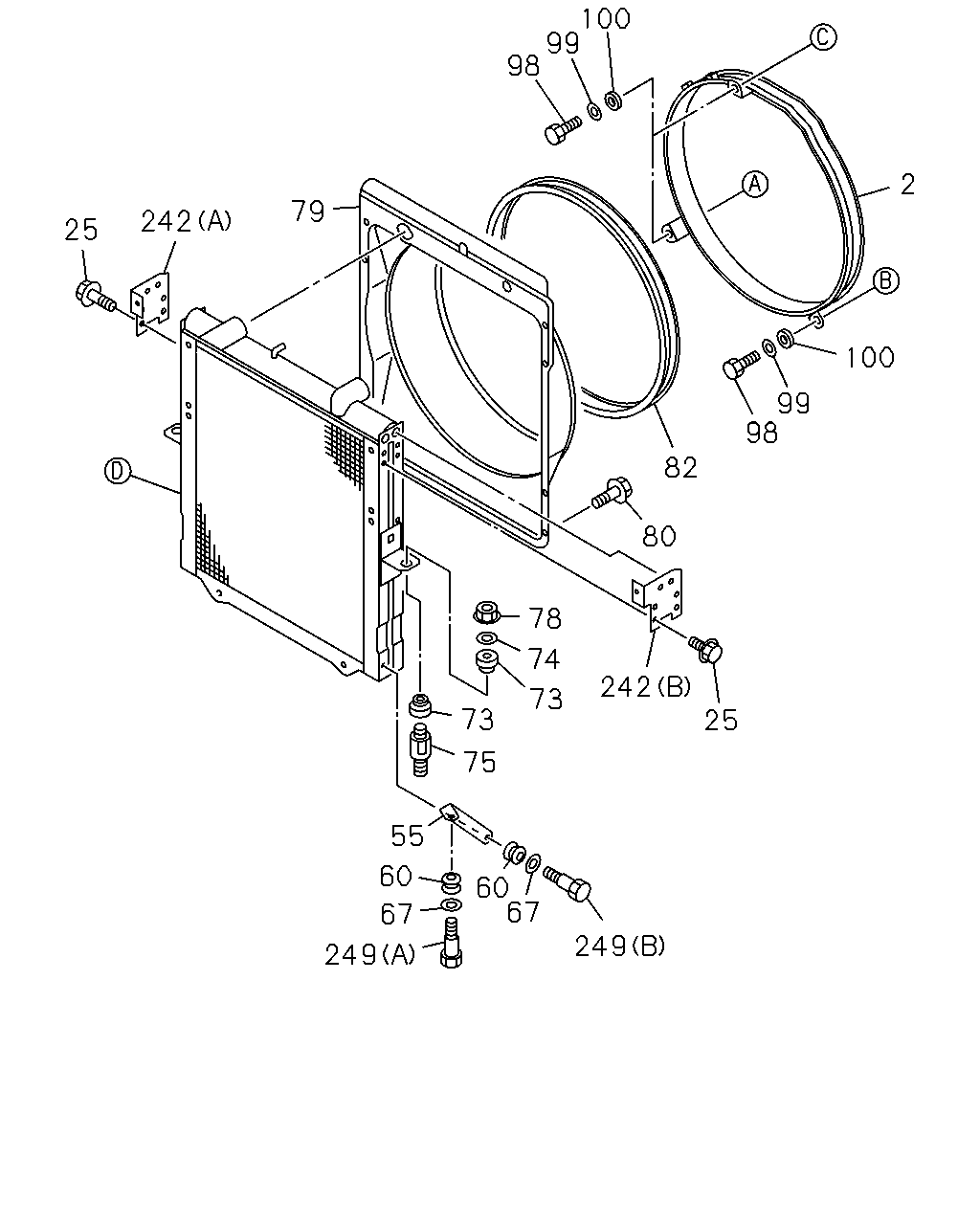

100
99
98
2
100
99
98
82
80
79
242
25
78
74
73
73
75
55
60
67
249
249
67
60
242
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-97615-753-1
01
1
1304-
25
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
04
1
1304-
55
STAY; RAD TO UPR MBR
8-98055-802-0
01
1
1304-
55
STAY; RAD TO UPR MBR
8-98055-805-0
01
1
1304-
60
GROMMET
1-09332-117-0
04
1
1304-
67
WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26
0-91610-612-0
04
1
1304-
73
RUBBER; CUSHION,RAD MTG
T=14
1-21467-004-0
04
1
1304-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1304-
75
BOLT; CUSHION RUBBER,RAD MTG
1-21466-005-0
02
1
1304-
78
NUT; CUSHION RUBBER
M10 FLANGE
0-91180-210-0
02
1
1304-
79
GUIDE; FAN,RAD
1-21551-545-1
01
1
1304-
80
BOLT; FAN GUIDE
M8X16 FLANGE
0-28050-816-0
06
1
1304-
82
COVER; FAN,RAD
1-21559-491-1
01
1
1304-
98
BOLT; RAD FAN GUIDE
M10X45 FLANGE
0-28051-045-0
03
1
1304-
99
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
03
1
1304-
100
RUBBER; MTG
1-09337-017-0
06
1
1304-
242
BRACKET; RAD
(A)
8-98089-511-1
01
1
1304-
242
BRACKET; RAD
(B)
8-98089-512-1
01
1
1304-
249
BOLT; STAY,RAD MBR
(A) M8X30
1-09009-020-1
02
1
1304-
249
BOLT; STAY,RAD MBR
(B) M8X26
1-09009-175-0
02
1
1304-

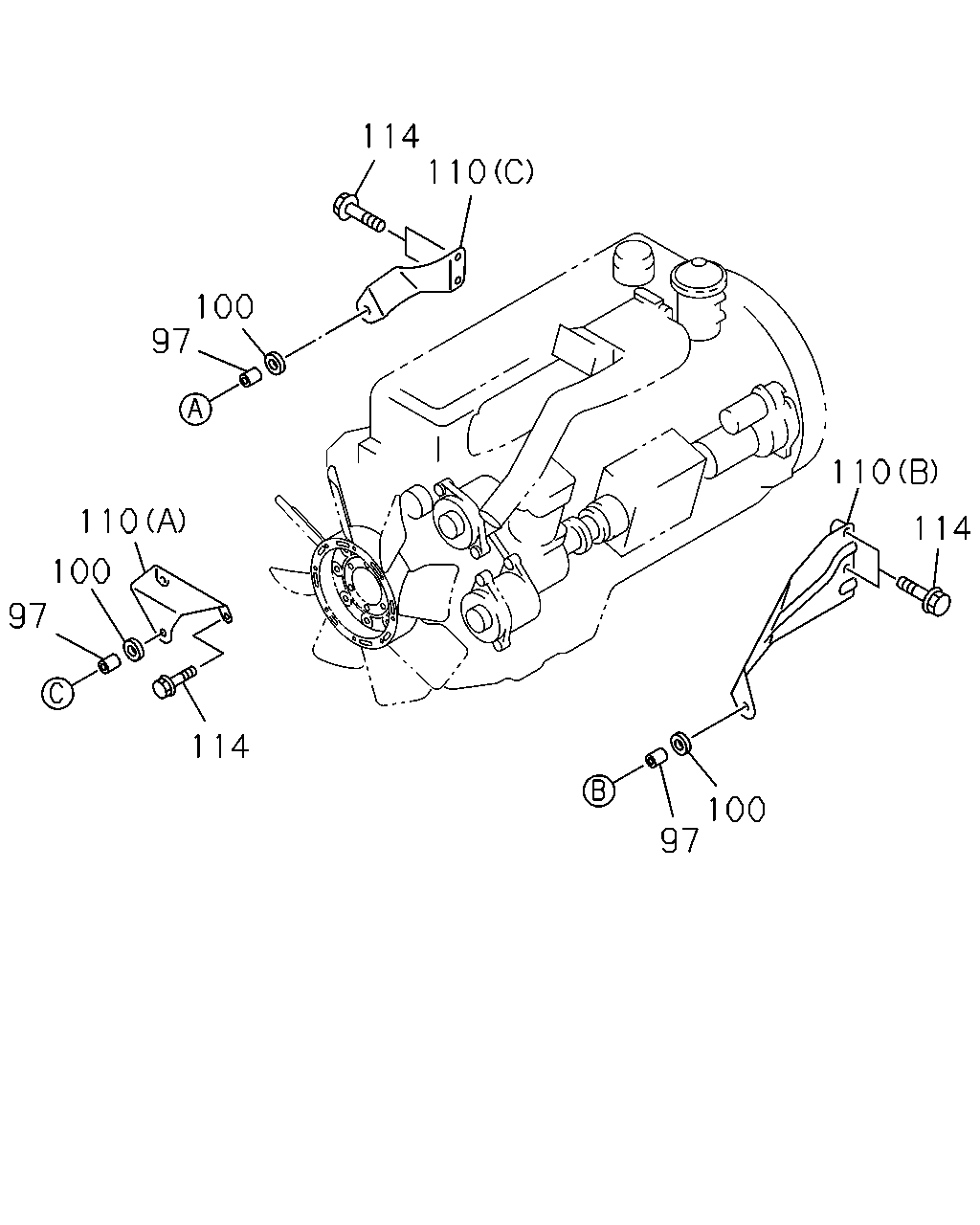

114
100
110
97
110
100
97
114
97
100
114
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
TUBE; DIST,FAN GUIDE
ID=11.8 L=27
1-21559-149-0
03
1
1304-
100
RUBBER; MTG
1-09337-017-0
06
1
1304-
110
STAY; FAN GUIDE
(A)
8-97604-861-1
01
1
1304-
110
STAY; FAN GUIDE
(B)
8-97607-503-0
01
1
1304-
110
STAY; FAN GUIDE
AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-97607-500-0
01
1
1304-
110
STAY; FAN GUIDE
HEATER & DEFROSTER(C41) (C)
8-97607-501-0
01
1
1304-
114
BOLT; STAY
M10X20 FLANGE
0-28151-020-0
02
1
1304-
114
BOLT; STAY
HEATER & DEFROSTER(C41) M10X20 FLANGE
0-28151-020-0
02
1
1304-
114
BOLT; STAY
M10X40 FLANGE
0-28151-040-0
02
1
1304-
114
BOLT; STAY
AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE
0-28151-040-0
02
1
1304-
1
528
529
527
51
526
232
529
267
89
528
267
89
235
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98203-777-0
01
1
1304-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1304-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1304-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1304-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1304-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1304-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1304-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1304-
526
TANK; UPR,RADIATOR CORE
1-21414-031-1
01
1
1304-
527
TANK; LWR,RADIATOR CORE
1-21415-031-2
01
1
1304-
528
PLATE; SIDE,RADIATOR CORE
8-98060-765-2
01
1
1304-
528
PLATE; SIDE,RADIATOR CORE
8-98060-766-2
01
1
1304-
529
GASKET; CORE,RADIATOR
1-21439-121-0
02
1
1304-
