Isuzu WW
▶
TRUCKS
▶
FYH
▶
11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#155140) — 30 parça
◀

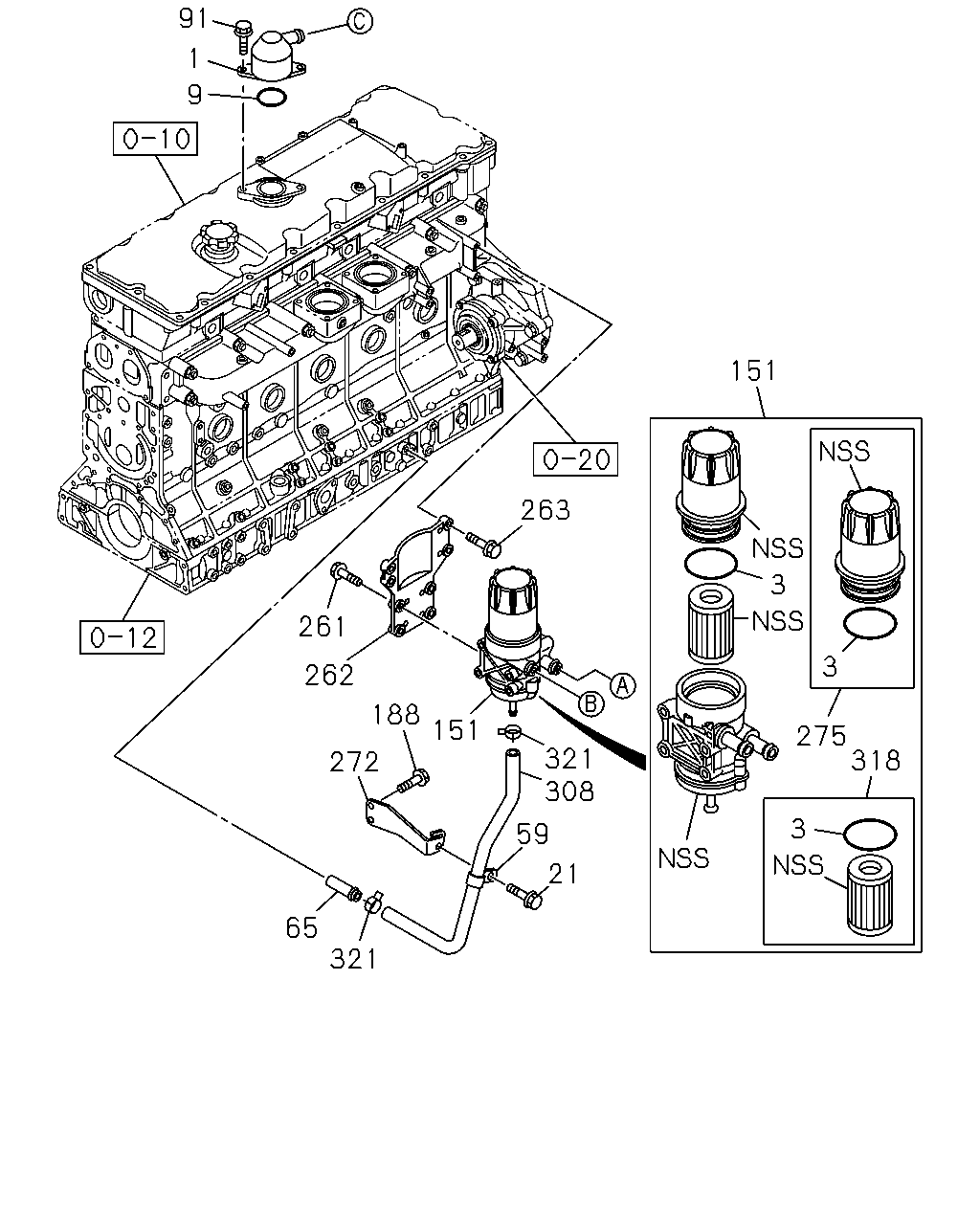

[028A] NO.1 (17 parça)
[028A] NO.2 (13 parça)
▶
151
3
3
275
318
3
308
59
321
21
151
188
262
272
261
65
321
263
9
1
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-181-1
01
1
1304-
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1304-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
1304-
21
BOLT; CLIP
M10X16 FLANGE
0-28051-016-0
01
1
1304-
59
CLIP; HOSE
ID=13 L=20
1-09701-138-1
01
1
1304-
65
PIPE; BREATHER
8-94176-713-0
01
1
1304-
91
BOLT; AIR BREATHER
M10X20 FLANGE
0-28151-020-0
02
1
1304-
151
SEPARATOR; OIL,PCV
8-97625-584-0
01
1
1304-
188
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
05
1
1304-
261
BOLT; SEPARETOR
M8X30 FLANGE
0-28050-830-0
04
1
1304-
262
BRACKET; OIL SEPARETOR
8-97624-143-1
01
1
1304-
263
BOLT; BRKT,OIL SEPARETOR
M10X30 FLANGE
0-28151-030-0
04
1
1304-
272
BRACKET; PIPE
8-98052-308-1
01
1
1304-
275
CAP; PCV
8-97625-726-0
01
1
1304-
308
HOSE; RUBBER,OIL SEPARATOR TO C/BLOCK
8-97606-750-0
01
1
1304-
318
ELEMENT KIT; PCV
8-97625-725-0
01
1
1304-
321
CLIP; HOSE,SEPARATOR
ID=14
1-09704-102-0
02
1
1304-
10
11
24
11
10
10
10
106
10
10
106
10
10
97
10
10
106
106
10
10
188
106
10
10
97
10
10
97
106
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CLIP; AIR BREATHER
(C) ID=31 L=30
1-09700-969-0
04
1
1304-1309
10
CLIP; AIR BREATHER
(D) ID=29 L=30
8-98225-679-0
11
1
1310-
10
CLIP; AIR BREATHER
(B) ID=28.5
1-09707-150-0
04
1
1304-
10
CLIP; AIR BREATHER
(A) ID=33 L=30
8-97619-250-0
07
1
1304-1309
11
HOSE; RUBBER,AIR
(A)
8-97615-916-2
01
1
1304-
11
HOSE; RUBBER,AIR
(B)
8-98233-993-0
01
1
1304-
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
01
1
1304-
97
BRACKET; HOSE
(A)
8-97615-917-0
01
1
1304-
97
BRACKET; HOSE
(B)
8-97624-243-0
01
1
1304-
97
BRACKET; HOSE
(C)
8-97627-772-0
01
1
1304-
106
BOLT; DRAIN PIPE
(A) M8X16 FLANGE
0-28050-816-0
09
1
1304-
106
BOLT; DRAIN PIPE
(B) M8X35 FLANGE
0-28650-835-0
02
1
1304-
188
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
05
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
