1 |

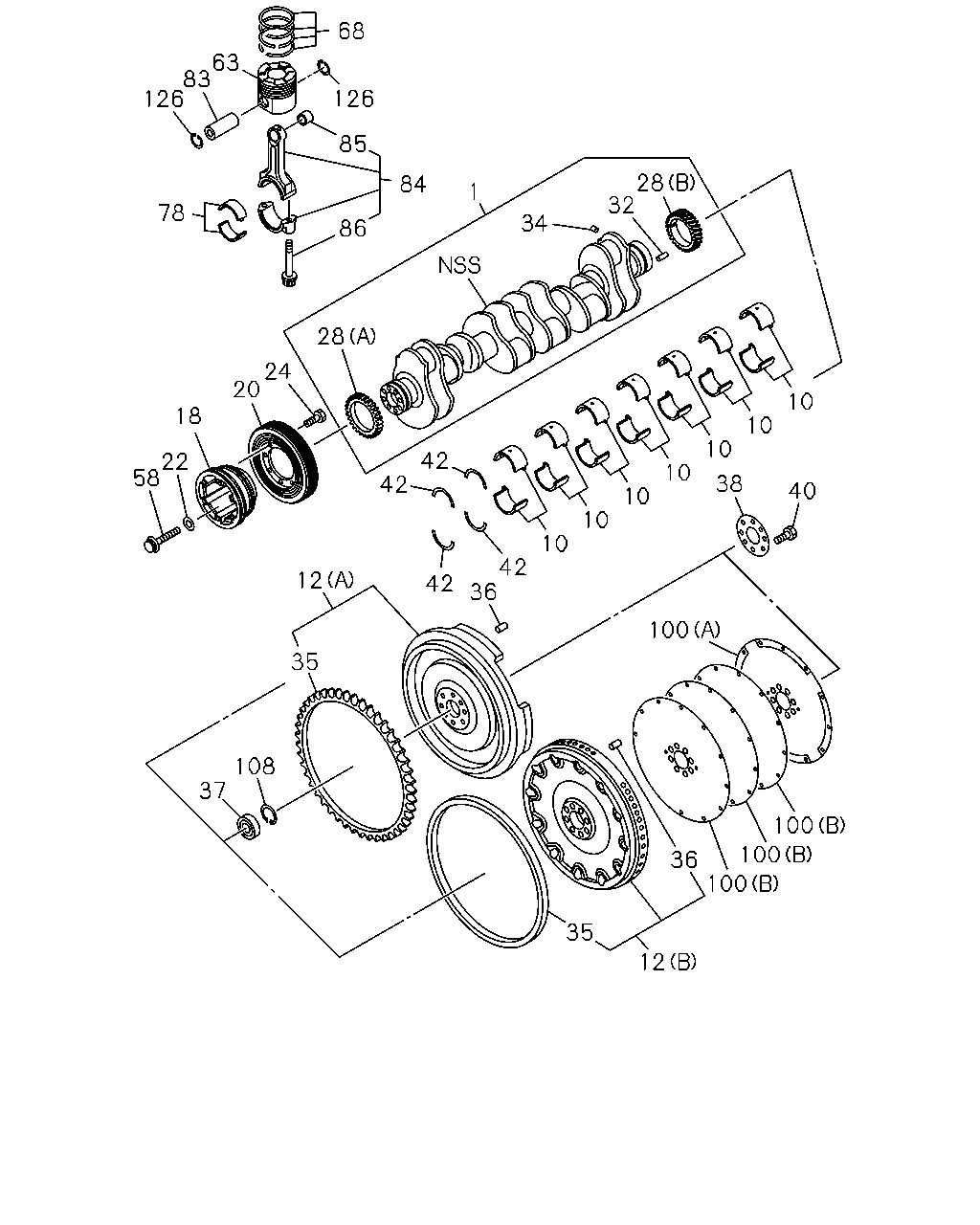

CRANKSHAFT
|
8-97603-046-5 |
01 |
1 |
1304- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97609-768-0 |
07 |
1 |
1304- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97609-769-0 |
07 |
1 |
1304- |
| |
10 |
METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97609-770-0 |
07 |
1 |
1304- |
| |
12 |
FLYWHEEL
A/T ALLISON 4430(Y5V)
(B)
|
8-98191-968-2 |
01 |
1 |
1304- |
| |
12 |
FLYWHEEL
17INCH CLUTCH(RF3)
(A)
|
1-12330-553-0 |
01 |
1 |
1304- |
| |
18 |
PULLEY; CR/SHF
1-GROOVE
|
8-97603-953-0 |
01 |
1 |
1304- |
| |
20 |
DAMPER; CR/SHF
|
1-12375-195-0 |
01 |
1 |
1304- |
| |
22 |
PLATE; PULLEY
ID=17 OD=30
|
9-09851-935-0 |
04 |
1 |
1304- |
| |
24 |
BOLT; DAMPER
M12X25 FLANGE
|
0-28161-225-0 |
08 |
1 |
1304- |
| |
28 |
GEAR; CR/SHF
(A)
Z=59
|
8-97607-583-1 |
01 |
1 |
1304- |
| |
28 |
GEAR; CR/SHF
(B)
Z=46
|
8-98002-332-1 |
01 |
1 |
1304- |
| |
32 |
PIN; FLYWHEEL
OD=8 L=16
|
9-08150-816-0 |
01 |
1 |
1304- |
| |
34 |
PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
1304- |
| |
35 |
GEAR; RING
Z=139
|
1-12333-013-1 |
01 |
1 |
1304- |
| |
36 |
PIN; FLYWHEEL
A/T ALLISON 4430(Y5V)
OD=6 L=12
|
9-08150-612-0 |
02 |
1 |
1304- |
| |
36 |
PIN; FLYWHEEL
17INCH CLUTCH(RF3)
OD=10 L=22
|
9-08151-022-0 |
02 |
1 |
1304- |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
17INCH CLUTCH(RF3)
|
1-09800-257-0 |
01 |
1 |
1304- |
| |
37 |
BEARING; PILOT,TOP GEAR SHAFT
17INCH CLUTCH(RF3)
BEST VALUE PARTS
|
1-87610-158-0 |
01 |
1 |
1304- |
| |
38 |
WASHER; FLYWHEEL
A/T ALLISON 4430(Y5V)
ID=58 OD=124
|
8-98192-267-0 |
01 |
1 |
1304- |
| |
38 |
WASHER; FLYWHEEL
17INCH CLUTCH(RF3)
ID=64 OD=123.5
|
1-12336-006-0 |
01 |
1 |
1304- |
| |
40 |
BOLT; FLYWHEEL
A/T ALLISON 4430(Y5V)
M16X95
|
1-09070-147-1 |
08 |
1 |
1304- |
| |
40 |
BOLT; FLYWHEEL
17INCH CLUTCH(RF3)
M16X62
|
1-09070-146-1 |
08 |
1 |
1304- |
| |
42 |
WASHER; THRUST,CR/SHF
|
8-98106-007-0 |
04 |
1 |
1304- |
| |
58 |
BOLT; CR/SHF PULLEY
M16X70 FLANGE
|
0-28861-670-0 |
04 |
1 |
1304- |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-98151-363-0 |
06 |
1 |
1304- |
| |
63 |
PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-98151-364-0 |
06 |
1 |
1304- |
| |
68 |
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-98056-464-1 |
06 |
1 |
1304- |
| |
78 |
METAL; CONNROD
|
8-97605-484-0 |
06 |
1 |
1304- |
| |
83 |
PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-97603-263-0 |
06 |
1 |
1304- |
| |
84 |
ROD ASM; CONN
|
8-98044-950-0 |
06 |
1 |
1304- |
| |
85 |
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-051-0 |
06 |
1 |
1304- |
| |
86 |
BOLT; CONNROD
M13X82 FLANGE
|
1-12235-046-0 |
12 |
1 |
1304- |
| |
100 |
PLATE; FLEX
A/T ALLISON 4430(Y5V)
(A)
|
8-98185-796-0 |
01 |
1 |
1304- |
| |
100 |
PLATE; FLEX
A/T ALLISON 4430(Y5V)
(B)
|
8-98185-797-0 |
03 |
1 |
1304- |
| |
108 |
RING; SNAP,BRG SET
17INCH CLUTCH(RF3)
OD=67.2
|
9-09180-163-0 |
01 |
1 |
1304- |
| |
126 |
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
OD=56.2
|
1-09587-075-1 |
12 |
1 |
1304- |
