◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#155127) — 84 parça
çizim 464616
388 388 348 146
BalonParca AdiParca NoAdetTipApplied Date
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 1304-
348 PULLER; TORQUE ROD 1-85230-008-0 01 1 1304-
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 1304-
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 1304-

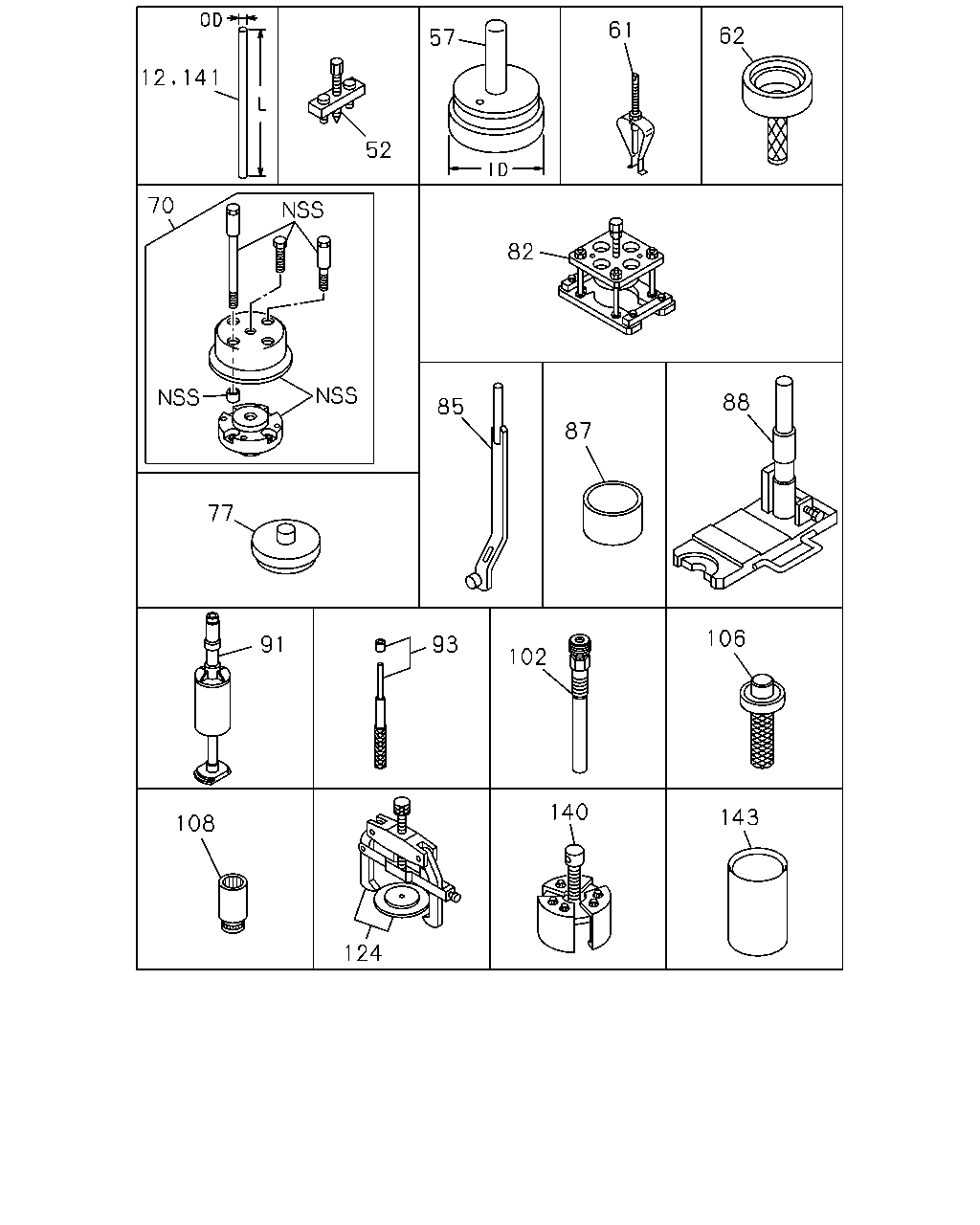

çizim 464953
12 141 52 57 61 62 70 82 77 85 87 88 91 93 102 106 108 124 140 143
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 1304-1501
12 HANDLE; WRENCH,WHEEL PIN
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502-
52 REMOVER; WATER PUMP 1-85210-047-0 01 1 1304-
57 TOOL; SETTING CRANK GEAR
ID=144.5 		1-85221-072-0 01 1 1304-
57 TOOL; SETTING CRANK GEAR
ID=165.8 		1-85221-075-0 01 1 1304-
61 PULLER ASM; PILOT BRG 1-85220-028-0 01 1 1304-
62 TOOL ASM; SETTING WEAR RING 1-85221-079-0 01 1 1304-
70 TOOL; SETTING,OIL SEAL 8-98194-607-0 01 1 1304-
77 TOOL; SETTING,CYL LINER 1-85221-073-0 01 1 1304-
82 PULLER ASM; CR/SHF GEAR 1-85210-051-0 01 1 1304-
85 REPLACER ASM; VALVE SPR 1-85235-007-0 01 1 1304-
87 TOOL; PISTON 1-85221-082-0 01 1 1304-
88 TOOL; CONNROD BUSHING 1-85220-037-0 01 1 1304-
91 REPLACER ASM; CYL LINER 1-85231-021-0 01 1 1304-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 1304-
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 1304-
106 TOOL; SETTING PILOT BRG 1-85221-080-0 01 1 1304-
108 WRENCH; SOCKET 9-85113-132-0 01 1 1304-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 1304-
140 REMOVER; WEAR RING 1-85210-053-0 01 1 1304-
141 HANDLE; WRENCH
TOOL B KIT<SL1> OD=16 L=200 		9-85111-934-0 01 1 1304-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 1304-
çizim 464959
115 125 126 127 129 130 151 153 154 156 160 163
BalonParca AdiParca NoAdetTipApplied Date
115 PLIER
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		5-85171-002-0 01 1 1304-1410
115 PLIER
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 1304-
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 1304-
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 1304-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 1304-
130 WRENCH; BOX
TOOL B KIT<SL1> B=63 		9-85111-368-0 01 1 1304-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1304-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 1304-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 1304-
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 1304-
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 1304-
163 TOOL; SETTING 9-85221-231-0 01 1 1304-
çizim 464967
169 186 189 192 171 172 237 230 453 417 227 193 208 174
BalonParca AdiParca NoAdetTipApplied Date
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 1304-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 1304-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 1304-
174 PULLER ASM; MAIN CLU SHAFT
17INCH CLUTCH(RF3) 		9-85210-148-0 01 1 1304-
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 1304-
189 TUBE; AIR BREATHER
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 1304-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 1304-
193 JACK ASM
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 1304-
208 HANDLE; JACK
TOOL B KIT<SL1> L=600 		8-98181-437-0 01 1 1304-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 1304-
230 PUMP; GREASE
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85556-007-5 01 1 1304-
237 BAG; TOOL
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		8-97130-902-1 01 1 1304-
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 1304-
453 TOOL; SETTING,COUPLING 8-97620-813-0 01 1 1304-

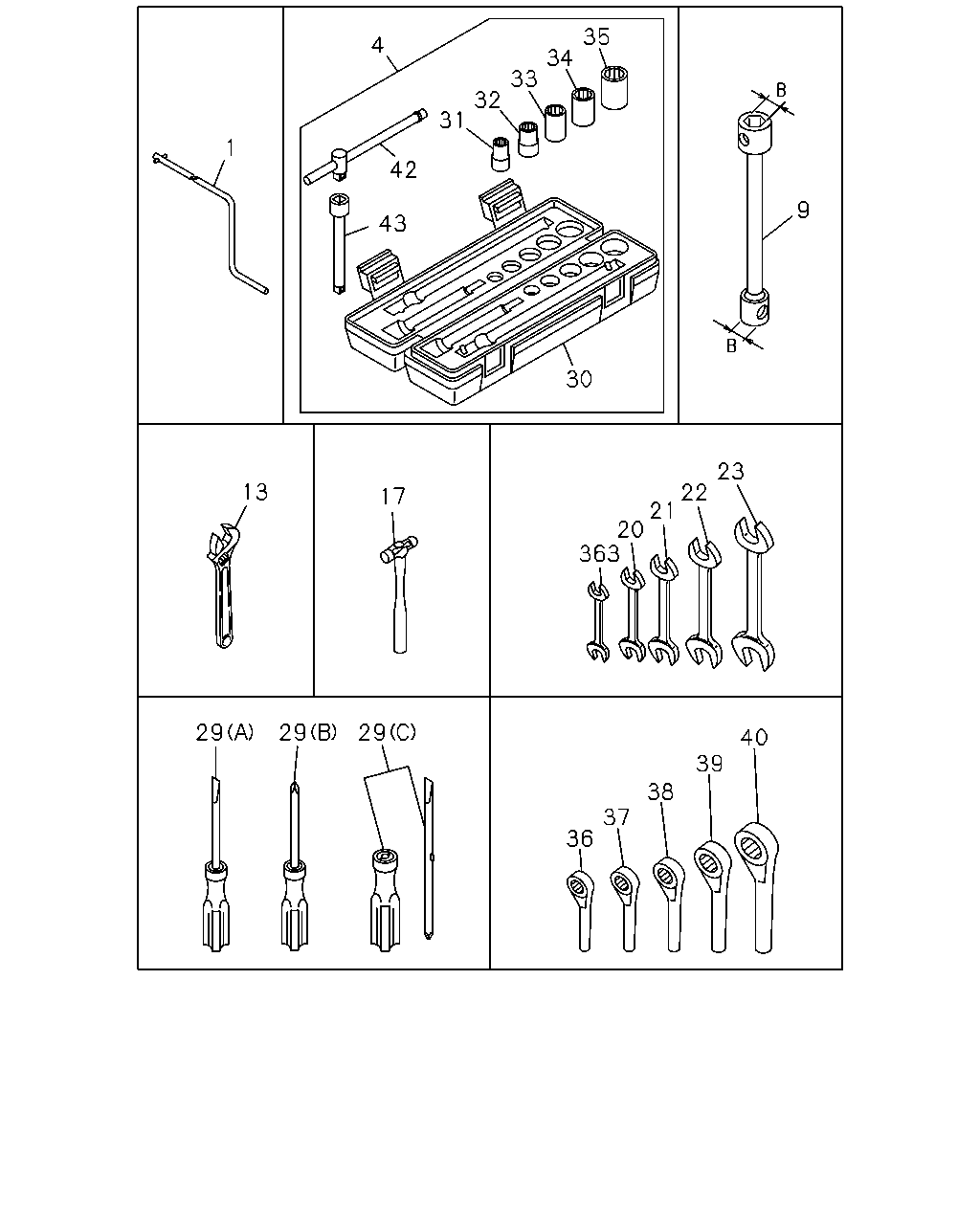

çizim 465065
1 4 35 34 33 32 31 42 43 30 9 13 17 363 20 21 22 23 29 29 29 40 39 38 37 36
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 1304-
4 WRENCH KIT; SOCKET
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-491-0 01 1 1304-
9 WRENCH; WHEEL PIN
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440 		1-85113-015-1 01 1 1304-
9 WRENCH; WHEEL PIN
INTERNATIONAL STANDARD ISO 10STUD<B3V> CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 1304-
9 WRENCH; WHEEL PIN
INTERNATIONAL STANDARD ISO 10STUD<B3V> CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 1304-
13 WRENCH; MONKEY
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 1304-1407
13 WRENCH; MONKEY
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408-
17 HAMMER
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		9-85121-406-0 01 1 1304-
20 WRENCH; 10X12
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 1304-
21 WRENCH; 14X17
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 1304-
22 WRENCH; 19X22
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 1304-
23 WRENCH; 24X27
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 1304-
29 DRIVER; SCREW
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 1304-
29 DRIVER; SCREW
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 1304-
29 DRIVER; SCREW
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 1304-
30 BOX; SOCKET WRENCH
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-492-0 01 1 1304-
31 WRENCH; 12
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-495-0 01 1 1304-
32 WRENCH; 14
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-496-0 01 1 1304-
33 WRENCH; 17
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-497-0 01 1 1304-
34 WRENCH; 19
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-498-0 01 1 1304-
35 WRENCH; 22
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-499-0 01 1 1304-
36 WRENCH; 24 9-85111-377-0 01 1 1304-
37 WRENCH; 27 9-85111-375-0 01 1 1304-
38 WRENCH; 32 9-85111-358-0 01 1 1304-
39 WRENCH; 36 9-85111-374-0 01 1 1304-
40 WRENCH; 41 9-85111-356-0 01 1 1304-
42 HANDLE; SLIDING
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-500-0 01 1 1304-
43 BAR; EXTENSION,SOCKET WRENCH
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 		1-85000-501-0 01 1 1304-
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 1304-1501
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502-
363 WRENCH; OPEN END 8X10
CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> 8X10 		0-95902-508-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
