◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#155113) — 59 parça

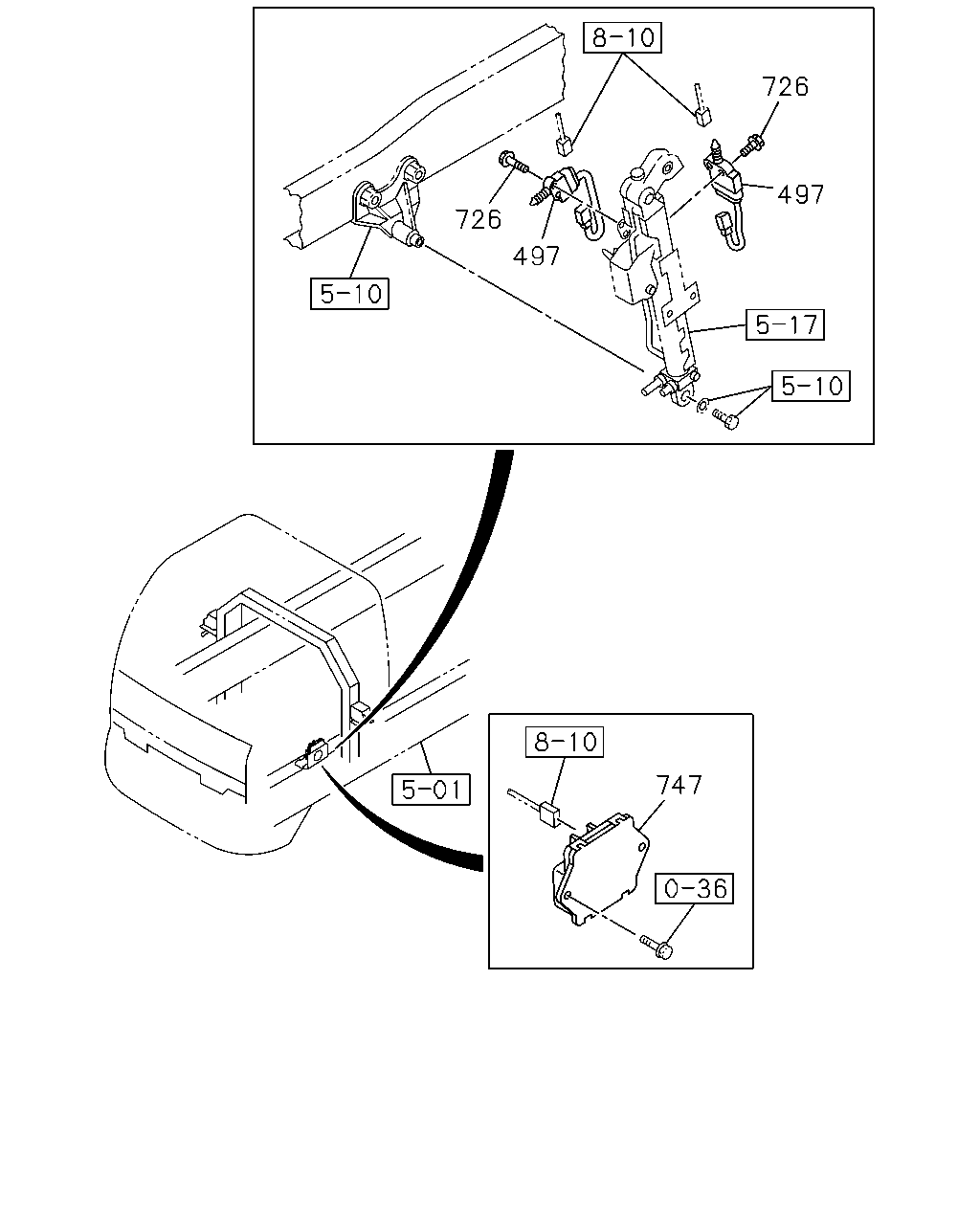

çizim 464397
726 497 497 726 747
BalonParca AdiParca NoAdetTipApplied Date
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1304-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1304-
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1304-

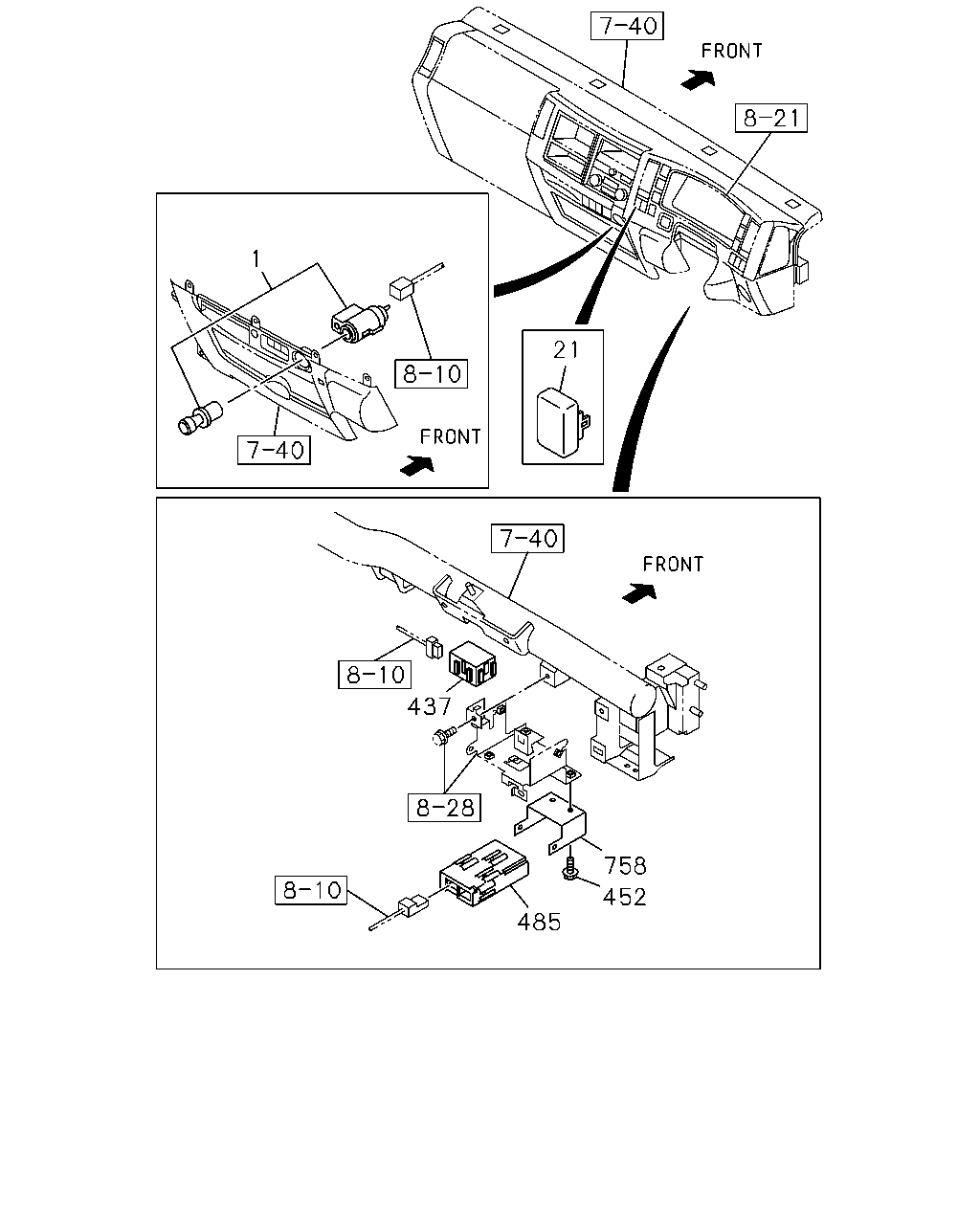

çizim 464908
1 437 758 452 485 21
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1304-
21 COVER; HOLE 8-98025-954-1 01 1 1304-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1304-
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1304-
485 CONTROL UNIT; SPEED SENSOR
A/T ALLISON 4430(Y5V) 		1-80190-061-0 01 1 1304-
485 CONTROL UNIT; SPEED SENSOR
ZF9S1310 M/T(Y5K) 		1-80190-063-0 01 1 1304-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1304-

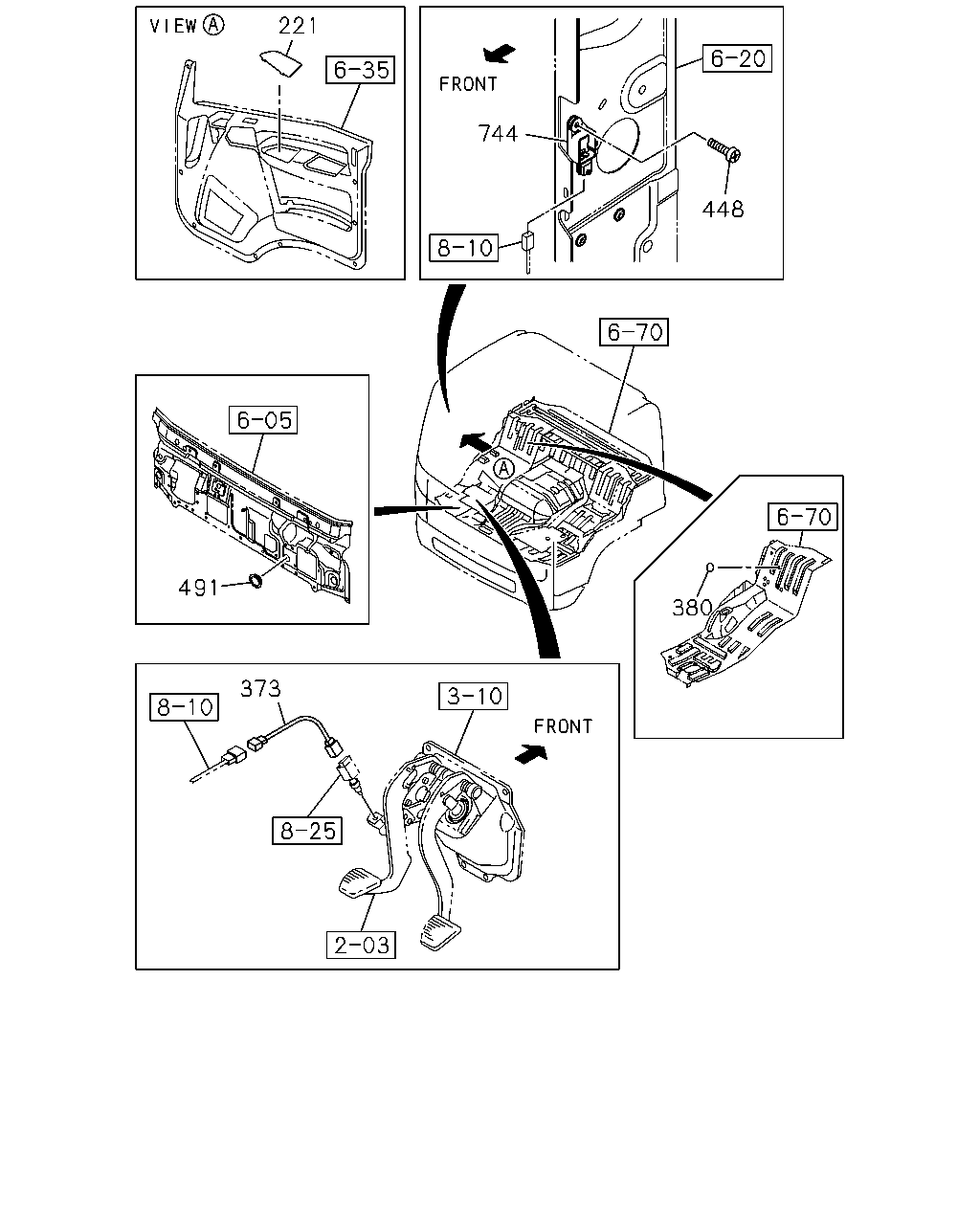

çizim 464916
221 744 448 491 373 380
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1304-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1304-
373 HARNESS; CLU SWITCH
ZF9S1310 M/T(Y5K) 		8-98059-419-2 01 1 1304-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1304-
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1304-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1304-
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 1304-

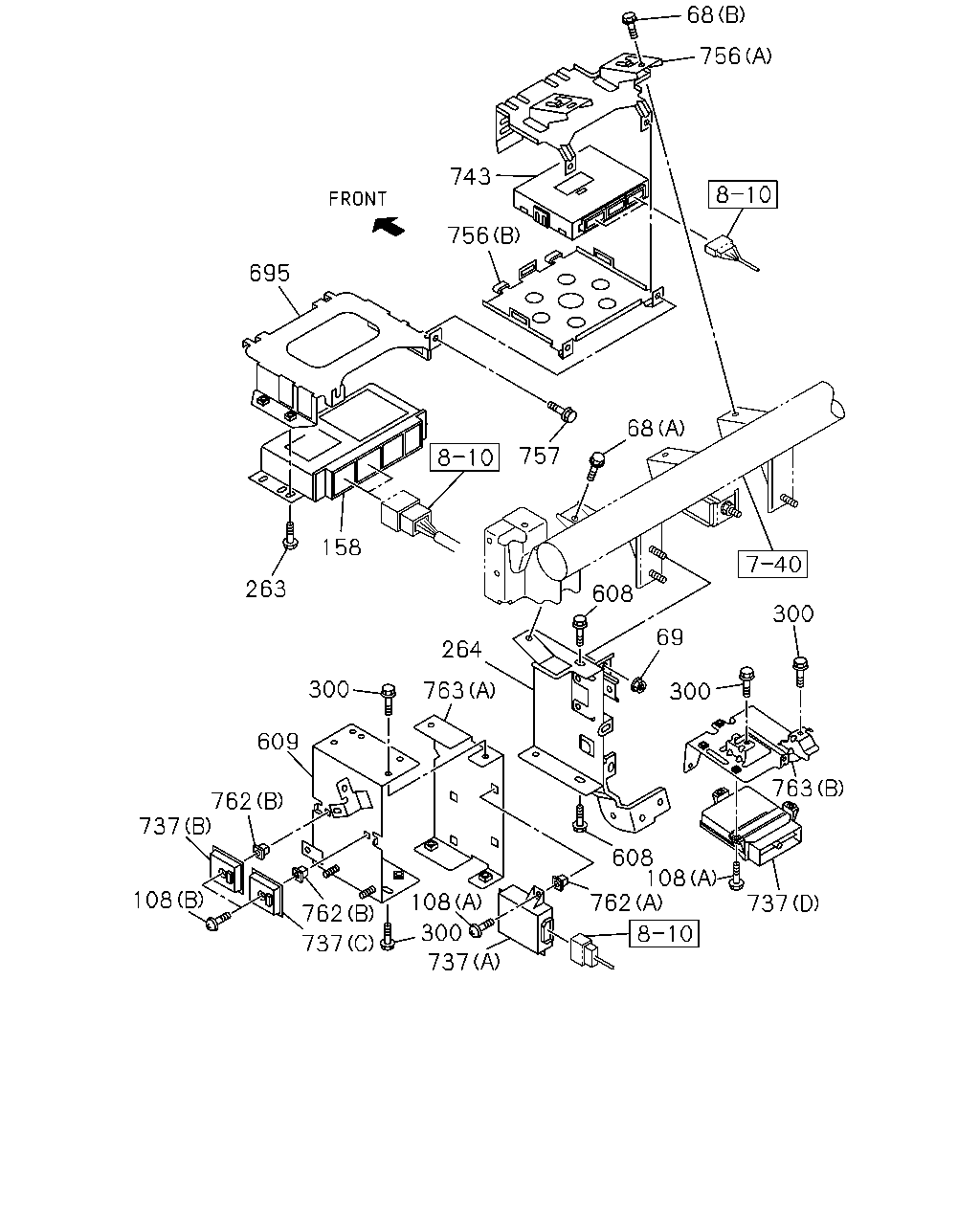

çizim 465043
743 68 756 756 68 757 158 263 695 264 763 300 609 762 737 108 762 737 737 300 108 762 608 108 737 300 763 300 608 69
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1304-
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1304-
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1304-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1304-
108 BOLT; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (A) M6X16 FLANGE 		0-28650-616-0 03 1 1304-
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1304-
108 BOLT; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1304-
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98220-159-0 01 1 1304-
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 1304-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1304-
300 BOLT; CONT UNIT BRKT
A/T ALLISON 4430(Y5V) M6X16 FLANGE 		0-28650-616-0 02 1 1304-
300 BOLT; CONT UNIT BRKT
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 04 1 1304-
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA),SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401
608 BOLT; CONT UNIT,AIR SUS
A/T ALLISON 4430(Y5V) AUTO DOOR LOCK<AU4> SHIFT PATTERN SINGLE-H<EDY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE 		0-28650-616-0 05 1 1304-1401
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1402-
608 BOLT; CONT UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1402-
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1304-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA),SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 1304-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
A/T ALLISON 4430(Y5V) AUTO DOOR LOCK<AU4> SHIFT PATTERN SINGLE-H<EDY> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1304-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> EXC. AUTO DOOR LOCK<AU4> 		8-98095-337-0 01 1 1304-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-0 01 1 1309-1401
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. ANTILOCK BRAKE SYSTEM(BFA),SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-0 01 1 1309-1401
609 BRACKET ASM; ELEC UNIT,AIR SUS
A/T ALLISON 4430(Y5V) AUTO DOOR LOCK<AU4> SHIFT PATTERN SINGLE-H<EDY> EXC. ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-0 01 1 1309-1401
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> EXC. AUTO DOOR LOCK<AU4> 		8-98169-737-0 01 1 1309-1401
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1402-
609 BRACKET ASM; ELEC UNIT,AIR SUS
SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1402-
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1304-
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) SINGAPORE EQUIPMENT(WQ3) (D) 		8-98233-830-0 01 1 1304-
737 CONTROL UNIT; TRANSMISSION
A/T ALLISON 4430(Y5V) EXC. SINGAPORE EQUIPMENT(WQ3) (D) 		8-98215-411-1 01 1 1304-
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) 		1-80111-271-0 01 1 1304-
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) 		8-98095-040-0 01 1 1304-
737 CONTROL UNIT; TRANSMISSION
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (C) 		8-98095-041-0 01 1 1304-
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1304-
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1304-
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1304-
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1304-
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1304-
762 GROMMET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1304-
763 BRACKET; TRANS CONT MODULE
A/T ALLISON 4430(Y5V) (B) 		8-98064-901-0 01 1 1304-
763 BRACKET; TRANS CONT MODULE
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (A) 		8-98085-587-0 01 1 1304-
