Sayfa 8-15 - Isuzu EPC

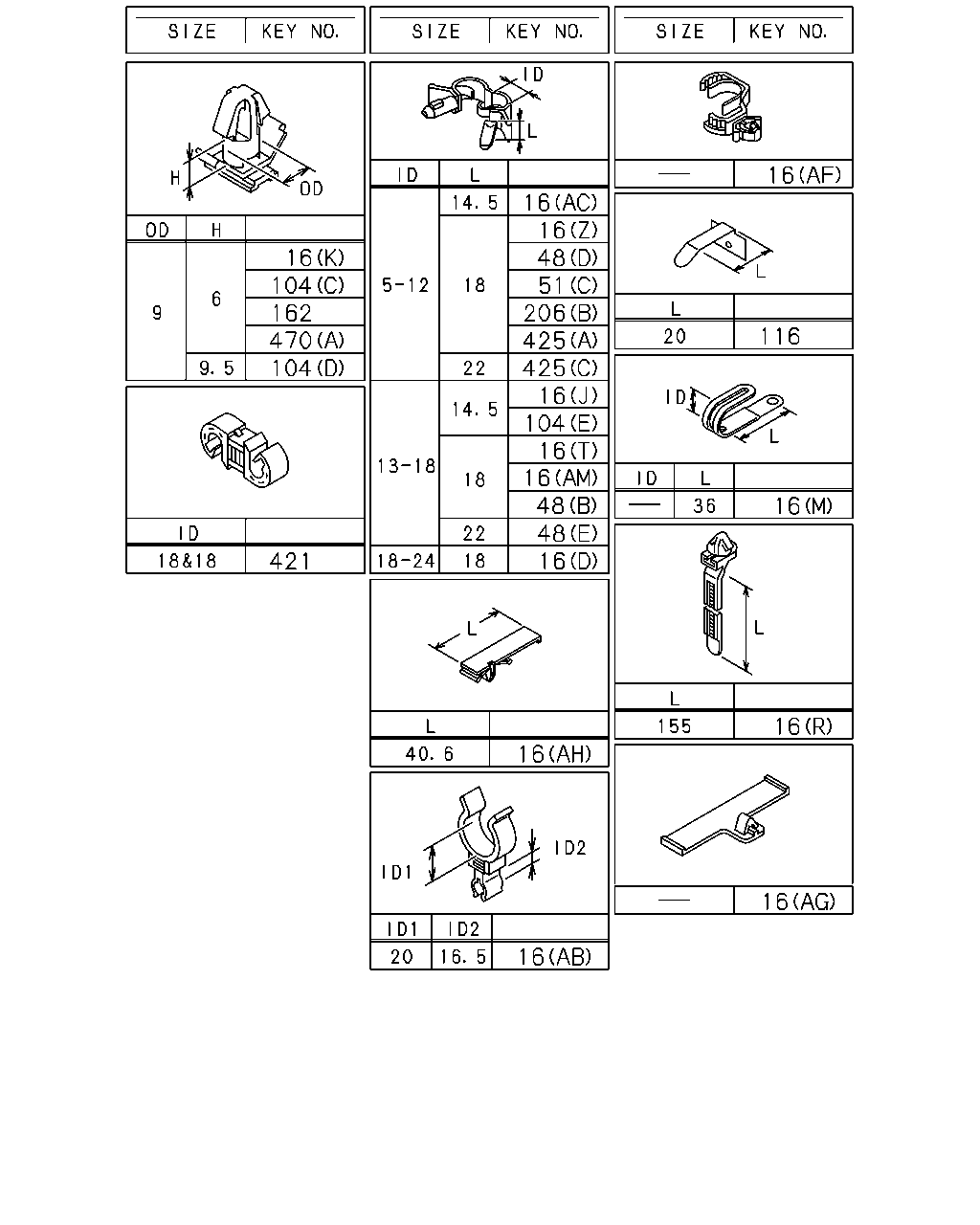

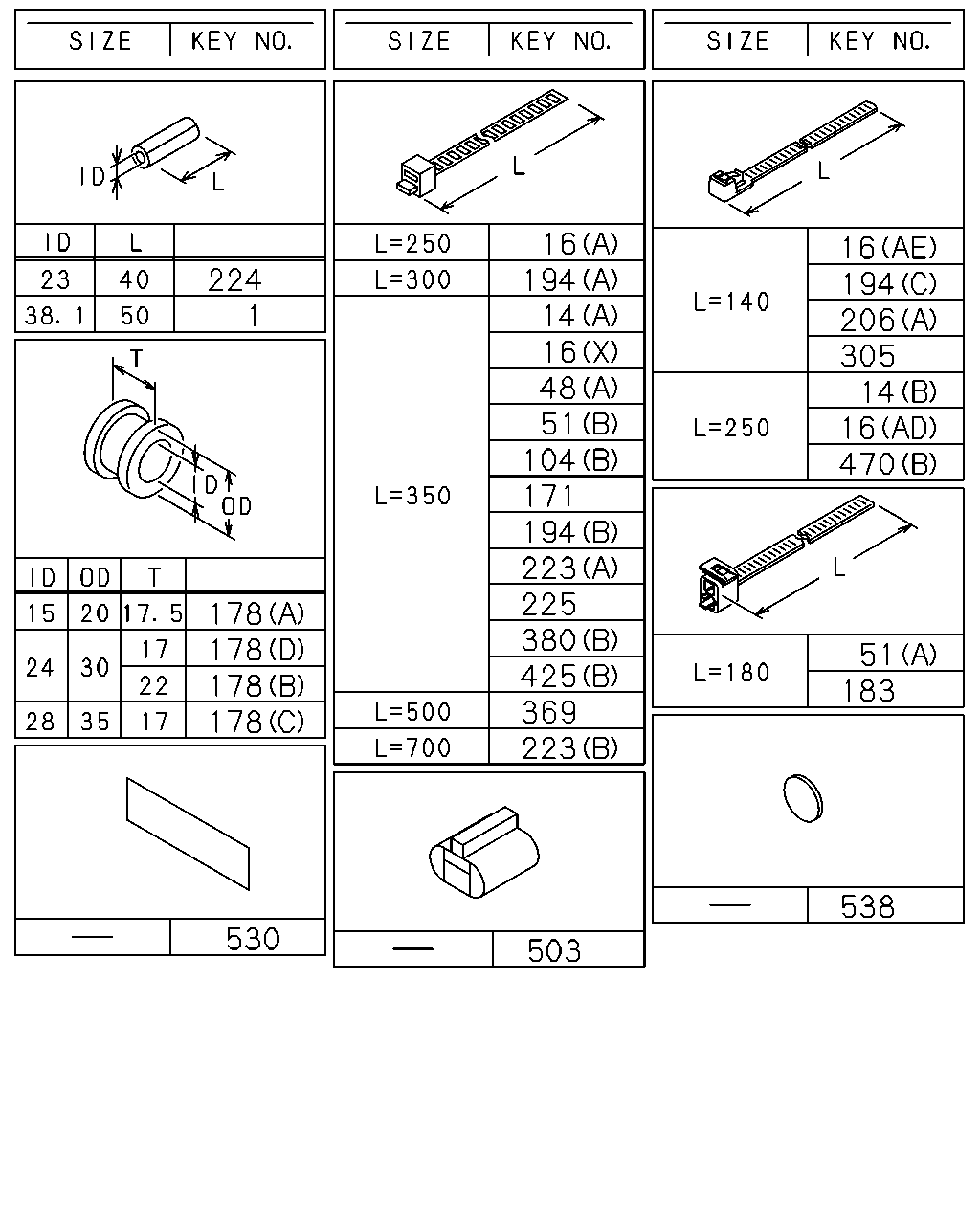

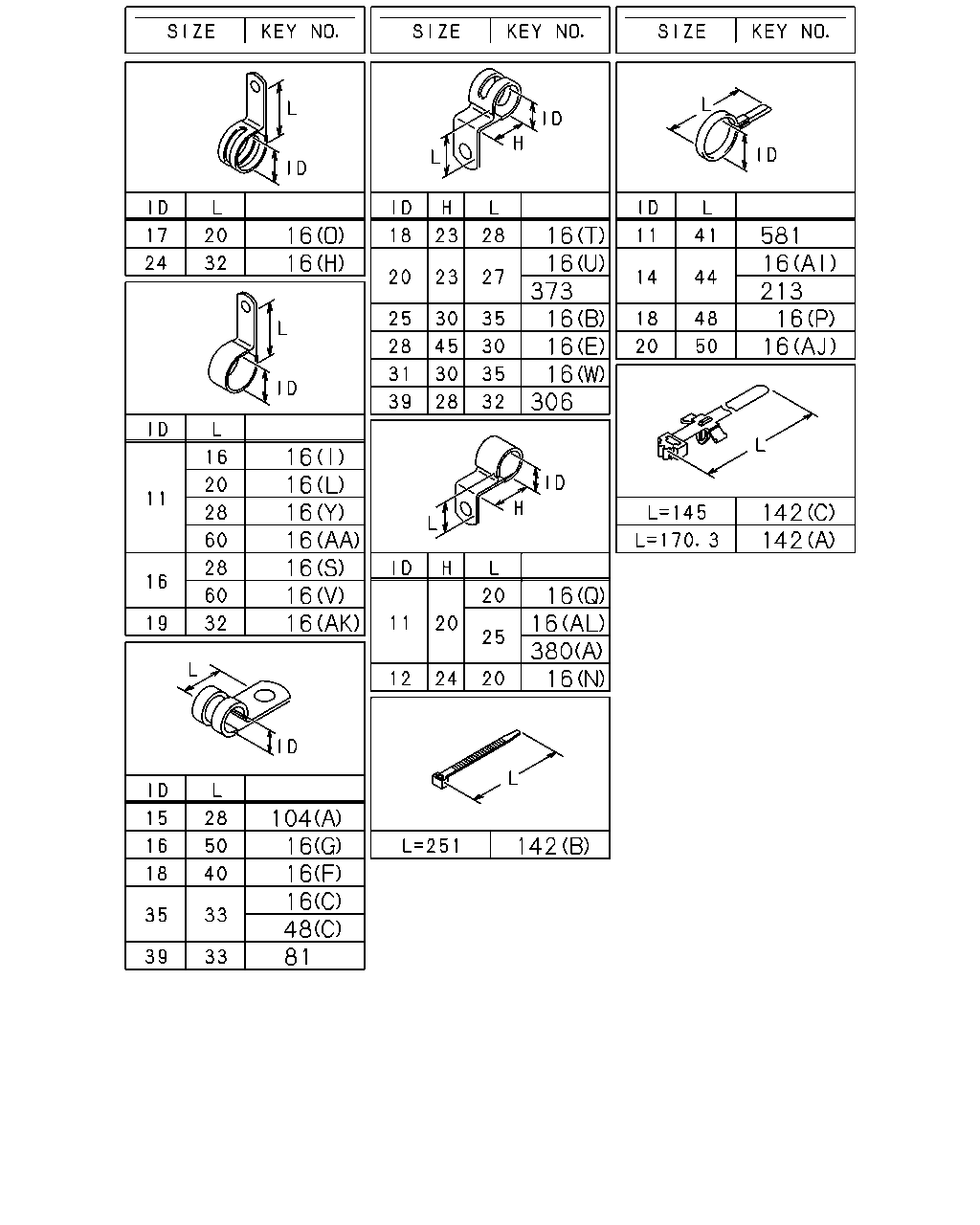

8-15 — FIXING PARTS; WIRING HARNESS (#155109) — 379 parça

224 1 178 178 178 178 530 16 194 14 16 48 51 104 171 194 223 225 380 425 369 223 503 16 194 206 305 14 16 470 51 183 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) ID=38.1 L=50	5-09360-835-0	01	1	1304-
14	CLIP; BAND,HARNESS (B) L=250	1-09707-126-0	02	1	1304-
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS (L) ID=11 L=20	0-95235-035-0	01	1	1304-
16	CLIP; HARNESS (N) ID=12 H=24 L=20	1-09700-605-0	01	1	1304-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-
16	CLIP; HARNESS (AL) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1304-
16	CLIP; HARNESS (C) ID=35 L=33	1-09700-945-0	01	1	1304-
16	CLIP; HARNESS (E) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (F) ID=18 L=40	1-09701-111-0	01	1	1304-
16	CLIP; HARNESS (G) ID=16 L=50	1-09701-158-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-
16	CLIP; HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-
16	CLIP; HARNESS (R) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS (AH) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1304-
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS (P) ID=18 L=48	9-09917-429-0	01	1	1304-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-
16	CLIP; HARNESS (Q) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AK) ID=19 L=32	0-95235-866-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AK) ID=19 L=32	0-95235-866-0	02	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AL) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (Z) ID=5-12 L=18	1-09709-287-0	07	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (T) ID=13-18 L=18	1-09709-291-0	07	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (D) ID=18-24 L=18	1-09709-294-0	02	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (AE) L=250	5-09707-030-1	03	1	1304-1304
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AE) L=250	5-09707-030-1	03	1	1304-1304
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (AE) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (AE) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (I) ID=11 L=16	0-95235-025-0	02	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=250	1-09707-126-0	01	1	1304-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1304-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	13	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (Y) ID=11 L=28	0-95235-055-0	01	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AA) ID=11 L=60	0-95235-096-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=28	0-95235-556-0	01	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=60	0-95235-596-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (X) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (AM) ID=13-18 L=18	1-09709-291-0	10	1	1304-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-
48	CLIP; FRAME HARNESS A/T ALLISON 4430(Y5V) (B) ID=13-18 L=18	1-09709-291-0	08	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	14	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (D) ID=5-12 L=18	1-09709-287-0	02	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	13	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	04	1	1304-
48	CLIP; FRAME HARNESS ZF9S1310 M/T(Y5K) (E) ID=13-18 L=22	1-09709-292-0	01	1	1304-
48	CLIP; FRAME HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1304-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1304-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1304-1410
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13-18 L=18	1-09709-291-0	01	1	1304-1410
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1304-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1304-
178	GROMMET; HARNESS (D) ID=24 OD=30 T=17	9-09956-092-1	01	1	1304-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1304-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	04	1	1304-
178	GROMMET; HARNESS A/T ALLISON 4430(Y5V) (D) ID=24 OD=30 T=17	9-09956-092-1	02	1	1304-
178	GROMMET; HARNESS ZF9S1310 M/T(Y5K) (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	1304-
183	CLIP; CONNECTOR WHEEL BASE 6400MM(64W) L=180	1-09707-162-1	01	1	1304-
194	CLIP; BAND (A) L=300	1-09707-001-1	02	1	1304-
194	CLIP; BAND (C) L=140	5-09707-031-1	02	1	1304-
194	CLIP; BAND WHEEL BASE 6400MM(64W) (B) L=350	1-09707-183-0	08	1	1304-
194	CLIP; BAND WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	07	1	1304-
206	CLIP; FUEL TANK HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1304-
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1304-
223	CLIP; AIR TANK HARNESS (A) L=350	1-09707-183-0	01	1	1304-
223	CLIP; AIR TANK HARNESS (B) L=700	1-09707-190-0	02	1	1304-
224	SLEEVE; RUBBER,HARNESS ID=23 OD=27 L=40	1-09337-015-0	01	1	1304-
225	CLIP; AIR TANK HARNESS A/T ALLISON 4430(Y5V) L=350	1-09707-183-0	02	1	1304-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1304-
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1304-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1304-
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	01	1	1304-
425	CLIP; MODULATOR (A) ID=5-12 L=18	1-09709-287-0	01	1	1304-
425	CLIP; MODULATOR (C) ID=5-12 L=22	1-09709-288-0	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=250	5-09707-030-1	04	1	1304-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6	1-09709-178-0	01	1	1310-
503	CONNECTOR WHEEL BASE 6400MM(64W)	1-82690-666-0	01	1	1304-
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1304-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1304-

16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 104 48 81 142 380 373 306 213 581 142 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (L) ID=11 L=20	0-95235-035-0	01	1	1304-
16	CLIP; HARNESS (N) ID=12 H=24 L=20	1-09700-605-0	01	1	1304-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-
16	CLIP; HARNESS (AL) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1304-
16	CLIP; HARNESS (C) ID=35 L=33	1-09700-945-0	01	1	1304-
16	CLIP; HARNESS (E) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (F) ID=18 L=40	1-09701-111-0	01	1	1304-
16	CLIP; HARNESS (G) ID=16 L=50	1-09701-158-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-
16	CLIP; HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-
16	CLIP; HARNESS (R) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS (AH) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1304-
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS (P) ID=18 L=48	9-09917-429-0	01	1	1304-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-
16	CLIP; HARNESS (Q) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AK) ID=19 L=32	0-95235-866-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AK) ID=19 L=32	0-95235-866-0	02	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AL) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (Z) ID=5-12 L=18	1-09709-287-0	07	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (T) ID=13-18 L=18	1-09709-291-0	07	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (D) ID=18-24 L=18	1-09709-294-0	02	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (AE) L=250	5-09707-030-1	03	1	1304-1304
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AE) L=250	5-09707-030-1	03	1	1304-1304
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (AE) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (AE) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (I) ID=11 L=16	0-95235-025-0	02	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=250	1-09707-126-0	01	1	1304-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1304-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	13	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (Y) ID=11 L=28	0-95235-055-0	01	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AA) ID=11 L=60	0-95235-096-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=28	0-95235-556-0	01	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=60	0-95235-596-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (X) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (AM) ID=13-18 L=18	1-09709-291-0	10	1	1304-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-
48	CLIP; FRAME HARNESS A/T ALLISON 4430(Y5V) (B) ID=13-18 L=18	1-09709-291-0	08	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	14	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (D) ID=5-12 L=18	1-09709-287-0	02	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	13	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	04	1	1304-
48	CLIP; FRAME HARNESS ZF9S1310 M/T(Y5K) (E) ID=13-18 L=22	1-09709-292-0	01	1	1304-
48	CLIP; FRAME HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1304-
81	CLIP; HARNESS ID=39 L=33	8-98009-359-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-
142	CLIP; HARNESS,ENG (A) L=170.3	8-97209-720-0	01	1	1304-
142	CLIP; HARNESS,ENG (B) L=251	8-97619-917-0	01	1	1304-
142	CLIP; HARNESS,ENG (C) L=145	8-98116-079-0	02	1	1304-
213	CLIP; END CROSS HARNESS ZF9S1310 M/T(Y5K) ID=14 L=44	9-09917-427-0	03	1	1304-1304
213	CLIP; END CROSS HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) ID=14 L=44	9-09917-427-0	03	1	1305-
213	CLIP; END CROSS HARNESS A/T ALLISON 4430(Y5V) ID=14 L=44	9-09917-427-0	03	1	1305-
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1304-
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1304-
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	01	1	1304-
581	CLIP; HARNESS,REAR SUSP A/T ALLISON 4430(Y5V) ID=11 L=41	1-09700-403-0	02	1	1304-
581	CLIP; HARNESS,REAR SUSP ZF9S1310 M/T(Y5K) ID=11 L=41	1-09700-403-0	03	1	1304-

211 312 375 335 335 375 375 600

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA)	1-47479-430-0	02	1	1304-
312	BRACKET; CLIP HARNESS A/T ALLISON 4430(Y5V)	1-82698-479-0	01	1	1304-
312	BRACKET; CLIP HARNESS ZF9S1310 M/T(Y5K) L=120	8-97619-440-0	01	1	1304-
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1304-
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82698-167-0	01	1	1304-
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1304-
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1304-
375	BRACKET; AC GEN HARNESS CLIP (C)	8-98229-600-0	01	1	1304-
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1304-

38 38 150 139 38 150 242 466 38 139 150 127 38 386 38 386 490 38 38 86 139 242 313 38 139 139 524 294 219 340 525 515 515 423 38 358 377 38 242 377

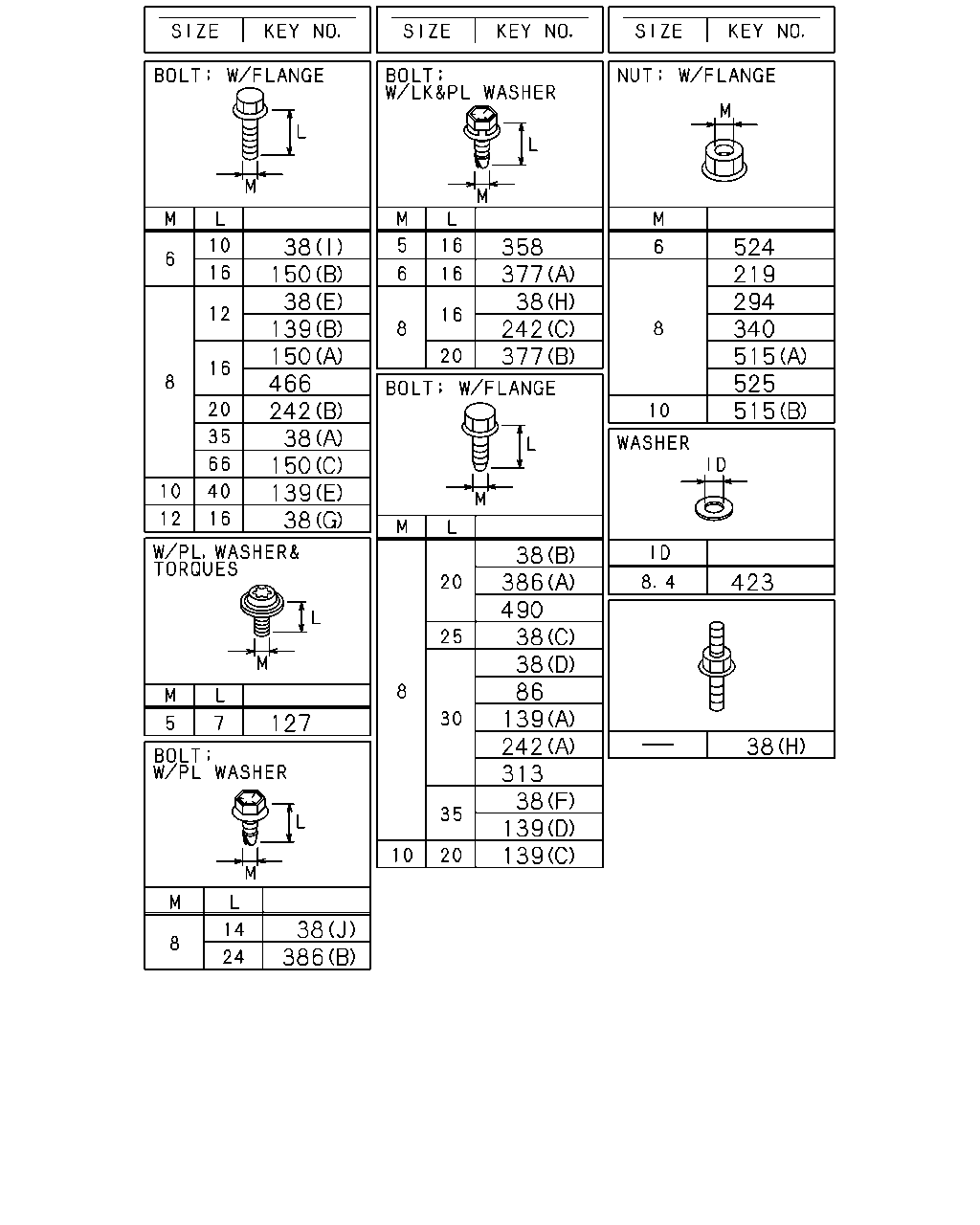

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE	0-28050-610-0	01	1	1304-
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE	0-28050-835-0	03	1	1304-
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1304-
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	08	1	1304-
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	03	1	1304-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	05	1	1304-
38	BOLT; CLIP,HARNESS (A) M8X35 FLANGE	0-28650-835-0	01	1	1304-
38	BOLT; CLIP,HARNESS (A) M8X35 FLANGE	0-28650-835-0	02	1	1304-
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	03	1	1304-
38	BOLT; CLIP,HARNESS A/T ALLISON 4430(Y5V) (B) M8X20 FLANGE	0-28650-820-0	04	1	1304-
38	BOLT; CLIP,HARNESS A/T ALLISON 4430(Y5V) (H) M8X15,M8X17 L=40	8-98009-913-0	01	1	1304-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1304-
38	BOLT; CLIP,HARNESS ZF9S1310 M/T(Y5K) (E) M8X12 FLANGE	0-28050-812-0	02	1	1304-
86	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1304-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1304-
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	1304-
139	BOLT; BRKT (C) M10X20 FLANGE	0-28151-020-0	02	1	1304-
139	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1304-
139	BOLT; BRKT (D) M8X35 FLANGE	0-28650-835-0	01	1	1304-
139	BOLT; BRKT A/T ALLISON 4430(Y5V) (E) M10X40 FLANGE	0-28051-040-0	02	1	1304-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	01	1	1304-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	04	1	1304-
139	BOLT; BRKT WHEEL BASE 6400MM(64W) (A) M8X30 FLANGE	0-28650-830-0	13	1	1304-
139	BOLT; BRKT WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE	0-28650-830-0	12	1	1304-
150	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	1304-
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	10	1	1304-
150	BOLT; CLIP (C) M8X66 FLANGE	8-98081-507-0	02	1	1304-
219	NUT M8 FLANGE	0-91180-108-0	08	1	1304-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1305-1407
219	NUT M8 FLANGE	0-91180-108-0	07	1	1408-
219	NUT A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	04	1	1304-
219	NUT A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	01	1	1304-1304
219	NUT M8 FLANGE	0-91180-108-0	01	1	1304-1304
219	NUT M8 FLANGE	0-91180-108-0	07	1	1305-1407
219	NUT M8 FLANGE	0-91180-108-0	01	1	1408-
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1304-
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1304-
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1304-
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1304-
294	NUT M8 FLANGE	0-91180-108-0	02	1	1304-1304
294	NUT M8 FLANGE	0-91180-108-0	09	1	1305-
294	NUT A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	05	1	1304-1304
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	01	1	1304-
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	1304-
294	NUT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	06	1	1304-1304
313	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	1304-
313	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	1304-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	03	1	1304-
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1304-
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1304-
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1304-
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	02	1	1304-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1304-
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	1304-
490	BOLT; CLIP,RELAY BOX M8X20 FLANGE	0-28650-820-0	01	1	1304-
515	NUT; BRKT A/T ALLISON 4430(Y5V) (B) M10 FLANGE	0-91180-210-0	02	1	1304-
515	NUT; BRKT WHEEL BASE 6400MM(64W) (A) M8 FLANGE	0-91180-108-0	13	1	1304-
515	NUT; BRKT WHEEL BASE 6600MM(66W) (A) M8 FLANGE	0-91180-108-0	12	1	1304-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	1304-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-

16 104 470 162 104 16 421 16 48 16 51 425 206 425 16 16 104 48 16 48 16 16 16 116 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (L) ID=11 L=20	0-95235-035-0	01	1	1304-
16	CLIP; HARNESS (N) ID=12 H=24 L=20	1-09700-605-0	01	1	1304-
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1304-
16	CLIP; HARNESS (AL) ID=18 H=23 L=28	1-09700-860-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1304-
16	CLIP; HARNESS (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1304-
16	CLIP; HARNESS (C) ID=35 L=33	1-09700-945-0	01	1	1304-
16	CLIP; HARNESS (E) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1304-
16	CLIP; HARNESS (F) ID=18 L=40	1-09701-111-0	01	1	1304-
16	CLIP; HARNESS (G) ID=16 L=50	1-09701-158-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS WHEEL BASE 6400MM(64W) (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1304-
16	CLIP; HARNESS (X) L=350	1-09707-183-0	05	1	1304-
16	CLIP; HARNESS (J) ID=13-18 L=14.5	1-09709-290-0	01	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	02	1	1304-
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1304-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	1304-
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	1304-
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1304-
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	1304-
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1304-
16	CLIP; HARNESS (R) L=155	8-97173-307-0	18	1	1304-
16	CLIP; HARNESS (AH) L=40.6	8-97229-357-0	02	1	1304-
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1304-
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	1304-
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1304-
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1304-
16	CLIP; HARNESS (P) ID=18 L=48	9-09917-429-0	01	1	1304-
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	1304-
16	CLIP; HARNESS (Q) ID=11 H=20 L=20	8-98033-780-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AK) ID=19 L=32	0-95235-866-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AK) ID=19 L=32	0-95235-866-0	02	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (AL) ID=11 H=20 L=25	1-09700-848-0	02	1	1304-
16	CLIP; HARNESS HEATER & DEFROSTER(C41) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (Z) ID=5-12 L=18	1-09709-287-0	01	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (Z) ID=5-12 L=18	1-09709-287-0	07	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (T) ID=13-18 L=18	1-09709-291-0	07	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) (D) ID=18-24 L=18	1-09709-294-0	02	1	1304-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (AE) L=250	5-09707-030-1	03	1	1304-1304
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AE) L=250	5-09707-030-1	03	1	1304-1304
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (AE) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (AE) L=250	5-09707-030-1	03	1	1305-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (I) ID=11 L=16	0-95235-025-0	02	1	1304-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=250	1-09707-126-0	01	1	1304-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (Z) ID=5-12 L=18	1-09709-287-0	05	1	1304-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	13	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (Y) ID=11 L=28	0-95235-055-0	01	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> (AA) ID=11 L=60	0-95235-096-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=28	0-95235-556-0	01	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=60	0-95235-596-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (X) L=350	1-09707-183-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (Z) ID=5-12 L=18	1-09709-287-0	02	1	1304-
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (AM) ID=13-18 L=18	1-09709-291-0	10	1	1304-
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1304-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	06	1	1304-
48	CLIP; FRAME HARNESS A/T ALLISON 4430(Y5V) (B) ID=13-18 L=18	1-09709-291-0	08	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	14	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6400MM(64W) (D) ID=5-12 L=18	1-09709-287-0	02	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	13	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (D) ID=5-12 L=18	1-09709-287-0	03	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	01	1	1304-
48	CLIP; FRAME HARNESS WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18	1-09709-291-0	04	1	1304-
48	CLIP; FRAME HARNESS ZF9S1310 M/T(Y5K) (E) ID=13-18 L=22	1-09709-292-0	01	1	1304-
48	CLIP; FRAME HARNESS ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (B) ID=13-18 L=18	1-09709-291-0	05	1	1304-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	1304-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1304-1410
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350	1-09707-183-0	01	1	1411-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=13-18 L=18	1-09709-291-0	01	1	1304-1410
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1304-
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1304-
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1304-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1304-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1304-
206	CLIP; FUEL TANK HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1304-
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	1304-
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	1304-
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	01	1	1304-
425	CLIP; MODULATOR (A) ID=5-12 L=18	1-09709-287-0	01	1	1304-
425	CLIP; MODULATOR (C) ID=5-12 L=22	1-09709-288-0	01	1	1304-
470	CLIP; HARNESS,LICENSE LAMP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=250	5-09707-030-1	04	1	1304-
470	CLIP; HARNESS,LICENSE LAMP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6	1-09709-178-0	01	1	1310-

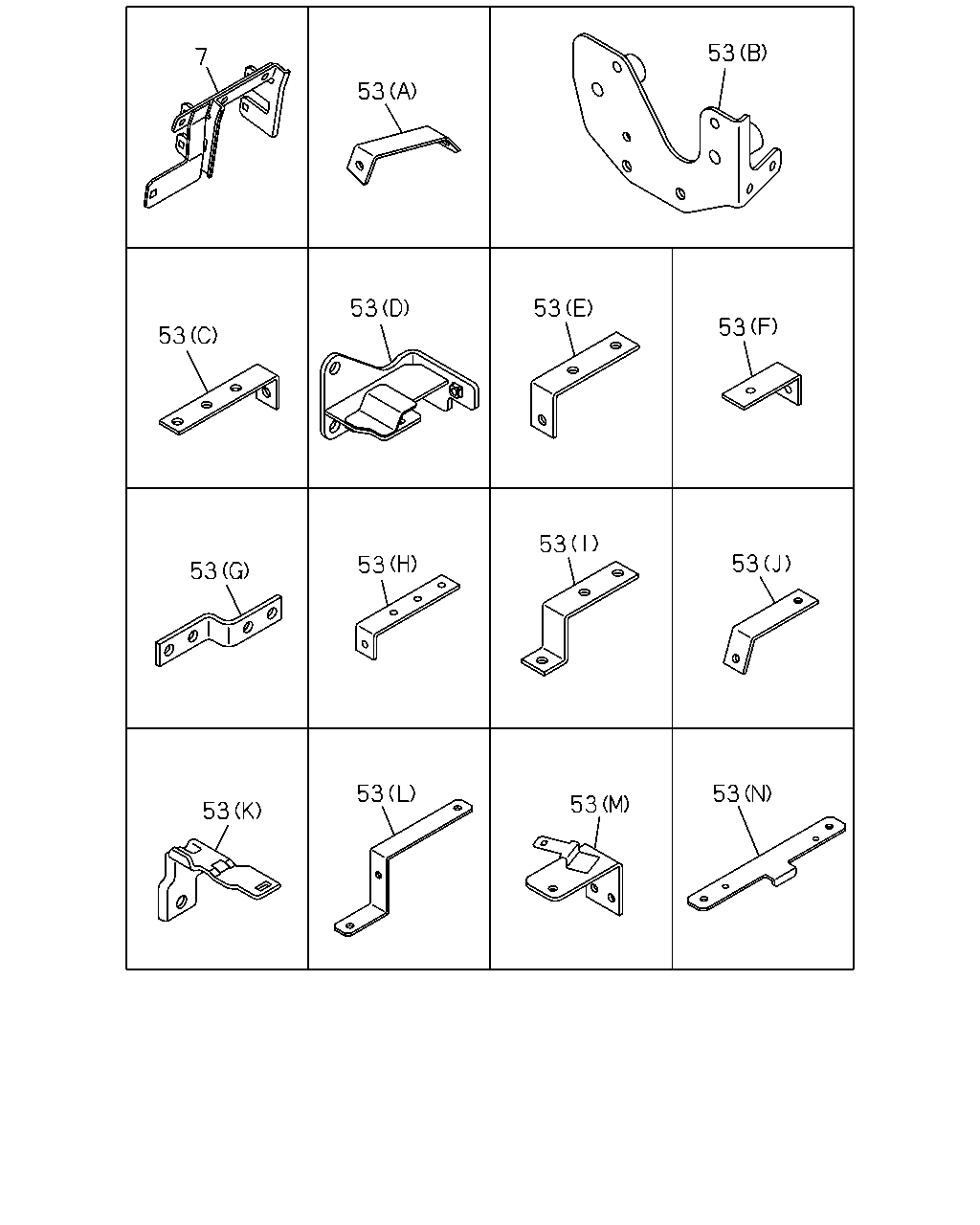

7 53 53 53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1304-
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1304-1404
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1304-
53	BRACKET; HARNESS (A)	1-47479-537-0	06	1	1304-
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1304-
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1304-
53	BRACKET; HARNESS (C) L=115	1-82698-360-0	01	1	1304-
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1304-
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1304-
53	BRACKET; HARNESS (L)	8-98078-801-0	01	1	1304-
53	BRACKET; HARNESS (M)	8-98102-490-0	01	1	1304-
53	BRACKET; HARNESS (I)	8-98124-778-0	01	1	1304-
53	BRACKET; HARNESS (D)	8-98127-603-1	01	1	1304-
53	BRACKET; HARNESS (B)	8-98178-990-0	01	1	1304-
53	BRACKET; HARNESS A/T ALLISON 4430(Y5V) (N)	8-98202-645-0	01	1	1304-
53	BRACKET; HARNESS WHEEL BASE 6400MM(64W) (A)	1-47479-537-0	14	1	1304-
53	BRACKET; HARNESS WHEEL BASE 6600MM(66W) (A)	1-47479-537-0	13	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
