◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#155108) — 176 parça

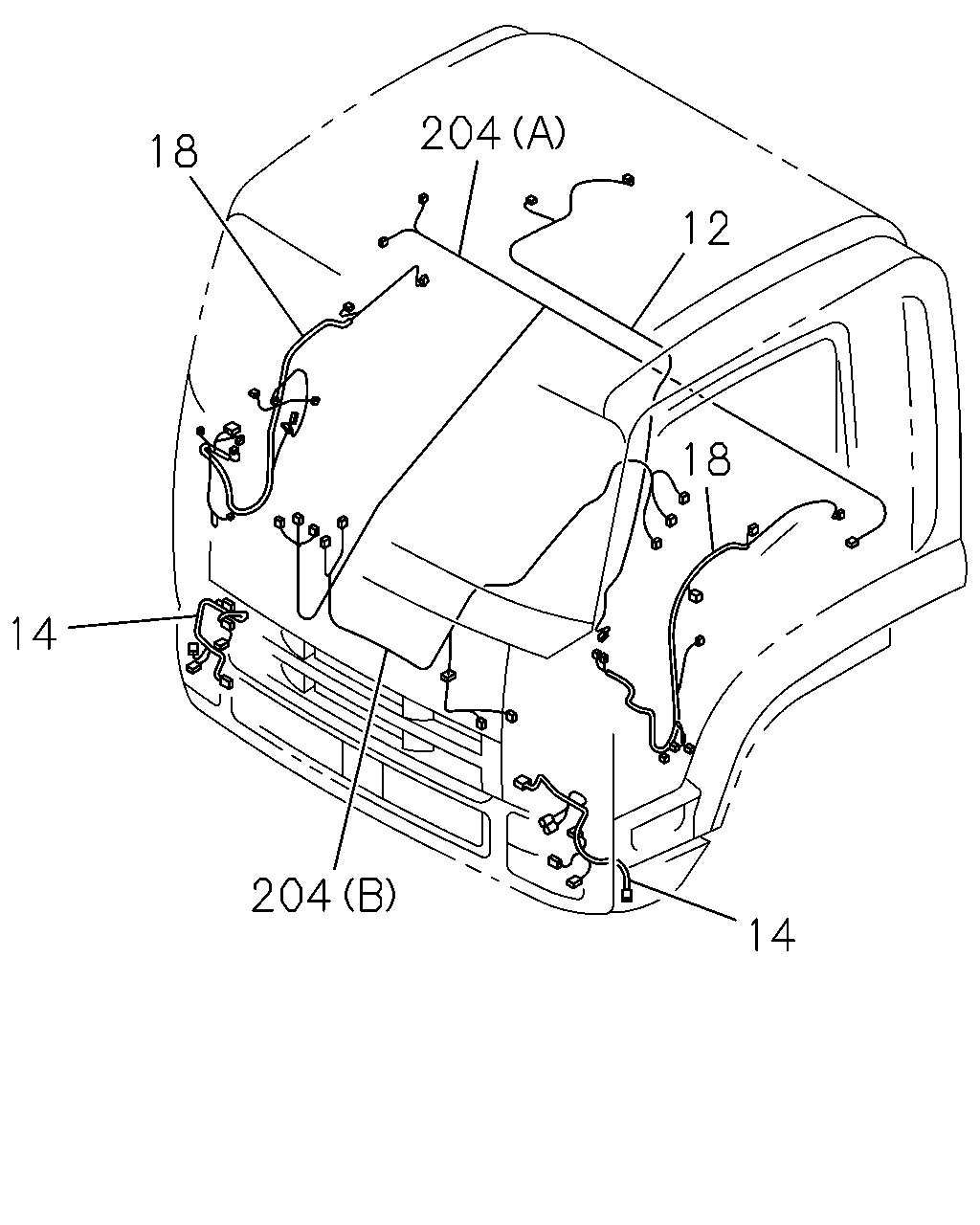

çizim 464417
204 12 18 14 204 14 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98048-931-2 01 1 1304-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98041-949-2 01 1 1304-
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98103-680-1 02 1 1304-
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> 		8-98075-629-3 02 1 1304-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-440-1 01 1 1304-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-439-1 01 1 1304-
18 HARNESS; DOOR
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> 		8-98076-305-3 01 1 1304-
18 HARNESS; DOOR
DOOR WINDOW MANUAL CONT<SKF> EXC. AUTO DOOR LOCK<AU4> 		8-98076-304-3 01 1 1304-
204 HARNESS; CABLE,FLOOR
A/T<X9D> (B) 		8-98213-049-1 01 1 1304-
204 HARNESS; CABLE,FLOOR
A/T<X9D> EXC. AIR BAG DRIVER(AJ3) (A) 		8-98234-722-0 01 1 1304-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) A/T<X9D> (A) 		8-98234-720-0 01 1 1304-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) ZF M/T<X9E> (A) 		8-98155-318-0 01 1 1304-
204 HARNESS; CABLE,FLOOR
ZF M/T<X9E> (B) 		8-98155-317-2 01 1 1304-
204 HARNESS; CABLE,FLOOR
ZF M/T<X9E> EXC. AIR BAG DRIVER(AJ3) (A) 		8-98226-474-0 01 1 1304-

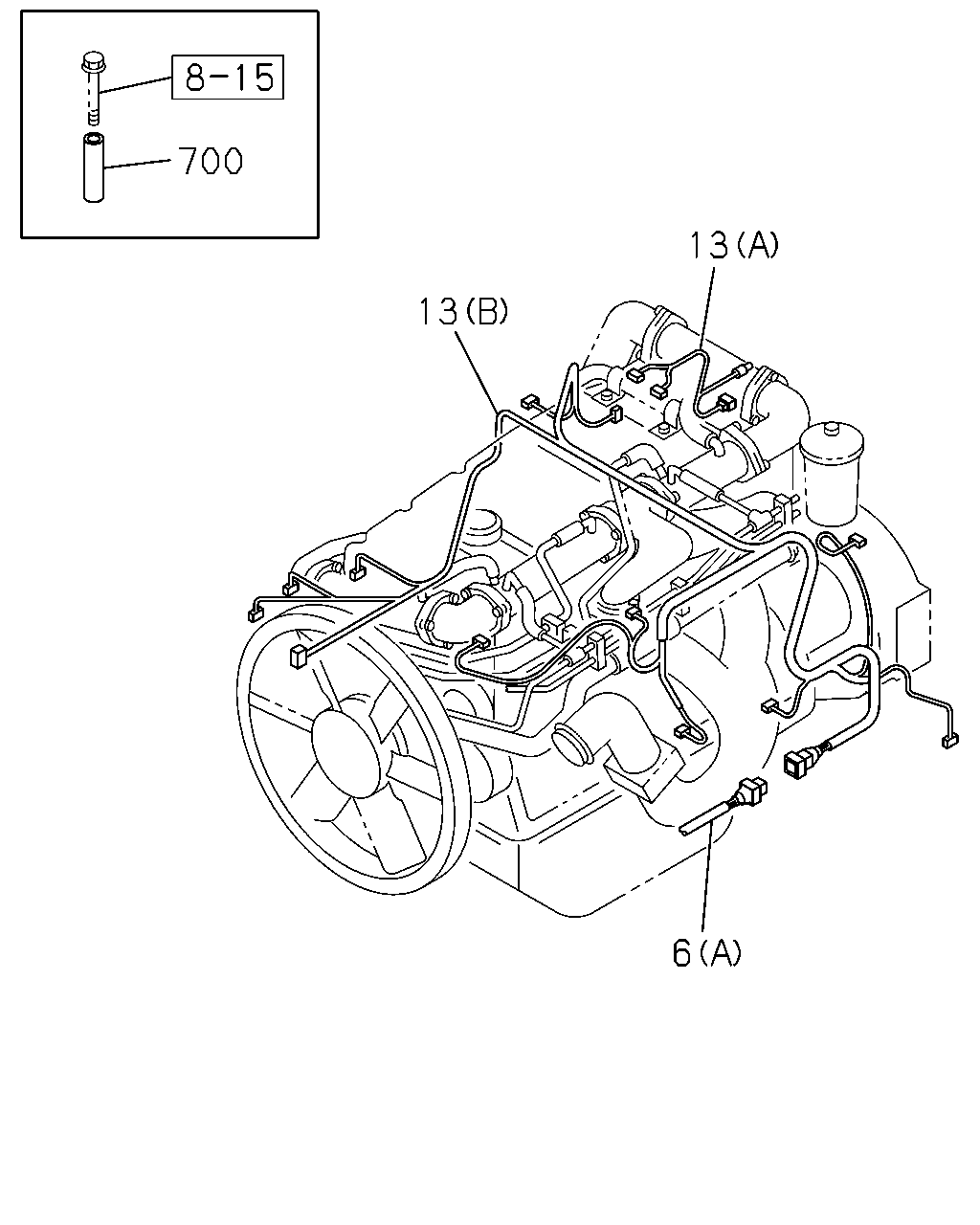

çizim 464575
700 13 13 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1304-
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (A) 		8-98235-473-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5> (A) 		8-98235-472-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A) 		8-98235-474-1 01 1 1304-
13 HARNESS; ENG
(A) 		8-98152-373-1 01 1 1304-
13 HARNESS; ENG
(B) 		8-98210-223-1 01 1 1304-
700 TUBE; DISTANCE
L=51 		1-11369-157-0 02 1 1304-

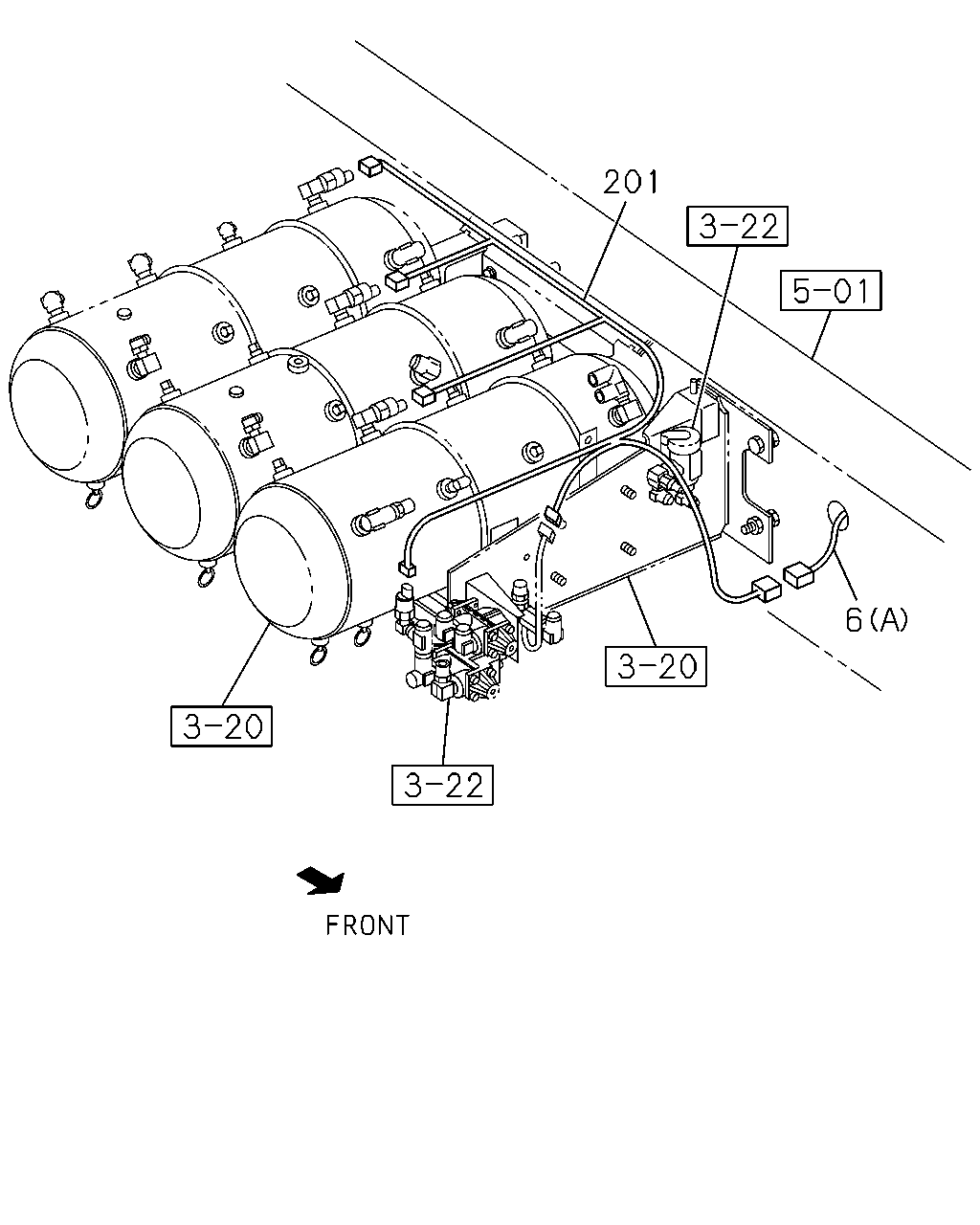

çizim 464670
201 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1304-
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (A) 		8-98235-473-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5> (A) 		8-98235-472-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A) 		8-98235-474-1 01 1 1304-
201 HARNESS; AIR TANK
WHEEL BASE 6400MM(64W) 		8-98079-765-5 01 1 1304-
201 HARNESS; AIR TANK
WHEEL BASE 6600MM(66W) 		8-98192-282-0 01 1 1304-

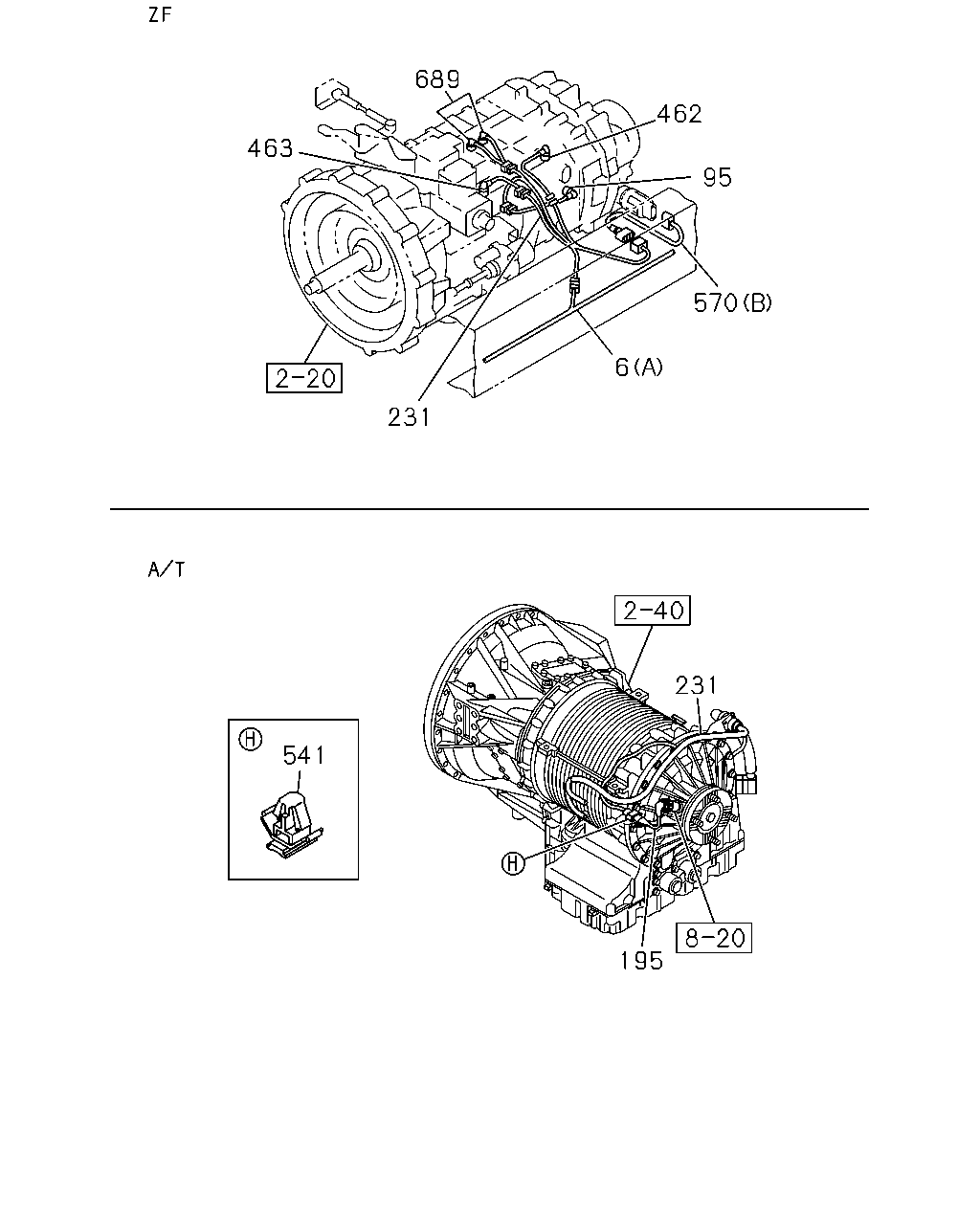

çizim 464840
463 689 462 95 570 6 231 541 231 195
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1304-
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (A) 		8-98235-473-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5> (A) 		8-98235-472-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A) 		8-98235-474-1 01 1 1304-
95 HARNESS; NEUTRAL SW
SHIFT PATTERN DOUBLE-H<EDZ> RED 		8-98145-855-0 01 1 1304-
95 HARNESS; NEUTRAL SW
SHIFT PATTERN SINGLE-H<EDY> RED 		8-98145-854-0 01 1 1304-
195 HARNESS; EXT
A/T ALLISON 4430(Y5V) 		1-82671-045-1 01 1 1304-
231 HARNESS; TRANS
A/T ALLISON 4430(Y5V) 		8-98197-147-0 01 1 1312-
231 HARNESS; TRANS
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> 		8-98172-096-0 01 1 1304-
231 HARNESS; TRANS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98163-093-0 01 1 1304-
462 HARNESS; SW,RANGE
ZF9S1310 M/T(Y5K) BLUE 		8-98145-857-0 01 1 1304-
463 HARNESS; SW,BACK UP
ZF9S1310 M/T(Y5K) BLACK 		8-98145-856-0 01 1 1304-
541 CLIP
A/T ALLISON 4430(Y5V) OD=9 H=6 		1-09709-178-0 01 1 1304-
570 HARNESS; SPEED SENSOR
A/T ALLISON 4430(Y5V) (B) 		8-98091-562-0 01 1 1304-
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K) (B) 		8-98058-327-1 01 1 1304-
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K) (A) 		8-98148-602-0 01 1 1304-
689 HARNESS; PRESSURE & ECU SWITCH
SHIFT PATTERN SINGLE-H<EDY> 		8-98148-603-0 01 1 1304-

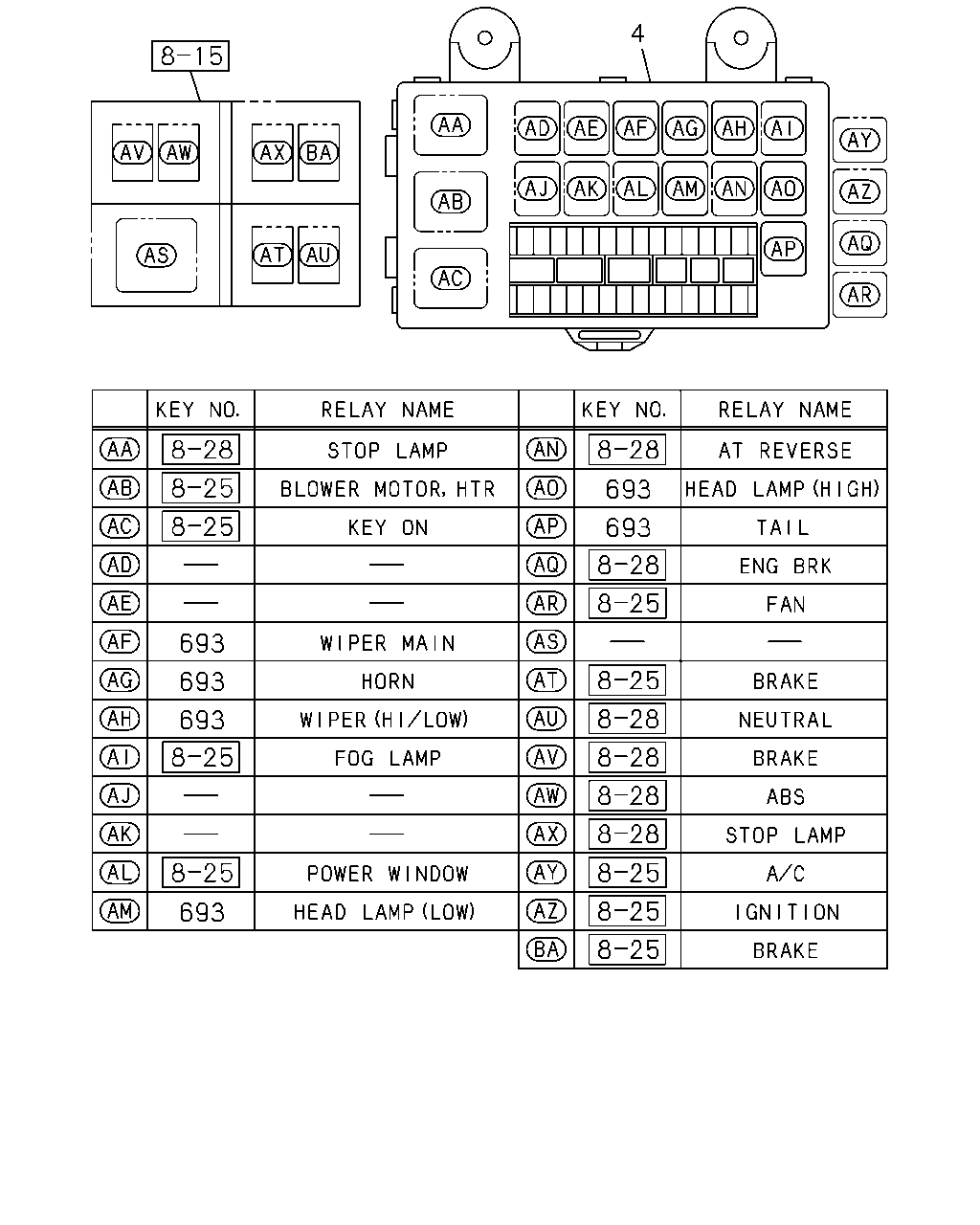

çizim 464842
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1304-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1304-

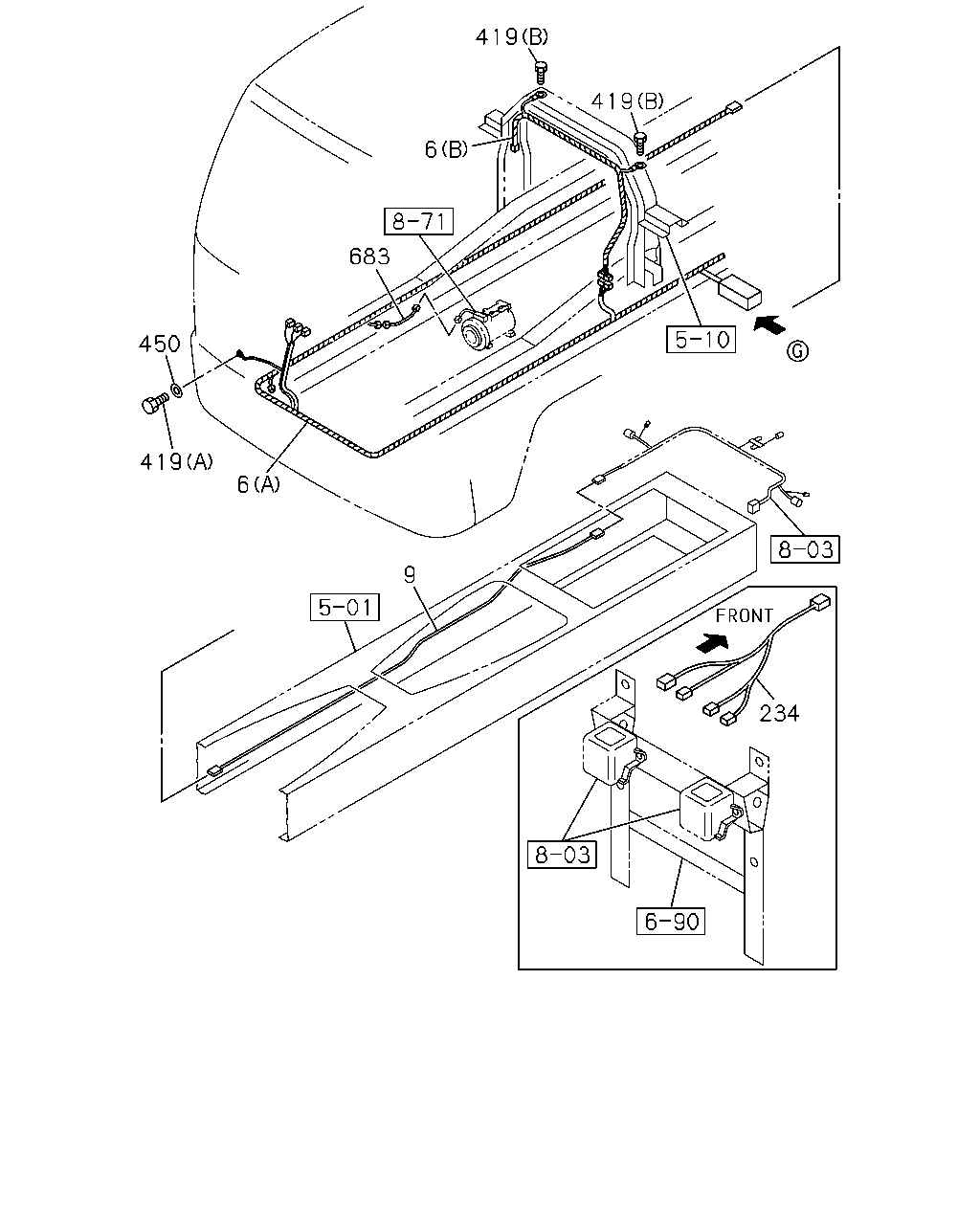

çizim 464931
419 419 6 683 450 419 9 234 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1304-
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (A) 		8-98235-473-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5> (A) 		8-98235-472-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A) 		8-98235-474-1 01 1 1304-
9 HARNESS; FRAME,RR
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) ANTILOCK BRAKE SYSTEM(BFA) 		8-98165-039-0 01 1 1304-
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) 		8-98235-489-0 01 1 1304-
9 HARNESS; FRAME,RR
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) ANTILOCK BRAKE SYSTEM(BFA) 		8-98235-487-0 01 1 1304-
234 HARNESS; LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98131-066-0 01 1 1304-
419 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1304-
419 BOLT; CAB EARTH
(B) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1304-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 01 1 1304-
683 HARNESS; EXT,COOLER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97609-020-1 01 1 1304-

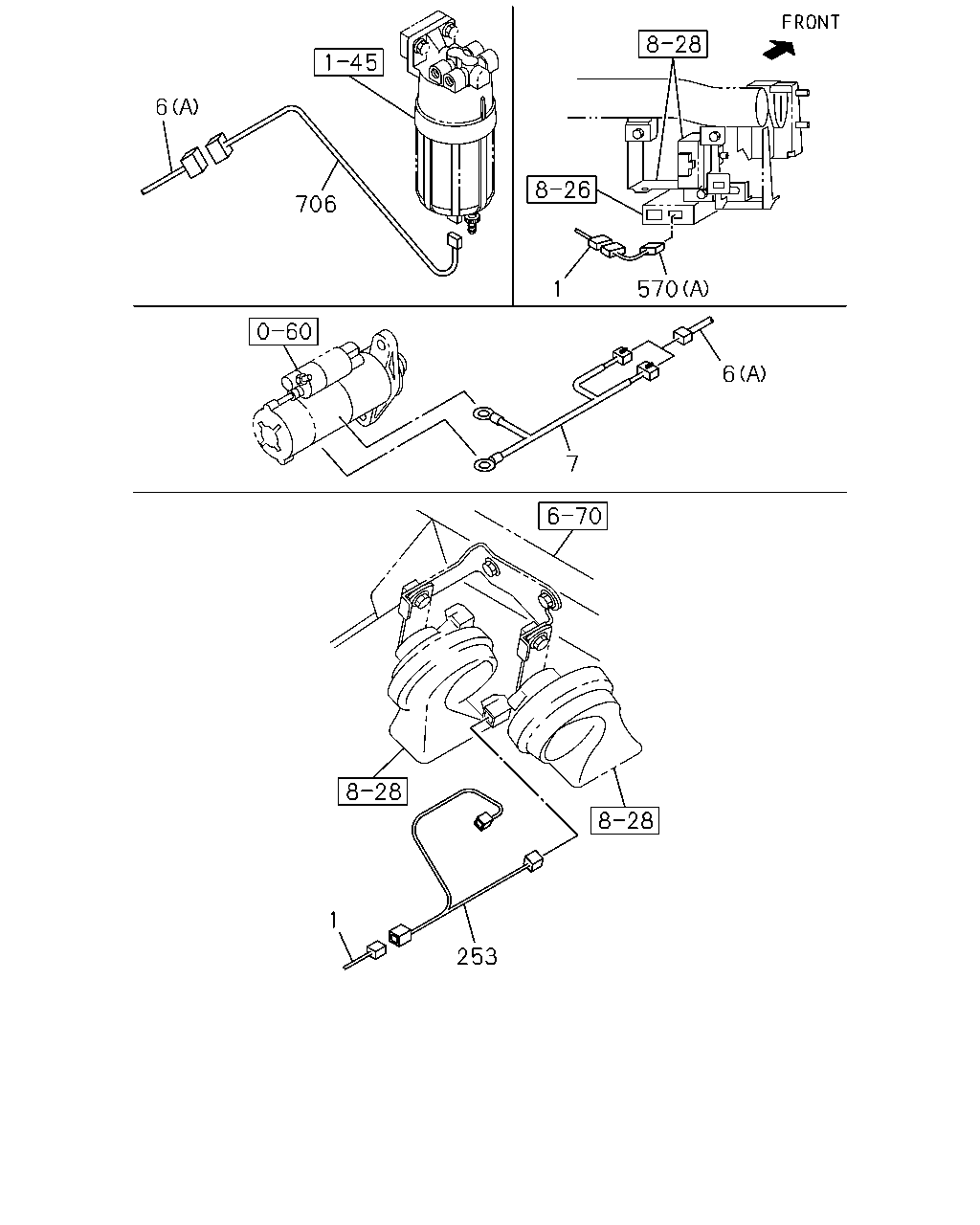

çizim 464944
6 706 1 570 6 7 253 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) 		8-98234-218-2 01 1 1304-
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3) 		8-98234-219-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98234-212-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) 		8-98234-213-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3) 		8-98211-962-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY> 		8-98211-961-2 01 1 1304-
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1304-
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (A) 		8-98235-473-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5> (A) 		8-98235-472-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A) 		8-98235-474-1 01 1 1304-
7 LINK ASM; FUSIBLE 8-98088-132-0 01 1 1304-
253 HARNESS; EXT,HORN
ELECTRICAL HORN<WB7> 		8-98074-081-2 01 1 1304-
253 HARNESS; EXT,HORN
EXC. ELECTRICAL HORN<WB7> 		8-98074-080-3 01 1 1304-
570 HARNESS; SPEED SENSOR
A/T ALLISON 4430(Y5V) (B) 		8-98091-562-0 01 1 1304-
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K) (B) 		8-98058-327-1 01 1 1304-
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K) (A) 		8-98148-602-0 01 1 1304-
706 HARNESS; EXT,SEDIMENTER
FUEL TANK 200L AL<THF> 		8-98187-173-0 01 1 1304-1409
706 HARNESS; EXT,SEDIMENTER
FUEL TANK 200L AL<THF> 		8-98187-172-1 01 1 1410-
706 HARNESS; EXT,SEDIMENTER
FUEL TANK 300L<RF5> 		8-98235-496-2 01 1 1304-
706 HARNESS; EXT,SEDIMENTER
FUEL TANK 400L<SDH> 		8-98217-726-1 01 1 1304-

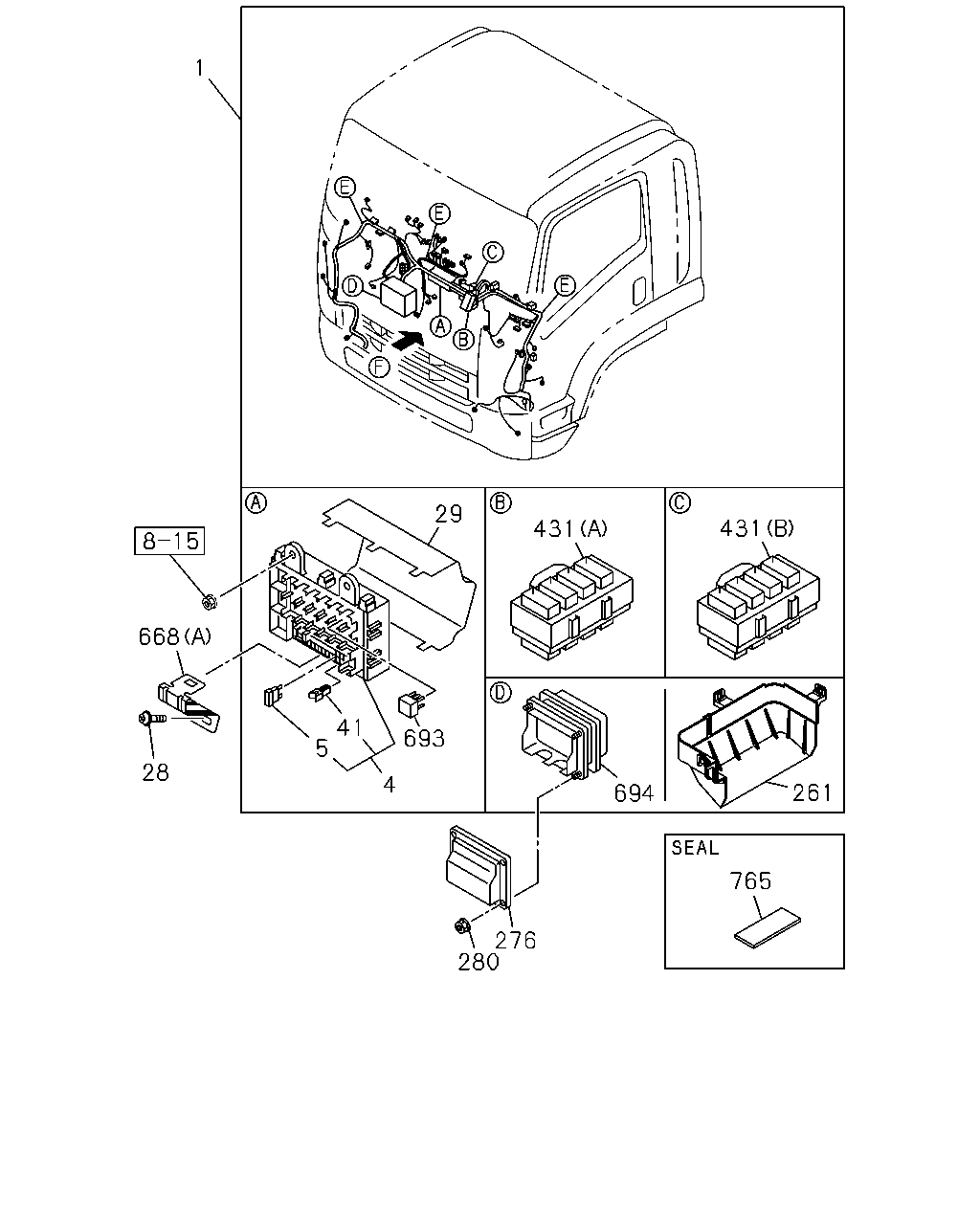

çizim 464993
1 668 41 5 4 693 29 431 431 261 765 694 276 280 28
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) 		8-98234-218-2 01 1 1304-
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3) 		8-98234-219-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98234-212-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) 		8-98234-213-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3) 		8-98211-962-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY> 		8-98211-961-2 01 1 1304-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1304-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1304-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1304-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1304-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1304-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1304-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1304-
41 PULLER; FUSE 8-98054-260-0 01 1 1304-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1304-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1304-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1304-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1304-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (C) 10P BLUE 		1-82699-598-0 04 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (C) 10P BLUE 		1-82699-598-0 04 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (E) 10P GREEN 		1-82699-599-0 06 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (D) 10P BROWN 		1-82699-601-0 01 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (D) 10P BROWN 		1-82699-601-0 01 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (E) 10P GREEN 		1-82699-599-0 07 1 1304-
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1304-
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1304-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1304-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1304-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-
çizim 465005
1 2 2 2 2 431 431 535 668 533 536 534
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) 		8-98234-218-2 01 1 1304-
1 HARNESS; CAB
A/T ALLISON 4430(Y5V) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3) 		8-98234-219-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) HONG KONG EQUIPMENT(PQ1) EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98234-212-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) AIR BAG DRIVER(AJ3) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) 		8-98234-213-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3) 		8-98211-962-2 01 1 1304-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) ANTILOCK BRAKE SYSTEM(BFA) SINGAPORE EQUIPMENT(WQ3) EXC. AIR BAG DRIVER(AJ3),SHIFT PATTERN SINGLE-H<EDY> 		8-98211-961-2 01 1 1304-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1304-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1304-
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 02 1 1304-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1304-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1304-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (C) 10P BLUE 		1-82699-598-0 04 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (C) 10P BLUE 		1-82699-598-0 04 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (E) 10P GREEN 		1-82699-599-0 06 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (D) 10P BROWN 		1-82699-601-0 01 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (D) 10P BROWN 		1-82699-601-0 01 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (E) 10P GREEN 		1-82699-599-0 07 1 1304-
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 1304-
534 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 1304-
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1304-
536 NUT; BRKT FIX
M8 		8-98041-929-0 01 1 1304-
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1304-
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1304-

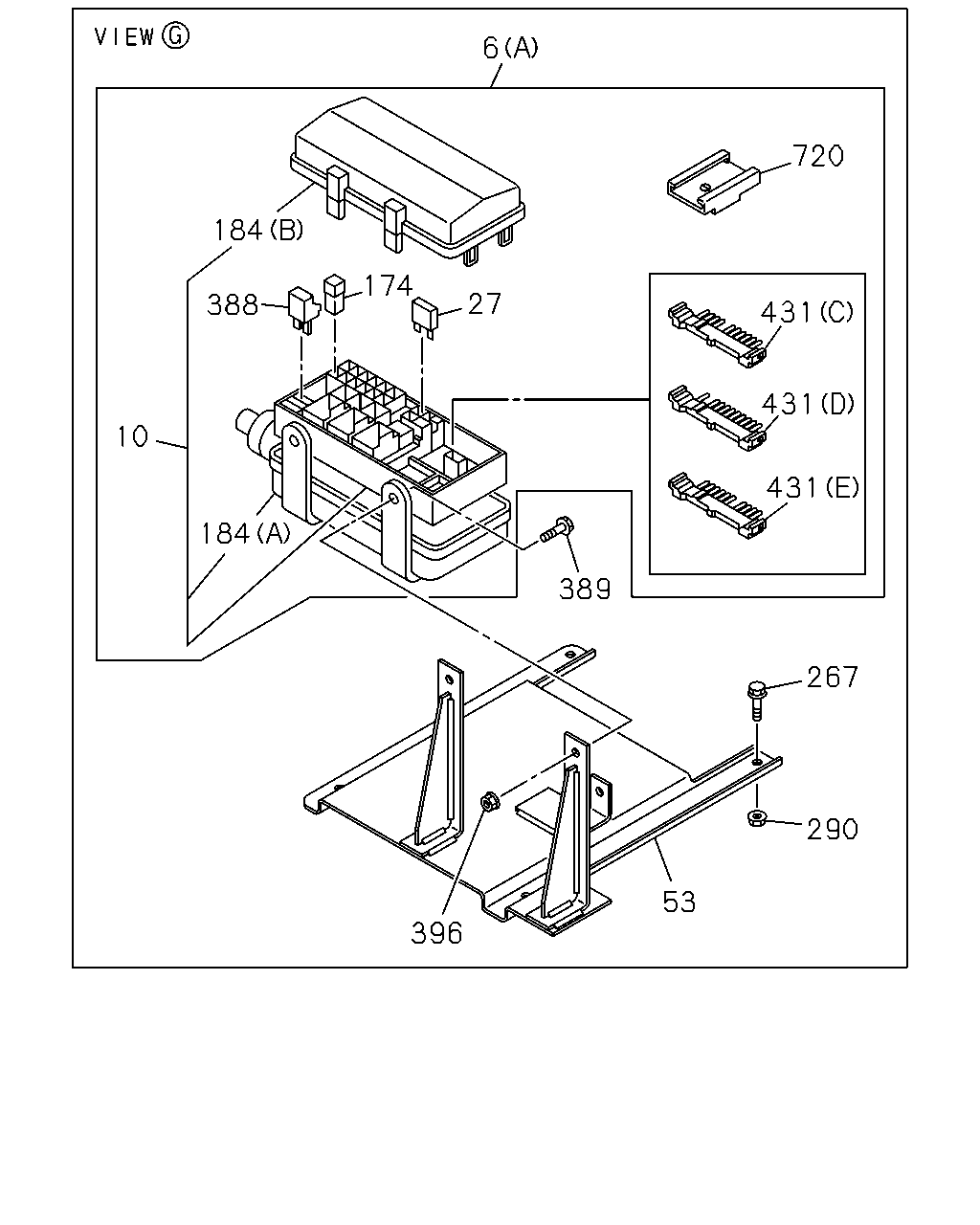

çizim 465025
6 720 184 174 388 27 431 431 431 389 267 290 53 396 184 10
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1304-
6 HARNESS; FRAME
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (A) 		8-98235-473-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5> (A) 		8-98235-472-1 01 1 1304-
6 HARNESS; FRAME
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (A) 		8-98235-474-1 01 1 1304-
10 BOX; FUSE,HARNESS
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 		8-98030-762-0 01 1 1304-
10 BOX; FUSE,HARNESS
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 		8-98030-762-0 01 1 1304-
27 FUSE UNIT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 10A RED 		8-98054-257-0 03 1 1304-
27 FUSE UNIT
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 10A RED 		8-98054-257-0 03 1 1304-
27 FUSE UNIT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 15A BLUE 		8-98054-258-0 02 1 1304-
27 FUSE UNIT
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 15A BLUE 		8-98054-258-0 01 1 1304-
53 BRACKET; FUSE BOX 8-98168-973-2 01 1 1304-
174 FUSE; SLOW BLOW
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 60A YELLOW 		8-97219-407-0 01 1 1304-
174 FUSE; SLOW BLOW
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 60A YELLOW 		8-97219-407-0 01 1 1304-
174 FUSE; SLOW BLOW
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 60A YELLOW 		8-97219-407-0 01 1 1304-
174 FUSE; SLOW BLOW
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 60A YELLOW 		8-97219-407-0 01 1 1304-
174 FUSE; SLOW BLOW
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 30A PINK 		8-98079-191-0 01 1 1304-
174 FUSE; SLOW BLOW
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 30A PINK 		8-98079-191-0 01 1 1304-
174 FUSE; SLOW BLOW
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 40A GREEN 		8-98079-192-0 01 1 1304-
174 FUSE; SLOW BLOW
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 40A GREEN 		8-98079-192-0 01 1 1304-
174 FUSE; SLOW BLOW
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 50A RED 		8-98079-193-0 03 1 1304-
174 FUSE; SLOW BLOW
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 50A RED 		8-98079-193-0 03 1 1304-
184 COVER; RELAY & FUSE BOX
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (A) 		8-98030-766-0 01 1 1304-
184 COVER; RELAY & FUSE BOX
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A) 		8-98030-766-0 01 1 1304-
184 COVER; RELAY & FUSE BOX
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (B) 		8-98030-767-1 01 1 1304-
184 COVER; RELAY & FUSE BOX
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) 		8-98030-767-1 01 1 1304-
267 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304-
267 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304-
290 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1304-
388 DIODE; RELAY BOX
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> BLACK 4P-1.5A 		8-94381-730-0 01 1 1304-
388 DIODE; RELAY BOX
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> BLACK 4P-1.5A 		8-94381-730-0 01 1 1304-
388 DIODE; RELAY BOX
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> BLACK 2P-1.5A 		8-94422-639-1 02 1 1304-
388 DIODE; RELAY BOX
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> BLACK 2P-1.5A 		8-94422-639-1 01 1 1304-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1304-
396 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1304-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1304-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (C) 10P BLUE 		1-82699-598-0 04 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (C) 10P BLUE 		1-82699-598-0 04 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (E) 10P GREEN 		1-82699-599-0 06 1 1304-
431 CONNECTOR; JOINT
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> (D) 10P BROWN 		1-82699-601-0 01 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (D) 10P BROWN 		1-82699-601-0 01 1 1304-
431 CONNECTOR; JOINT
ZF9S1310 M/T(Y5K) FUEL TANK 400L<SDH> (E) 10P GREEN 		1-82699-599-0 07 1 1304-
720 ATTACHMENT; CONNECTOR
A/T ALLISON 4430(Y5V) FUEL TANK 200L AL<THF> 		1-82699-688-0 03 1 1304-
720 ATTACHMENT; CONNECTOR
ZF9S1310 M/T(Y5K) FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> 		1-82699-688-0 03 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
