Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#155102) — 426 parça

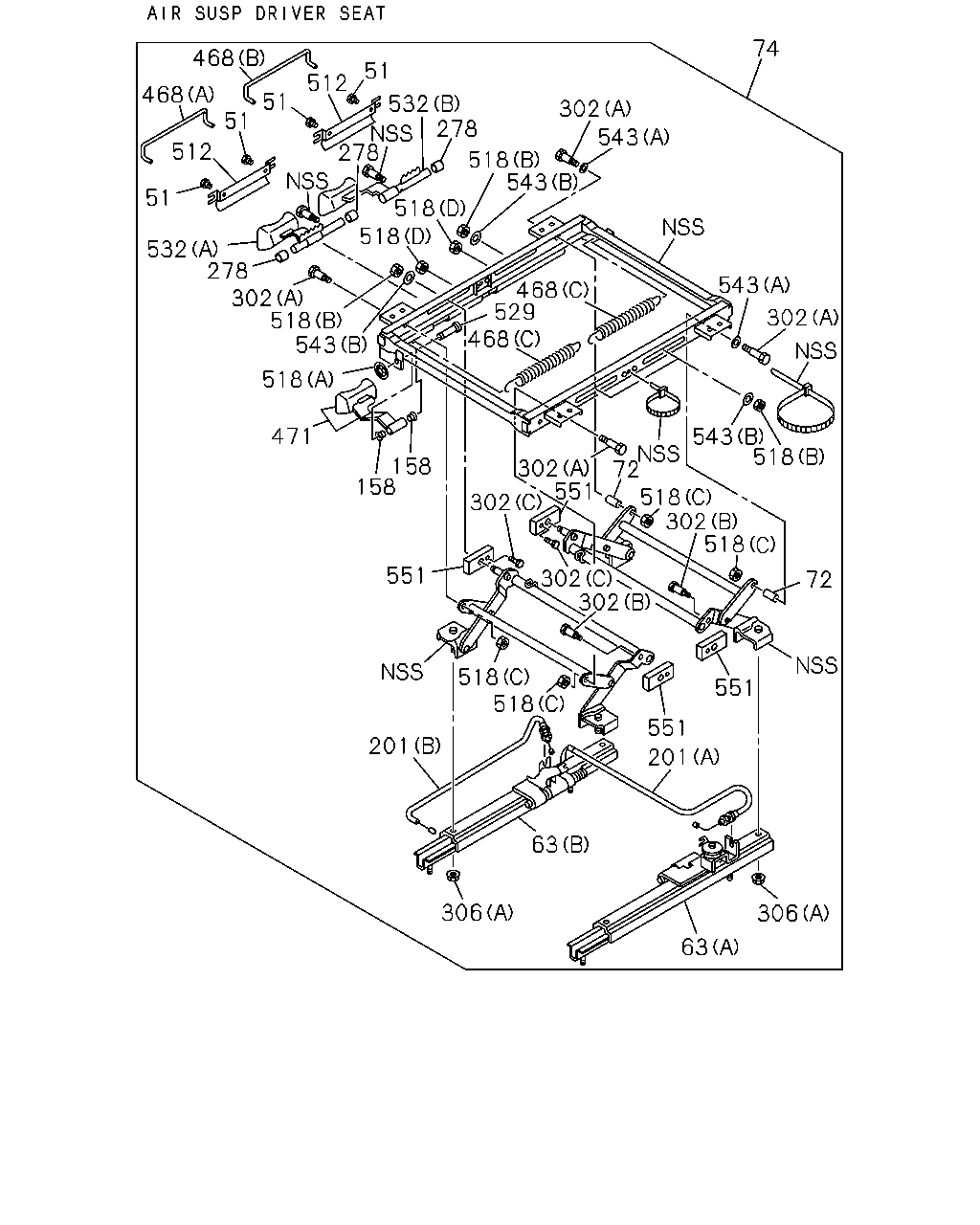

74 302 468 468 51 512 51 278 518 518 468 468 518 278 532 51 512 51 278 529 543 302 518 518 302 518 72 551 551 201 518 518 551 158 471 518 543 518 302 543 306 63 306 201 158 532 543 302 302 72 302 302 543 551 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-325-1	04	1	1304-1502
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-325-1	04	1	1503-1509
51	SCREW; COVER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-199-1	01	1	1304-1502
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-199-1	01	1	1503-1509
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-323-0	01	1	1304-1502
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-323-0	01	1	1503-1509
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-323-0	01	1	1510-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-334-1	02	1	1304-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98291-668-0	02	1	1503-1509
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98003-678-0	01	1	1304-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1503-1509
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1510-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1304-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1304-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1304-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-244-0	03	1	1304-1502
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-244-0	03	1	1503-1509
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-266-2	02	1	1304-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-266-2	02	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-270-1	04	1	1304-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	8-98291-667-0	04	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-336-1	02	1	1304-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C)	1-75518-336-1	02	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1304-1502
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1304-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-243-1	02	1	1304-1502
512	COVER; LEVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-243-1	02	1	1503-1509
512	COVER; LEVER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-243-1	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1304-1502
529	PIN; LINK AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-203-0	01	1	1304-1502
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-203-0	01	1	1503-1509
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-204-1	01	1	1304-1502
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-204-1	01	1	1503-1509
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-204-1	01	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-335-0	02	1	1304-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1509
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=8.4	9-09160-508-0	04	1	1304-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) ID=8.4	9-09160-508-0	04	1	1503-1509
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-265-0	04	1	1304-1502
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-265-0	04	1	1503-1509
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-265-0	04	1	1510-

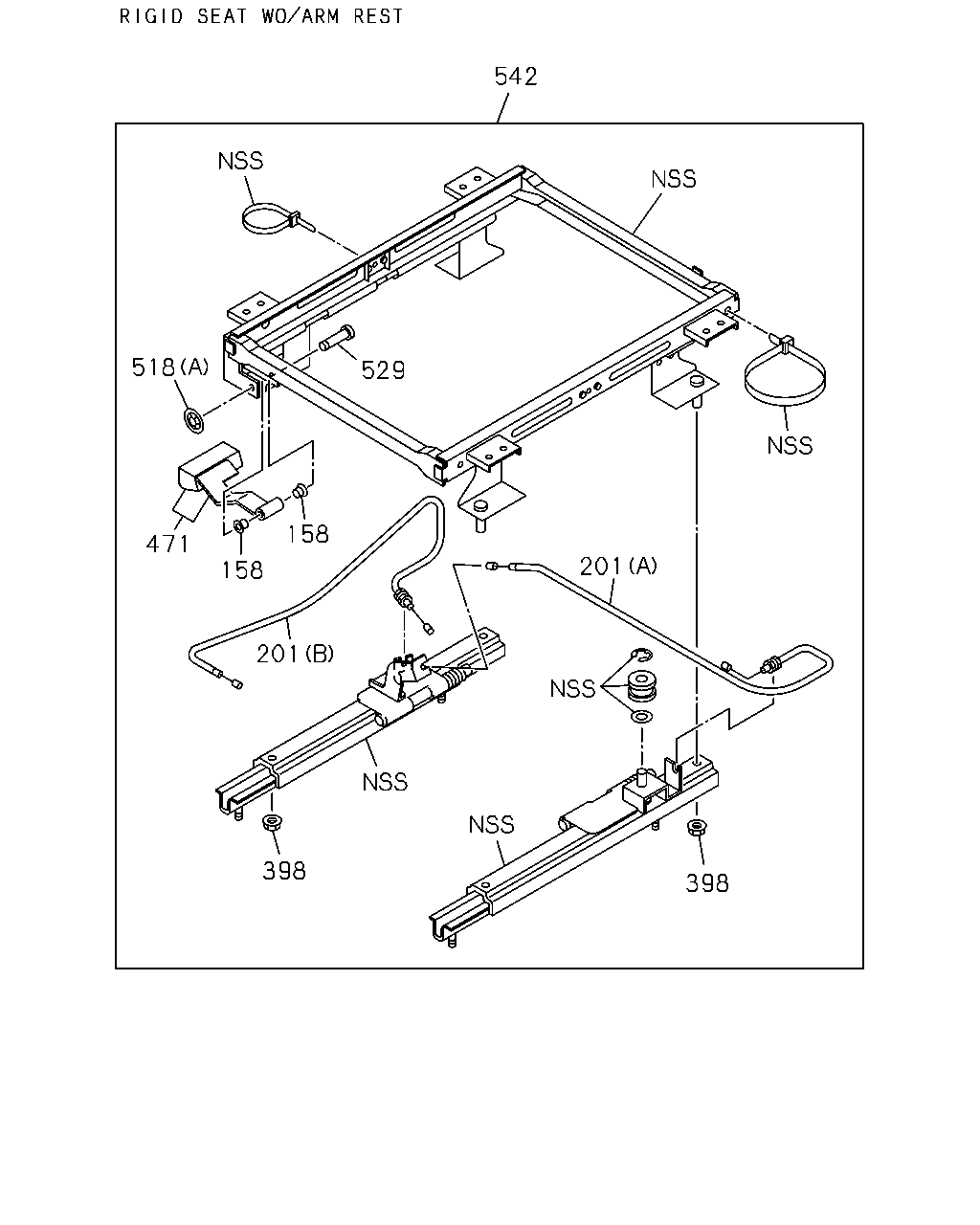

542 518 471 158 158 201 398 201 398 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1304-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1304-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1304-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1510-
398	NUT; STAND VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M8 FLANGE	1-75538-207-0	04	1	1304-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1304-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1304-1502
529	PIN; LINK AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	8-98093-310-0	01	1	1304-1502
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	8-98291-653-0	01	1	1503-

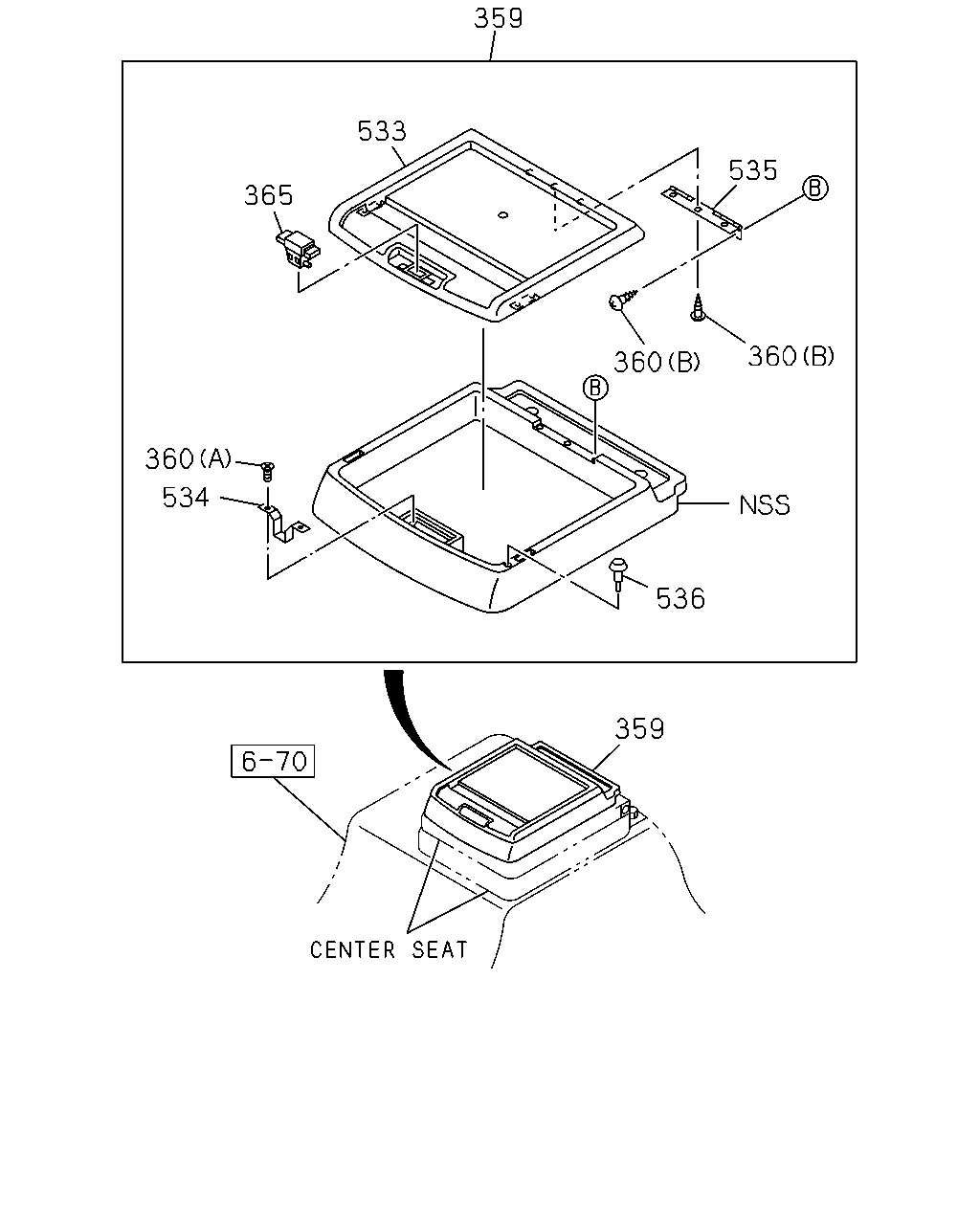

359 533 365 535 360 360 536 534 359 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1304-
360	SCREW; PARCEL VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1304-
360	SCREW; PARCEL VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1304-
360	SCREW; PARCEL VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1304-
365	LOCK ASM; SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72538-312-0	01	1	1304-
533	LID; PARCEL BOX VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY	8-97417-263-0	01	1	1304-
534	STRIKER; PARCEL BOX VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72538-190-0	01	1	1304-
535	HINGE; PARCEL BOX VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72447-391-1	01	1	1304-
536	RUBBER; CUSHION VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72538-187-0	02	1	1304-

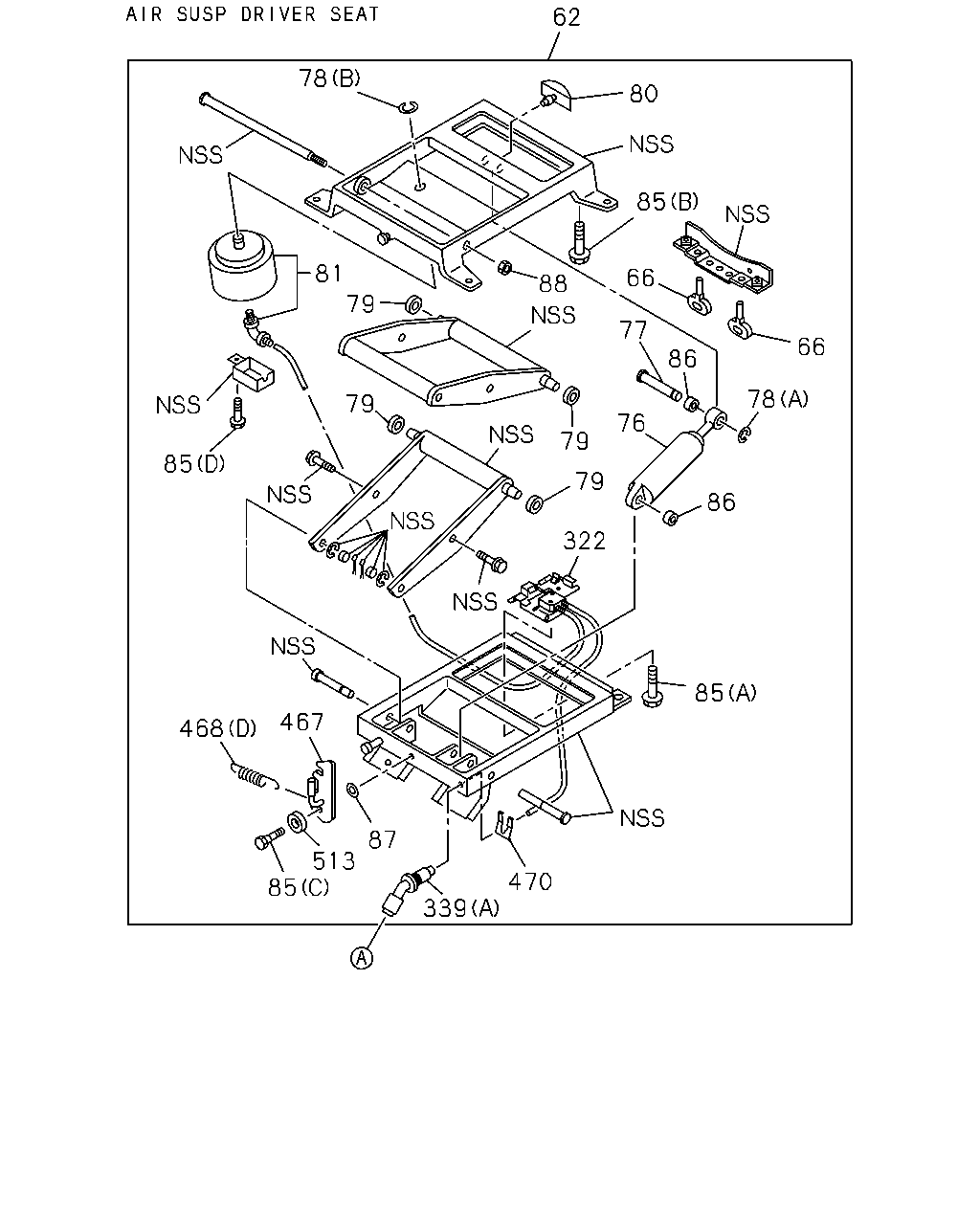

62 80 85 66 66 88 79 81 78 77 76 79 322 86 85 470 339 513 85 468 467 87 79 86 78 79 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-183-8	01	1	1304-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1503-1509
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-145-0	02	1	1304-1502
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-145-0	02	1	1503-1509
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-139-0	01	1	1304-1502
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-139-0	01	1	1503-1509
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-139-0	01	1	1510-
77	PIN; DAMPER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-138-2	01	1	1304-1502
77	PIN; DAMPER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-138-2	01	1	1503-1509
77	PIN; DAMPER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-138-2	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=8	9-09185-408-0	01	1	1304-1502
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) ID=8	9-09185-408-0	01	1	1503-1509
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=15	9-09185-415-0	01	1	1304-1502
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) ID=15	9-09185-415-0	01	1	1503-1509
78	RING; SNAP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-159-0	04	1	1304-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-489-0	04	1	1404-1502
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98261-489-0	04	1	1503-1509
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-09987-123-0	01	1	1304-1502
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-09987-123-0	01	1	1503-1509
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-09987-123-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-151-2	01	1	1304-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98242-816-0	01	1	1401-1502
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98242-816-0	01	1	1503-1509
81	SPRING; AIR AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98242-816-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-09980-577-1	01	1	1304-1502
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C)	1-09980-577-1	01	1	1503-1509
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M6X12	1-75538-208-1	02	1	1304-1502
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M6X12	1-75538-208-1	02	1	1503-1509
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1304-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1502
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1503-1509
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1502
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1503-1509
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1304-1502
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1503-1509
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) ID=8.2	0-91510-508-0	01	1	1304-1502
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) ID=8.2	0-91510-508-0	01	1	1503-1509
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) M10	1-75537-273-1	01	1	1304-1502
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M10	1-75537-273-1	01	1	1503-1509
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-186-3	01	1	1304-1502
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-186-3	01	1	1503-1509
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-186-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (B)	8-98014-971-0	01	1	1304-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1304-1502
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1503-1509
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1510-
467	LEVER; LOCK AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-134-0	01	1	1304-1502
467	LEVER; LOCK AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-134-0	01	1	1503-1509
467	LEVER; LOCK AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-134-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1304-1502
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1503-1509
468	SPRING; RETURN AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-137-0	01	1	1304-1502
470	CLIP; HOSE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-137-0	01	1	1503-1509
470	CLIP; HOSE AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-137-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-133-0	01	1	1304-1502
513	SPACER; LEVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	1-75538-133-0	01	1	1503-1509
513	SPACER; LEVER AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-133-0	01	1	1510-

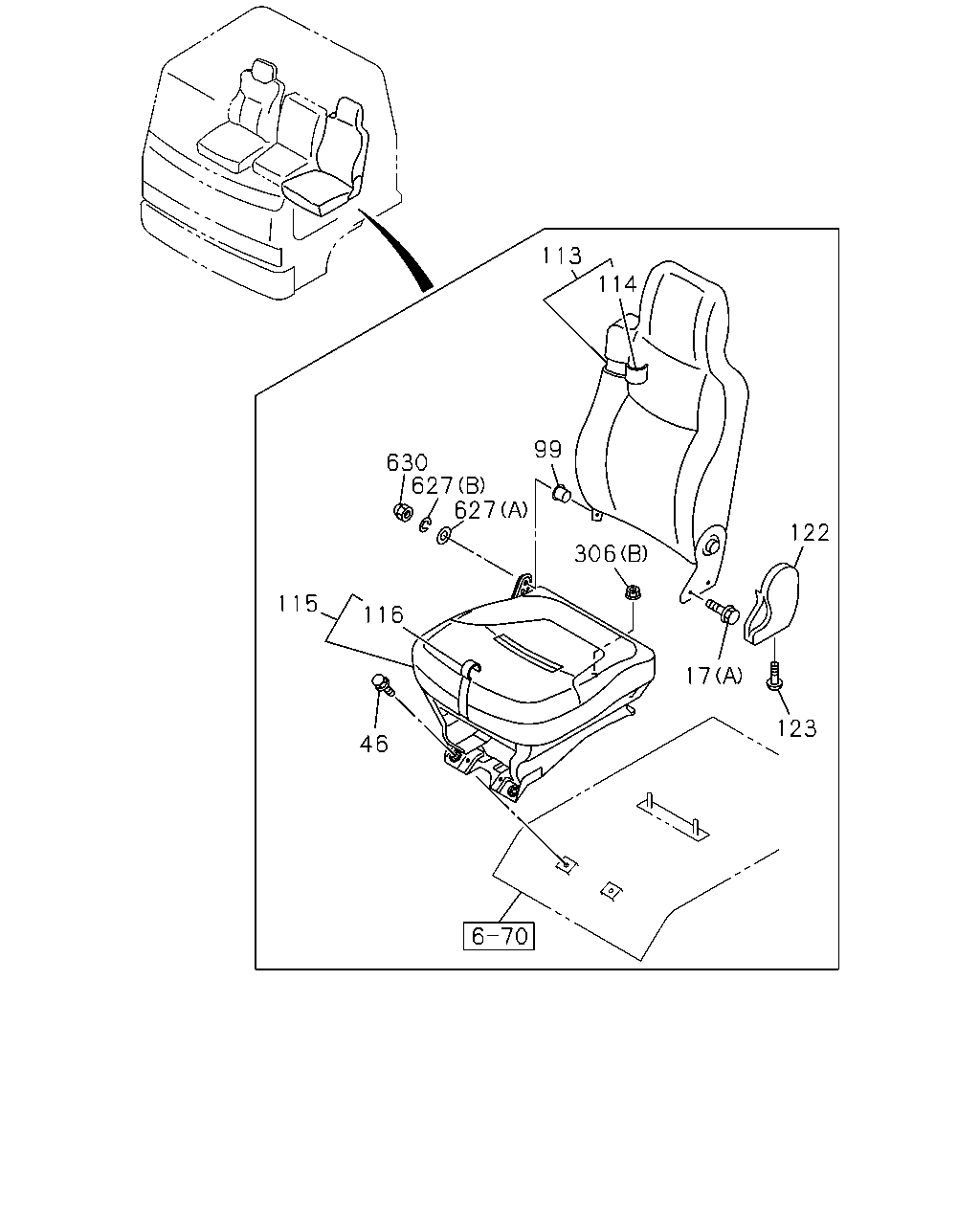

113 630 99 114 306 627 627 116 115 46 17 122 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1304-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20	8-98092-334-0	02	1	1304-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1304-
99	BUSHING; SEAT BACK VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98112-751-0	01	1	1304-
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-422-0	01	1	1304-
113	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-966-1	01	1	1304-
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-424-0	01	1	1304-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-916-0	01	1	1304-
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-418-1	01	1	1304-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83) DARK GRAY	8-97409-965-1	01	1	1304-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-420-0	01	1	1304-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-915-0	01	1	1304-
122	COVER; ADJ,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-967-0	01	1	1304-
123	SCREW; COVER,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) M5	8-98070-026-0	01	1	1304-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1304-1502
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-
627	WASHER; FRT SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98063-223-0	01	1	1304-
627	WASHER; FRT SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) (B)	8-98063-224-0	01	1	1304-
630	NUT; CAP VINYL SEAT(A83),DELUXE SEAT(PQ8) M8	8-98063-225-0	01	1	1304-

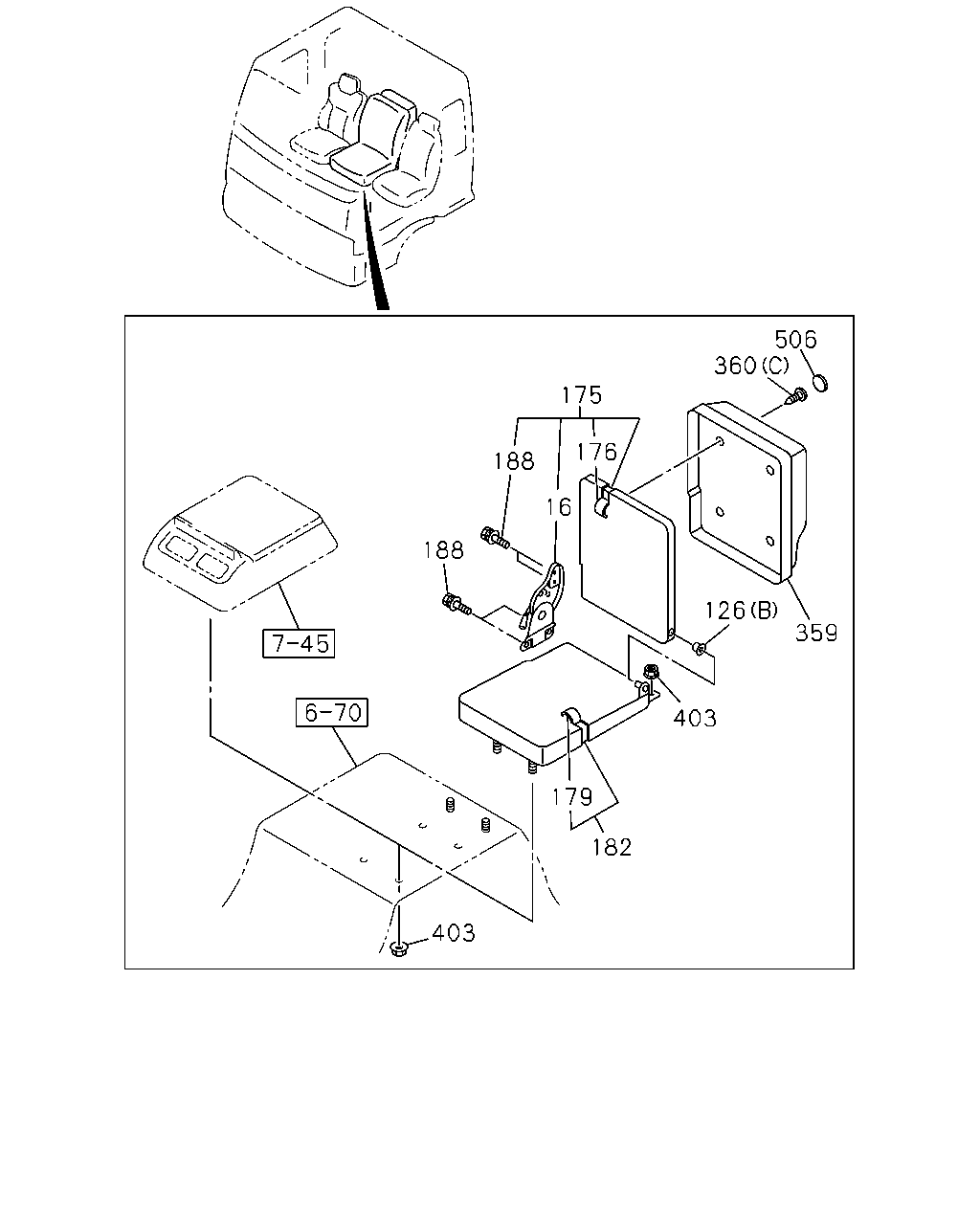

506 360 175 126 359 403 179 182 403 188 188 176 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-75418-062-1	01	1	1304-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1304-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-434-1	01	1	1304-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-975-1	01	1	1304-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-435-1	01	1	1304-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-976-1	01	1	1304-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-432-1	01	1	1304-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-974-1	01	1	1304-
182	CUSHION ASM; CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-430-3	01	1	1304-
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-973-3	01	1	1304-
188	BOLT; BACK TO CUSHION VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1304-
359	BOX; PARCEL VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1304-
360	SCREW; PARCEL VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1304-
360	SCREW; PARCEL VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (A) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1304-
360	SCREW; PARCEL VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1304-
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1304-
506	CAP; PARCEL BOX VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) GRAY	8-97409-980-1	02	1	1304-

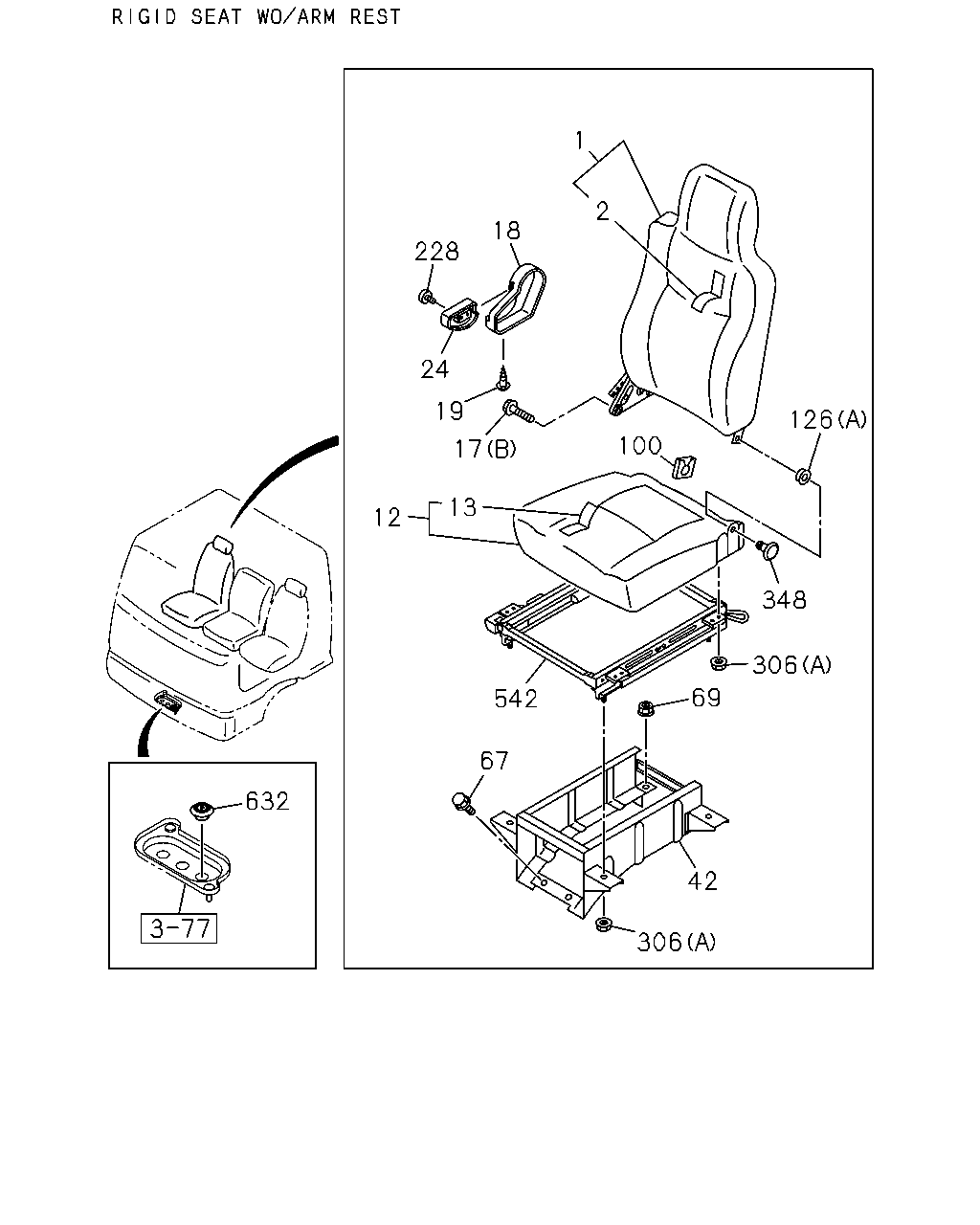

228 18 1 2 100 126 348 306 69 542 67 306 42 13 12 17 19 24 632

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1304-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1304-1502
1	BACK ASM; SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97409-955-5	01	1	1503-1509
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1304-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1304-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97411-910-2	01	1	1503-1509
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1304-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1304-1502
12	CUSHION; SEAT,FRT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97409-954-2	01	1	1503-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1304-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1304-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97411-909-1	01	1	1503-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1304-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20	8-98092-334-0	02	1	1304-
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1304-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1304-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1304-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1510-
42	STAND; DRIVER SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	1-75558-604-2	01	1	1304-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1304-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1304-
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1304-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1304-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1304-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1304-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1304-1502
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A) M8 FLANGE	1-75538-207-0	08	1	1304-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98286-008-0	01	1	1601-
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	8-98093-310-0	01	1	1304-1502
542	ADJUSTER ASM; SEAT SLIDE VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	8-98291-653-0	01	1	1503-
632	GROMMET RIGID SEAT WO/ARM REST(TAZ) OD=24	8-94119-796-0	01	1	1304-

228 18 1 2 24 19 17 13 12 595 339 67 327 633 69 518 62 290 74 100 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1304-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1304-1502
1	BACK ASM; SEAT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97409-955-5	01	1	1503-1509
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1304-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1304-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97411-910-2	01	1	1503-1509
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1304-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1304-1502
12	CUSHION; SEAT,FRT VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97409-954-2	01	1	1503-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1304-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1304-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) DARK GRAY	8-97411-909-1	01	1	1503-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1304-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) (A) M8X20	8-98092-334-0	02	1	1304-
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1304-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1304-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1304-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1510-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	1-75538-183-8	01	1	1304-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1503-1509
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1304-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1304-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98003-678-0	01	1	1304-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1503-1509
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1510-
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1304-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8)	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1304-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83),DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1304-
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1304-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) M8 FLANGE	1-75538-207-0	04	1	1304-1502
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) M8 FLANGE	1-75538-207-0	04	1	1503-1509
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) M8 FLANGE	1-75538-207-0	04	1	1510-
327	CLIP; COVER	1-09987-273-0	02	1	1304-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) (B)	8-98014-971-0	01	1	1304-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1304-1502
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1503-1509
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1304-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ VINYL SEAT(A83),DELUXE SEAT(PQ8) RIGID SEAT WO/ARM REST(TAZ) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) VINYL SEAT(A83),DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1510-
595	TUBE; NYLON AIR SUSP DRIVER SEAT(A56)	8-98067-762-0	01	1	1304-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-956-0	01	1	1304-1502
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT(A56) DELUXE SEAT(PQ8) GRAY	8-97409-956-0	01	1	1503-1509
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT(A56) VINYL SEAT(A83),DELUXE SEAT(PQ8) GRAY	8-97409-956-0	01	1	1510-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
