Sayfa 7-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶

7-10 — CAUTION PLATE AND LABEL (#155095) — 21 parça

çizim 464476

49 289 160 35

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	35	PLATE; CAUTION,CAB CAUTIONS CHINESE<SL7>	8-98171-036-0	01	1	1304-
	35	PLATE; CAUTION,CAB CAUTIONS ENGLISH<RR8>	8-98017-667-1	01	1	1304-
	49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	8-98155-328-0	01	1	1304-
	49	PLATE; CAUTION,FUSE BOX CAUTIONS ENGLISH<RR8>	8-98076-221-0	01	1	1304-
	160	PLATE; CAUTION,TOWING ZF9S1310 M/T(Y5K) CAUTIONS CHINESE<SL7>	8-98155-058-0	01	1	1304-
	160	PLATE; CAUTION,TOWING ZF9S1310 M/T(Y5K) CAUTIONS ENGLISH<RR8>	1-85888-737-1	01	1	1304-
	289	PLATE; CAUTION,DRIVING HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7>	1-85883-223-1	01	1	1304-

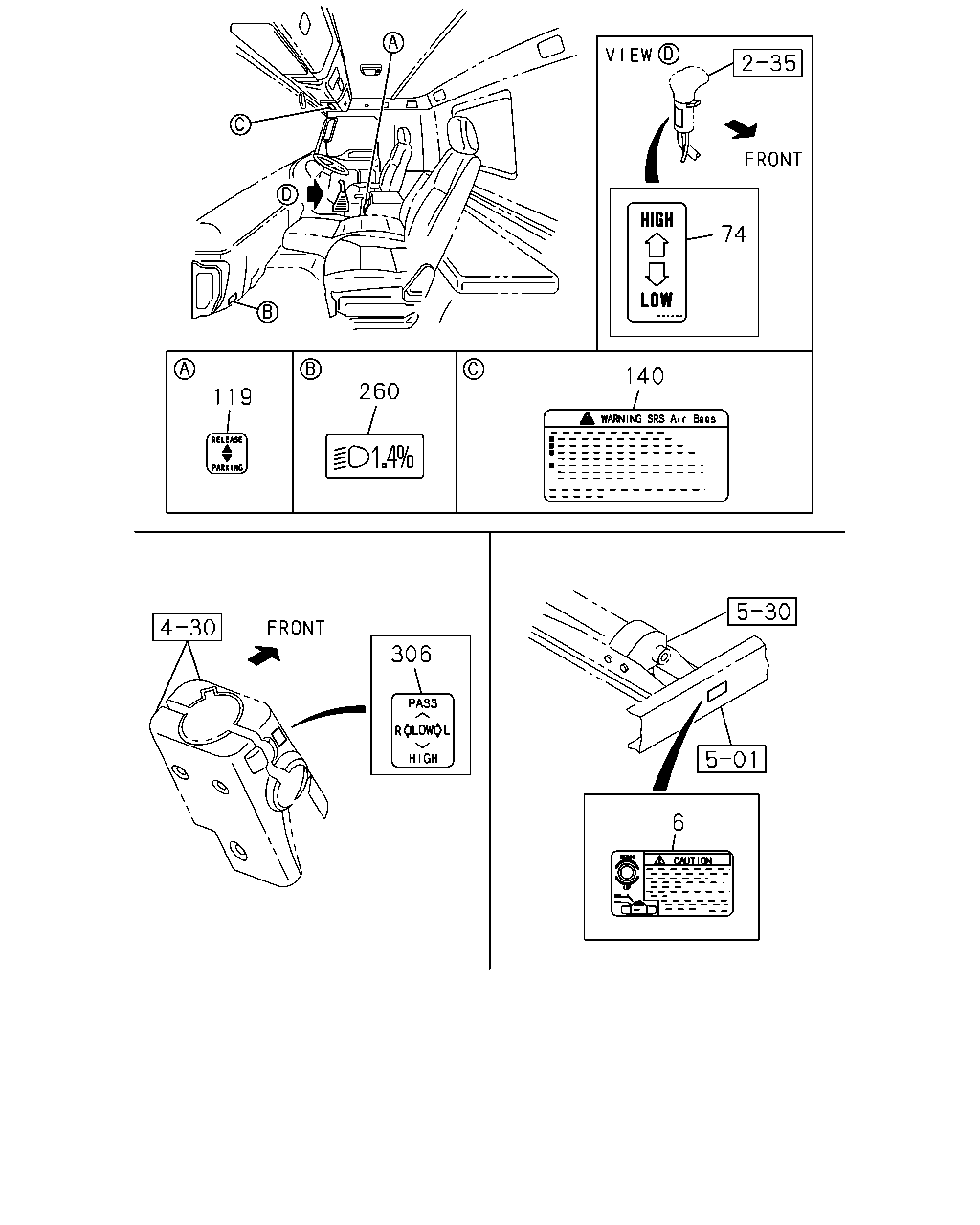

çizim 464831

119 260 140 74 306 6

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS CHINESE<SL7>	8-98082-438-0	01	1	1304-
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS ENGLISH<RR8>	8-98082-437-0	01	1	1304-
	74	PLATE; CAUTION,CHANGE LEV ZF9S1310 M/T(Y5K) TRANSMISSION CONTROL CABLE TYPE(C1A) SHIFT PATTERN SINGLE-H<EDY> EXC. CAUTIONS CHINESE<SL7>	8-98118-493-0	01	1	1304-
	74	PLATE; CAUTION,CHANGE LEV ZF9S1310 M/T(Y5K) TRANSMISSION CONTROL CABLE TYPE(C1A) SHIFT PATTERN SINGLE-H<EDY> CAUTIONS CHINESE<SL7>	8-98120-457-0	01	1	1304-
	119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS CHINESE<SL7>	1-85881-874-0	01	1	1304-
	119	PLATE; CAUTION,HAND BRK LEVER CAUTIONS ENGLISH<RR8>	1-85881-759-0	01	1	1304-
	140	PLATE; CAUTION,SRS AIR BAG DRIVER(AJ3) CAUTIONS CHINESE<SL7>	8-98158-430-0	01	1	1304-
	140	PLATE; CAUTION,SRS AIR BAG DRIVER(AJ3) CAUTIONS ENGLISH<RR8>	8-98139-964-0	01	1	1304-
	260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1304-
	306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1304-

çizim 464837

4 4 181 263

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	LABEL; ENG MAINTENANCE (B)	8-94391-524-0	01	1	1304-
	4	LABEL; ENG MAINTENANCE (A)	8-98164-931-1	01	1	1304-
	181	PLATE; CAUTION,AIR CLEANER	1-85886-796-1	01	1	1304-
	263	PLATE; CAUTION,JACK TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85881-878-0	01	1	1304-
