◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#155077) — 142 parça

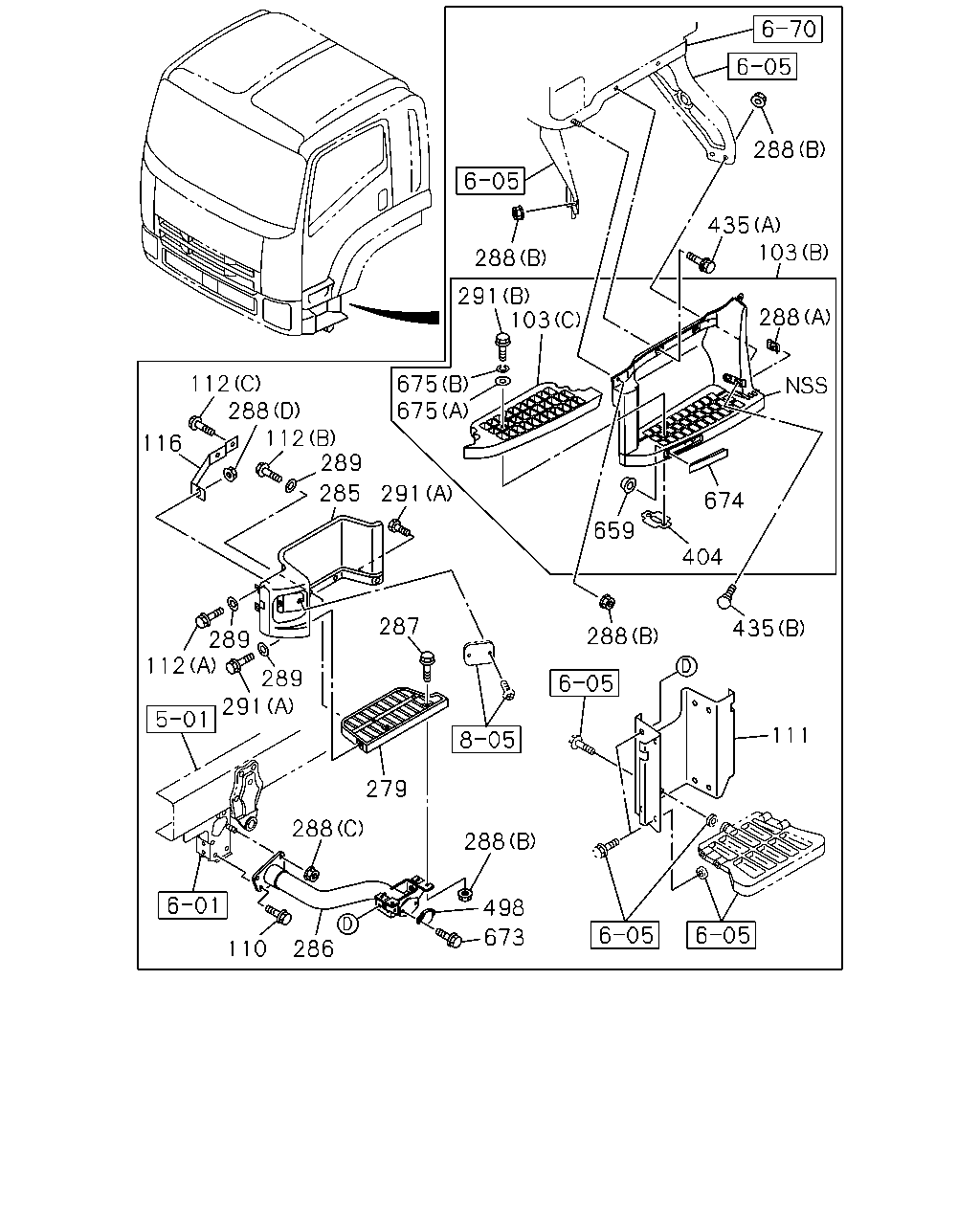

çizim 464377
112 116 288 112 289 285 291 289 112 289 291 288 110 286 279 287 673 498 288 288 111 435 404 674 659 675 675 103 291 288 288 103 435 288
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		8-98080-625-2 01 1 1304-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (C) 		8-98080-631-0 01 1 1304-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		8-98080-624-2 01 1 1304-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (C) 		8-98080-630-0 01 1 1304-
103 PLATE; STEP
SINGAPORE EQUIPMENT(WQ3) (A) 		8-98069-977-2 01 1 1304-
103 PLATE; STEP
SINGAPORE EQUIPMENT(WQ3) (A) 		8-98069-976-2 01 1 1304-
110 BOLT; 1ST STEP PLATE
M12X40 FLANGE 		0-28651-240-0 06 1 1304-
111 COVER; 1ST STEP
HONG KONG EQUIPMENT(PQ1) 		8-98155-124-1 02 1 1304-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1304-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1304-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1304-
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1304-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1304-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1304-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1304-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1304-
286 STEP ASM; 1ST
HONG KONG EQUIPMENT(PQ1) 		8-98146-176-2 01 1 1304-
286 STEP ASM; 1ST
HONG KONG EQUIPMENT(PQ1) 		8-98146-175-2 01 1 1304-
286 STEP ASM; 1ST
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98055-271-1 01 1 1304-
286 STEP ASM; 1ST
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98055-270-1 01 1 1304-
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1304-
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1304-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1304-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1304-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 02 1 1304-
288 NUT; STEP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 		8-98040-792-0 02 1 1304-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1304-
291 BOLT; STEP PLATE
(A) M6X12 FLANGE 		0-28050-612-0 06 1 1304-
291 BOLT; STEP PLATE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98165-009-0 08 1 1304-
404 BRACKET
HONG KONG EQUIPMENT(PQ1) 		8-98080-646-1 04 1 1304-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1304-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1304-
498 REFLECTOR 1-82290-011-1 02 1 1304-
659 CLIP; SPRING NUT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-97811-510-0 04 1 1304-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1304-
674 COVER; REFLECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98092-734-0 01 1 1304-
674 COVER; REFLECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98092-733-0 01 1 1304-
675 WASHER; STEP PLATE
HONG KONG EQUIPMENT(PQ1) (A) 		8-98112-672-1 08 1 1304-
675 WASHER; STEP PLATE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98112-673-1 08 1 1304-

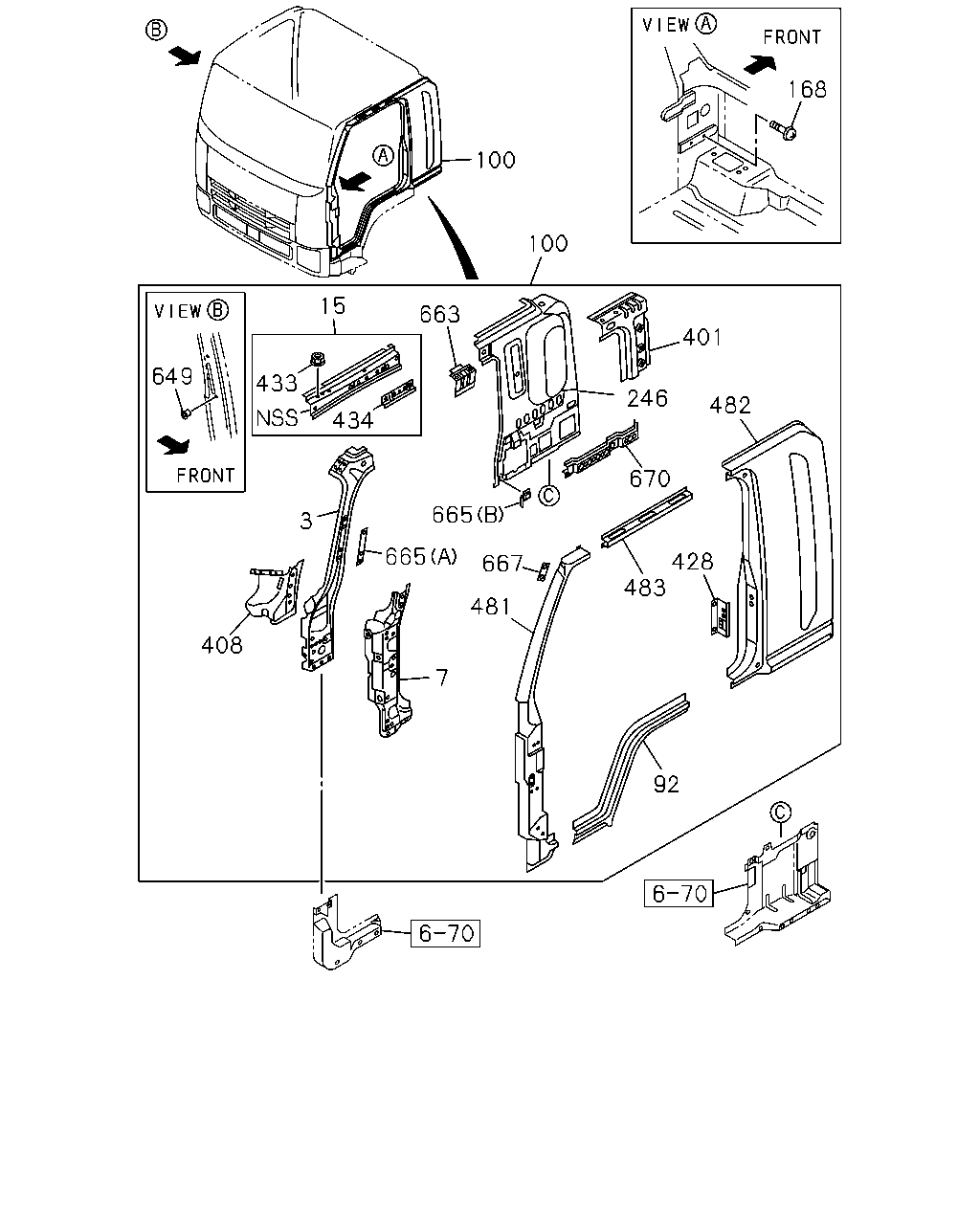

çizim 464749
100 100 168 401 482 246 670 428 483 92 481 667 665 663 15 433 434 3 665 7 408 649
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98058-237-1 01 1 1304-1308
3 PANEL; CLOSING,FRT PILLAR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98058-237-1 01 1 1309-
3 PANEL; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98058-236-1 01 1 1304-1308
3 PANEL; CLOSING,FRT PILLAR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98058-236-1 01 1 1309-
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-244-4 01 1 1304-1308
7 REINFORCEMENT; HINGE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-244-4 01 1 1309-
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-240-3 01 1 1304-1308
7 REINFORCEMENT; HINGE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-240-3 01 1 1309-
15 PANEL; CANT RAIL SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-293-2 01 1 1304-1308
15 PANEL; CANT RAIL SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-293-2 01 1 1309-
15 PANEL; CANT RAIL SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-292-2 01 1 1304-1308
15 PANEL; CANT RAIL SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-292-2 01 1 1309-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1304-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1304-
100 PANEL ASM; BODY SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98122-095-1 01 1 1309-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-073-9 01 1 1304-1308
100 PANEL ASM; BODY SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-073-9 01 1 1309-
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98166-303-0 01 1 1304-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1304-
246 PANEL; RR PILLAR,INNER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-158-5 01 1 1304-1308
246 PANEL; RR PILLAR,INNER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-158-5 01 1 1309-
246 PANEL; RR PILLAR,INNER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-156-5 01 1 1304-1308
246 PANEL; RR PILLAR,INNER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-156-5 01 1 1309-
401 PATCH; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-161-2 01 1 1304-1308
401 PATCH; CLOSING,FRT PILLAR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-161-2 01 1 1309-
401 PATCH; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-160-2 01 1 1304-1308
401 PATCH; CLOSING,FRT PILLAR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-160-2 01 1 1309-
408 GUSSET; PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-194-2 01 1 1304-1308
408 GUSSET; PILLAR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-194-2 01 1 1309-
408 GUSSET; PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-193-3 01 1 1304-1308
408 GUSSET; PILLAR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97586-193-3 01 1 1309-
428 REINFORCEMENT; DOOR STRIKER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-261-4 01 1 1304-1308
428 REINFORCEMENT; DOOR STRIKER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-261-4 01 1 1309-
428 REINFORCEMENT; DOOR STRIKER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-260-4 01 1 1304-1308
428 REINFORCEMENT; DOOR STRIKER
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-260-4 01 1 1309-
433 NUT; HEADER SHELF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6 		9-09114-086-0 04 1 1304-1308
433 NUT; HEADER SHELF
MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6 		9-09114-086-0 02 1 1309-
433 NUT; HEADER SHELF
MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6 		9-09114-086-0 02 1 1309-
434 PATCH; ASSIST GRIP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98039-020-0 01 1 1304-1308
434 PATCH; ASSIST GRIP
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98039-020-0 01 1 1309-
434 PATCH; ASSIST GRIP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98039-019-0 01 1 1304-1308
434 PATCH; ASSIST GRIP
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98039-019-0 01 1 1309-
481 PANEL; SIDE FRT PILLAR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1309-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98055-453-0 01 1 1304-1308
481 PANEL; SIDE FRT PILLAR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98055-453-0 01 1 1309-
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98055-471-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1304-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1304-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1304-
649 NUT; POP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5 POP NUT 		8-97249-574-0 02 1 1304-1308
649 NUT; POP
MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5 POP NUT 		8-97249-574-0 02 1 1309-
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-208-2 01 1 1304-1308
663 BRACKET; AIR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-208-2 01 1 1309-
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-207-2 01 1 1304-1308
663 BRACKET; AIR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-97585-207-2 01 1 1309-
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-97585-314-0 02 1 1304-1308
665 REINFORCEMENT; GRIP,ASSIST
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-97585-314-0 01 1 1309-
665 REINFORCEMENT; GRIP,ASSIST
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) 		8-97585-314-0 01 1 1309-
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98012-287-1 02 1 1304-1308
665 REINFORCEMENT; GRIP,ASSIST
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98012-287-1 01 1 1309-
665 REINFORCEMENT; GRIP,ASSIST
MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98012-287-1 01 1 1309-
667 BRACKET; MIRROR
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98109-948-0 01 1 1309-
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98109-948-0 03 1 1304-1308
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98109-948-0 02 1 1309-
670 STIFFENER; PANEL,SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98015-044-1 02 1 1304-1308
670 STIFFENER; PANEL,SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98015-044-1 01 1 1309-
670 STIFFENER; PANEL,SIDE
MIR O/S UNDER & SIDE UNDER VIEW<TAF> 		8-98015-044-1 01 1 1309-

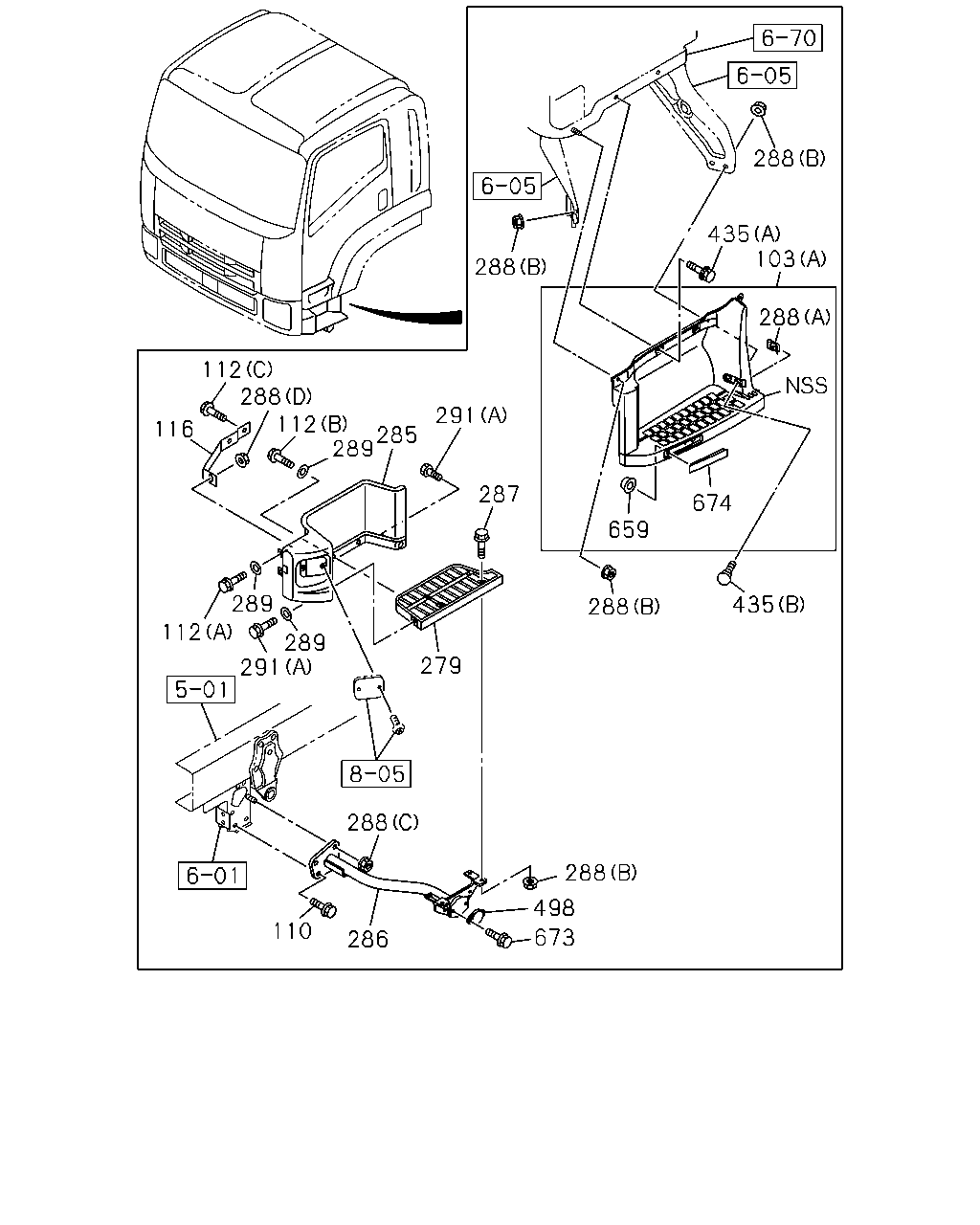

çizim 464774
112 116 288 112 289 285 291 287 279 289 291 289 112 288 110 286 673 498 288 288 435 674 659 288 103 435 288 288
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		8-98080-625-2 01 1 1304-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (C) 		8-98080-631-0 01 1 1304-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (B) 		8-98080-624-2 01 1 1304-
103 PLATE; STEP
HONG KONG EQUIPMENT(PQ1) (C) 		8-98080-630-0 01 1 1304-
103 PLATE; STEP
SINGAPORE EQUIPMENT(WQ3) (A) 		8-98069-977-2 01 1 1304-
103 PLATE; STEP
SINGAPORE EQUIPMENT(WQ3) (A) 		8-98069-976-2 01 1 1304-
110 BOLT; 1ST STEP PLATE
M12X40 FLANGE 		0-28651-240-0 06 1 1304-
112 BOLT; 1ST STEP
(A) M6X16 FLANGE 		0-28050-616-0 02 1 1304-
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1304-
112 BOLT; 1ST STEP
(C) M8X12 FLANGE 		0-28050-812-0 04 1 1304-
116 STAY; 1ST STEP,FRT 8-98196-756-0 02 1 1304-
279 BOARD; STEP 1ST 1-53414-181-0 01 1 1304-
279 BOARD; STEP 1ST 1-53414-180-0 01 1 1304-
285 PLATE; STEP,1ST STEP 8-98017-535-3 01 1 1304-
285 PLATE; STEP,1ST STEP 8-98017-536-3 01 1 1304-
286 STEP ASM; 1ST
HONG KONG EQUIPMENT(PQ1) 		8-98146-176-2 01 1 1304-
286 STEP ASM; 1ST
HONG KONG EQUIPMENT(PQ1) 		8-98146-175-2 01 1 1304-
286 STEP ASM; 1ST
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98055-271-1 01 1 1304-
286 STEP ASM; 1ST
EXC. HONG KONG EQUIPMENT(PQ1) 		8-98055-270-1 01 1 1304-
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28650-835-0 08 1 1304-
288 NUT; STEP
(D) M6 FLANGE 		0-91180-106-0 02 1 1304-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 08 1 1304-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1304-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 02 1 1304-
288 NUT; STEP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8 		8-98040-792-0 02 1 1304-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 10 1 1304-
291 BOLT; STEP PLATE
(A) M6X12 FLANGE 		0-28050-612-0 06 1 1304-
291 BOLT; STEP PLATE
HONG KONG EQUIPMENT(PQ1) (B) 		8-98165-009-0 08 1 1304-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1304-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1304-
498 REFLECTOR 1-82290-011-1 02 1 1304-
659 CLIP; SPRING NUT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-97811-510-0 04 1 1304-
673 BOLT; REFLECTOR
M5X16 W/LK&PL WASHER 		8-94198-538-0 04 1 1304-
674 COVER; REFLECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98092-734-0 01 1 1304-
674 COVER; REFLECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98092-733-0 01 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
