Isuzu WW
▶
TRUCKS
▶
FYH
▶
11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#155067) — 58 parça
◀

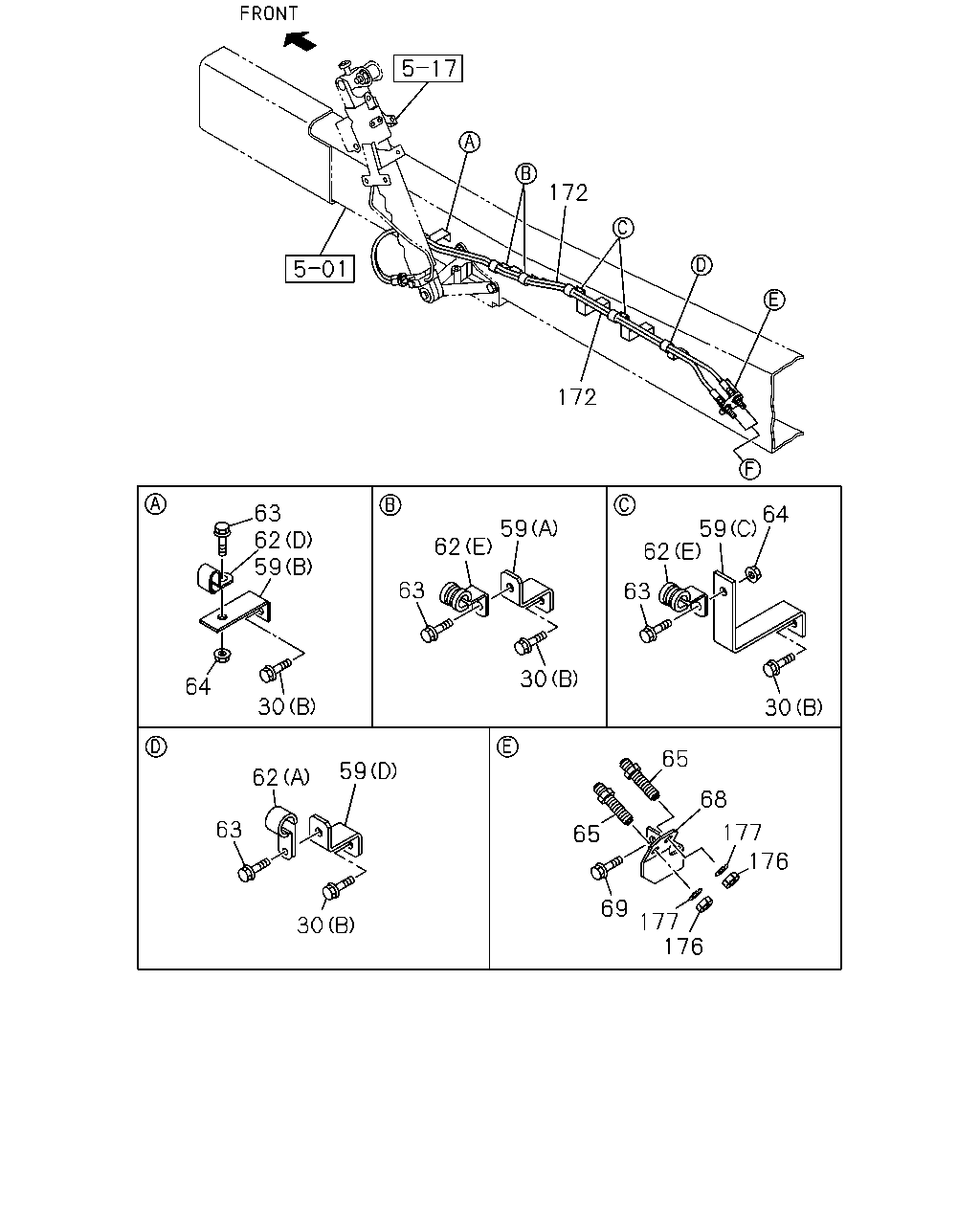

[515A] CAB TILT PIPING;FRAME SIDE (21 parça)
[515A] CAB TILT PIPING;CAB MTG MBR SIDE (17 parça)
[515A] CAB TILT CYLINDER FIXING (3 parça)
[515A] CAB REAR LOCK (17 parça)
▶
172
172
59
62
63
59
62
63
62
63
59
64
30
65
68
177
176
69
177
65
176
30
63
62
59
30
30
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
1304-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
05
1
1304-
59
BRACKET; CLIP
(D)
1-47476-200-0
01
1
1304-
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
1304-
59
BRACKET; CLIP
(C)
1-47479-248-0
02
1
1304-
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-47478-113-0
01
1
1304-
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)
1-47478-113-0
02
1
1304-
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1304-
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1304-
62
CLIP; OIL PIPE
(A) ID=18 L=40
1-09701-111-0
01
1
1304-
62
CLIP; OIL PIPE
(D) ID=9 & 9 L=20
1-09701-321-0
01
1
1304-
62
CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (E) ID=21 L=30 H=40
1-09700-991-1
03
1
1304-
62
CLIP; OIL PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) ID=21 L=30 H=40
1-09700-991-1
04
1
1304-
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
05
1
1304-
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1304-
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
1304-
68
BRACKET; UNION
8-98109-453-0
01
1
1304-
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
1304-
172
HOSE; FLEX,OIL TILT
8-98086-335-0
02
1
1304-
176
NUT; UNION
M12
9-09840-280-0
02
1
1304-
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
1304-

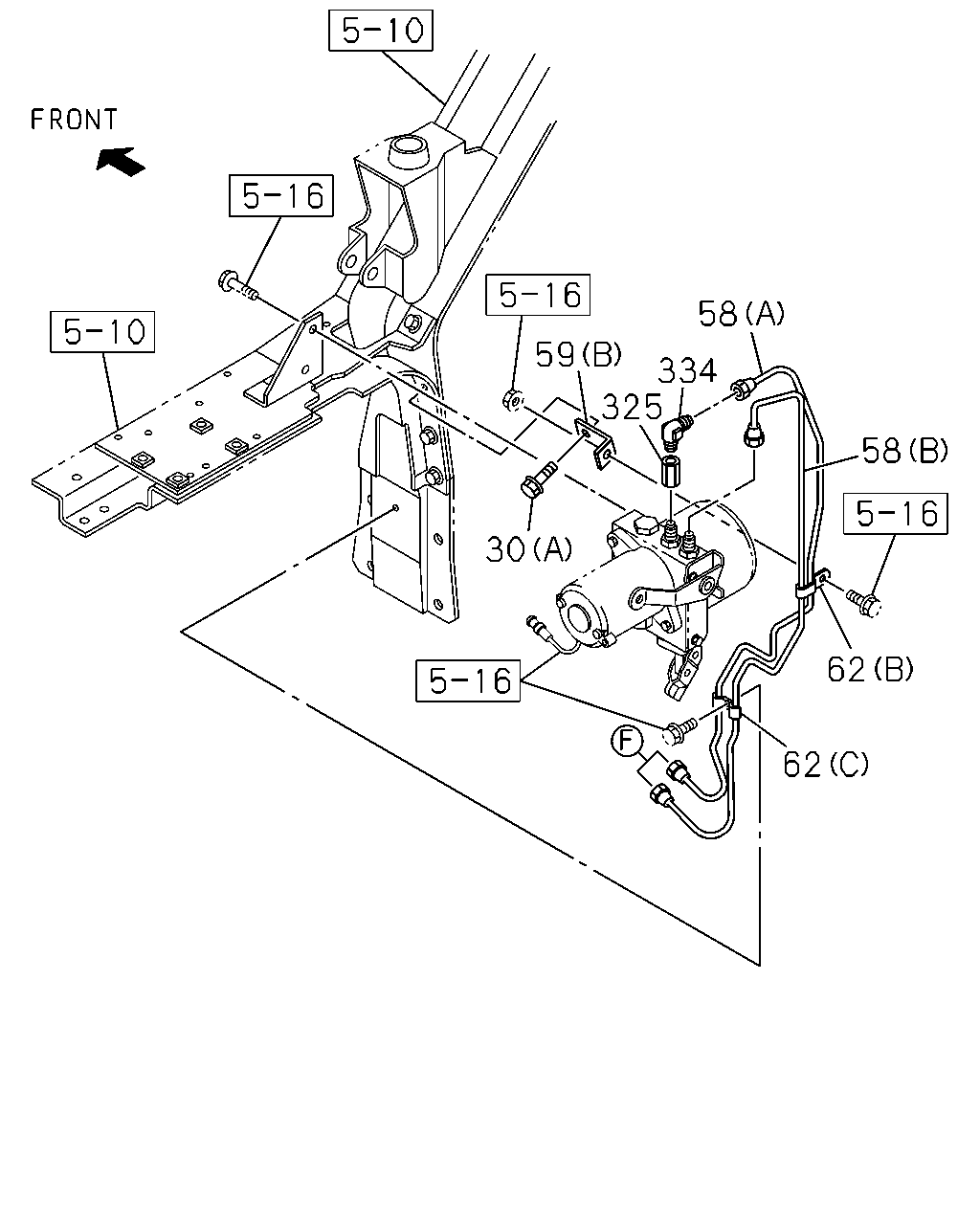

59
325
334
58
58
62
62
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
1304-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
05
1
1304-
58
PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900
1-47428-729-0
01
1
1304-
58
PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000
1-47428-730-0
01
1
1304-
59
BRACKET; CLIP
(D)
1-47476-200-0
01
1
1304-
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
1304-
59
BRACKET; CLIP
(C)
1-47479-248-0
02
1
1304-
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-47478-113-0
01
1
1304-
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A)
1-47478-113-0
02
1
1304-
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1304-
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1304-
62
CLIP; OIL PIPE
(A) ID=18 L=40
1-09701-111-0
01
1
1304-
62
CLIP; OIL PIPE
(D) ID=9 & 9 L=20
1-09701-321-0
01
1
1304-
62
CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (E) ID=21 L=30 H=40
1-09700-991-1
03
1
1304-
62
CLIP; OIL PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) ID=21 L=30 H=40
1-09700-991-1
04
1
1304-
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
1304-
334
CONNECTOR; PUMP
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1304-

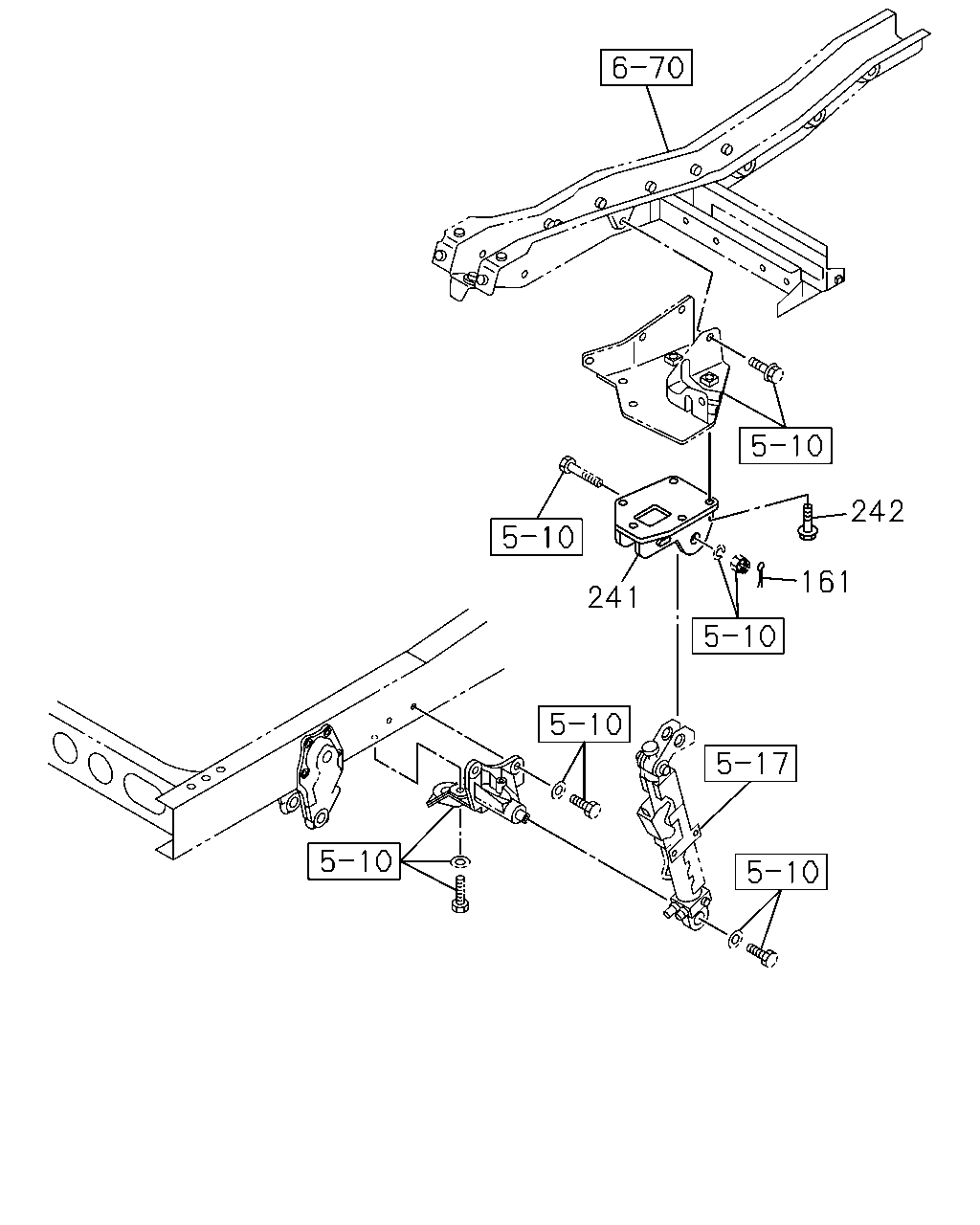

241
161
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
1304-
241
BRACKET; POWER CYL UPR,CAB TILT
8-98054-834-0
01
1
1304-
242
BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE
0-28051-025-0
05
1
1304-

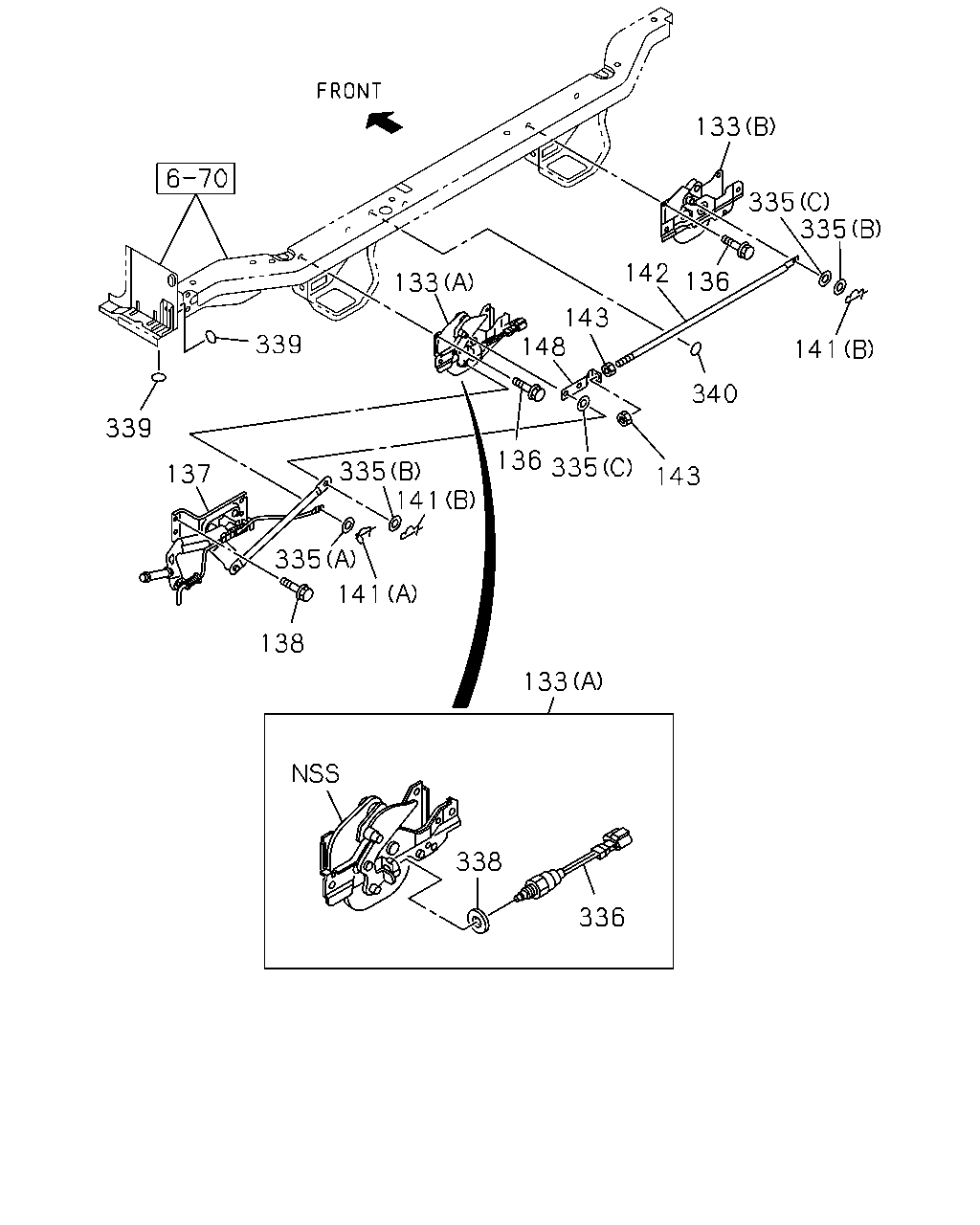

336
338
133
138
141
335
141
335
137
339
339
133
148
143
142
136
335
133
335
141
340
143
335
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1304-
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1304-
136
BOLT; CAB LK
M8X20 FLANGE
0-28650-820-0
08
1
1304-
137
CONTROL UNIT; CAB LOCK
8-98053-683-2
01
1
1304-
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE
0-28650-820-0
04
1
1304-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1304-
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1304-
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1304-
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
1304-
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1304-
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
1304-
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1304-
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1304-
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1304-
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1304-
339
SEAL; TILT HANDLE
OD=25 BLACK
1-76798-019-0
04
1
1304-
340
SEAL; HOLE
OD=25 BLACK
1-76798-019-0
02
1
1304-
