◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#155066) — 92 parça

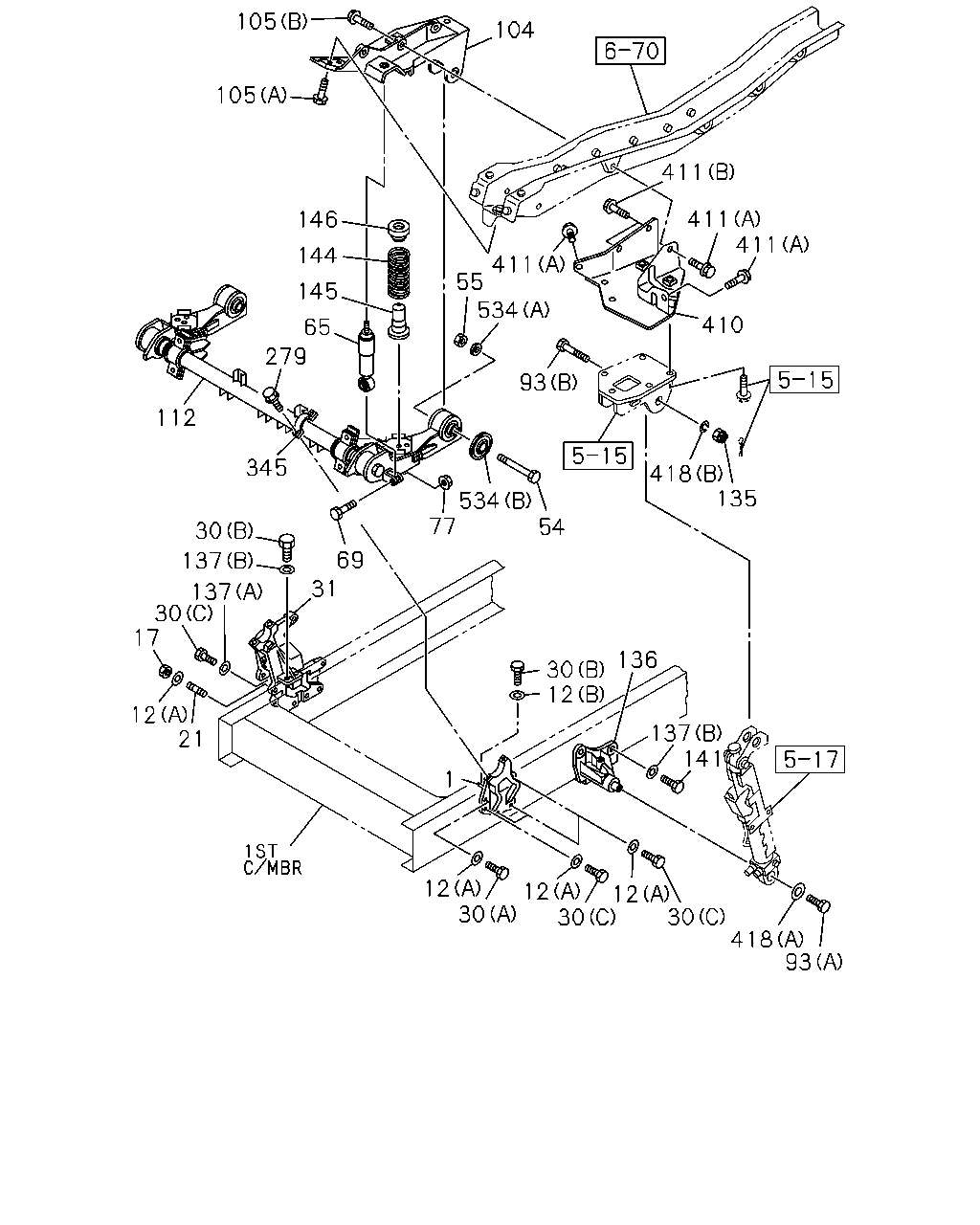

çizim 464392
105 105 104 146 144 145 65 279 112 345 30 137 137 30 31 69 17 12 21 77 534 54 418 135 410 411 411 411 411 55 534 30 12 136 137 141 12 12 12 30 30 30 418 1 93 93
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1304-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 06 1 1304-
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1304-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1304-
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1304-
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1304-
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 09 1 1304-
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 01 1 1304-
31 BRACKET; CAB 8-98152-797-0 01 1 1304-
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1304-
55 NUT; RUBBER
M18 		0-91110-518-0 02 1 1304-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1304-
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1304-
77 NUT
M12 FLANGE 		0-91180-212-0 02 1 1304-
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1304-
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1304-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1304-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1304-
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE 		0-28651-235-0 06 1 1304-
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE 		0-28661-030-0 08 1 1304-
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1304-
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1304-
136 BRACKET; OIL CYL 8-98226-400-0 01 1 1304-
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1304-
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 02 1 1304-
137 WASHER; PL,BRKT
ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (B) ID=15 		8-98010-627-1 02 1 1304-
137 WASHER; PL,BRKT
WHEEL BASE 6400MM(64W) (B) ID=15 		8-98010-627-1 04 1 1304-
141 BOLT; BRKT
WHEEL BASE 6400MM(64W) M14X50 		0-20951-450-0 04 1 1304-
141 BOLT; BRKT
WHEEL BASE 6600MM(66W) M14X50 		0-20951-450-0 02 1 1304-
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1304-
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1304-
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1304-
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1304-1510
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511-
345 CAP; CAB 1-53458-336-3 02 1 1304-
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1304-
411 BOLT; REINFORCEMENT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1304-
411 BOLT; REINFORCEMENT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 1304-
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1304-
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1304-
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1304-
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1304-

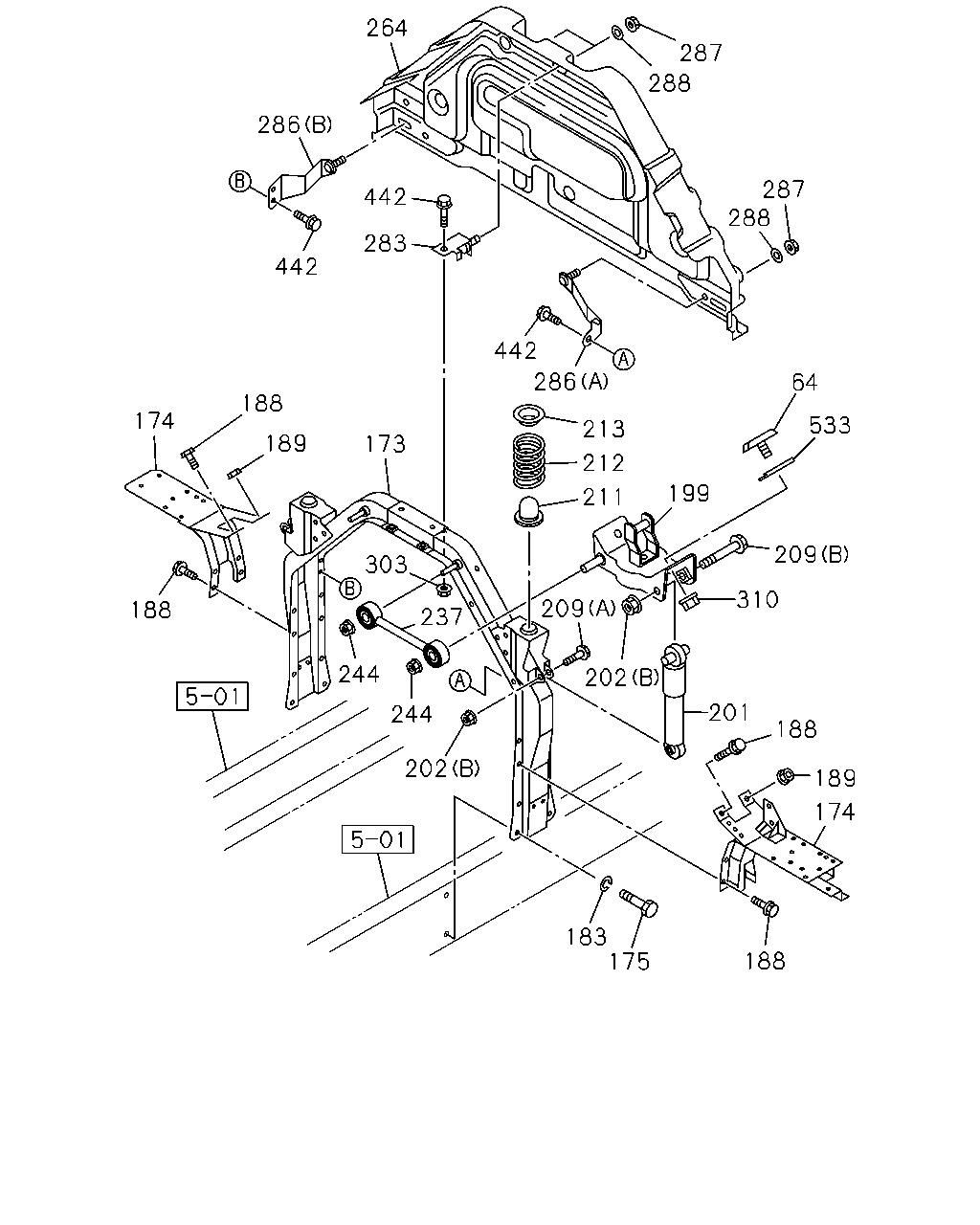

çizim 464572
264 286 442 283 442 188 174 189 173 286 442 288 287 287 288 64 533 199 211 212 213 209 310 202 201 188 189 174 183 202 244 244 237 303 188 209 175 188
BalonParca AdiParca NoAdetTipApplied Date
64 RUBBER; CUSHION 8-97113-340-0 04 1 1304-
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1304-
174 OUTRIGGER 8-98054-839-2 01 1 1304-
174 OUTRIGGER 8-98054-838-1 01 1 1304-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1304-
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1304-
188 BOLT; OUTRIGGER
M12X30 FLANGE 		0-28661-230-0 10 1 1304-
189 NUT; OUTRIGGER
M12 FLANGE 		0-91180-212-0 02 1 1304-
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1304-
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1304-1403
199 BRACKET; CAB RR MTG 8-98270-495-0 01 1 1404-
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1304-1401
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1304-
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1304-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1304-
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1304-
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1304-
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1304-
212 SPRING; COIL 1-09580-398-1 02 1 1304-
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1304-
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1304-
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1304-
264 PANEL; BACK
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98055-597-1 01 1 1304-
283 BRACKET; UPR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53457-187-0 01 1 1304-
286 BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) 		8-98057-240-0 01 1 1304-
286 BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) 		8-98057-241-0 01 1 1304-
287 NUT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 03 1 1304-
288 WASHER; PL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26 		0-91614-808-0 03 1 1304-
303 NUT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 01 1 1304-
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1304-
442 BOLT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE 		0-28650-820-0 04 1 1304-
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1304-
çizim 464803
65 202 202 203 205 204 203 112 51 535 48 27 536 51 191 535 535 535 191 191 535 51 48 27 536 51 535 535 535 191 204
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1304-
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1304-
51 BUSHING; RUBBER 1-53458-714-0 04 1 1304-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1304-
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1304-
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28051-235-0 08 1 1304-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1304-
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1304-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1304-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1304-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1304-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1304-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1304-
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1304-
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1304-
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1304-
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1304-
