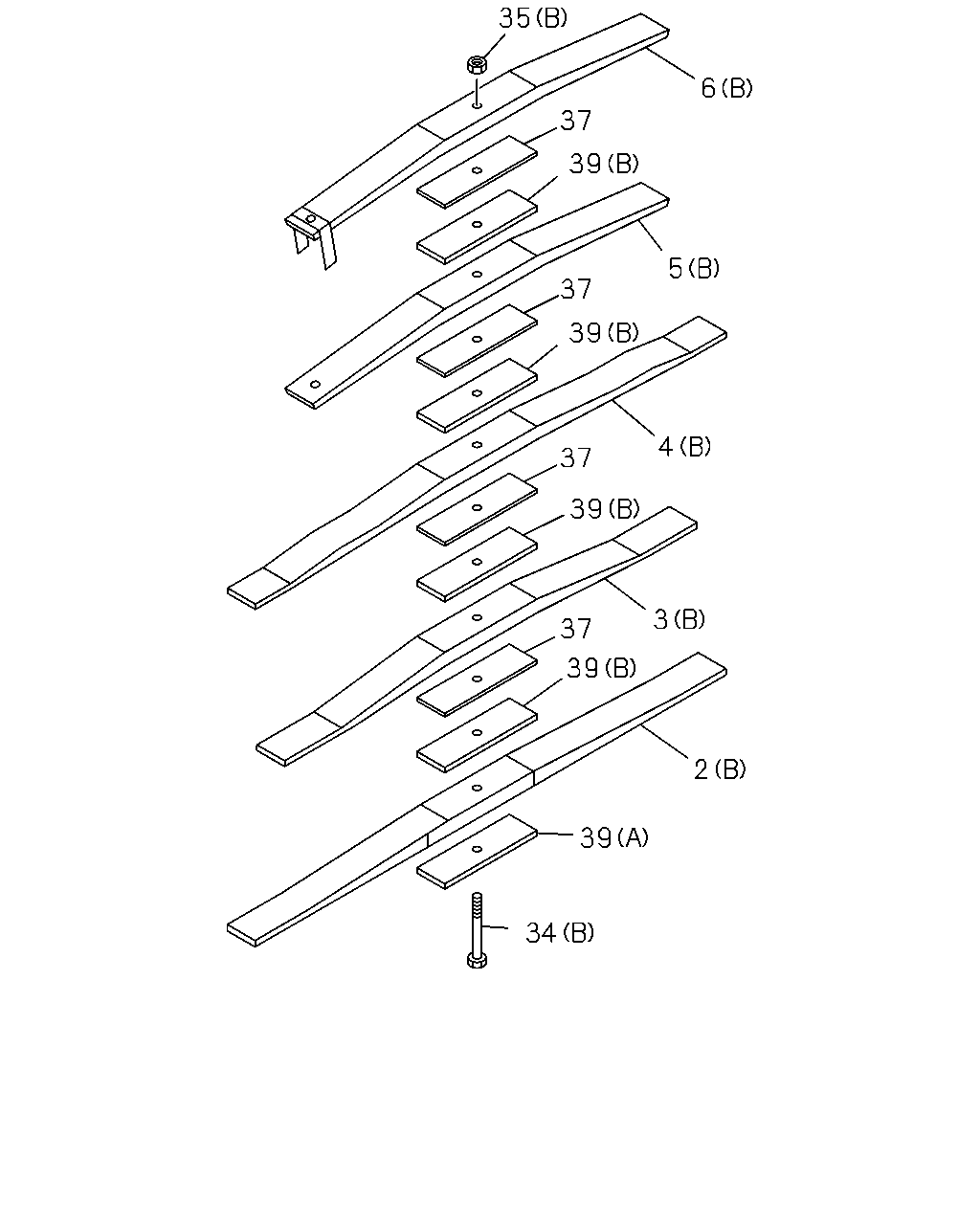

4-65 — REAR LEAF SPRING (#155063) — 51 parça

35 6 37 39 5 37 4 39 37 39 3 37 39 2 39 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51411-269-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98199-311-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98199-314-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51412-269-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98199-312-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98199-315-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51413-269-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98199-313-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98199-316-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51414-269-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98105-243-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98105-248-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51415-269-1	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98105-244-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98105-249-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=225 ASM PART: A = 1-51410-269-1	1-51356-362-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=210 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-51356-364-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: A = 1-51410-269-1	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-09400-061-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR T=1.2 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-51359-037-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (B), T=6 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-51377-399-0	04	1	-
39	SEAT; LEAF SPR,RR MAIN (A), T=3.2 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	8-97615-292-0	01	1	-

34 2 3 4 5 6 7 36 48 45 44 8 9 10 11 12 45 48 44 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51411-269-1	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98199-311-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98199-314-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51412-269-1	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98199-312-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98199-315-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51413-269-1	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98199-313-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98199-316-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51414-269-1	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98105-243-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98105-248-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (A) ASM PART: A = 1-51410-269-1	1-51415-269-1	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: B = 8-98101-101-1	8-98105-244-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN (B) ASM PART: C = 8-98102-211-1	8-98105-249-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 1-51410-269-1	1-51416-269-1	01	1	-
8	SPRING; LEAF,NO 7,RR MAIN W/CLIP ASM PART: A = 1-51410-269-1	1-51417-269-1	01	1	-
9	SPRING; LEAF,NO 8,RR MAIN ASM PART: A = 1-51410-269-1	1-51418-269-1	01	1	-
10	SPRING; LEAF,NO 9,RR MAIN ASM PART: A = 1-51410-269-1	1-51419-269-1	01	1	-
11	SPRING; LEAF,NO 10,RR MAIN ASM PART: A = 1-51410-269-1	1-51421-269-1	01	1	-
12	SPRING; LEAF,NO 11,RR MAIN ASM PART: A = 1-51410-269-1	1-51422-269-1	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (A), L=225 ASM PART: A = 1-51410-269-1	1-51356-362-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN (B), L=210 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-51356-364-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (A), M16 ASM PART: A = 1-51410-269-1	1-09400-054-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR (B), M16 ASM PART: B = 8-98101-101-1, C = 8-98102-211-1	1-09400-061-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 1-51410-269-1	1-09000-751-0	02	1	-
44	PIPE; CLIP,LEAF SPR,RR MAIN ASM PART: A = 1-51410-269-1	1-51353-015-0	02	1	-
45	NUT; CLIP,LEAF SPR,RR MAIN M10 ASM PART: A = 1-51410-269-1	9-09110-010-0	02	1	-
48	WASHER; CLIP,LEAF SPR ID=10.2 ASM PART: A = 1-51410-269-1	9-09150-510-0	02	1	-
