◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#155061) — 375 parça

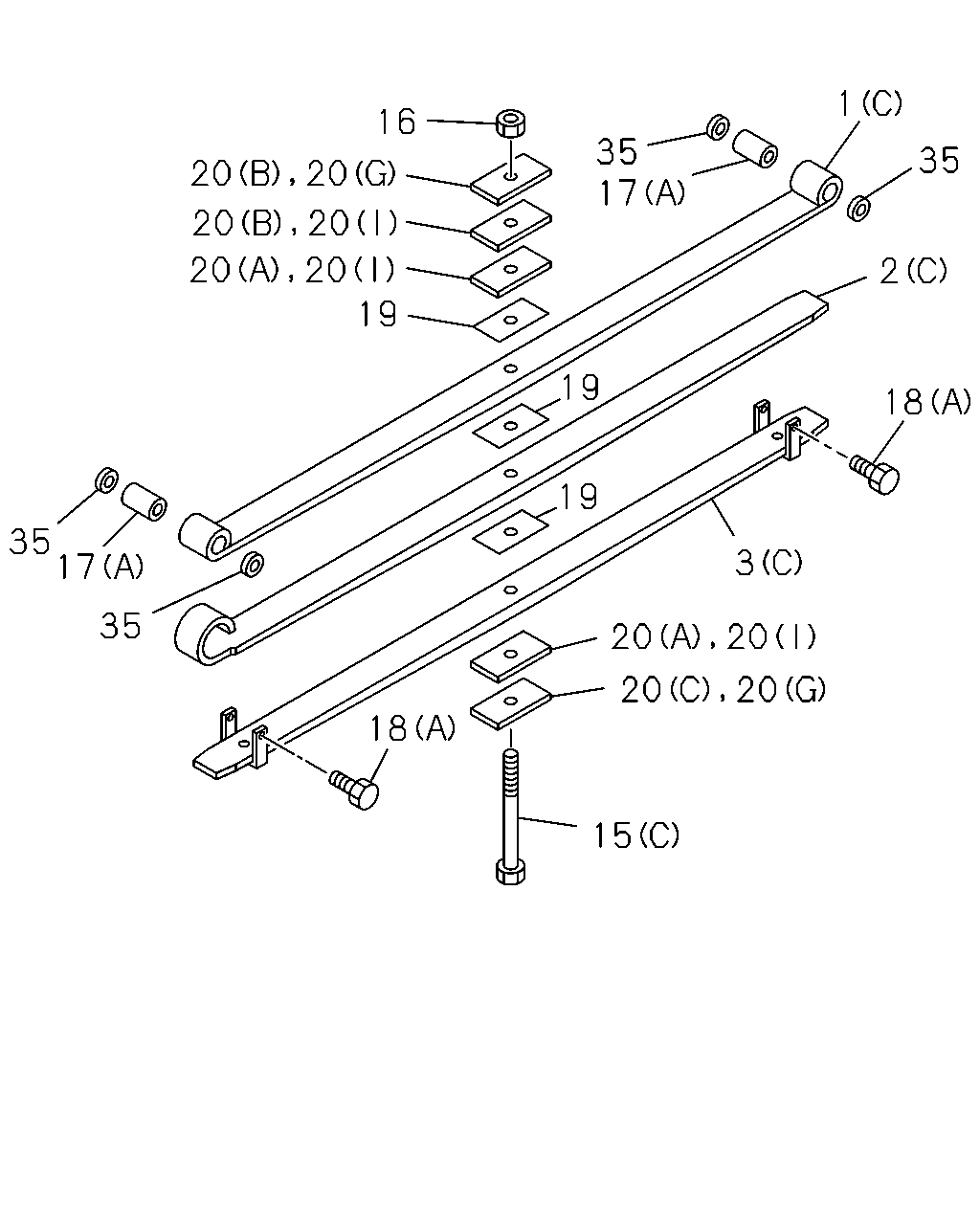

çizim 464742
16 20 20 20 20 20 20 35 19 17 1 18 2 35 19 19 35 35 17 18 15 20 20 20 20 3
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51131-888-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51131-908-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51131-915-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-249-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-113-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98290-625-0 		8-98290-602-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51132-888-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51132-908-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51132-915-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-250-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-114-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98290-625-0 		8-98290-603-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51133-888-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51133-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51133-915-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-251-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-115-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98290-625-0 		8-98290-604-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=170 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51156-305-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=135 ASM PART: B = 8-97617-984-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=175 ASM PART: A = 8-97617-502-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=165 ASM PART: D = 8-98090-277-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(E), L=180 ASM PART: E = 8-98236-922-0 		1-51156-392-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(F), L=205 ASM PART: F = 8-98236-925-0 		1-51156-425-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, E = 8-98236-922-0, F = 8-98236-925-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: E = 8-98236-922-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: F = 8-98236-925-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0, E = 8-98236-922-0, G = 8-98241-419-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-502-0, C = 8-98090-276-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-97617-984-0, D = 8-98090-277-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: G = 8-98241-419-0 		8-98227-421-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		8-98227-421-0 04 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: G = 8-98241-419-0 		1-51177-070-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: B = 8-97617-984-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98090-277-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: E = 8-98236-922-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, E = 8-98236-922-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0, H = 8-98241-420-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: F = 8-98236-925-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(H), T=10 ASM PART: F = 8-98236-925-0 		1-51177-161-0 02 1 -
20 SEAT; LEAF SPR,FRT
(I), T=13 ASM PART: G = 8-98241-419-0 		1-51177-346-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: I = 8-98290-625-0 		1-51177-347-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: H = 8-98241-420-0 		1-51177-347-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=8 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-353-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=12 ASM PART: A = 8-97617-502-0 		8-97618-420-0 02 1 -
20 SEAT; LEAF SPR,FRT
(F), T=14 ASM PART: A = 8-97617-502-0 		8-97618-421-0 03 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-321-0 04 1 -

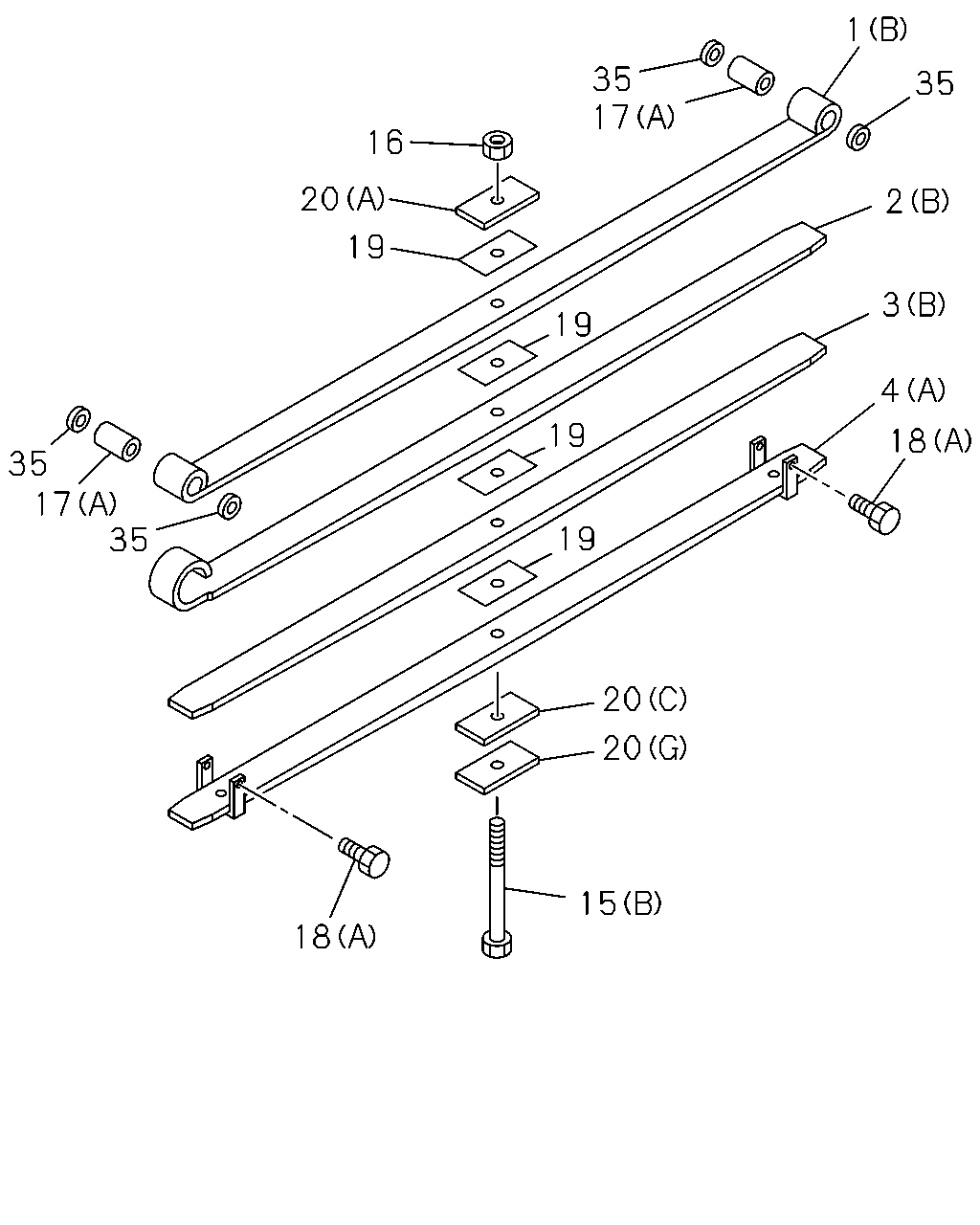

çizim 464766
16 20 35 19 35 35 17 18 19 19 19 20 20 15 18 4 3 2 35 1 17
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51131-888-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51131-908-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51131-915-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-249-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-113-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98290-625-0 		8-98290-602-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51132-888-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51132-908-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51132-915-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-250-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-114-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98290-625-0 		8-98290-603-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51133-888-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51133-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51133-915-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-251-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-115-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98290-625-0 		8-98290-604-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-97617-984-0 		1-51134-915-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: E = 8-98236-922-0 		8-98188-252-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: F = 8-98236-925-0 		8-98242-116-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-98290-625-0 		8-98290-605-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=170 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51156-305-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=135 ASM PART: B = 8-97617-984-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=175 ASM PART: A = 8-97617-502-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=165 ASM PART: D = 8-98090-277-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(E), L=180 ASM PART: E = 8-98236-922-0 		1-51156-392-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(F), L=205 ASM PART: F = 8-98236-925-0 		1-51156-425-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, E = 8-98236-922-0, F = 8-98236-925-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: E = 8-98236-922-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: F = 8-98236-925-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0, E = 8-98236-922-0, G = 8-98241-419-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-502-0, C = 8-98090-276-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-97617-984-0, D = 8-98090-277-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: G = 8-98241-419-0 		8-98227-421-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		8-98227-421-0 04 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: G = 8-98241-419-0 		1-51177-070-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: B = 8-97617-984-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98090-277-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: E = 8-98236-922-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, E = 8-98236-922-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0, H = 8-98241-420-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: F = 8-98236-925-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(H), T=10 ASM PART: F = 8-98236-925-0 		1-51177-161-0 02 1 -
20 SEAT; LEAF SPR,FRT
(I), T=13 ASM PART: G = 8-98241-419-0 		1-51177-346-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: I = 8-98290-625-0 		1-51177-347-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: H = 8-98241-420-0 		1-51177-347-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=8 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-353-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=12 ASM PART: A = 8-97617-502-0 		8-97618-420-0 02 1 -
20 SEAT; LEAF SPR,FRT
(F), T=14 ASM PART: A = 8-97617-502-0 		8-97618-421-0 03 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-321-0 04 1 -

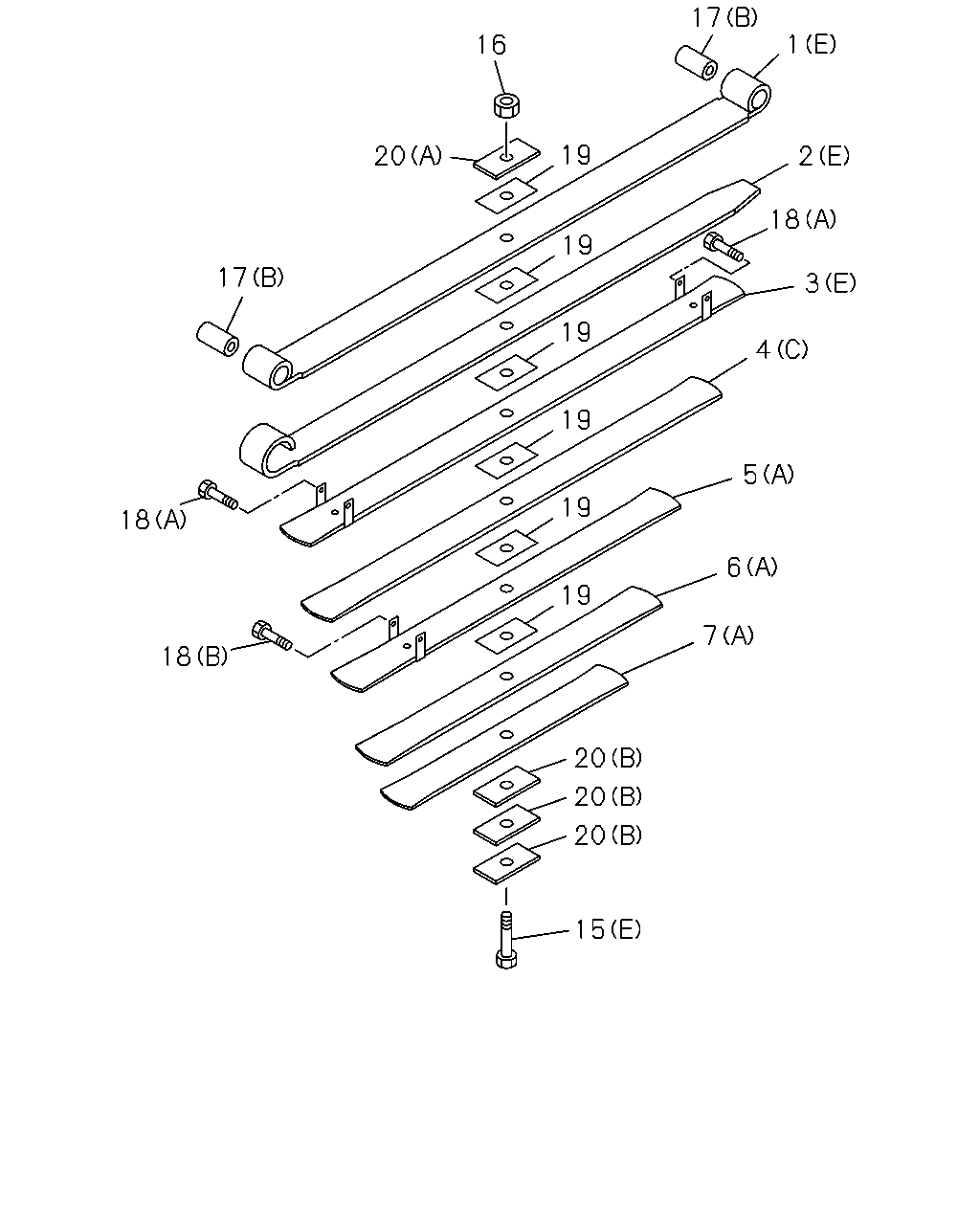

çizim 464779
16 20 17 18 18 19 19 19 19 19 19 20 20 20 15 7 6 5 4 3 18 2 1 17
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51131-888-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51131-908-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51131-915-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-249-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-113-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98290-625-0 		8-98290-602-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51132-888-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51132-908-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51132-915-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-250-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-114-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98290-625-0 		8-98290-603-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51133-888-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51133-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51133-915-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-251-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-115-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98290-625-0 		8-98290-604-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-97617-984-0 		1-51134-915-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: E = 8-98236-922-0 		8-98188-252-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: F = 8-98236-925-0 		8-98242-116-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-98290-625-0 		8-98290-605-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: E = 8-98236-922-0 		8-98188-253-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: F = 8-98236-925-0 		8-98242-117-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: E = 8-98236-922-0 		8-98188-254-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: F = 8-98236-925-0 		8-98242-118-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: E = 8-98236-922-0 		8-98188-255-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: F = 8-98236-925-0 		8-98242-119-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=170 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51156-305-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=135 ASM PART: B = 8-97617-984-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=175 ASM PART: A = 8-97617-502-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=165 ASM PART: D = 8-98090-277-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(E), L=180 ASM PART: E = 8-98236-922-0 		1-51156-392-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(F), L=205 ASM PART: F = 8-98236-925-0 		1-51156-425-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, E = 8-98236-922-0, F = 8-98236-925-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: E = 8-98236-922-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: F = 8-98236-925-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0, E = 8-98236-922-0, G = 8-98241-419-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-502-0, C = 8-98090-276-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-97617-984-0, D = 8-98090-277-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: G = 8-98241-419-0 		8-98227-421-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		8-98227-421-0 04 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: G = 8-98241-419-0 		1-51177-070-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: B = 8-97617-984-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98090-277-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: E = 8-98236-922-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, E = 8-98236-922-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0, H = 8-98241-420-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: F = 8-98236-925-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(H), T=10 ASM PART: F = 8-98236-925-0 		1-51177-161-0 02 1 -
20 SEAT; LEAF SPR,FRT
(I), T=13 ASM PART: G = 8-98241-419-0 		1-51177-346-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: I = 8-98290-625-0 		1-51177-347-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: H = 8-98241-420-0 		1-51177-347-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=8 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-353-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=12 ASM PART: A = 8-97617-502-0 		8-97618-420-0 02 1 -
20 SEAT; LEAF SPR,FRT
(F), T=14 ASM PART: A = 8-97617-502-0 		8-97618-421-0 03 1 -

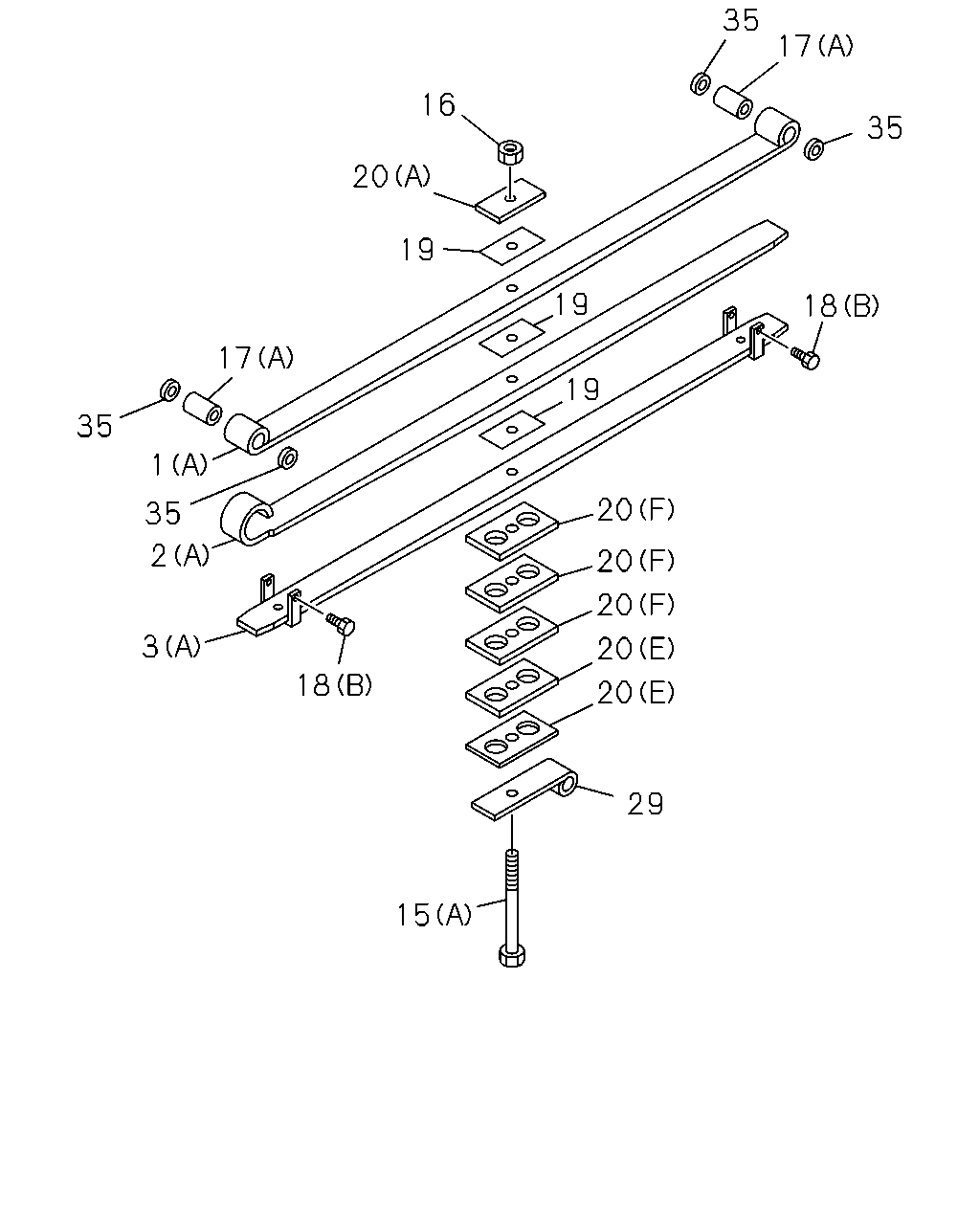

çizim 464798
18 35 17 35 16 20 19 19 19 17 35 35 1 2 3 18 15 29 20 20 20 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51131-888-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51131-908-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51131-915-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-249-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-113-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98290-625-0 		8-98290-602-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51132-888-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51132-908-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51132-915-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-250-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-114-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98290-625-0 		8-98290-603-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51133-888-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51133-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51133-915-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-251-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-115-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98290-625-0 		8-98290-604-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=170 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51156-305-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=135 ASM PART: B = 8-97617-984-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=175 ASM PART: A = 8-97617-502-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=165 ASM PART: D = 8-98090-277-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(E), L=180 ASM PART: E = 8-98236-922-0 		1-51156-392-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(F), L=205 ASM PART: F = 8-98236-925-0 		1-51156-425-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, E = 8-98236-922-0, F = 8-98236-925-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: E = 8-98236-922-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: F = 8-98236-925-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0, E = 8-98236-922-0, G = 8-98241-419-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-502-0, C = 8-98090-276-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-97617-984-0, D = 8-98090-277-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: G = 8-98241-419-0 		8-98227-421-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		8-98227-421-0 04 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: G = 8-98241-419-0 		1-51177-070-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: B = 8-97617-984-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98090-277-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: E = 8-98236-922-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, E = 8-98236-922-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0, H = 8-98241-420-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: F = 8-98236-925-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(H), T=10 ASM PART: F = 8-98236-925-0 		1-51177-161-0 02 1 -
20 SEAT; LEAF SPR,FRT
(I), T=13 ASM PART: G = 8-98241-419-0 		1-51177-346-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: I = 8-98290-625-0 		1-51177-347-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: H = 8-98241-420-0 		1-51177-347-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=8 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-353-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=12 ASM PART: A = 8-97617-502-0 		8-97618-420-0 02 1 -
20 SEAT; LEAF SPR,FRT
(F), T=14 ASM PART: A = 8-97617-502-0 		8-97618-421-0 03 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, F = 8-98236-925-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-321-0 04 1 -

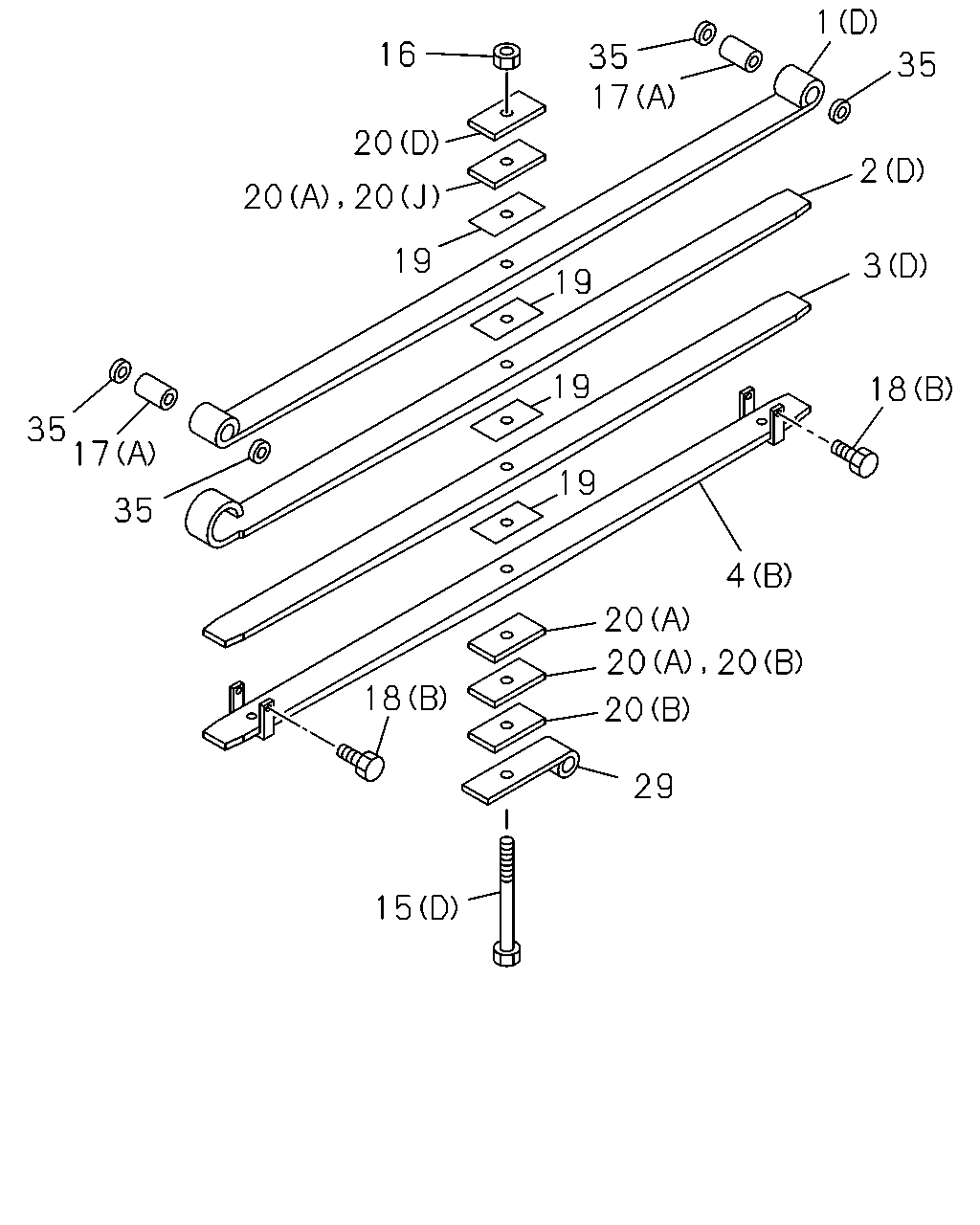

çizim 464799
15 29 20 20 20 20 4 18 3 2 1 35 35 17 16 20 20 20 19 35 35 17 18 19 19 19
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51131-888-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51131-908-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51131-915-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-249-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-113-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98290-625-0 		8-98290-602-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51132-888-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51132-908-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51132-915-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-250-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-114-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98290-625-0 		8-98290-603-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51133-888-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51133-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51133-915-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-251-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-115-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98290-625-0 		8-98290-604-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-97617-984-0 		1-51134-915-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: E = 8-98236-922-0 		8-98188-252-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: F = 8-98236-925-0 		8-98242-116-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-98290-625-0 		8-98290-605-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=170 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51156-305-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=135 ASM PART: B = 8-97617-984-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=175 ASM PART: A = 8-97617-502-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=165 ASM PART: D = 8-98090-277-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(E), L=180 ASM PART: E = 8-98236-922-0 		1-51156-392-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(F), L=205 ASM PART: F = 8-98236-925-0 		1-51156-425-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, E = 8-98236-922-0, F = 8-98236-925-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: E = 8-98236-922-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: F = 8-98236-925-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0, E = 8-98236-922-0, G = 8-98241-419-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-502-0, C = 8-98090-276-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-97617-984-0, D = 8-98090-277-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: G = 8-98241-419-0 		8-98227-421-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		8-98227-421-0 04 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: G = 8-98241-419-0 		1-51177-070-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: B = 8-97617-984-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98090-277-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: E = 8-98236-922-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, E = 8-98236-922-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0, H = 8-98241-420-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: F = 8-98236-925-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(H), T=10 ASM PART: F = 8-98236-925-0 		1-51177-161-0 02 1 -
20 SEAT; LEAF SPR,FRT
(I), T=13 ASM PART: G = 8-98241-419-0 		1-51177-346-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: I = 8-98290-625-0 		1-51177-347-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: H = 8-98241-420-0 		1-51177-347-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=8 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-353-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=12 ASM PART: A = 8-97617-502-0 		8-97618-420-0 02 1 -
20 SEAT; LEAF SPR,FRT
(F), T=14 ASM PART: A = 8-97617-502-0 		8-97618-421-0 03 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, F = 8-98236-925-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-321-0 04 1 -
çizim 464813
15 29 20 20 20 20 6 5 18 4 3 18 2 1 17 16 20 17 18 19 19 19 19 19 19 7 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51131-888-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51131-908-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51131-915-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-249-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-113-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: I = 8-98290-625-0 		8-98290-602-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51132-888-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51132-908-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51132-915-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-250-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-114-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: I = 8-98290-625-0 		8-98290-603-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51133-888-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: A = 8-97617-502-0 		1-51133-908-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: B = 8-97617-984-0 		1-51133-915-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: E = 8-98236-922-0 		8-98188-251-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: F = 8-98236-925-0 		8-98242-115-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: I = 8-98290-625-0 		8-98290-604-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: B = 8-97617-984-0 		1-51134-915-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: D = 8-98090-277-0, H = 8-98241-420-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: E = 8-98236-922-0 		8-98188-252-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: F = 8-98236-925-0 		8-98242-116-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: I = 8-98290-625-0 		8-98290-605-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: E = 8-98236-922-0 		8-98188-253-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: F = 8-98236-925-0 		8-98242-117-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: E = 8-98236-922-0 		8-98188-254-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: F = 8-98236-925-0 		8-98242-118-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: E = 8-98236-922-0 		8-98188-255-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: F = 8-98236-925-0 		8-98242-119-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=170 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51156-305-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=135 ASM PART: B = 8-97617-984-0 		1-51156-333-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: C = 8-98090-276-0, G = 8-98241-419-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=175 ASM PART: A = 8-97617-502-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=165 ASM PART: D = 8-98090-277-0 		1-51156-366-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(E), L=180 ASM PART: E = 8-98236-922-0 		1-51156-392-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(F), L=205 ASM PART: F = 8-98236-925-0 		1-51156-425-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, E = 8-98236-922-0, F = 8-98236-925-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=38 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=42 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, C = 8-98090-276-0, D = 8-98090-277-0, G = 8-98241-419-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: E = 8-98236-922-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X99 ASM PART: F = 8-98236-925-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X103 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0, E = 8-98236-922-0, G = 8-98241-419-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-97617-502-0, C = 8-98090-276-0 		1-51177-071-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: E = 8-98236-922-0, F = 8-98236-925-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-97617-984-0, D = 8-98090-277-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: G = 8-98241-419-0 		8-98227-421-0 03 1 -
19 SPACER; LEAF SPRING,FRT
T=3.2 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		8-98227-421-0 04 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: G = 8-98241-419-0 		1-51177-070-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: B = 8-97617-984-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98090-277-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: E = 8-98236-922-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-97617-984-0, C = 8-98090-276-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: A = 8-97617-502-0, B = 8-97617-984-0, E = 8-98236-922-0 		1-51177-097-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98090-276-0, D = 8-98090-277-0, H = 8-98241-420-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: F = 8-98236-925-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(H), T=10 ASM PART: F = 8-98236-925-0 		1-51177-161-0 02 1 -
20 SEAT; LEAF SPR,FRT
(I), T=13 ASM PART: G = 8-98241-419-0 		1-51177-346-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: I = 8-98290-625-0 		1-51177-347-0 03 1 -
20 SEAT; LEAF SPR,FRT
(J), T=11 ASM PART: H = 8-98241-420-0 		1-51177-347-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=8 ASM PART: H = 8-98241-420-0, I = 8-98290-625-0 		1-51177-353-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=12 ASM PART: A = 8-97617-502-0 		8-97618-420-0 02 1 -
20 SEAT; LEAF SPR,FRT
(F), T=14 ASM PART: A = 8-97617-502-0 		8-97618-421-0 03 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-97617-502-0, D = 8-98090-277-0, F = 8-98236-925-0, H = 8-98241-420-0, I = 8-98290-625-0 		1-51681-650-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
