◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#155060) — 177 parça

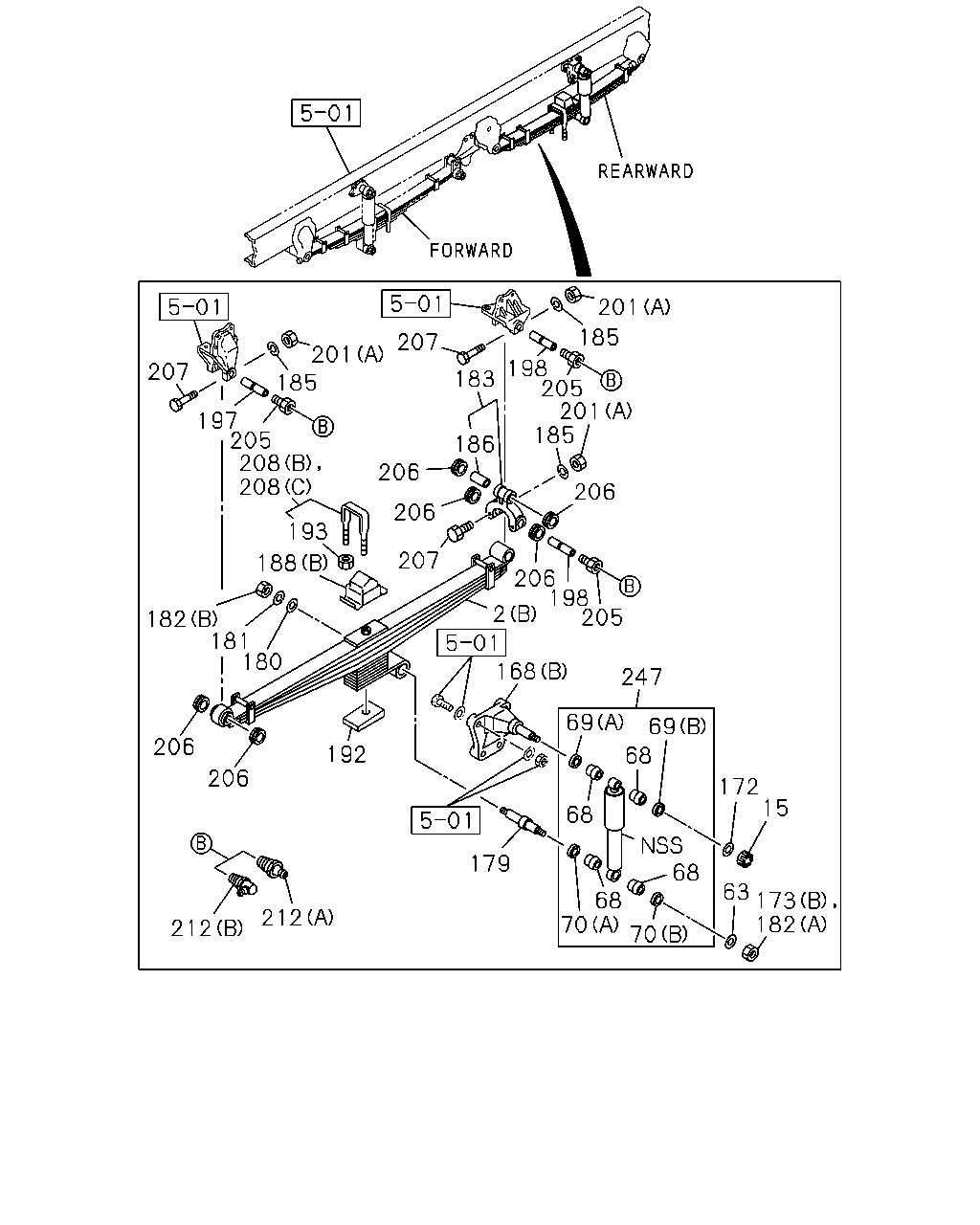

çizim 464413
207 185 201 207 197 208 206 207 206 183 198 201 205 185 201 185 206 206 198 205 247 69 68 168 188 208 205 193 186 182 181 180 206 206 212 212 179 68 70 68 70 173 182 63 15 172 69 2 192 68
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) (A) 7-LEAF 		8-98236-922-0 02 1 1304-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> (A) 7-LEAF 		8-98236-922-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) (B) 7-LEAF 		8-98236-925-0 02 1 1304-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> (B) 7-LEAF 		8-98236-925-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (A) 3-LEAF 		8-98090-276-0 02 1 1304-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (A) 3-LEAF 		8-98241-419-0 02 1 1306-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> (A) 3-LEAF 		8-98241-419-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (B) 4-LEAF 		8-98090-277-0 02 1 1304-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (B) 4-LEAF 		8-98241-420-0 02 1 1306-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> (B) 4-LEAF 		8-98241-420-0 02 1 1408-1410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> SINGAPORE EQUIPMENT(WQ3) EXC. DUMP CHASSIS(V4D) (B) 4-LEAF 		8-98241-420-0 02 1 1411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP CHASSIS(V4D) (B) 		8-98290-625-0 02 1 1411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) (B) 3-LEAF 		8-97617-502-0 02 1 1304-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> (B) 3-LEAF 		8-97617-502-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) (A) 4-LEAF 		8-97617-984-0 02 1 1304-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF 		8-97617-984-0 02 1 1408-
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1304-
63 WASHER; PL,S/ABS,LWR
FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 04 1 1304-
63 WASHER; PL,S/ABS,LWR
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 02 1 1304-
68 BUSHING; S/ABS
WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) 		9-51631-026-0 16 1 1304-1408
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> 		9-51631-026-0 08 1 1409-
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> 		9-51631-026-0 08 1 1409-
68 BUSHING; S/ABS
WHEEL BASE 6600MM(66W) 		9-51631-026-0 08 1 1304-1408
68 BUSHING; S/ABS
WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) 		9-51631-026-0 08 1 1304-1408
68 BUSHING; S/ABS
EXC. DUMP CHASSIS(V4D) 		9-51631-026-0 08 1 1304-1408
68 BUSHING; S/ABS
WHEEL BASE 6600MM(66W) DUMP CHASSIS(V4D) 		9-51631-026-0 08 1 1304-1408
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> 		9-51631-026-0 16 1 1409-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1304-1408
69 WASHER; UPR,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 1409-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1304-1408
69 WASHER; UPR,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 1409-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 1304-1408
70 WASHER; LWR,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 1409-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 1304-1408
70 WASHER; LWR,S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 1409-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1304-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1304-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 1304-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 1304-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 1304-
173 NUT; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) M20 		0-91110-520-0 02 1 1304-
179 PIN
FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 02 1 1304-
179 PIN
EXC. FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 04 1 1304-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 02 1 1304-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 04 1 1304-
181 WASHER; LK,PIN
FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 02 1 1304-
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 04 1 1304-
182 NUT; S/ABS LWR
(B) M24 		0-91110-524-0 02 1 1304-
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> (A) M20 		0-91110-520-0 01 1 1304-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1304-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1304-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1304-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-108-2 02 1 1304-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 6400MM(64W) (A) 		1-51172-086-2 02 1 1304-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 6600MM(66W) (A) 		1-51172-085-2 02 1 1304-
192 PIECE; DIST 1-51177-281-1 02 1 1304-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1304-
197 PIN; FRT SPR,FRT 1-51161-043-1 04 1 1304-1311
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1312-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-043-1 08 1 1304-1311
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1312-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 1304-
201 NUT; PIN LK
EXC. FRONT STABILIZER SHAFT<F59> (B) M24 		0-91110-524-0 02 1 1304-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1304-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1304-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1304-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) (B) L=270 		1-87870-327-2 04 1 1304-1408
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270 		1-87870-327-2 04 1 1409-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (C) L=230 		1-87870-493-0 08 1 1304-1408
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> (C) L=230 		1-87870-493-0 08 1 1409-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) (A) L=210 		1-87870-498-0 04 1 1304-1408
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> (A) L=210 		1-87870-498-0 04 1 1409-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) (A) L=250 		1-87870-494-0 04 1 1304-1408
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> (A) L=250 		1-87870-494-0 04 1 1409-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) (B) L=250 		1-87870-494-0 04 1 1304-1408
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> (B) L=250 		1-87870-494-0 04 1 1409-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 1304-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304-
212 NIPPLE; GREASE,ELBOW
(B) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 07 1 1304-
247 ABSORBER ASM; SHOCK,RWD FRT
WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) 		1-51630-444-0 02 1 1304-1408
247 ABSORBER ASM; SHOCK,RWD FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-444-0 02 1 1409-
247 ABSORBER ASM; SHOCK,RWD FRT
WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) 		8-98169-268-0 02 1 1304-1408
247 ABSORBER ASM; SHOCK,RWD FRT
WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> 		8-98169-268-0 02 1 1409-
247 ABSORBER ASM; SHOCK,RWD FRT
WHEEL BASE 6600MM(66W) 		8-98162-765-0 02 1 1304-1408
247 ABSORBER ASM; SHOCK,RWD FRT
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> 		8-98162-765-0 02 1 1409-
çizim 464639
140 140 137
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1304-
140 BOLT; BRKT
WHEEL BASE 6400MM(64W) M14X50 		0-20951-450-0 04 1 1304-
140 BOLT; BRKT
WHEEL BASE 6600MM(66W) M14X50 		0-20951-450-0 02 1 1304-

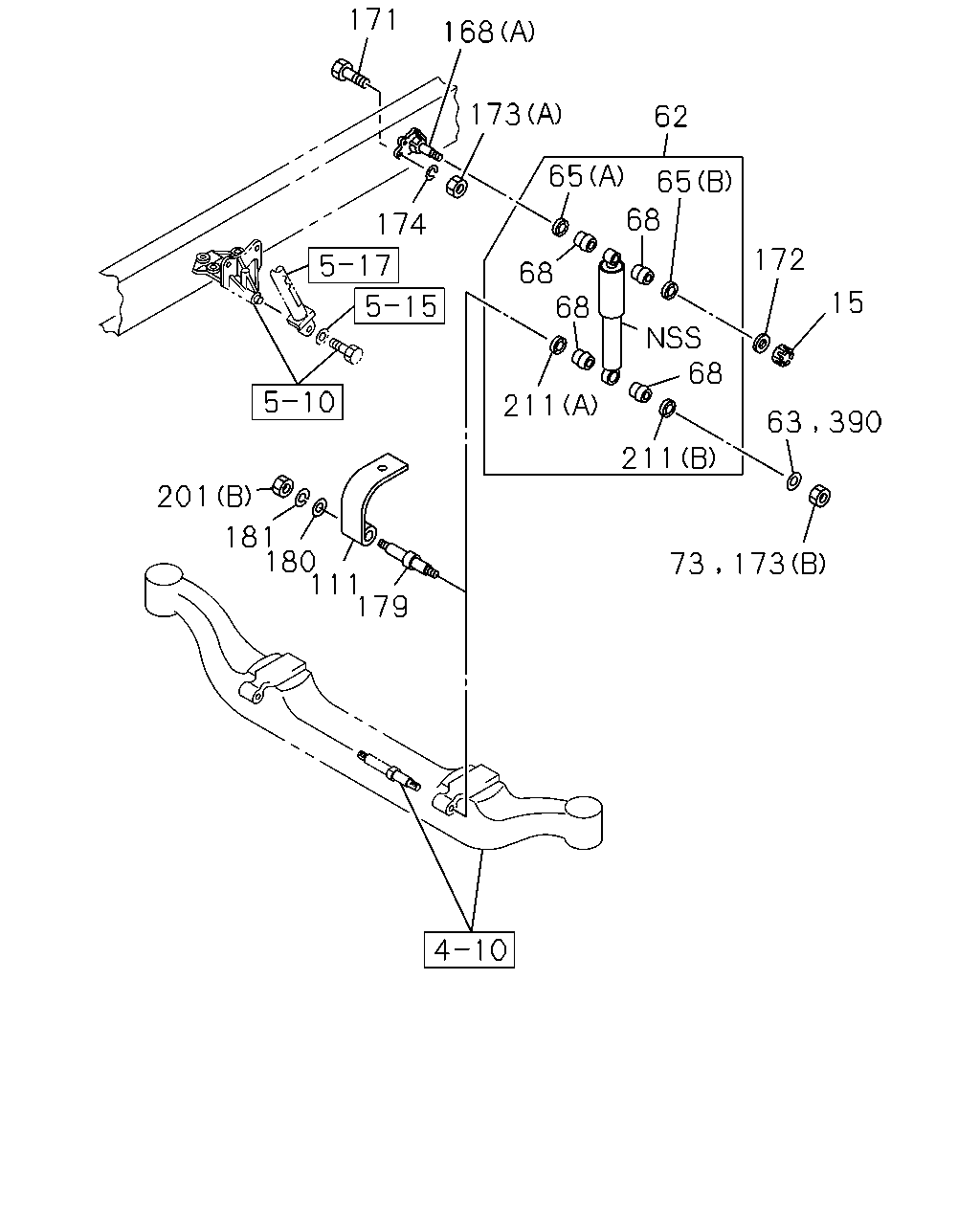

çizim 464716
171 173 168 65 62 65 68 68 68 68 211 211 63 172 390 15 73 173 179 111 180 181 201 174
BalonParca AdiParca NoAdetTipApplied Date
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1304-
62 ABSORBER ASM; SHOCK,FRT
EXC. DUMP CHASSIS(V4D) 		8-98169-270-0 02 1 1304-1408
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 6600MM(66W) DUMP CHASSIS(V4D) 		8-98169-270-0 02 1 1304-1408
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		8-98169-270-0 02 1 1409-
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) 		1-51630-443-0 02 1 1304-1408
62 ABSORBER ASM; SHOCK,FRT
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-443-0 02 1 1409-
63 WASHER; PL,S/ABS,LWR
FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 04 1 1304-
63 WASHER; PL,S/ABS,LWR
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 02 1 1304-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 1304-1408
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 1409-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 1304-1408
65 WASHER; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 1409-
68 BUSHING; S/ABS
WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) 		9-51631-026-0 16 1 1304-1408
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> 		9-51631-026-0 08 1 1409-
68 BUSHING; S/ABS
FRT TAPER LEAF SUSPENSION<SAR> 		9-51631-026-0 08 1 1409-
68 BUSHING; S/ABS
WHEEL BASE 6600MM(66W) 		9-51631-026-0 08 1 1304-1408
68 BUSHING; S/ABS
WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) 		9-51631-026-0 08 1 1304-1408
68 BUSHING; S/ABS
EXC. DUMP CHASSIS(V4D) 		9-51631-026-0 08 1 1304-1408
68 BUSHING; S/ABS
WHEEL BASE 6600MM(66W) DUMP CHASSIS(V4D) 		9-51631-026-0 08 1 1304-1408
68 BUSHING; S/ABS
MULTI LEAF SUSPENSION FRT<SAQ> 		9-51631-026-0 16 1 1409-
73 NUT; BRKT,SHOCK
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 01 1 1304-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-627-0 02 1 1304-
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1304-
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1304-
171 BOLT; S/ABS BRKT
M14X45 		0-20951-445-0 08 1 1304-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 1304-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 1304-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 02 1 1304-
173 NUT; S/ABS
EXC. FRONT STABILIZER SHAFT<F59> (B) M20 		0-91110-520-0 02 1 1304-
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 1304-
179 PIN
FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 02 1 1304-
179 PIN
EXC. FRONT STABILIZER SHAFT<F59> 		1-51682-094-1 04 1 1304-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 02 1 1304-
180 WASHER; PL,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=25 		1-09503-169-0 04 1 1304-
181 WASHER; LK,PIN
FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 02 1 1304-
181 WASHER; LK,PIN
EXC. FRONT STABILIZER SHAFT<F59> ID=24.5 		0-91510-524-0 04 1 1304-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 1304-
201 NUT; PIN LK
EXC. FRONT STABILIZER SHAFT<F59> (B) M24 		0-91110-524-0 02 1 1304-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1304-1408
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27 		9-51631-027-0 02 1 1409-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1304-1408
211 WASHER; BRKT,SHOCK
MULTI LEAF SUSPENSION FRT<SAQ>,FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21 		9-51631-028-0 02 1 1409-
390 WASHER; PL,S/ABS,UPR
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		0-91610-520-0 02 1 1304-

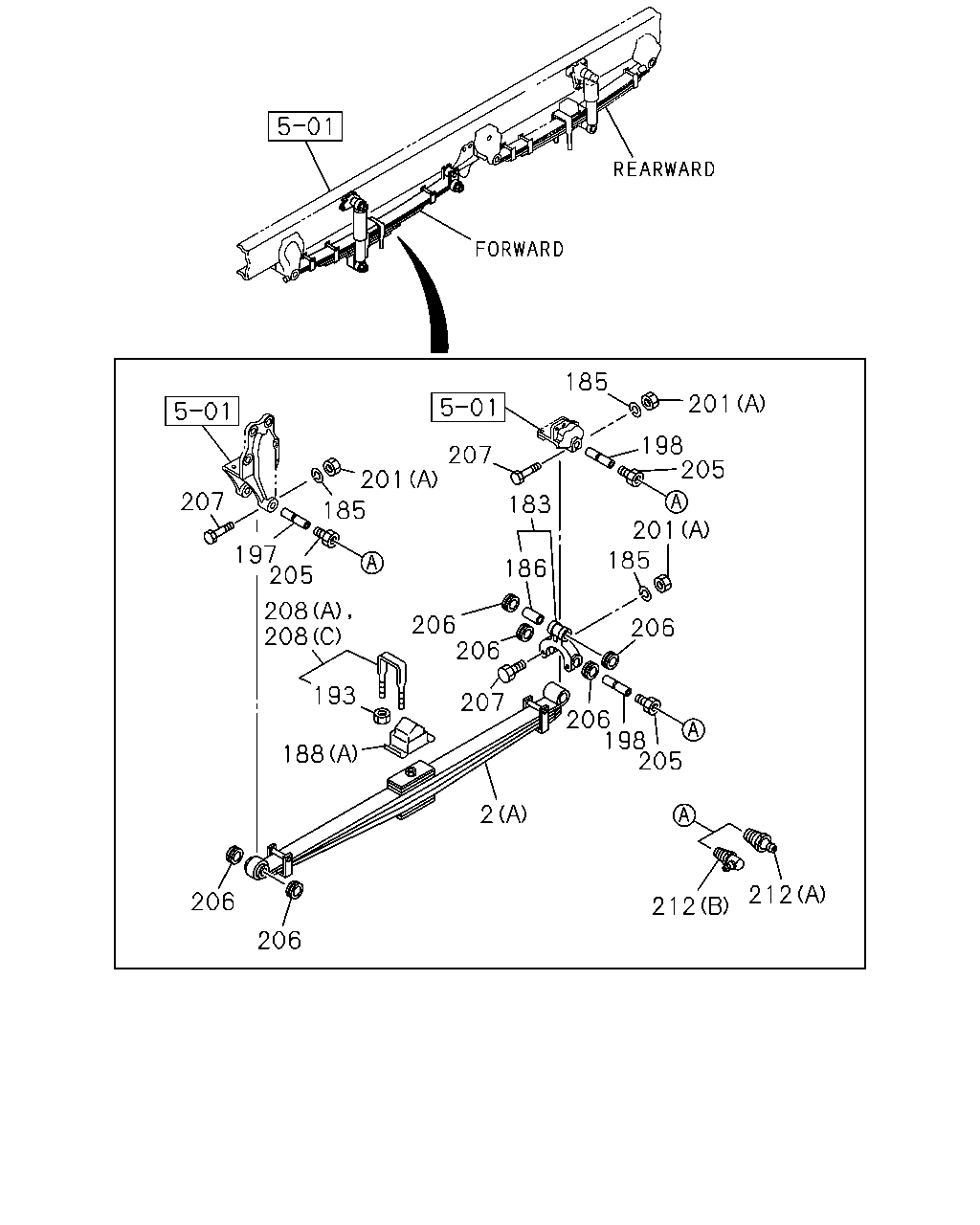

çizim 465080
207 197 201 185 205 208 208 193 188 2 206 206 205 198 206 207 185 201 198 201 185 206 183 186 206 206 207 212 212 205
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) (A) 7-LEAF 		8-98236-922-0 02 1 1304-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> (A) 7-LEAF 		8-98236-922-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) (B) 7-LEAF 		8-98236-925-0 02 1 1304-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> (B) 7-LEAF 		8-98236-925-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (A) 3-LEAF 		8-98090-276-0 02 1 1304-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (A) 3-LEAF 		8-98241-419-0 02 1 1306-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> (A) 3-LEAF 		8-98241-419-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (B) 4-LEAF 		8-98090-277-0 02 1 1304-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (B) 4-LEAF 		8-98241-420-0 02 1 1306-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> (B) 4-LEAF 		8-98241-420-0 02 1 1408-1410
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> SINGAPORE EQUIPMENT(WQ3) EXC. DUMP CHASSIS(V4D) (B) 4-LEAF 		8-98241-420-0 02 1 1411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6400MM(64W) HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> EXC. DUMP CHASSIS(V4D) (B) 		8-98290-625-0 02 1 1411-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) (B) 3-LEAF 		8-97617-502-0 02 1 1304-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> (B) 3-LEAF 		8-97617-502-0 02 1 1408-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) (A) 4-LEAF 		8-97617-984-0 02 1 1304-1407
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF 		8-97617-984-0 02 1 1408-
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1304-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 1304-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1304-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-108-2 02 1 1304-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 6400MM(64W) (A) 		1-51172-086-2 02 1 1304-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 6600MM(66W) (A) 		1-51172-085-2 02 1 1304-
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1304-
197 PIN; FRT SPR,FRT 1-51161-043-1 04 1 1304-1311
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 1312-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-043-1 08 1 1304-1311
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 1312-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 1304-
201 NUT; PIN LK
EXC. FRONT STABILIZER SHAFT<F59> (B) M24 		0-91110-524-0 02 1 1304-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 1304-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 1304-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 1304-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) (B) L=270 		1-87870-327-2 04 1 1304-1408
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270 		1-87870-327-2 04 1 1409-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6400MM(64W) EXC. DUMP CHASSIS(V4D) (C) L=230 		1-87870-493-0 08 1 1304-1408
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6400MM(64W) FRT TAPER LEAF SUSPENSION<SAR> (C) L=230 		1-87870-493-0 08 1 1409-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) (A) L=210 		1-87870-498-0 04 1 1304-1408
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> (A) L=210 		1-87870-498-0 04 1 1409-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6400MM(64W) DUMP CHASSIS(V4D) (A) L=250 		1-87870-494-0 04 1 1304-1408
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> (A) L=250 		1-87870-494-0 04 1 1409-
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) (B) L=250 		1-87870-494-0 04 1 1304-1408
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> (B) L=250 		1-87870-494-0 04 1 1409-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 1304-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1304-
212 NIPPLE; GREASE,ELBOW
(B) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 07 1 1304-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
