◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#155048) — 150 parça

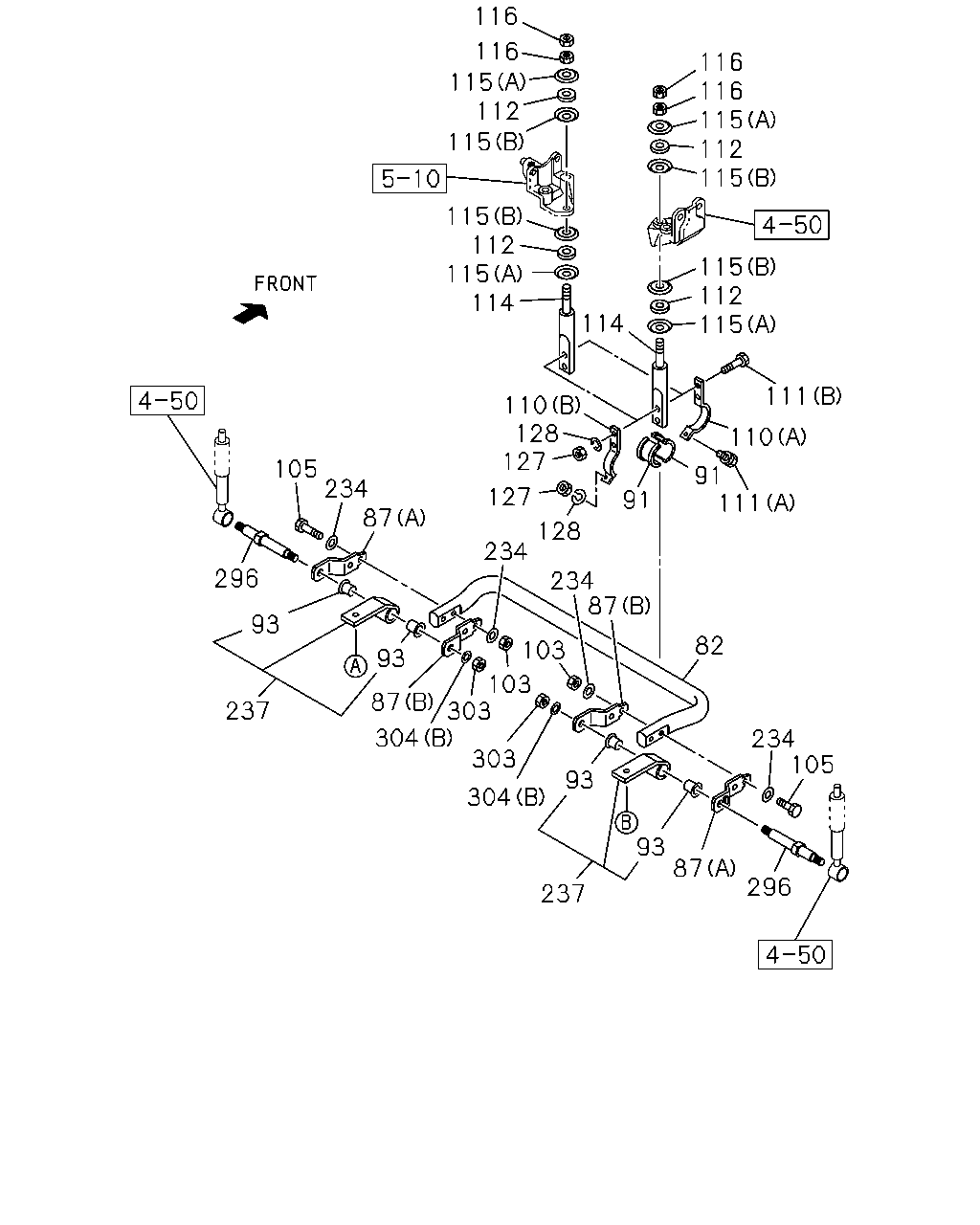

çizim 464365
116 116 115 112 115 115 115 112 114 114 116 116 115 112 115 115 112 115 111 110 91 111 91 82 234 105 296 87 93 237 93 304 303 303 103 103 234 304 87 93 87 234 127 127 128 110 234 105 296 93 237 87 128
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51771-136-1 01 1 1304-
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (A) 		8-98012-958-0 02 1 1304-
87 BRACKET; STABILIZER
FRONT STABILIZER SHAFT<F59> (B) 		8-98012-959-0 02 1 1304-
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-087-1 04 1 1304-
93 BUSHING; STABILIZER
FRONT STABILIZER SHAFT<F59> 		1-51689-015-3 04 1 1304-
103 NUT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14 		0-91110-514-0 04 1 1304-
105 BOLT; BRKT FIX
FRONT STABILIZER SHAFT<F59> M14X70 		0-10956-470-0 04 1 1304-
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 1304-
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 1304-
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X30 		0-20851-230-0 02 1 1304-
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X50 		0-20851-250-0 04 1 1304-
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-039-0 04 1 1304-
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-071-2 02 1 1304-
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=16.5 		9-51631-040-0 04 1 1304-
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=20.8 		9-51631-041-0 04 1 1304-
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 1304-
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 1304-
128 WASHER; LK,CLAMP
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 1304-
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 08 1 1304-
237 SUPPORT; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51681-842-0 02 1 1304-
296 PIN; STAB
FRONT STABILIZER SHAFT<F59> 		8-98022-874-1 02 1 1304-
303 NUT; PIN
FRONT STABILIZER SHAFT<F59> M20 		0-91110-520-0 02 1 1304-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1304-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1304-
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1304-

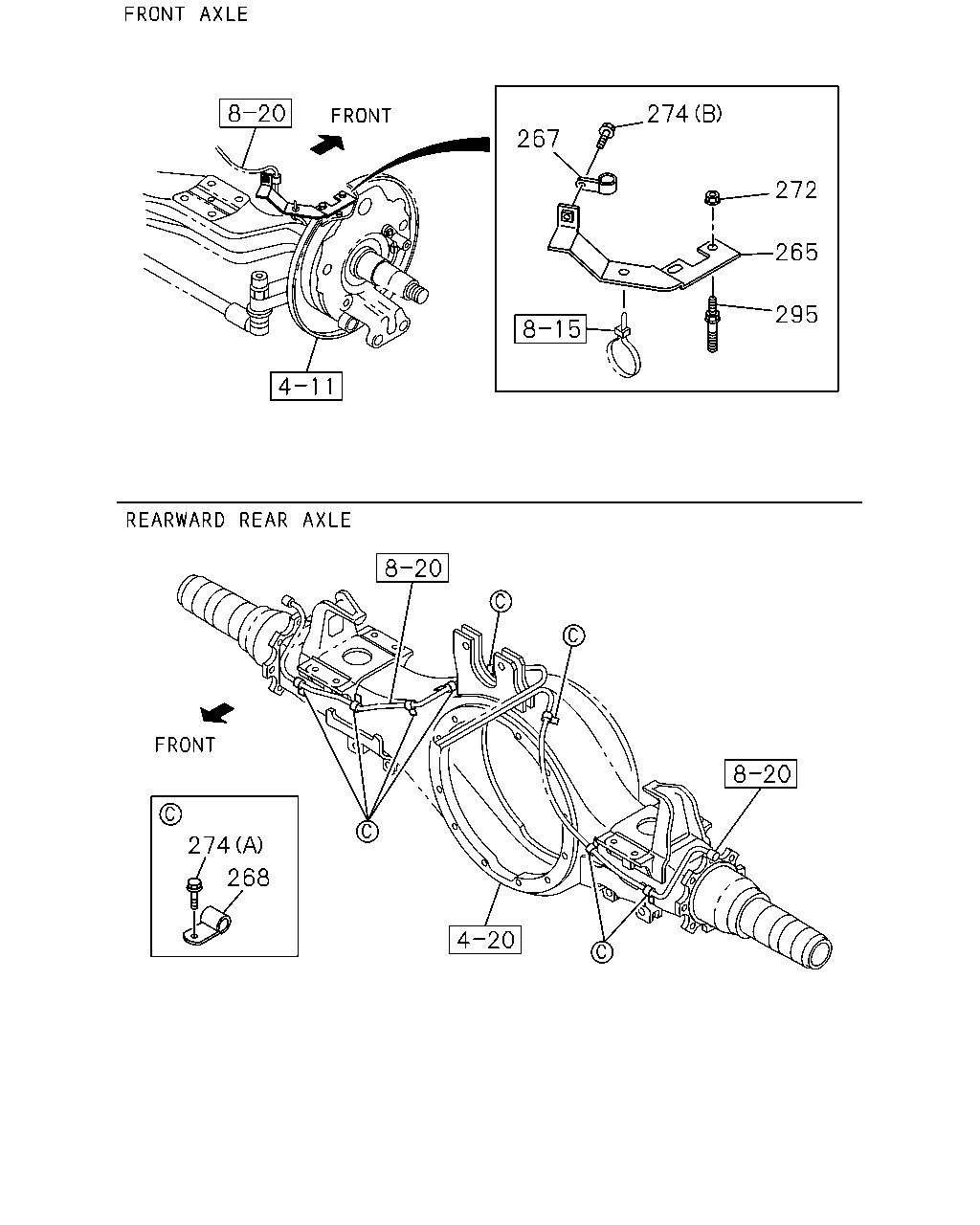

çizim 464526
267 274 272 265 295 274 268
BalonParca AdiParca NoAdetTipApplied Date
265 BRACKET; CLIP I BEAM 1-82698-426-0 01 1 1304-
265 BRACKET; CLIP I BEAM 1-82698-427-0 01 1 1304-
267 CLIP; HARNESS
ID=11 L=20 		0-95235-035-0 02 1 1304-
268 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) ID=11 L=20 		0-95235-035-0 08 1 1304-
272 NUT; CLIP
M10 FLANGE 		0-91180-110-0 04 1 1304-
274 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1304-
274 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X10 FLANGE 		0-28050-810-0 08 1 1304-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1304-

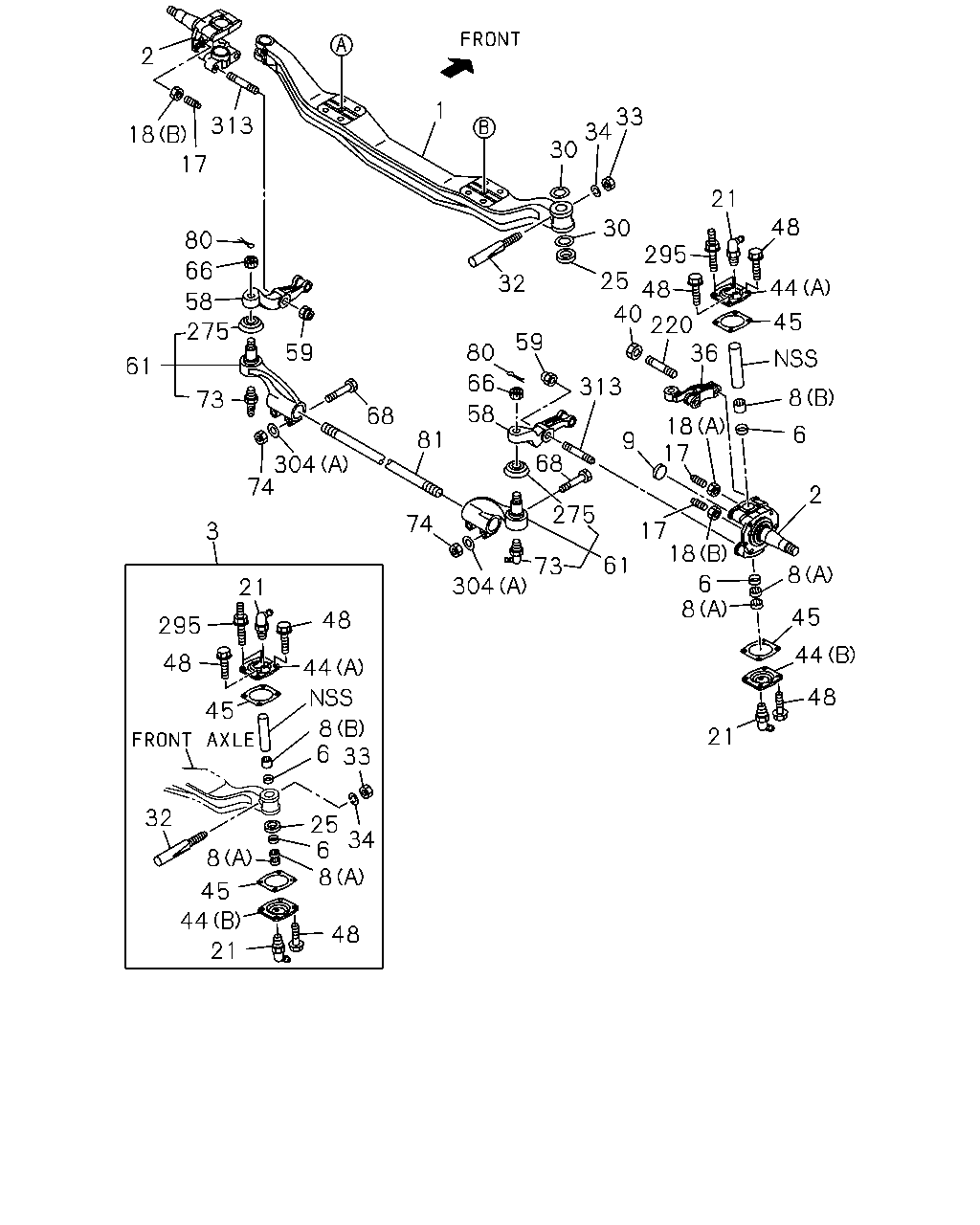

çizim 464645
2 18 313 17 80 58 66 275 61 59 304 73 74 68 58 66 80 59 32 30 34 33 21 30 48 25 220 40 295 48 44 8 45 6 2 8 45 44 48 8 21 6 18 17 18 36 313 9 17 275 68 73 61 304 74 3 81 295 48 21 48 44 8 6 33 25 34 6 8 48 44 21 45 8 32 45 1
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT
FRONT AXLE F066(FAU) 		1-43111-177-4 01 1 1304-
1 AXLE; FRT
FRONT AXLE F066(FAU) 		1-43111-177-4 01 1 1304-
1 AXLE; FRT
FRONT AXLE F075(FH5) 		1-43111-178-3 01 1 1304-
1 AXLE; FRT
FRONT AXLE F075(FH5) 		1-43111-178-3 01 1 1304-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1304-
2 KNUCKLE; FRT AXLE 1-43131-118-1 01 1 1304-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1304-
2 KNUCKLE; FRT AXLE 1-43132-101-1 01 1 1304-
3 KING PIN SET 1-87831-349-2 02 1 1304-
3 KING PIN SET 1-87831-349-2 02 1 1304-
6 SEAL; KING PIN 9-09926-024-0 04 1 1304-
6 SEAL; KING PIN 9-09926-024-0 04 1 1304-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1304-
8 BEARING; NEEDLE,KING PIN
(A) NTN 		9-00096-242-0 04 1 1304-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1304-
8 BEARING; NEEDLE,KING PIN
(B) NTN 		9-00096-243-0 02 1 1304-
9 PLUG; KNUCKLE
OD=22 		1-09600-011-2 02 1 1304-
17 BOLT; STOPPER KNUCKLE
TIRE 12R22.5-152/148L RIB LUG(5A7),TIRE 12R22.5-16 RIB(75N) FORWARD M18X53 		1-09009-066-0 03 1 1304-
17 BOLT; STOPPER KNUCKLE
TIRE 12R22.5-152/148L RIB LUG(5A7),TIRE 12R22.5-16 RIB(75N) REARWARD M18X56 		1-09009-108-0 03 1 1304-
17 BOLT; STOPPER KNUCKLE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) FORWARD M18X53 		1-09009-066-0 01 1 1304-
17 BOLT; STOPPER KNUCKLE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) REARWARD M18X53 		1-09009-066-0 02 1 1304-
17 BOLT; STOPPER KNUCKLE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) REARWARD M18X56 		1-09009-108-0 01 1 1304-
17 BOLT; STOPPER KNUCKLE
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 11.00R-22.5-16 RIB(55N) FORWARD M18X43 		1-09009-190-0 02 1 1304-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1304-
18 NUT; STOPPER BOLT,KNUCKLE
(B) M18 		0-91110-518-0 02 1 1304-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1304-
18 NUT; STOPPER BOLT,KNUCKLE
(A) OCTAGON M18 		1-09469-011-1 01 1 1304-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1304-
21 NIPPLE; GREASE,KING PIN
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 04 1 1304-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1304-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-043-2 02 1 1304-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.875 -4.900 		1-43171-185-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.900 -4.925 		1-43171-186-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.925 -4.950 		1-43171-187-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.950 -4.975 		1-43171-188-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=4.975 -5.000 		1-43171-189-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.000 -5.025 		1-43171-190-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.025 -5.050 		1-43171-191-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.050 -5.075 		1-43171-192-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.075 -5.100 		1-43171-193-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.100 -5.125 		1-43171-194-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.125 -5.150 		1-43171-195-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.150 -5.175 		1-43171-196-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.175 -5.200 		1-43171-197-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.200 -5.225 		1-43171-198-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1304-
30 WASHER; THRUST,KING PIN
T=5.225 -5.250 		1-43171-199-0 AR 1 1304-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1304-
32 BOLT; KEY,KING PIN 1-43116-002-2 02 1 1304-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1304-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1304-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1304-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1304-
36 ARM; KNUCKLE 8-98061-893-0 01 1 1304-
36 ARM; KNUCKLE 8-98061-893-0 01 1 1304-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1304-
40 NUT; KNUCKLE ARM
M22 		1-09449-084-0 02 1 1304-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1304-
44 COVER; KING PIN
(A) 		8-98100-654-0 02 1 1304-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1304-
44 COVER; KING PIN
(B) 		8-98100-655-0 02 1 1304-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1304-
45 GASKET; KING PIN COVER 8-98100-656-1 04 1 1304-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 12 1 1304-
48 BOLT; COVER
M10X25 FLANGE 		0-28751-025-0 16 1 1304-
58 ARM; TIE ROD
FORWARD 		1-43134-049-4 01 1 1304-
58 ARM; TIE ROD
REARWARD 		1-43134-060-2 01 1 1304-
58 ARM; TIE ROD
FORWARD 		1-43135-049-4 01 1 1304-
58 ARM; TIE ROD
REARWARD 		1-43135-060-2 01 1 1304-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1304-
59 NUT; TIE ROD ARM
M22 		1-09449-084-0 04 1 1304-
61 ROD END; TIE ROD 8-98096-753-0 01 1 1304-1306
61 ROD END; TIE ROD 8-98096-753-0 01 1 1304-1306
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-106-0 01 1 1307-
61 ROD END; TIE ROD 8-98096-754-0 01 1 1304-1306
61 ROD END; TIE ROD 8-98096-754-0 01 1 1304-1306
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
61 ROD END; TIE ROD 8-98228-107-0 01 1 1307-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1304-
66 NUT; TIE ROD END
M24 		1-09442-032-0 02 1 1304-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1304-
68 BOLT; TIE ROD END
M12X65 		8-98053-922-0 04 1 1304-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1304-
73 NIPPLE; GREASE,TIE ROD END 1-43159-133-0 02 1 1304-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1304-
74 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1304-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1304-
80 PIN; SPLIT,ROD END
OD=4.6 L=35 		0-81125-035-0 02 1 1304-
81 ROD; TIE 8-98105-064-0 01 1 1304-
81 ROD; TIE 8-98105-064-0 01 1 1304-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1304-
220 STUD; KNUCKLE ARM
M22X145 		1-09300-127-1 02 1 1304-
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1304-1306
275 BOOT; ROD END,TIE 1-43159-131-0 02 1 1304-1306
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
275 BOOT; ROD END,TIE 8-98229-116-0 02 1 1307-
295 STUD; COVER,KING PIN
M10X20,M10X26 L=56 		8-98010-334-0 04 1 1304-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1304-
304 WASHER; PL
(A) ID=12.5 		0-91614-512-0 04 1 1304-
304 WASHER; PL
FRONT STABILIZER SHAFT<F59> (B) ID=21 		0-91614-520-0 02 1 1304-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1304-
313 STUD; TIE ROD ARM
M22X145 		1-09300-127-1 04 1 1304-
