3-78 — FIXING PARTS; AIR PIPING (#155046) — 204 parça

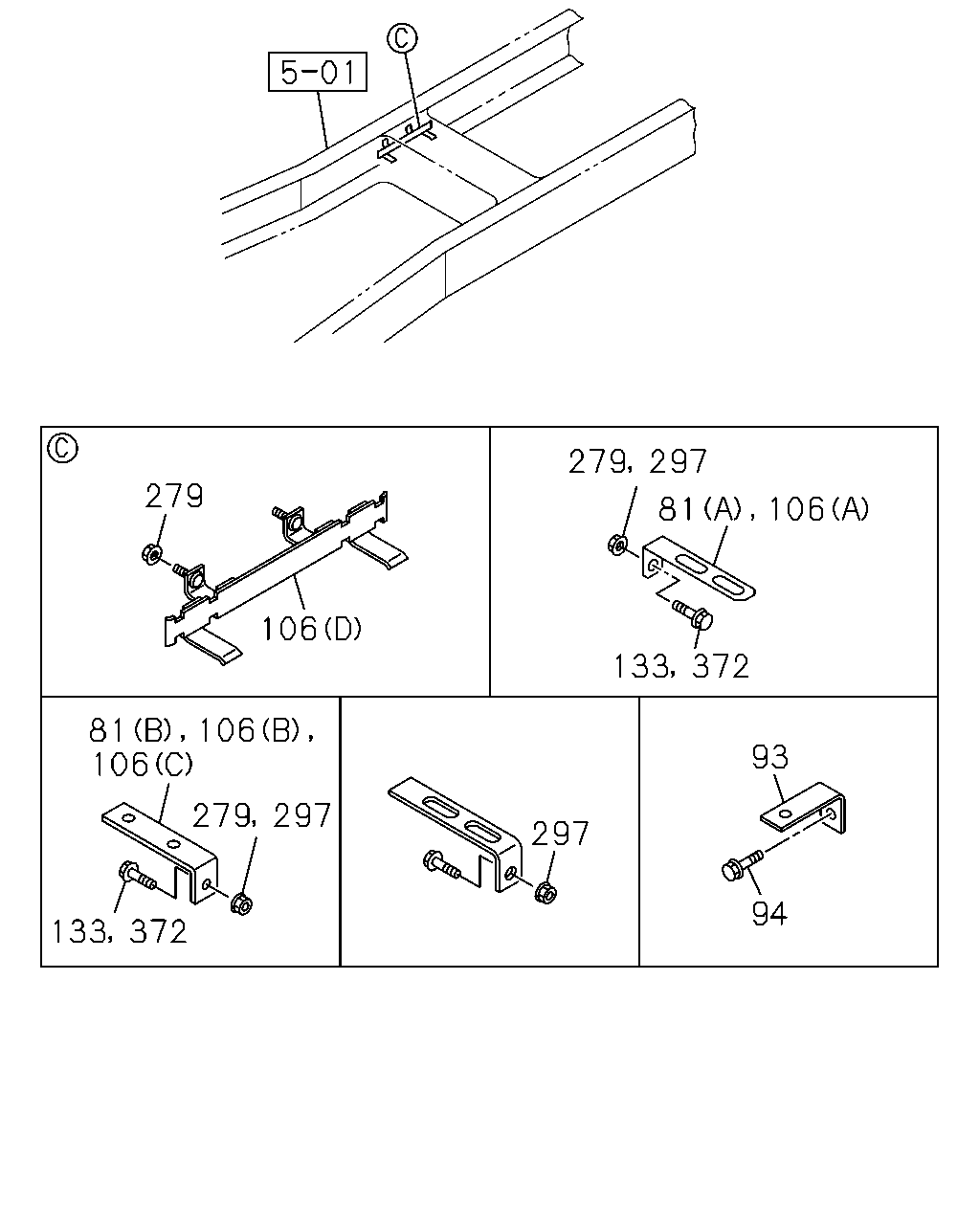

279 297 106 81 372 133 93 297 94 106 81 106 279 297 133 372 279 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	03	1	1304-
81	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	02	1	1304-
81	BRACKET; CLIP FUEL TANK 400L<SDH> (C)	8-98214-410-0	01	1	1304-
93	BRACKET; PIPE CLIP L=95	1-82699-085-0	01	1	1304-
94	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	01	1	1304-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1304-
106	BRACKET; TUBE CLIP (B) L=60 H=30	1-47477-716-1	02	1	1304-
106	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	02	1	1304-
106	BRACKET; TUBE CLIP (D)	1-47479-553-0	01	1	1304-
106	BRACKET; TUBE CLIP (E)	1-82699-182-0	01	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1304-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	1304-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1304-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1304-
297	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	05	1	1304-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-
297	NUT; BRKT WHEEL BASE 6400MM(64W) M8 FLANGE	0-91180-108-0	03	1	1304-
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	05	1	1304-
372	BOLT; CLIP BRKT FUEL TANK 400L<SDH> M8X25 FLANGE	0-28650-825-0	02	1	1304-

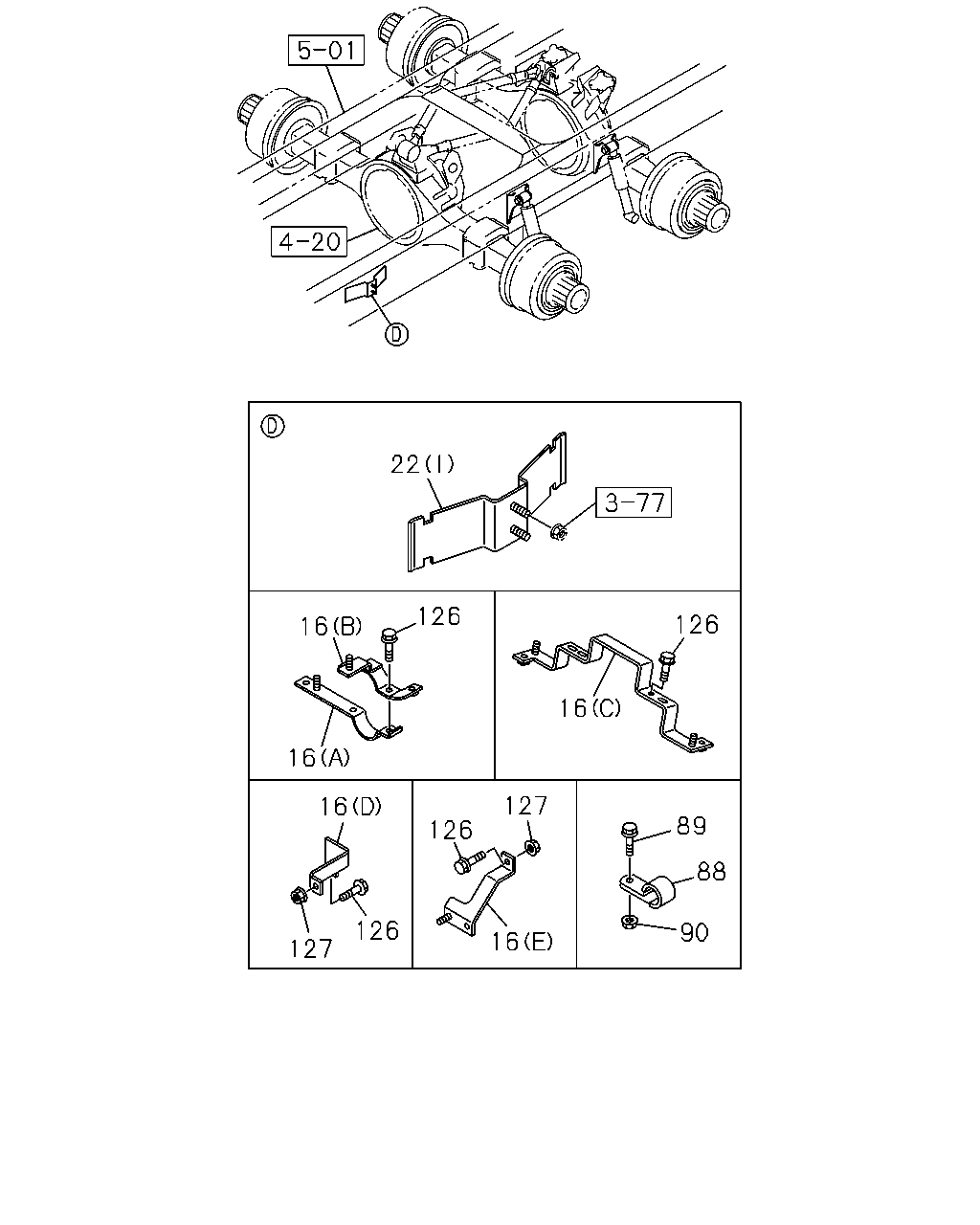

22 126 16 16 16 126 16 126 127 89 88 90 16 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47479-856-0	02	1	1304-
16	BRACKET; PIPE CLIP (B)	1-47479-857-0	02	1	1304-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	1304-
16	BRACKET; PIPE CLIP (D)	8-98086-226-0	01	1	1304-
16	BRACKET; PIPE CLIP (E)	8-98110-074-0	01	1	1304-
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1304-
22	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	04	1	1304-
22	BRACKET; CLIP (E) L=175 H=30	1-47479-386-1	01	1	1304-
22	BRACKET; CLIP (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP (G) L=95	1-82698-557-0	01	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (A) L=115 H=30	1-47477-715-3	02	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (D) L=60 H=30	1-47477-716-1	03	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (I)	8-98166-037-0	01	1	1304-
22	BRACKET; CLIP FUEL TANK 300L<RF5> (D) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (H)	1-82699-208-1	01	1	1304-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (J)	8-98214-410-0	01	1	1304-
88	CLIP; AIR PIPE ID=16 L=20	0-95235-535-0	01	1	1304-
89	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1304-
90	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1304-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1304-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	1304-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1304-1304
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1304-1304
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1305-
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	01	1	1305-

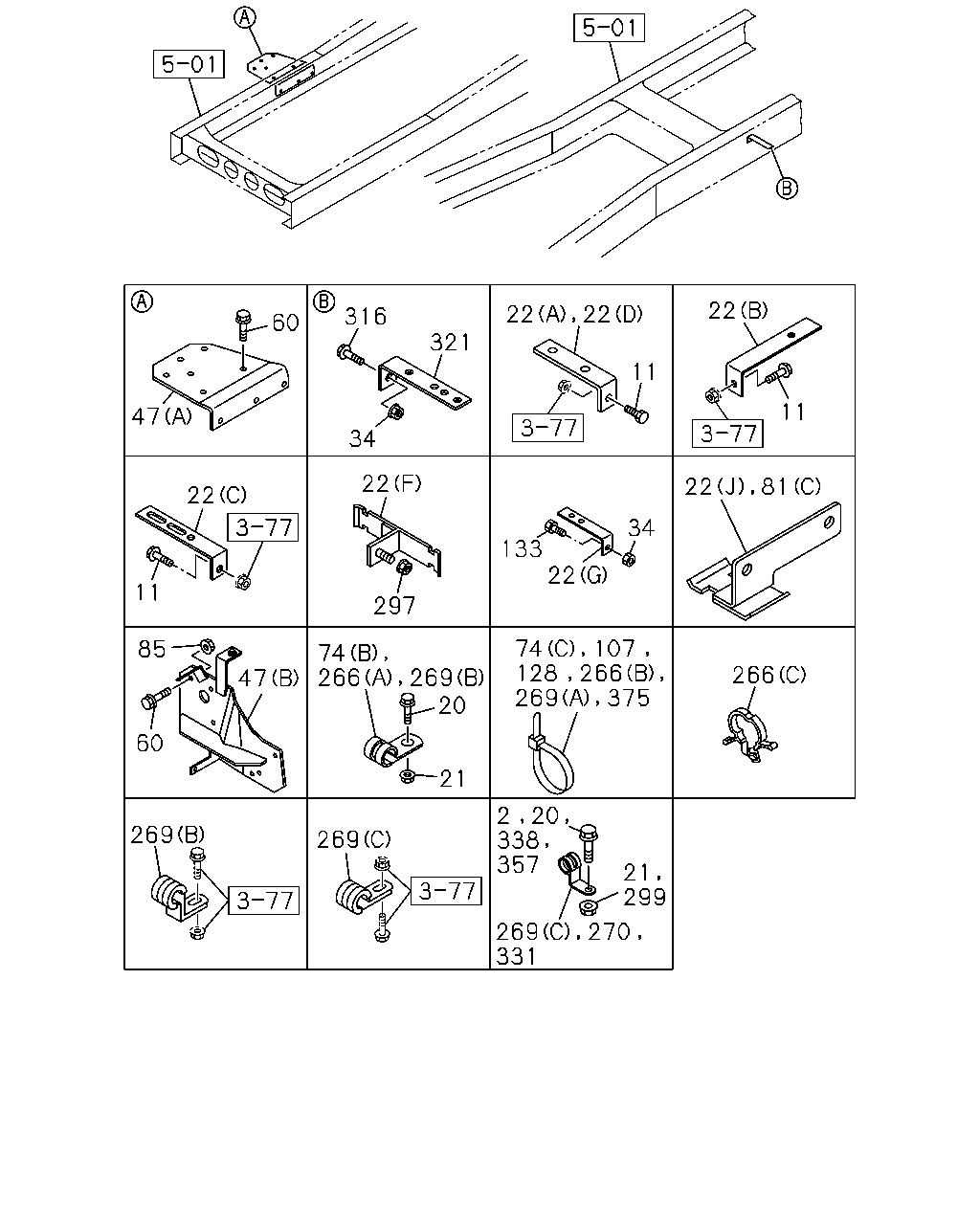

60 316 34 321 22 22 11 11 22 22 81 107 74 128 269 266 21 299 270 269 331 357 20 2 338 269 21 20 269 74 266 47 85 11 22 47 269 60 375 266 133 34 22 22 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	03	1	1304-
11	BOLT; CLIP BRKT A/T ALLISON 4430(Y5V) M8X30 FLANGE	0-28650-830-0	08	1	1304-
11	BOLT; CLIP BRKT A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) M8X25 FLANGE	0-28650-825-0	03	1	1304-
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1304-
11	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	01	1	1304-
11	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	04	1	1304-
11	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) M8X25 FLANGE	0-28650-825-0	01	1	1304-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1304-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1304-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1505-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1304-
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1304-
22	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	04	1	1304-
22	BRACKET; CLIP (E) L=175 H=30	1-47479-386-1	01	1	1304-
22	BRACKET; CLIP (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP (G) L=95	1-82698-557-0	01	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (A) L=115 H=30	1-47477-715-3	02	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (D) L=60 H=30	1-47477-716-1	03	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (I)	8-98166-037-0	01	1	1304-
22	BRACKET; CLIP FUEL TANK 300L<RF5> (D) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (H)	1-82699-208-1	01	1	1304-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (J)	8-98214-410-0	01	1	1304-
34	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-1504
34	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1505-
47	BRACKET; PIPE CLIP (A)	8-98166-030-1	01	1	1304-
47	BRACKET; PIPE CLIP A/T ALLISON 4430(Y5V) (B)	8-98209-935-0	01	1	1304-1402
47	BRACKET; PIPE CLIP A/T ALLISON 4430(Y5V) (B)	8-98255-491-0	01	1	1403-
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	1304-
74	CLIP; NYLON TUBE FUEL TANK 300L<RF5> (B) ID=28 L=40	1-09701-261-0	01	1	1304-
74	CLIP; NYLON TUBE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	1304-
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	04	1	1304-
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	03	1	1304-
81	BRACKET; CLIP (B) L=60 H=30	1-47477-716-1	02	1	1304-
81	BRACKET; CLIP FUEL TANK 400L<SDH> (C)	8-98214-410-0	01	1	1304-
85	NUT; CLIP BRKT A/T ALLISON 4430(Y5V) M10 FLANGE	0-91180-210-0	03	1	1304-
107	CLIP; NYLON TUBE L=350	1-09707-183-0	02	1	1304-
128	CLIP; NYLON TUBE A/T ALLISON 4430(Y5V) L=350	1-09707-183-0	04	1	1304-
128	CLIP; NYLON TUBE ZF9S1310 M/T(Y5K) L=350	1-09707-183-0	02	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1304-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	1304-
266	CLIP; NYLON TUBE (A) ID=26 L=27	1-09701-006-0	01	1	1304-
266	CLIP; NYLON TUBE (C) ID=18-24 L=14.5	1-09709-298-0	01	1	1304-
266	CLIP; NYLON TUBE FUEL TANK 200L AL<THF> (B) L=350	1-09707-183-0	13	1	1304-
266	CLIP; NYLON TUBE FUEL TANK 300L<RF5> (B) L=350	1-09707-183-0	14	1	1304-
266	CLIP; NYLON TUBE FUEL TANK 400L<SDH> (B) L=350	1-09707-183-0	15	1	1304-
269	CLIP; BAND,NYLON TUBE (B) ID=35 L=33	1-09700-945-0	02	1	1304-
269	CLIP; BAND,NYLON TUBE (B) ID=35 L=33	1-09700-945-0	03	1	1304-
269	CLIP; BAND,NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1304-
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	04	1	1304-1304
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	14	1	1305-
269	CLIP; BAND,NYLON TUBE A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	35	1	1304-
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	35	1	1304-
269	CLIP; BAND,NYLON TUBE AIR SUSP DRIVER SEAT(A56) (C) ID=28 H=45 L=30	1-09700-948-0	01	1	1304-
269	CLIP; BAND,NYLON TUBE AIR SUSP DRIVER SEAT(A56) (B) ID=28 L=40	1-09701-261-0	02	1	1304-
269	CLIP; BAND,NYLON TUBE FUEL TANK 300L<RF5> (A) L=350	1-09707-183-0	08	1	1304-1304
269	CLIP; BAND,NYLON TUBE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A) L=350	1-09707-183-0	10	1	1304-1304
269	CLIP; BAND,NYLON TUBE RIGID SEAT WO/ARM REST(TAZ) (B) ID=23 L=27	1-09700-946-0	02	1	1304-
269	CLIP; BAND,NYLON TUBE RIGID SEAT WO/ARM REST(TAZ) (C) ID=21 L=30 H=40	1-09700-991-1	01	1	1304-
269	CLIP; BAND,NYLON TUBE ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (A) L=350	1-09707-183-0	22	1	1304-
270	CLIP; NYLON TUBE ID=16 H=25 L=25	1-09701-162-0	03	1	1304-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1304-
297	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	05	1	1304-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-
297	NUT; BRKT WHEEL BASE 6400MM(64W) M8 FLANGE	0-91180-108-0	03	1	1304-
299	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1304-1504
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	1505-
321	BRACKET; CLIP	1-82698-358-0	01	1	1304-1504
321	BRACKET; CLIP	1-82698-358-0	02	1	1505-
331	CLIP; NYLON TUBE ID=6 H=20 L=20	1-09700-603-0	01	1	1304-
338	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1304-
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1304-
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1304-

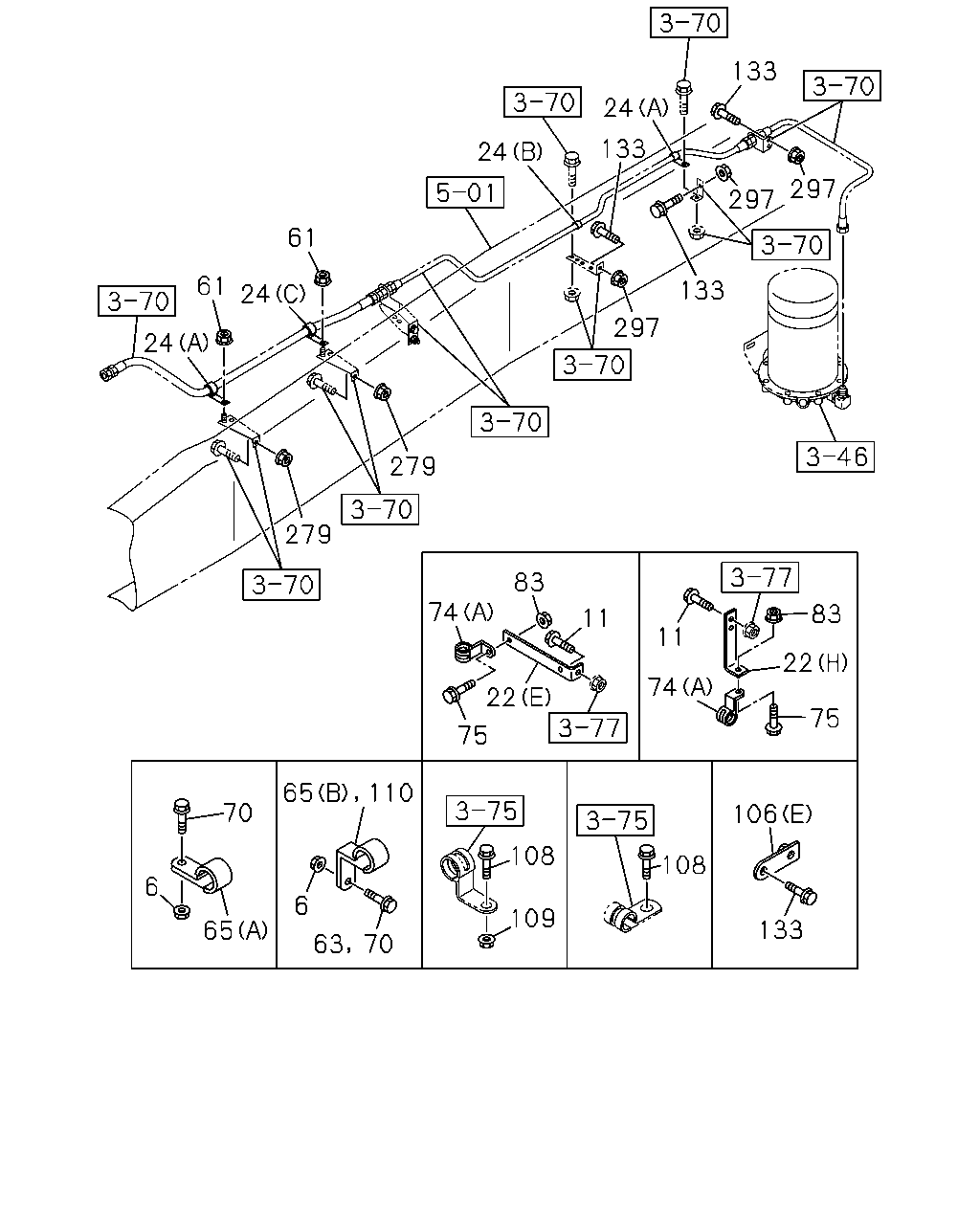

24 133 133 297 297 133 297 279 279 24 61 61 24 83 11 11 83 22 75 74 22 75 74 108 109 108 106 133 70 110 65 6 63 65 70 6 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1304-
11	BOLT; CLIP BRKT A/T ALLISON 4430(Y5V) M8X30 FLANGE	0-28650-830-0	08	1	1304-
11	BOLT; CLIP BRKT A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) M8X25 FLANGE	0-28650-825-0	03	1	1304-
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1304-
11	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	01	1	1304-
11	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	04	1	1304-
11	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) M8X25 FLANGE	0-28650-825-0	01	1	1304-
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1304-
22	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	04	1	1304-
22	BRACKET; CLIP (E) L=175 H=30	1-47479-386-1	01	1	1304-
22	BRACKET; CLIP (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (F)	1-47479-554-0	01	1	1304-
22	BRACKET; CLIP (G) L=95	1-82698-557-0	01	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (A) L=115 H=30	1-47477-715-3	02	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (D) L=60 H=30	1-47477-716-1	03	1	1304-
22	BRACKET; CLIP A/T ALLISON 4430(Y5V) (I)	8-98166-037-0	01	1	1304-
22	BRACKET; CLIP FUEL TANK 300L<RF5> (D) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	01	1	1304-
22	BRACKET; CLIP FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (H)	1-82699-208-1	01	1	1304-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (J)	8-98214-410-0	01	1	1304-
24	CLIP; PIPE (A) ID=16 L=40	0-95235-576-0	01	1	1304-
24	CLIP; PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1304-
24	CLIP; PIPE A/T ALLISON 4430(Y5V) (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1304-
24	CLIP; PIPE A/T ALLISON 4430(Y5V) (C) ID=25 L=50	1-09701-019-0	02	1	1304-
24	CLIP; PIPE ZF9S1310 M/T(Y5K) (C) ID=25 L=50	1-09701-019-0	03	1	1304-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1304-
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1304-1504
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1505-
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1505-
65	CLIP; AIR PIPE (A) ID=13 L=20	0-95235-235-0	01	1	1304-
65	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	04	1	1304-
70	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	01	1	1304-
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	04	1	1304-
74	CLIP; NYLON TUBE FUEL TANK 300L<RF5> (B) ID=28 L=40	1-09701-261-0	01	1	1304-
74	CLIP; NYLON TUBE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A) ID=28 H=45 L=30	1-09700-948-0	02	1	1304-
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	04	1	1304-
75	BOLT; CLIP FUEL TANK 300L<RF5> M8X20 FLANGE	0-28650-820-0	01	1	1304-
75	BOLT; CLIP FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	02	1	1304-
83	NUT; CLIP FUEL TANK 300L<RF5> M8 FLANGE	0-91180-108-0	01	1	1304-
83	NUT; CLIP FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	02	1	1304-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	02	1	1304-
106	BRACKET; TUBE CLIP (B) L=60 H=30	1-47477-716-1	02	1	1304-
106	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	02	1	1304-
106	BRACKET; TUBE CLIP (D)	1-47479-553-0	01	1	1304-
106	BRACKET; TUBE CLIP (E)	1-82699-182-0	01	1	1304-
108	BOLT; TUBE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1304-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1304-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	1304-
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1304-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1304-
110	CLIP; BAND,NYLON TUBE ID=12 H=24 L=20	1-09700-605-0	01	1	1304-1504
110	CLIP; BAND,NYLON TUBE ID=12 H=24 L=20	1-09700-605-0	02	1	1505-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1304-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1304-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	1304-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1304-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1304-
297	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	05	1	1304-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-
297	NUT; BRKT WHEEL BASE 6400MM(64W) M8 FLANGE	0-91180-108-0	03	1	1304-

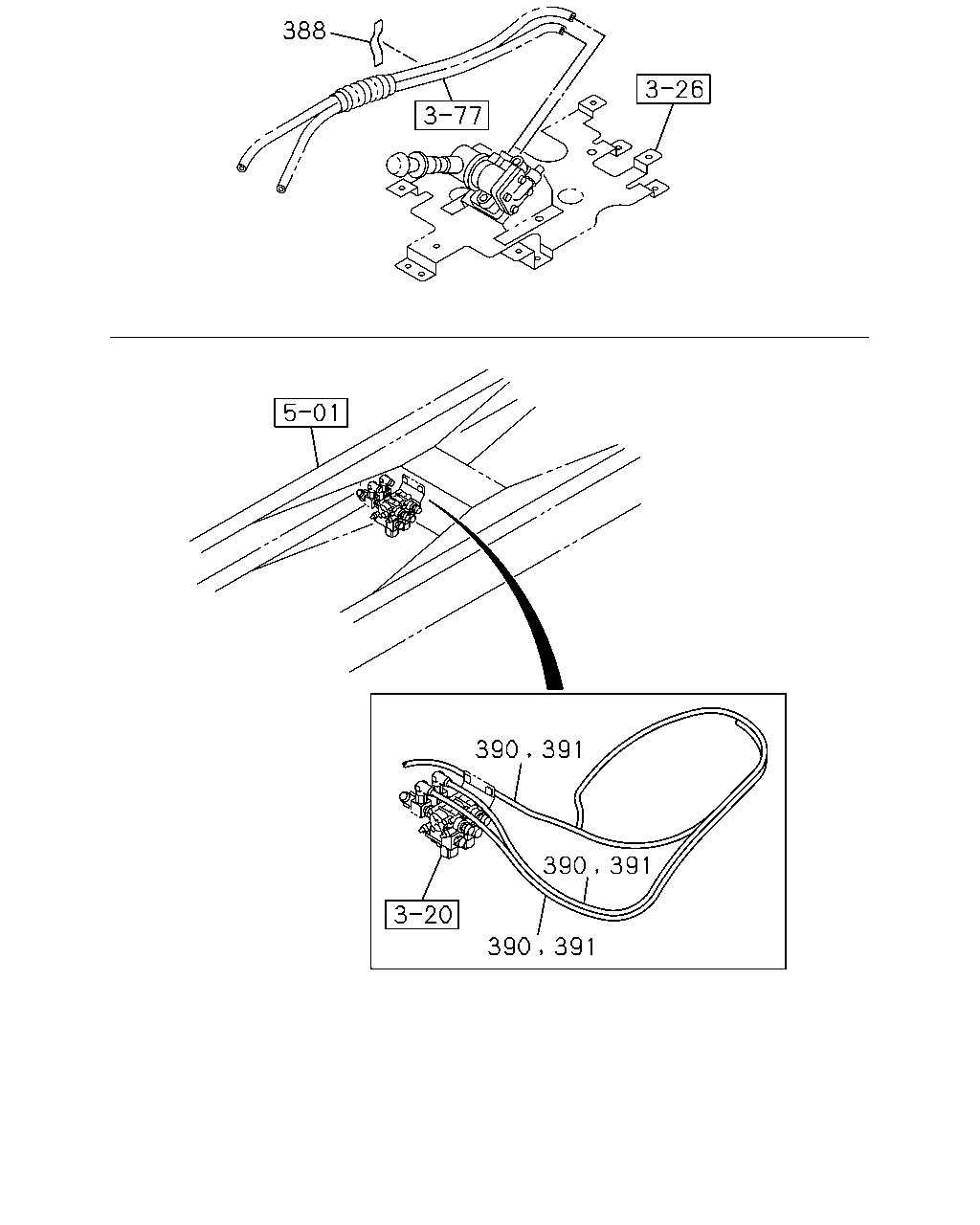

388 390 391 390 391 390 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
388	SEAL 100X40	1-72498-022-1	03	1	1304-
390	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=4000 OD=12	1-87411-012-0	04	1	1304-
391	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 ID=13	1-87411-022-0	04	1	1304-
391	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1304-
391	TUBE; CORRUGATE ANTILOCK BRAKE SYSTEM(BFA) SERVICED BY L=2000 ID=28	1-87411-033-0	01	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
