Isuzu WW
▶
TRUCKS
▶
FYH
▶
11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#155044) — 77 parça
◀

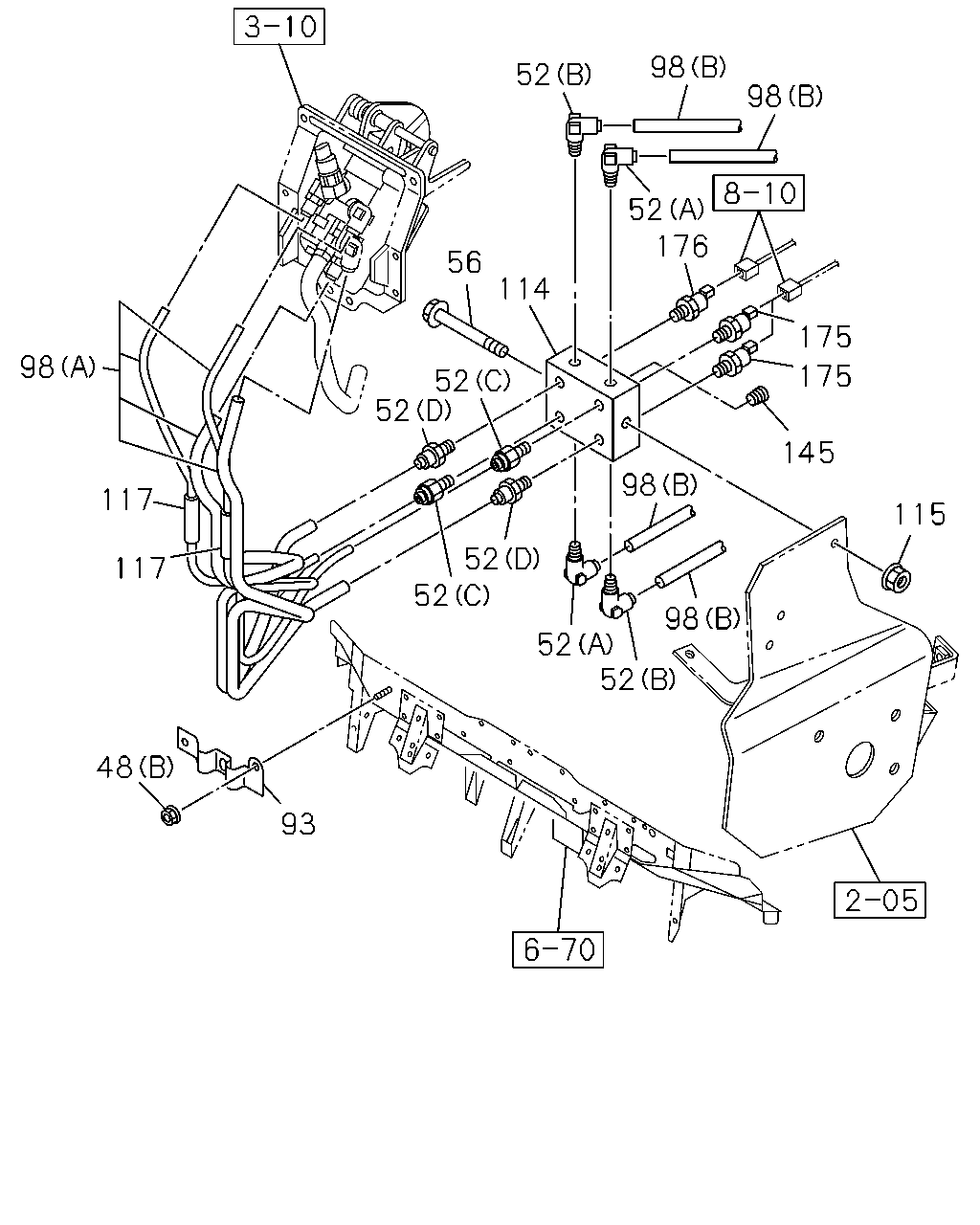

[375A] CAB UNDER (29 parça)

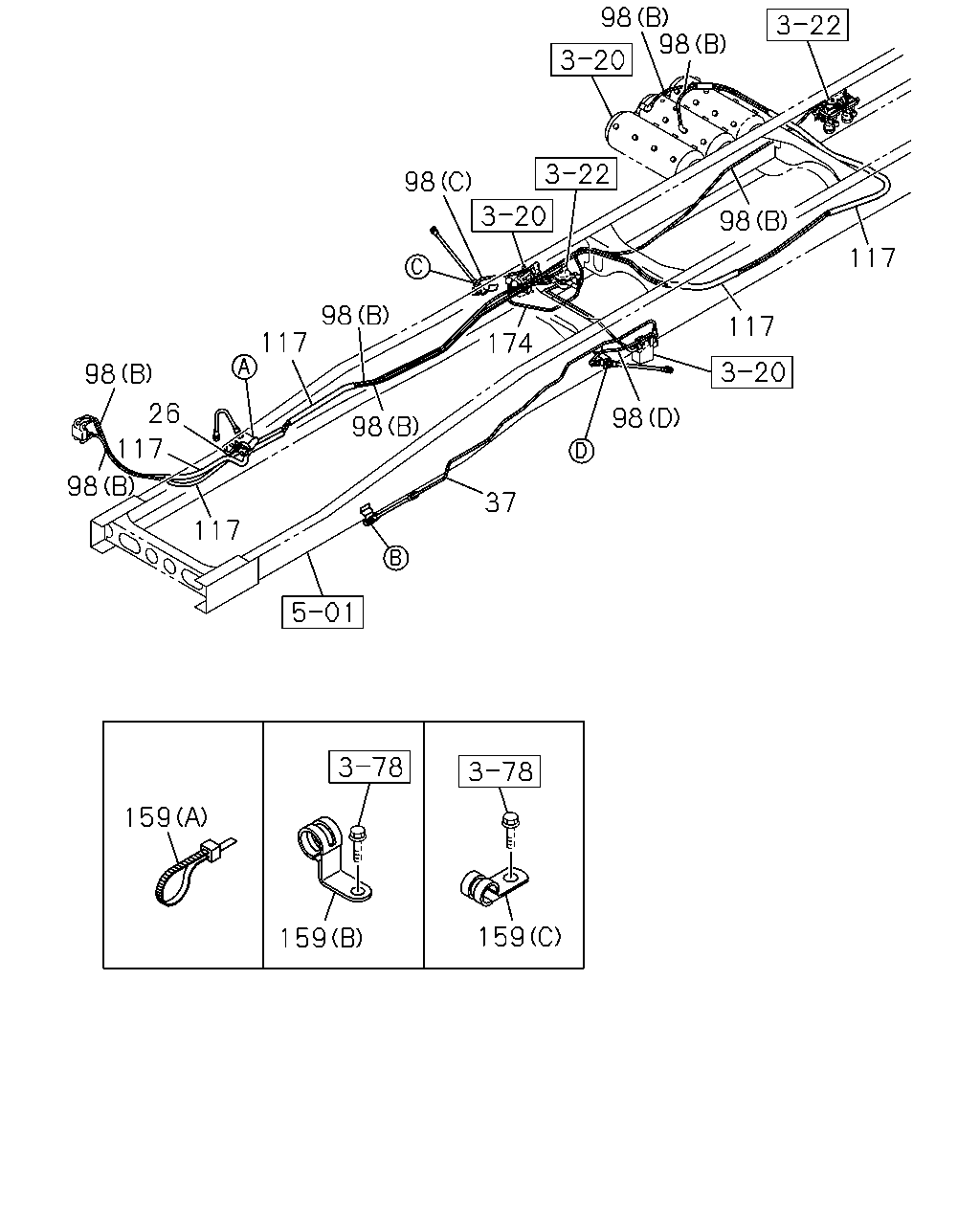

[375A] FRAME SIDE NO.1 (26 parça)

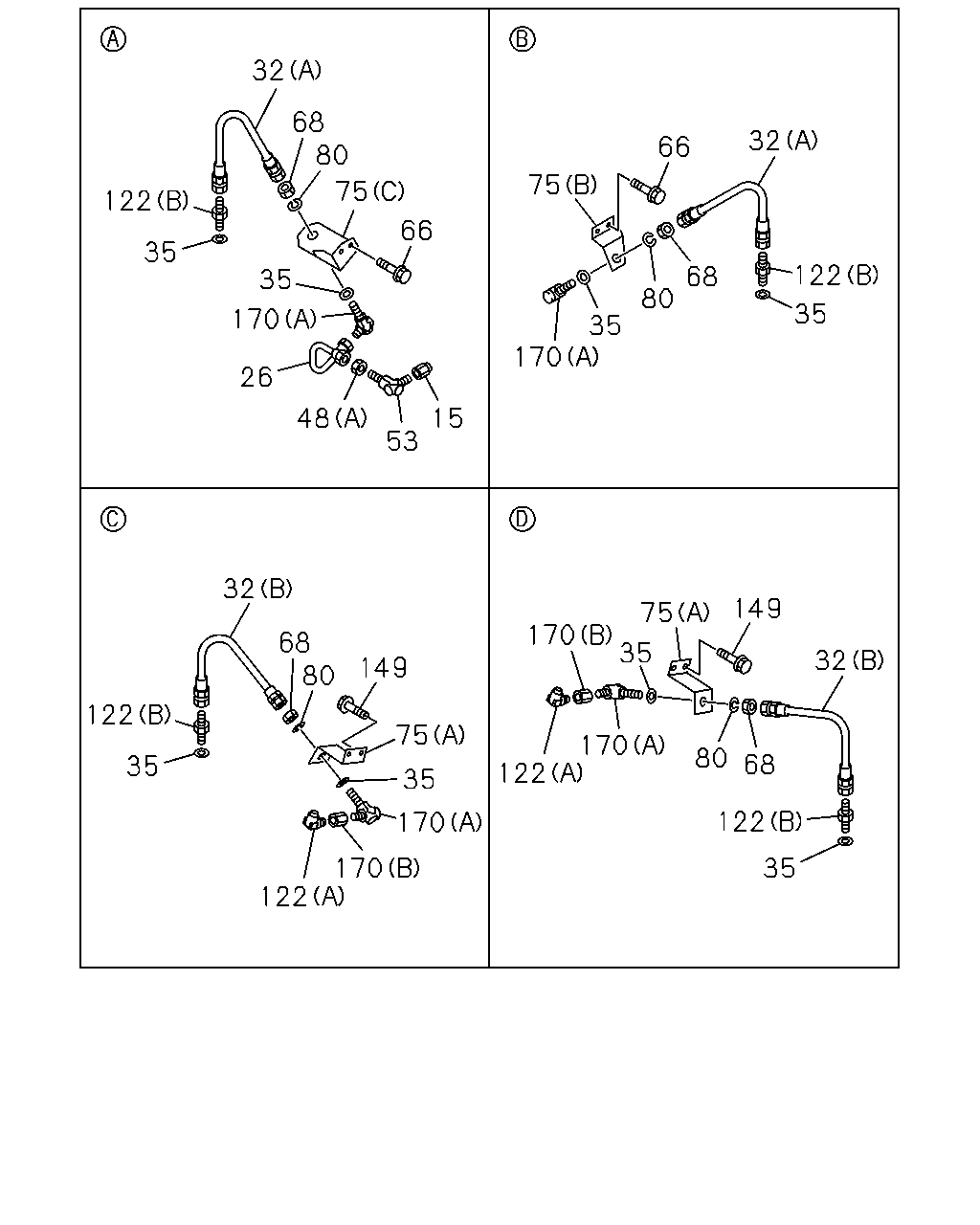

[375A] FRAME SIDE NO.2 (22 parça)
▶
98
117
117
48
93
52
52
52
52
98
98
52
52
56
114
52
98
98
52
176
175
175
145
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
NUT; UNION BRKT
(A) M20
0-91111-520-0
01
1
1304-
48
NUT; UNION BRKT
(B) M6 FLANGE
0-91180-106-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW
1-09660-958-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(C) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1304-
52
CONNECTOR; NYLON TUBE
(D) DIN12 & R1/4 STRAIGHT
1-09660-967-0
02
1
1304-
56
BOLT; UNION BRKT
M8X100 FLANGE
0-28050-800-0
01
1
1304-
93
BRACKET; UNION,TUBE
8-98186-924-0
01
1
1304-
98
TUBE; NYLON
(A)
8-98166-040-0
01
1
1304-
98
TUBE; NYLON
(C)
8-98175-502-0
01
1
1304-1504
98
TUBE; NYLON
(C)
8-98302-566-0
01
1
1505-
98
TUBE; NYLON
(D)
8-98175-503-0
01
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=12000 OD=12
1-87411-015-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1304-
114
UNION; NYLON TUBE
8-98057-394-1
01
1
1304-
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
01
1
1304-
115
NUT; TUBE UNION
M8 FLANGE
0-91180-108-0
01
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1304-
145
PLUG
PT1/4
9-99204-513-0
01
1
1304-
175
SENSOR; AIR PRESS
THREAD R1/4
1-80220-023-1
02
1
1304-
176
SWITCH; AIR PRESS
STAMP 0.3
8-98010-857-0
01
1
1304-
98
98
117
98
117
174
98
37
98
98
117
98
26
117
98
117
159
159
159
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
PIPE; AIR,UNION TO FLEX HOSE
L=257
8-98175-904-0
01
1
1304-
37
PIPE; AIR,UNION TO FLEX HOSE
L=2571 SERVICED BY L=2800
1-49115-495-0
01
1
1304-1306
37
PIPE; AIR,UNION TO FLEX HOSE
L=2569 SERVICED BY L=2800
1-49115-495-0
01
1
1307-1504
37
PIPE; AIR,UNION TO FLEX HOSE
L=2570 SERVICED BY L=2800
1-49115-495-0
01
1
1505-
98
TUBE; NYLON
(A)
8-98166-040-0
01
1
1304-
98
TUBE; NYLON
(C)
8-98175-502-0
01
1
1304-1504
98
TUBE; NYLON
(C)
8-98302-566-0
01
1
1505-
98
TUBE; NYLON
(D)
8-98175-503-0
01
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=12000 OD=12
1-87411-015-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=8000 OD=8
1-87411-009-0
AR
1
1304-
98
TUBE; NYLON
(B) SERVICED BY L=12000 OD=8
1-87411-010-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87411-027-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
1304-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
1304-
159
CLIP; NYLON TUBE
(B) ID=25 H=30 L=35
1-09700-875-0
02
1
1304-
159
CLIP; NYLON TUBE
(B) ID=31 H=30 L=35
1-09700-994-0
01
1
1304-
159
CLIP; NYLON TUBE
(C) ID=26 L=27
1-09701-006-0
01
1
1304-
159
CLIP; NYLON TUBE
(C) ID=39 L=33
8-98009-359-0
01
1
1304-
159
CLIP; NYLON TUBE
WHEEL BASE 6400MM(64W) (A) L=350
1-09707-183-0
18
1
1304-
159
CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350
1-09707-183-0
19
1
1304-
174
PIPE; AIR,RELAY VLV TO MODULATOR
L=701
8-98166-059-0
01
1
1304-
122
35
32
68
80
75
66
35
170
26
48
53
15
170
35
80
68
66
75
32
122
35
32
68
122
35
80
149
75
35
170
170
122
122
170
35
170
75
149
80
68
122
35
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT
1-09660-877-0
01
1
1304-
26
PIPE; AIR,UNION TO FLEX HOSE
L=257
8-98175-904-0
01
1
1304-
32
HOSE; FLEX,FRT
(B)
0-87847-430-1
02
1
1304-1408
32
HOSE; FLEX,FRT
(B)
0-87847-450-1
02
1
1409-
32
HOSE; FLEX,FRT
(A)
0-87847-470-1
02
1
1304-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
1304-
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
04
1
1304-
48
NUT; UNION BRKT
(A) M20
0-91111-520-0
01
1
1304-
48
NUT; UNION BRKT
(B) M6 FLANGE
0-91180-106-0
02
1
1304-
53
UNION; ELBOW
M20
0-92135-212-0
01
1
1304-
66
BOLT; HOSE BRKT
M8X30 FLANGE
0-28650-830-0
04
1
1304-
68
NUT; UNION
M20
0-91111-520-0
04
1
1304-
75
BRACKET; UNION
(A)
1-47479-676-0
02
1
1304-
75
BRACKET; UNION
(B)
8-98094-075-0
01
1
1304-
75
BRACKET; UNION
(C)
8-98237-152-0
01
1
1304-
80
WASHER; LK,UNION
ID=20.2
0-91510-520-0
04
1
1304-
122
CONNECTOR; FLEX HOSE
(B) M20 & PT3/8
1-09660-731-1
02
1
1304-
122
CONNECTOR; FLEX HOSE
(B) M20 & PT3/8
1-09660-731-1
02
1
1304-
122
CONNECTOR; FLEX HOSE
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1304-
149
BOLT; UNION
M8X30 FLANGE
0-28650-830-0
04
1
1304-
170
UNION; FLARE
(A) M20 & M20 ELBOW
1-09654-128-1
04
1
1304-
170
UNION; FLARE
(B) M20 & RC3/8 STRAIGHT
1-09660-883-0
02
1
1304-
