◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#155035) — 124 parça

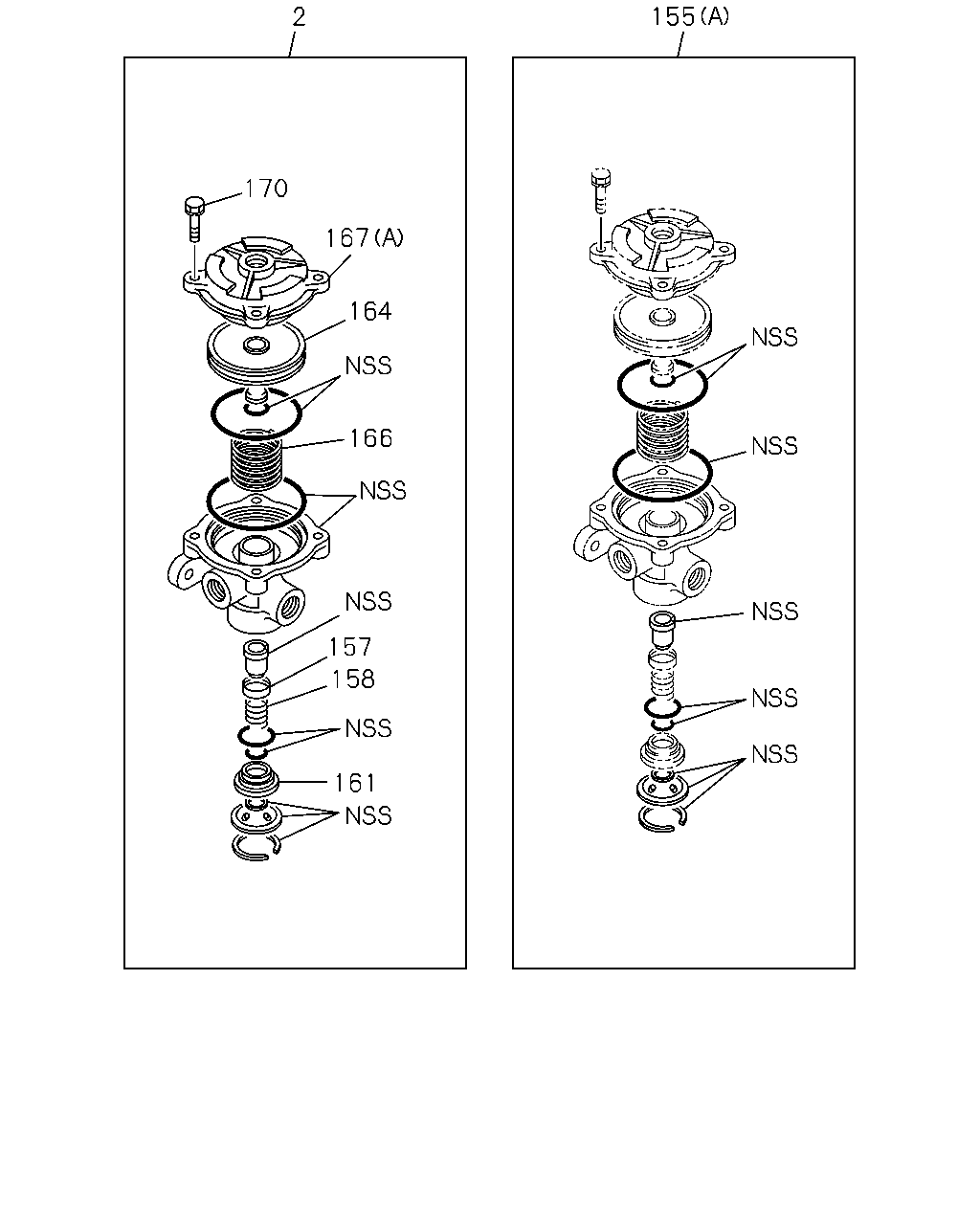

çizim 464250
2 155 170 164 167 161 158 157 166
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 1304-
2 VALVE; RELAY 1-48210-875-0 02 1 1304-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 1304-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1304-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1304-
157 RETAINER; VALVE 1-48213-002-0 01 1 1304-
157 RETAINER; VALVE 1-48213-002-0 02 1 1304-
158 SPRING; VALVE 1-47819-089-0 01 1 1304-
158 SPRING; VALVE 1-47819-089-0 02 1 1304-
161 GUIDE; VALVE 1-48129-014-0 01 1 1304-
161 GUIDE; VALVE 1-48129-014-0 02 1 1304-
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 1304-
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 1304-
166 SPRING; PISTON 1-47819-090-0 01 1 1304-
166 SPRING; PISTON 1-47819-090-0 02 1 1304-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1304-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1304-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1304-
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 1304-
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 1304-

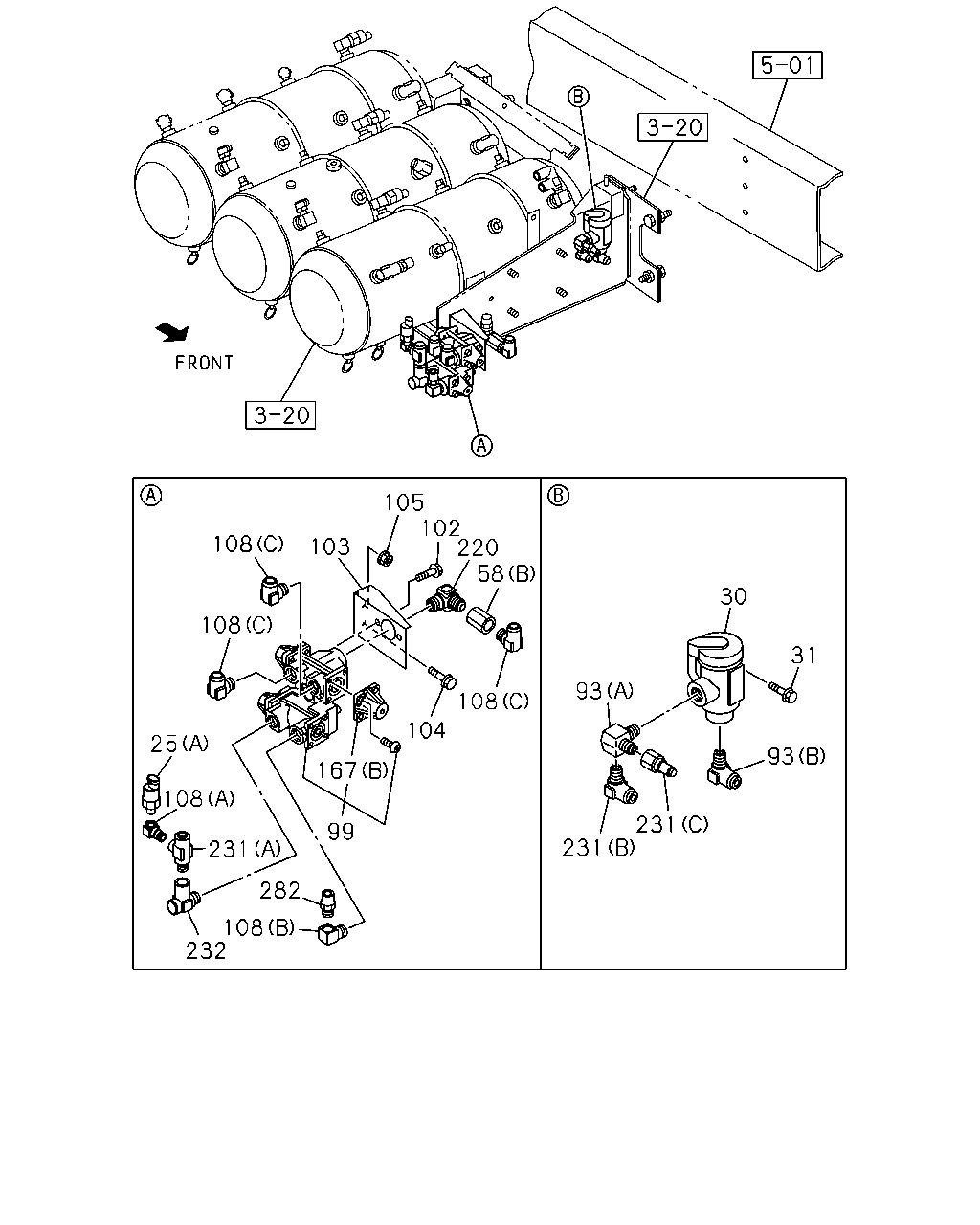

çizim 464347
102 105 103 108 108 25 108 231 282 108 232 99 167 104 108 58 220 93 30 31 93 231 231
BalonParca AdiParca NoAdetTipApplied Date
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1304-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1304-
30 GOVERNOR; AIR CONT 1-48350-063-2 01 1 1304-
31 BOLT; GOV TO FRAME
M8X30 FLANGE 		0-28650-830-0 02 1 1304-
58 ADAPTER
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1304-
58 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 1304-
58 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 1304-
58 ADAPTER
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
58 ADAPTER
WHEEL BASE 6600MM(66W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
58 ADAPTER
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 1304-
93 CONNECTOR; GOV
(A) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 1304-
93 CONNECTOR; GOV
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1304-
99 VALVE; PROTECTION 1-48110-290-3 01 1 1304-
102 BOLT; PROTECTION VALVE
M8X16 FLANGE 		0-28050-816-0 02 1 1304-
103 BRACKET; PROTECTION VALVE 8-98093-563-0 01 1 1304-
104 BOLT; BRKT,VALVE
M10X20 FLANGE 		0-28651-020-0 01 1 1304-
105 NUT; BRKT,VALVE
M10 FLANGE 		0-91180-210-0 01 1 1304-
108 CONNECTOR; ELBOW
(A) PT1/4 2WAY 		1-09660-693-0 01 1 1304-
108 CONNECTOR; ELBOW
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
108 CONNECTOR; ELBOW
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1304-
167 COVER; VALVE
(B) 		1-48119-625-0 04 1 1304-
167 COVER; VALVE
(A) 		1-48219-070-0 01 1 1304-
167 COVER; VALVE
(A) 		1-48219-070-0 02 1 1304-
220 CONNECTOR; 3WAY
DIN17 & RC3/8 & R1/2 3WAY 		8-98031-238-0 01 1 1304-
231 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 & RC1/4 3WAY 		1-09661-027-0 01 1 1304-
231 CONNECTOR; NYLON TUBE
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1304-
231 CONNECTOR; NYLON TUBE
(C) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1304-
232 VALVE; CHECK
DIN18 & R3/8 & RC3/8 3WAY 		8-98032-527-0 01 1 1304-
282 CONNECTOR; STRAIGHT
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-

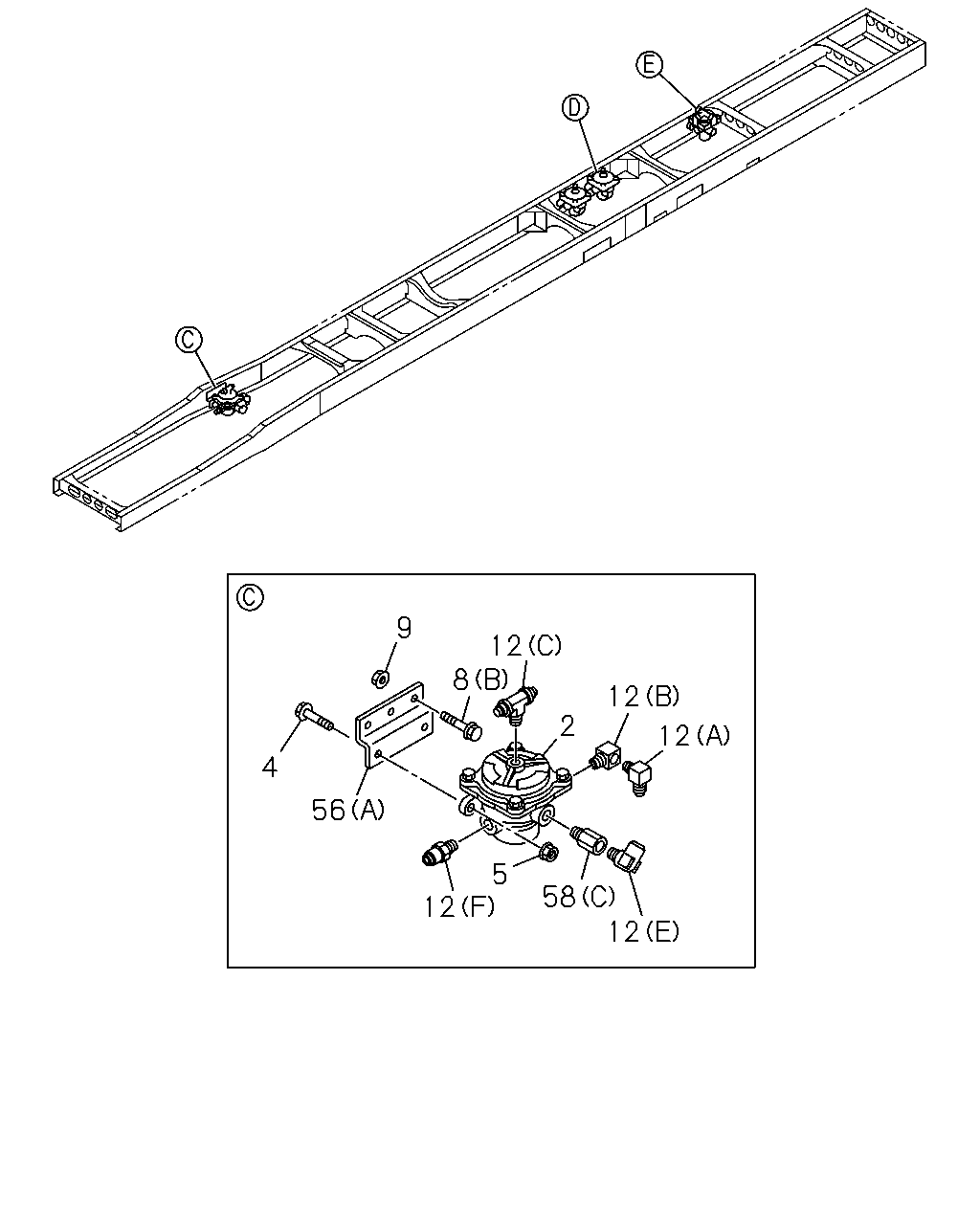

çizim 464348
12 9 8 2 12 12 58 12 5 12 56 4
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY 1-48210-875-0 01 1 1304-
2 VALVE; RELAY 1-48210-875-0 02 1 1304-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1304-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1304-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1304-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1304-
8 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1304-
8 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1304-
9 NUT
M8 FLANGE 		0-91180-108-0 02 1 1304-
12 CONNECTOR; RELAY VLV
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(G) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1304-
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 1304-
56 BRACKET; RELAY VLV
(B) 		1-47479-937-0 01 1 1304-
58 ADAPTER
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1304-
58 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 1304-
58 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 1304-
58 ADAPTER
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
58 ADAPTER
WHEEL BASE 6600MM(66W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
58 ADAPTER
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 1304-
çizim 464398
155 279
BalonParca AdiParca NoAdetTipApplied Date
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 01 1 1304-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-033-0 02 1 1304-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-408-0 01 1 1304-
279 REPAIR KIT; SILENCER 1-85576-409-0 01 1 1304-

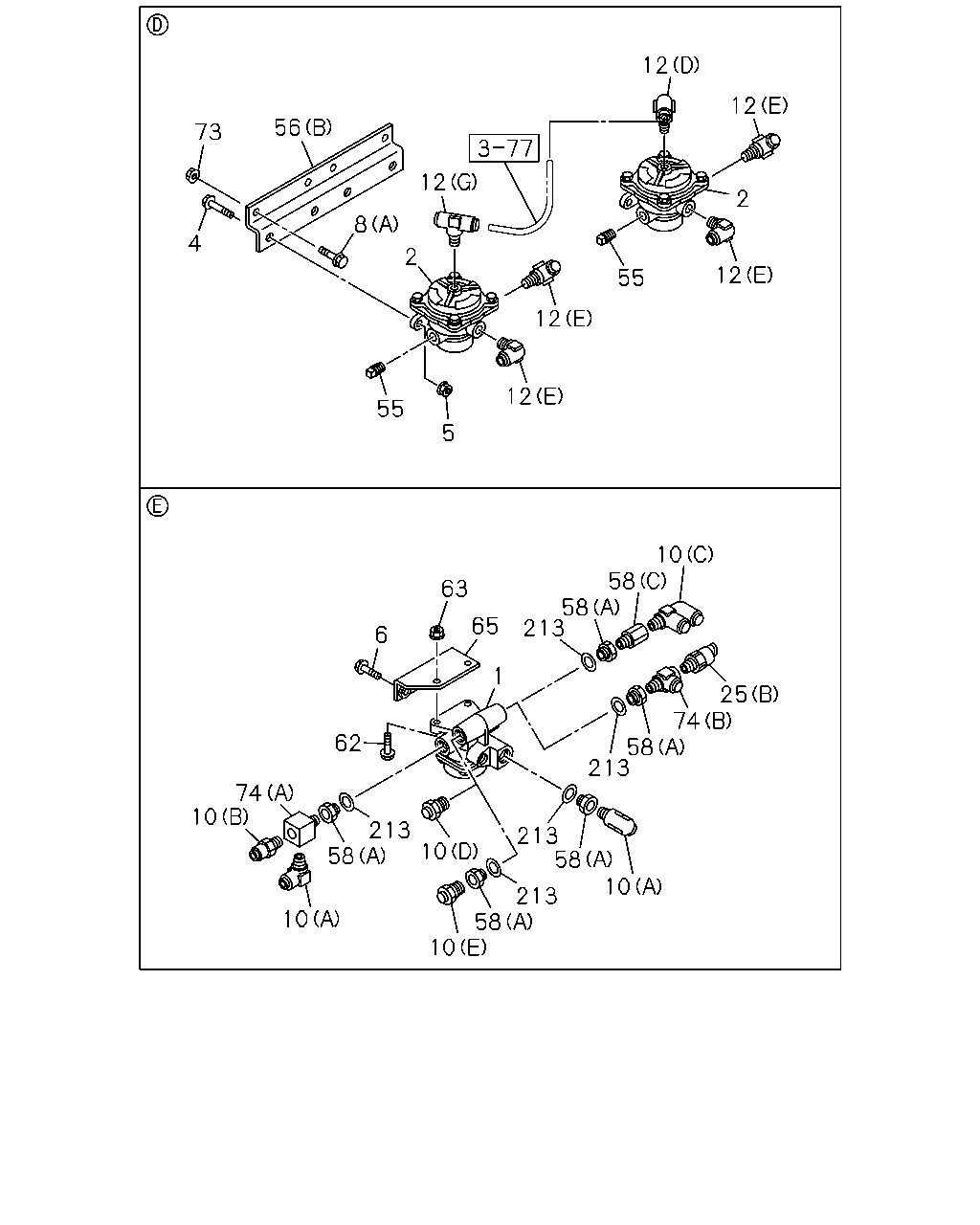

çizim 464453
73 4 56 8 12 2 55 5 12 12 55 12 2 12 12 10 58 58 213 65 1 63 6 62 74 10 10 58 213 10 213 58 10 213 58 10 213 58 74 25
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-354-1 01 1 1304-
2 VALVE; RELAY 1-48210-875-0 01 1 1304-
2 VALVE; RELAY 1-48210-875-0 02 1 1304-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1304-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 1304-
5 NUT
M10 FLANGE 		0-91180-210-0 02 1 1304-
5 NUT
M10 FLANGE 		0-91180-210-0 04 1 1304-
6 BOLT; VLV
M8X30 FLANGE 		0-28650-830-0 02 1 1304-
8 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1304-
8 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1304-
10 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304-
10 CONNECTOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
10 CONNECTOR
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1304-
10 CONNECTOR
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (D) DIN8 & M22 STRAIGHT 		1-09661-091-0 01 1 1304-
10 CONNECTOR
WHEEL BASE 6600MM(66W) (D) DIN8 & M22 STRAIGHT 		1-09661-091-0 01 1 1304-
10 CONNECTOR
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (E) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(A) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(B) PT3/8 ELBOW 		1-09660-696-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(C) DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304-
12 CONNECTOR; RELAY VLV
(F) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1304-
12 CONNECTOR; RELAY VLV
(G) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1304-
25 SWITCH; PRESSURE
(A) STAMP 5.5 		8-97609-249-0 01 1 1304-
25 SWITCH; PRESSURE
(B) STAMP 2.0 		8-98010-856-2 01 1 1304-
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 02 1 1304-
56 BRACKET; RELAY VLV
(A) 		1-47479-328-0 01 1 1304-
56 BRACKET; RELAY VLV
(B) 		1-47479-937-0 01 1 1304-
58 ADAPTER
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 1304-
58 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 1304-
58 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 1304-
58 ADAPTER
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
58 ADAPTER
WHEEL BASE 6600MM(66W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 1304-
58 ADAPTER
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (A) INNER PT3/8,OUTER M22 		1-09650-494-1 05 1 1304-
62 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1304-
63 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 1304-
65 BRACKET; RELAY VLV RR 1-47471-032-0 01 1 1304-
73 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1304-
74 CONNECTOR; 3WAY
(A) PT3/8 3WAY 		1-09661-300-0 01 1 1304-
74 CONNECTOR; 3WAY
(B) DIN8 & RC1/4 & R3/8 3WAY 		1-09661-536-0 01 1 1304-
213 GASKET
A/T ALLISON 4430(Y5V) WHEEL BASE 6400MM(64W) ID=22.5 		9-09571-422-0 04 1 1304-
213 GASKET
WHEEL BASE 6600MM(66W) ID=22.5 		9-09571-422-0 04 1 1304-
213 GASKET
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) ID=22.5 		9-09571-422-0 05 1 1304-
çizim 464684
240
BalonParca AdiParca NoAdetTipApplied Date
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 1304-
çizim 488651
241
BalonParca AdiParca NoAdetTipApplied Date
241 REPAIR KIT; PROTECTION VALVE 1-85576-451-2 01 1 1304-
