Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#155034) — 467 parça

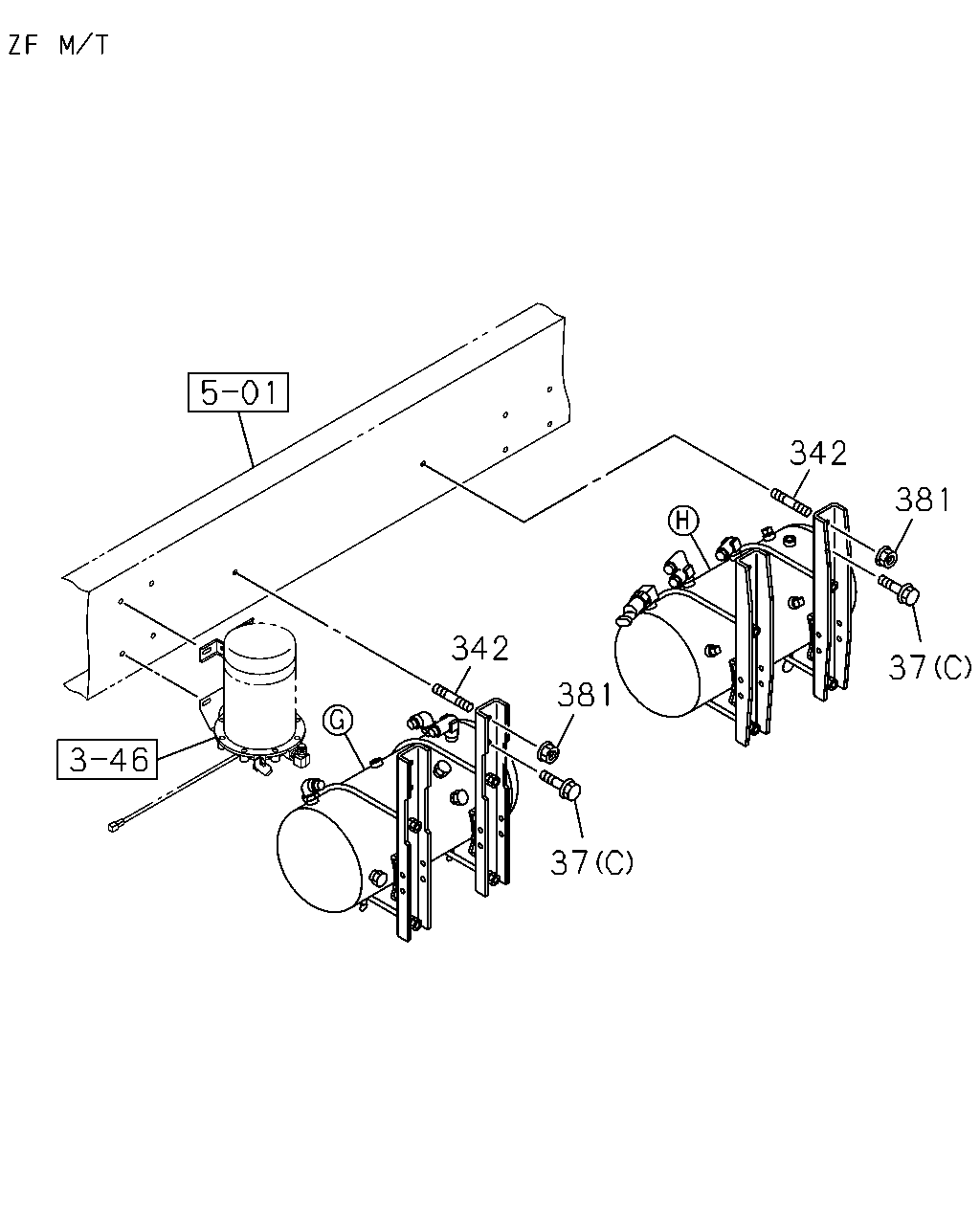

342 381 37 342 381 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK A/T ALLISON 4430(Y5V) (B) M10X25 FLANGE	0-28651-025-0	16	1	1304-
37	BOLT; AIR TANK A/T ALLISON 4430(Y5V) (A) M10X40 FLANGE	0-28651-040-0	08	1	1304-
37	BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-
37	BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (C) M12X35 FLANGE	0-28651-235-0	02	1	1304-
342	STUD ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) M12X30,M12X16 L=56	8-98144-947-0	04	1	1304-
342	STUD ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) M12X30,M12X16 L=56	8-98144-947-0	02	1	1304-
381	NUT; SUB TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) M12 FLANGE	0-91180-212-0	04	1	1304-
381	NUT; SUB TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1304-

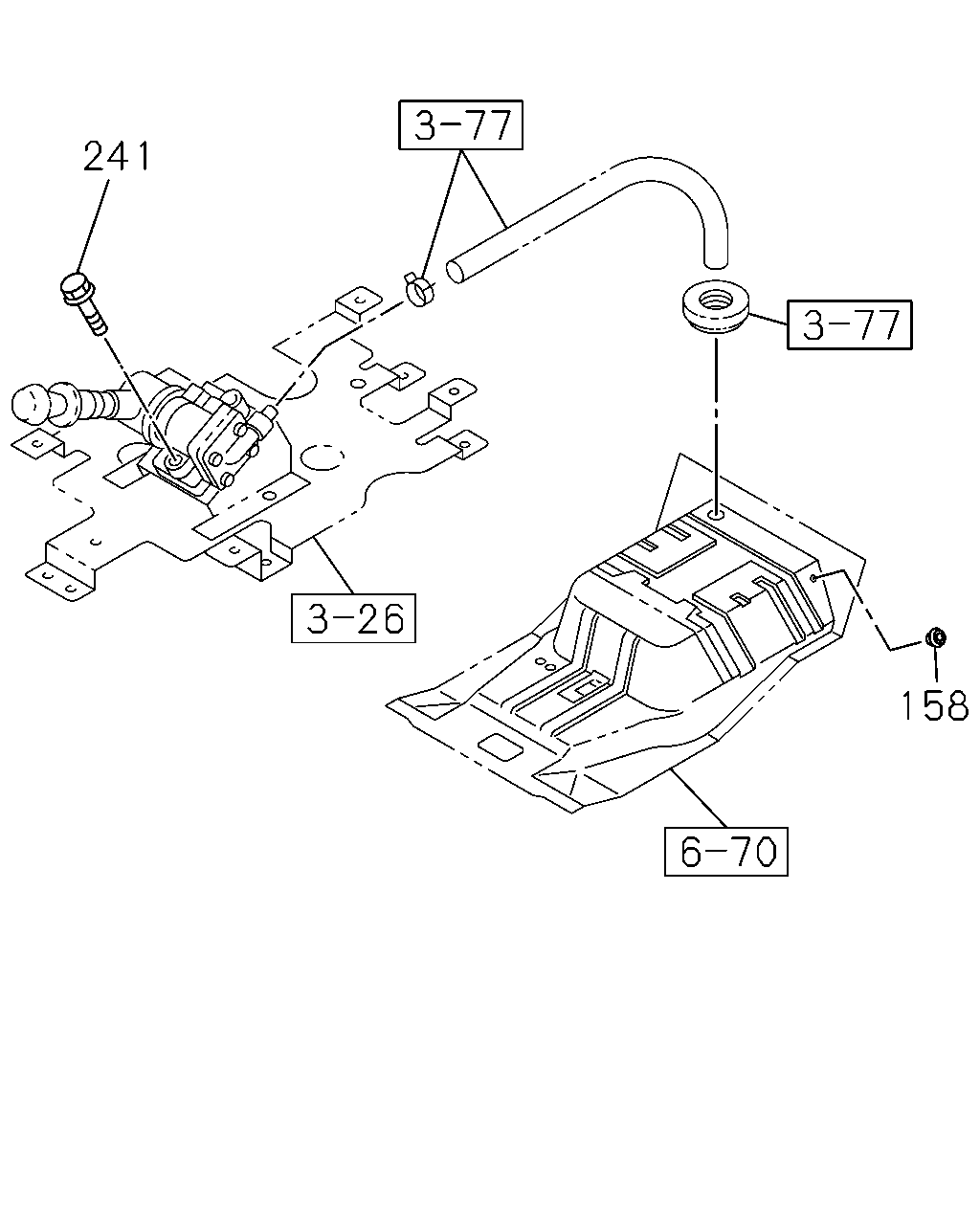

241 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1304-
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1304-1309
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1310-
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1310-

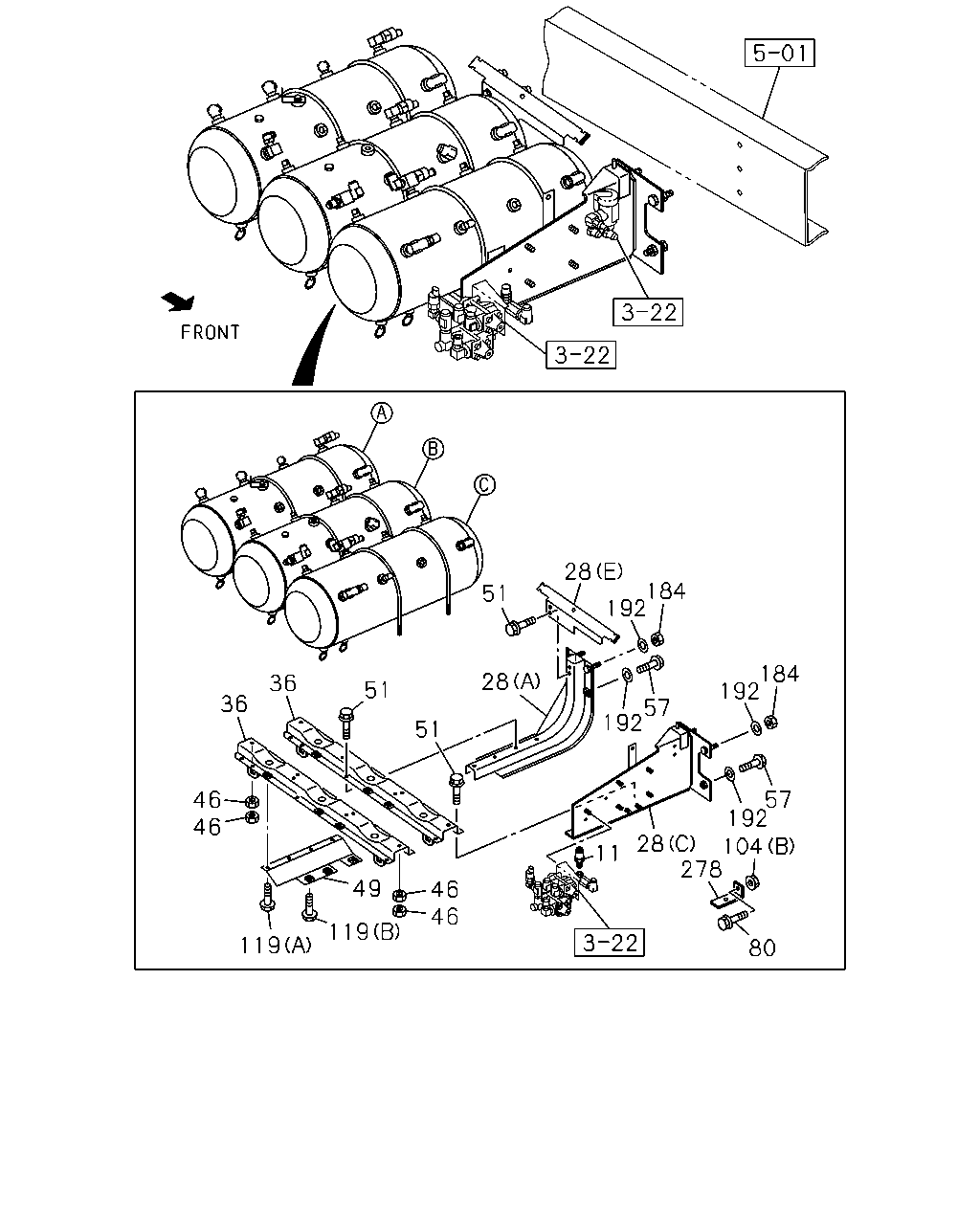

28 51 192 184 192 57 192 57 192 104 28 278 80 11 46 46 119 46 46 36 36 51 51 28 184 49 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1304-
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-
28	BRACKET; AIR TANK (C)	8-98093-562-1	01	1	1304-
28	BRACKET; AIR TANK (E)	8-98112-257-0	01	1	1304-
28	BRACKET; AIR TANK A/T ALLISON 4430(Y5V) (B)	8-98092-756-1	01	1	1304-
28	BRACKET; AIR TANK A/T ALLISON 4430(Y5V) (D)	8-98100-973-1	02	1	1304-
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K) (F)	8-98085-690-0	02	1	1304-
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (G)	8-98237-155-1	02	1	1304-
36	STAY; MAIN TANK	8-97618-091-1	02	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT A/T ALLISON 4430(Y5V) M8	0-91110-508-0	32	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	16	1	1304-
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1304-
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1304-
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1304-
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1304-
104	NUT; BRKT A/T ALLISON 4430(Y5V) (A) M10	0-91110-510-0	04	1	1304-
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1304-
184	NUT; BRKT M14	1-09440-072-0	04	1	1304-
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1304-
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1304-

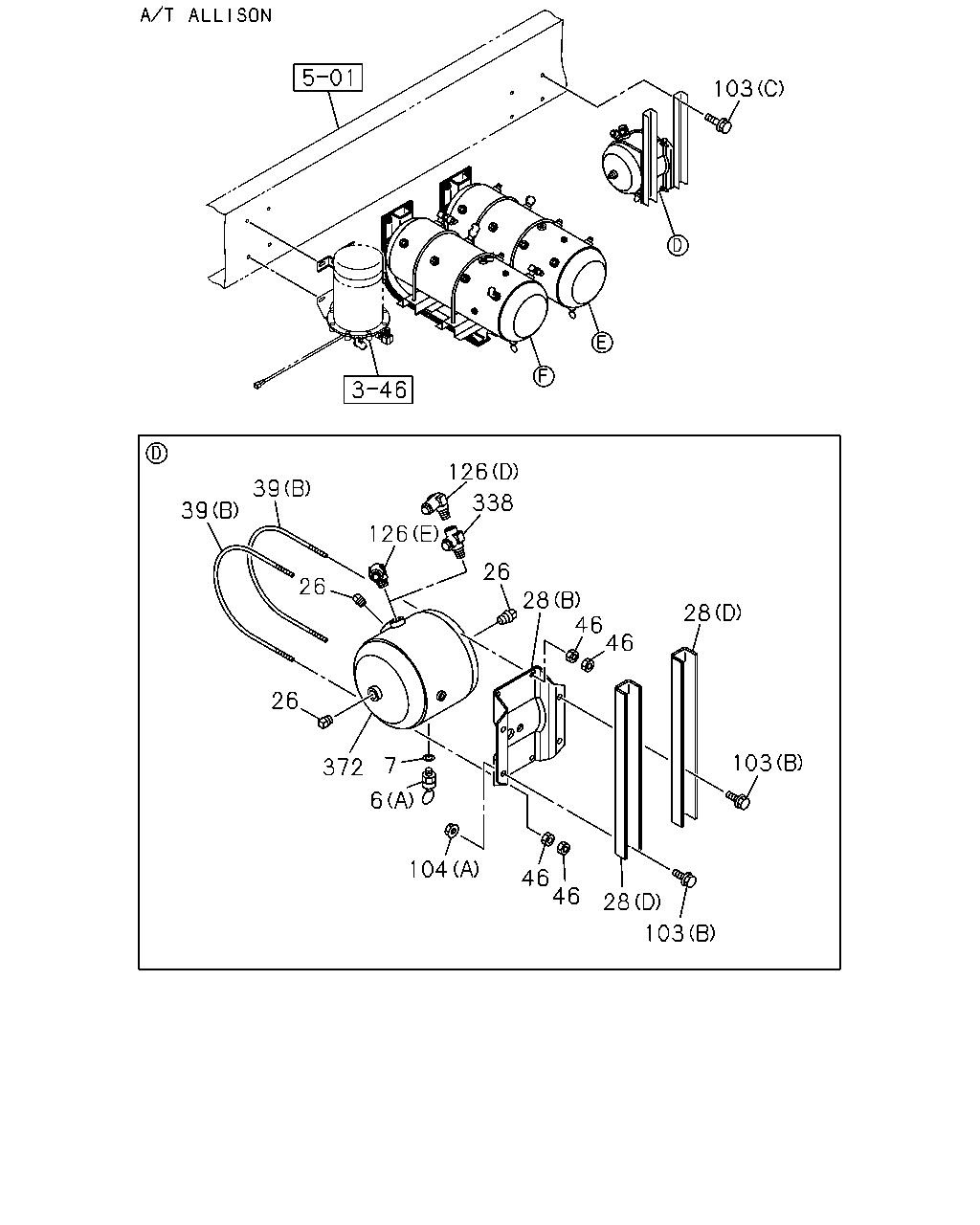

103 126 338 26 126 26 39 39 26 372 7 6 104 46 46 28 103 103 28 46 46 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK A/T ALLISON 4430(Y5V) (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K) (B)	1-48312-017-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
26	PLUG; SUB AIR TANK A/T ALLISON 4430(Y5V) PT3/8	9-09204-517-0	03	1	1304-
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) PT3/8	9-09204-517-0	04	1	1304-
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-
28	BRACKET; AIR TANK (C)	8-98093-562-1	01	1	1304-
28	BRACKET; AIR TANK (E)	8-98112-257-0	01	1	1304-
28	BRACKET; AIR TANK A/T ALLISON 4430(Y5V) (B)	8-98092-756-1	01	1	1304-
28	BRACKET; AIR TANK A/T ALLISON 4430(Y5V) (D)	8-98100-973-1	02	1	1304-
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K) (F)	8-98085-690-0	02	1	1304-
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (G)	8-98237-155-1	02	1	1304-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (A) L=253	1-48317-248-1	08	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (B) L=210	1-48317-458-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (D)	1-48317-675-0	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C)	1-48317-289-0	02	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT A/T ALLISON 4430(Y5V) M8	0-91110-508-0	32	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	16	1	1304-
103	BOLT; BRKT A/T ALLISON 4430(Y5V) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-
103	BOLT; BRKT A/T ALLISON 4430(Y5V) (B) M10X25 FLANGE	0-28651-025-0	04	1	1304-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
104	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	01	1	1304-
104	NUT; BRKT A/T ALLISON 4430(Y5V) (A) M10	0-91110-510-0	04	1	1304-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1304-
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1304-1504
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	02	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (F) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) RIGID SEAT WO/ARM REST(TAZ) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (G) PT3/8 3WAY	1-09661-300-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
338	CONNECTOR; 3WAY VLV A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-
372	TANK; AIR,ACCESORY A/T ALLISON 4430(Y5V)	8-98090-803-1	01	1	1304-

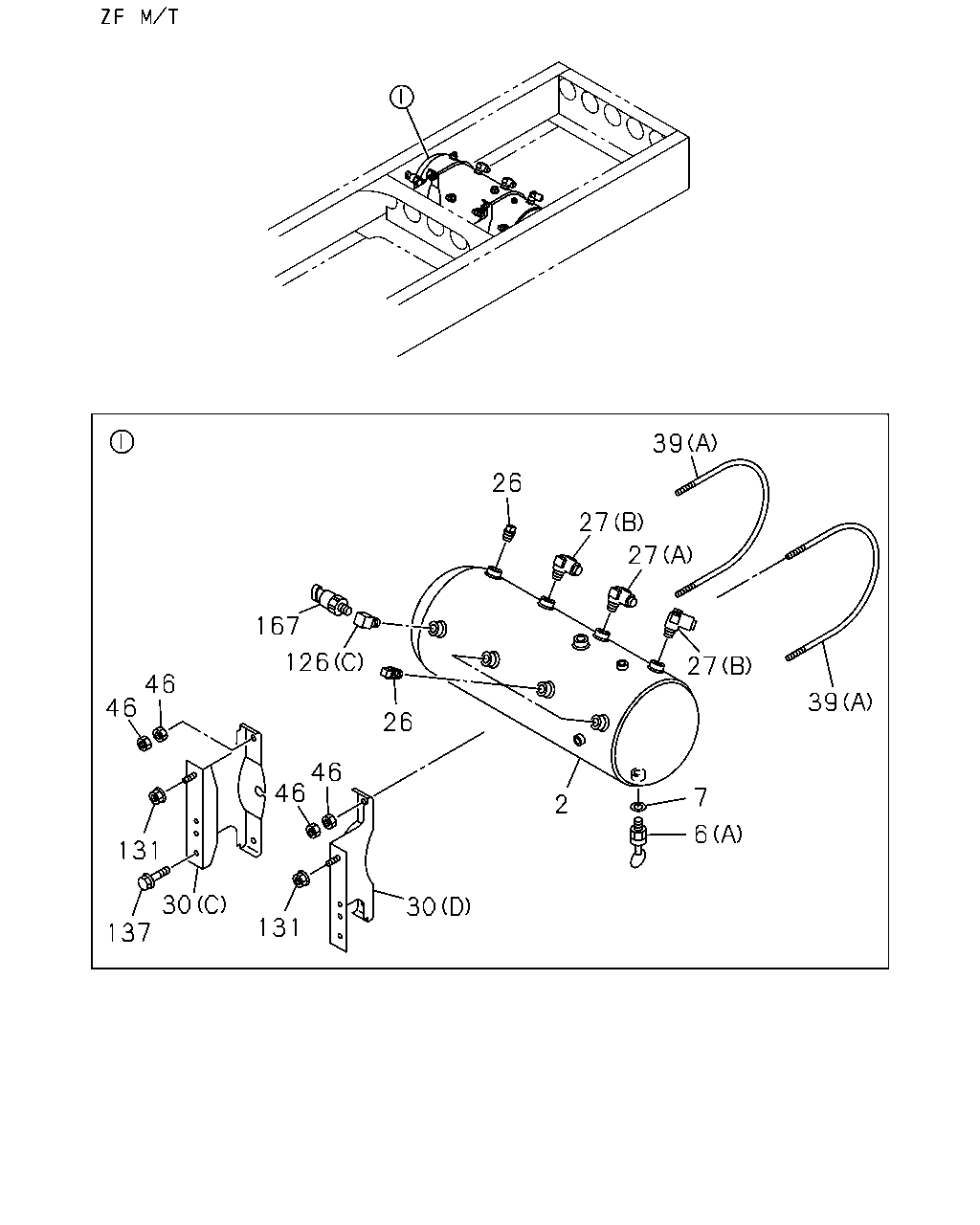

26 27 27 39 27 39 7 6 2 26 126 167 131 137 30 131 46 46 46 46 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W)	8-98187-713-0	01	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK A/T ALLISON 4430(Y5V) (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K) (B)	1-48312-017-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
26	PLUG; SUB AIR TANK A/T ALLISON 4430(Y5V) PT3/8	9-09204-517-0	03	1	1304-
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) PT3/8	9-09204-517-0	04	1	1304-
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
27	UNION; ELBOW,AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
30	BRACKET; AIR TANK,SUB A/T ALLISON 4430(Y5V) (A)	8-97618-393-0	02	1	1304-
30	BRACKET; AIR TANK,SUB A/T ALLISON 4430(Y5V) (B)	8-97618-394-0	04	1	1304-
30	BRACKET; AIR TANK,SUB ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (C)	8-97618-390-1	01	1	1304-
30	BRACKET; AIR TANK,SUB ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (D)	8-97618-391-1	01	1	1304-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (A) L=253	1-48317-248-1	08	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (B) L=210	1-48317-458-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (D)	1-48317-675-0	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C)	1-48317-289-0	02	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT A/T ALLISON 4430(Y5V) M8	0-91110-508-0	32	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	16	1	1304-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1304-
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1304-1504
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	02	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (F) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) RIGID SEAT WO/ARM REST(TAZ) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (G) PT3/8 3WAY	1-09661-300-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
131	NUT; BRKT FIX ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1304-
137	BOLT; BRKT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) M12X30 FLANGE	0-28651-230-0	02	1	1304-
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) STAMP 5.5	8-97609-249-0	01	1	1304-

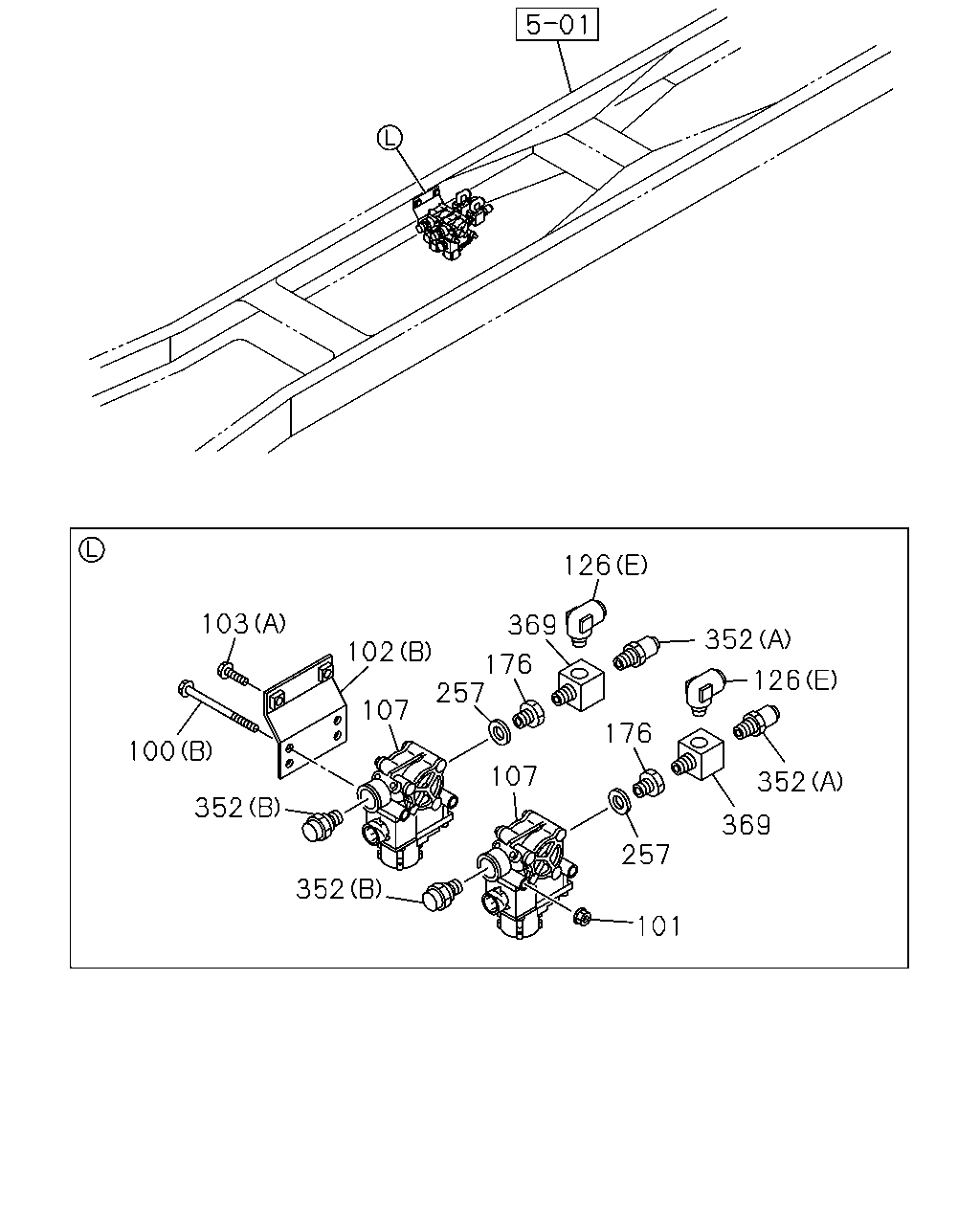

103 100 352 102 107 352 257 176 369 126 352 126 176 107 257 101 369 352

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	1304-1504
100	BOLT; MODULATOR (A) M8X85	1-09044-074-0	04	1	1505-
100	BOLT; MODULATOR (B) M8X140 FLANGE	0-28055-814-0	02	1	1304-
100	BOLT; MODULATOR (C) M8X30 FLANGE	0-28650-830-0	04	1	1304-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1304-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	08	1	1304-
102	BRACKET; MODULATOR (A)	8-98302-564-0	01	1	1505-
102	BRACKET; MODULATOR (A)	1-47479-635-0	02	1	1304-1504
102	BRACKET; MODULATOR (A)	8-98302-563-0	01	1	1505-
102	BRACKET; MODULATOR (B)	8-98034-539-2	01	1	1304-1504
102	BRACKET; MODULATOR (B)	8-98272-821-0	01	1	1505-
103	BOLT; BRKT A/T ALLISON 4430(Y5V) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-
103	BOLT; BRKT A/T ALLISON 4430(Y5V) (B) M10X25 FLANGE	0-28651-025-0	04	1	1304-
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
107	MODULATOR; RR	1-48240-115-0	02	1	1304-1504
107	MODULATOR; RR	8-98215-454-0	02	1	1505-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1304-
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1304-1504
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	02	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (F) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) RIGID SEAT WO/ARM REST(TAZ) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (G) PT3/8 3WAY	1-09661-300-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1304-
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1304-
257	GASKET; PLUG ID=22.5	9-09571-422-0	02	1	1304-
352	CONNECTOR; STRAIGHT (B) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-
352	CONNECTOR; STRAIGHT (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1304-
369	CONNECTOR; 3WAY PT3/8 3WAY	1-09661-300-0	02	1	1304-

100 105 176 405 109 101 102 100 101 317 126 126 126 366 366 405 176 126 126 100 101 102 317 126 405 176 109 101 126 176 405 126 126 105 100

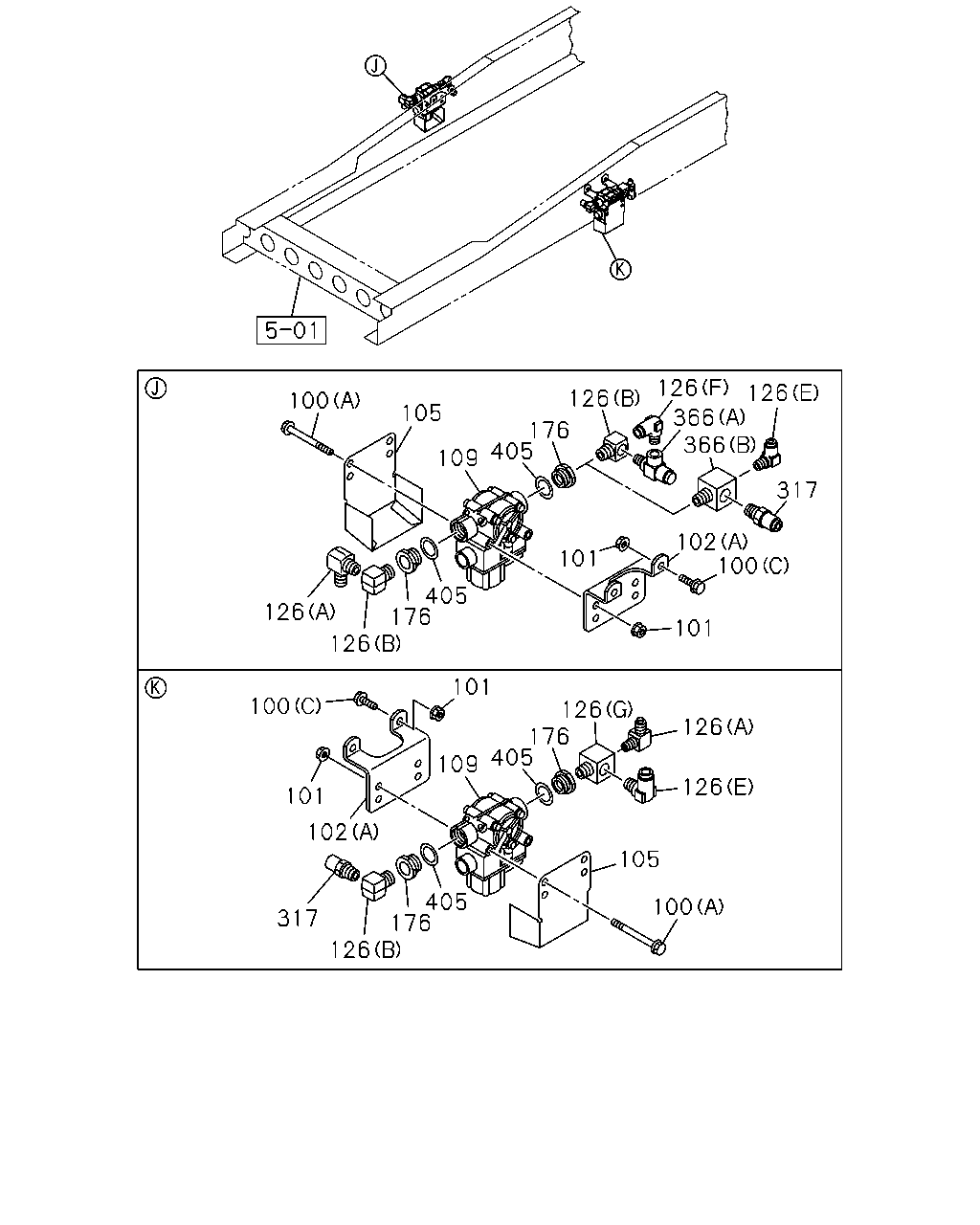

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	04	1	1304-1504
100	BOLT; MODULATOR (A) M8X85	1-09044-074-0	04	1	1505-
100	BOLT; MODULATOR (B) M8X140 FLANGE	0-28055-814-0	02	1	1304-
100	BOLT; MODULATOR (C) M8X30 FLANGE	0-28650-830-0	04	1	1304-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	02	1	1304-
101	NUT; MODULATOR M8 FLANGE	0-91180-108-0	08	1	1304-
102	BRACKET; MODULATOR (A)	8-98302-564-0	01	1	1505-
102	BRACKET; MODULATOR (A)	1-47479-635-0	02	1	1304-1504
102	BRACKET; MODULATOR (A)	8-98302-563-0	01	1	1505-
102	BRACKET; MODULATOR (B)	8-98034-539-2	01	1	1304-1504
102	BRACKET; MODULATOR (B)	8-98272-821-0	01	1	1505-
105	COVER; MODULATOR	8-98302-925-0	01	1	1505-
105	COVER; MODULATOR	1-47471-354-0	02	1	1304-1504
105	COVER; MODULATOR	8-98302-924-0	01	1	1505-
109	MODULATOR; FRT	1-48240-115-0	02	1	1304-1504
109	MODULATOR; FRT	8-98215-454-0	02	1	1505-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1304-
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1304-1504
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	02	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (F) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) RIGID SEAT WO/ARM REST(TAZ) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (G) PT3/8 3WAY	1-09661-300-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1304-
176	ADAPTER INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1304-
317	CONNECTOR; MODULATOR DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-1504
317	CONNECTOR; MODULATOR DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1505-
366	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1304-1504
366	CONNECTOR; NYLON TUBE (B) PT3/8 3WAY	1-09661-300-0	01	1	1505-
405	GASKET ID=22.5	9-09571-422-0	04	1	1304-

126 5 31 136 5 5 1 5 166 10 39 10 39 7 6 10 10 166 126 10 10 1 6 5 5 39 10 39 5 6 7 5 10 10 166 8 5 10 1 7 39 39 5 10 8 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1304-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR A/T ALLISON 4430(Y5V) (B)	8-98187-713-0	02	1	1304-
1	TANK ASM; AIR ZF9S1310 M/T(Y5K) (C)	1-48371-450-1	01	1	1304-
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1304-
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
5	UNION; AIR TANK (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) (E) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK A/T ALLISON 4430(Y5V) (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K) (B)	1-48312-017-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
8	CONNECTOR; AIR TANK (A)	1-09656-708-0	01	1	1304-
8	CONNECTOR; AIR TANK (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK A/T ALLISON 4430(Y5V) (A) PT3/8	9-09204-517-0	10	1	1304-
10	PLUG; AIR TANK A/T ALLISON 4430(Y5V) (B) PT1/4	9-99204-513-0	02	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (C) M22	1-09661-502-0	03	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	01	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (A) PT3/8	9-09204-517-0	05	1	1304-
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1304-
31	BOLT; BRKT TO FRAME A/T ALLISON 4430(Y5V) M8X20 FLANGE	0-28650-820-0	01	1	1304-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (A) L=253	1-48317-248-1	08	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (B) L=210	1-48317-458-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (D)	1-48317-675-0	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C)	1-48317-289-0	02	1	1304-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1304-
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1304-1504
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	02	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (F) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) RIGID SEAT WO/ARM REST(TAZ) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (G) PT3/8 3WAY	1-09661-300-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1304-
136	BRACKET; CLIP A/T ALLISON 4430(Y5V) L=55 B=25	1-47478-439-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK A/T ALLISON 4430(Y5V) STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-

39 10 5 5 5 28 82 28 64 43 39 1 6 7 39 5 5 126 166 39 28 28 7 6 1 10 10 10 10 10 10 46 46 46 46 46 46 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1304-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR A/T ALLISON 4430(Y5V) (B)	8-98187-713-0	02	1	1304-
1	TANK ASM; AIR ZF9S1310 M/T(Y5K) (C)	1-48371-450-1	01	1	1304-
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
5	UNION; AIR TANK (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) (E) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK A/T ALLISON 4430(Y5V) (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K) (B)	1-48312-017-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK A/T ALLISON 4430(Y5V) (A) PT3/8	9-09204-517-0	10	1	1304-
10	PLUG; AIR TANK A/T ALLISON 4430(Y5V) (B) PT1/4	9-99204-513-0	02	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (C) M22	1-09661-502-0	03	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	01	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (A) PT3/8	9-09204-517-0	05	1	1304-
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-
28	BRACKET; AIR TANK (C)	8-98093-562-1	01	1	1304-
28	BRACKET; AIR TANK (E)	8-98112-257-0	01	1	1304-
28	BRACKET; AIR TANK A/T ALLISON 4430(Y5V) (B)	8-98092-756-1	01	1	1304-
28	BRACKET; AIR TANK A/T ALLISON 4430(Y5V) (D)	8-98100-973-1	02	1	1304-
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K) (F)	8-98085-690-0	02	1	1304-
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (G)	8-98237-155-1	02	1	1304-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (A) L=253	1-48317-248-1	08	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (B) L=210	1-48317-458-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (D)	1-48317-675-0	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C)	1-48317-289-0	02	1	1304-
43	BOLT; STAY,AIR TANK,MAIN ZF9S1310 M/T(Y5K) M8X25 FLANGE	0-28650-825-0	02	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT A/T ALLISON 4430(Y5V) M8	0-91110-508-0	32	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	16	1	1304-
64	STAY; AIR TANK,MAIN ZF9S1310 M/T(Y5K)	8-98214-489-0	01	1	1304-
82	NUT; STAY,AIR MASTER BRKT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1304-
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1304-1504
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	02	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (F) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) RIGID SEAT WO/ARM REST(TAZ) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (G) PT3/8 3WAY	1-09661-300-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK A/T ALLISON 4430(Y5V) STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-

126 39 30 30 37 37 46 46 30 46 46 5 39 7 6 37 1 136 5 31 166 7 6 37 46 46 46 46 37 37 30 39 5 39 30 1 10 10 10 10 10 10 10 10 10 10 10 10 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1304-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (B)	8-98187-713-0	01	1	1304-
1	TANK ASM; AIR A/T ALLISON 4430(Y5V) (B)	8-98187-713-0	02	1	1304-
1	TANK ASM; AIR ZF9S1310 M/T(Y5K) (C)	1-48371-450-1	01	1	1304-
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
5	UNION; AIR TANK (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-
5	UNION; AIR TANK (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) (E) DIN12 & M22 ELBOW	1-09661-497-0	02	1	1304-
5	UNION; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1304-
5	UNION; AIR TANK A/T ALLISON 4430(Y5V) (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1410-
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-1409
6	COCK; DRAIN,AIR TANK A/T ALLISON 4430(Y5V) (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-
6	COCK; DRAIN,AIR TANK ZF9S1310 M/T(Y5K) (B)	1-48312-017-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ZF9S1310 M/T(Y5K) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) ID=14	1-09630-145-0	01	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-
10	PLUG; AIR TANK A/T ALLISON 4430(Y5V) (A) PT3/8	9-09204-517-0	10	1	1304-
10	PLUG; AIR TANK A/T ALLISON 4430(Y5V) (B) PT1/4	9-99204-513-0	02	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (C) M22	1-09661-502-0	03	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	01	1	1304-
10	PLUG; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (A) PT3/8	9-09204-517-0	05	1	1304-
30	BRACKET; AIR TANK,SUB A/T ALLISON 4430(Y5V) (A)	8-97618-393-0	02	1	1304-
30	BRACKET; AIR TANK,SUB A/T ALLISON 4430(Y5V) (B)	8-97618-394-0	04	1	1304-
30	BRACKET; AIR TANK,SUB ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (C)	8-97618-390-1	01	1	1304-
30	BRACKET; AIR TANK,SUB ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (D)	8-97618-391-1	01	1	1304-
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1304-
31	BOLT; BRKT TO FRAME A/T ALLISON 4430(Y5V) M8X20 FLANGE	0-28650-820-0	01	1	1304-
37	BOLT; AIR TANK A/T ALLISON 4430(Y5V) (B) M10X25 FLANGE	0-28651-025-0	16	1	1304-
37	BOLT; AIR TANK A/T ALLISON 4430(Y5V) (A) M10X40 FLANGE	0-28651-040-0	08	1	1304-
37	BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-
37	BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (C) M12X35 FLANGE	0-28651-235-0	02	1	1304-
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (A) L=253	1-48317-248-1	08	1	1304-
39	U-BOLT; AIR TANK A/T ALLISON 4430(Y5V) (B) L=210	1-48317-458-1	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (D)	1-48317-675-0	02	1	1304-
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) (C)	1-48317-289-0	02	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	08	1	1304-
46	NUT; U-BOLT A/T ALLISON 4430(Y5V) M8	0-91110-508-0	32	1	1304-
46	NUT; U-BOLT ZF9S1310 M/T(Y5K) M8	0-91110-508-0	16	1	1304-
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1304-
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	03	1	1304-1504
126	CONNECTOR; ELBOW (B) PT3/8 ELBOW	1-09660-696-0	02	1	1505-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-
126	CONNECTOR; ELBOW (F) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) RIGID SEAT WO/ARM REST(TAZ) (E) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-1504
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (E) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1505-
126	CONNECTOR; ELBOW (G) PT3/8 3WAY	1-09661-300-0	01	1	1304-
126	CONNECTOR; ELBOW A/T ALLISON 4430(Y5V) AIR SUSP DRIVER SEAT(A56) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1304-
136	BRACKET; CLIP A/T ALLISON 4430(Y5V) L=55 B=25	1-47478-439-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK A/T ALLISON 4430(Y5V) STAMP 5.5	8-97609-249-0	01	1	1304-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
