Isuzu WW
▶
TRUCKS
▶
FYH
▶
11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#155030) — 21 parça
◀
[285A] NO.3 (2 parça)
[285A] NO.2 (14 parça)
[285A] NO.1 (5 parça)
▶
298
298
298
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

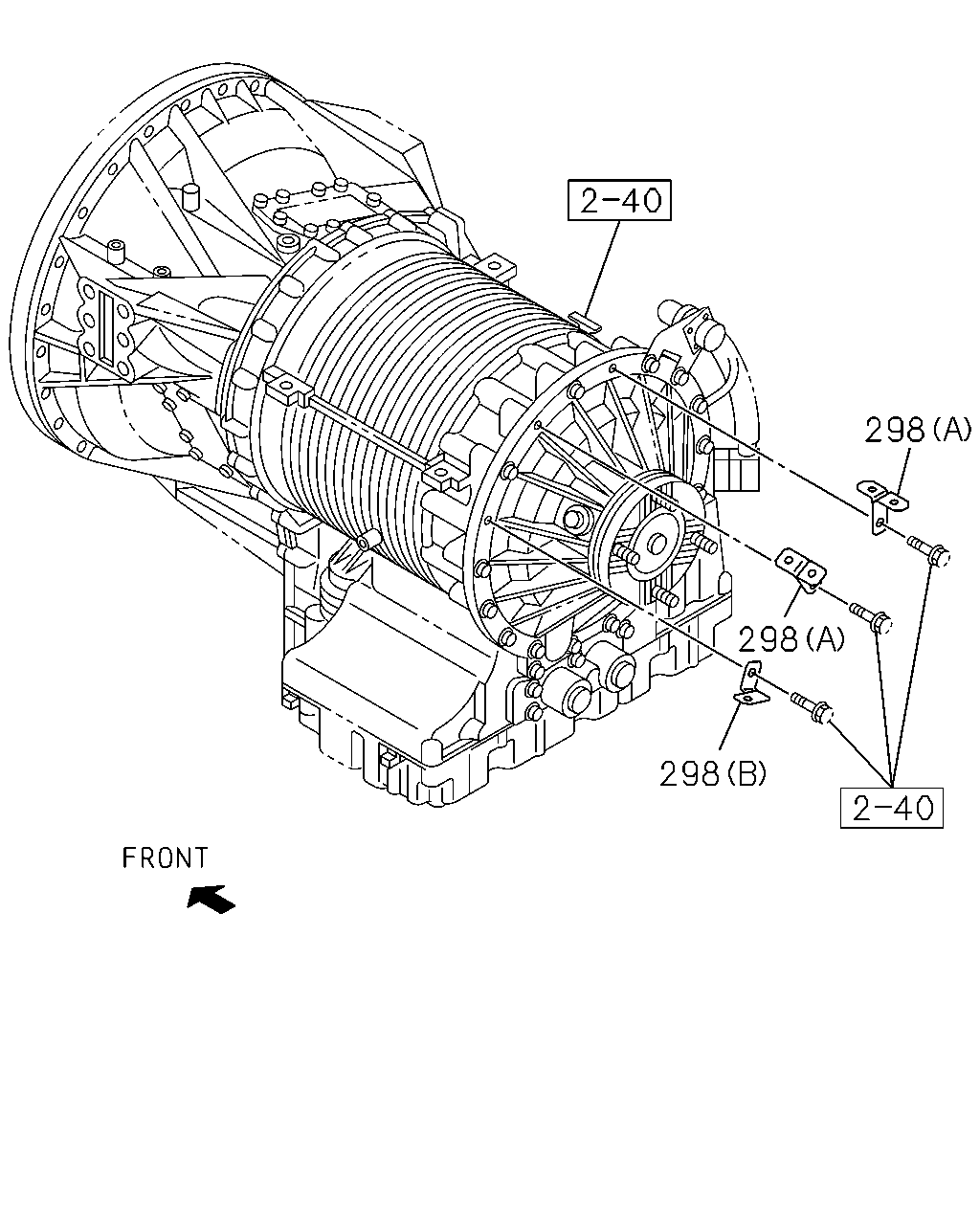

298
BRACKET; HARNESS
A/T ALLISON 4430(Y5V) (A)
8-98202-655-0
02
1
1304-
298
BRACKET; HARNESS
A/T ALLISON 4430(Y5V) (B)
8-98202-657-0
01
1
1304-
250
48
317
204
50
49
171
48
111
57
240
313
182
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

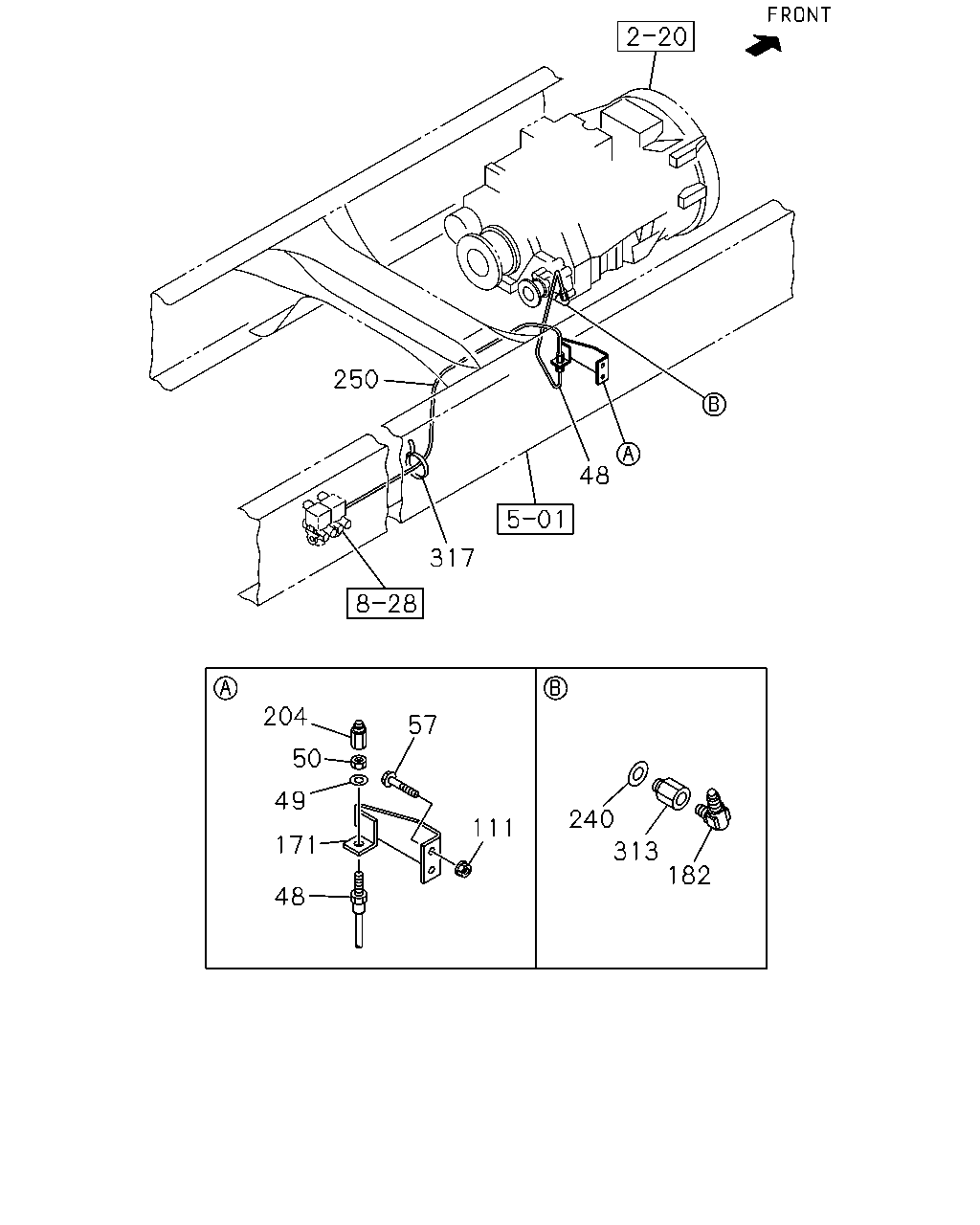

48
HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=400
1-09363-606-0
01
1
1304-
49
WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2
0-91510-512-0
01
1
1304-
50
NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12
9-09840-280-0
01
1
1304-
57
BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X35 FLANGE
0-28650-835-0
02
1
1304-
111
NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
02
1
1304-
171
BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM)
8-98086-261-0
01
1
1304-
182
CONNECTOR; FLARE
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1304-
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1304-
240
GASKET; CONNECTOR,PTO
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
1304-1312
240
GASKET; CONNECTOR,PTO
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) ID=12.2
8-98251-344-0
01
1
1401-
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=6
1-87411-002-0
01
1
1304-
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1304-
313
ADAPTER
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) PT1/4
1-09654-396-0
01
1
1304-
317
CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) L=350
1-09707-183-0
02
1
1304-
3
3
15
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
1304-
3
BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
1304-
4
BRACKET; PTO CONT
PTO CONTROL<SV6>
8-98060-621-0
01
1
1304-
15
LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4>
1-79996-092-0
01
1
1304-
15
LEVER ASM; PTO CONT
PTO CONTROL<SV6>
1-79907-048-1
01
1
1304-
