◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53 - TRANSMISSION OIL COOLER SYSTEM ▶
2-53 — TRANSMISSION OIL COOLER SYSTEM (#155027) — 25 parça

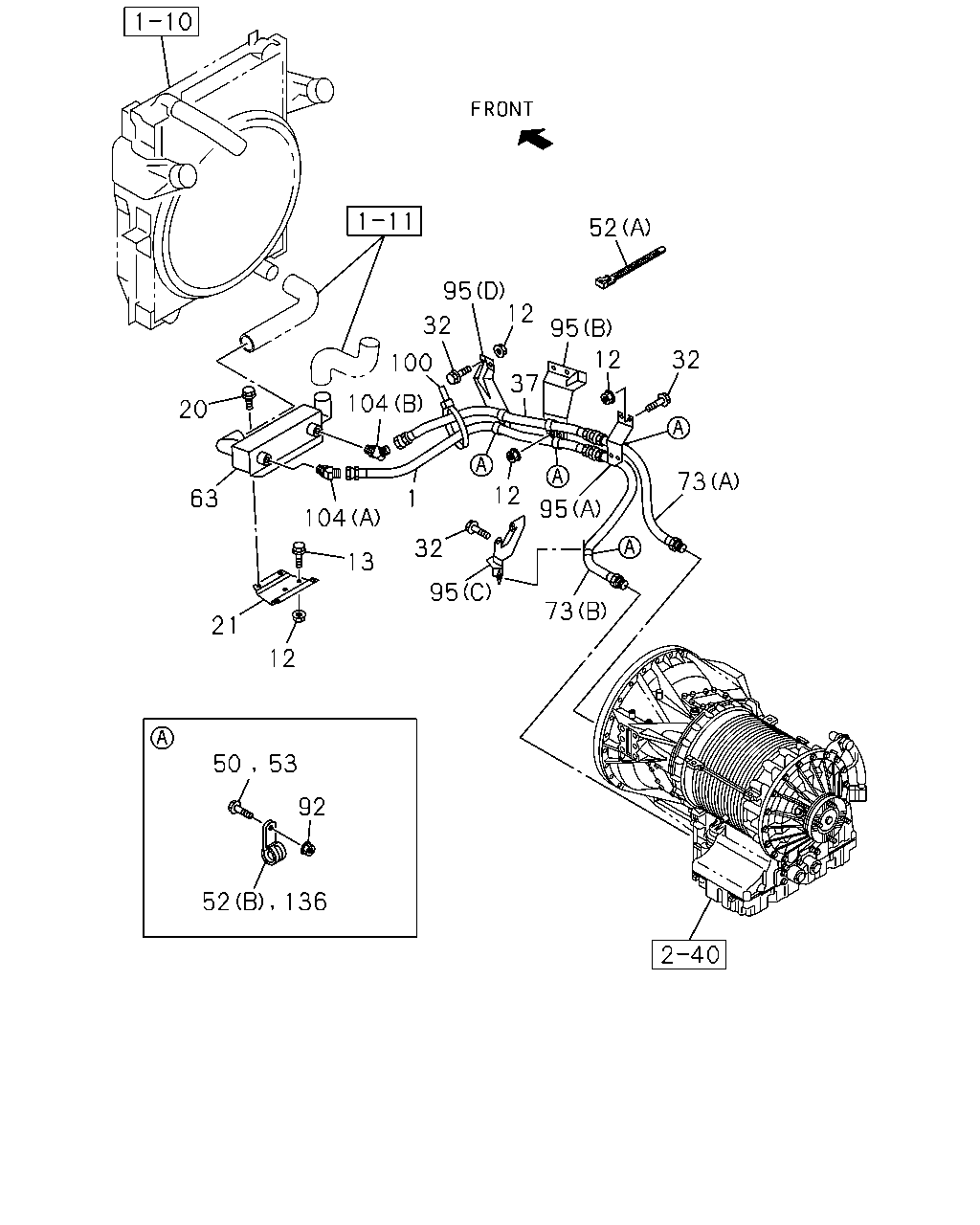

çizim 464311
20 63 104 32 13 21 12 104 100 32 95 95 12 32 12 73 95 73 12 95 50 53 92 52 136 1 37 52
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
A/T ALLISON 4430(Y5V) 		8-98235-256-0 01 1 1304-
12 NUT; BRKT
A/T ALLISON 4430(Y5V) M8 FLANGE 		0-91180-108-0 02 1 1304-
12 NUT; BRKT
A/T ALLISON 4430(Y5V) M10 FLANGE 		0-91180-210-0 02 1 1304-
13 BOLT; BRKT
A/T ALLISON 4430(Y5V) M10X30 FLANGE 		0-28651-030-0 02 1 1304-
20 BOLT; COOLER TO BRKT
A/T ALLISON 4430(Y5V) M8X25 FLANGE 		0-28650-825-0 04 1 1304-
21 BRACKET; COOLER
A/T ALLISON 4430(Y5V) 		1-47471-141-1 01 1 1304-
32 BOLT; BRKT
A/T ALLISON 4430(Y5V) M12X40 FLANGE 		0-28051-240-0 02 1 1304-
32 BOLT; BRKT
A/T ALLISON 4430(Y5V) M8X30 FLANGE 		0-28650-830-0 06 1 1304-
37 HOSE; FLEX,OIL COOLER PIPE TO A/T
A/T ALLISON 4430(Y5V) 		8-98230-057-0 01 1 1304-
50 BOLT; CLIP
A/T ALLISON 4430(Y5V) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
52 CLIP; FLEX HOSE,A/T
A/T ALLISON 4430(Y5V) (A) L=250 		5-09707-030-1 03 1 1304-
52 CLIP; FLEX HOSE,A/T
A/T ALLISON 4430(Y5V) (B) ID=32.5 		8-98235-593-0 03 1 1304-
53 BOLT; CLIP,FLEX HOSE,A/T
A/T ALLISON 4430(Y5V) M8X25 FLANGE 		0-28650-825-0 02 1 1304-
63 COOLER; OIL
A/T ALLISON 4430(Y5V) 		8-98213-369-0 01 1 1304-
73 HOSE; FLEX,TRANS
A/T ALLISON 4430(Y5V) (A) 		8-98230-054-0 01 1 1304-
73 HOSE; FLEX,TRANS
A/T ALLISON 4430(Y5V) (B) 		8-98230-055-0 01 1 1304-
92 NUT; CLIP
A/T ALLISON 4430(Y5V) M8 FLANGE 		0-91180-108-0 04 1 1304-
95 BRACKET; CLIP
A/T ALLISON 4430(Y5V) (C) 		8-97644-092-0 01 1 1304-
95 BRACKET; CLIP
A/T ALLISON 4430(Y5V) (D) 		8-98205-947-0 01 1 1304-
95 BRACKET; CLIP
A/T ALLISON 4430(Y5V) (A) 		8-98230-050-0 01 1 1304-
95 BRACKET; CLIP
A/T ALLISON 4430(Y5V) (B) 		8-98230-053-0 01 1 1304-
100 CLIP; BAND,RUBBER SLEEVE
A/T ALLISON 4430(Y5V) L=350 		1-09707-183-0 01 1 1304-
104 CONNECTOR; COOLER
A/T ALLISON 4430(Y5V) (A) 		1-09664-239-0 01 1 1304-
104 CONNECTOR; COOLER
A/T ALLISON 4430(Y5V) (B) 		1-09664-262-0 01 1 1304-
136 CLIP; FLEX HOSE
A/T ALLISON 4430(Y5V) ID=32.5 		8-98235-593-0 04 1 1304-
