◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#155013) — 67 parça

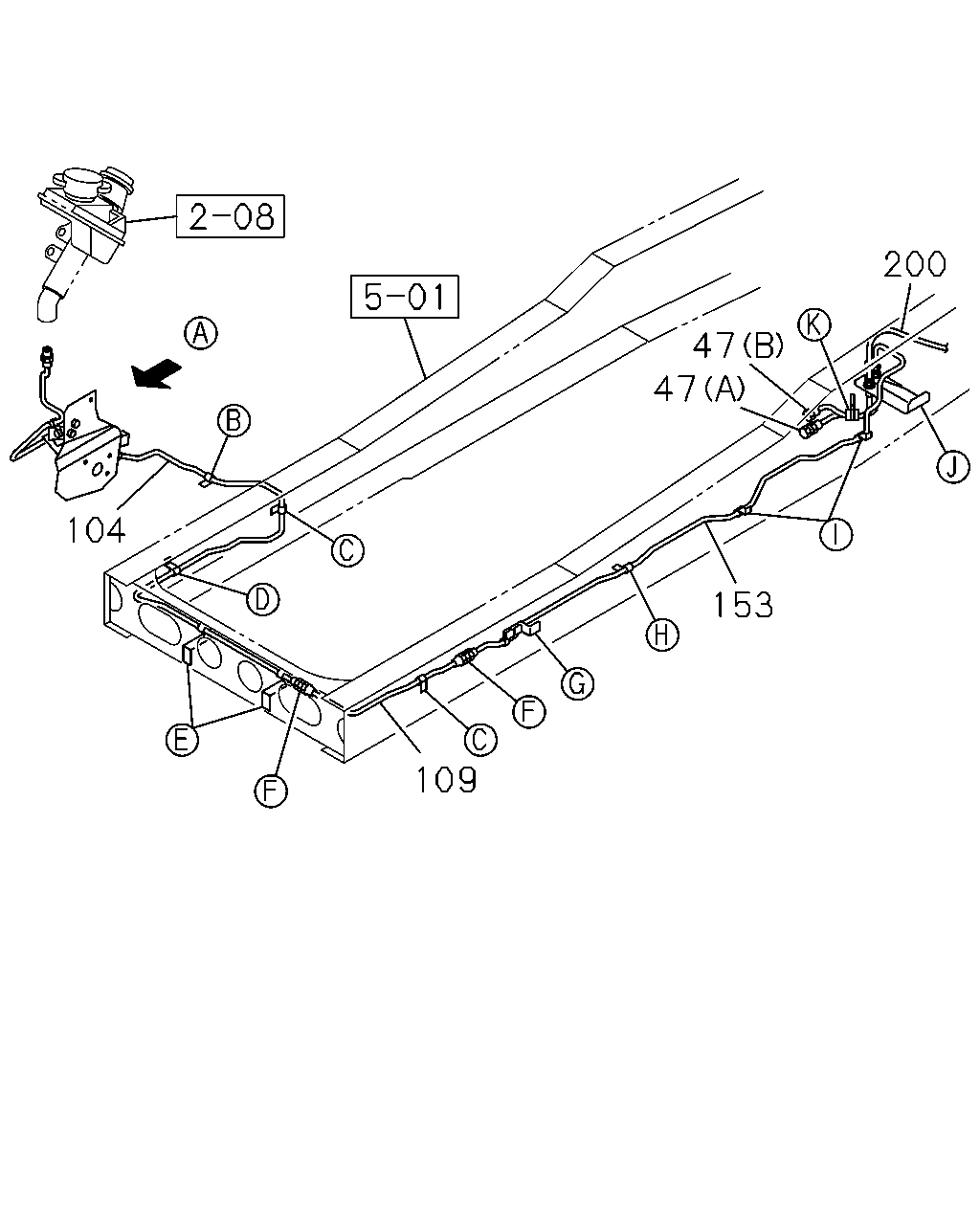

çizim 464211
104 109 153 47 47 200
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) (A) L=580 		1-09363-692-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) (B) L=620 		8-98072-333-0 01 1 1304-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
ZF9S1310 M/T(Y5K) L=1740 SERVICED BY L=1800 		1-47428-768-0 01 1 1304-
109 PIPE; AIR,UNION TO UNION
ZF9S1310 M/T(Y5K) L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 1304-
153 PIPE ASM; CLU,UNION TO FLEX
ZF9S1310 M/T(Y5K) L=1485 SERVICED BY L=1550 		1-47428-766-0 01 1 1304-
200 TUBE; NYLON
ZF9S1310 M/T(Y5K) WHEEL BASE 6400MM(64W) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1304-
200 TUBE; NYLON
ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1304-
çizim 464218
235 101 210 16 42 30 42 207 16 210 27 107 51 106
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ZF9S1310 M/T(Y5K) ID=16 L=28 		1-09700-872-0 03 1 1304-
27 NUT; BRKT
ZF9S1310 M/T(Y5K) (A) M8 FLANGE 		0-91180-108-0 01 1 1304-
27 NUT; BRKT
ZF9S1310 M/T(Y5K) (B) M10 FLANGE 		0-91180-210-0 03 1 1304-
30 BOLT; BRKT
ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
30 BOLT; BRKT
ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
30 BOLT; BRKT
ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) (A) 		1-47476-912-1 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) (C) 		8-98184-114-0 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) (B) 		8-98209-935-0 01 1 1304-1402
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) (B) 		8-98255-491-0 01 1 1403-
51 WASHER; LK
ZF9S1310 M/T(Y5K) ID=14.2 		0-91510-514-0 01 1 1304-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
ZF9S1310 M/T(Y5K) 		8-98184-197-0 01 1 1304-
106 UNION; OIL PIPE
ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
106 UNION; OIL PIPE
ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
106 UNION; OIL PIPE
ZF9S1310 M/T(Y5K) (B) 		1-09654-191-1 01 1 1304-
107 NUT; UNION,OIL PIPE
ZF9S1310 M/T(Y5K) M14 		0-91111-514-0 01 1 1304-
207 BOLT; CLIP
ZF9S1310 M/T(Y5K) M8X20 FLANGE 		0-28650-820-0 01 1 1304-
210 NUT; CLIP
ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 03 1 1304-
235 GASKET; FLEX HOSE
ZF9S1310 M/T(Y5K) ID=10.2 OD=16.0 		9-09571-410-0 01 1 1304-

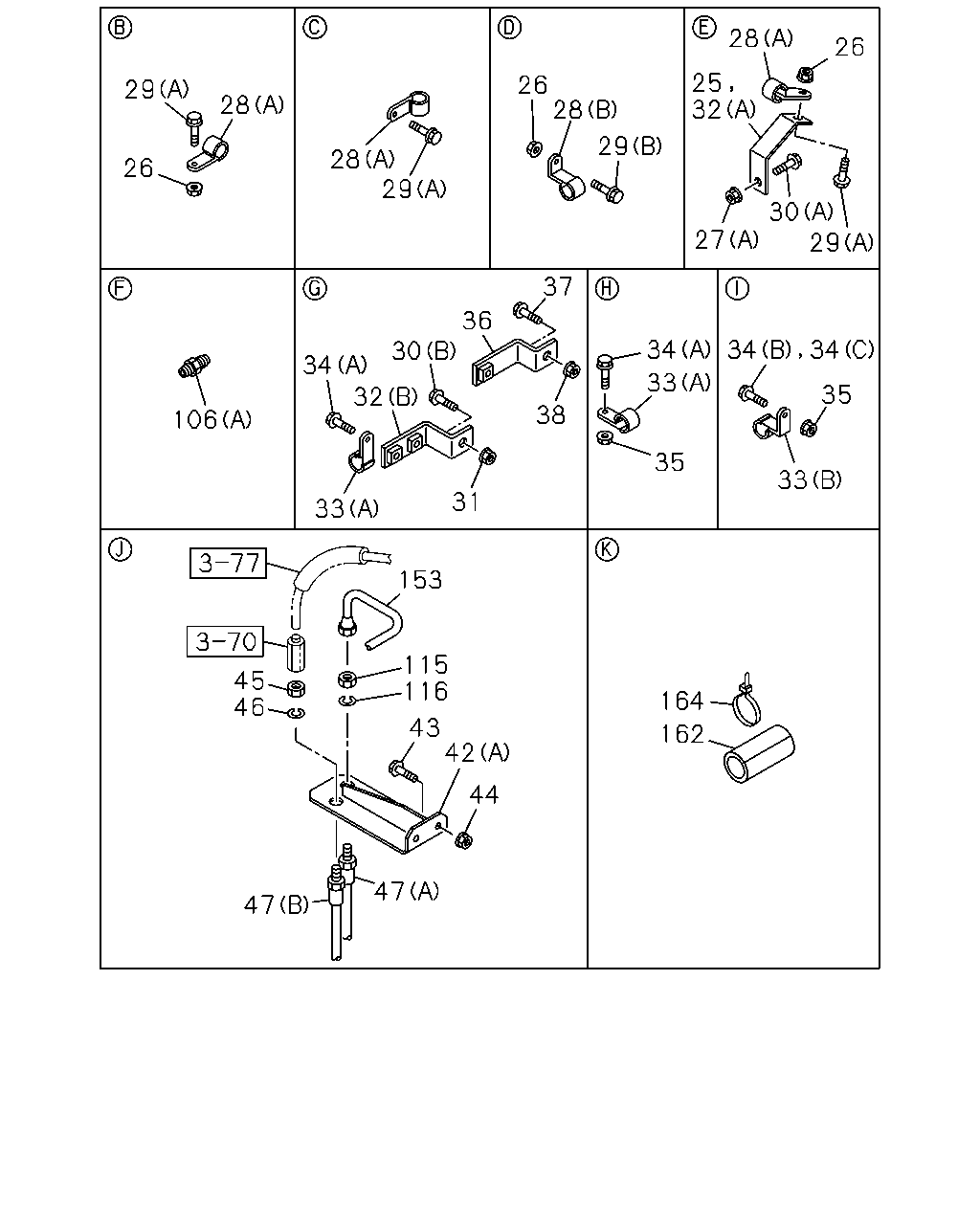

çizim 464522
29 28 26 28 29 26 28 28 29 25 32 30 29 27 26 34 35 34 33 34 33 35 38 37 36 30 32 34 33 31 106 45 46 115 116 153 43 42 44 47 47 164 162
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE
ZF9S1310 M/T(Y5K) 		8-98123-057-0 01 1 1304-
26 NUT; CLIP,OIL PIPE
ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 02 1 1304-
27 NUT; BRKT
ZF9S1310 M/T(Y5K) (A) M8 FLANGE 		0-91180-108-0 01 1 1304-
27 NUT; BRKT
ZF9S1310 M/T(Y5K) (B) M10 FLANGE 		0-91180-210-0 03 1 1304-
28 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 01 1 1304-
28 CLIP; OIL PIPE
ZF9S1310 M/T(Y5K) (A) ID=9 L=20 		0-95234-835-0 03 1 1304-
29 BOLT; CLIP,OIL PIPE
ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE 		0-28650-820-0 03 1 1304-
29 BOLT; CLIP,OIL PIPE
ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
30 BOLT; BRKT
ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1304-
30 BOLT; BRKT
ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE 		0-28650-825-0 03 1 1304-
30 BOLT; BRKT
ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
31 NUT; BRKT
ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 02 1 1304-
32 BRACKET; CLIP OIL PIPE
ZF9S1310 M/T(Y5K) (B) 		1-47479-482-0 01 1 1304-
32 BRACKET; CLIP OIL PIPE
ZF9S1310 M/T(Y5K) (A) 		8-98123-057-0 01 1 1304-
33 CLIP; OIL PIPE
ZF9S1310 M/T(Y5K) (A) ID=9 L=20 		0-95234-835-0 04 1 1304-
33 CLIP; OIL PIPE
ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1304-
34 BOLT; PIPE CLIP
ZF9S1310 M/T(Y5K) (C) M8X16 FLANGE 		0-28050-816-0 01 1 1304-
34 BOLT; PIPE CLIP
ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE 		0-28650-820-0 04 1 1304-
34 BOLT; PIPE CLIP
ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE 		0-28650-830-0 02 1 1304-
35 NUT; PIPE CLIP
ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 04 1 1304-
36 BRACKET; CLIP
ZF9S1310 M/T(Y5K) L=80 H=20 		1-82699-304-0 01 1 1304-
37 BOLT; CLIP BRKT
ZF9S1310 M/T(Y5K) M8X30 FLANGE 		0-28650-830-0 01 1 1304-
38 NUT; CLIP BRKT
ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) (A) 		1-47476-912-1 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) (C) 		8-98184-114-0 01 1 1304-
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) (B) 		8-98209-935-0 01 1 1304-1402
42 BRACKET; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) (B) 		8-98255-491-0 01 1 1403-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
ZF9S1310 M/T(Y5K) M8X30 FLANGE 		0-28650-830-0 02 1 1304-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 02 1 1304-
45 NUT; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) M12 		9-09840-280-0 01 1 1304-
46 WASHER; LK,FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) ID=12.2 		0-91510-512-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) (A) L=580 		1-09363-692-0 01 1 1304-
47 HOSE; FLEX,CLU CONT
ZF9S1310 M/T(Y5K) (B) L=620 		8-98072-333-0 01 1 1304-
106 UNION; OIL PIPE
ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
106 UNION; OIL PIPE
ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT 		0-92113-008-0 01 1 1304-
106 UNION; OIL PIPE
ZF9S1310 M/T(Y5K) (B) 		1-09654-191-1 01 1 1304-
115 NUT; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) M14 		0-91111-514-0 01 1 1304-
116 WASHER; FLEX HOSE,CLU CONT
ZF9S1310 M/T(Y5K) ID=14.2 		0-91510-514-0 01 1 1304-
153 PIPE ASM; CLU,UNION TO FLEX
ZF9S1310 M/T(Y5K) L=1485 SERVICED BY L=1550 		1-47428-766-0 01 1 1304-
162 COVER; RUBBER,FLEX HOSE
ZF9S1310 M/T(Y5K) L=175 		1-09707-178-0 01 1 1304-
164 CLIP; BAND,FLEX HOSE
ZF9S1310 M/T(Y5K) L=350 		1-09707-183-0 01 1 1304-
