Isuzu WW
▶
TRUCKS
▶
FYH
▶
11665 - FYH RHD EURO5 EXC.ENGINE REAR PTO
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

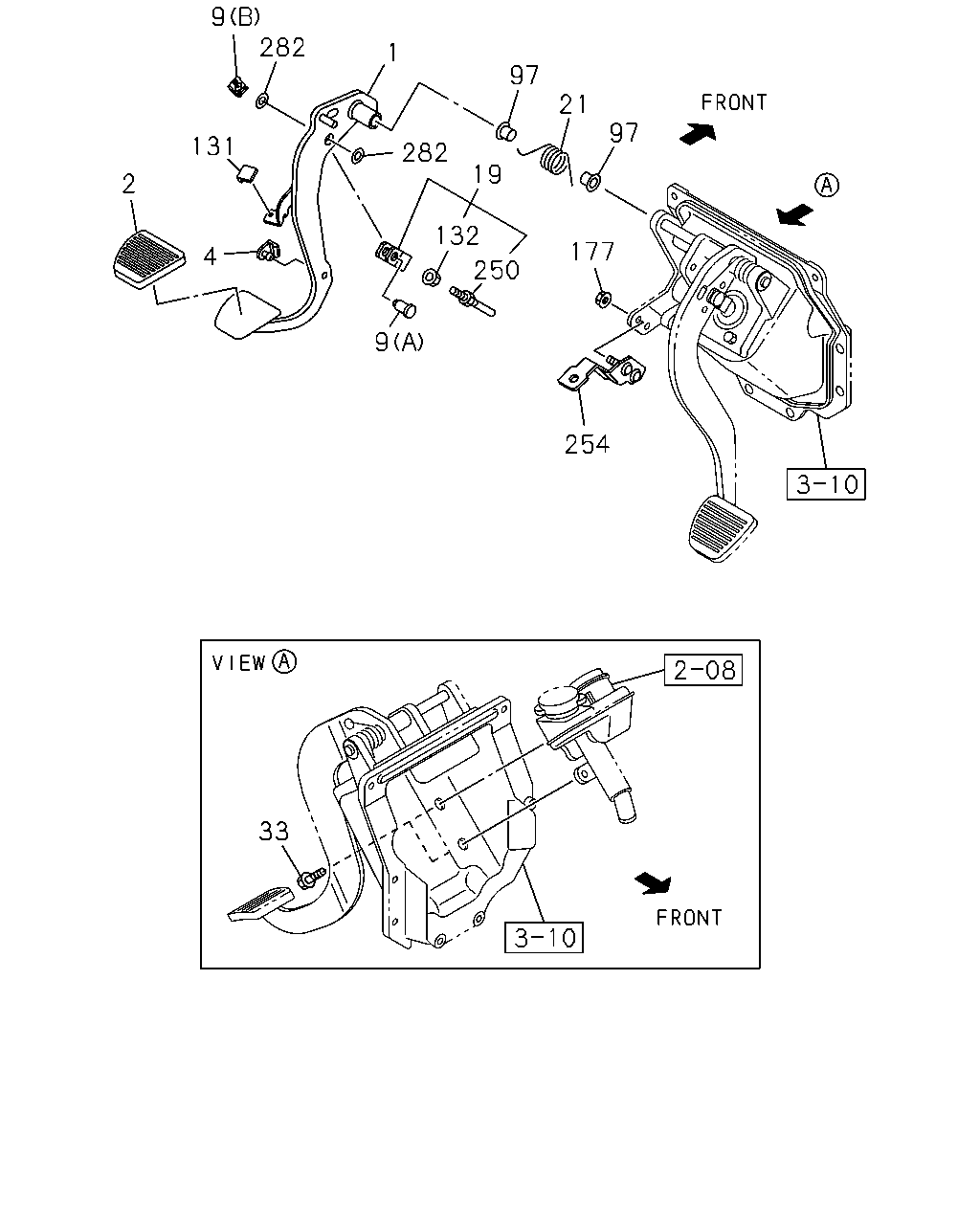

2-03 — CLUTCH PEDAL AND CONTROL
(#155012) — 15 parça
254
177
97
21
97
282
132
9
250
282
131
4
2
1
9
19
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
ZF9S1310 M/T(Y5K)
8-98099-809-0
01
1
1304-
2
COVER; CLU PEDAL
ZF9S1310 M/T(Y5K)
8-98056-865-0
01
1
1304-
4
STOPPER; CLU PEDAL
ZF9S1310 M/T(Y5K)
8-98079-251-0
01
1
1304-
9
PIN; CLU PEDAL
ZF9S1310 M/T(Y5K) (B)
8-98007-161-0
01
1
1304-
9
PIN; CLU PEDAL
ZF9S1310 M/T(Y5K) (A)
8-98147-657-0
01
1
1304-
19
ROD ASM; PUSH,CLU
ZF9S1310 M/T(Y5K)
8-98021-406-1
01
1
1304-
21
SPRING; RETURN,CLU PEDAL
ZF9S1310 M/T(Y5K)
8-98021-560-0
01
1
1304-
33
BOLT; CLU M/CYL TO BRKT
17INCH CLUTCH(RF3) M12X20 FLANGE
0-28051-220-0
02
1
1304-
97
BUSHING; CLU PEDAL SHAFT
ZF9S1310 M/T(Y5K)
8-94238-596-0
02
1
1304-
131
STOPPER; CLU SW
ZF9S1310 M/T(Y5K)
8-97302-305-0
01
1
1304-
132
NUT; LK,PUSH ROD
ZF9S1310 M/T(Y5K) M8 FLANGE
0-91180-108-0
01
1
1304-
177
NUT; BRKT
ZF9S1310 M/T(Y5K) M8 FLANGE
0-91180-108-0
02
1
1304-
250
ROD; PUSH,CLU
ZF9S1310 M/T(Y5K)
8-97615-589-0
01
1
1304-
254
BRACKET; CLU SENSOR
ZF9S1310 M/T(Y5K)
8-98021-377-1
01
1
1304-
282
SPACER; CLU PEDAL
ZF9S1310 M/T(Y5K)
8-98070-329-0
02
1
1304-
