Sayfa 1-41 - Isuzu EPC

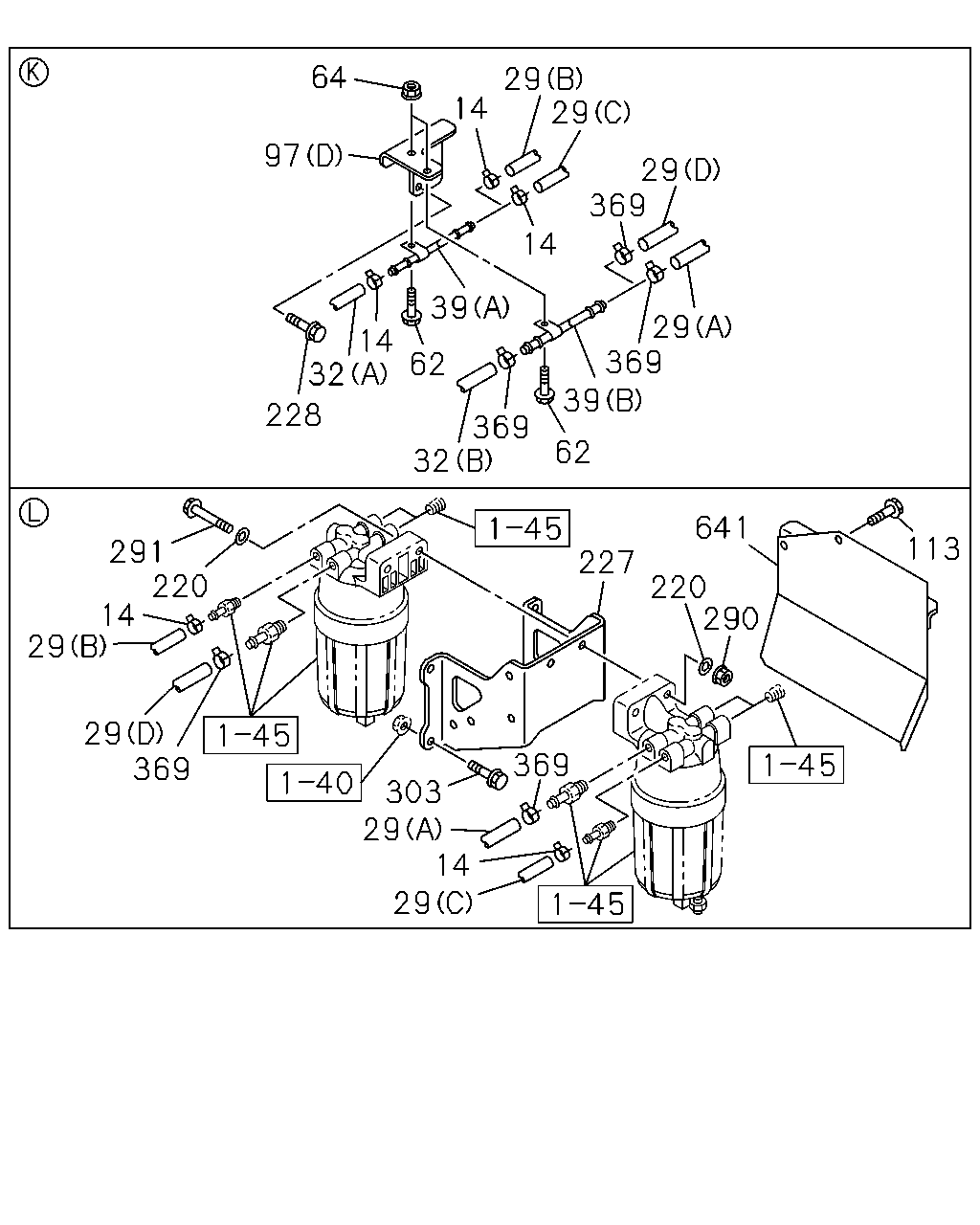

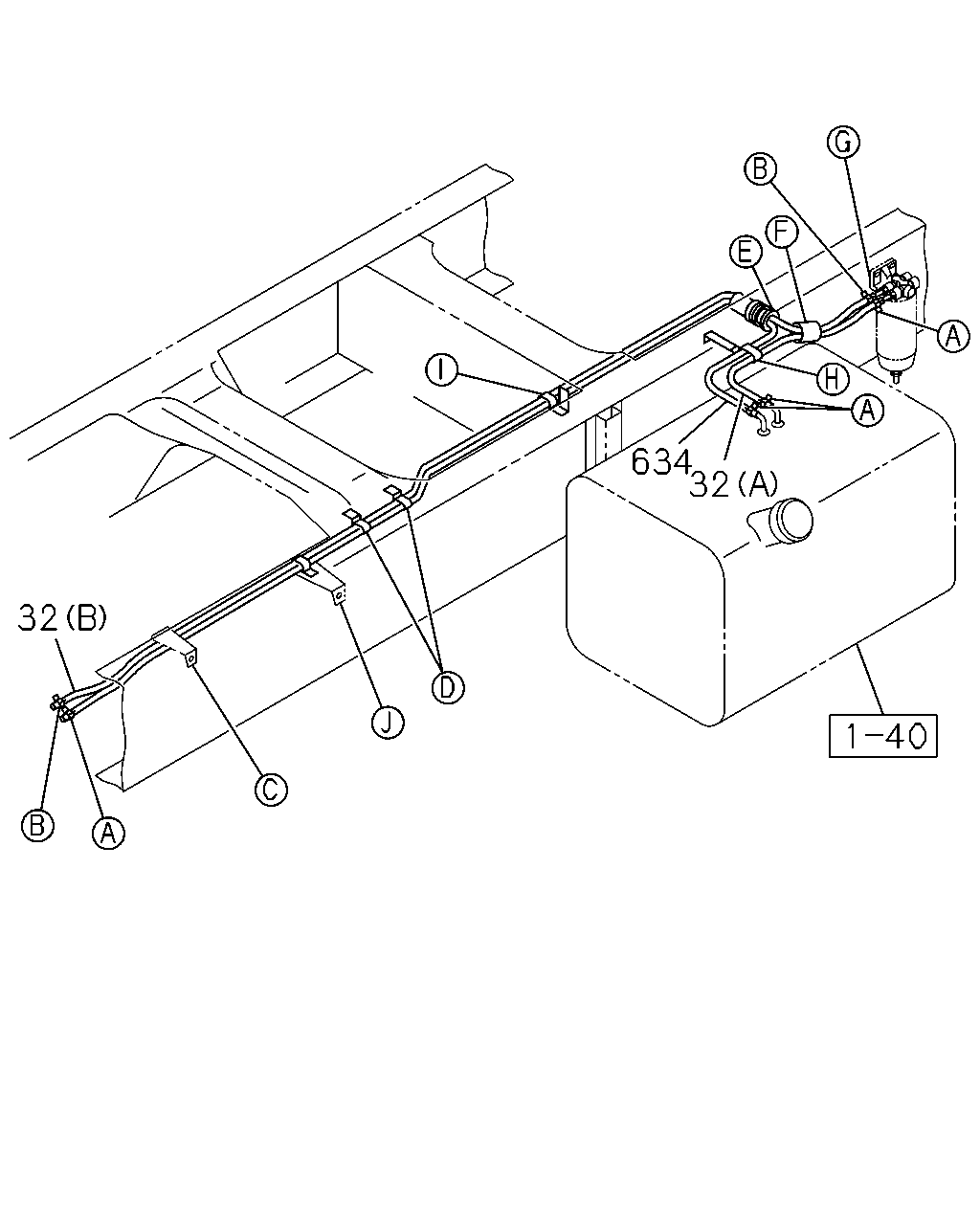

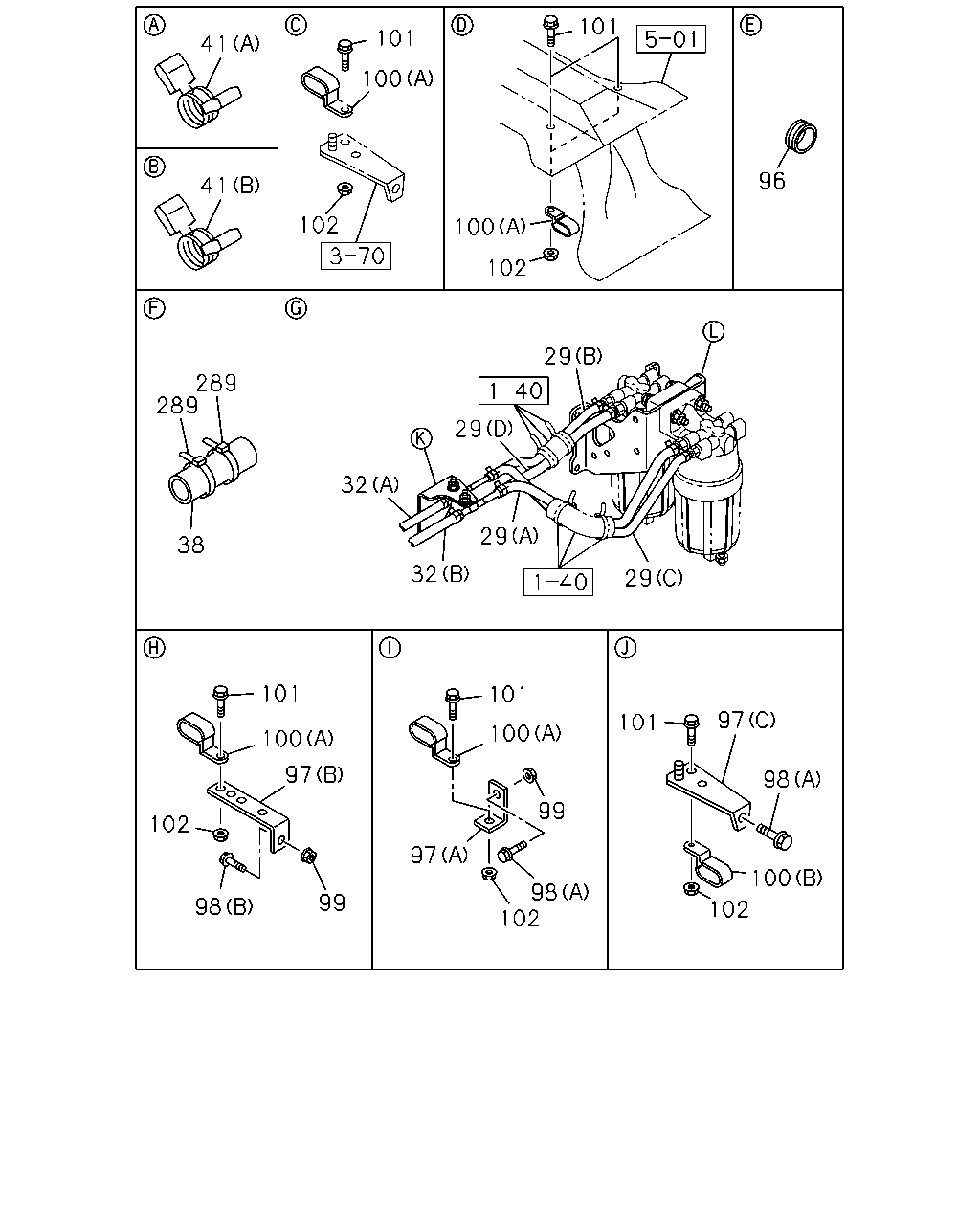

1-41 — FUEL PIPING; CHASSIS (#155006) — 96 parça

64 97 14 29 29 29 369 14 369 29 39 62 369 32 39 62 14 32 228 227 220 290 641 113 369 29 29 14 303 369 29 29 14 291 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE ID=14	1-09704-102-0	04	1	1304-
29	HOSE; FUEL FUEL TANK 200L AL<THF> (C) L=350 OD=14.5	8-98188-445-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 200L AL<THF> (A)	8-98215-725-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 300L<RF5> (B) L=260 OD=14.5	8-98188-441-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 300L<RF5> (C) L=370 OD=14.5	8-98188-446-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 300L<RF5> (A) L=310 OD=19	8-98188-459-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A)	8-98188-456-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=330 OD=14.5	8-98188-444-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B)	8-98188-439-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (D)	8-98188-453-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=3850 SERVICED BY L=5350	0-01262-535-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A)	8-98186-643-1	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=3750 SERVICED BY L=5350	0-01262-535-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=3700 SERVICED BY L=5050	0-01262-505-0	01	1	1304-
39	PIPE; FUEL FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A)	8-98186-862-1	01	1	1304-1407
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1408-
39	PIPE; FUEL FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B)	8-98186-864-1	01	1	1304-1407
39	PIPE; FUEL (B)	8-98186-864-1	01	1	1408-
62	BOLT; CLIP FIX FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	02	1	1304-1407
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1408-
64	NUT; CLIP FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	02	1	1304-1407
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1408-
97	BRACKET; CLIP (C)	8-97609-096-0	01	1	1304-
97	BRACKET; CLIP FUEL TANK 300L<RF5> (D)	8-98186-871-0	01	1	1304-
97	BRACKET; CLIP FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) L=68	1-47475-525-0	01	1	1304-
97	BRACKET; CLIP FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (D)	8-98186-869-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 6400MM(64W) (A) L=55	1-47475-304-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 6400MM(64W) (B)	1-82698-358-0	05	1	1304-
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) L=55	1-47475-304-0	02	1	1304-
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (B)	1-82698-358-0	03	1	1304-
113	BOLT; PROTECTOR WHEEL BASE 6400MM(64W) M8X25 FLANGE	0-28050-825-0	02	1	1304-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	04	1	1304-
227	BRACKET; FUEL SEDIMENTER	8-98184-812-0	01	1	1304-
228	BOLT; BRKT,SEDIMENTER M8X30 FLANGE	0-28650-830-0	02	1	1304-
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1304-
291	BOLT; FILER TO BRKT M10X90 FLANGE	0-28051-090-0	02	1	1304-
303	BOLT; BRKT M10X40 FLANGE	0-28051-040-0	04	1	1304-
369	CLAMP; HOSE,FUEL ID=19	8-94238-569-0	04	1	1304-
641	PROTECTOR; SEDIMENTER WHEEL BASE 6400MM(64W)	8-98184-816-0	01	1	1304-

41 101 100 101 100 102 29 29 29 29 32 32 289 289 38 101 100 101 97 98 100 102 98 102 97 99 97 100 101 102 98 99 41 102 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL FUEL TANK 200L AL<THF> (C) L=350 OD=14.5	8-98188-445-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 200L AL<THF> (A)	8-98215-725-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 300L<RF5> (B) L=260 OD=14.5	8-98188-441-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 300L<RF5> (C) L=370 OD=14.5	8-98188-446-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 300L<RF5> (A) L=310 OD=19	8-98188-459-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (A)	8-98188-456-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=330 OD=14.5	8-98188-444-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B)	8-98188-439-0	01	1	1304-
29	HOSE; FUEL FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (D)	8-98188-453-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=3850 SERVICED BY L=5350	0-01262-535-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A)	8-98186-643-1	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=3750 SERVICED BY L=5350	0-01262-535-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=3700 SERVICED BY L=5050	0-01262-505-0	01	1	1304-
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1304-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	01	1	1304-1304
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	03	1	1304-1304
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1305-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	01	1	1304-1304
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	01	1	1304-1304
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1304-
97	BRACKET; CLIP (C)	8-97609-096-0	01	1	1304-
97	BRACKET; CLIP FUEL TANK 300L<RF5> (D)	8-98186-871-0	01	1	1304-
97	BRACKET; CLIP FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH> (B) L=68	1-47475-525-0	01	1	1304-
97	BRACKET; CLIP FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (D)	8-98186-869-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 6400MM(64W) (A) L=55	1-47475-304-0	01	1	1304-
97	BRACKET; CLIP WHEEL BASE 6400MM(64W) (B)	1-82698-358-0	05	1	1304-
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (A) L=55	1-47475-304-0	02	1	1304-
97	BRACKET; CLIP WHEEL BASE 6600MM(66W) (B)	1-82698-358-0	03	1	1304-
98	BOLT; BRKT,FUEL PIPE FUEL TANK 300L<RF5> (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-
98	BOLT; BRKT,FUEL PIPE FUEL TANK 300L<RF5> (B) M8X30 FLANGE	0-28650-830-0	07	1	1304-
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> (B) M8X30 FLANGE	0-28650-830-0	05	1	1304-
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 300L<RF5>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	07	1	1304-
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	05	1	1304-
100	CLIP; FUEL PIPE (A) ID=19X32 H=17.5 L=22.5	1-09701-315-0	09	1	1304-
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1304-
100	CLIP; FUEL PIPE FUEL TANK 300L<RF5> (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1304-
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1304-
101	BOLT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8X20 FLANGE	0-28650-820-0	11	1	1304-
101	BOLT; CLIP,FUEL PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	10	1	1304-
102	NUT; CLIP,FUEL PIPE FUEL TANK 300L<RF5> M8 FLANGE	0-91180-108-0	14	1	1304-
102	NUT; CLIP,FUEL PIPE FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	13	1	1304-
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1304-

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=3850 SERVICED BY L=5350	0-01262-535-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A)	8-98186-643-1	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L<RF5> (B) L=3750 SERVICED BY L=5350	0-01262-535-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=580 SERVICED BY L=3000	0-01260-300-0	01	1	1304-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=3700 SERVICED BY L=5050	0-01262-505-0	01	1	1304-
634	HOSE; RUBBER RETURN FUEL TANK 200L AL<THF> L=3950 SERVICED BY L=8000	0-01260-800-0	01	1	1304-
634	HOSE; RUBBER RETURN FUEL TANK 300L<RF5> L=4000 SERVICED BY L=8000	0-01260-800-0	01	1	1304-
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	1304-
