1 |

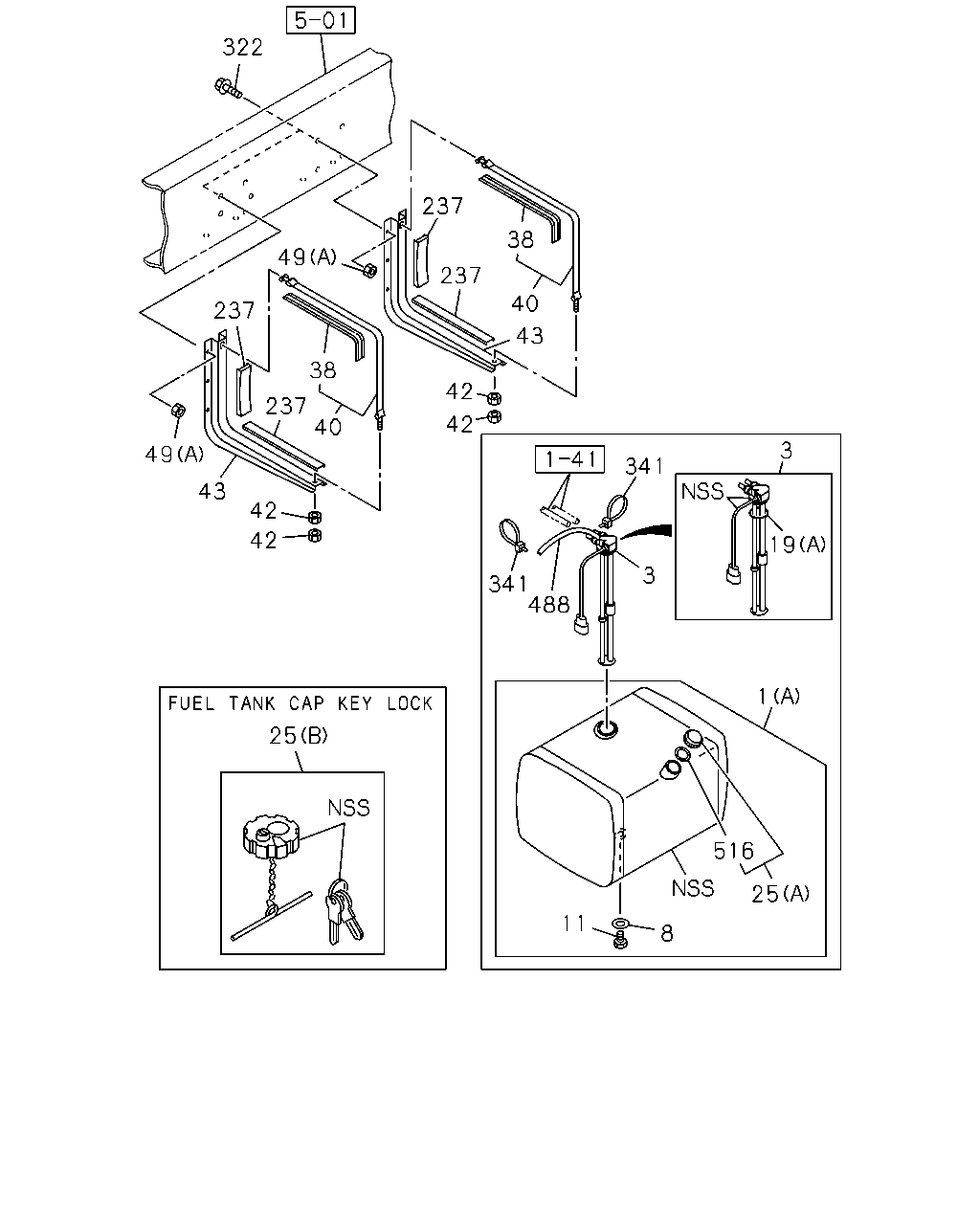

TANK; FUEL
FUEL TANK 200L AL<THF>
(A)
514X685X625 200L
|
1-87412-051-0 |
01 |
1 |
1304- |
| |
1 |

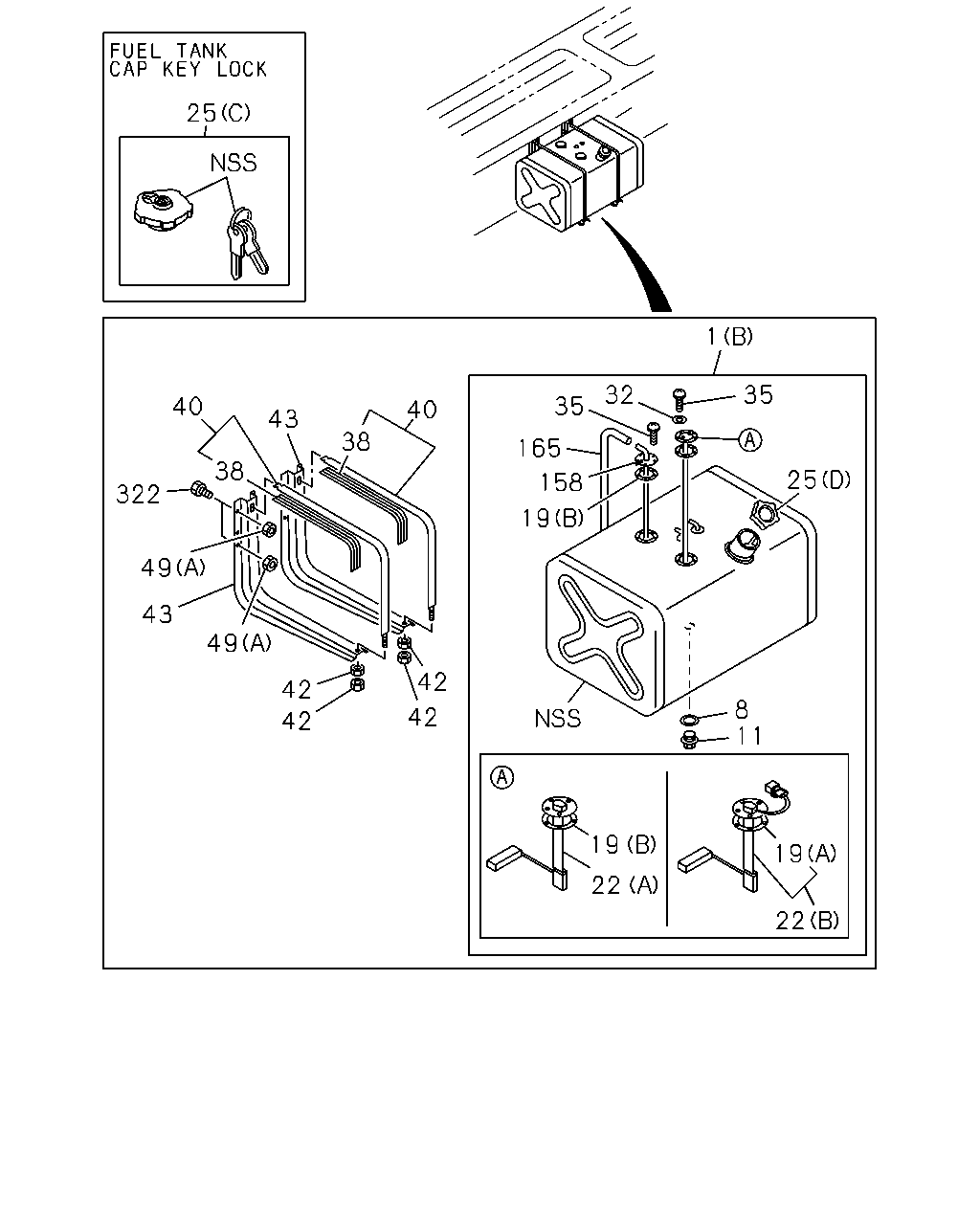

TANK; FUEL
FUEL TANK 300L<RF5>
(B)
790X730X635 300L
|
8-98115-603-1 |
01 |
1 |
1304-1308 |
| |
1 |
TANK; FUEL
FUEL TANK 300L<RF5>
(B)
790X730X635 300L
|
8-98248-751-0 |
01 |
1 |
1309- |
| |
1 |

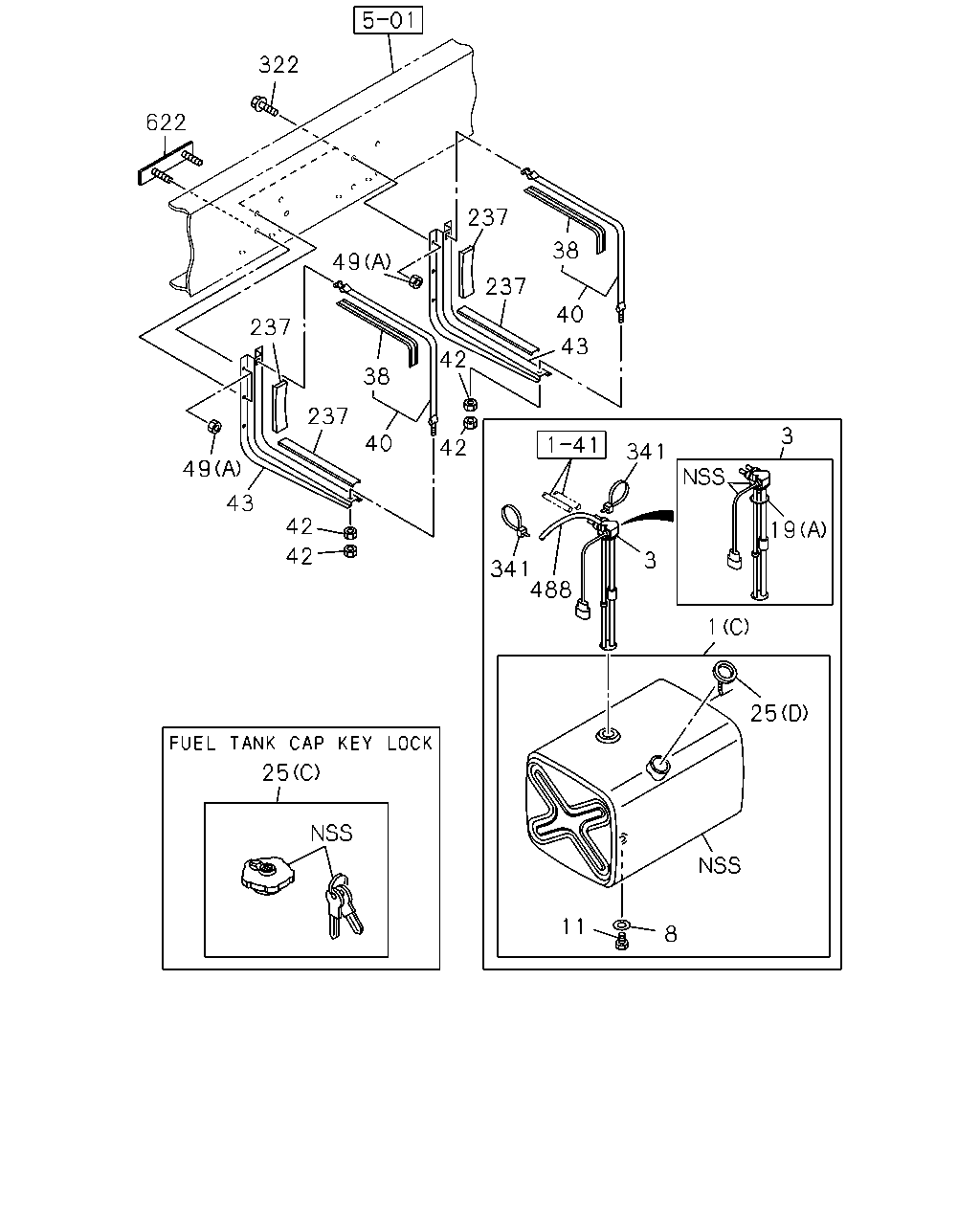

TANK; FUEL
FUEL TANK 400L<SDH>
(C)
1050X680X625 400L
|
1-87411-788-3 |
01 |
1 |
1304- |
| |
3 |
UNIT; FUEL TANK,SUB
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
|
8-98217-749-0 |
01 |
1 |
1304- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 300L<RF5>
|
1-22416-006-0 |
01 |
1 |
1304- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
ID=18.2 T=1.6
|
8-98030-453-0 |
01 |
1 |
1304- |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 300L<RF5>
M36
|
1-09604-052-0 |
01 |
1 |
1304- |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
M18X12
|
0-92002-418-0 |
01 |
1 |
1304- |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L<RF5>
(B)
|
1-22459-001-1 |
02 |
1 |
1304-1308 |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L<RF5>
(B)
|
1-22459-001-1 |
01 |
1 |
1309- |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 300L<RF5>
(A)
ID=45 OD=67
|
1-83149-003-0 |
01 |
1 |
1309- |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
(A)
ID=54.5
|
8-98299-580-0 |
01 |
1 |
1304- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF>
(A)
|
1-22440-056-0 |
01 |
1 |
1304- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF>
(B)
|
1-22440-057-2 |
01 |
1 |
1304- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>
(C)
|
8-98108-595-0 |
01 |
1 |
1304- |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>
(D)
|
8-98182-306-0 |
01 |
1 |
1304- |
| |
38 |
INSULATION; SUPPORT BELT
L=1156
|
1-22553-039-1 |
02 |
1 |
1304- |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1210
|
8-98202-448-0 |
02 |
1 |
1304- |
| |
42 |
NUT; SUPPORT BELT
M10
|
0-91110-510-0 |
04 |
1 |
1304- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L AL<THF>
|
1-53461-529-1 |
02 |
1 |
1304- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 300L<RF5>
|
8-97620-945-0 |
02 |
1 |
1304- |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L<SDH>
|
1-53461-525-1 |
02 |
1 |
1304- |
| |

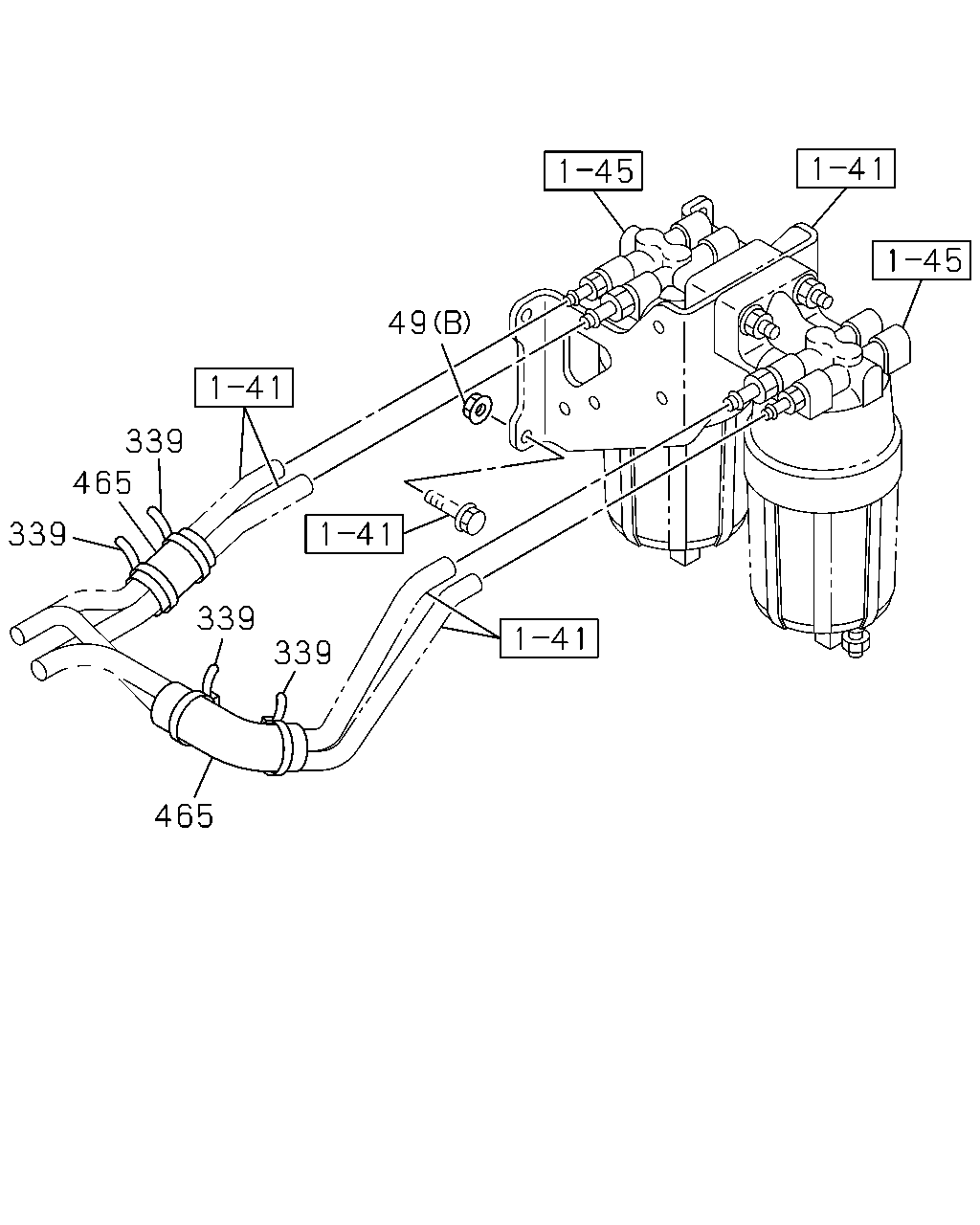

49 |
NUT; BRKT
(B)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1304- |
| |
49 |
NUT; BRKT
FUEL TANK 200L AL<THF>
(A)
M12
|
0-91110-512-0 |
08 |
1 |
1304- |
| |
49 |
NUT; BRKT
FUEL TANK 300L<RF5>,FUEL TANK 400L<SDH>
(A)
M12
|
0-91110-512-0 |
12 |
1 |
1304-1306 |
| |
49 |
NUT; BRKT
FUEL TANK 400L<SDH>
(A)
M12
|
0-91110-512-0 |
12 |
1 |
1307- |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF>
L=450
|
1-22553-042-1 |
02 |
1 |
1304- |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF>
L=540
|
1-22553-064-1 |
02 |
1 |
1304- |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH>
|
1-22553-037-1 |
04 |
1 |
1304- |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 200L AL<THF>
M12X40 FLANGE
|
0-28051-240-0 |
08 |
1 |
1304- |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 300L<RF5>
M12X45 FLANGE
|
0-28051-245-0 |
12 |
1 |
1304- |
| |
322 |
BOLT; BRKT FIX
FUEL TANK 400L<SDH>
M12X40 FLANGE
|
0-28051-240-0 |
10 |
1 |
1304- |
| |
341 |
CLIP; BAND,RUBBER HOSE
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
L=350
|
1-09707-183-0 |
02 |
1 |
1304- |
| |
488 |
HOSE; RUBBER
FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF>
|
8-98134-936-0 |
01 |
1 |
1304- |
| |
516 |
GASKET; CAP
FUEL TANK 200L AL<THF>
ID=78
|
8-98259-383-0 |
01 |
1 |
1312- |
