0-50 — OIL COOLER AND OIL FILTER (#1550) — 116 parça

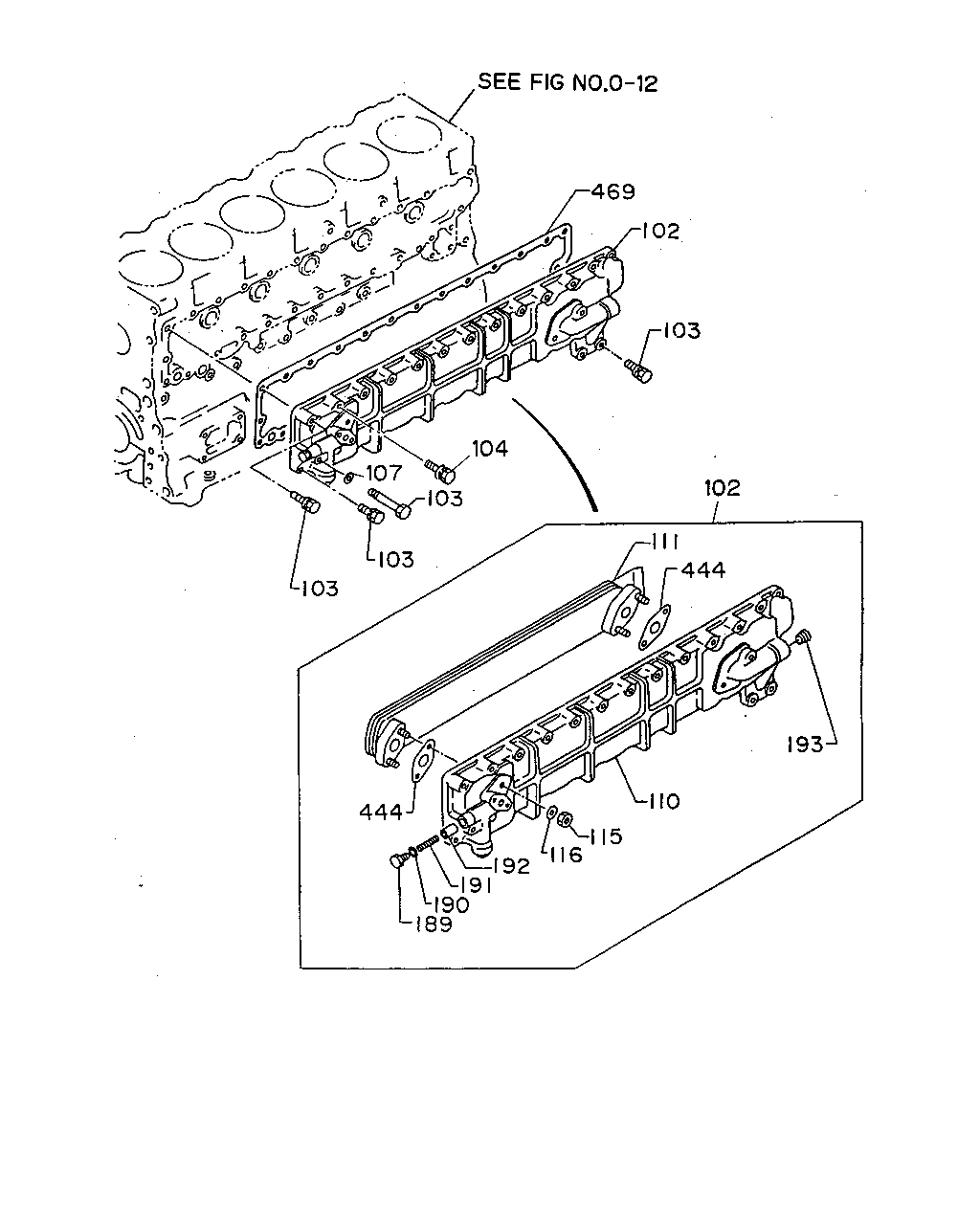

469 102 103 102 111 444 193 110 115 116 192 191 190 189 444 103 103 103 104 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
102	COOLER ASM; OIL	1-21700-222-2	01	1	9207-
103	BOLT; OIL COOLER M8X28 W/LK&PL WASHER	0-50140-828-0	15	1	9207-
103	BOLT; OIL COOLER M8X20	1-09030-091-0	02	1	9207-
103	BOLT; OIL COOLER M8X65 W/LK WASHER	8-94205-986-1	01	1	9207-
103	BOLT; OIL COOLER MBG5B M/T(X4K) M8X45 W/LK&PL WASHER	0-50140-845-0	12	1	9207-
103	BOLT; OIL COOLER MLD6D M/T(X5Q) M8X45 W/LK&PL WASHER	0-50140-845-0	08	1	9207-
104	BOLT; OIL COOLER MLD6D M/T(X5Q) M8X50 W/LK WASHER	0-50040-850-0	04	1	9207-
107	WASHER; PL,OIL COOLER ID=8.4	9-09160-508-0	01	1	9207-
110	BODY; CASE,OIL COOLER	1-11281-026-1	01	1	9207-
111	CORE; OIL COOLER	1-11282-015-1	01	1	9207-
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9207-
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9207-
189	PLUG; BYPASS VLV	9-13263-010-0	01	1	9207-
190	GASKET; PLUG,BYPASS VLV	9-09562-215-0	01	1	9207-
191	SPRING; BYPASS VLV	5-09580-092-0	01	1	9207-
192	VALVE; BYPASS	5-11288-001-0	01	1	9207-
193	PLUG; TAPER	5-09605-017-0	02	1	9207-
444	GASKET; ELEMENT TO BODY	1-11282-014-0	02	1	9207-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11282-012-0	01	1	9207-9510
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-11282-020-0	01	1	9511-

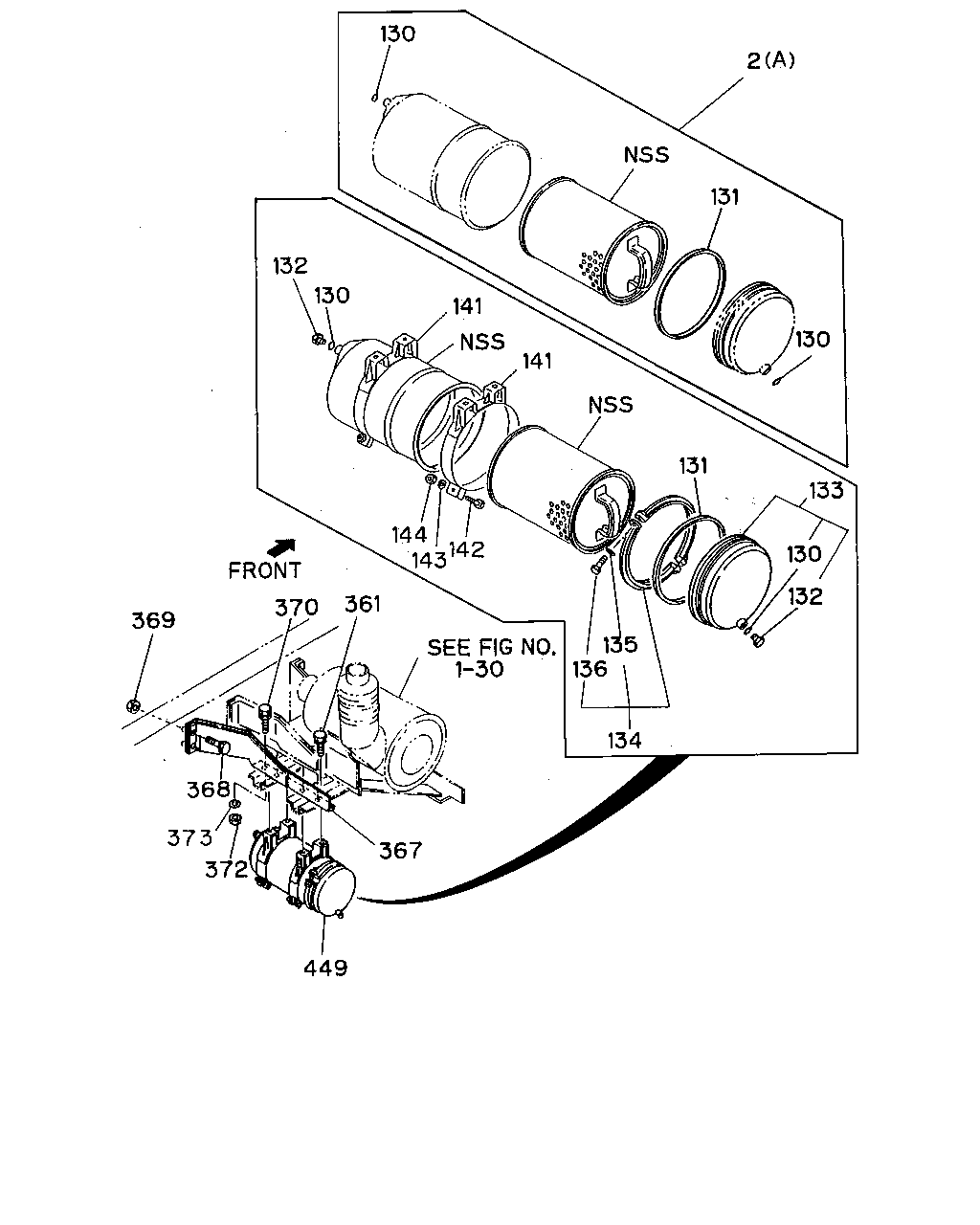

130 2 131 130 133 130 132 134 136 135 131 141 141 130 132 144 142 143 361 370 369 368 373 372 449 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9207-
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER<KC1> (A)	1-87810-239-0	01	1	9207-9505
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER<KC1> (A)	1-13240-078-0	01	1	9506-
130	GASKET; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1> ID=9.8	1-09623-055-0	02	1	9207-
131	GASKET; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1>	1-13213-006-0	01	1	9207-
132	PLUG; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1> M10	1-09000-105-0	02	1	9207-
133	COVER; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1>	1-14212-082-0	01	1	9207-
134	CLAMP; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1>	1-13219-009-0	01	1	9207-
135	WASHER; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1> ID=10.5	9-09164-510-0	01	1	9207-
136	BOLT; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1>	1-09029-021-0	01	1	9207-
141	BRACKET; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1>	1-13219-077-0	02	1	9207-
142	BOLT; PARTIAL OIL FILTER BRKT PARTIAL OIL FILTER<KC1>	1-13219-167-0	02	1	9207-
143	WASHER; PARTIAL OIL FILTER BRKT PARTIAL OIL FILTER<KC1>	1-13219-168-0	02	1	9207-
144	NUT; PARTIAL OIL FILTER BRKT PARTIAL OIL FILTER<KC1>	1-13219-170-0	02	1	9207-
361	BOLT; PARTIAL OIL FILTER PARTIAL OIL FILTER<KC1> M10X20 W/LK WASHER	0-50041-020-0	04	1	9207-
367	BRACKET; PARTIAL FILTER FSS ALL(FSS***) PARTIAL OIL FILTER<KC1>	1-13219-145-1	01	1	9207-
367	BRACKET; PARTIAL FILTER FTS SHORT/MIDDLE CHASSIS & BED CAB(FTS5M*) PARTIAL OIL FILTER<KC1>	1-13219-144-3	01	1	9207-
367	BRACKET; PARTIAL FILTER FTS MIDDLE CHASSIS & DOUBLE CAB(FTS5WF) PARTIAL OIL FILTER<KC1>	1-13219-196-0	01	1	9207-
368	BOLT; BRKT TO FRAME PARTIAL OIL FILTER<KC1> M12X40 W/LK WASHER	0-50041-240-0	02	1	9207-
369	NUT; BRKT TO FRAME PARTIAL OIL FILTER<KC1> M12	9-99110-512-0	02	1	9207-
370	BOLT; BRKT TO ACL BRKT PARTIAL OIL FILTER<KC1> M8X25 FLANGE	0-28080-825-0	04	1	9207-
372	NUT; BRKT TO BRKT PARTIAL OIL FILTER<KC1> M8	9-09110-408-0	04	1	9207-
373	WASHER; PL,BRKT PARTIAL OIL FILTER<KC1> ID=8.4	9-09160-508-0	04	1	9207-
449	FILTER ASM; OIL PARTIAL PARTIAL OIL FILTER<KC1>	1-13200-514-2	01	1	9207-

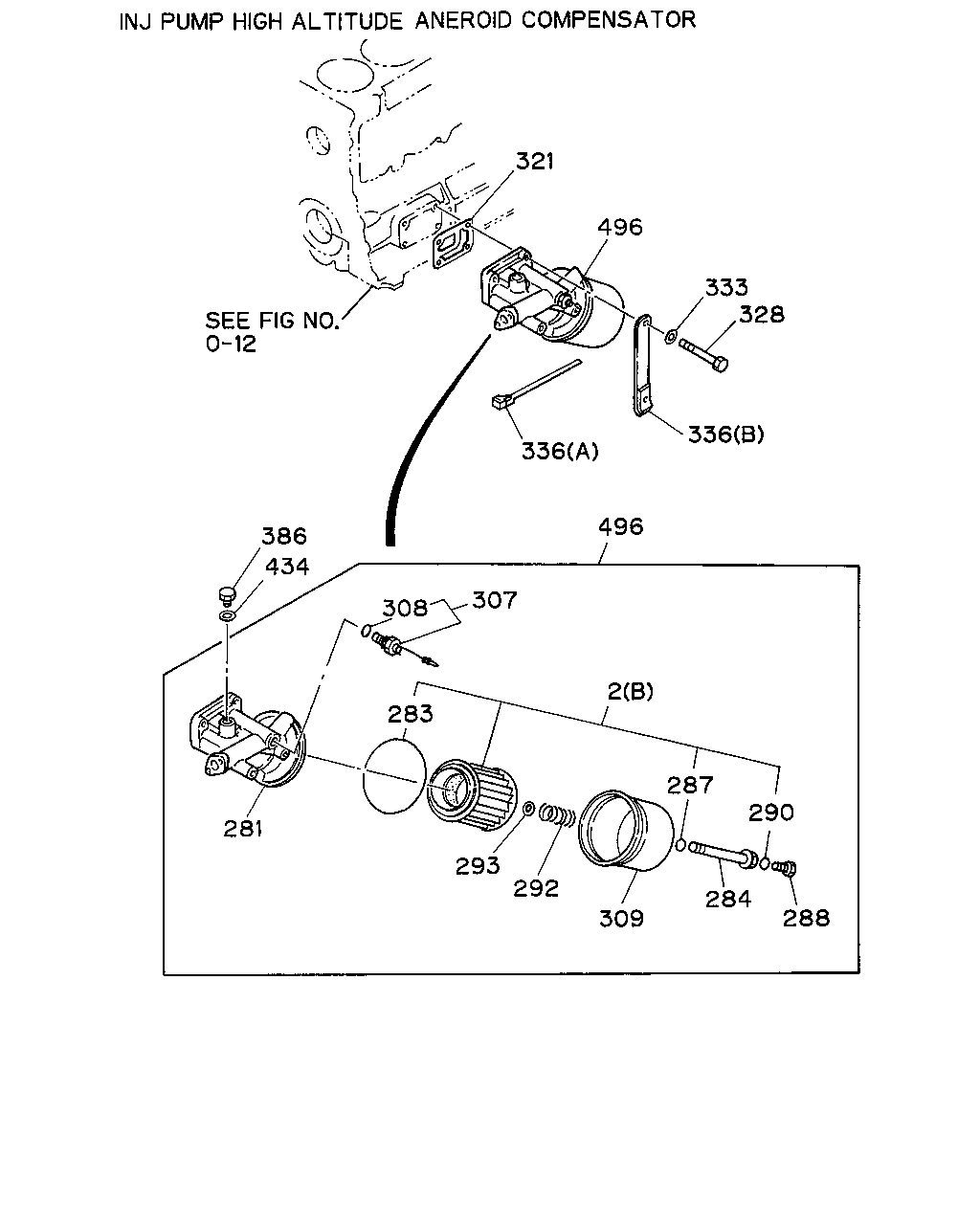

321 496 328 333 336 336 496 386 434 307 308 2 290 287 288 284 309 292 293 283 281

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9207-
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER<KC1> (A)	1-87810-239-0	01	1	9207-9505
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER<KC1> (A)	1-13240-078-0	01	1	9506-
281	COVER; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13212-070-0	01	1	9207-
281	COVER; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13212-090-0	01	1	9207-
283	GASKET; BODY TO COVER	9-09920-311-0	01	1	9207-
284	BOLT; CENTER,OIL FILTER	1-13231-051-0	01	1	9207-
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9207-
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9207-
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9207-
292	SPRING; ELEMENT	9-09941-283-0	01	1	9207-
293	SEAT; SPR	9-13239-025-0	01	1	9207-
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9207-
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9207-
309	BODY; OIL FILTER,CENTRIFUGAL INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13211-119-0	01	1	9207-
309	BODY; OIL FILTER,CENTRIFUGAL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13211-120-0	01	1	9207-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13219-194-0	01	1	9207-9510
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9511-
328	BOLT; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9207-
328	BOLT; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X145	9-09800-928-1	02	1	9207-
328	BOLT; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X145	9-09800-928-1	04	1	9207-
333	GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE). INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=10.2 OD=19	9-09572-010-0	02	1	9207-
333	GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=10.2 OD=19	9-09572-010-0	04	1	9207-
336	CLIP; OIL PIPE FUEL PIPE STEEL<E2N> (A)	5-09700-193-0	01	1	9207-
336	CLIP; OIL PIPE EXC. FUEL PIPE STEEL<E2N> (B)	1-15419-145-0	01	1	9207-
386	PLUG; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M14X9	9-99202-314-0	02	1	9207-
386	PLUG; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M13	9-09205-513-0	01	1	9207-
434	GASKET; PLUG,OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=14.2 OD=20.0	9-09571-414-0	02	1	9207-
496	FILTER ASM; OIL INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13200-616-1	01	1	9207-
496	FILTER ASM; OIL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13200-613-1	01	1	9207-

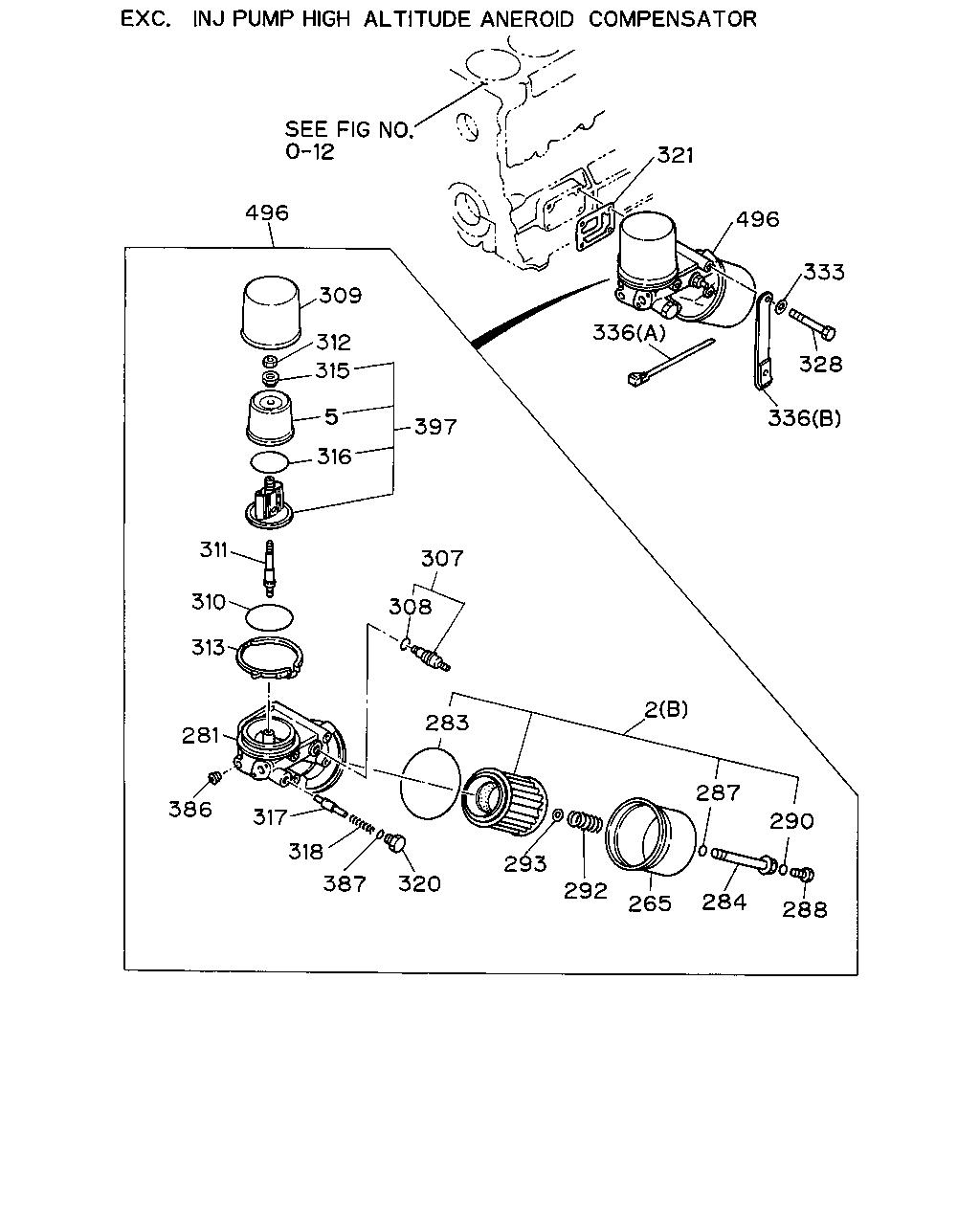

496 309 312 315 397 5 316 311 310 313 281 386 317 318 387 320 283 308 307 2 293 292 265 284 287 290 288 336 328 333 496 321 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9207-
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER<KC1> (A)	1-87810-239-0	01	1	9207-9505
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER<KC1> (A)	1-13240-078-0	01	1	9506-
5	CASE; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-13240-606-0	01	1	9207-
265	BODY; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13211-119-0	01	1	9207-
281	COVER; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13212-070-0	01	1	9207-
281	COVER; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13212-090-0	01	1	9207-
283	GASKET; BODY TO COVER	9-09920-311-0	01	1	9207-
284	BOLT; CENTER,OIL FILTER	1-13231-051-0	01	1	9207-
287	GASKET; CENTER BOLT ID=15.5	9-09920-694-0	01	1	9207-
288	PLUG; OIL DRAIN M10	1-09000-105-0	01	1	9207-
290	GASKET; PLUG,OIL DRAIN ID=9.8	1-09623-055-0	01	1	9207-
292	SPRING; ELEMENT	9-09941-283-0	01	1	9207-
293	SEAT; SPR	9-13239-025-0	01	1	9207-
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9207-
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9207-
309	BODY; OIL FILTER,CENTRIFUGAL INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13211-119-0	01	1	9207-
309	BODY; OIL FILTER,CENTRIFUGAL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13211-120-0	01	1	9207-
310	GASKET; BODY TO COVER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-09920-316-0	01	1	9207-
311	SPINDLE; ROTOR EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-13259-014-0	01	1	9207-
312	NUT; ROTOR BODY EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-13259-009-0	01	1	9207-
313	CLAMP; BODY TO COVER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-13219-043-0	01	1	9207-
315	NUT; ROTOR LK EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-13259-008-0	01	1	9207-
316	GASKET; COVER TO BODY EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-09920-317-0	01	1	9207-
317	VALVE; CUT OFF EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-13259-016-0	01	1	9207-
318	SPRING; CUT OFF EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	5-09580-012-0	01	1	9207-
320	PLUG; CUT OFF EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-09604-043-0	01	1	9207-
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13219-194-0	01	1	9207-9510
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-670-0	01	1	9511-
328	BOLT; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9207-
328	BOLT; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X145	9-09800-928-1	02	1	9207-
328	BOLT; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M10X145	9-09800-928-1	04	1	9207-
333	GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE). INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=10.2 OD=19	9-09572-010-0	02	1	9207-
333	GASKET; OIL FILTER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> ID=10.2 OD=19	9-09572-010-0	04	1	9207-
336	CLIP; OIL PIPE FUEL PIPE STEEL<E2N> (A)	5-09700-193-0	01	1	9207-
336	CLIP; OIL PIPE EXC. FUEL PIPE STEEL<E2N> (B)	1-15419-145-0	01	1	9207-
386	PLUG; OIL FILTER INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M14X9	9-99202-314-0	02	1	9207-
386	PLUG; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> M13	9-09205-513-0	01	1	9207-
387	GASKET; PLUG,COVER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-09623-069-0	01	1	9207-
397	ROTOR; OIL FILTER EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	9-13240-603-0	AR	1	9207-
496	FILTER ASM; OIL INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13200-616-1	01	1	9207-
496	FILTER ASM; OIL EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4>	1-13200-613-1	01	1	9207-
