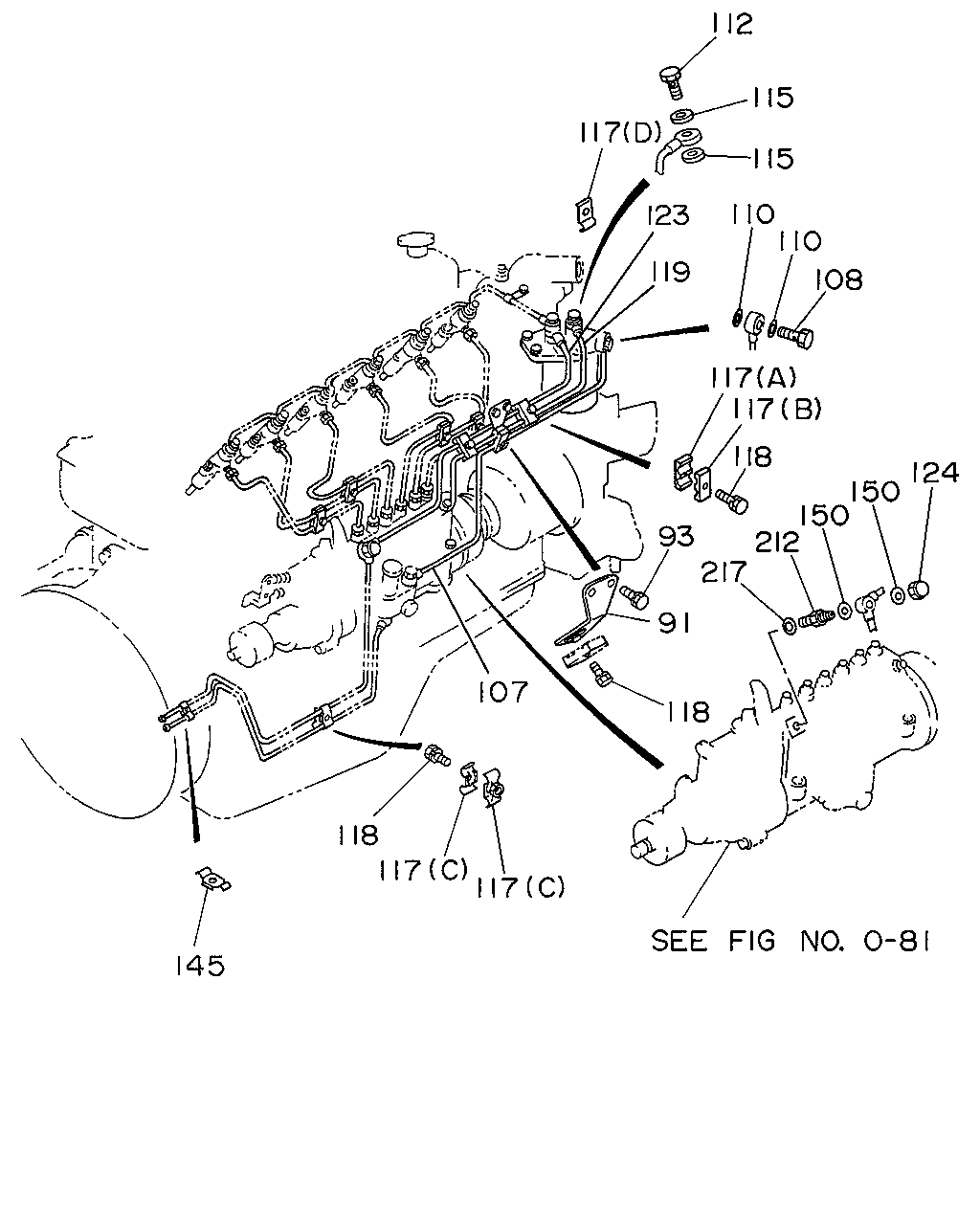

91 |
BRACKET; FUEL PIPE TO INL MANIF
AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-15419-151-0 |
01 |
1 |
9207- |
| |
91 |
BRACKET; FUEL PIPE TO INL MANIF
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-15419-246-0 |
01 |
1 |
9207- |
| |
93 |
BOLT; PIPE BRKT
M6X16 W/LK WASHER
|
0-50040-616-0 |
02 |
1 |
9207- |
| |
107 |
PIPE; FUEL,FEED PUMP TO FUEL FILTER
AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-15413-521-0 |
01 |
1 |
9207- |
| |
107 |
PIPE; FUEL,FEED PUMP TO FUEL FILTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-15413-200-0 |
01 |
1 |
9207- |
| |
108 |
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
9207- |
| |
110 |
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
9207- |
| |
112 |
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
|
1-09675-086-0 |
01 |
1 |
9207- |
| |
115 |
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
9207- |
| |
117 |
CLIP; FUEL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
(C)
WO/NUT ID=10 & 10
|
1-09700-163-0 |
02 |
1 |
9207-9411 |
| |
117 |
CLIP; FUEL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
(C)
ID=10 & 10 L=25
|
9-09716-114-0 |
02 |
1 |
9412- |
| |
117 |
CLIP; FUEL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
(C)
W/NUT ID=10 & 10
|
1-09700-164-0 |
02 |
1 |
9207-9411 |
| |
117 |
CLIP; FUEL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
(C)
ID=10 & 10 L=25 W/NUT
|
9-09716-124-0 |
02 |
1 |
9412- |
| |
117 |
CLIP; FUEL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
(D)
WO/NUT ID=10
|
1-09700-491-0 |
01 |
1 |
9207- |
| |
117 |
CLIP; FUEL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
(A)
L=48
|
5-09709-103-0 |
01 |
1 |
9207- |
| |
117 |
CLIP; FUEL PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
(A)
L=48
|
5-09709-103-0 |
04 |
1 |
9207- |
| |
117 |
CLIP; FUEL PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
(B)
L=45
|
5-09709-104-0 |
02 |
1 |
9207- |
| |
117 |
CLIP; FUEL PIPE
FUEL PIPE STEEL<E2N>
(B)
L=45
|
5-09709-104-0 |
01 |
1 |
9207- |
| |
118 |
BOLT; CLIP,FUEL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
M6X30 W/LK WASHER
|
0-50040-630-0 |
03 |
1 |
9207- |
| |
118 |
BOLT; CLIP,FUEL PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q)
M8X20 W/LK WASHER
|
0-50040-820-0 |
01 |
1 |
9207- |
| |
118 |
BOLT; CLIP,FUEL PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
M6X30 W/LK WASHER
|
0-50040-630-0 |
04 |
1 |
9207- |
| |
118 |
BOLT; CLIP,FUEL PIPE
FUEL PIPE STEEL<E2N>
M6X30 W/LK WASHER
|
0-50040-630-0 |
01 |
1 |
9207- |
| |
119 |
PIPE; FUEL,FUEL FILTER TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-15413-522-0 |
01 |
1 |
9207- |
| |
119 |
PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-15414-344-0 |
01 |
1 |
9207- |
| |
123 |
PIPE; FUEL,FUEL FILTER LEAK OFF
FSS ALL(FSS***)
AUSTRALIA EQUIPMENT(RR3)
|
5-15411-652-2 |
01 |
1 |
9207- |
| |
123 |
PIPE; FUEL,FUEL FILTER LEAK OFF
FTS ALL(FTS***)
FIRE TRUCK(RA9)
FUEL PIPE STEEL<E2N>
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
|
5-15411-652-2 |
01 |
1 |
9207- |
| |
123 |
PIPE; FUEL,FUEL FILTER LEAK OFF
FSS ALL(FSS***)
EXC. AUSTRALIA EQUIPMENT(RR3)
|
1-15415-399-0 |
01 |
1 |
9207- |
| |
123 |
PIPE; FUEL,FUEL FILTER LEAK OFF
FTS ALL(FTS***)
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FUEL PIPE
STEEL<E2N>,FIRE TRUCK(RA9)
|
1-15415-399-0 |
01 |
1 |
9207- |
| |
123 |
PIPE; FUEL,FUEL FILTER LEAK OFF
FTS ALL(FTS***)
AIR COMPRESSOR HEAVY DUTY(E1Q)
EXC. FUEL PIPE STEEL<E2N>,FIRE TRUCK(RA9)
|
1-15413-523-2 |
01 |
1 |
9207- |
| |
123 |
PIPE; FUEL,FUEL FILTER LEAK OFF
FTS ALL(FTS***)
FIRE TRUCK(RA9)
FUEL PIPE STEEL<E2N>
AIR COMPRESSOR HEAVY DUTY(E1Q)
|
1-15414-349-1 |
01 |
1 |
9207- |
| |
124 |
NUT; CAP,FUEL PIPE
M14
|
1-09468-002-1 |
01 |
1 |
9207- |
| |
145 |
CLIP; FUEL PIPE
FUEL PIPE STEEL<E2N>
|
5-09700-192-0 |
01 |
1 |
9207- |
| |
150 |
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
9207- |
| |
212 |
VALVE; OVERFLOW
|
1-13260-001-1 |
01 |
1 |
9207- |
| |
217 |
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=14.2 OD=19.2
|
1-09630-085-0 |
01 |
1 |
9207- |
