Sayfa 8-73 - Isuzu EPC

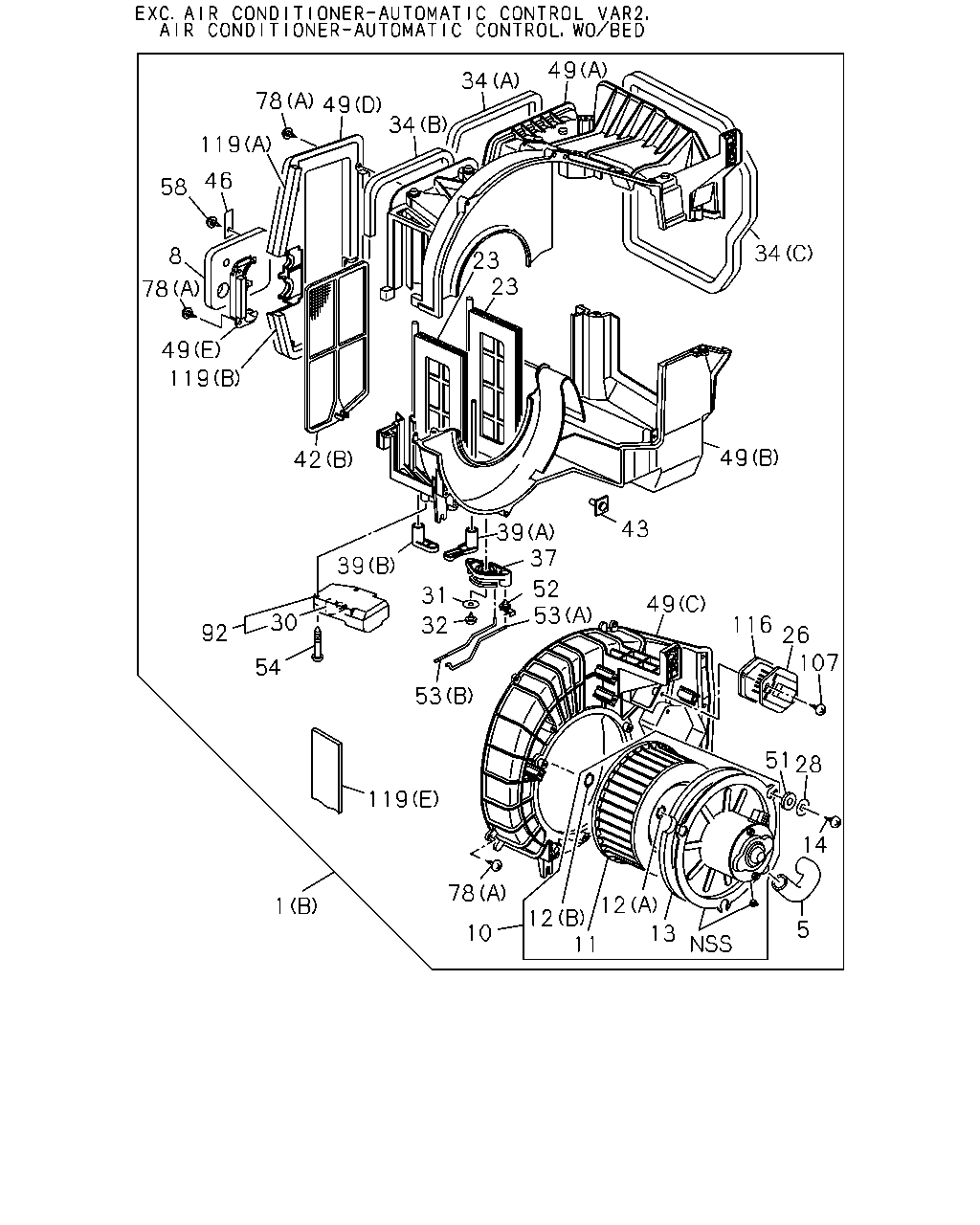

8-73 — BLOWER UNIT (#15461) — 174 parça

49 34 78 49 34 119 46 58 34 8 23 23 78 49 119 49 42 39 37 43 39 52 53 31 49 30 116 32 92 26 107 54 53 51 28 119 14 78 12 13 1 12 11 5 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83561-154-5	01	1	0804-
1	BLOWER ASM EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83561-160-5	01	1	0804-0907
5	HOSE; AIR	1-83563-140-0	01	1	0804-0907
5	HOSE; AIR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83563-140-0	01	1	0908-
8	SEAL; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-261-1	01	1	0804-
8	SEAL; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-801-1	01	1	0804-0907
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-161-0	01	1	0804-0907
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-161-0	01	1	0908-
11	IMPELLER; FAN MOTOR	1-83579-635-0	01	1	0804-0907
11	IMPELLER; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-635-0	01	1	0908-
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	0804-0907
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	5-83569-088-0	01	1	0908-
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	0804-0907
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-94243-962-0	01	1	0908-
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	0804-0907
13	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-636-0	01	1	0908-
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	0804-0907
14	SCREW; COVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	03	1	0908-
23	SHUTTER; BLOWER UNIT	1-83579-637-0	02	1	0804-0907
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-637-0	02	1	0908-
26	TRANSISTOR; BLOWER UNIT	1-83579-654-0	01	1	0804-0907
26	TRANSISTOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-654-0	01	1	0908-
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	0804-0907
28	WASHER; PL,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-170-0	03	1	0908-
30	LEVER; ACTUATOR	1-83564-345-1	01	1	0804-0907
30	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-345-1	01	1	0908-
31	WASHER; LEVER	1-83579-095-0	01	1	0804-0907
31	WASHER; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-095-0	01	1	0908-
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	0804-0907
32	SCREW; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0908-
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	0804-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-633-2	01	1	0908-
34	LINING; BLOWER UNIT (B)	1-83579-634-2	01	1	0804-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-634-2	01	1	0908-
34	LINING; BLOWER UNIT (C)	1-83579-644-0	01	1	0804-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-644-0	01	1	0908-
37	LEVER; MODE LEVER	1-83564-344-0	01	1	0804-0907
37	LEVER; MODE LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-344-0	01	1	0908-
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-342-0	01	1	0804-0907
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-342-0	01	1	0908-
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-343-0	01	1	0804-0907
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-343-0	01	1	0908-
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-993-0	02	1	0804-
42	FILTER; BLOWER UNIT (B)	1-83579-643-3	01	1	0804-0907
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-643-3	01	1	0908-
43	BOLT; CASE	1-83579-657-2	04	1	0804-0907
43	BOLT; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	04	1	0908-
46	PLATE; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-870-1	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83564-340-1	01	1	0804-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-406-1	01	1	0804-
49	CASE; BLOWER UNIT (C)	1-83564-337-4	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-337-4	01	1	0908-
49	CASE; BLOWER UNIT (E)	1-83564-339-1	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83564-339-1	01	1	0908-
49	CASE; BLOWER UNIT (A)	1-83564-351-1	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-351-1	01	1	0908-
49	CASE; BLOWER UNIT (D)	1-83564-353-1	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83564-353-1	01	1	0908-
49	CASE; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-352-5	01	1	0804-0907
51	ISOLATOR; BLOWER UNIT	1-83579-496-0	03	1	0804-0907
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-496-0	03	1	0908-
52	CLIP; LEVER TO CASE	8-94248-794-0	02	1	0804-0907
52	CLIP; LEVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	02	1	0908-
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-638-0	01	1	0804-0907
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-638-0	01	1	0908-
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	0804-0907
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-639-0	01	1	0908-
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	0804-0907
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	02	1	0908-
58	SCREW; PLATE TO CASE EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	01	1	0804-0907
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	0804-
78	SCREW; CASE TO CASE (A) M4X16	8-94324-850-0	17	1	0804-0907
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	0908-
92	ACTUATOR; BLOWER UNIT	1-83579-640-1	01	1	0804-0907
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-640-1	01	1	0908-
107	SCREW; TRANSISTOR M4X16	8-94324-850-0	02	1	0804-0907
107	SCREW; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	02	1	0908-
116	SEAL; TRANSISTOR	1-83579-656-0	01	1	0804-0907
116	SEAL; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-656-0	01	1	0908-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83578-032-0	01	1	0804-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-961-0	01	1	0804-
119	LINING; CASE (A)	1-83579-670-1	01	1	0804-0907
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-670-1	01	1	0908-
119	LINING; CASE (B)	1-83579-671-1	01	1	0804-0907
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-671-1	01	1	0908-
119	LINING; CASE EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83579-839-0	02	1	0804-0907

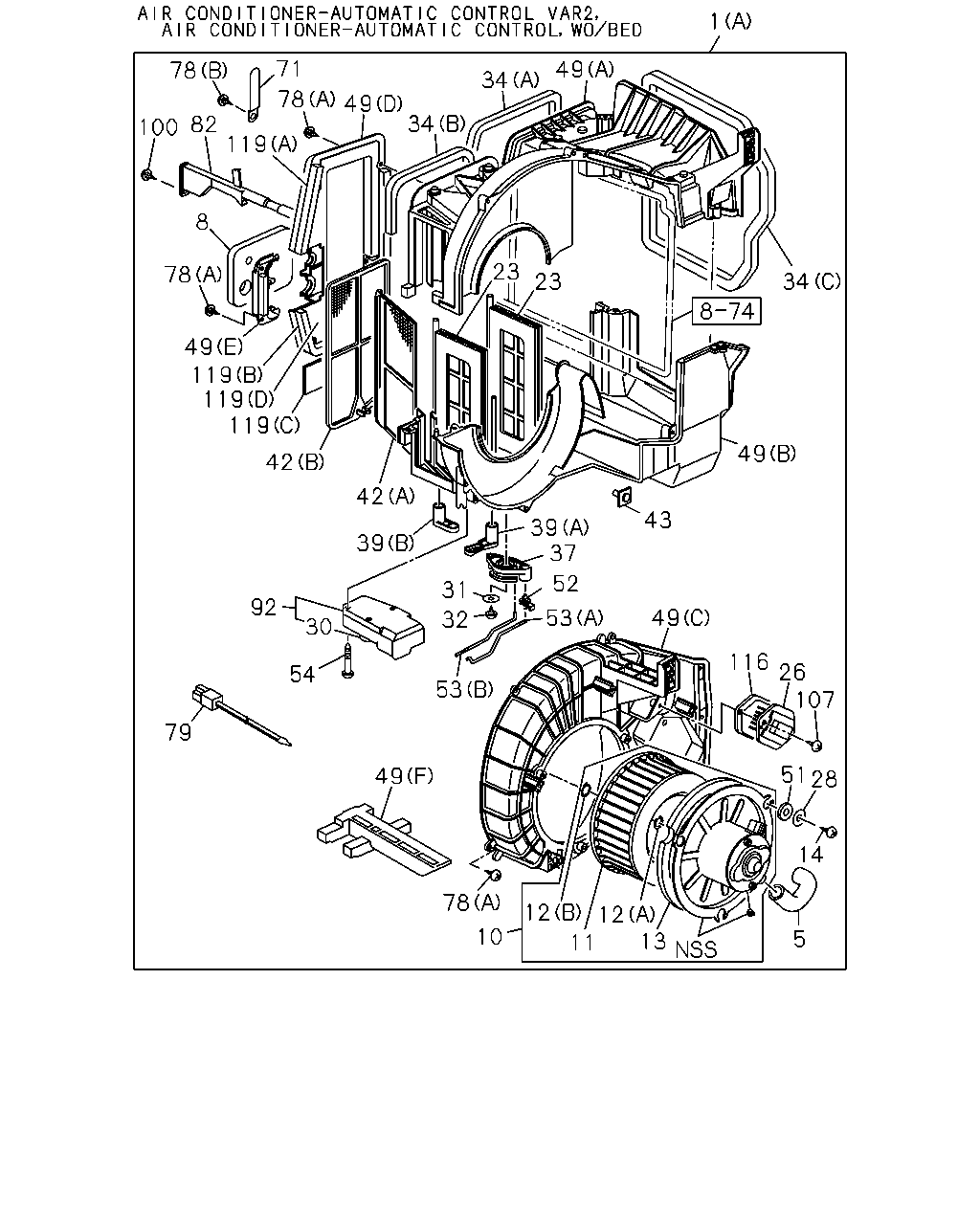

1 71 49 78 34 78 49 34 82 100 119 8 23 78 23 34 49 119 119 119 49 42 42 43 39 37 39 52 31 92 49 53 32 30 116 26 107 54 53 79 51 28 49 14 78 12 12 13 10 5 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83561-154-5	01	1	0804-
1	BLOWER ASM EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83561-160-5	01	1	0804-0907
5	HOSE; AIR	1-83563-140-0	01	1	0804-0907
5	HOSE; AIR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83563-140-0	01	1	0908-
8	SEAL; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83539-261-1	01	1	0804-
8	SEAL; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-801-1	01	1	0804-0907
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-161-0	01	1	0804-0907
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83561-161-0	01	1	0908-
11	IMPELLER; FAN MOTOR	1-83579-635-0	01	1	0804-0907
11	IMPELLER; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-635-0	01	1	0908-
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	0804-0907
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	5-83569-088-0	01	1	0908-
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	0804-0907
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	8-94243-962-0	01	1	0908-
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	0804-0907
13	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-636-0	01	1	0908-
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	0804-0907
14	SCREW; COVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	03	1	0908-
23	SHUTTER; BLOWER UNIT	1-83579-637-0	02	1	0804-0907
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-637-0	02	1	0908-
26	TRANSISTOR; BLOWER UNIT	1-83579-654-0	01	1	0804-0907
26	TRANSISTOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-654-0	01	1	0908-
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	0804-0907
28	WASHER; PL,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-170-0	03	1	0908-
30	LEVER; ACTUATOR	1-83564-345-1	01	1	0804-0907
30	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-345-1	01	1	0908-
31	WASHER; LEVER	1-83579-095-0	01	1	0804-0907
31	WASHER; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-095-0	01	1	0908-
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	0804-0907
32	SCREW; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X20	9-09829-324-1	01	1	0908-
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	0804-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-633-2	01	1	0908-
34	LINING; BLOWER UNIT (B)	1-83579-634-2	01	1	0804-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-634-2	01	1	0908-
34	LINING; BLOWER UNIT (C)	1-83579-644-0	01	1	0804-0907
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-644-0	01	1	0908-
37	LEVER; MODE LEVER	1-83564-344-0	01	1	0804-0907
37	LEVER; MODE LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-344-0	01	1	0908-
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-342-0	01	1	0804-0907
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-342-0	01	1	0908-
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-343-0	01	1	0804-0907
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-343-0	01	1	0908-
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-993-0	02	1	0804-
42	FILTER; BLOWER UNIT (B)	1-83579-643-3	01	1	0804-0907
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-643-3	01	1	0908-
43	BOLT; CASE	1-83579-657-2	04	1	0804-0907
43	BOLT; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-657-2	04	1	0908-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (F)	1-83564-340-1	01	1	0804-
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-406-1	01	1	0804-
49	CASE; BLOWER UNIT (C)	1-83564-337-4	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83564-337-4	01	1	0908-
49	CASE; BLOWER UNIT (E)	1-83564-339-1	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83564-339-1	01	1	0908-
49	CASE; BLOWER UNIT (A)	1-83564-351-1	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83564-351-1	01	1	0908-
49	CASE; BLOWER UNIT (D)	1-83564-353-1	01	1	0804-0907
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83564-353-1	01	1	0908-
49	CASE; BLOWER UNIT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83564-352-5	01	1	0804-0907
51	ISOLATOR; BLOWER UNIT	1-83579-496-0	03	1	0804-0907
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-496-0	03	1	0908-
52	CLIP; LEVER TO CASE	8-94248-794-0	02	1	0804-0907
52	CLIP; LEVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94248-794-0	02	1	0908-
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-638-0	01	1	0804-0907
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-638-0	01	1	0908-
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	0804-0907
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-639-0	01	1	0908-
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	0804-0907
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-94348-809-0	02	1	0908-
71	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83574-080-0	01	1	0804-
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	0804-
78	SCREW; CASE TO CASE (A) M4X16	8-94324-850-0	17	1	0804-0907
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M4X16	8-94324-850-0	17	1	0908-
79	SENSOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83544-037-0	01	1	0804-
82	BRACKET; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83571-871-1	01	1	0804-
92	ACTUATOR; BLOWER UNIT	1-83579-640-1	01	1	0804-0907
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-640-1	01	1	0908-
100	SCREW; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	01	1	0804-
107	SCREW; TRANSISTOR M4X16	8-94324-850-0	02	1	0804-0907
107	SCREW; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M4X16	8-94324-850-0	02	1	0908-
116	SEAL; TRANSISTOR	1-83579-656-0	01	1	0804-0907
116	SEAL; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83579-656-0	01	1	0908-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83578-032-0	01	1	0804-
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83579-961-0	01	1	0804-
119	LINING; CASE (A)	1-83579-670-1	01	1	0804-0907
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83579-670-1	01	1	0908-
119	LINING; CASE (B)	1-83579-671-1	01	1	0804-0907
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83579-671-1	01	1	0908-
119	LINING; CASE EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83579-839-0	02	1	0804-0907

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
