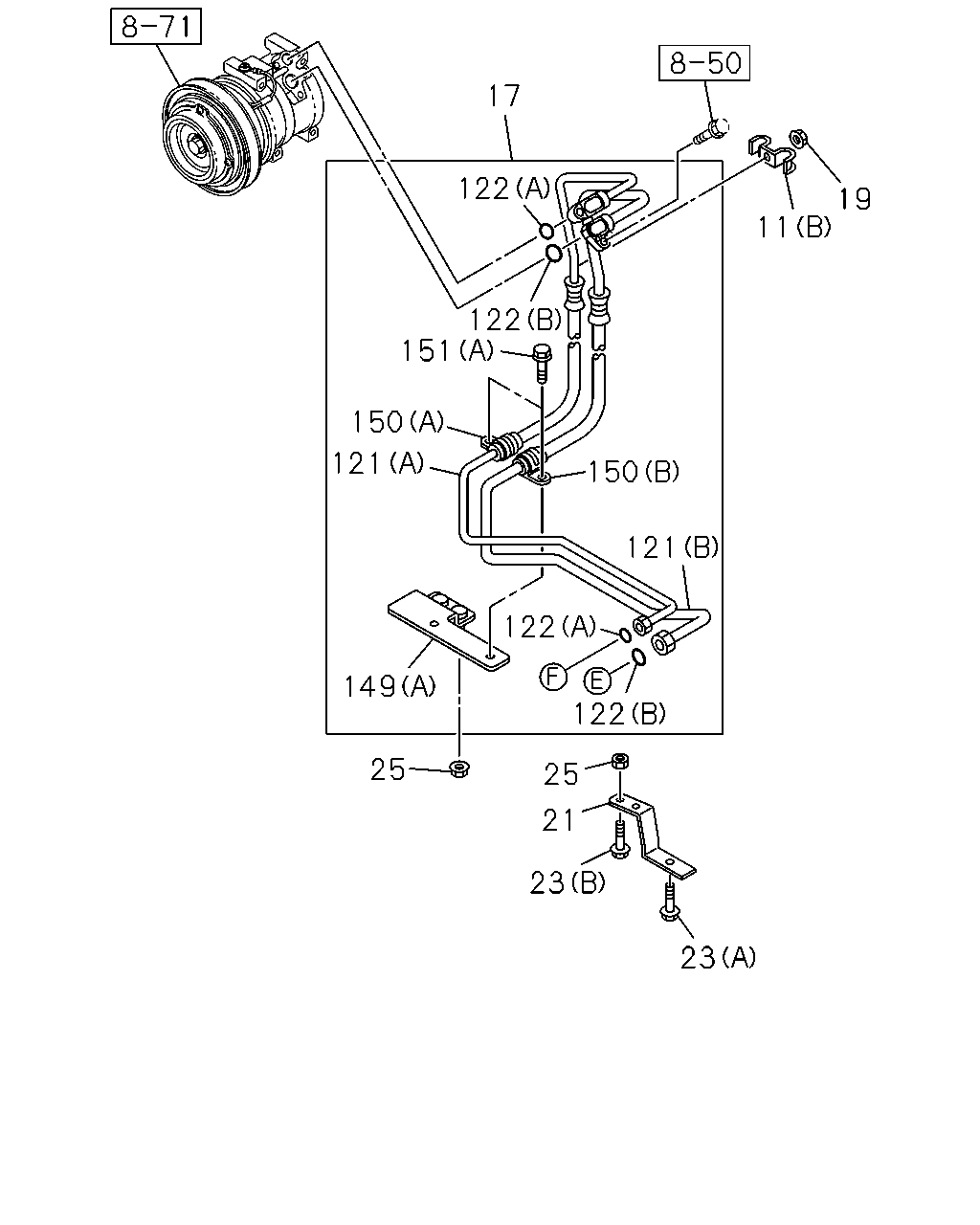

8-52 — PIPING; AIR CONDITIONING (#15458) — 71 parça

17 122 19 11 122 151 150 121 150 121 122 122 149 25 25 21 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	CLIP; COOLER PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=20 & 20	1-83574-195-1	01	1	0804-
11	CLIP; COOLER PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=12 & 14.5	1-83574-257-0	01	1	0804-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98098-670-0	01	1	0804-
19	NUT; CLIP FIX AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	01	1	0804-
21	BRACKET; COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83573-297-0	01	1	0804-
23	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X20 FLANGE	0-28050-820-0	02	1	0804-
23	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M8X25 FLANGE	0-28650-825-0	02	1	0804-
25	NUT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	03	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83577-054-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83577-070-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83577-071-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83577-129-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83577-130-0	01	1	0804-
122	GASKET AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=11.7	1-83539-317-0	02	1	0804-
122	GASKET AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) ID=14.5	1-83539-324-0	02	1	0804-
122	GASKET AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7	8-97095-907-0	02	1	0804-
122	GASKET AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5	8-97095-908-0	02	1	0804-
149	BRACKET; COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83573-265-0	01	1	0804-
149	BRACKET; COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83573-322-0	01	1	0804-
150	CLIP; HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83574-249-0	01	1	0804-
150	CLIP; HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83574-262-0	01	1	0804-
150	CLIP; HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83574-263-0	01	1	0804-
150	CLIP; HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83574-264-0	01	1	0804-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83539-336-0	02	1	0804-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83578-098-0	02	1	0804-

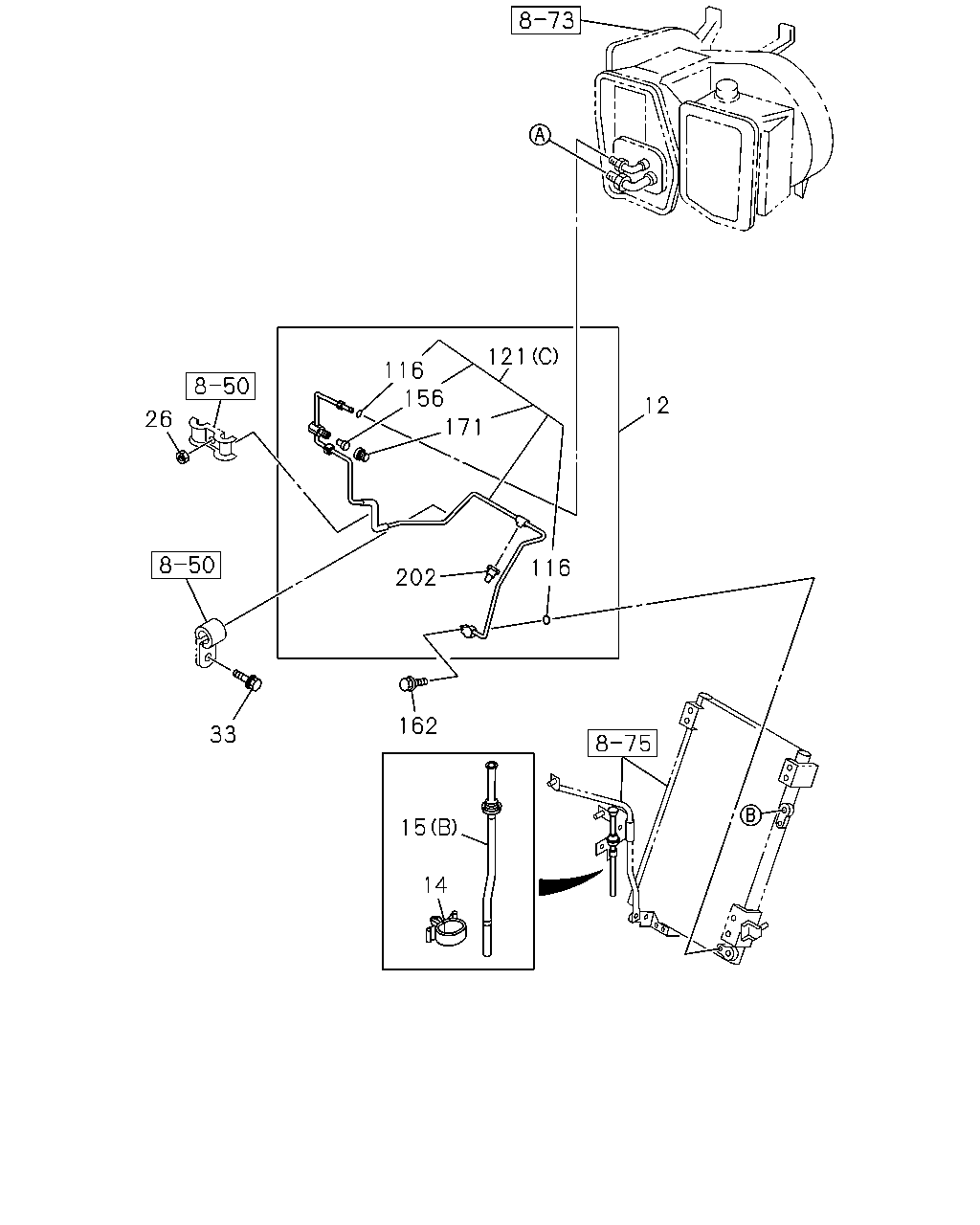

12 121 116 156 171 33 162 202 116 15 14 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83567-877-1	01	1	0804-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20	8-94410-200-0	01	1	0804-
15	HOSE; DRAIN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83572-635-0	01	1	0804-
15	HOSE; DRAIN EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83572-412-0	01	1	0804-0907
26	NUT; PIPE CLIP AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	02	1	0804-
33	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0804-0904
33	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
116	GASKET; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=7.4	8-97095-906-0	02	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83577-054-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83577-070-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83577-071-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83577-129-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83577-130-0	01	1	0804-
156	VALVE; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-97095-909-0	01	1	0804-
162	BOLT; FLEX HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE	0-28050-625-0	02	1	0804-
171	CAP; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) CAP MARK H	8-97095-911-0	01	1	0804-
202	SWITCH; PRESSURE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	1-83564-392-1	01	1	0804-

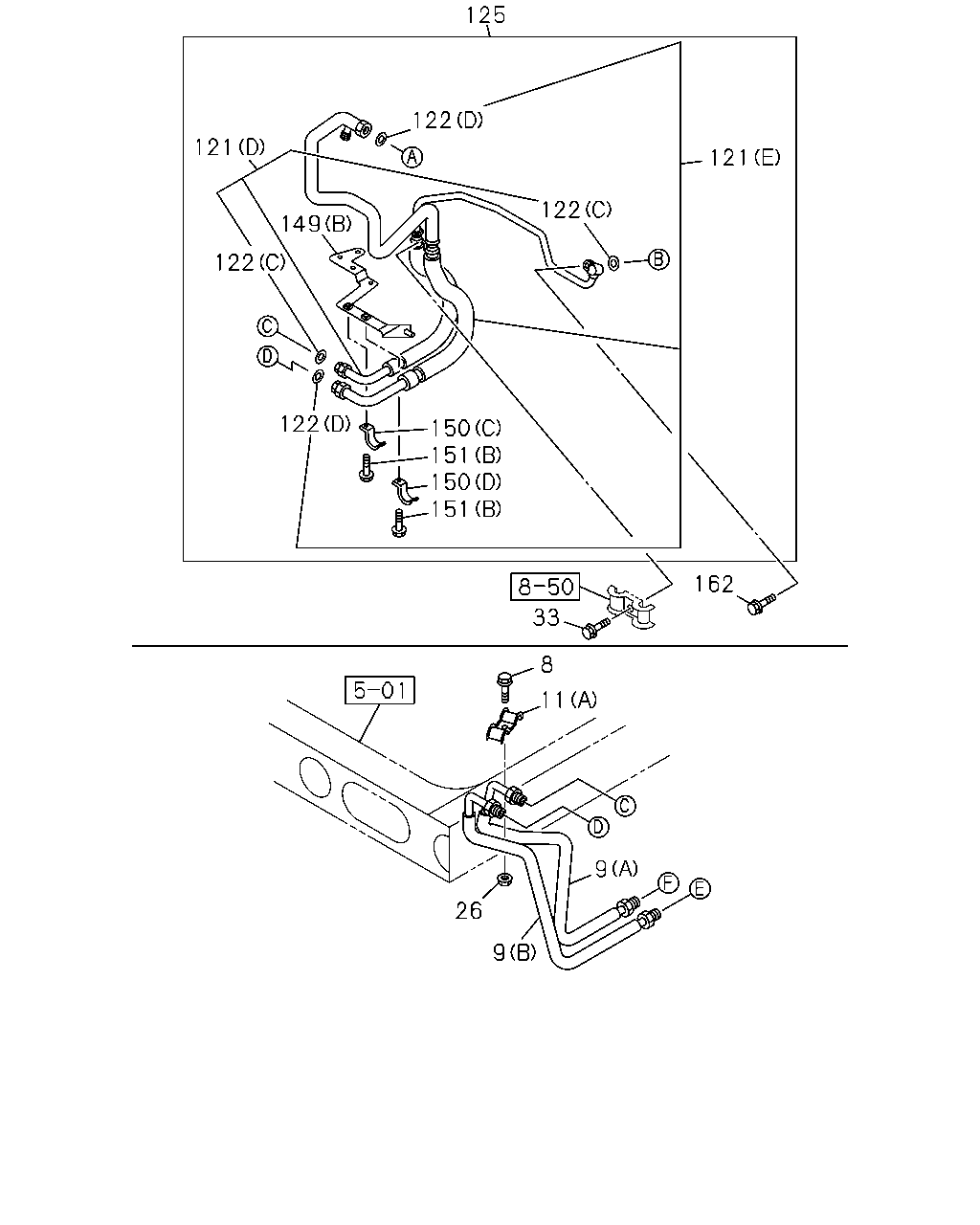

125 122 121 149 122 122 121 122 150 150 151 151 33 162 8 11 9 26 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X20 FLANGE	0-28650-820-0	01	1	0804-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83567-899-0	01	1	0804-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83567-900-0	01	1	0804-
11	CLIP; COOLER PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=20 & 20	1-83574-195-1	01	1	0804-
11	CLIP; COOLER PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=12 & 14.5	1-83574-257-0	01	1	0804-
26	NUT; PIPE CLIP AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	02	1	0804-
33	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0804-0904
33	BOLT; CLIP AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83577-054-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83577-070-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83577-071-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83577-129-0	01	1	0804-
121	HOSE; COOLER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (E)	1-83577-130-0	01	1	0804-
122	GASKET AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=11.7	1-83539-317-0	02	1	0804-
122	GASKET AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D) ID=14.5	1-83539-324-0	02	1	0804-
122	GASKET AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) ID=11.7	8-97095-907-0	02	1	0804-
122	GASKET AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) ID=14.5	8-97095-908-0	02	1	0804-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB)	8-98028-191-0	01	1	0804-
149	BRACKET; COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83573-265-0	01	1	0804-
149	BRACKET; COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83573-322-0	01	1	0804-
150	CLIP; HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83574-249-0	01	1	0804-
150	CLIP; HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C)	1-83574-262-0	01	1	0804-
150	CLIP; HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (D)	1-83574-263-0	01	1	0804-
150	CLIP; HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83574-264-0	01	1	0804-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83539-336-0	02	1	0804-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83578-098-0	02	1	0804-
162	BOLT; FLEX HOSE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M6X25 FLANGE	0-28050-625-0	02	1	0804-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	15	HOSE; DRAIN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-83572-635-0	01	1	0804-
	15	HOSE; DRAIN EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A)	1-83572-412-0	01	1	0804-0907
