◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11149 - EXY SOUTH AFRICA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#15454) — 348 parça

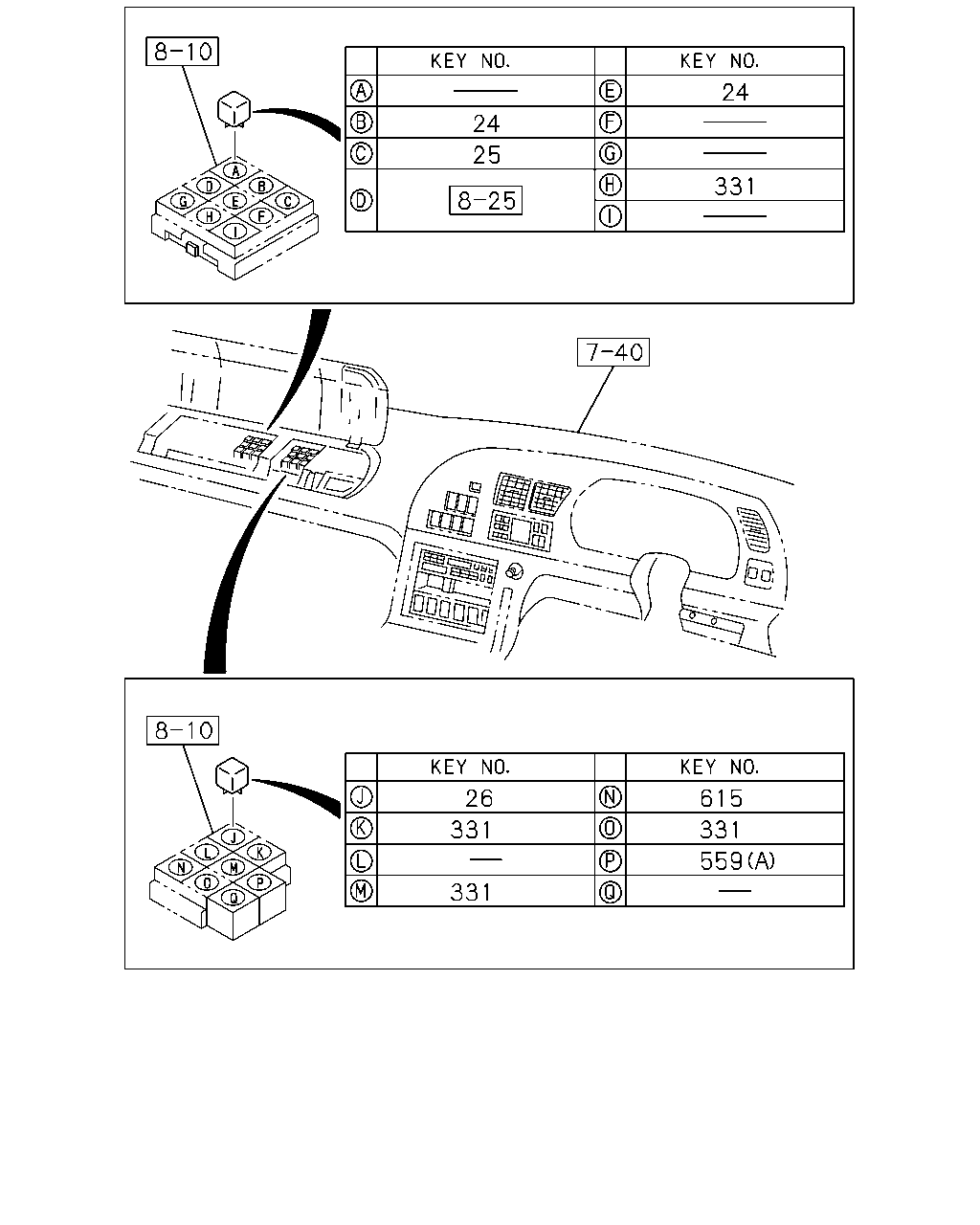

çizim 61164
24 24 25 331 26 615 331 331 559 331
BalonParca AdiParca NoAdetTipApplied Date
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0804-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0804-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0804-
559 RELAY; MAG VLV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0804-
559 RELAY; MAG VLV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-

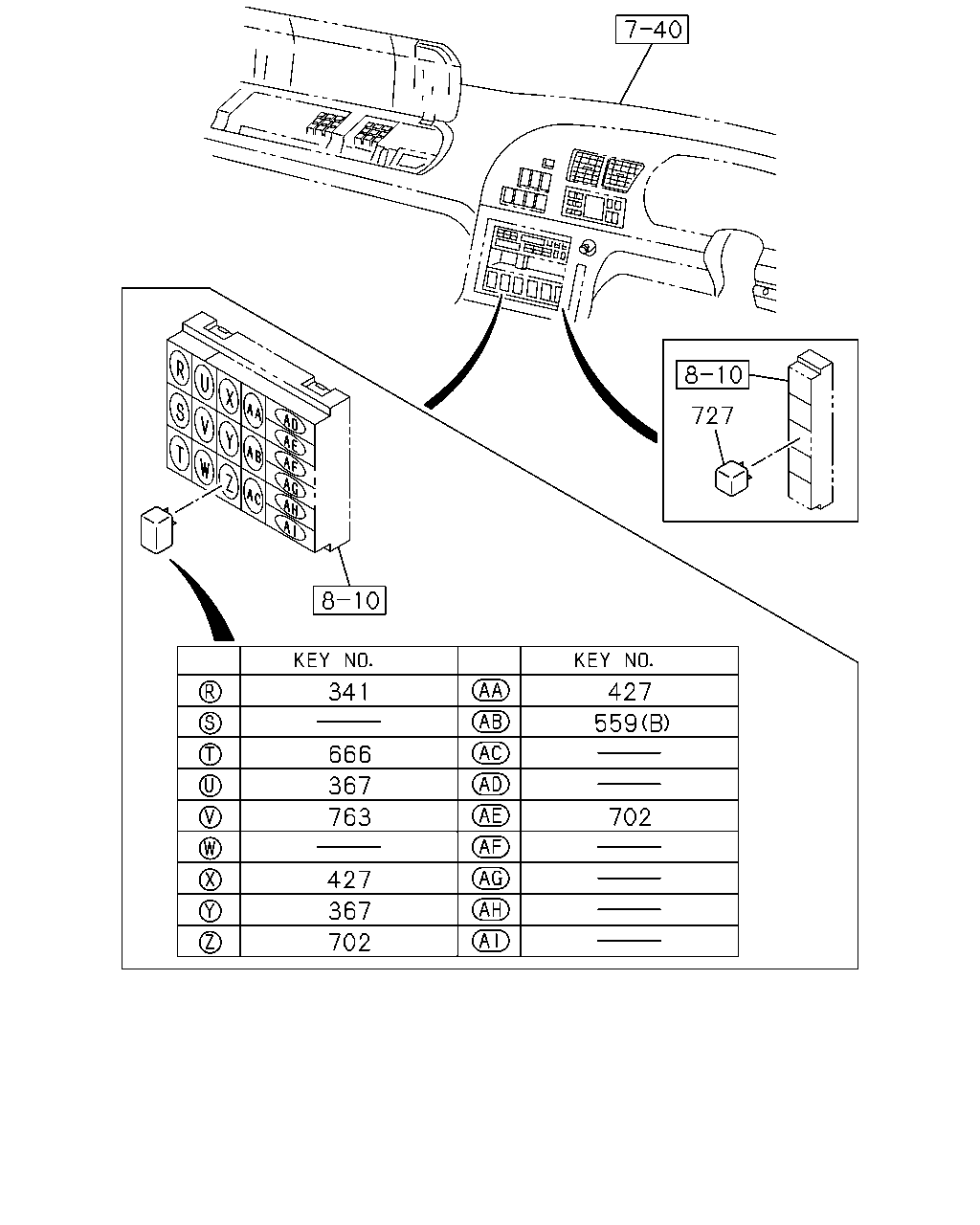

çizim 61175
727 341 427 559 666 367 763 702 427 367 702
BalonParca AdiParca NoAdetTipApplied Date
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-
427 RELAY; RETARDER
24V 10A PANASONIC 		8-97173-035-1 02 1 0804-
559 RELAY; MAG VLV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0804-
559 RELAY; MAG VLV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-
666 RELAY; STARTER
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-
702 RELAY; EBS
24V 10A PANASONIC 		8-98167-173-0 01 1 1307-
702 RELAY; EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-1306
702 RELAY; EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-1306
702 RELAY; EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 1307-
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-
763 RELAY; EGRTTERY
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-

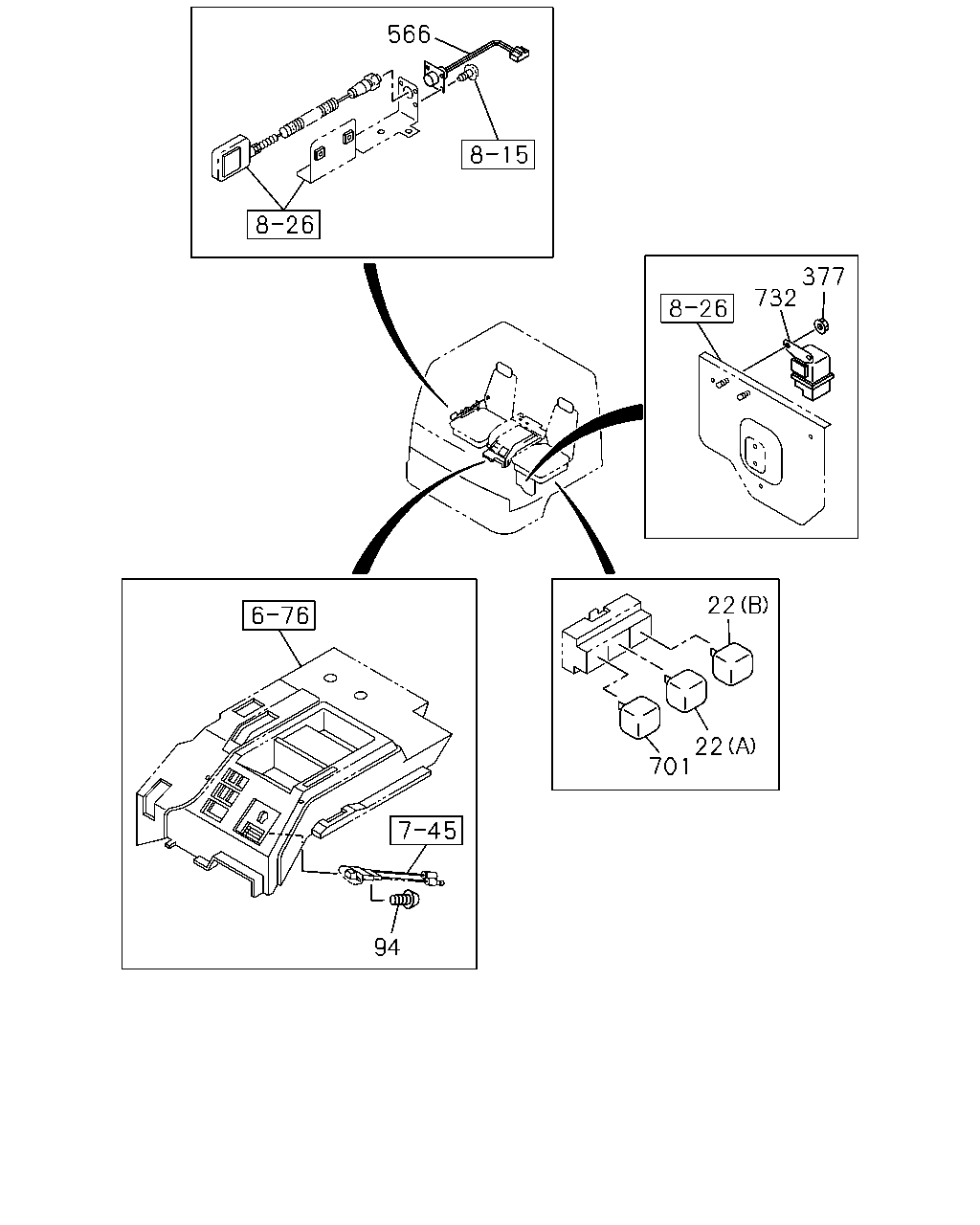

çizim 61176
566 377 732 22 22 701 94
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0804-
22 RELAY; STOP LAMP
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0804-
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0804-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0804-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 0804-
566 HARNESS; REMOTE CONT 1-82626-888-1 01 1 0804-
701 RELAY; BRK,EBS
24V 10A PANASONIC 		8-97173-035-1 01 1 0804-
732 RELAY; EDS 1-82550-337-1 01 1 0804-

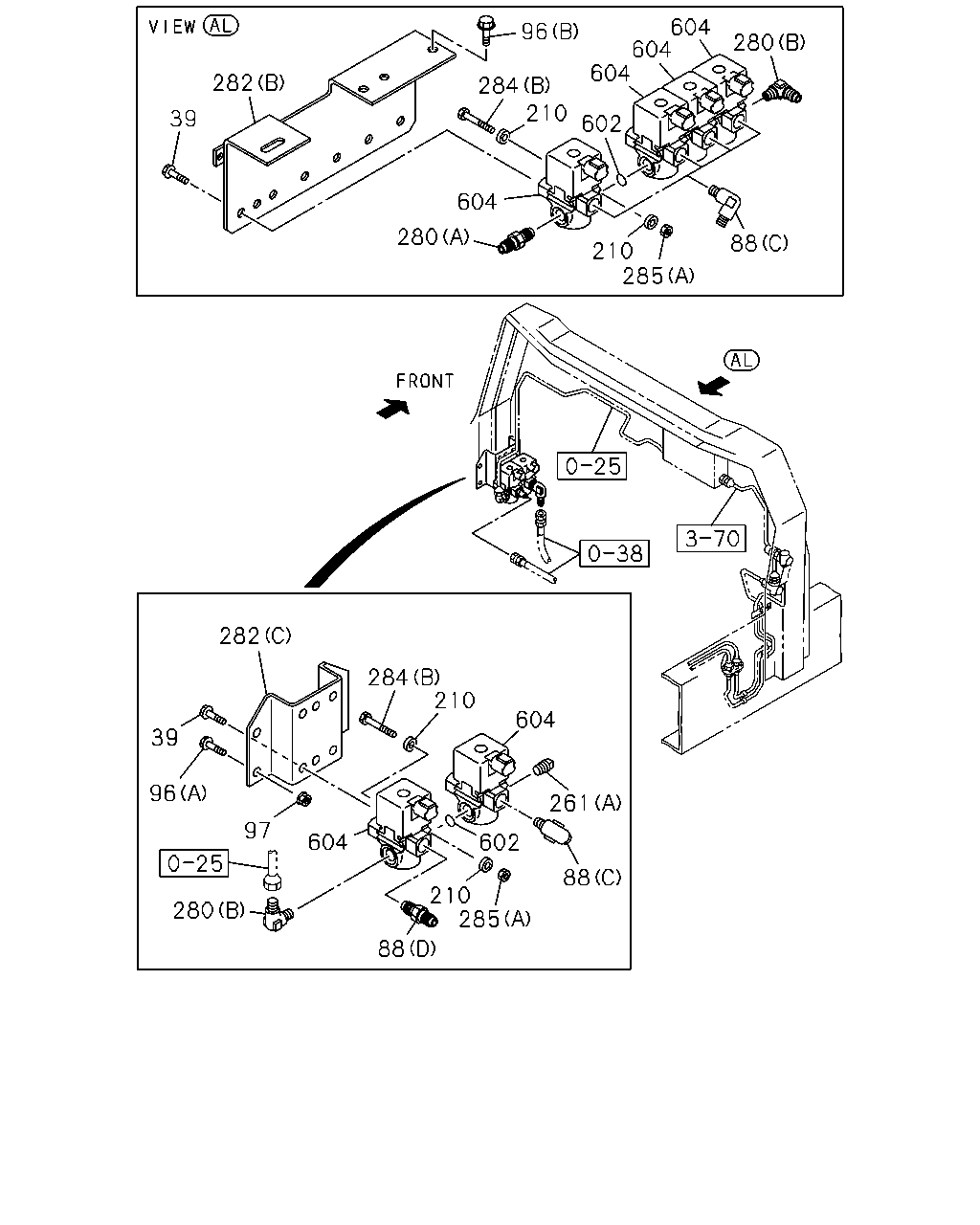

çizim 61329
604 604 604 96 280 282 284 210 39 602 604 280 88 210 285 282 284 210 604 39 96 261 97 604 602 88 210 285 280 88
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 06 1 0804-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0804-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0804-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0804-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0804-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0804-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0804-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0804-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0804-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
96 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0804-
96 BOLT; BRKT FIX
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0804-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 08 1 0804-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0804-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0804-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0804-
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0804-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0804-
282 BRACKET; MAG VLV
(B) 		1-82569-298-0 01 1 0804-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0804-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0804-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0804-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0804-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0804-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0804-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 04 1 0804-
604 VALVE; MAG,ENG CONT 1-82563-871-2 06 1 0804-

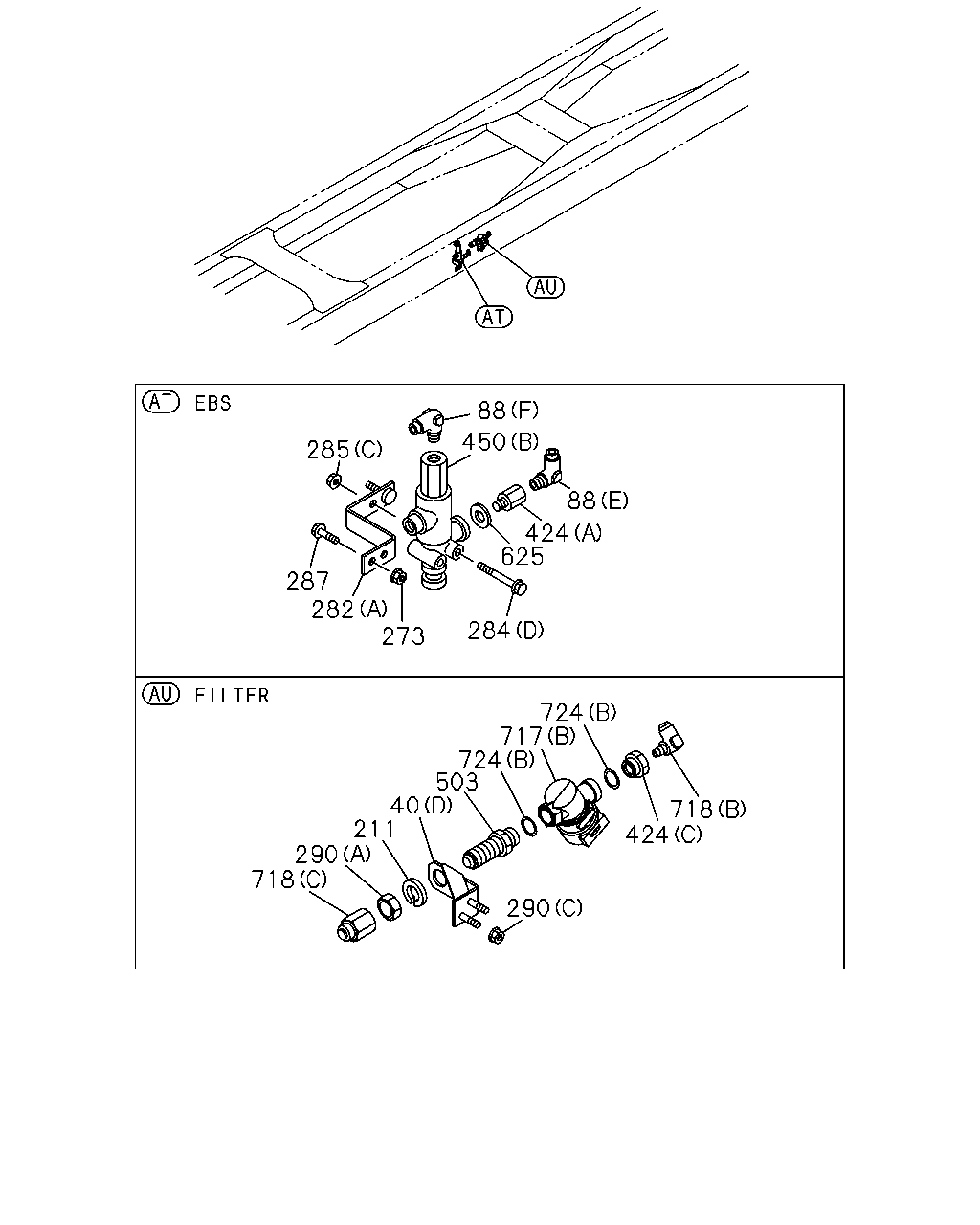

çizim 61334
88 285 450 625 88 424 287 282 273 724 284 718 211 290 40 717 503 718 424 724 290
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(D) 		8-98069-939-0 01 1 0804-
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0804-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0804-
40 BRACKET; MAG VLV
(C) 		8-97610-270-0 01 1 0804-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0804-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0804-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0804-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0804-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0804-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0804-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0804-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0804-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
211 WASHER; LK,BRKT
ID=22.5 		0-91510-522-0 01 1 0804-
273 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0804-
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0804-
282 BRACKET; MAG VLV
(B) 		1-82569-298-0 01 1 0804-
282 BRACKET; MAG VLV
(A) 		8-97609-722-0 01 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0804-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0804-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0804-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0804-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0804-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0804-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0804-
287 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0804-
290 NUT
(A) M22 		0-91111-522-0 01 1 0804-
290 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0804-
290 NUT
(C) M8 FLANGE 		0-91180-108-0 02 1 0804-
424 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0804-
424 ADAPTER
(A) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 0804-
424 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 0804-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0804-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0804-
503 UNION
M22 		0-92123-315-0 01 1 0804-
625 GASKET; CONNECTOR
ID=16.2 OD=24 		9-09571-416-0 01 1 0804-
717 FILTER; MAG VLV
(B) 		8-98069-273-0 01 1 0804-
717 FILTER; MAG VLV
(A) 		8-98092-703-0 01 1 0804-
718 CONNECTOR; FILTER
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0804-
718 CONNECTOR; FILTER
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
718 CONNECTOR; FILTER
(A) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0804-
724 GASKET; AIR FILTER
(A) 		5-09623-075-0 01 1 0804-
724 GASKET; AIR FILTER
(B) ID=22.5 		9-09571-422-0 02 1 0804-

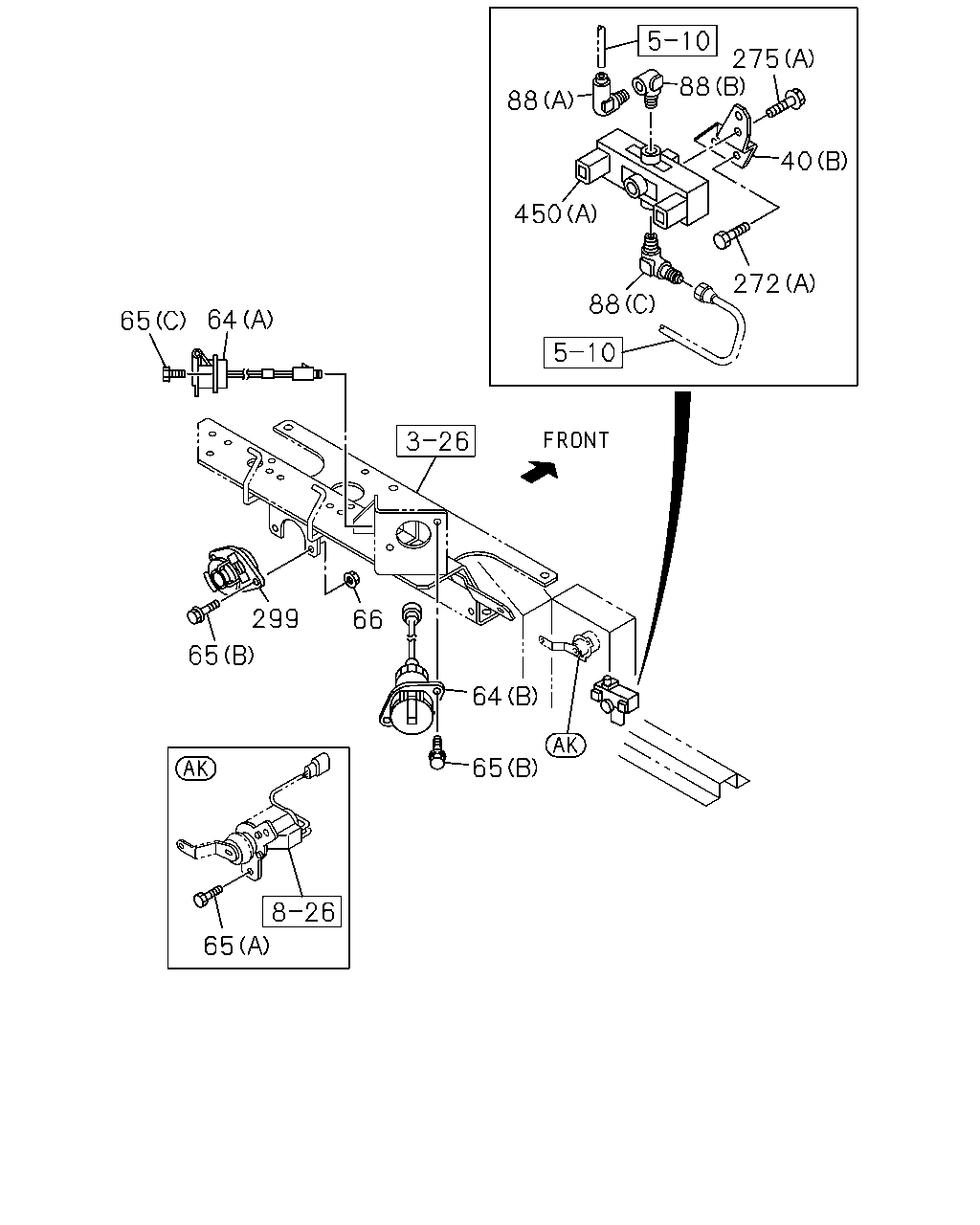

çizim 61340
275 88 88 40 450 272 88 64 65 299 66 64 65 65 65
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(D) 		8-98069-939-0 01 1 0804-
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0804-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0804-
40 BRACKET; MAG VLV
(C) 		8-97610-270-0 01 1 0804-
64 SOCKET; TRAILER
(A) 7P 		1-82523-014-0 01 1 0804-
64 SOCKET; TRAILER
(B) 		1-82698-364-0 01 1 0804-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0804-
65 BOLT; SOCKET FIX
(C) M8X25 FLANGE 		0-28650-825-0 06 1 0804-
65 BOLT; SOCKET FIX
(B) M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0804-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 01 1 0804-1004
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 1005-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0804-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0804-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0804-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0804-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0804-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0804-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0804-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0804-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
272 BOLT; MAG VLV
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0804-1208
272 BOLT; MAG VLV
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
272 BOLT; MAG VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0804-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0804-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-
299 SOCKET; PARKING 1-82699-396-2 01 1 0804-
450 VALVE; MAG
(B) 		1-48240-345-0 01 1 0804-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0804-
çizim 61341
115 117 116 85 84 286 275 86 288 312 86 200
BalonParca AdiParca NoAdetTipApplied Date
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0804-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0804-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0804-
86 NUT; BUZZER
(A) M10 FLANGE 		0-91180-210-0 01 1 0804-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0804-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0804-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0804-
200 BUZZER; WARNING,AIR SUSP 1-83460-104-0 01 1 0804-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0804-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-
286 BRACKET
(A) 		1-82699-199-0 01 1 0804-
288 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0804-
312 BOLT; BUZZER
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0804-
312 BOLT; BUZZER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0804-

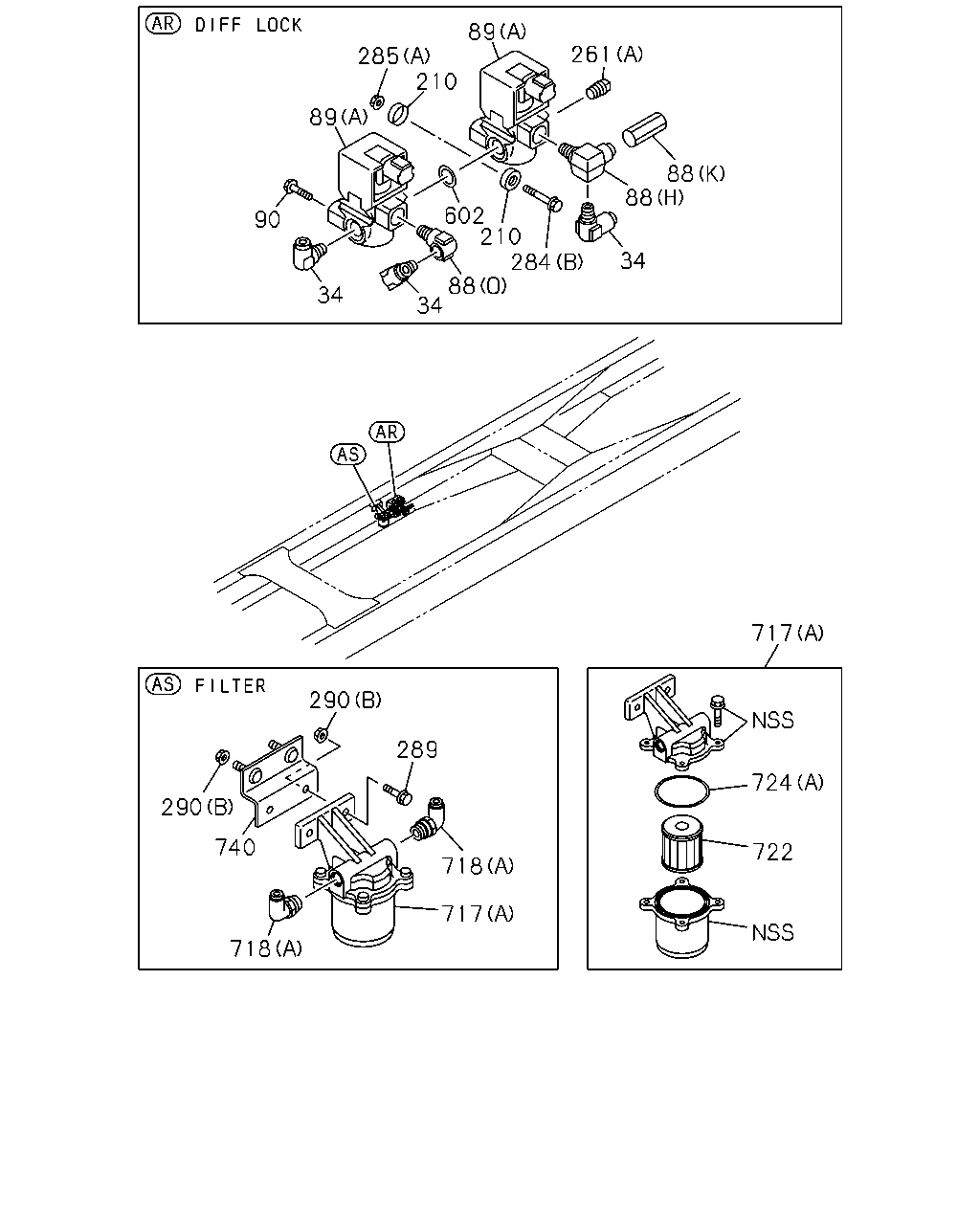

çizim 61343
285 89 261 88 88 34 284 88 210 602 210 89 90 34 34 290 740 290 289 718 717 724 717 722 718
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0804-
34 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0804-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0804-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0804-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0804-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0804-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0804-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0804-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0804-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0804-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 02 1 0804-1205
89 VALVE; MAG,DIFF LOCK
(A) 		8-97641-594-0 02 1 1206-
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-094-2 01 1 0804-
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-095-1 02 1 0804-
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-407-1 01 1 0804-
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 08 1 0804-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0804-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0804-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0804-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0804-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0804-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0804-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0804-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0804-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0804-
289 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0804-
290 NUT
(A) M22 		0-91111-522-0 01 1 0804-
290 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0804-
290 NUT
(C) M8 FLANGE 		0-91180-108-0 02 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 04 1 0804-
717 FILTER; MAG VLV
(B) 		8-98069-273-0 01 1 0804-
717 FILTER; MAG VLV
(A) 		8-98092-703-0 01 1 0804-
718 CONNECTOR; FILTER
(C) DIN12 & M12 STRAIGHT 		1-09660-878-0 01 1 0804-
718 CONNECTOR; FILTER
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
718 CONNECTOR; FILTER
(A) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0804-
722 ELEMENT; AIR FILTER 1-33779-040-0 01 1 0804-
724 GASKET; AIR FILTER
(A) 		5-09623-075-0 01 1 0804-
724 GASKET; AIR FILTER
(B) ID=22.5 		9-09571-422-0 02 1 0804-
740 BRACKET; FILTER 8-98071-367-0 01 1 0804-

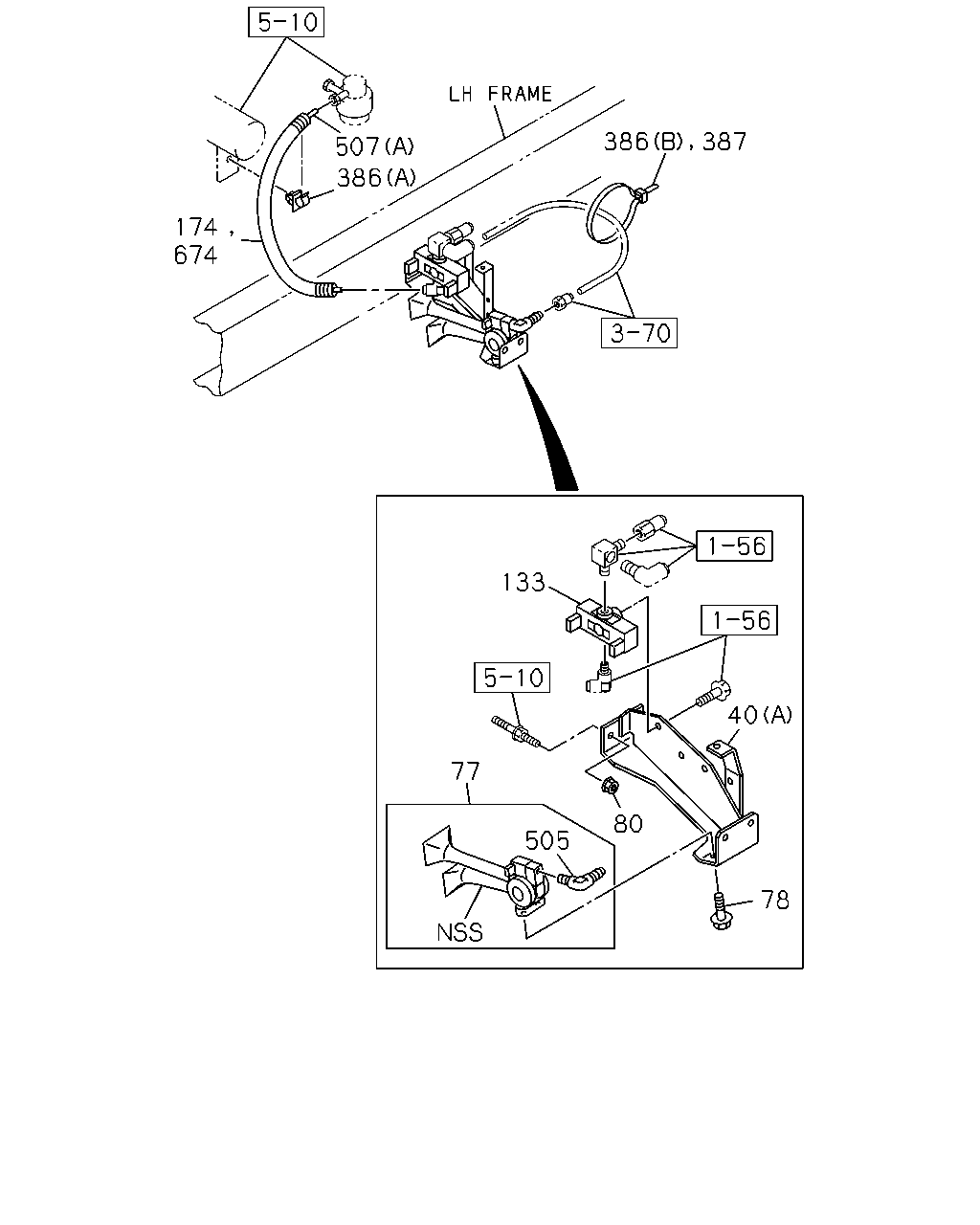

çizim 61344
507 386 174 674 133 40 77 80 505 78
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(D) 		8-98069-939-0 01 1 0804-
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0804-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0804-
40 BRACKET; MAG VLV
(C) 		8-97610-270-0 01 1 0804-
77 HORN ASM 1-83430-041-2 01 1 0804-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0804-
80 NUT; MAG VLV
M12 FLANGE 		0-91180-212-0 02 1 0804-
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0804-
174 COVER
L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0804-
386 CLIP; HARNESS
(B) L=350 		1-09707-183-0 02 1 0804-
386 CLIP; HARNESS
(A) ID=9.5 		5-09709-020-0 01 1 0804-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0804-
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0804-
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0804-
674 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0804-

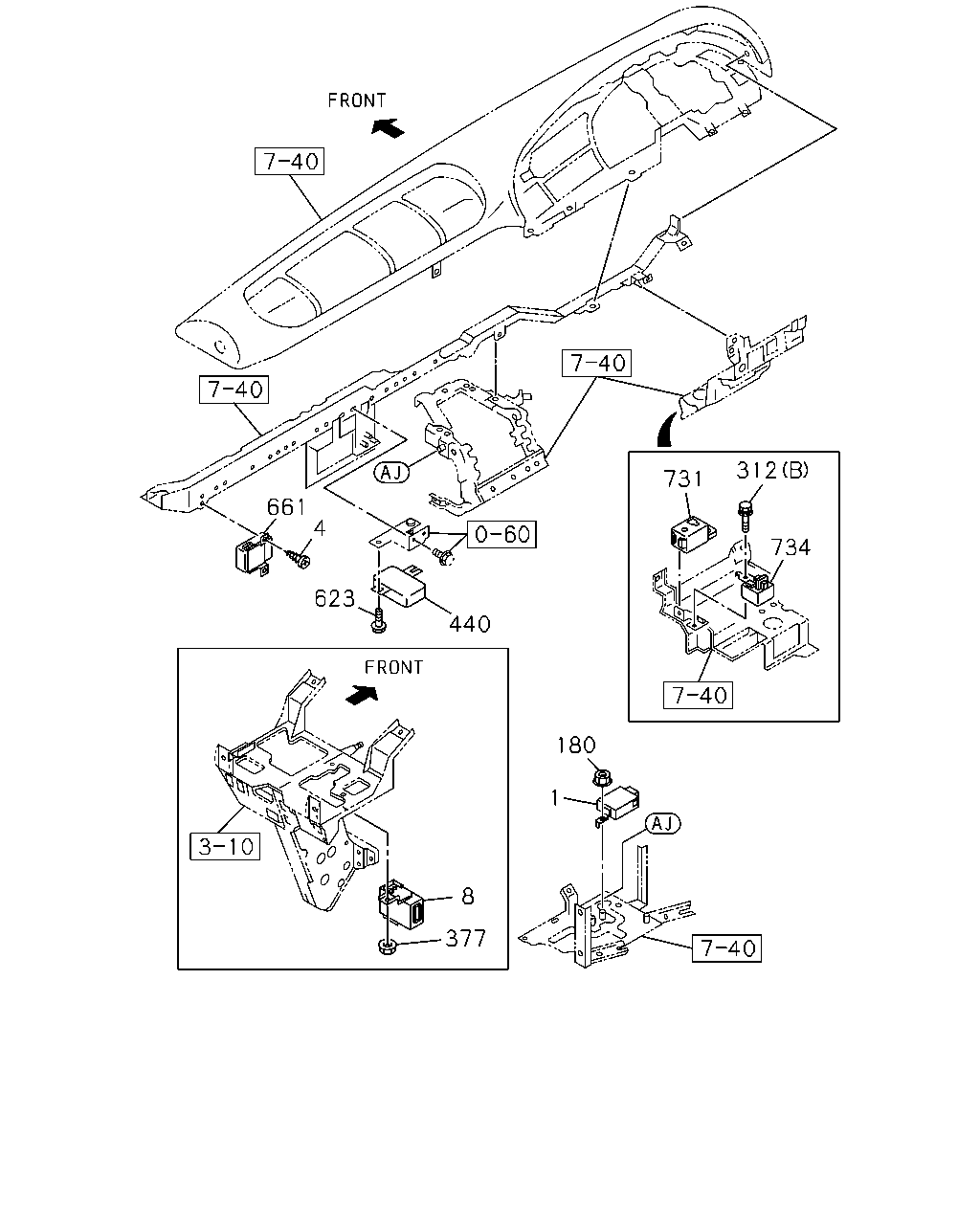

çizim 101725
312 731 661 4 734 623 440 180 1 8 377
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-062-1 01 1 0804-
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 0804-
8 RELAY; WIPER 1-83316-002-4 01 1 0804-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0804-
312 BOLT; BUZZER
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0804-
312 BOLT; BUZZER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0804-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0804-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 0804-
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0804-
623 BOLT; MODULE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0804-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0804-
731 ALARM; INFORMATION 1-83460-051-1 01 1 0804-
734 ALARM; MULTI 1-83460-106-0 01 1 0804-

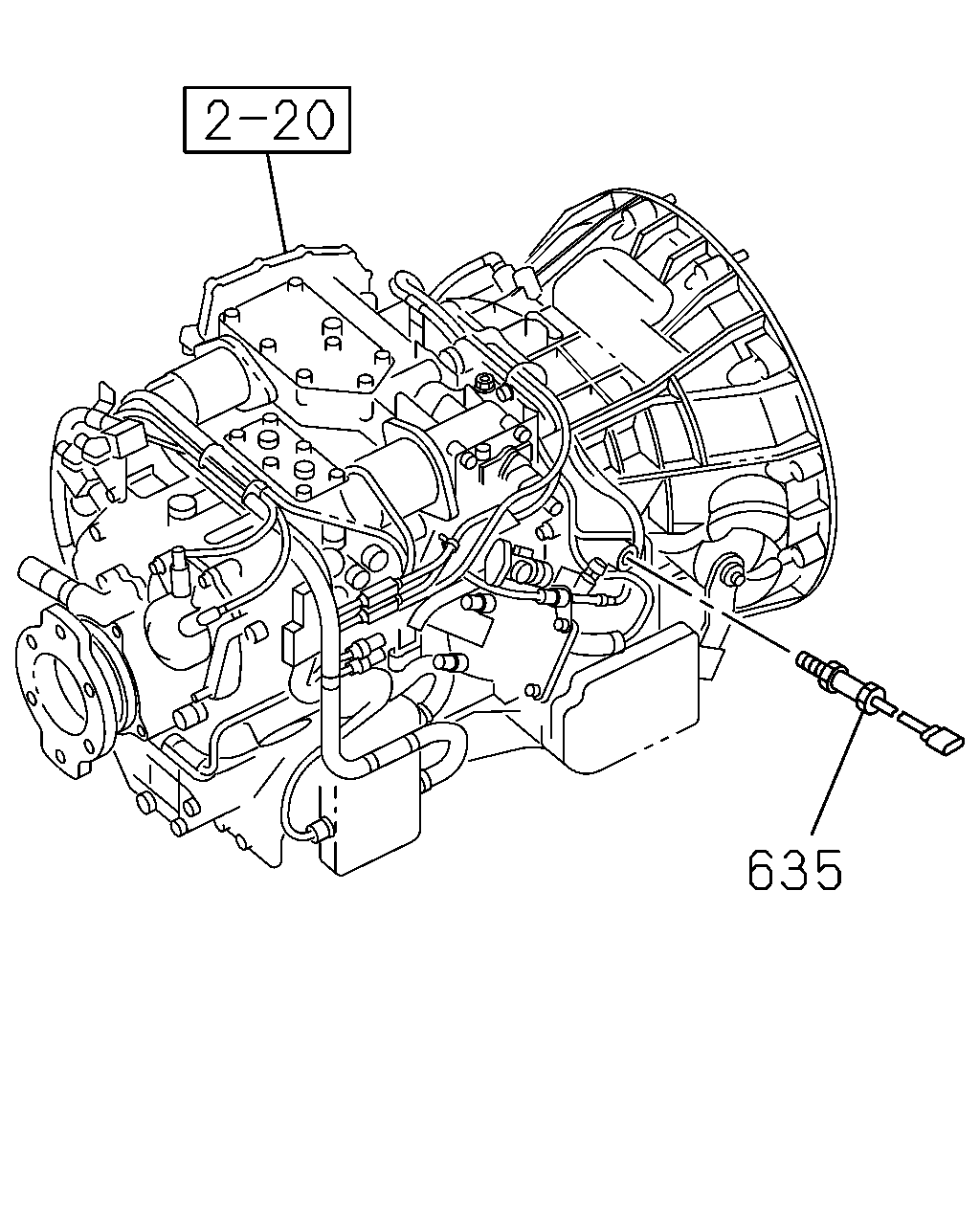

çizim 101728
635
BalonParca AdiParca NoAdetTipApplied Date
635 SENSOR; PICK UP,INPUT SHAFT 1-81510-736-1 01 1 0804-

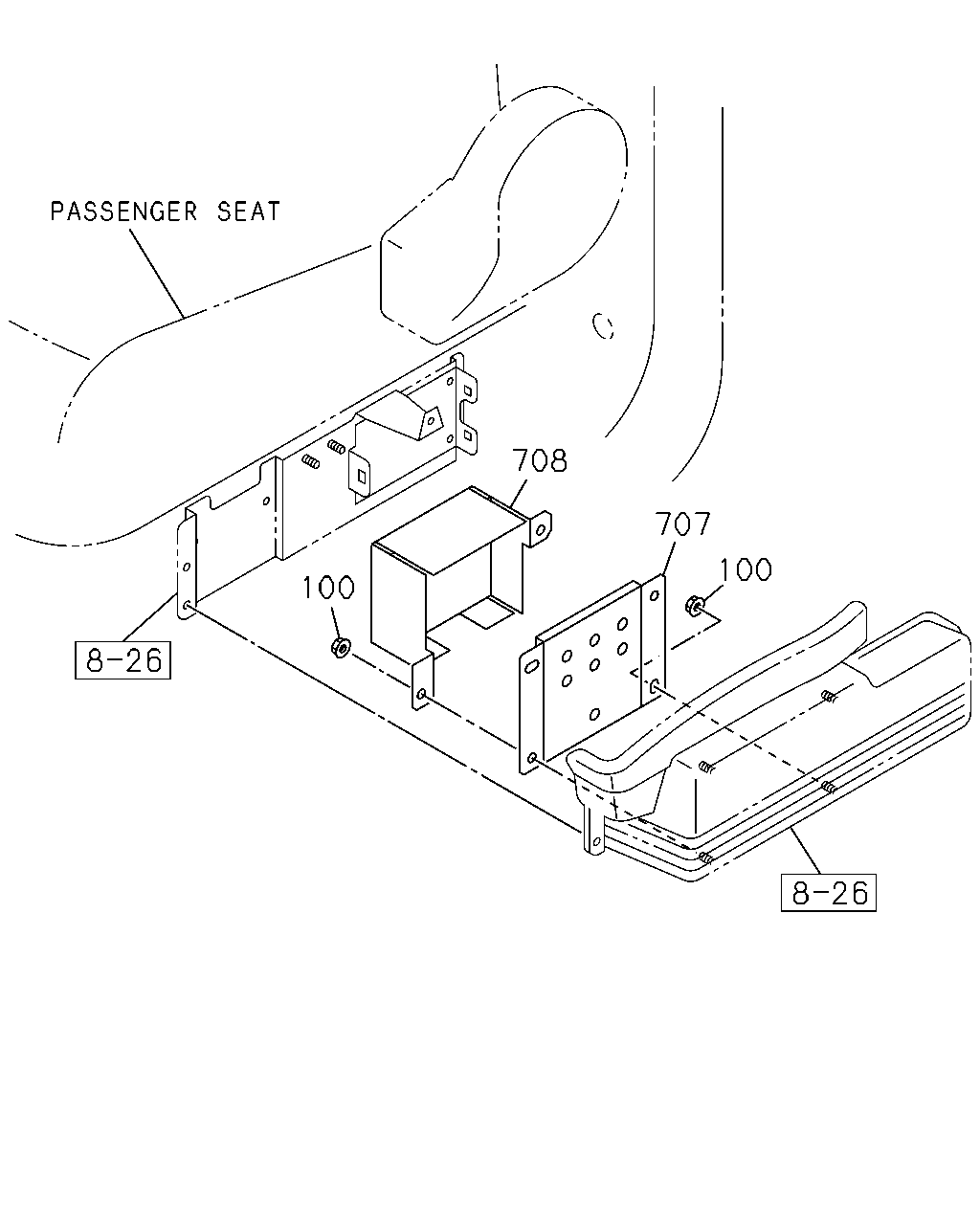

çizim 101729
708 707 100 100
BalonParca AdiParca NoAdetTipApplied Date
100 NUT; RELAY BOX COVER
M6 FLANGE 		0-91180-106-0 04 1 0804-
707 BOX; BASE BRKT 1-82510-603-1 01 1 0804-
708 COVER; BRKT 1-82510-604-1 01 1 0804-0902

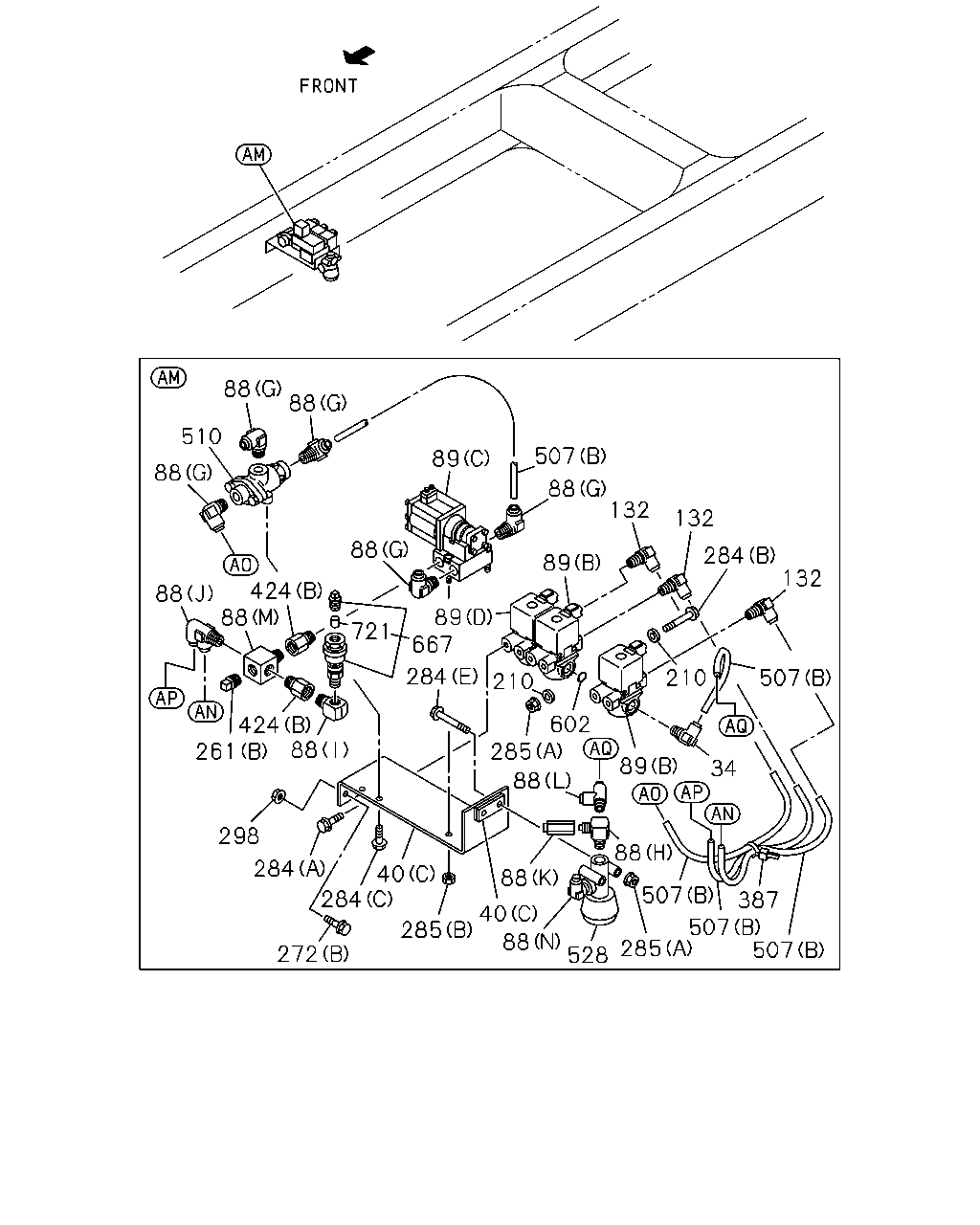

çizim 101737
88 88 510 507 89 88 88 132 132 88 284 132 89 89 667 88 424 88 721 210 284 210 507 602 285 89 34 424 88 298 88 284 40 284 88 507 387 507 507 40 285 88 528 285 272 261 88
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0804-
34 CONNECTOR; MAG VLV,INL PORT
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0804-
40 BRACKET; MAG VLV
(D) 		8-98069-939-0 01 1 0804-
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0804-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0804-
40 BRACKET; MAG VLV
(C) 		8-97610-270-0 01 1 0804-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 0804-
88 CONNECTOR; MAG VLV
(O) PT1/4 2WAY 		1-09660-693-0 01 1 0804-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0804-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0804-
88 CONNECTOR; MAG VLV
(E) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0804-
88 CONNECTOR; MAG VLV
(L) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0804-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0804-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0804-
88 CONNECTOR; MAG VLV
(N) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-
88 CONNECTOR; MAG VLV
(M) PT3/8 4WAY 		1-09661-489-0 01 1 0804-
88 CONNECTOR; MAG VLV
(F) DIN8 & M16 ELBOW 		1-09661-531-0 01 1 0804-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(H) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
88 CONNECTOR; MAG VLV
(K) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0804-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 02 1 0804-1205
89 VALVE; MAG,DIFF LOCK
(A) 		8-97641-594-0 02 1 1206-
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-094-2 01 1 0804-
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-095-1 02 1 0804-
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-407-1 01 1 0804-
132 CONNECTOR; OUTLET,MAG VLV
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0804-
210 WASHER; PL,BRKT 1-82569-266-0 08 1 0804-
261 PLUG; MAG VLV
(B) PT3/8 		9-09204-517-0 01 1 0804-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0804-
261 PLUG; MAG VLV
(A) PT1/4 		9-99204-513-0 01 1 0804-
272 BOLT; MAG VLV
(A) M10X20 FLANGE 		0-28651-020-0 02 1 0804-1208
272 BOLT; MAG VLV
(A) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
272 BOLT; MAG VLV
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 02 1 0804-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0804-
284 BOLT; MAG VLV
(E) M6X60 FLANGE 		0-28050-660-0 02 1 0804-
284 BOLT; MAG VLV
(D) M8X60 FLANGE 		0-28050-860-0 02 1 0804-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0804-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0804-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0804-
285 NUT; MAG VLV
(C) M8 FLANGE 		0-91180-108-0 02 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0804-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0804-
298 NUT; MAG VLV
M10 FLANGE 		0-91180-110-0 02 1 0804-
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0804-
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0804-
424 ADAPTER
(C) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0804-
424 ADAPTER
(A) M16 & PT3/8 STRAIGHT 		1-09661-044-0 01 1 0804-
424 ADAPTER
(B) PT3/8 		1-09664-210-0 02 1 0804-
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0804-
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0804-
510 VALVE; CHECK 1-48410-531-1 01 1 0804-
528 VALVE; PRESSURE REDUCING 1-48410-744-0 01 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0804-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 04 1 0804-
667 LUBRICATION 8-98063-001-0 01 1 0804-
721 ELEMENT; LUBRICATION 1-33779-028-0 01 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
