Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#15451) — 42 parça
◀

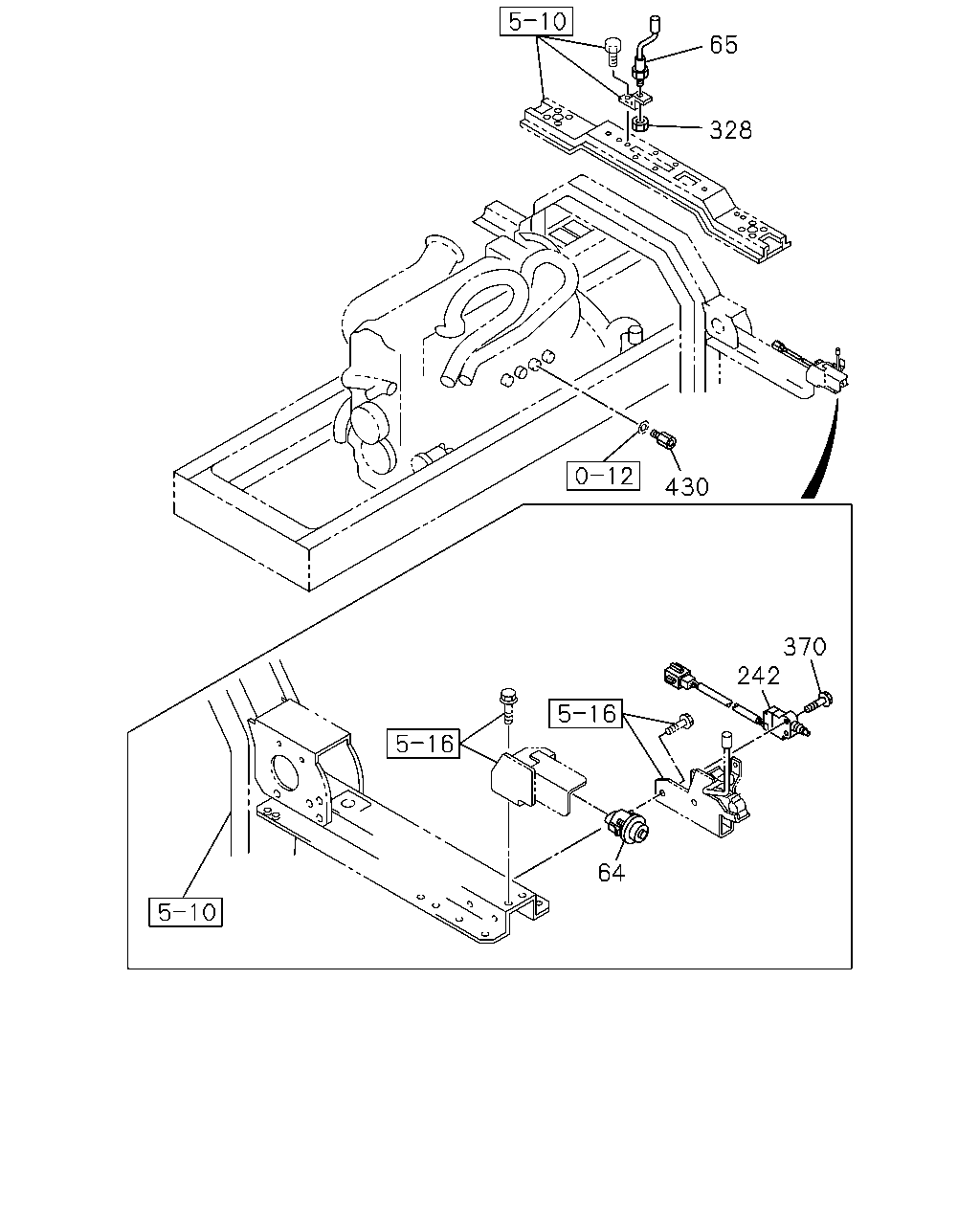

[825A] FRAME SIDE NO.1 (6 parça)

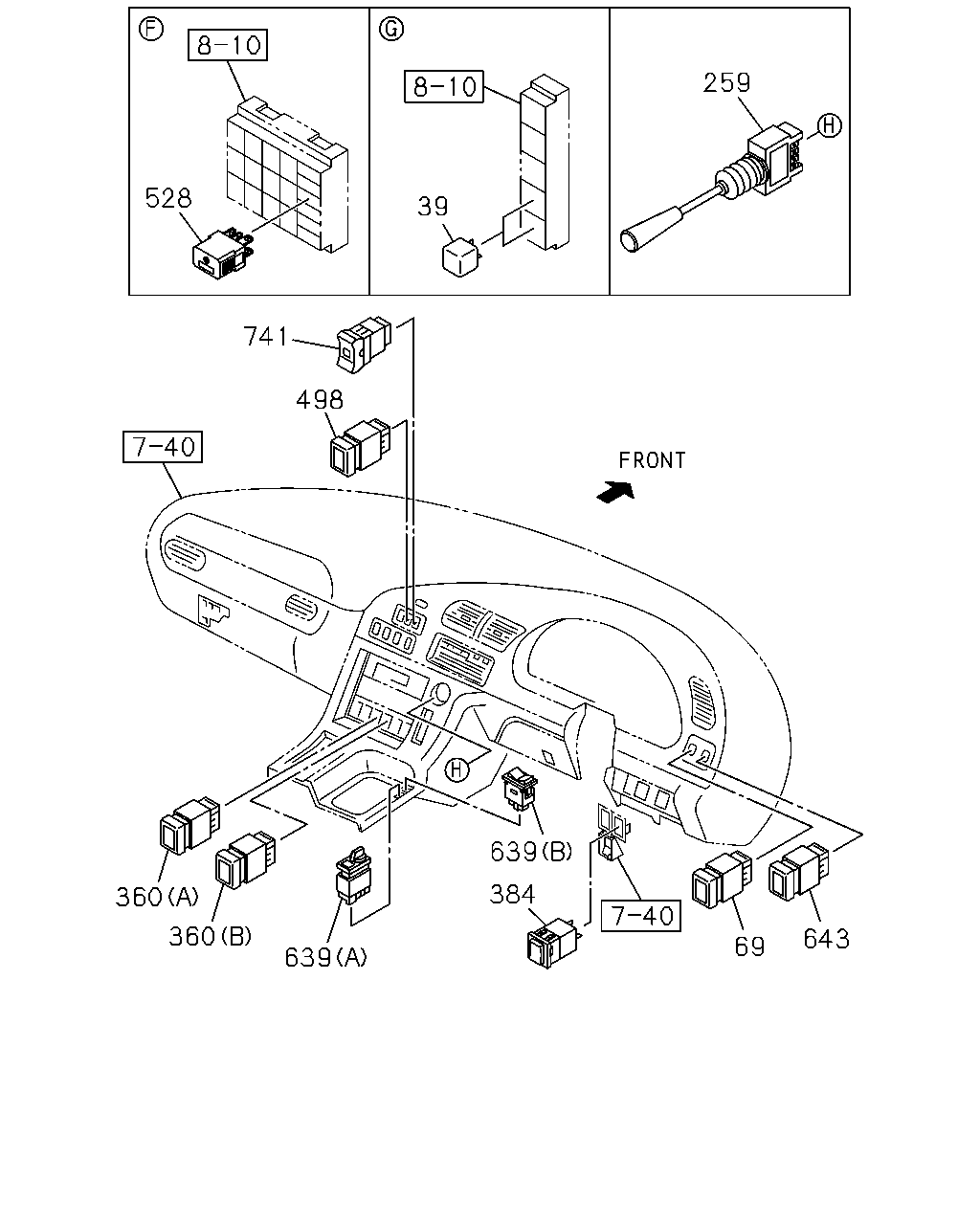

[825A] CAB SIDE NO.2 (13 parça)

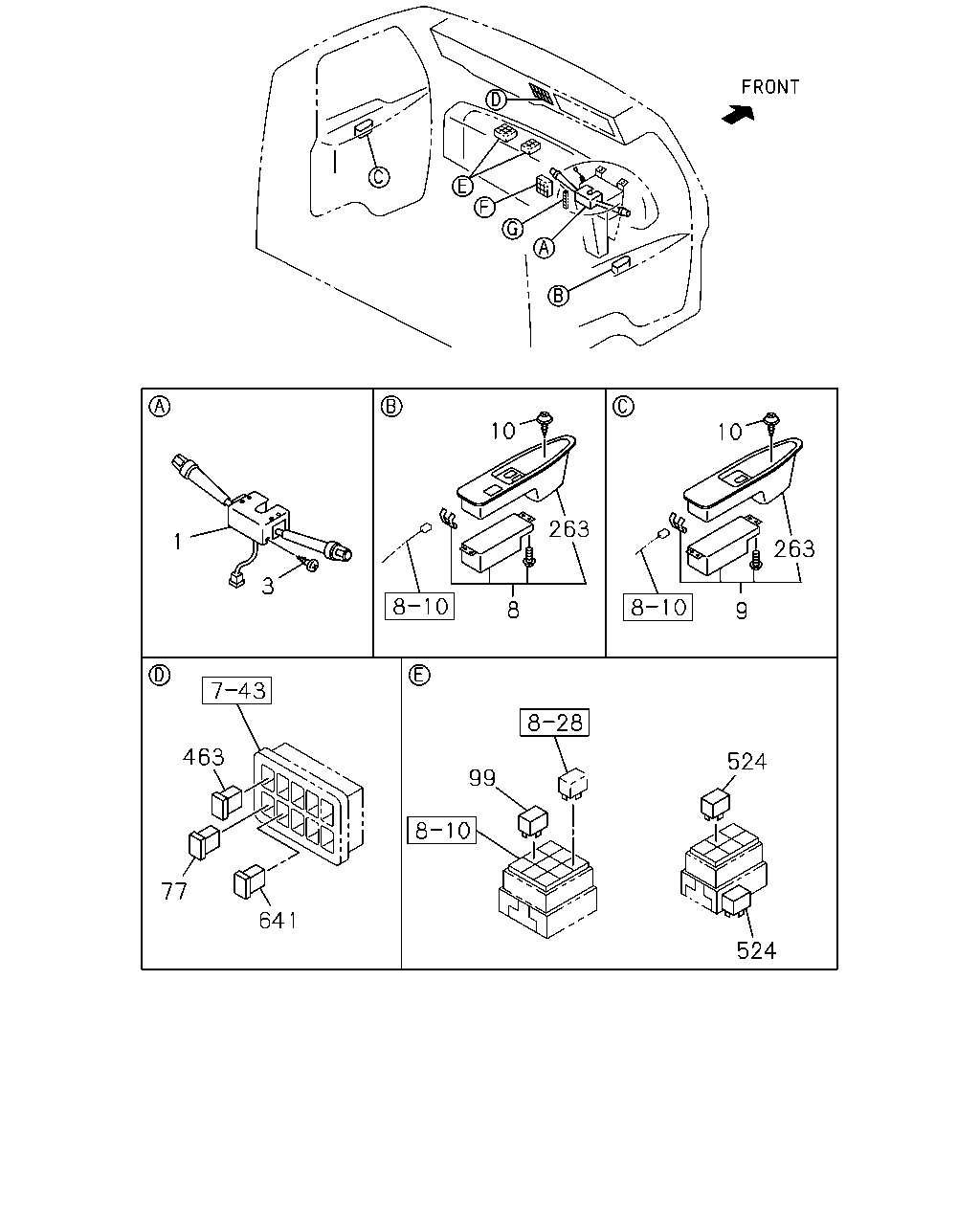

[825A] CAB SIDE NO.1 (12 parça)

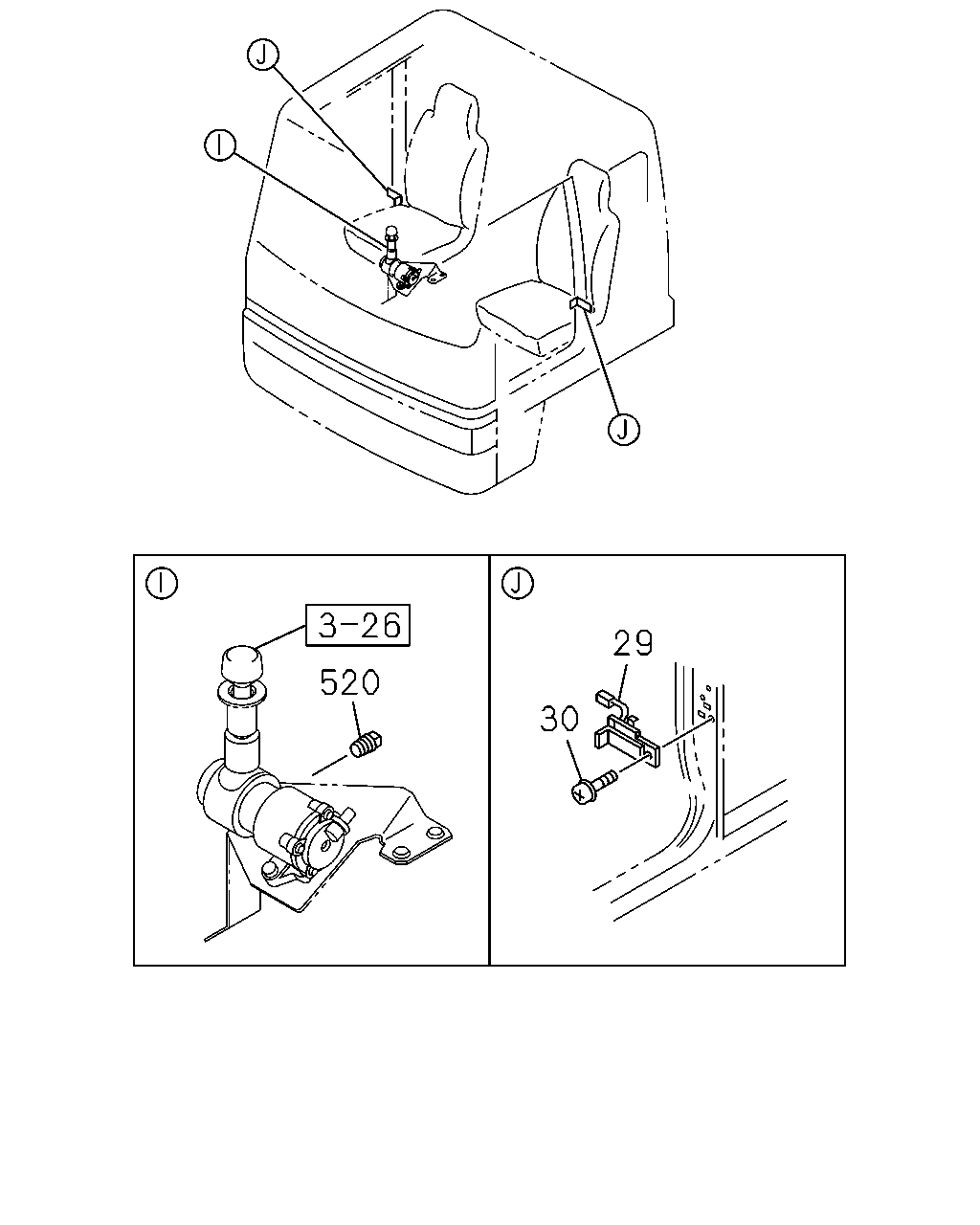

[825A] CAB SIDE NO.3 (3 parça)

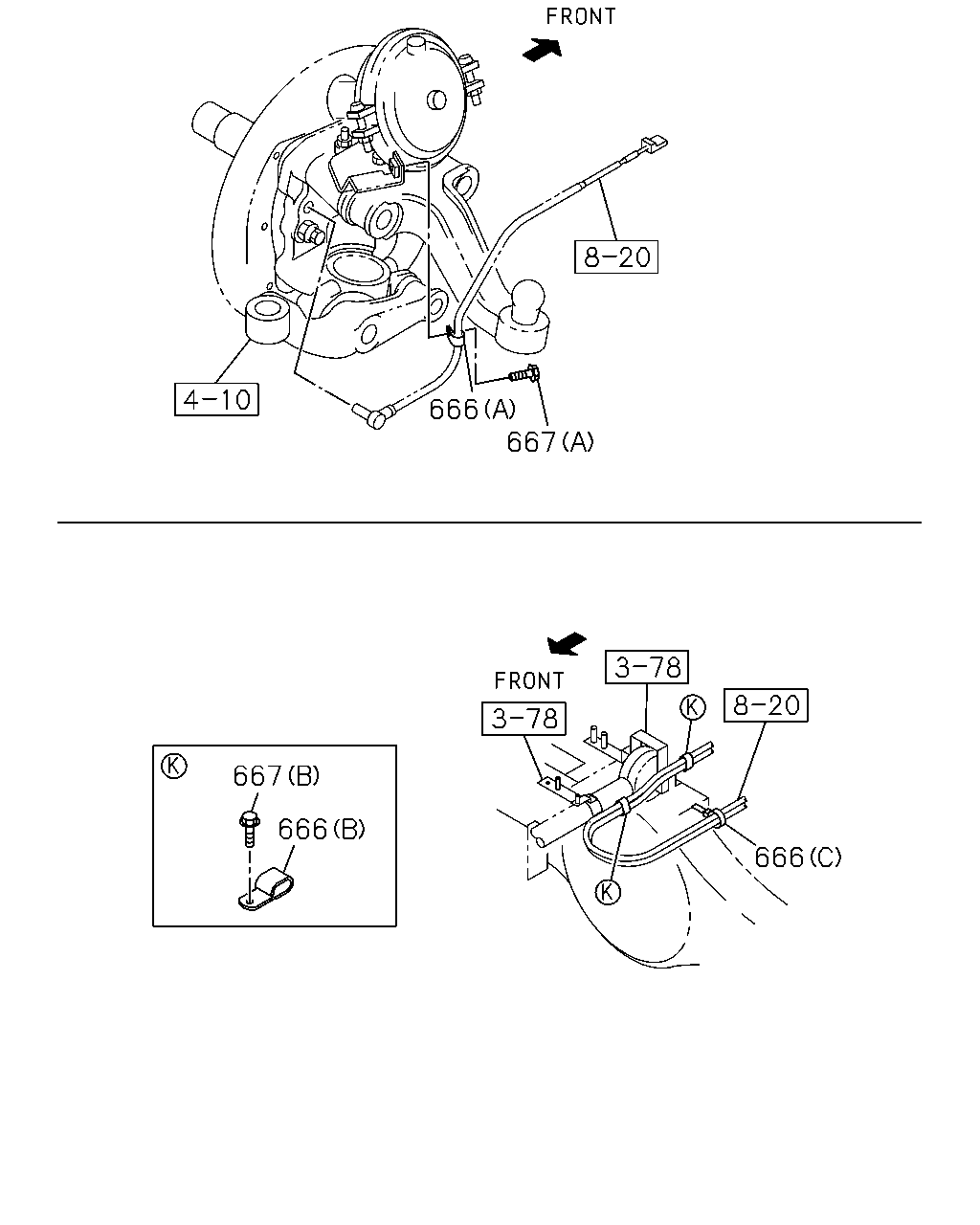

[825A] AXLE SIDE (7 parça)

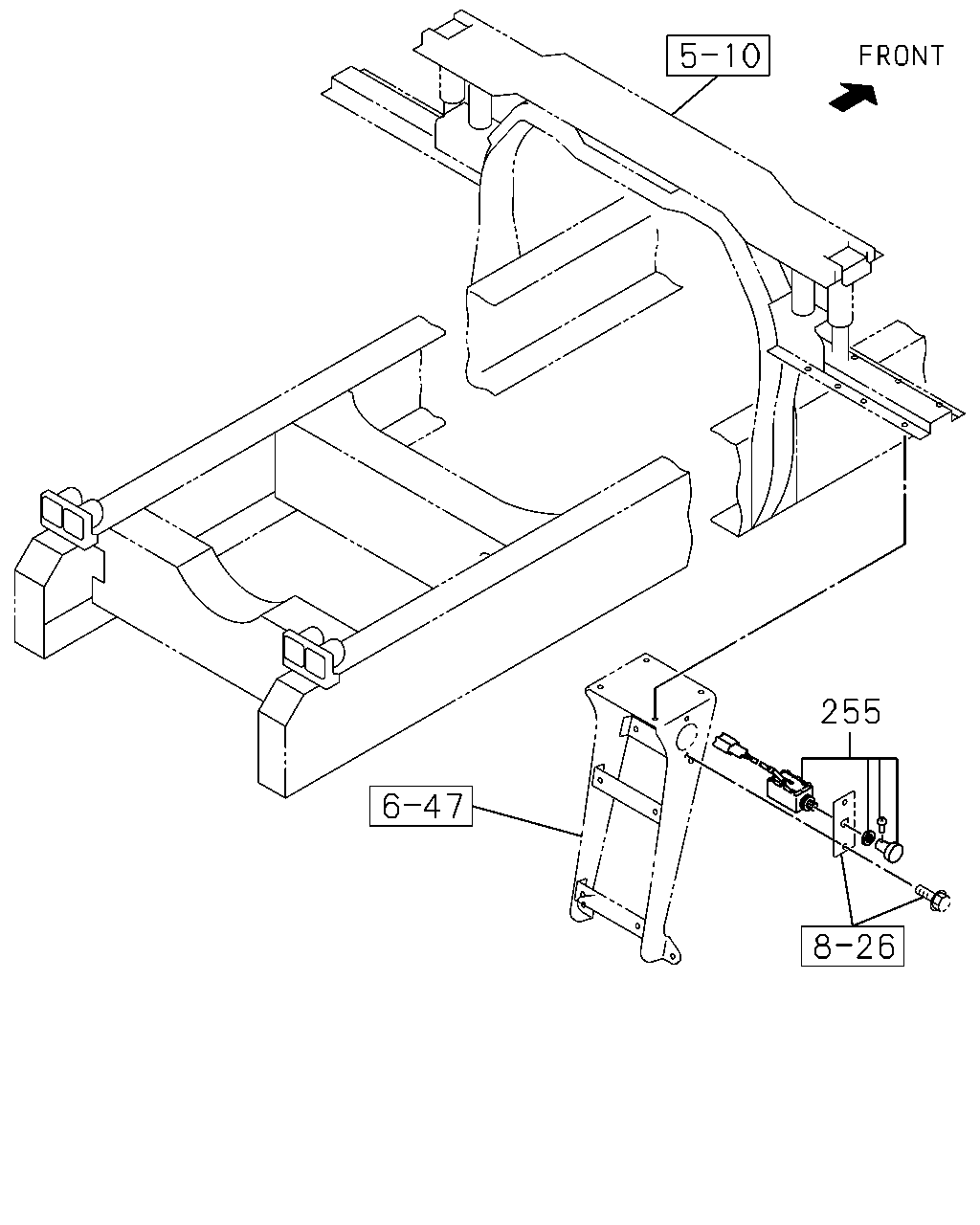

[825A] FRAME SIDE NO.2 (1 parça)
▶
65
328
430
370
242
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
0804-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0804-
242
SWITCH
STAMP NO
1-82380-172-1
01
1
0804-
328
NUT; SW
M16
0-91110-516-0
01
1
0804-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
0804-
430
ADAPTER; SW
M14 & PT1/4 STRAIGHT
1-09669-130-0
01
1
0804-
259
528
39
741
498
639
384
360
360
643
69
639
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
RELAY; DOOR LK
24V 12.5A PANASONIC
8-97262-933-0
02
1
0804-
69
SWITCH; AUTO CRUISE
8-97610-834-0
01
1
0804-
259
SWITCH; RETARDER
8-97619-352-1
01
1
0804-
360
SWITCH ASM; DIFF LK
(A)
1-82340-660-1
01
1
0804-
360
SWITCH ASM; DIFF LK
(B)
1-82340-677-0
01
1
0804-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0804-
498
SWITCH; ASR
1-82340-642-0
01
1
0804-
528
RELAY; BUZZER
24V 10A PANASONIC
8-97173-035-1
01
1
0804-
639
SWITCH; EMERGENCY
(A)
1-82330-068-0
01
1
0804-
639
SWITCH; EMERGENCY
(B)
1-82350-363-0
01
1
0804-
643
SWITCH; SKIP SHIFT
HIGH ROOF<S2F>
8-97381-249-0
01
1
0804-
643
SWITCH; SKIP SHIFT
EXC. HIGH ROOF<S2F>
8-97381-251-0
01
1
0804-
741
SWITCH; TRAILER
8-98147-983-0
01
1
0908-
10
10
263
1
263
3
8
9
463
524
99
77
641
524
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-580-2
01
1
0804-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0804-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-166-2
01
1
0804-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-167-1
01
1
0804-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0804-
77
SWITCH; PTO
PTO CONTROL OPERATION CAB BACK<TBZ>
1-82340-413-0
01
1
0804-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0804-
263
COVER; SW
DRIVER
1-82385-005-2
01
1
0804-
263
COVER; SW
PASSENGER
1-82385-006-3
01
1
0804-
463
SWITCH; SPOT LAMP
1-82340-411-0
01
1
0804-
524
RELAY; LAMP
24V 12.5A PANASONIC
8-97262-933-0
02
1
0804-
641
SWITCH; MAP
8-97615-637-0
01
1
0804-
29
520
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0804-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0804-
520
PLUG; CONNECTOR
PT1/4
9-99204-513-0
01
1
0804-
666
667
667
666
666
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
666
CLIP; AXLE HARNESS
(B) ID=11 L=20
0-95235-035-0
03
1
0804-
666
CLIP; AXLE HARNESS
(A) ID=11X2 L=20
1-09700-871-0
01
1
0804-0808
666
CLIP; AXLE HARNESS
(A) ID=11X2 L=20
1-09700-871-0
03
1
0809-
666
CLIP; AXLE HARNESS
(C) L=350
1-09707-183-0
09
1
0804-
667
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
02
1
0809-
667
BOLT; CLIP
(A) M8X10 FLANGE
0-28050-810-0
02
1
0804-
667
BOLT; CLIP
(B) M8X20 FLANGE
0-28650-820-0
04
1
0804-0806
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
255
SWITCH; SEARCH LIGHT
8-98106-483-0
01
1
0804-
