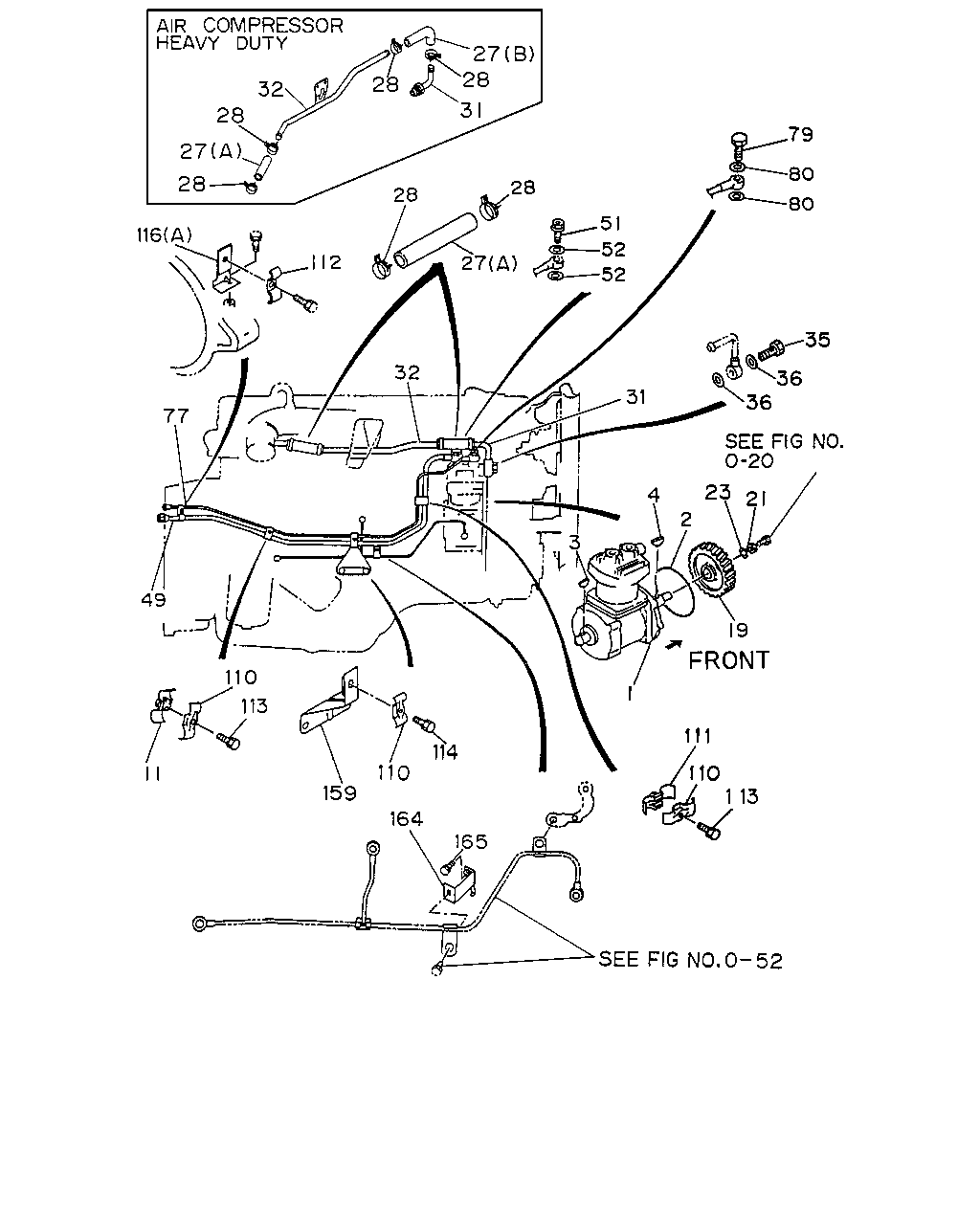

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#1545) — 94 parça

27 28 28 31 32 28 27 28 116 112 28 28 27 51 52 52 79 80 80 35 36 36 31 21 23 2 4 19 1 3 111 110 113 165 164 159 11 110 114 113 110 49 77 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-260-3	01	1	9207-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-255-2	01	1	9207-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9207-
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9207-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9207-
19	GEAR; INJ PUMP Z=50	1-12524-033-0	01	1	9207-
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9207-
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9207-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=120	1-09360-189-0	01	1	9207-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A) L=100 SERVICED BY L=10000	9-09912-813-0	01	1	9207-
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) L=100 SERVICED BY L=10000	9-09912-813-0	02	1	9207-
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	04	1	9207-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-950-0	01	1	9207-
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-690-0	01	1	9207-
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-949-0	01	1	9207-
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-692-0	01	1	9207-
35	BOLT; EYE,AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9207-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9207-
49	PIPE; AIR,CHARGE MBG5B M/T(X4K) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-075-1	01	1	9207-
49	PIPE; AIR,CHARGE MBG5B M/T(X4K) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-083-0	01	1	9207-
49	PIPE; AIR,CHARGE MLD6D M/T(X5Q) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-403-1	01	1	9207-
49	PIPE; AIR,CHARGE MLD6D M/T(X5Q) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-399-1	01	1	9207-
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9207-
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9207-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9207-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09571-420-0	02	1	9207-
77	PIPE; AIR,GOV MBG5B M/T(X4K) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-076-0	01	1	9207-
77	PIPE; AIR,GOV MBG5B M/T(X4K) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-084-0	01	1	9207-
77	PIPE; AIR,GOV MLD6D M/T(X5Q) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-404-1	01	1	9207-
77	PIPE; AIR,GOV MLD6D M/T(X5Q) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-400-1	01	1	9207-
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9207-
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9207-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9207-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9207-
110	CLIP; AIR PIPE MBG5B M/T(X4K) ID=15 & 6 WO/NUT	1-09700-828-0	04	1	9207-
110	CLIP; AIR PIPE MLD6D M/T(X5Q) ID=15 & 6 WO/NUT	1-09700-828-0	06	1	9207-
111	CLIP; AIR PIPE ID=15 & 6 W/NUT	1-09700-829-0	02	1	9207-
112	CLIP; AIR PIPE END ID=16 & 7 L=18 & 15	1-09700-078-0	01	1	9207-
113	BOLT; CLIP,AIR PIPE M6X32 W/LK WASHER	0-50040-632-0	02	1	9207-
114	BOLT; CLIP,AIR PIPE M6X32 W/LK WASHER	0-50040-632-0	01	1	9207-
114	BOLT; CLIP,AIR PIPE MLD6D M/T(X5Q) M6X32 W/LK WASHER	0-50040-632-0	02	1	9207-
116	BRACKET; AIR PIPE MBG5B M/T(X4K) (A)	1-19199-122-0	01	1	9207-
116	BRACKET; AIR PIPE MLD6D M/T(X5Q) (B)	1-19199-118-0	02	1	9207-
116	BRACKET; AIR PIPE MLD6D M/T(X5Q) (C)	1-19199-164-0	01	1	9207-
159	BRACKET; AIR PIPE CLIP MBG5B M/T(X4K)	1-19199-123-1	01	1	9207-
164	BRACKET; OIL PIPE CLIP FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13345-166-0	01	1	9207-
165	BOLT; BRKT OIL PIPE CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20 W/LK WASHER	0-50041-020-0	01	1	9207-

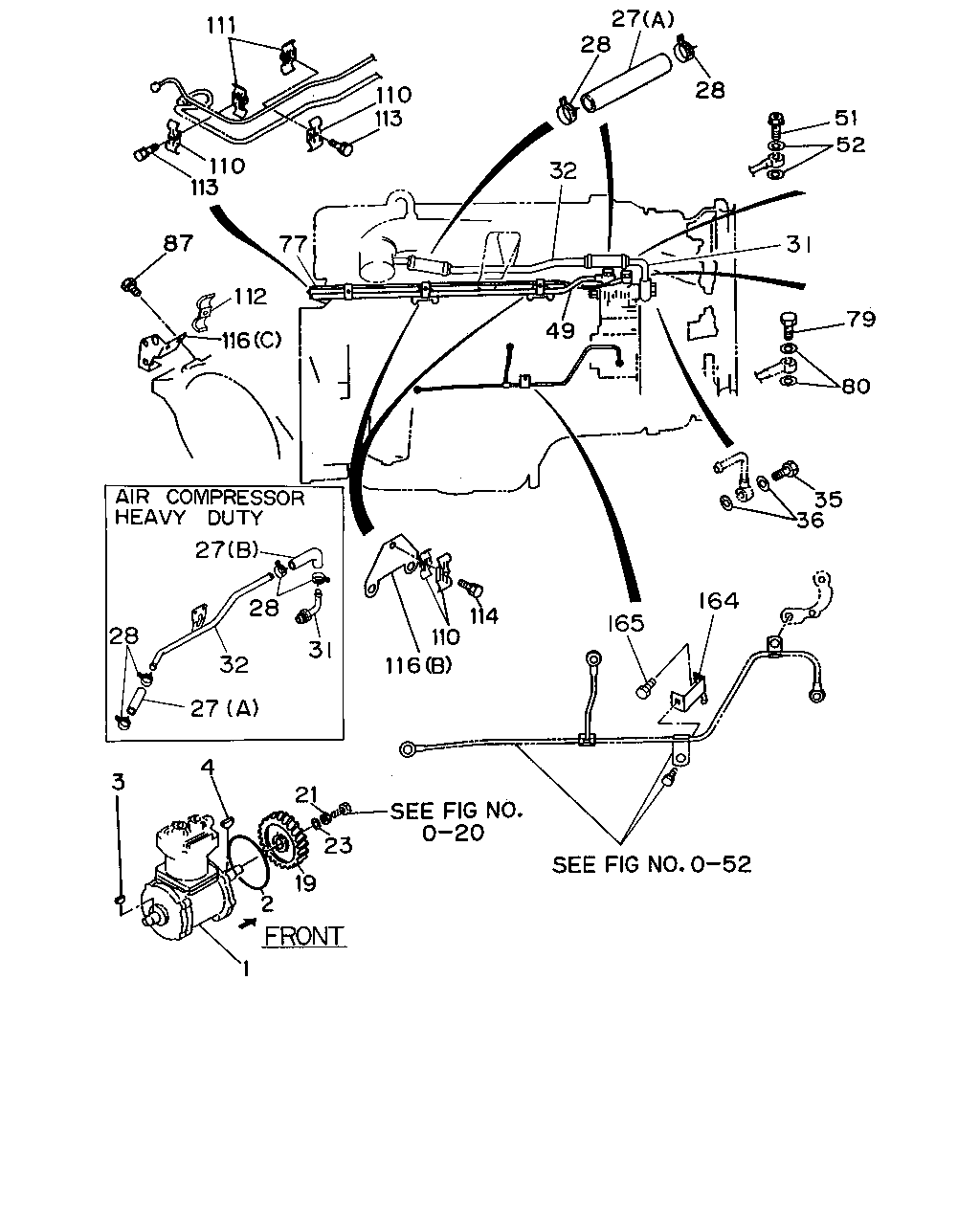

1 3 4 2 19 23 21 27 28 32 31 28 27 110 116 114 165 164 36 35 80 79 31 52 51 28 27 28 32 49 116 112 77 87 113 110 113 110 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-260-3	01	1	9207-
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-255-2	01	1	9207-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9207-
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9207-
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9207-
19	GEAR; INJ PUMP Z=50	1-12524-033-0	01	1	9207-
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9207-
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9207-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=120	1-09360-189-0	01	1	9207-
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A) L=100 SERVICED BY L=10000	9-09912-813-0	01	1	9207-
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) L=100 SERVICED BY L=10000	9-09912-813-0	02	1	9207-
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	04	1	9207-
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-950-0	01	1	9207-
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-690-0	01	1	9207-
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-949-0	01	1	9207-
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19191-692-0	01	1	9207-
35	BOLT; EYE,AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9207-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9207-
49	PIPE; AIR,CHARGE MBG5B M/T(X4K) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-075-1	01	1	9207-
49	PIPE; AIR,CHARGE MBG5B M/T(X4K) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-083-0	01	1	9207-
49	PIPE; AIR,CHARGE MLD6D M/T(X5Q) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-403-1	01	1	9207-
49	PIPE; AIR,CHARGE MLD6D M/T(X5Q) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-399-1	01	1	9207-
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9207-
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9207-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9207-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09571-420-0	02	1	9207-
77	PIPE; AIR,GOV MBG5B M/T(X4K) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-076-0	01	1	9207-
77	PIPE; AIR,GOV MBG5B M/T(X4K) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-084-0	01	1	9207-
77	PIPE; AIR,GOV MLD6D M/T(X5Q) AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-404-1	01	1	9207-
77	PIPE; AIR,GOV MLD6D M/T(X5Q) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-400-1	01	1	9207-
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9207-
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9207-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9207-
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9207-
87	BOLT; BRKT FIX MLD6D M/T(X5Q) M8X16 W/LK WASHER	0-50040-816-0	02	1	9207-
110	CLIP; AIR PIPE MBG5B M/T(X4K) ID=15 & 6 WO/NUT	1-09700-828-0	04	1	9207-
110	CLIP; AIR PIPE MLD6D M/T(X5Q) ID=15 & 6 WO/NUT	1-09700-828-0	06	1	9207-
111	CLIP; AIR PIPE ID=15 & 6 W/NUT	1-09700-829-0	02	1	9207-
112	CLIP; AIR PIPE END ID=16 & 7 L=18 & 15	1-09700-078-0	01	1	9207-
113	BOLT; CLIP,AIR PIPE M6X32 W/LK WASHER	0-50040-632-0	02	1	9207-
114	BOLT; CLIP,AIR PIPE M6X32 W/LK WASHER	0-50040-632-0	01	1	9207-
114	BOLT; CLIP,AIR PIPE MLD6D M/T(X5Q) M6X32 W/LK WASHER	0-50040-632-0	02	1	9207-
116	BRACKET; AIR PIPE MBG5B M/T(X4K) (A)	1-19199-122-0	01	1	9207-
116	BRACKET; AIR PIPE MLD6D M/T(X5Q) (B)	1-19199-118-0	02	1	9207-
116	BRACKET; AIR PIPE MLD6D M/T(X5Q) (C)	1-19199-164-0	01	1	9207-
164	BRACKET; OIL PIPE CLIP FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13345-166-0	01	1	9207-
165	BOLT; BRKT OIL PIPE CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X20 W/LK WASHER	0-50041-020-0	01	1	9207-
