◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11149 - EXY SOUTH AFRICA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#15448) — 466 parça

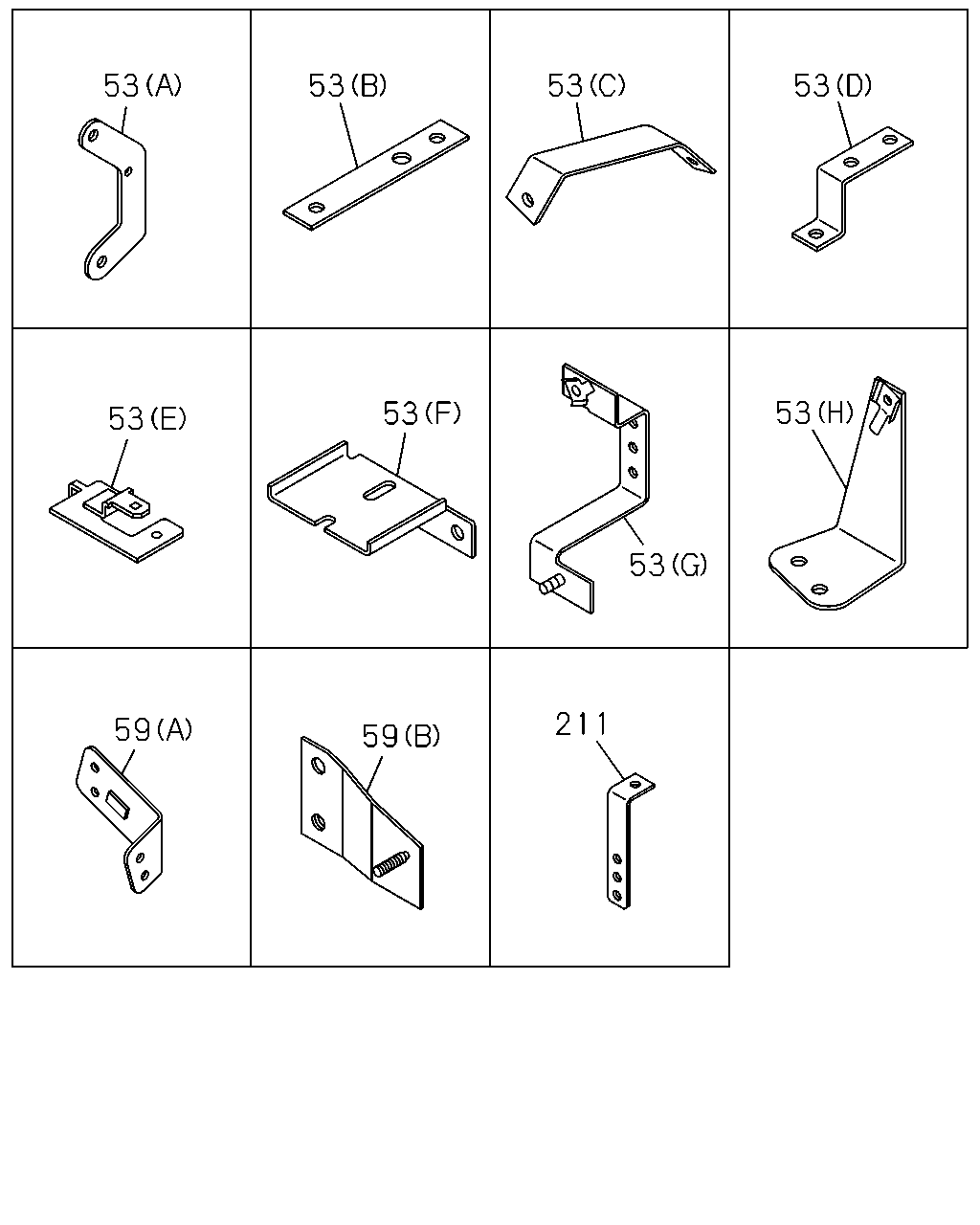

çizim 61167
53 53 53 53 53 53 53 53 211 59 59
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) 		1-83129-472-1 01 1 0804-
53 BRACKET; HARNESS
(B) L=105 		1-47477-409-0 01 1 0804-
53 BRACKET; HARNESS
(C) 		1-47479-537-0 09 1 0804-
53 BRACKET; HARNESS
(D) 		1-82698-382-0 01 1 0804-
53 BRACKET; HARNESS
(E) 		1-82698-495-2 01 1 0804-
53 BRACKET; HARNESS
(F) 		8-98032-696-0 01 1 0804-
53 BRACKET; HARNESS
(G) 		8-98050-989-0 01 1 0804-
53 BRACKET; HARNESS
(H) 		8-98052-592-0 01 1 0804-
59 BRACKET; FRAME HARNESS
(A) 		1-82698-531-0 01 1 0804-
59 BRACKET; FRAME HARNESS
(B) 		8-98061-135-1 01 1 0804-
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 0804-

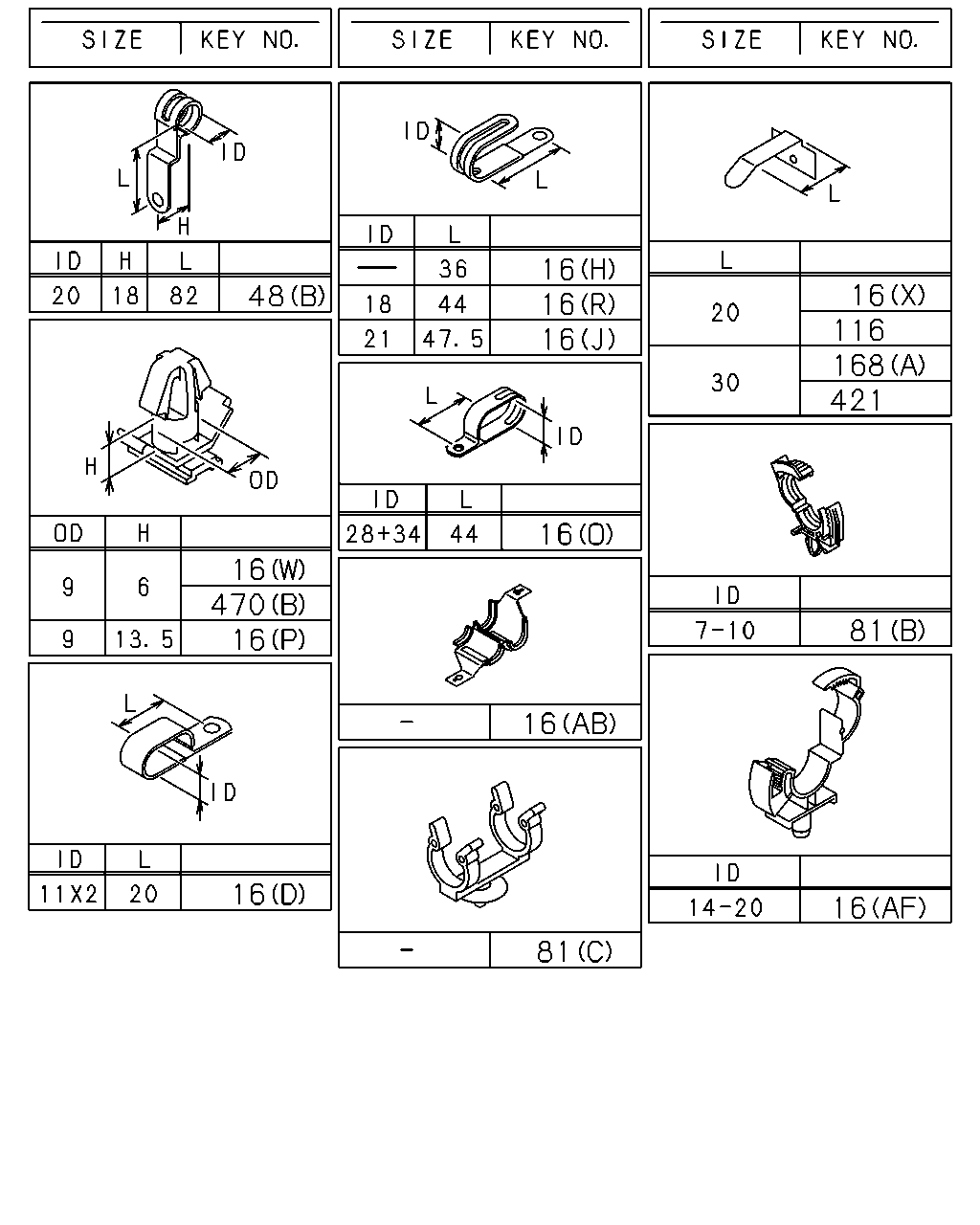

çizim 61184
16 16 16 16 116 168 421 48 16 16 470 16 81 16 16 16 81
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AJ) L=250 		5-09707-030-1 06 1 1410-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 03 1 1410-
16 CLIP; HARNESS
(AI) ID=11 L=28 		8-98036-081-0 01 1 1101-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 05 1 0909-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=25 L=54 		1-09700-392-1 01 1 0804-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=28 L=32 		1-09701-107-1 02 1 0804-1002
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=28 L=32 		1-09701-107-1 01 1 1003-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 10 1 0804-1409
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 09 1 1410-
16 CLIP; HARNESS
(N) ID=24 L=32 		1-09700-766-1 01 1 0804-
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 06 1 0804-0808
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 07 1 0809-
16 CLIP; HARNESS
(Z) ID=13-18 L=18 		1-09709-291-0 02 1 0804-
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 0804-1409
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 05 1 1410-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 0807-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
16 CLIP; HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
16 CLIP; HARNESS
(T) B=14 ID=11 L=20 		0-95235-032-0 01 1 0804-
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 01 1 0804-
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 04 1 0804-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 0804-
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 04 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0804-0908
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0909-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0909-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 1410-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0804-
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0804-
16 CLIP; HARNESS
HIGH ROOF<S2F> (X) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0804-
16 CLIP; HARNESS
(AC) ID=16 L=20 		0-95235-535-0 02 1 0804-
16 CLIP; HARNESS
(D) ID=11X2 L=20 		0-95325-035-0 02 1 0804-
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 02 1 0804-
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 0804-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0804-
16 CLIP; HARNESS
(E) ID=10 H=25 L=20 		1-09700-519-0 01 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0804-
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 03 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 0804-
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 0804-1012
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1101-
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 07 1 0804-0908
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 02 1 0909-
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 02 1 0804-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 05 1 0804-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 03 1 1410-
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 07 1 0804-
16 CLIP; HARNESS
(P) OD=9 H=13.5 		1-09709-180-0 01 1 0804-
16 CLIP; HARNESS
(V) ID=5-12 L=22 		1-09709-288-0 01 1 0804-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 0804-
16 CLIP; HARNESS
(AF) ID=14-20 		8-97061-603-0 03 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 04 1 0804-0806
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 03 1 0807-0908
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 01 1 0909-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 03 1 0804-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 05 1 0804-0806
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 04 1 0807-
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 01 1 0804-
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 0804-
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 03 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0804-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=18 		1-09709-291-0 01 1 0804-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0804-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 09 1 0804-
81 CLIP; HARNESS
(C) 		1-09709-313-0 02 1 0804-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0804-
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0804-0806
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 1410-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 07 1 0804-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0804-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 1410-
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 0804-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0804-
421 CLIP; FLOOR HARNESS
L=30 SET=10 PIECE 		1-09987-265-0 05 1 0804-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0804-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0804-
çizim 61192
119 524 219 294 340 515 525 127 423
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0804-
127 SCREW; FACIA HARNESS CLIP
M3X10 		9-93490-310-0 04 1 0804-
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0804-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0804-
219 NUT
M8 FLANGE 		0-91180-108-0 08 1 0804-0806
219 NUT
M8 FLANGE 		0-91180-108-0 07 1 0807-
294 NUT
M8 FLANGE 		0-91180-108-0 07 1 0804-
340 NUT; HARNESS CAB TO FRAME
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 05 1 0804-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 05 1 0804-0806
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0807-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0804-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0804-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804-
çizim 61205
224 599 1 1 1 1 530 16 178 178 178 178 178 178 16 104 212 16 104 16 48
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(D) ID=17 OD=21 L=40 		1-09337-012-0 01 1 0804-
1 SLEEVE; RUBBER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=38.1 L=50 		5-09360-835-0 01 1 0804-
1 SLEEVE; RUBBER
(A) ID=18 OD=22 L=25 		8-94412-773-0 01 1 0804-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0804-0806
16 CLIP; HARNESS
(AJ) L=250 		5-09707-030-1 06 1 1410-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 03 1 1410-
16 CLIP; HARNESS
(AI) ID=11 L=28 		8-98036-081-0 01 1 1101-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 05 1 0909-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=25 L=54 		1-09700-392-1 01 1 0804-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=28 L=32 		1-09701-107-1 02 1 0804-1002
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=28 L=32 		1-09701-107-1 01 1 1003-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 10 1 0804-1409
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 09 1 1410-
16 CLIP; HARNESS
(N) ID=24 L=32 		1-09700-766-1 01 1 0804-
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 06 1 0804-0808
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 07 1 0809-
16 CLIP; HARNESS
(Z) ID=13-18 L=18 		1-09709-291-0 02 1 0804-
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 0804-1409
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 05 1 1410-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 0807-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
16 CLIP; HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
16 CLIP; HARNESS
(T) B=14 ID=11 L=20 		0-95235-032-0 01 1 0804-
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 01 1 0804-
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 04 1 0804-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 0804-
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 04 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0804-0908
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0909-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0909-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 1410-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0804-
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0804-
16 CLIP; HARNESS
HIGH ROOF<S2F> (X) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0804-
16 CLIP; HARNESS
(AC) ID=16 L=20 		0-95235-535-0 02 1 0804-
16 CLIP; HARNESS
(D) ID=11X2 L=20 		0-95325-035-0 02 1 0804-
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 02 1 0804-
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 0804-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0804-
16 CLIP; HARNESS
(E) ID=10 H=25 L=20 		1-09700-519-0 01 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0804-
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 03 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 0804-
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 0804-1012
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1101-
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 07 1 0804-0908
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 02 1 0909-
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 02 1 0804-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 05 1 0804-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 03 1 1410-
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 07 1 0804-
16 CLIP; HARNESS
(P) OD=9 H=13.5 		1-09709-180-0 01 1 0804-
16 CLIP; HARNESS
(V) ID=5-12 L=22 		1-09709-288-0 01 1 0804-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 0804-
16 CLIP; HARNESS
(AF) ID=14-20 		8-97061-603-0 03 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 04 1 0804-0806
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 03 1 0807-0908
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 01 1 0909-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 03 1 0804-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 05 1 0804-0806
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 04 1 0807-
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 01 1 0804-
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 0804-
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 03 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0804-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=18 		1-09709-291-0 01 1 0804-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0804-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 09 1 0804-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 06 1 0804-
104 CLIP; HEADLAMP HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 0804-
104 CLIP; HEADLAMP HARNESS
(B) L=250 		5-09707-030-1 02 1 0804-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 06 1 0804-
178 GROMMET; HARNESS
(B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 03 1 0804-
178 GROMMET; HARNESS
(D) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0804-
178 GROMMET; HARNESS
(A) ID=39 OD=45 T=19 		1-09332-077-0 01 1 0804-
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0804-
178 GROMMET; HARNESS
(F) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0804-
178 GROMMET; HARNESS
(E) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0804-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0804-
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 0804-
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0804-
212 CLIP; HORN HARNESS
(E) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0804-
212 CLIP; HORN HARNESS
(F) L=300 		1-09707-001-1 01 1 0804-0806
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0804-0806
212 CLIP; HORN HARNESS
(C) ID=5-12 L=18 		1-09709-287-0 01 1 0804-0908
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 03 1 0804-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0804-0806
530 SEAL; HARNESS
LOW ROOF<6XQ> 100X40 		1-72498-022-1 01 1 0804-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 0804-
599 TUBE; DISTANCE
ID=8.5 L=10 		5-13642-077-0 04 1 0804-

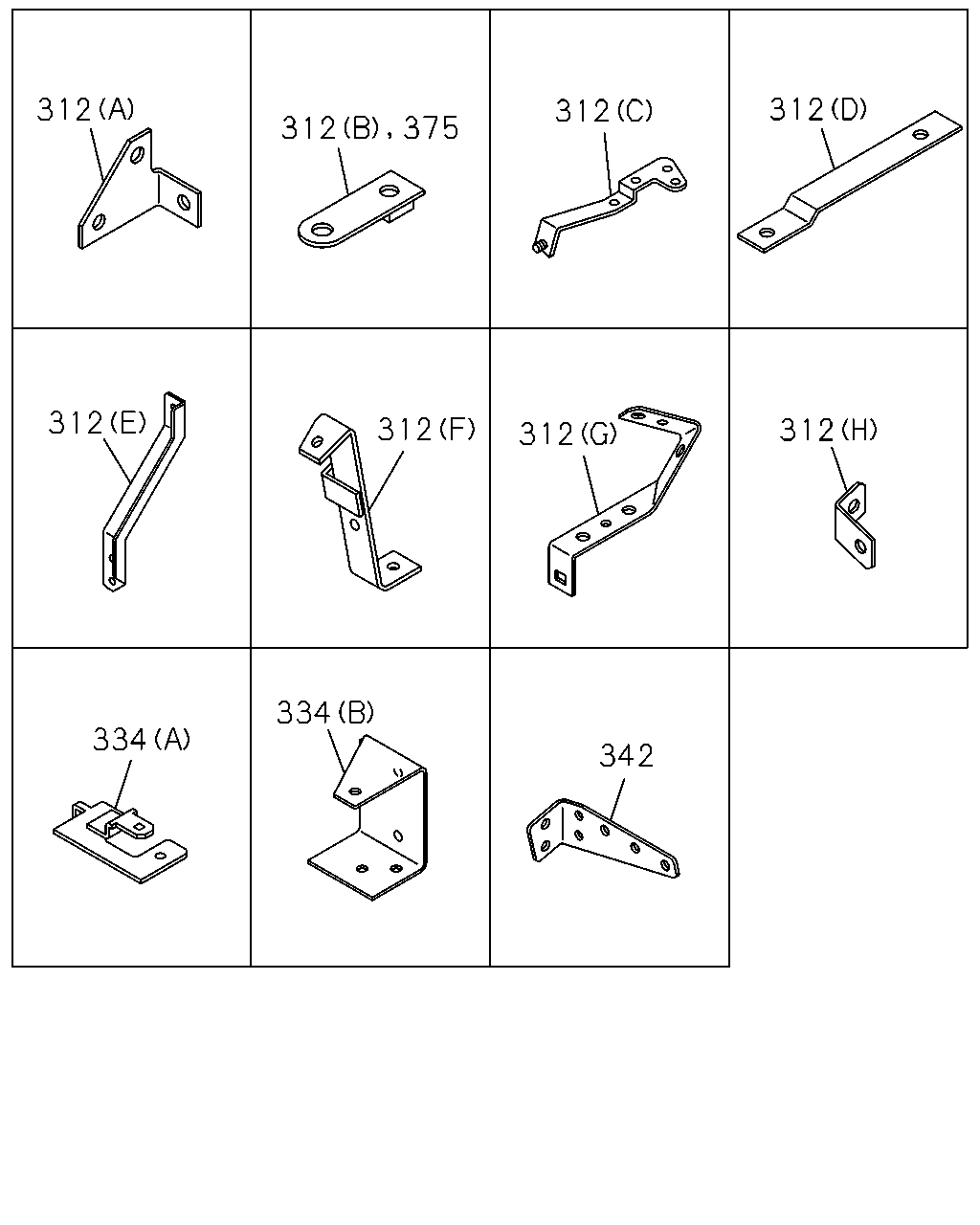

çizim 61277
312 312 312 312 312 312 312 334 334 342 312 375
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
(F) L=195.5 		1-82698-502-0 01 1 0804-
312 BRACKET; CLIP HARNESS
(G) 		1-82698-556-0 01 1 0804-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-570-0 01 1 0804-
312 BRACKET; CLIP HARNESS
(B) 		1-82699-182-0 01 1 0804-
312 BRACKET; CLIP HARNESS
(H) 		1-82699-199-0 01 1 0804-
312 BRACKET; CLIP HARNESS
(D) 		8-98035-927-1 01 1 0804-
312 BRACKET; CLIP HARNESS
(E) 		8-98052-591-0 01 1 0804-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-82698-443-0 01 1 0804-
334 BRACKET
(B) 		1-53457-153-2 01 1 0804-
334 BRACKET
(A) 		1-82698-495-2 01 1 0804-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0804-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0804-

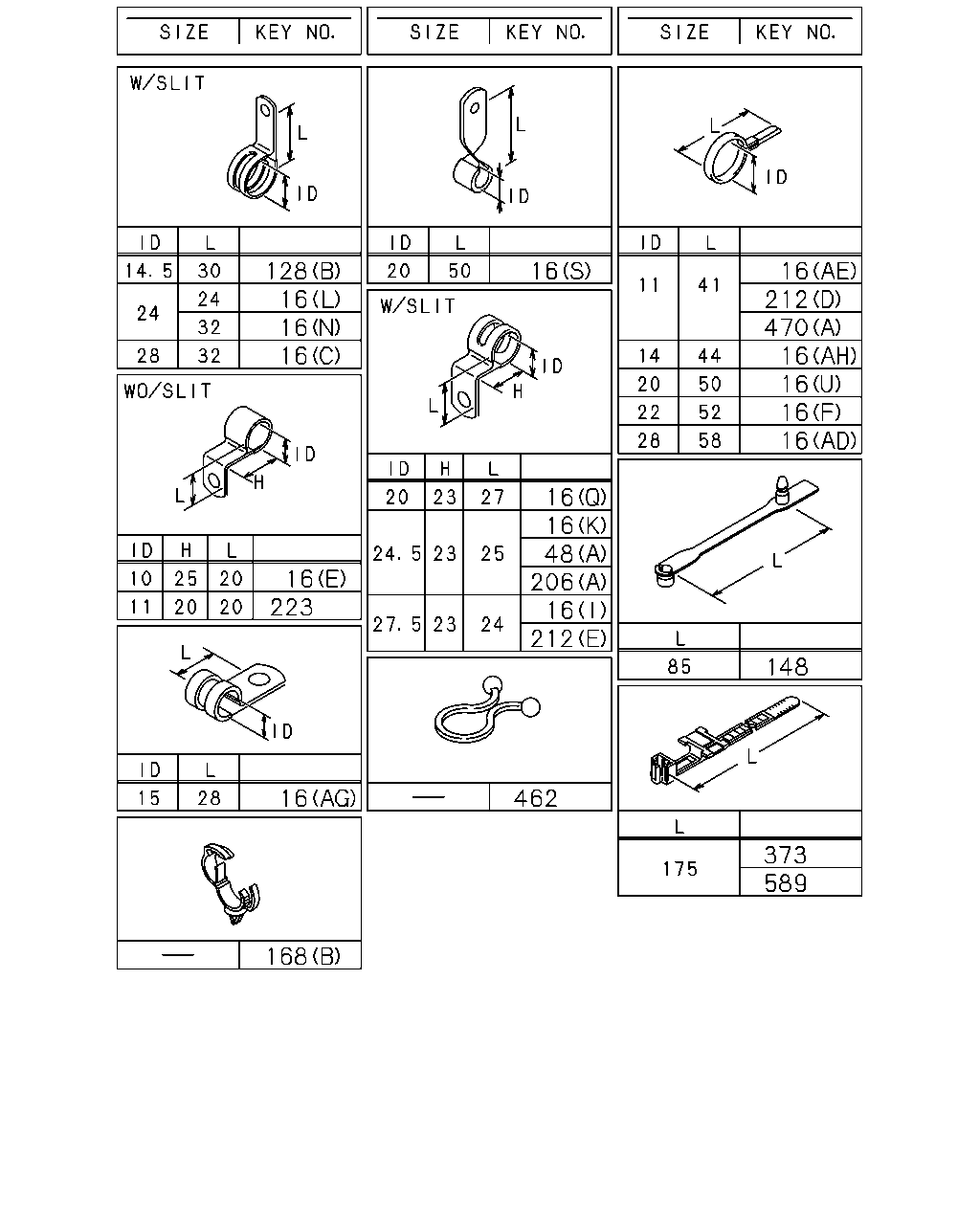

çizim 61399
128 16 16 16 16 223 16 168 16 16 16 48 206 16 212 462 16 212 470 16 16 16 16 148 373 589
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AJ) L=250 		5-09707-030-1 06 1 1410-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 03 1 1410-
16 CLIP; HARNESS
(AI) ID=11 L=28 		8-98036-081-0 01 1 1101-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 05 1 0909-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=25 L=54 		1-09700-392-1 01 1 0804-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=28 L=32 		1-09701-107-1 02 1 0804-1002
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=28 L=32 		1-09701-107-1 01 1 1003-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 10 1 0804-1409
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 09 1 1410-
16 CLIP; HARNESS
(N) ID=24 L=32 		1-09700-766-1 01 1 0804-
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 06 1 0804-0808
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 07 1 0809-
16 CLIP; HARNESS
(Z) ID=13-18 L=18 		1-09709-291-0 02 1 0804-
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 0804-1409
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 05 1 1410-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 0807-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
16 CLIP; HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
16 CLIP; HARNESS
(T) B=14 ID=11 L=20 		0-95235-032-0 01 1 0804-
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 01 1 0804-
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 04 1 0804-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 0804-
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 04 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0804-0908
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0909-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0909-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 1410-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0804-
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0804-
16 CLIP; HARNESS
HIGH ROOF<S2F> (X) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0804-
16 CLIP; HARNESS
(AC) ID=16 L=20 		0-95235-535-0 02 1 0804-
16 CLIP; HARNESS
(D) ID=11X2 L=20 		0-95325-035-0 02 1 0804-
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 02 1 0804-
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 0804-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0804-
16 CLIP; HARNESS
(E) ID=10 H=25 L=20 		1-09700-519-0 01 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0804-
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 03 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 0804-
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 0804-1012
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1101-
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 07 1 0804-0908
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 02 1 0909-
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 02 1 0804-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 05 1 0804-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 03 1 1410-
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 07 1 0804-
16 CLIP; HARNESS
(P) OD=9 H=13.5 		1-09709-180-0 01 1 0804-
16 CLIP; HARNESS
(V) ID=5-12 L=22 		1-09709-288-0 01 1 0804-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 0804-
16 CLIP; HARNESS
(AF) ID=14-20 		8-97061-603-0 03 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 04 1 0804-0806
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 03 1 0807-0908
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 01 1 0909-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 03 1 0804-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 05 1 0804-0806
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 04 1 0807-
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 01 1 0804-
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 0804-
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 03 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0804-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=18 		1-09709-291-0 01 1 0804-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0804-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 09 1 0804-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0804-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0804-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 03 1 0804-
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 0804-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0804-
206 CLIP; FUEL TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 03 1 0804-0808
206 CLIP; FUEL TANK HARNESS
(C) L=250 		5-09707-030-1 03 1 0809-
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 0804-
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0804-
212 CLIP; HORN HARNESS
(E) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0804-
212 CLIP; HORN HARNESS
(F) L=300 		1-09707-001-1 01 1 0804-0806
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0804-0806
212 CLIP; HORN HARNESS
(C) ID=5-12 L=18 		1-09709-287-0 01 1 0804-0908
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 03 1 0804-
223 CLIP; AIR TANK HARNESS
ID=11 H=20 L=20 		8-98033-780-0 01 1 0804-
373 CLIP; BAND,GEN HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175 		1-09707-176-1 01 1 1407-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20 		1-09709-068-0 02 1 0804-
470 CLIP; HARNESS,LICENSE LAMP
(A) ID=11 L=41 		1-09700-403-0 01 1 0804-
470 CLIP; HARNESS,LICENSE LAMP
(B) OD=9 H=6 		1-09709-178-0 01 1 0804-
589 CLIP; GLOW PLUG
GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175 		1-09707-176-1 01 1 1407-

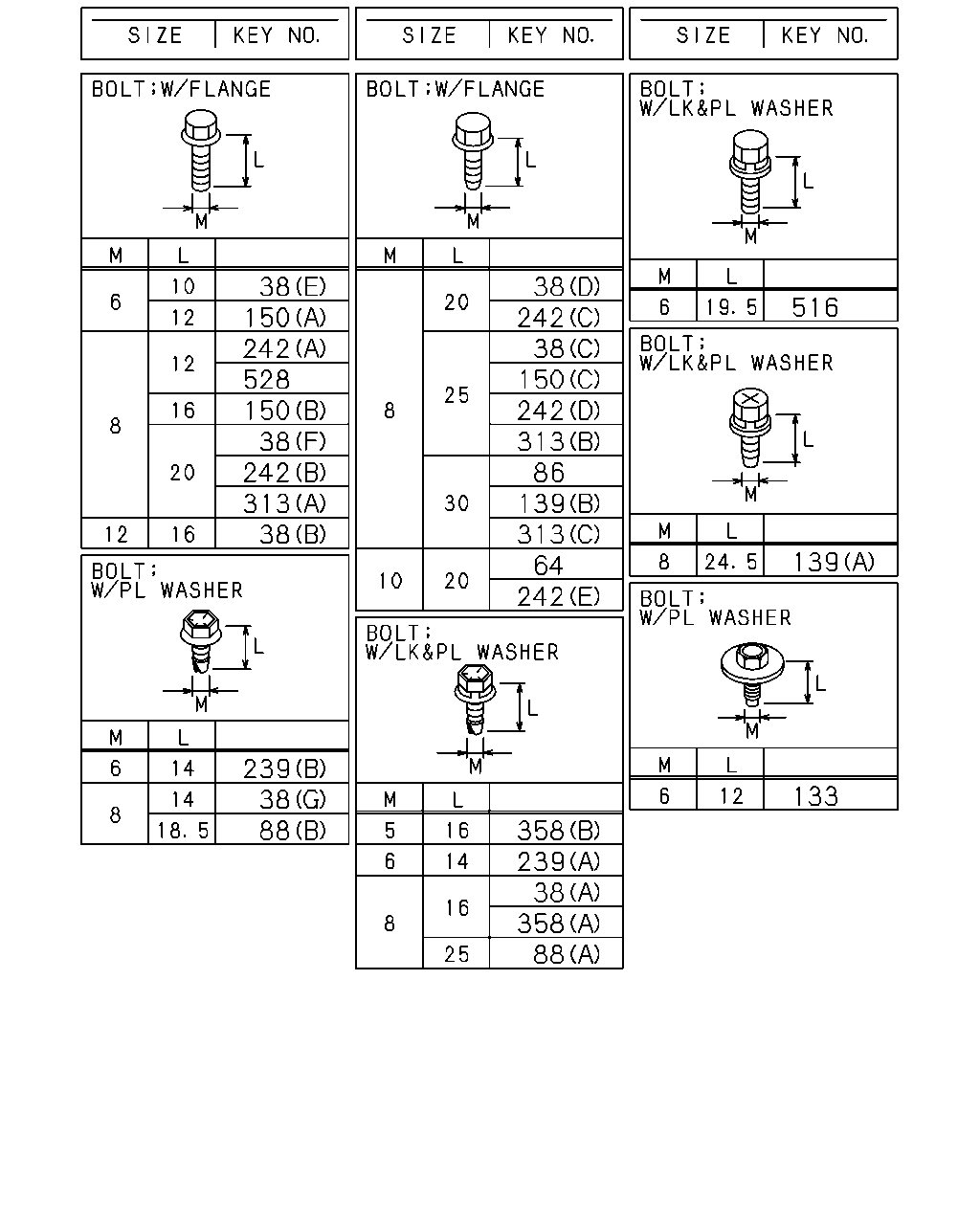

çizim 61456
38 150 242 528 150 38 242 313 38 38 242 38 150 242 313 86 139 313 64 242 516 139 239 38 88 133 358 239 38 358 88
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (E) M6X10 FLANGE 		0-28050-610-0 01 1 0804-
38 BOLT; CLIP,HARNESS
(F) M8X20 FLANGE 		0-28050-820-0 05 1 0804-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0804-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 02 1 0804-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 08 1 0804-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0804-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0804-0808
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 05 1 0809-
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		1-09044-079-0 01 1 0804-1105
38 BOLT; CLIP,HARNESS
(B) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0804-1201
38 BOLT; CLIP,HARNESS
(G) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
64 SCREW; CLIP
M10X20 FLANGE 		0-28751-020-0 01 1 0804-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0804-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0804-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0804-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0804-
139 BOLT; BRKT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0804-0904
139 BOLT; BRKT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0804-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 05 1 0804-
150 BOLT; CLIP
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0804-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0804-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0804-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 04 1 0804-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 04 1 0804-
242 BOLT; BRKT,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 0804-
242 BOLT; BRKT,HARNESS
(E) M10X20 FLANGE 		0-28651-020-0 02 1 0804-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0804-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 07 1 0804-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0804-
358 BOLT; EARTH
(B) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0804-
358 BOLT; EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0804-0806
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0804-
528 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 01 1 0804-

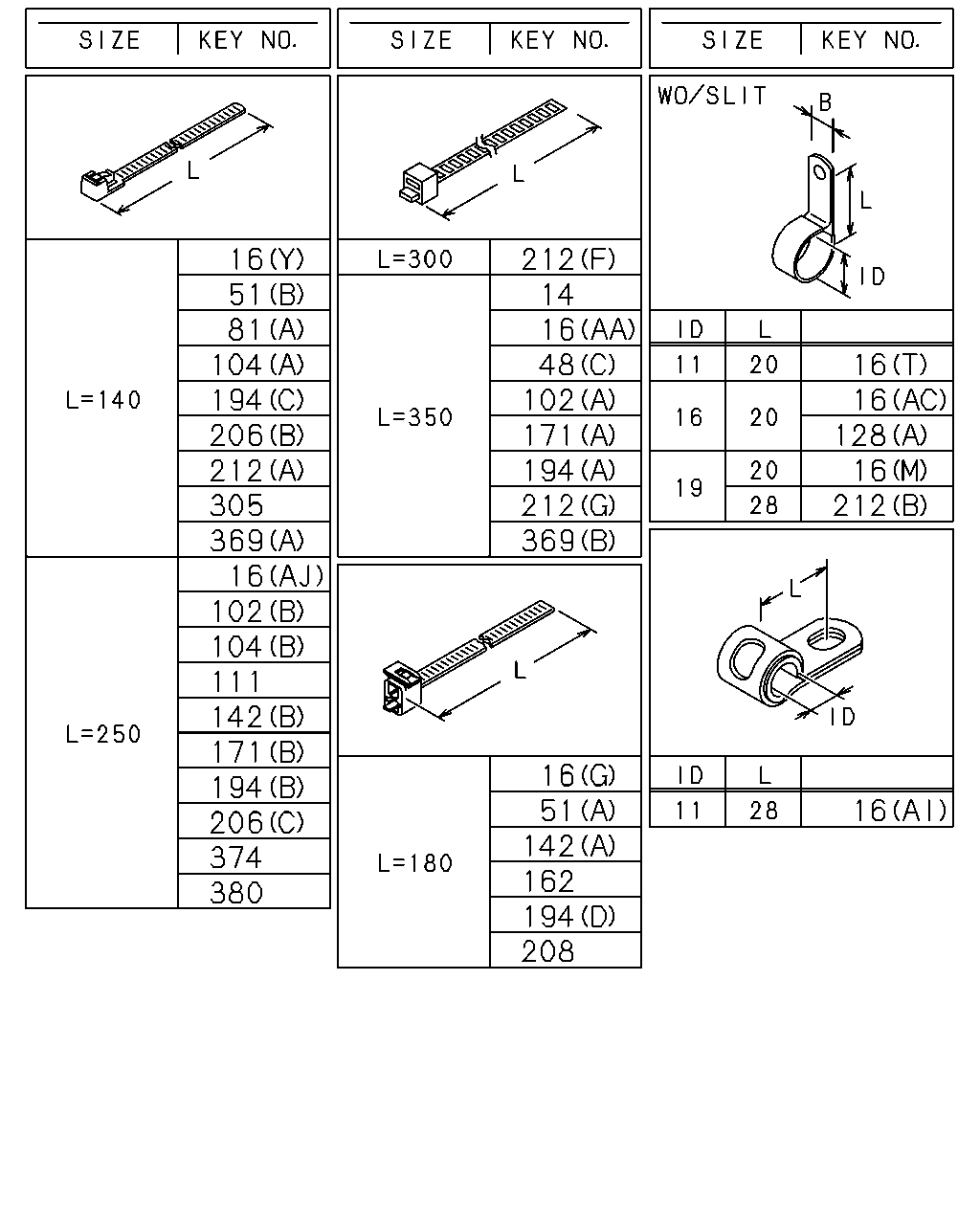

çizim 101696
16 51 81 104 194 206 212 305 369 16 102 104 111 142 171 194 206 374 380 212 14 16 48 102 171 194 212 369 16 16 128 16 212 16 16 51 142 162 194 208
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=350 		1-09707-183-0 04 1 0804-
16 CLIP; HARNESS
(AJ) L=250 		5-09707-030-1 06 1 1410-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 03 1 1410-
16 CLIP; HARNESS
(AI) ID=11 L=28 		8-98036-081-0 01 1 1101-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 05 1 0909-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=25 L=54 		1-09700-392-1 01 1 0804-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=28 L=32 		1-09701-107-1 02 1 0804-1002
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=28 L=32 		1-09701-107-1 01 1 1003-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 10 1 0804-1409
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 09 1 1410-
16 CLIP; HARNESS
(N) ID=24 L=32 		1-09700-766-1 01 1 0804-
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 06 1 0804-0808
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 07 1 0809-
16 CLIP; HARNESS
(Z) ID=13-18 L=18 		1-09709-291-0 02 1 0804-
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 06 1 0804-1409
16 CLIP; HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 05 1 1410-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 02 1 0807-
16 CLIP; HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
16 CLIP; HARNESS
(K) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
16 CLIP; HARNESS
(T) B=14 ID=11 L=20 		0-95235-032-0 01 1 0804-
16 CLIP; HARNESS
(M) ID=19 L=20 		0-95235-836-0 01 1 0804-
16 CLIP; HARNESS
(J) ID=21 L=47.5 		8-94178-108-0 04 1 0804-
16 CLIP; HARNESS
(H) L=36 		8-94224-891-1 02 1 0804-
16 CLIP; HARNESS
(R) ID=18 L=44 		8-97367-985-1 04 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0804-0908
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0909-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 0909-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 02 1 1410-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(T) B=18 ID=11 L=20 		0-95235-035-0 02 1 0804-
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0804-
16 CLIP; HARNESS
(I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0804-
16 CLIP; HARNESS
HIGH ROOF<S2F> (X) L=20 SET=10 PIECE 		1-09987-246-2 04 1 0804-
16 CLIP; HARNESS
(AC) ID=16 L=20 		0-95235-535-0 02 1 0804-
16 CLIP; HARNESS
(D) ID=11X2 L=20 		0-95325-035-0 02 1 0804-
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 02 1 0804-
16 CLIP; HARNESS
(AD) ID=28 L=58 		1-09700-400-0 04 1 0804-
16 CLIP; HARNESS
(AE) ID=11 L=41 		1-09700-403-0 01 1 0804-
16 CLIP; HARNESS
(E) ID=10 H=25 L=20 		1-09700-519-0 01 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50 		1-09700-679-1 01 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 0804-
16 CLIP; HARNESS
(Q) ID=20 H=23 L=27 		1-09700-861-0 03 1 0804-
16 CLIP; HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24 		1-09701-001-1 01 1 0804-
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 02 1 0804-1012
16 CLIP; HARNESS
(AG) ID=15 L=28 		1-09701-216-0 01 1 1101-
16 CLIP; HARNESS
(O) ID=28+34 L=44 		1-09701-311-0 01 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 07 1 0804-0908
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 02 1 0909-
16 CLIP; HARNESS
(AA) L=350 		1-09707-183-0 02 1 0804-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 05 1 0804-1409
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 03 1 1410-
16 CLIP; HARNESS
(W) OD=9 H=6 		1-09709-178-0 07 1 0804-
16 CLIP; HARNESS
(P) OD=9 H=13.5 		1-09709-180-0 01 1 0804-
16 CLIP; HARNESS
(V) ID=5-12 L=22 		1-09709-288-0 01 1 0804-
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 0804-
16 CLIP; HARNESS
(AF) ID=14-20 		8-97061-603-0 03 1 0804-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 04 1 0804-0806
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 03 1 0807-0908
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 01 1 0909-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 03 1 0804-
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 05 1 0804-0806
16 CLIP; HARNESS
(AH) ID=14 L=44 		9-09917-427-0 04 1 0807-
16 CLIP; HARNESS
(U) ID=20 L=50 		9-09917-430-0 01 1 0804-
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 01 1 0804-
16 CLIP; HARNESS
(F) ID=22 L=52 		9-09917-431-0 03 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0804-
16 CLIP; HARNESS
(G) L=180 		1-09707-162-1 01 1 0804-
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=18 		1-09709-291-0 01 1 0804-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0804-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 09 1 0804-
51 CLIP; COOLER CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=180 		1-09707-162-1 01 1 0804-
51 CLIP; COOLER CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) L=140 		5-09707-031-1 01 1 0804-
81 CLIP; HARNESS
(C) 		1-09709-313-0 02 1 0804-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0804-
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0804-0806
102 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 0809-
102 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 0804-
104 CLIP; HEADLAMP HARNESS
(C) ID=13-18 L=14.5 		1-09709-290-0 06 1 0804-
104 CLIP; HEADLAMP HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 0804-
104 CLIP; HEADLAMP HARNESS
(B) L=250 		5-09707-030-1 02 1 0804-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 06 1 0804-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0804-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0804-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0804-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0804-1207
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
(B) L=250 		5-09707-030-1 01 1 0804-1205
142 CLIP; HARNESS,ENG
(B) L=250 		8-98216-430-0 01 1 1206-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0804-
171 CLIP; STARTER HARNESS
(A) L=350 		1-09707-183-0 02 1 0804-
171 CLIP; STARTER HARNESS
(B) L=250 		5-09707-030-1 04 1 0804-
194 CLIP; BAND
(A) L=350 		1-09707-183-0 07 1 0909-1409
194 CLIP; BAND
(A) L=350 		1-09707-183-0 03 1 1410-
194 CLIP; BAND
(D) L=180 		1-09707-162-1 03 1 0804-
194 CLIP; BAND
(A) L=350 		1-09707-183-0 09 1 0804-0908
194 CLIP; BAND
(A) L=350 		1-09707-183-0 02 1 0909-
194 CLIP; BAND
(B) L=250 		5-09707-030-1 06 1 0804-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0804-
206 CLIP; FUEL TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0804-
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 03 1 0804-0808
206 CLIP; FUEL TANK HARNESS
(C) L=250 		5-09707-030-1 03 1 0809-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0804-
212 CLIP; HORN HARNESS
(B) ID=19 L=28 		0-95235-856-0 01 1 0804-
212 CLIP; HORN HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0804-
212 CLIP; HORN HARNESS
(E) ID=27.5 H=23 L=24 		1-09700-863-0 03 1 0804-
212 CLIP; HORN HARNESS
(F) L=300 		1-09707-001-1 01 1 0804-0806
212 CLIP; HORN HARNESS
(G) L=350 		1-09707-183-0 01 1 0804-0806
212 CLIP; HORN HARNESS
(C) ID=5-12 L=18 		1-09709-287-0 01 1 0804-0908
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 03 1 0804-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0804-
369 CLIP; BAND EDS HARNESS
(B) L=350 		1-09707-183-0 02 1 0804-
369 CLIP; BAND EDS HARNESS
(A) L=140 		5-09707-031-1 01 1 0804-
374 CLIP; BAND AXLE HARNESS
L=250 		1-09707-126-0 02 1 0804-
380 CLIP; EARTH HARNESS
L=250 		5-09707-030-1 01 1 0809-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
