8-10 — WIRING HARNESS AND FUSE (#15447) — 121 parça

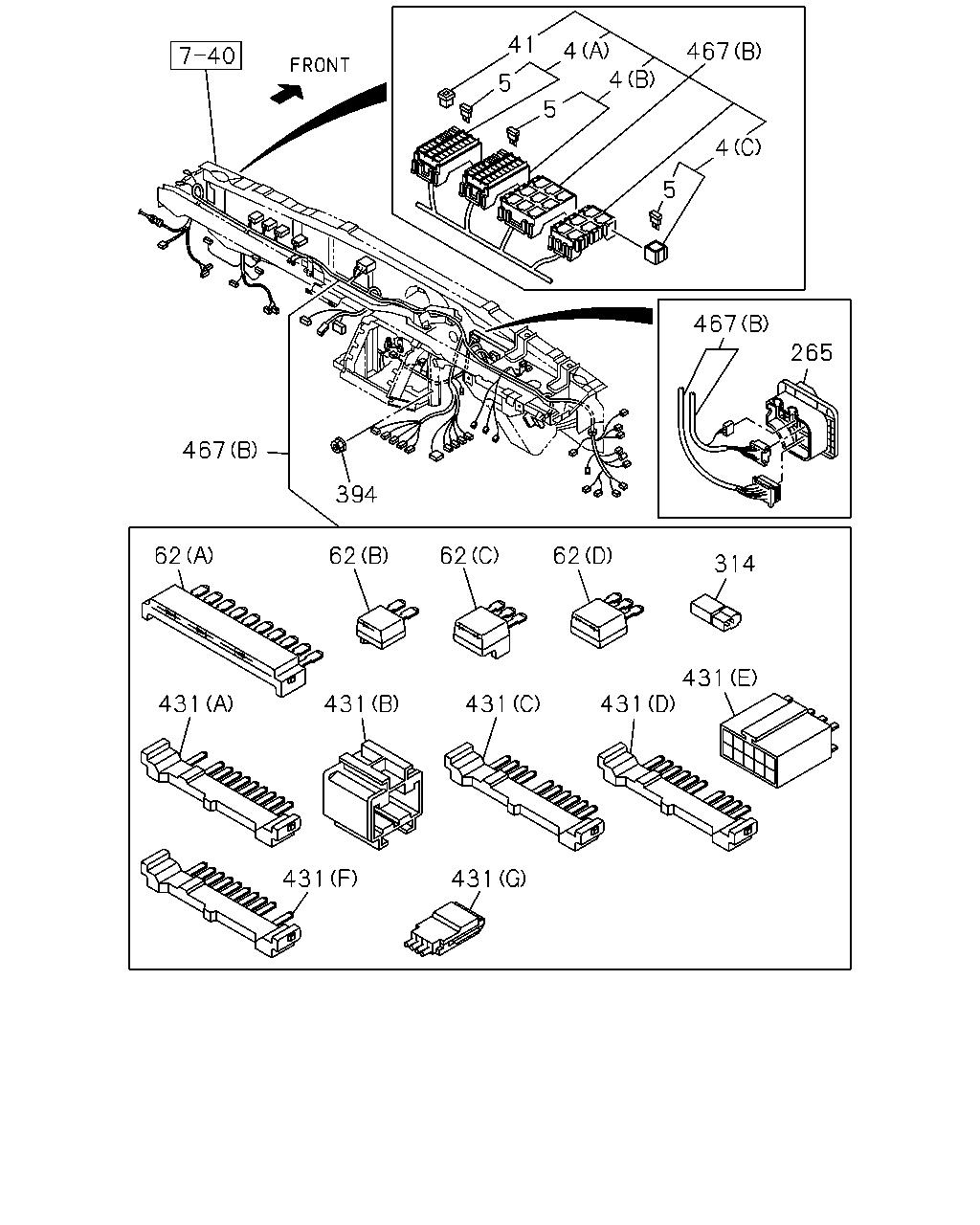

çizim 61163
41 4 4 467 5 5 4 5 467 265 467 394 62 62 62 62 314 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 0804-
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 0804-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 0804-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 0804-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 0804-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0804-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 22 1 0804-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0804-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 0804-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0804-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 11 1 0804-0907
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 08 1 0908-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0804-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0804-
314 RESISTOR; HARNESS
RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0804-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0804-
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 0804-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 0804-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 0804-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 0804-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 08 1 0804-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 0804-
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 13 1 0804-
467 HARNESS; FACIA
(B) 		8-97618-828-6 01 1 0804-0907
467 HARNESS; FACIA
(B) 		8-97634-134-0 01 1 0908-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0804-

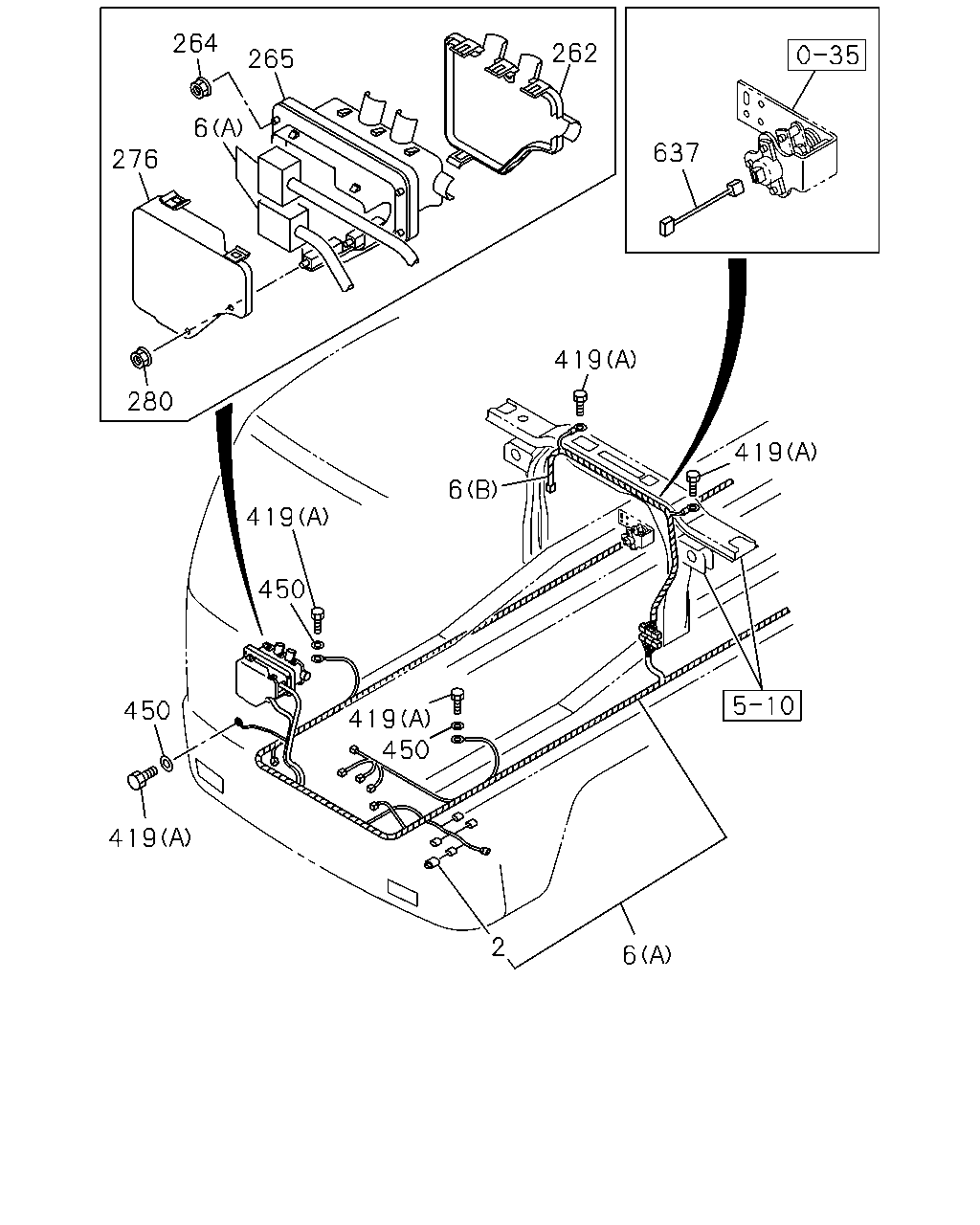

çizim 61173
264 262 265 6 637 276 419 280 419 6 419 450 450 419 450 419 2 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0804-
6 HARNESS; FRAME
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 		8-97627-220-1 01 1 0804-
6 HARNESS; FRAME
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 		8-97618-833-4 01 1 0804-
6 HARNESS; FRAME
(B) 		8-97618-839-2 01 1 0804-0806
6 HARNESS; FRAME
(B) 		8-98123-158-0 01 1 0807-1012
6 HARNESS; FRAME
(B) 		8-97639-922-0 01 1 1101-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0804-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0804-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0804-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 0804-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0804-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0804-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0804-0809
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0804-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0804-

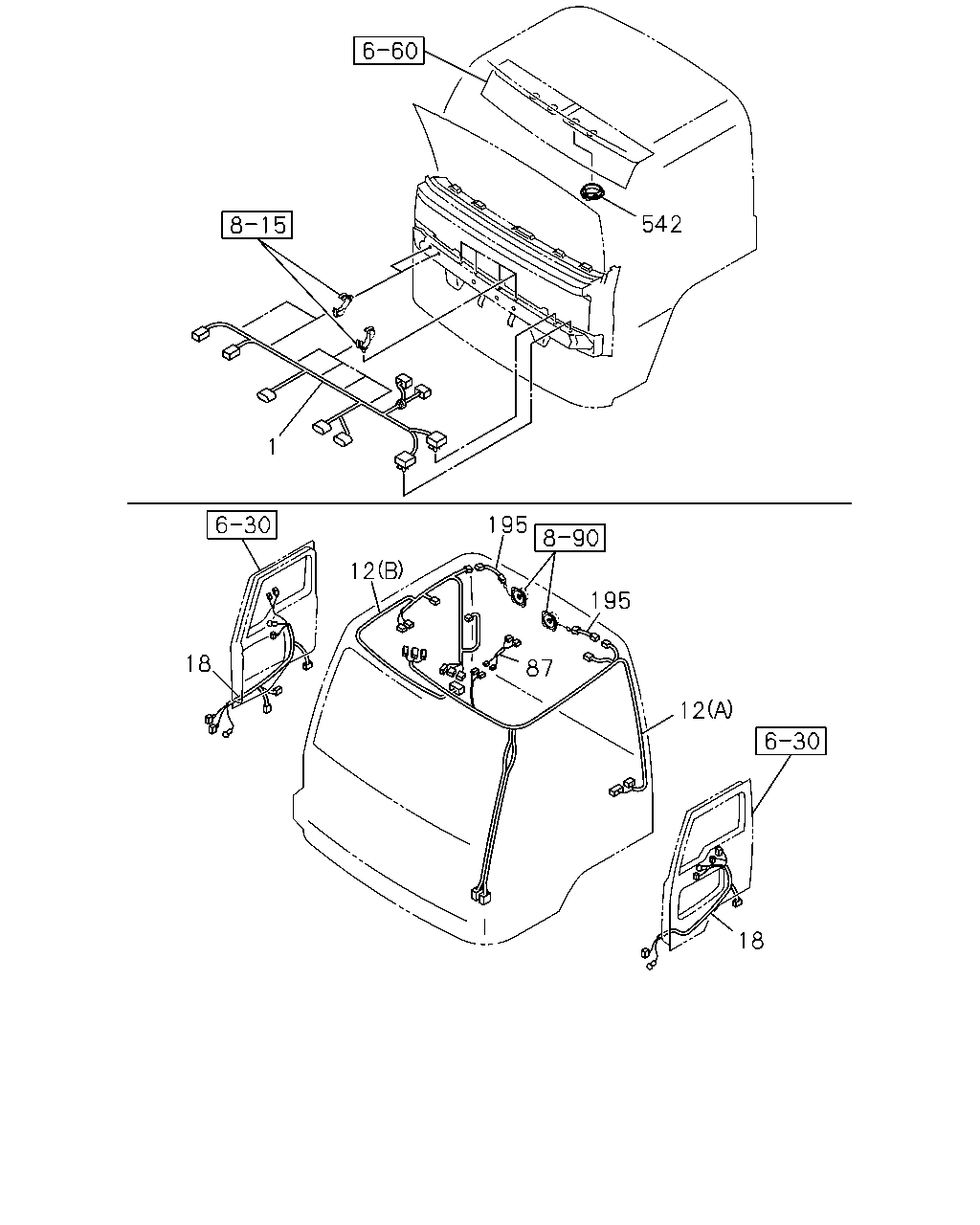

çizim 61174
542 1 195 12 195 18 87 12 18
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 1-82629-239-1 01 1 0804-
12 HARNESS; ROOF
HIGH ROOF<S2F> (A) 		8-97622-963-1 01 1 0804-
12 HARNESS; ROOF
LOW ROOF<6XQ> (A) 		8-97611-861-1 01 1 0804-
12 HARNESS; ROOF
(B) 		8-97611-862-0 01 1 0804-
18 HARNESS; DOOR 1-82628-582-0 01 1 0804-
18 HARNESS; DOOR 8-97618-826-1 01 1 0804-
87 HARNESS; EXT,ROOM LAMP
HIGH ROOF<S2F> 		1-82661-333-0 01 1 0804-
195 HARNESS; EXT
HIGH ROOF<S2F> 		1-82625-300-1 02 1 0804-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0804-
çizim 61183
231 453 175
BalonParca AdiParca NoAdetTipApplied Date
175 BOX; CONNECTOR 1-82569-435-1 01 1 0804-
231 HARNESS; TRANS 8-97619-344-3 01 1 0804-
453 PROTECTOR; HARNESS 8-98213-847-1 01 1 1207-

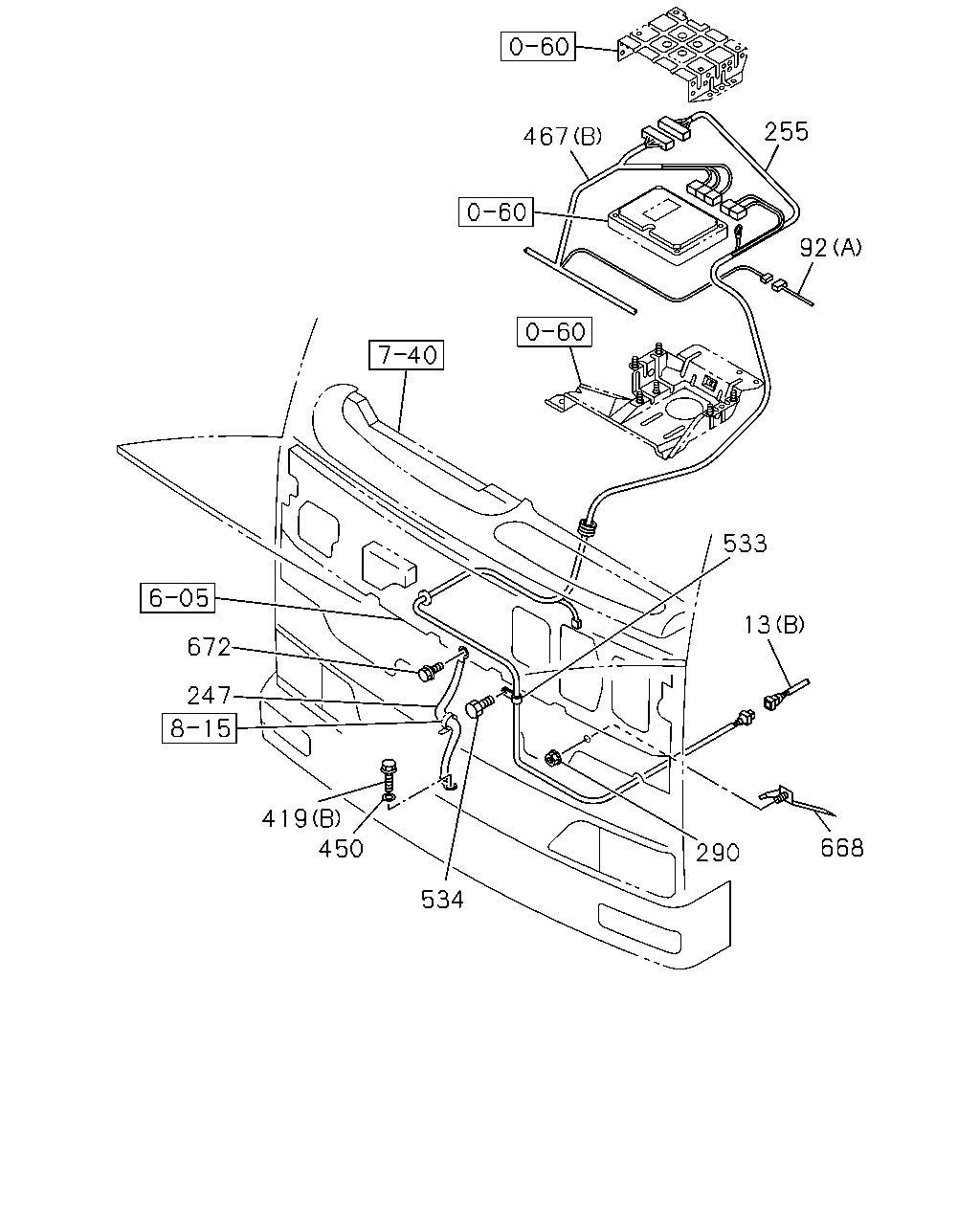

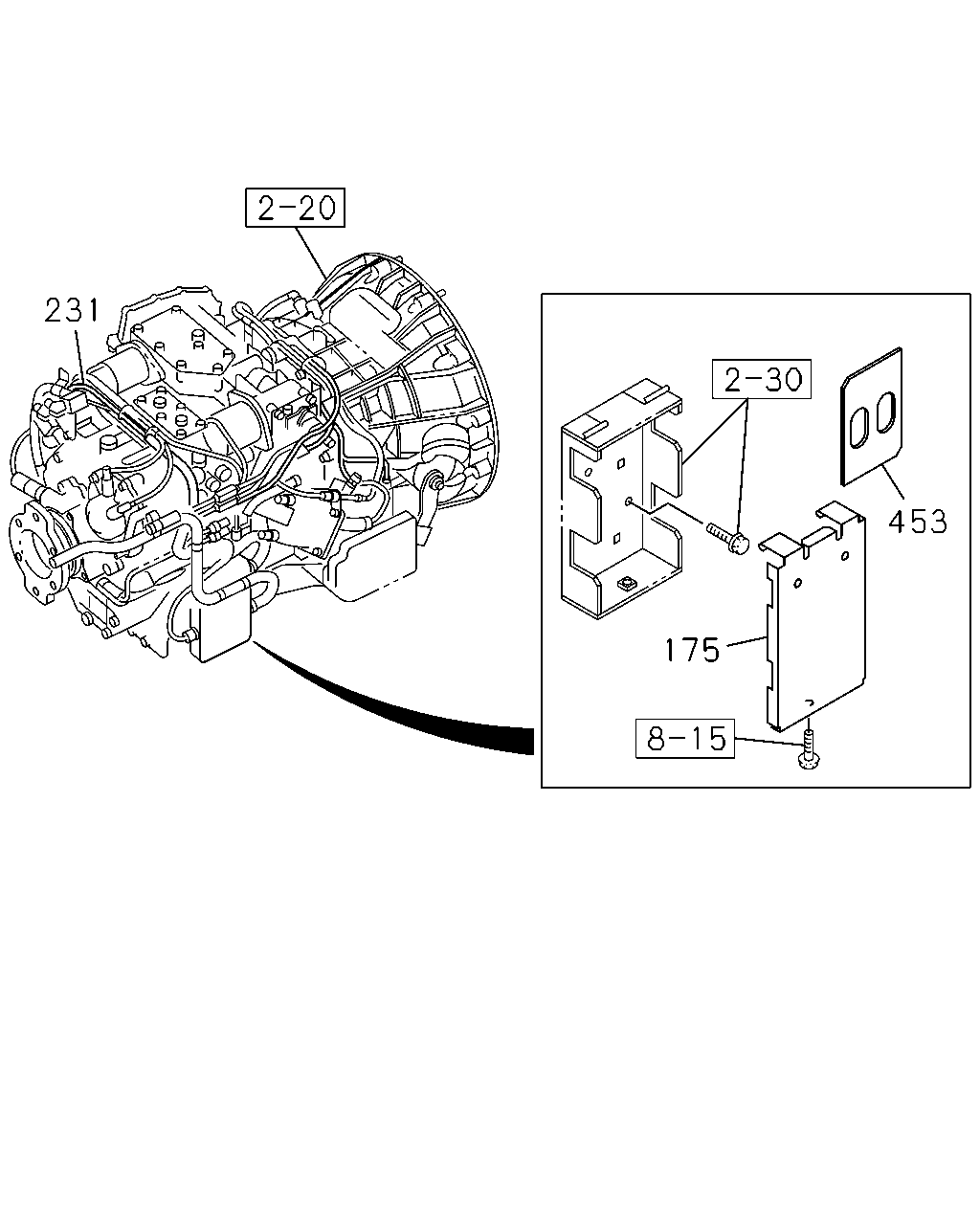

çizim 61186
467 255 92 533 13 668 290 534 450 419 247 672
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97617-391-0 01 1 0804-
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0804-
92 HARNESS; FLOOR
(B) 		8-97618-830-3 01 1 0804-
92 HARNESS; FLOOR
(A) 		8-97618-831-1 01 1 0804-1210
92 HARNESS; FLOOR
(A) 		8-98229-073-0 01 1 1211-
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0804-
255 HARNESS; ELEC GOV 1-82662-307-3 01 1 0804-1210
255 HARNESS; ELEC GOV 8-98229-084-0 01 1 1211-
290 NUT; BRKT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE 		0-91180-108-0 01 1 0804-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0804-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0804-0809
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0804-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0804-
467 HARNESS; FACIA
(B) 		8-97618-828-6 01 1 0804-0907
467 HARNESS; FACIA
(B) 		8-97634-134-0 01 1 0908-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0804-
533 CLIP
ID=28 & 34 L=63 		1-09701-310-0 01 1 0804-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0804-
668 BRACKET; HARNESS
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-82698-415-1 01 1 0804-
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0804-1309
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310-

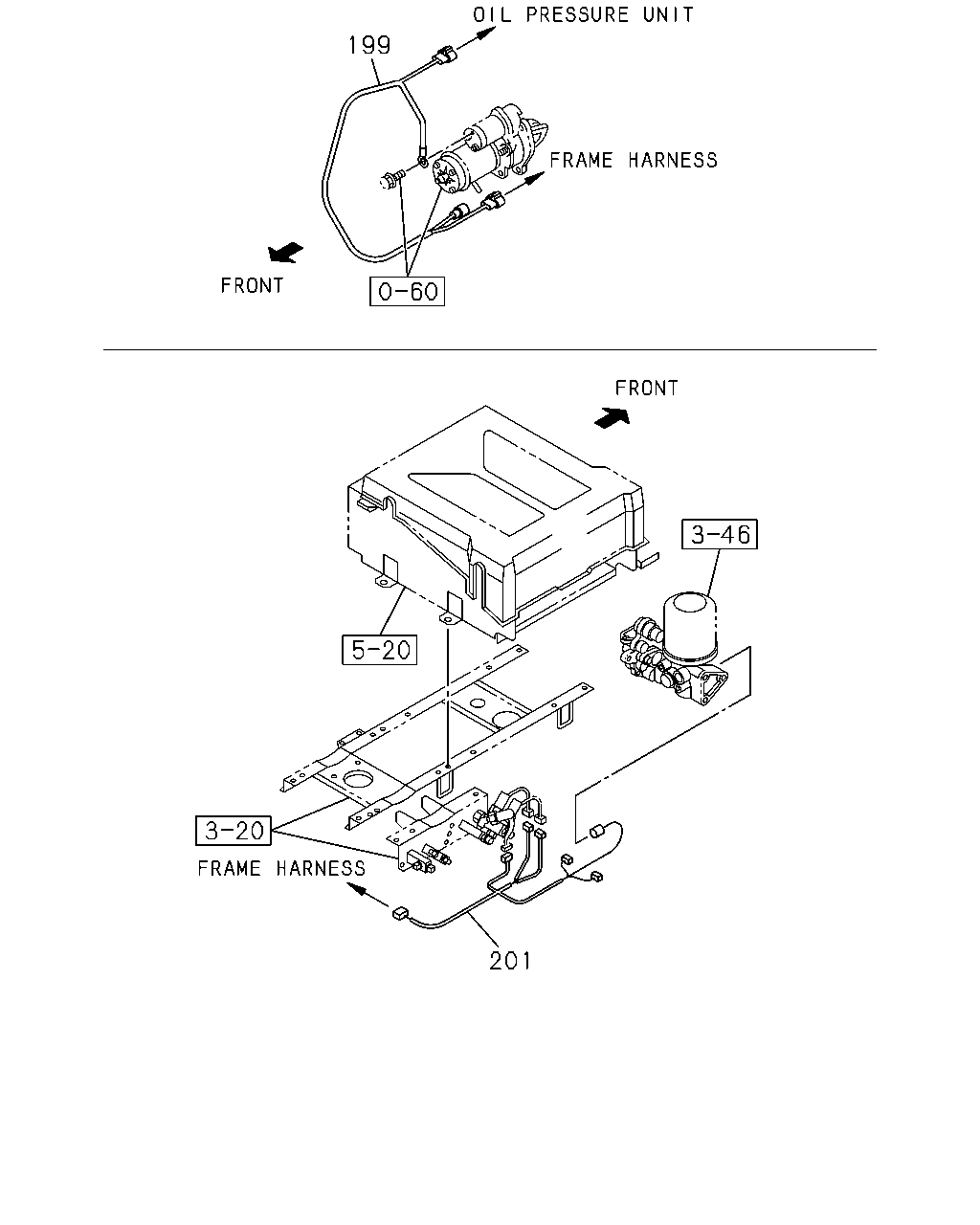

çizim 61279
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 8-97607-313-0 01 1 0804-
201 HARNESS; AIR TANK 8-97618-837-1 01 1 0804-

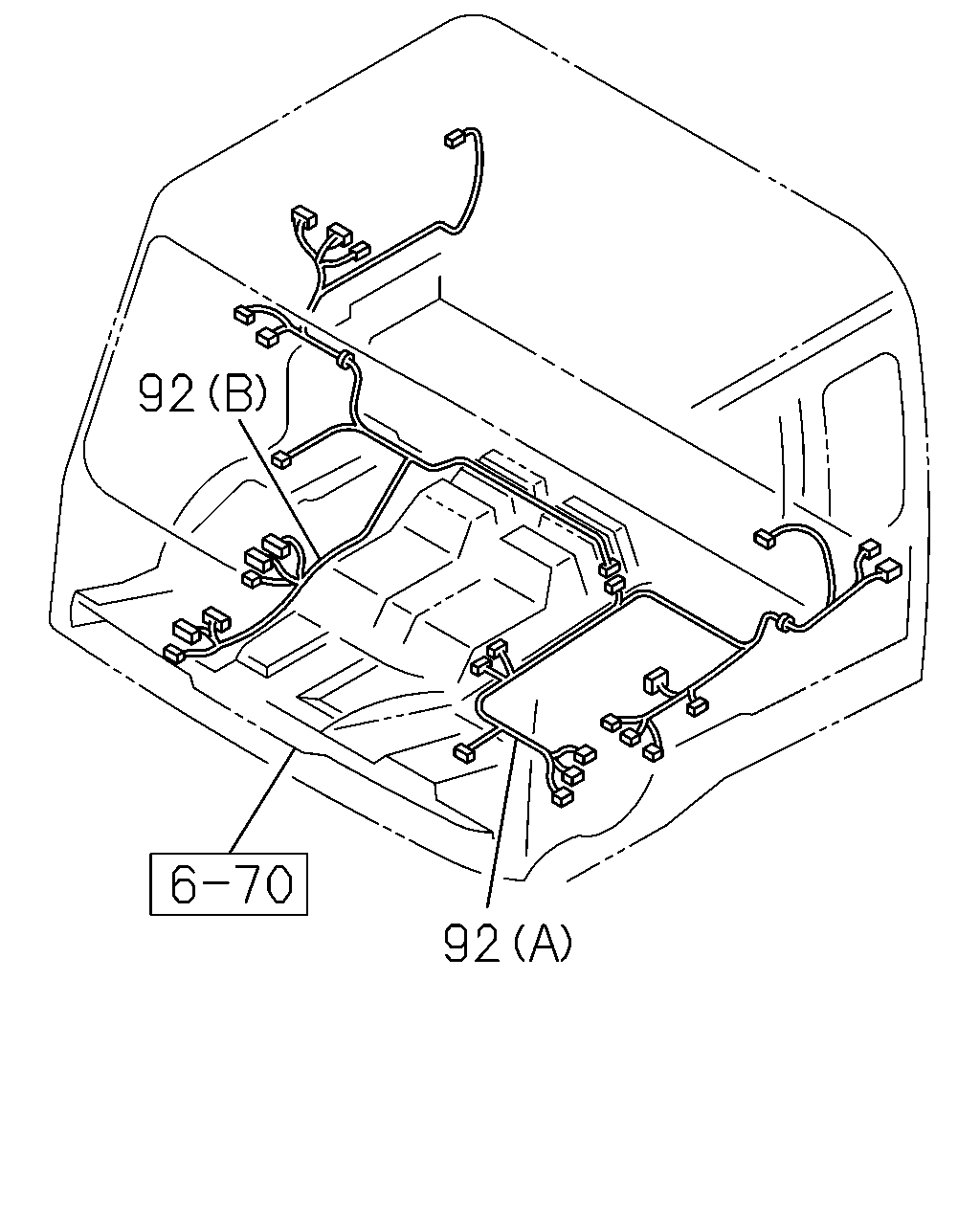

çizim 61303
92 92
BalonParca AdiParca NoAdetTipApplied Date
92 HARNESS; FLOOR
(B) 		8-97618-830-3 01 1 0804-
92 HARNESS; FLOOR
(A) 		8-97618-831-1 01 1 0804-1210
92 HARNESS; FLOOR
(A) 		8-98229-073-0 01 1 1211-
çizim 61305
467 467 14
BalonParca AdiParca NoAdetTipApplied Date
14 HARNESS; HEADLAMP 1-82678-323-0 02 1 0804-
467 HARNESS; FACIA
(B) 		8-97618-828-6 01 1 0804-0907
467 HARNESS; FACIA
(B) 		8-97634-134-0 01 1 0908-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0804-

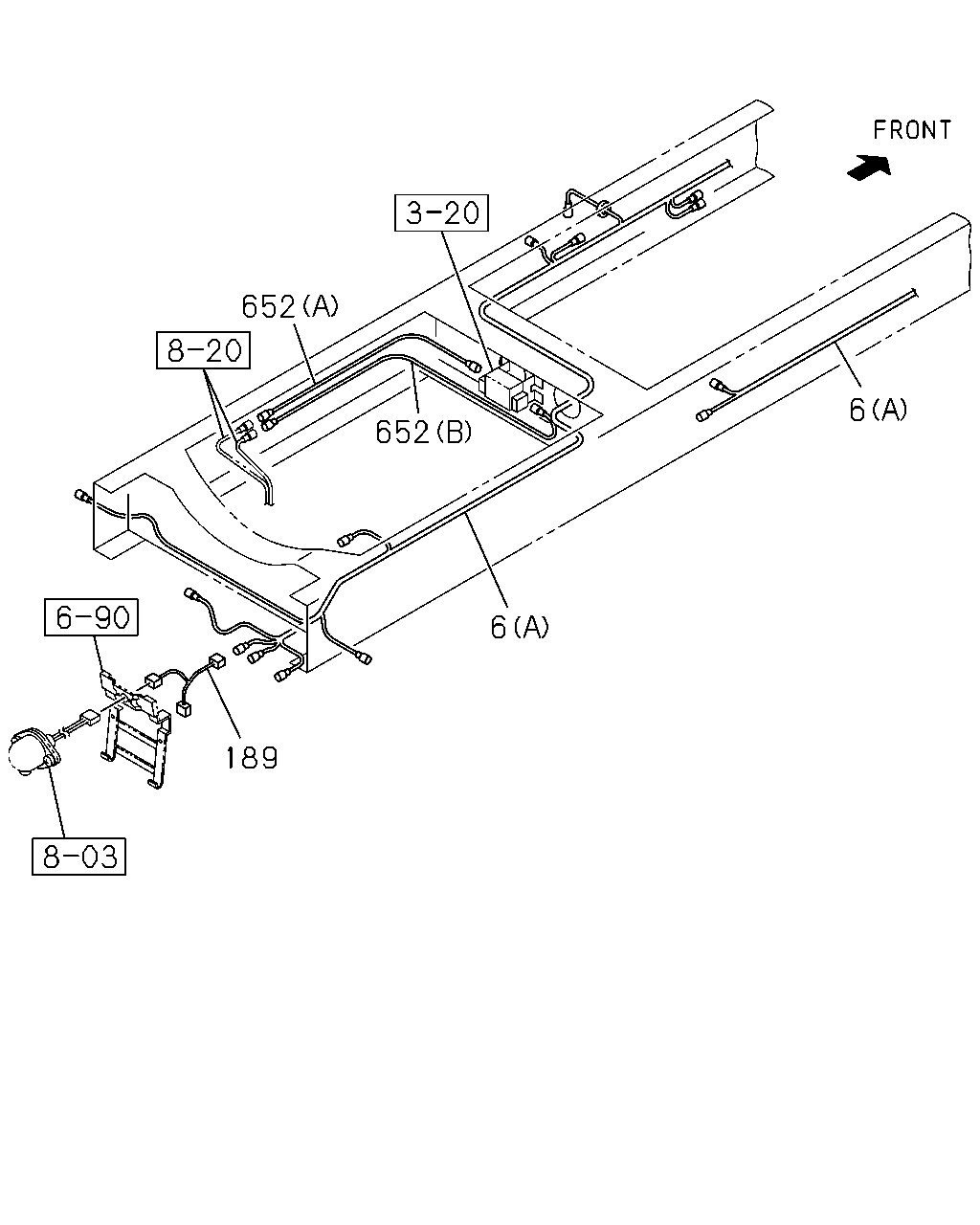

çizim 101699
6 6 652 652 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 		8-97627-220-1 01 1 0804-
6 HARNESS; FRAME
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 		8-97618-833-4 01 1 0804-
6 HARNESS; FRAME
(B) 		8-97618-839-2 01 1 0804-0806
6 HARNESS; FRAME
(B) 		8-98123-158-0 01 1 0807-1012
6 HARNESS; FRAME
(B) 		8-97639-922-0 01 1 1101-
189 HARNESS; EXT 8-97627-061-0 01 1 0804-0810
189 HARNESS; EXT 8-98131-066-0 01 1 0811-
652 HARNESS; EBS
(A) 		1-82678-138-0 01 1 0804-
652 HARNESS; EBS
(B) 		8-98086-767-1 01 1 0804-

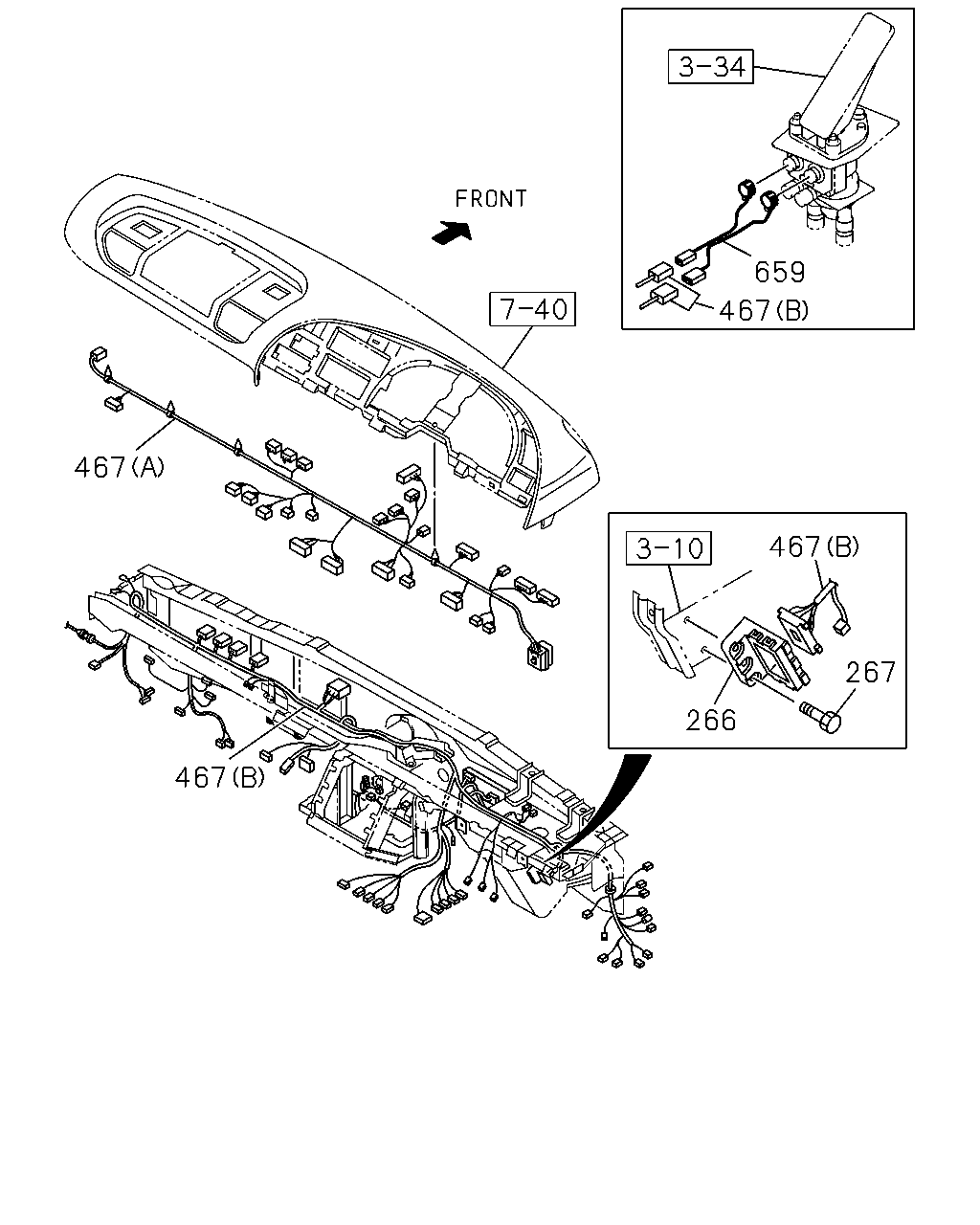

çizim 101709
659 467 467 467 267 266 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0804-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0804-
467 HARNESS; FACIA
(B) 		8-97618-828-6 01 1 0804-0907
467 HARNESS; FACIA
(B) 		8-97634-134-0 01 1 0908-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0804-
659 HARNESS; EXT,BRAKE VALVE 1-82660-995-0 01 1 0804-

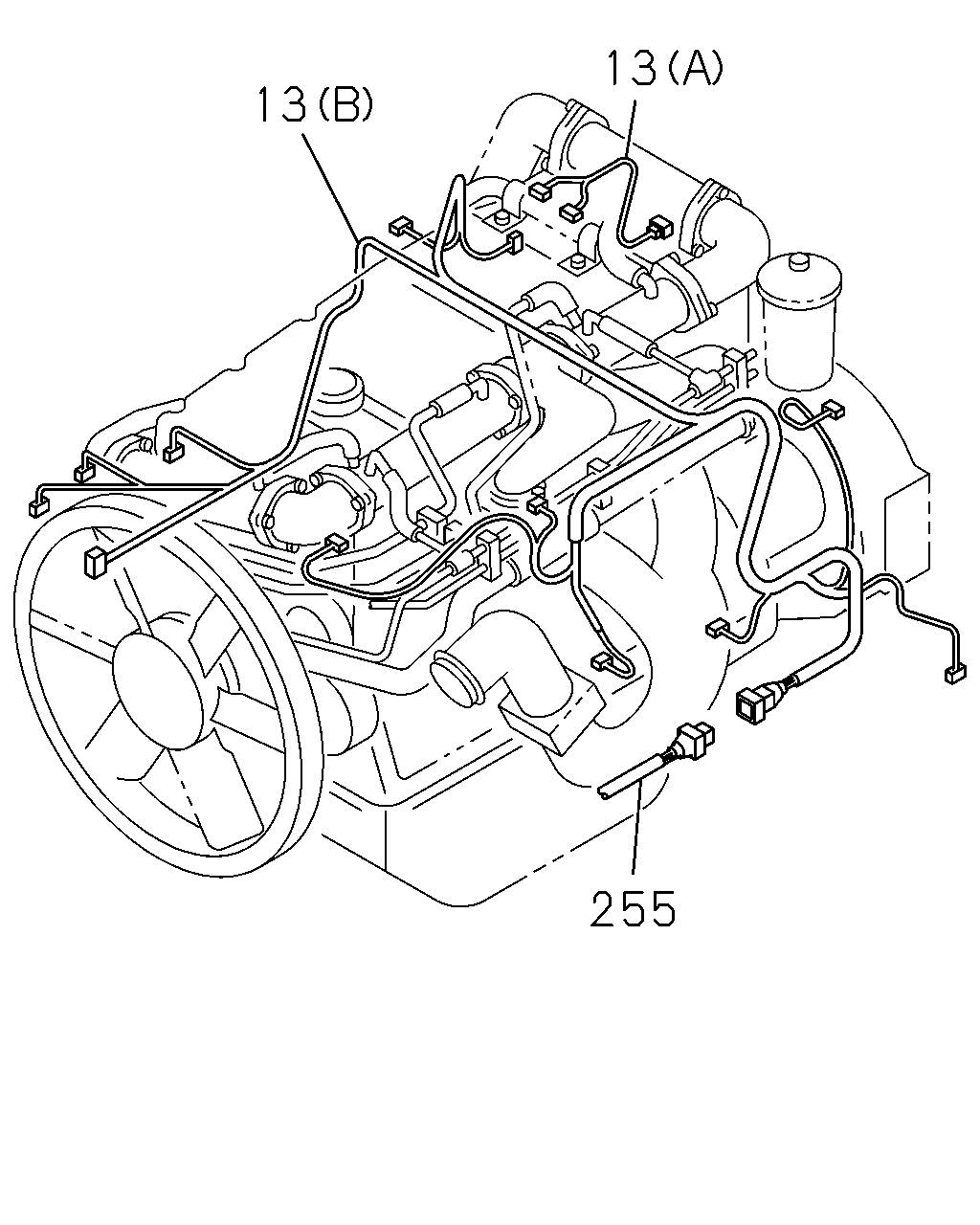

çizim 101710
255 13 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97617-391-0 01 1 0804-
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0804-
255 HARNESS; ELEC GOV 1-82662-307-3 01 1 0804-1210
255 HARNESS; ELEC GOV 8-98229-084-0 01 1 1211-

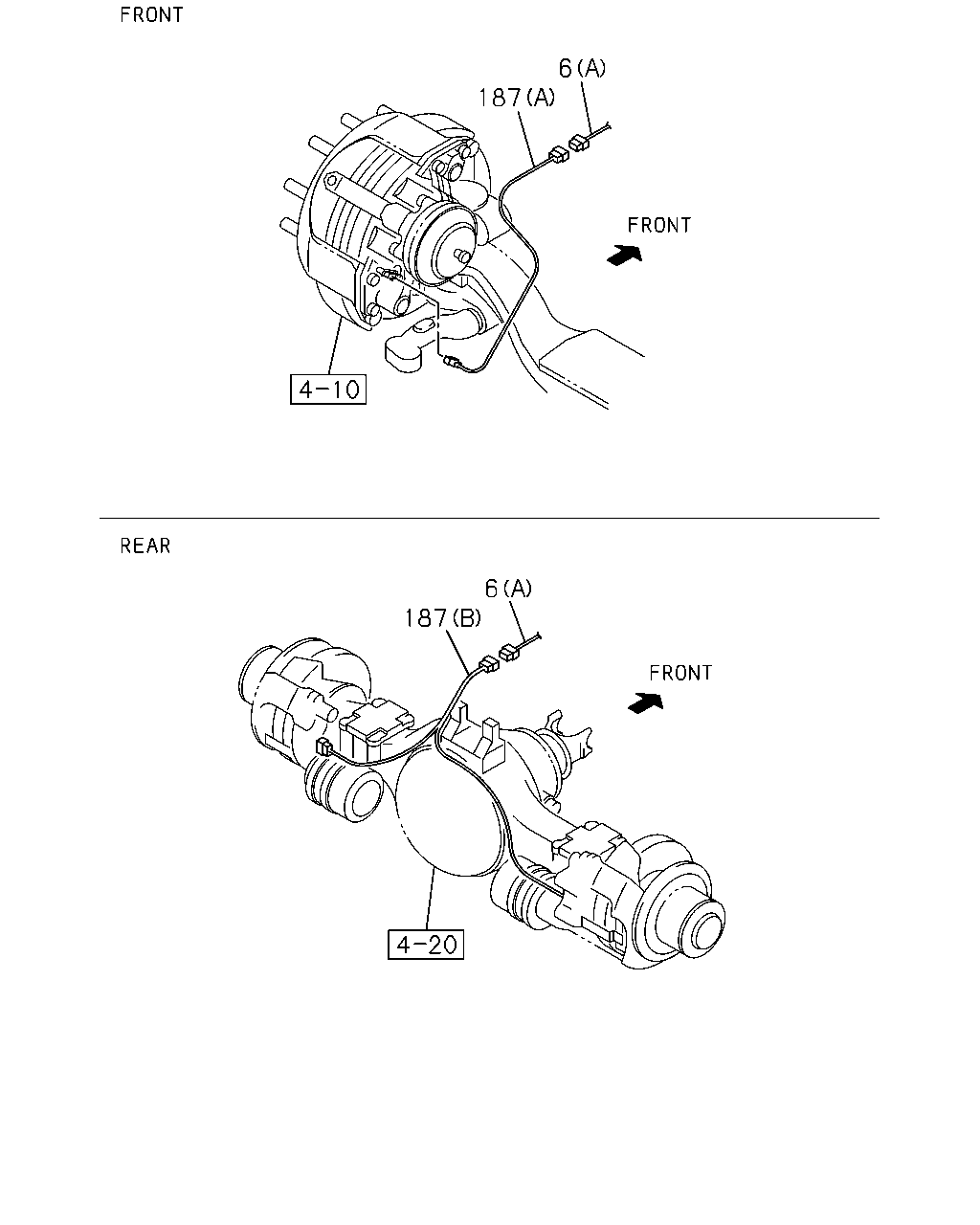

çizim 101713
6 187 6 187
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 		8-97627-220-1 01 1 0804-
6 HARNESS; FRAME
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) 		8-97618-833-4 01 1 0804-
6 HARNESS; FRAME
(B) 		8-97618-839-2 01 1 0804-0806
6 HARNESS; FRAME
(B) 		8-98123-158-0 01 1 0807-1012
6 HARNESS; FRAME
(B) 		8-97639-922-0 01 1 1101-
187 HARNESS; AXLE
(B) FORWARD 		8-98091-870-1 01 1 0804-
187 HARNESS; AXLE
(B) REARWARD 		8-98091-871-1 01 1 0804-
187 HARNESS; AXLE
(A) 		8-98091-884-0 02 1 0804-
