Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-05 - INTERIOR LAMP
▶
8-05 — INTERIOR LAMP
(#15446) — 29 parça
◀

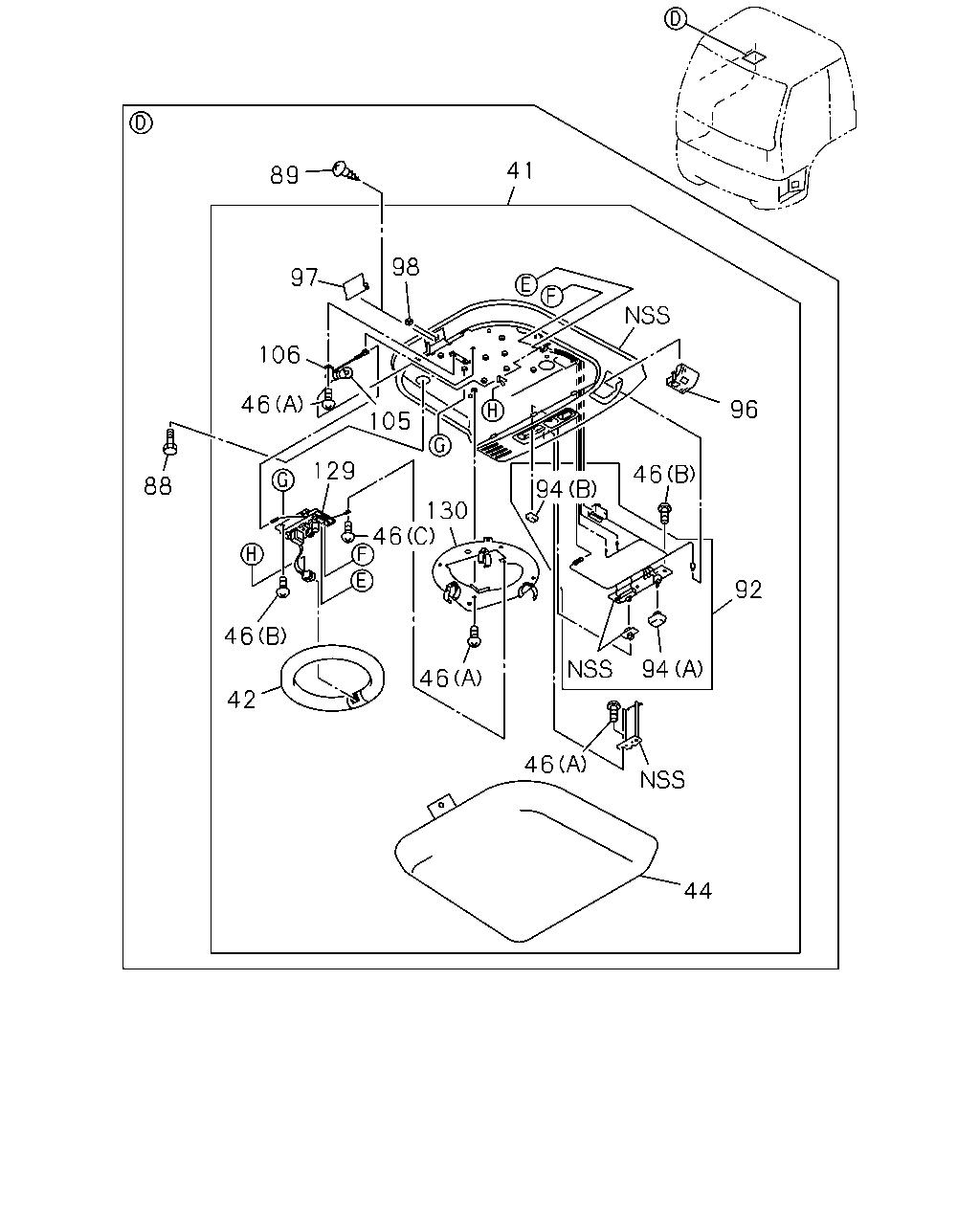

[805A] FLUORESCENT LAMP (20 parça)
[805A] INSPECTION AND STEP LAMP (9 parça)
▶
41
89
98
97
106
46
96
105
129
46
88
94
130
46
92
46
94
46
42
46
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
LAMP ASM; FLUORESCENT
HIGH ROOF<S2F>
1-86830-323-1
01
1
0804-
41
LAMP ASM; FLUORESCENT
LOW ROOF<6XQ>
1-86830-315-2
01
1
0804-
42
LAMP; FLUORESCENT
1-86830-094-1
01
1
0804-
44
LENS; FLUORESCENT LAMP
1-86830-092-0
01
1
0804-
46
SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING
1-86830-095-0
08
1
0804-
46
SCREW; FLUORESCENT LAMP
(B) M4X12
1-86830-202-0
07
1
0804-
46
SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING
1-86830-336-0
01
1
0804-
88
BOLT; LAMP
M6X16 W/LK&PL WASHER
1-09980-574-0
04
1
0804-
89
SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING
0-71240-510-0
01
1
0804-
92
SWITCH ASM; FLUORESCENT
LOW ROOF<6XQ>
1-86830-306-0
01
1
0804-
92
SWITCH ASM; FLUORESCENT
HIGH ROOF<S2F>
1-86830-341-0
01
1
0804-
94
KNOB; ROOM LAMP SW
(A)
1-86830-312-0
01
1
0804-
94
KNOB; ROOM LAMP SW
(B)
1-86830-313-0
01
1
0804-
96
CAP; SPOT LAMP
1-86830-385-0
01
1
0804-
97
CAP; LENS FIX
1-86830-311-0
01
1
0804-
98
GROMMET; SCREW,LENS FIX
1-86830-102-0
01
1
0804-
105
BULB; FLUORESCENT LAMP
28V 20W
1-86830-200-0
01
1
0804-
106
SOCKET; BULB
1-86830-201-0
01
1
0804-
129
INVERTER ASM; FLUORESCENT LAMP
1-86830-338-0
01
1
0804-
130
PLATE ASM; FLUORESCENT LAMP
1-86830-339-0
01
1
0804-
33
24
33
85
25
11
27
35
34
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
LAMP ASM; ASH TRAY
1-76458-076-1
01
1
0804-
24
LAMP; STEP
1-82140-052-1
01
1
0804-
25
BULB; STEP LAMP
24V 5W
1-82194-042-0
01
1
0804-
27
LENS; STEP LAMP
1-82145-019-0
01
1
0804-
33
GROMMET; SCREW,LAMP
M4
5-09470-002-0
02
1
0804-
34
COVER; STEP LAMP
8-98086-130-0
02
1
0804-
35
SCREW; STEP LAMP
(B) M4X20 TAPPING W/PL WASHER
0-74360-420-0
04
1
0804-
35
SCREW; STEP LAMP
(A) M4X20
1-82149-006-0
02
1
0804-
85
BULB; ASH TRAY
24V 1.4W
1-76457-041-0
01
1
0804-
