Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶
7-45 — CONSOLE BOX
(#15440) — 47 parça
◀

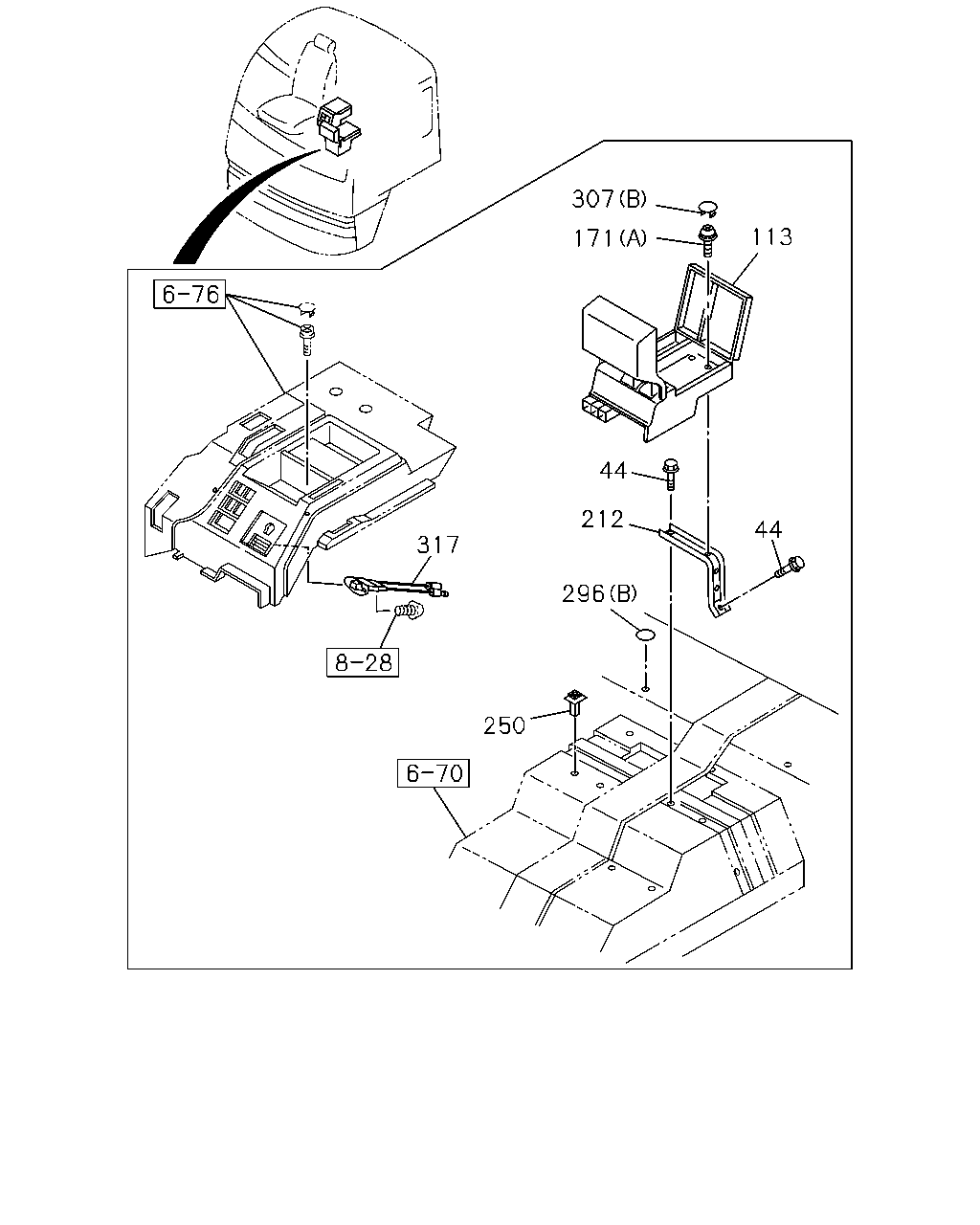

[745A] CONSOLE BOX AND OTHER PARTS (12 parça)

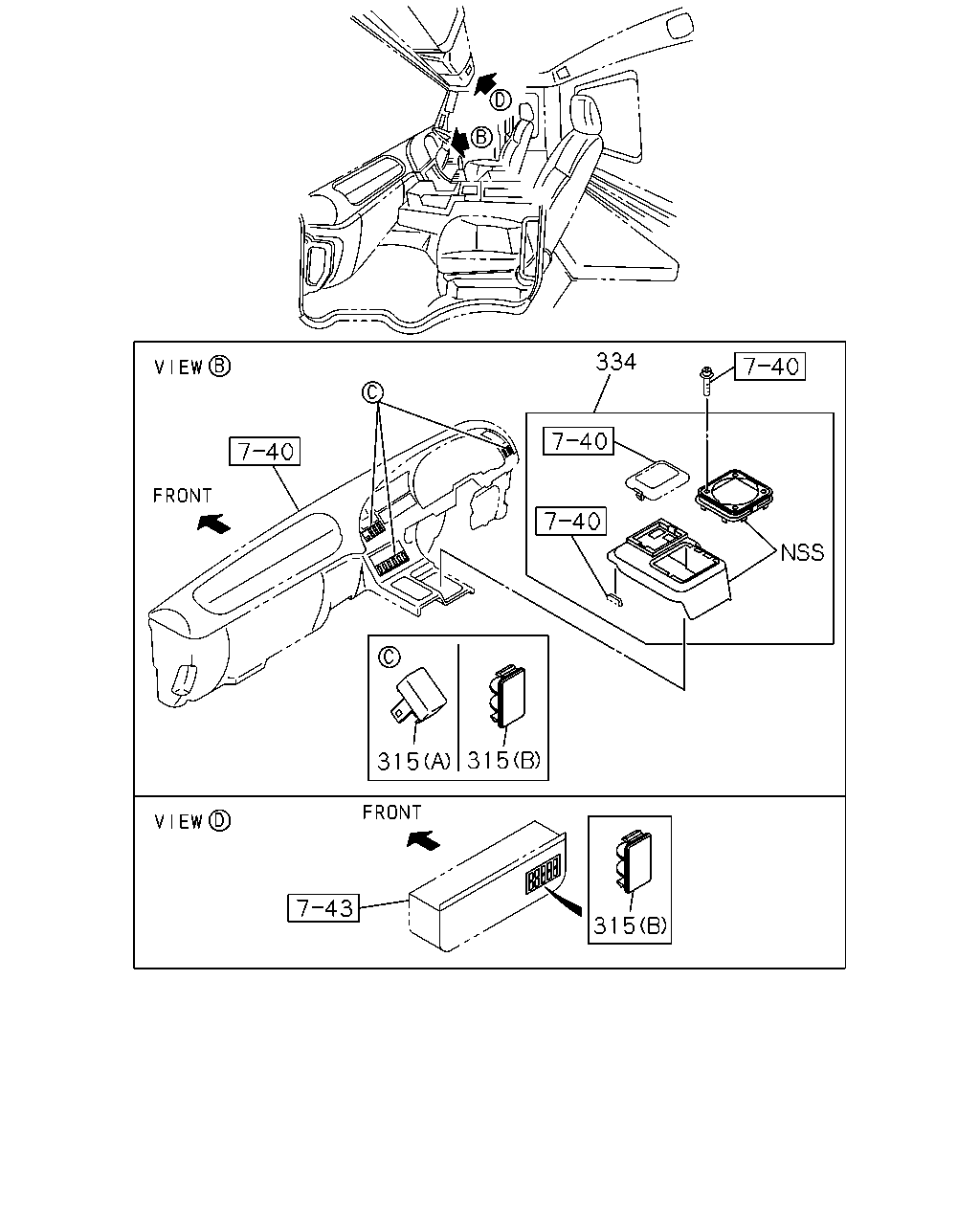

[745A] SWITCH HOLE AND CHANGE LEVER COVER (3 parça)

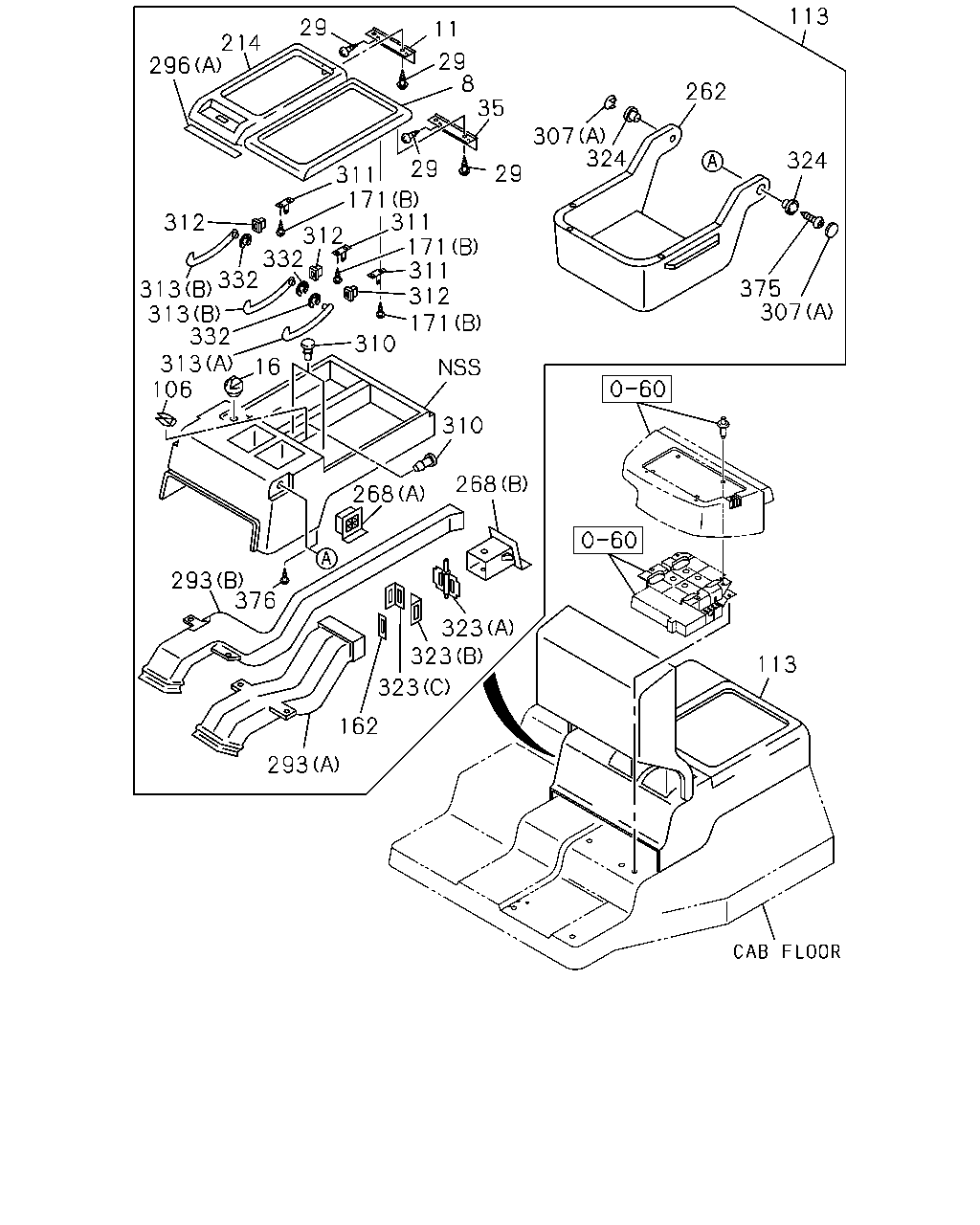

[745A] COMPONENT (32 parça)
▶
307
113
171
44
212
44
317
296
250
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0804-0904
44
BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
113
BOX; CONSOLE
1-72537-326-1
01
1
0804-
171
SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD
1-72537-169-0
06
1
0804-
171
SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0804-
212
SUPPORT; CONSOLE TO COMPT
1-72537-095-1
01
1
0804-
250
GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
03
1
0804-
296
SEAL
(A)
1-72537-094-1
01
1
0804-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
0804-
307
COVER; HOLE,CTR CONSOLE
(A)
1-72537-188-0
02
1
0804-
307
COVER; HOLE,CTR CONSOLE
(B)
1-76337-461-0
04
1
0804-
317
CONSENT
1-82523-020-2
01
1
0804-
334
315
315
315
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
315
COVER; HOLE,SW
(B)
8-97043-732-1
AR
1
0804-
315
COVER; HOLE,SW
(A)
1-82359-069-2
AR
1
0804-
334
COVER; CHANGE LEVER
1-72447-969-1
01
1
0804-
113
29
11
214
29
8
35
296
262
307
324
324
29
29
311
171
311
171
311
312
171
312
312
332
332
313
313
332
313
106
375
307
310
16
310
268
268
293
376
323
323
113
323
162
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
LID; CENTER CONSOLE
1-72537-332-0
01
1
0804-
11
HINGE; CONSOLE LID
1-72537-070-2
01
1
0804-
16
KNOB ASM
1-72537-189-0
01
1
0804-
29
SCREW; HINGE
M5X14 BINDING HEAD
1-72537-168-0
08
1
0804-
35
HINGE; CENTER CONSOLE
1-72538-182-1
01
1
0804-
106
LOCK; CONSOLE LID
1-72537-079-0
02
1
0804-
113
BOX; CONSOLE
1-72537-326-1
01
1
0804-
162
CUSHION; PARCEL BOX
1-72537-128-0
03
1
0804-
171
SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD
1-72537-169-0
06
1
0804-
171
SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0804-
214
LID; CONSOLE
1-72537-339-0
01
1
0804-
262
TABLE ASM
1-72537-187-1
01
1
0804-
268
COVER; DUCT
(B)
1-72537-183-0
01
1
0804-
268
COVER; DUCT
(A)
1-72537-184-0
01
1
0804-
293
DUCT
(A)
1-72537-081-3
01
1
0804-
293
DUCT
(B)
1-72537-083-2
01
1
0804-
296
SEAL
(A)
1-72537-094-1
01
1
0804-
296
SEAL
(B) OD=25 BLACK
1-76798-019-0
01
1
0804-
307
COVER; HOLE,CTR CONSOLE
(A)
1-72537-188-0
02
1
0804-
307
COVER; HOLE,CTR CONSOLE
(B)
1-76337-461-0
04
1
0804-
310
CUSHION; CTR CONSOLE
1-72538-187-0
02
1
0804-
311
HOLDER; CONSOLE
1-72538-188-2
03
1
0804-
312
STOPPER; CONSOLE
1-72538-186-1
03
1
0804-
313
ARM; CTR CONSOLE
(A)
1-72538-184-3
01
1
0804-
313
ARM; CTR CONSOLE
(B)
1-72538-185-3
02
1
0804-
323
SHUTTER
(A)
1-72537-084-1
01
1
0804-
323
SHUTTER
(B)
1-72537-126-0
01
1
0804-
323
SHUTTER
(C)
1-72537-127-0
01
1
0804-
324
BUSHING
1-72537-116-0
02
1
0804-
332
RING; SNAP,CONSOLE BOX
1-72537-170-0
03
1
0804-
375
SCREW; TAP BUSHING
M6X20
1-72537-319-0
02
1
0804-
376
SCREW; TAP DUCT
M4X14
1-72537-320-0
03
1
0804-
