Isuzu WW
▶
TRUCKS
▶
FSS
▶
10634 - FSS/FTS-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶

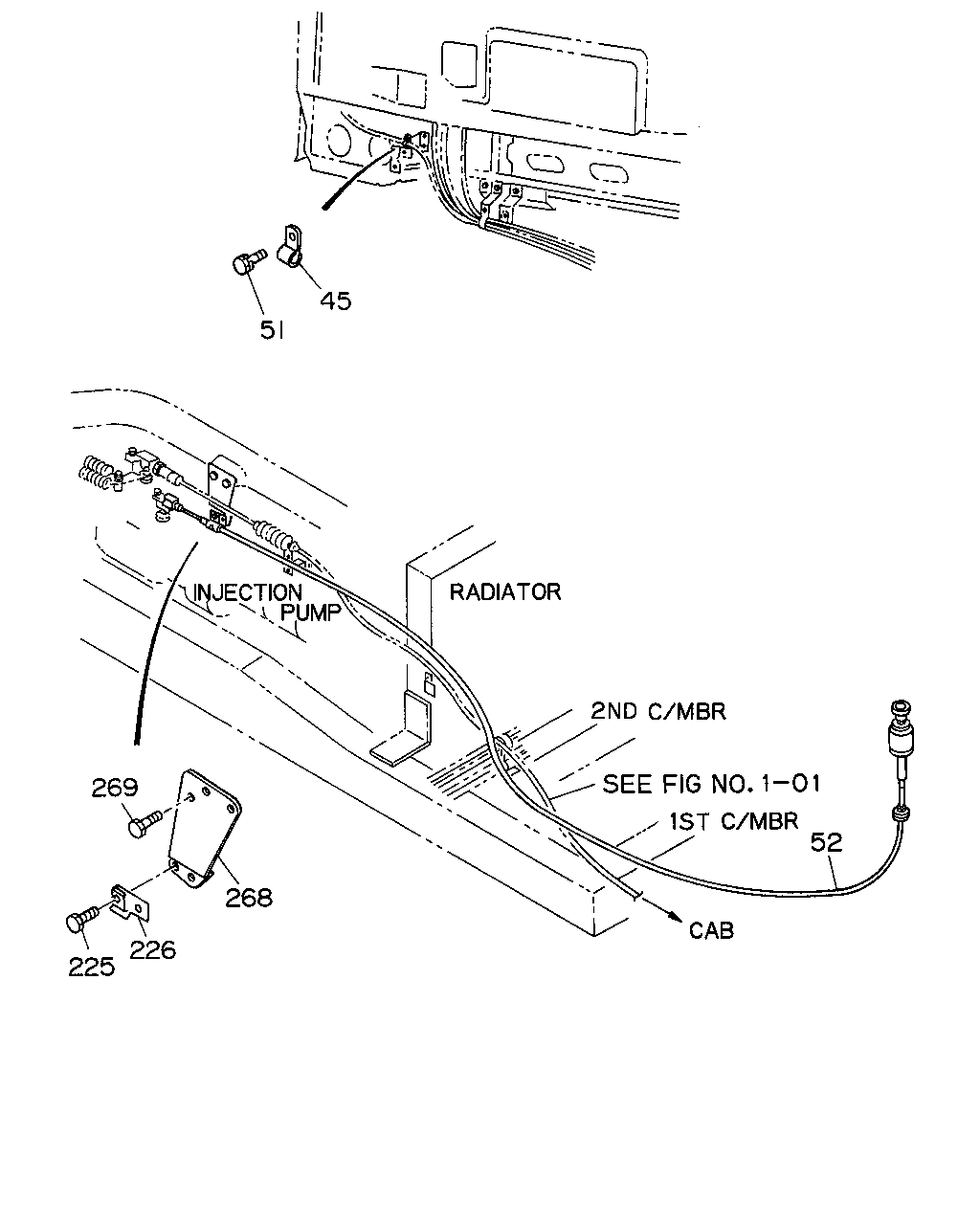

0-35 — ENGINE CONTROL VALVE AND LEVER
(#1544) — 12 parça
45
51
52
269
268
226
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
CLIP; FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF(KB6) ID=7 L=16
9-09524-622-0
01
1
9207-
51
BOLT; CLIP,FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF(KB6) M6X20 W/LK&PL WASHER
1-09980-493-0
01
1
9207-
52
CABLE; FUEL CUT
EXC. AUTO ENG SHUTOFF(KB6) L=2145
1-23210-847-0
01
1
9207-
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28080-820-0
02
1
9207-9207
225
BOLT; CLIP FIX
M8X20 FLANGE
0-28080-820-0
01
1
9208-
225
BOLT; CLIP FIX
M8X12 FLANGE
0-28080-812-0
01
1
9208-
226
CLIP; CABLE END
1-23219-032-0
01
1
9207-
268
BRACKET; FUEL CUT CONT
MBG5B M/T(X4K)
1-23335-277-1
01
1
9207-9410
268
BRACKET; FUEL CUT CONT
MBG5B M/T(X4K)
1-23335-330-0
01
1
9411-
268
BRACKET; FUEL CUT CONT
MLD6D M/T(X5Q)
1-23335-324-1
01
1
9207-
269
BOLT; BRKT FIX
M6X16 W/LK WASHER
0-50040-616-0
02
1
9207-
269
BOLT; BRKT FIX
M8X20 W/LK WASHER
0-50040-820-0
02
1
9207-
