7-43 — SUN VISOR AND ASSIST GRIP (#15439) — 126 parça

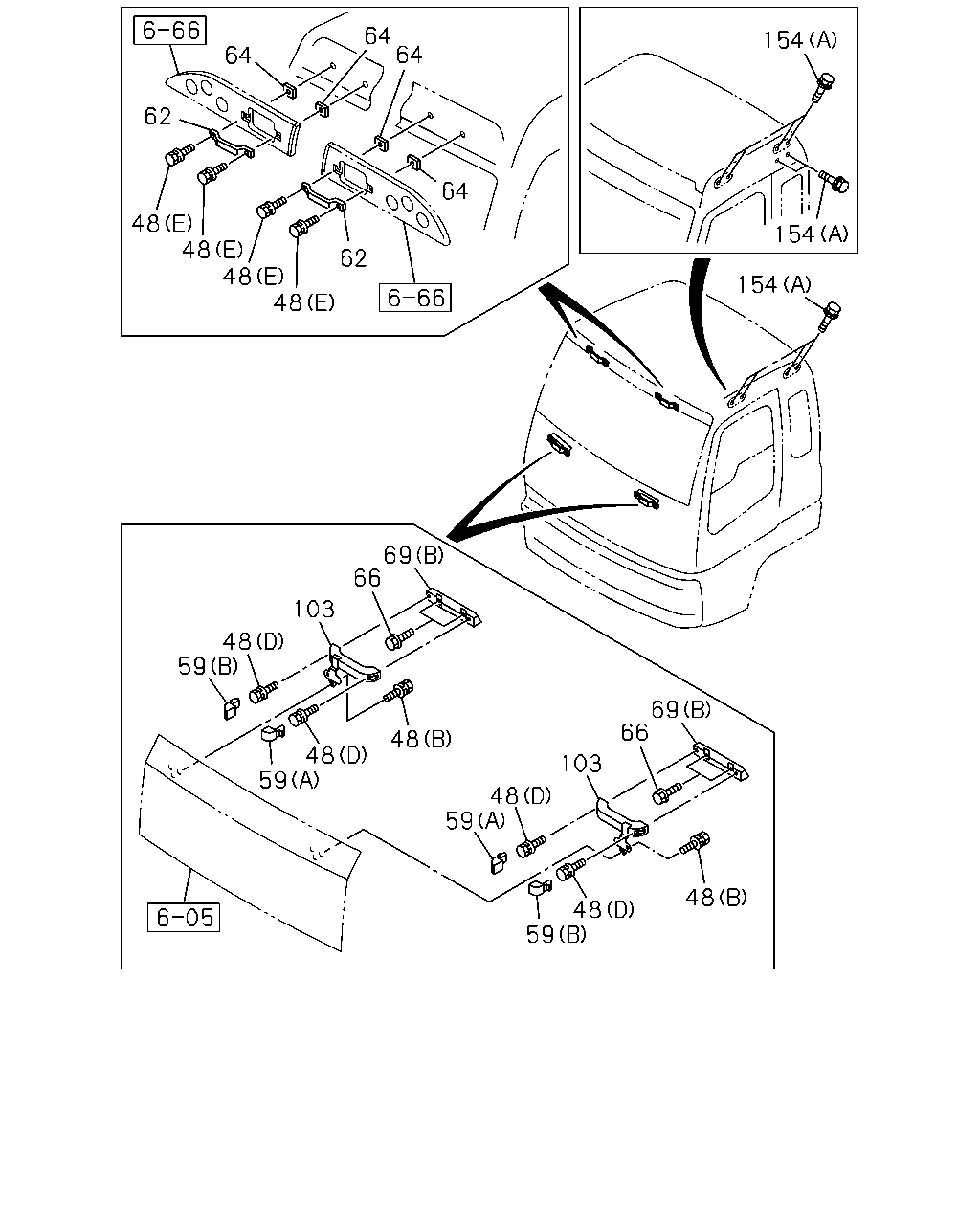

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0908-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0804-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0804-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0804-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0804-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0804-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0804-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0804-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0804-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0804-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0804-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0804-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0804-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0804-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0804-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0804-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0804-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0804-0907
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0804-0907
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0908-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0908-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0804-0907
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0908-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0804-0907
154	BOLT; SUPPORT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0908-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0804-

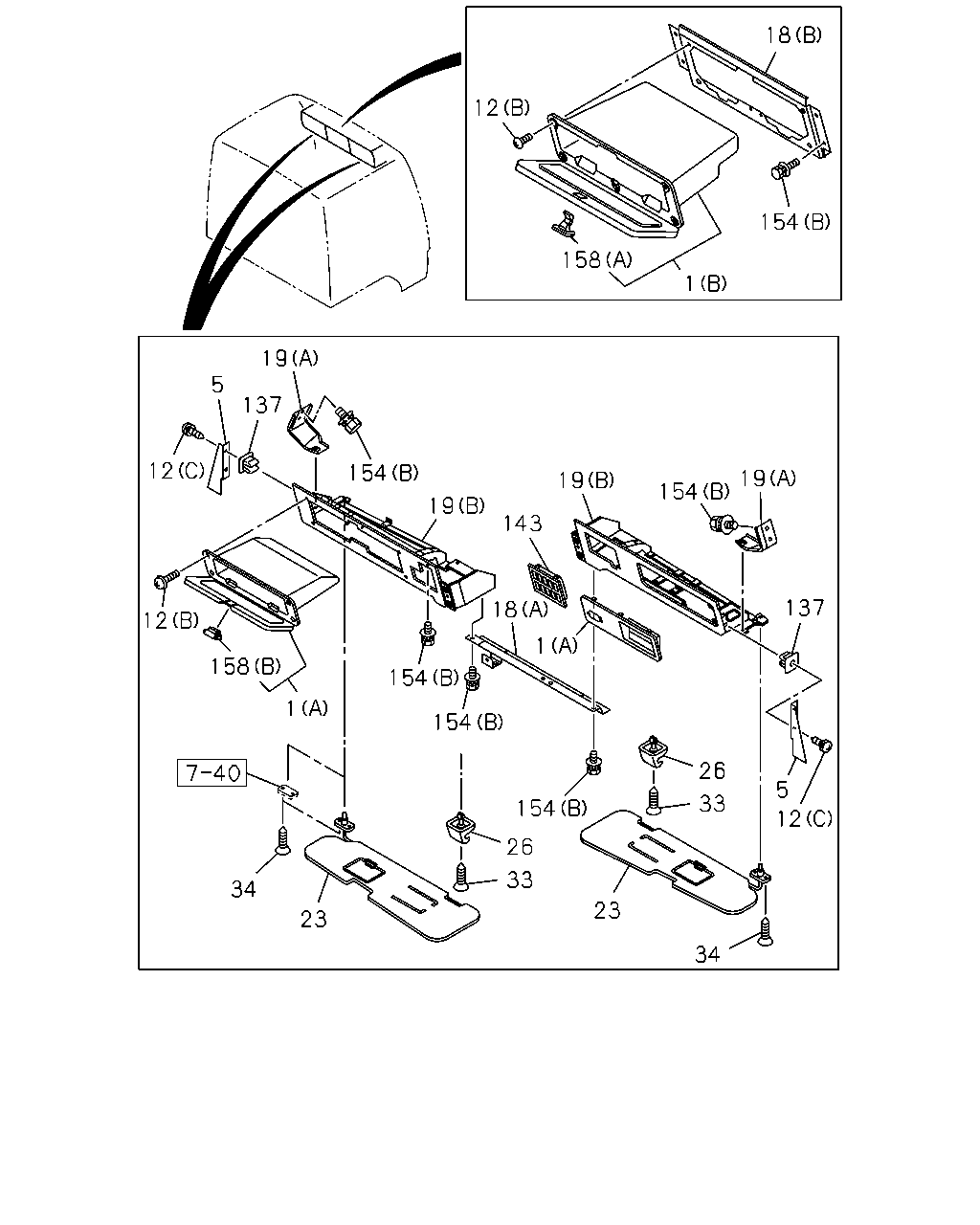

18 12 154 158 1 19 5 137 12 154 19 19 154 19 143 18 137 12 1 158 154 1 154 26 5 33 154 12 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8> (A)	1-72447-760-4	01	1	0804-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0804-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0804-
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0804-
1	BOARD; HEADER SHELF EXC. TACHOGRAPH 120KM/H<SM8> (A)	1-72447-876-4	01	1	0804-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0804-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0804-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0804-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0804-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0804-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0804-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0804-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0804-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0804-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0804-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0804-
23	SUN VISOR	1-73138-157-1	01	1	0804-
23	SUN VISOR	1-73138-162-0	01	1	0804-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0804-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0804-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0804-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0804-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0804-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0804-
143	BEZEL	1-72447-768-2	01	1	0804-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0804-0907
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0804-0907
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0908-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0908-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0804-0907
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0908-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0804-0907
154	BOLT; SUPPORT GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0908-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0804-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0804-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0804-

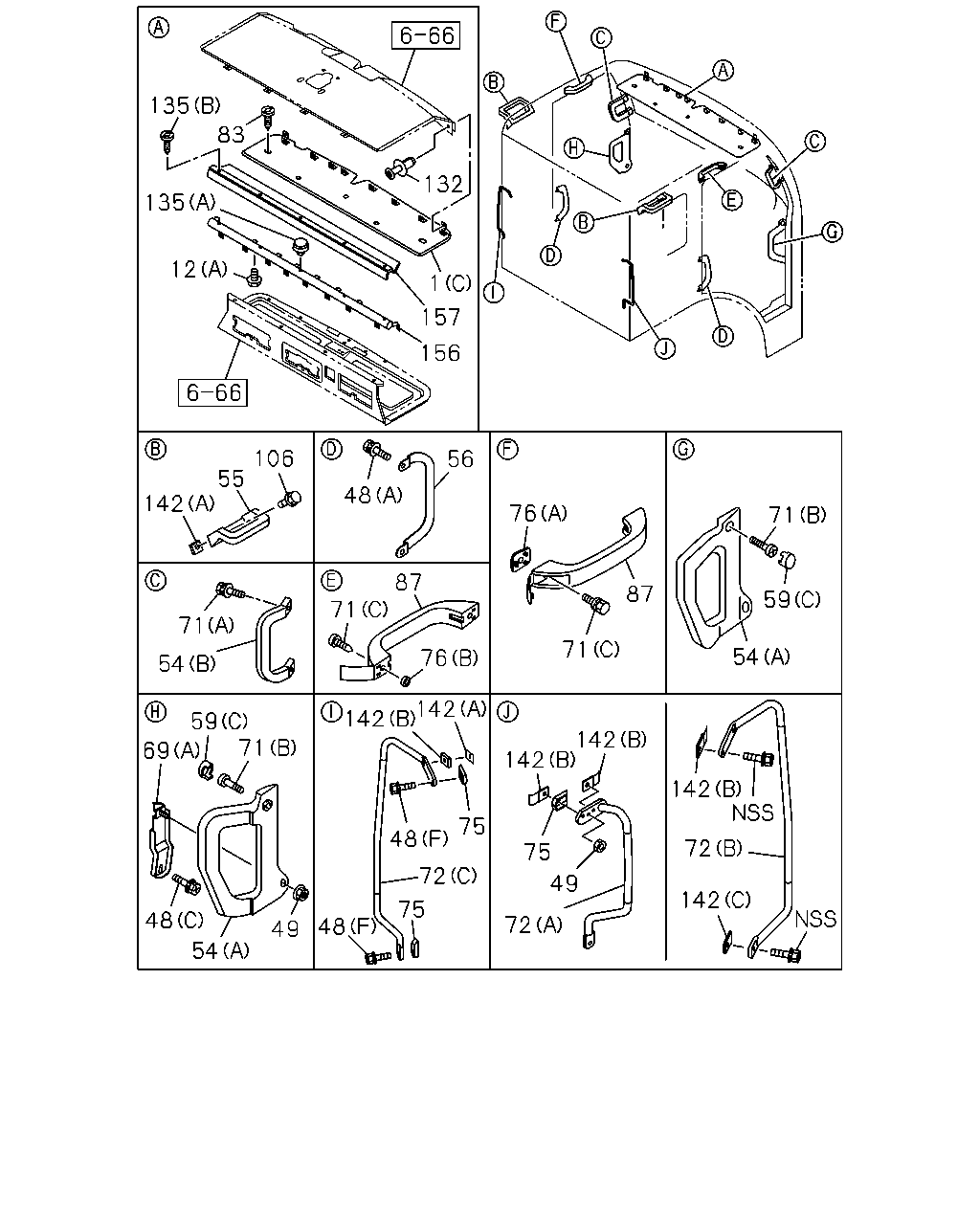

135 83 135 12 132 1 157 156 142 55 106 48 56 76 71 59 54 87 71 76 87 71 71 54 69 59 71 142 142 142 142 142 72 142 72 49 75 75 48 72 75 48 49 54 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF TACHOGRAPH 120KM/H<SM8> (A)	1-72447-760-4	01	1	0804-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0804-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0804-
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0804-
1	BOARD; HEADER SHELF EXC. TACHOGRAPH 120KM/H<SM8> (A)	1-72447-876-4	01	1	0804-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0804-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0804-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0804-
48	BOLT; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0908-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0804-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0804-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0804-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0804-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0804-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	0804-0808
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0804-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0804-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0804-
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0804-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0804-0907
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-73618-169-1	02	1	0908-
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0804-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0804-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0804-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0804-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0804-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0804-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0804-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0804-
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0804-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0804-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE,DRIVER & PASSENGER<W63> (C)	1-71907-543-0	01	1	0908-
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52> (A)	1-71907-544-0	01	1	0804-0907
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A)	1-71907-544-0	01	1	0908-1006
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A)	1-71907-540-0	01	1	1007-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	1-71907-608-1	01	1	0804-0907
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (B)	1-71907-608-1	01	1	0908-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-71997-548-0	02	1	0908-
75	SHEET; ASSIST GRIP,CAB ENTRY PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0804-0907
75	SHEET; ASSIST GRIP,CAB ENTRY PRE CLEANER<W17> GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63>	1-71997-548-0	01	1	0908-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (A)	1-73618-180-0	02	1	0804-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	0804-
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0804-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0804-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0804-0907
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0908-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0804-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0804-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0804-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (B)	1-71997-691-1	01	1	0908-
142	SEAL; ASSIST GRIP GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	02	1	0908-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0804-0907
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (B)	1-71997-691-1	02	1	0908-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0804-0907
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> (A) 25X25	8-94272-533-0	04	1	0908-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	0804-0907
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52>,GRIP OUT SIDE,DRIVER & PASSENGER<W63> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	0908-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0804-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-5	01	1	0804-
