◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11149 - EXY SOUTH AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#15422) — 163 parça

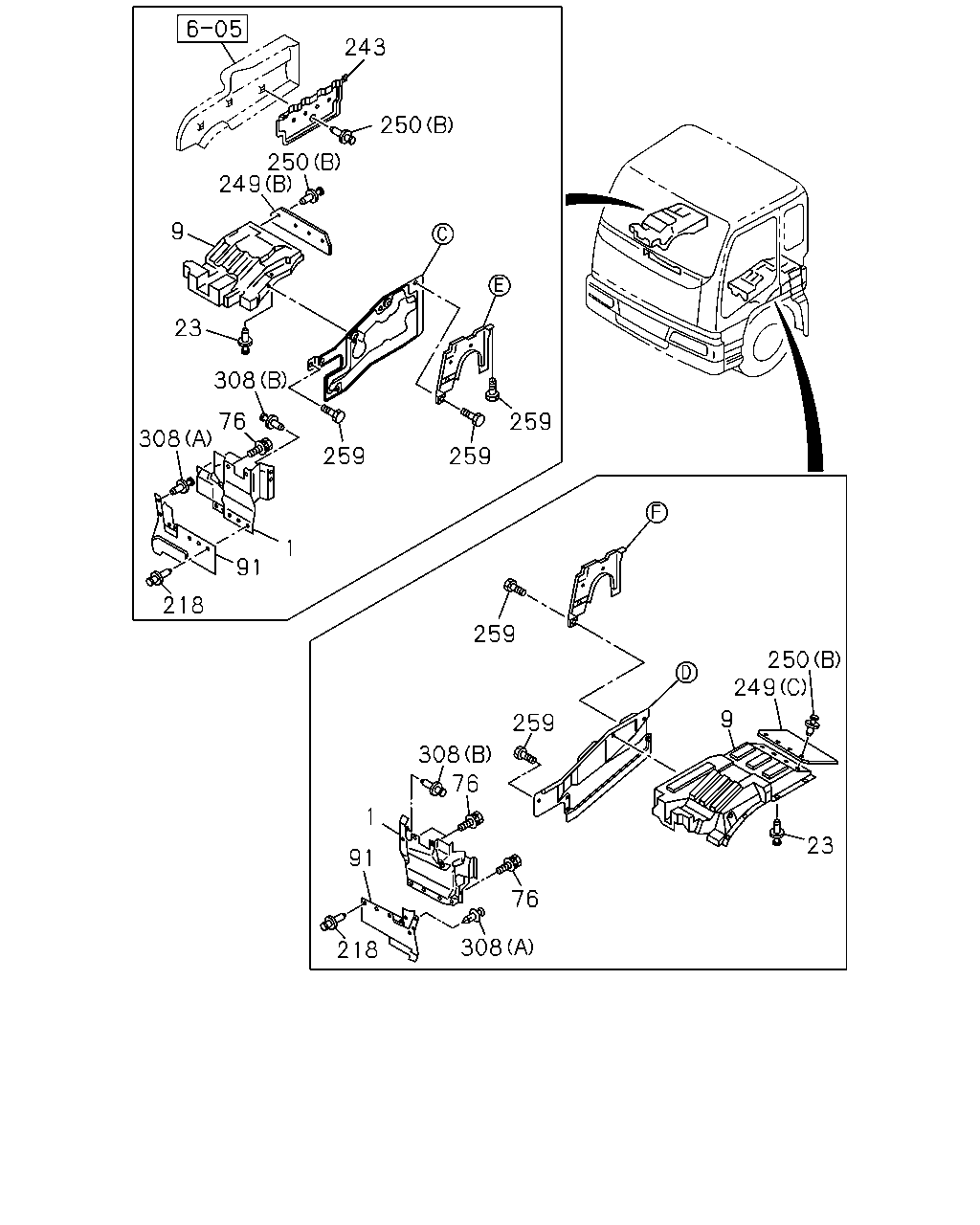

çizim 61275
243 250 250 249 9 23 308 76 259 308 259 259 1 91 218 259 250 249 9 259 308 76 1 23 91 76 308 218
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0804-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0804-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0804-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0804-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0804-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0804-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0804-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0804-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0804-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0804-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0804-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0804-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0804-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0804-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0804-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0804-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0804-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0804-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1101-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0804-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0804-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0804-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0804-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0804-

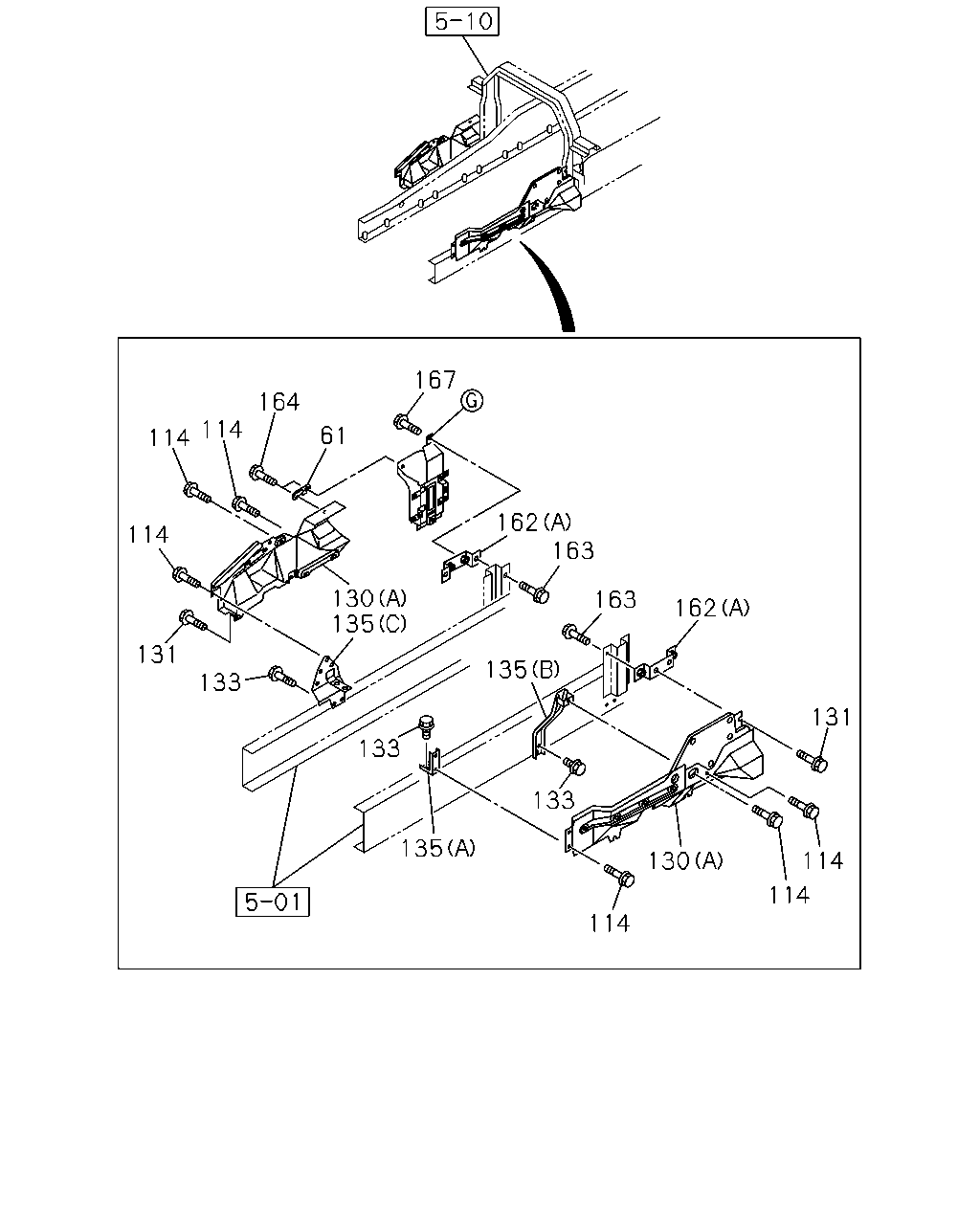

çizim 61321
167 164 114 61 114 162 163 114 130 135 163 162 131 135 133 131 133 133 135 130 114 114 114
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER 1-53441-536-1 01 1 0804-0804
61 BRACKET; COVER 8-98039-501-1 01 1 0804-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0804-0808
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 0809-
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0804-
130 PANEL; SHUTTER NOISE
(A) 		8-98116-732-0 01 1 0804-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0804-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-3 01 1 0804-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0804-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0804-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-078-1 01 1 0804-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0804-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0804-
133 BOLT; FRAME
M10X35 FLANGE 		0-28651-035-0 02 1 0804-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0804-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0804-
135 BRACKET; SIDE PANEL
(C) 		8-98039-211-2 01 1 0804-
162 BRACKET
(E) 		8-98113-210-2 01 1 1101-
162 BRACKET
(A) 		1-53441-520-0 02 1 0804-
162 BRACKET
(B) 		1-53441-521-2 01 1 0804-
162 BRACKET
(C) 		1-53441-522-0 01 1 0804-
162 BRACKET
(D) 		1-71907-815-0 01 1 0804-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0804-
164 BOLT; FLEX COVER
M8X20 FLANGE 		0-28650-820-0 02 1 0804-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0804-
çizim 61381
130 130 281 185 281 185 249 249 130 130 185 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		8-98116-732-0 01 1 0804-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0804-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-3 01 1 0804-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0804-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0804-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-078-1 01 1 0804-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0908-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 0804-0907
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0908-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0804-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0804-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0804-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0804-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0804-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0804-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0804-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0804-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0804-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0804-
çizim 61392
130 73 74 130 73 122 168 167 122 167 162 160 122 162 160 122
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(C) M8X10 FLANGE 		0-28050-810-0 02 1 0804-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0804-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0804-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0908-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0804-0907
74 NUT
M8 FLANGE 		0-91180-108-0 02 1 0908-
122 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0804-
122 BOLT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0804-
130 PANEL; SHUTTER NOISE
(A) 		8-98116-732-0 01 1 0804-
130 PANEL; SHUTTER NOISE
(A) 		1-53193-329-1 01 1 0804-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-919-3 01 1 0804-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-959-3 01 1 0804-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0804-
130 PANEL; SHUTTER NOISE
(D) 		1-79947-078-1 01 1 0804-
160 COVER ASM; EXH
(B) 		1-79931-412-1 01 1 0804-
160 COVER ASM; EXH
(A) 		8-98096-082-0 01 1 0804-
162 BRACKET
(E) 		8-98113-210-2 01 1 1101-
162 BRACKET
(A) 		1-53441-520-0 02 1 0804-
162 BRACKET
(B) 		1-53441-521-2 01 1 0804-
162 BRACKET
(C) 		1-53441-522-0 01 1 0804-
162 BRACKET
(D) 		1-71907-815-0 01 1 0804-
167 BOLT; EXH COVER
M8X20 FLANGE 		0-28650-820-0 05 1 0804-
168 NUT; EXH COVER
M8 FLANGE 		0-91180-108-0 01 1 0804-

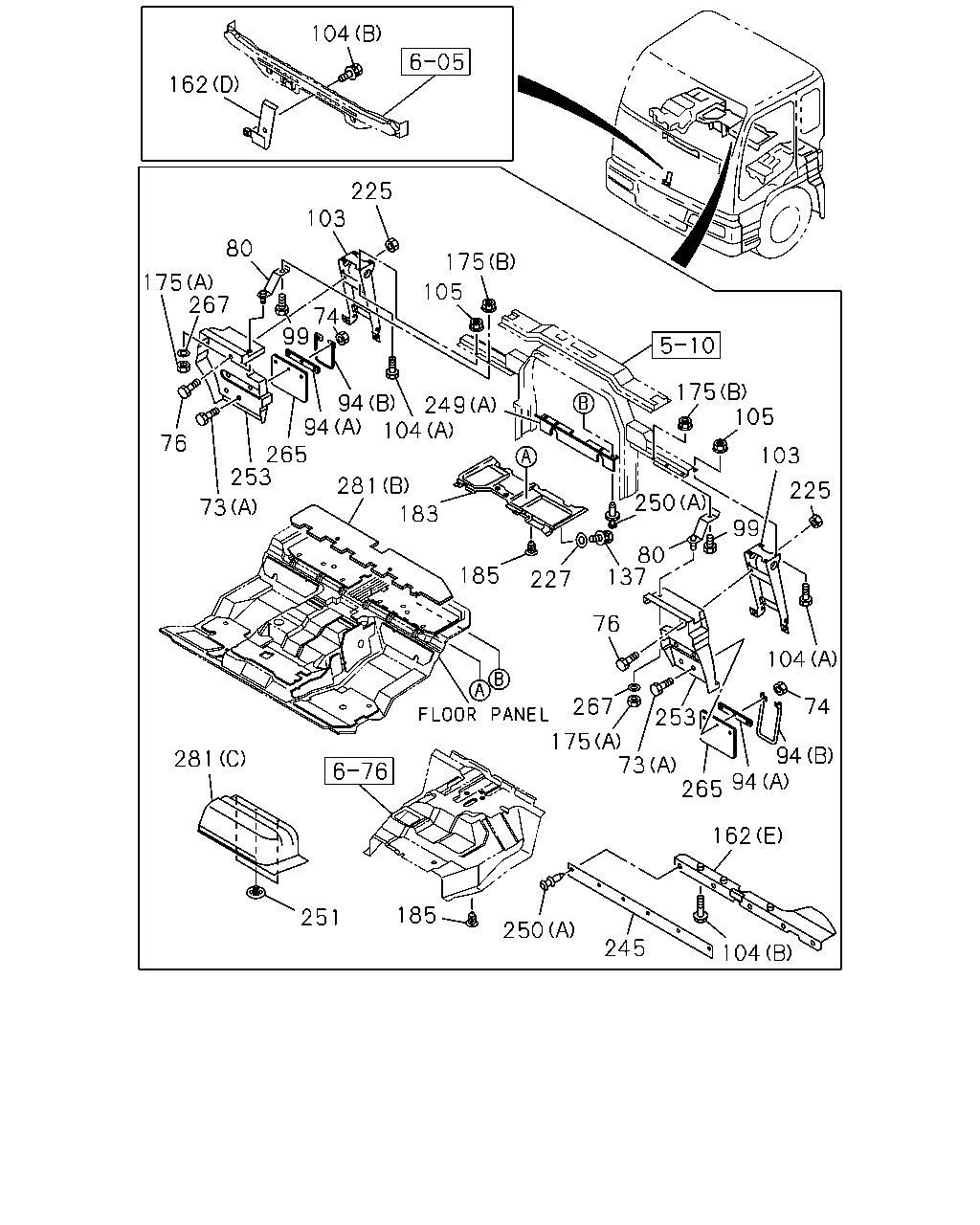

çizim 101665
104 162 225 103 80 175 175 267 105 74 99 175 105 94 249 94 104 265 253 76 103 281 183 225 250 73 99 80 137 185 227 76 104 267 74 253 175 73 94 94 281 265 162 185 251 250 245 104
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(C) M8X10 FLANGE 		0-28050-810-0 02 1 0804-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0804-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0804-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0908-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0804-0907
74 NUT
M8 FLANGE 		0-91180-108-0 02 1 0908-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0804-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0804-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0804-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0804-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0804-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 0804-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-524-0 01 1 0804-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0804-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 0804-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 0804-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-893-0 01 1 1503-
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 03 1 1101-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0804-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0804-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 07 1 0804-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0804-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(E) 		8-98113-210-2 01 1 1101-
162 BRACKET
(A) 		1-53441-520-0 02 1 0804-
162 BRACKET
(B) 		1-53441-521-2 01 1 0804-
162 BRACKET
(C) 		1-53441-522-0 01 1 0804-
162 BRACKET
(D) 		1-71907-815-0 01 1 0804-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0804-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0804-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0804-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0908-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 0804-0907
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 0908-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0804-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0804-
245 RUBBER; SHUTTER,RAD 8-98113-211-0 01 1 1101-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0804-
249 RUBBER; SHUTTER
(D) 		1-79937-965-1 01 1 0804-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0804-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 0804-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0804-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0804-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 05 1 1101-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0804-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0804-
251 CLIP; NOISE INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 04 1 0804-
253 GUARD; MUD 1-79931-064-7 01 1 0804-0901
253 GUARD; MUD 8-98134-759-0 01 1 0902-
253 GUARD; MUD 1-79931-066-7 01 1 0804-0901
253 GUARD; MUD 8-98134-766-1 01 1 0902-
265 RUBBER; FLAP,REAR 1-79931-460-0 02 1 0804-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0804-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0804-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0804-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0804-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0804-
