Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#15407) — 50 parça
◀

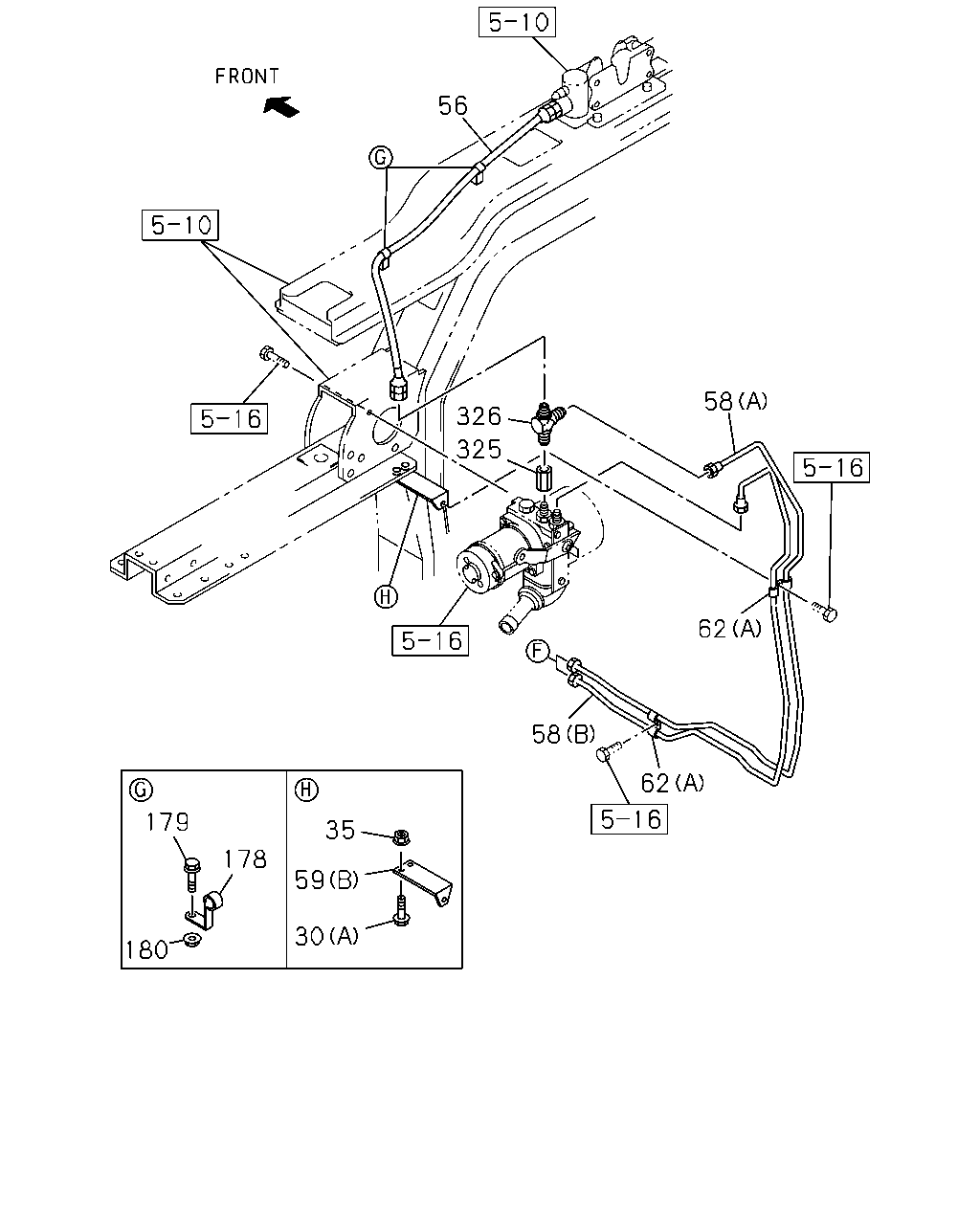

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (18 parça)

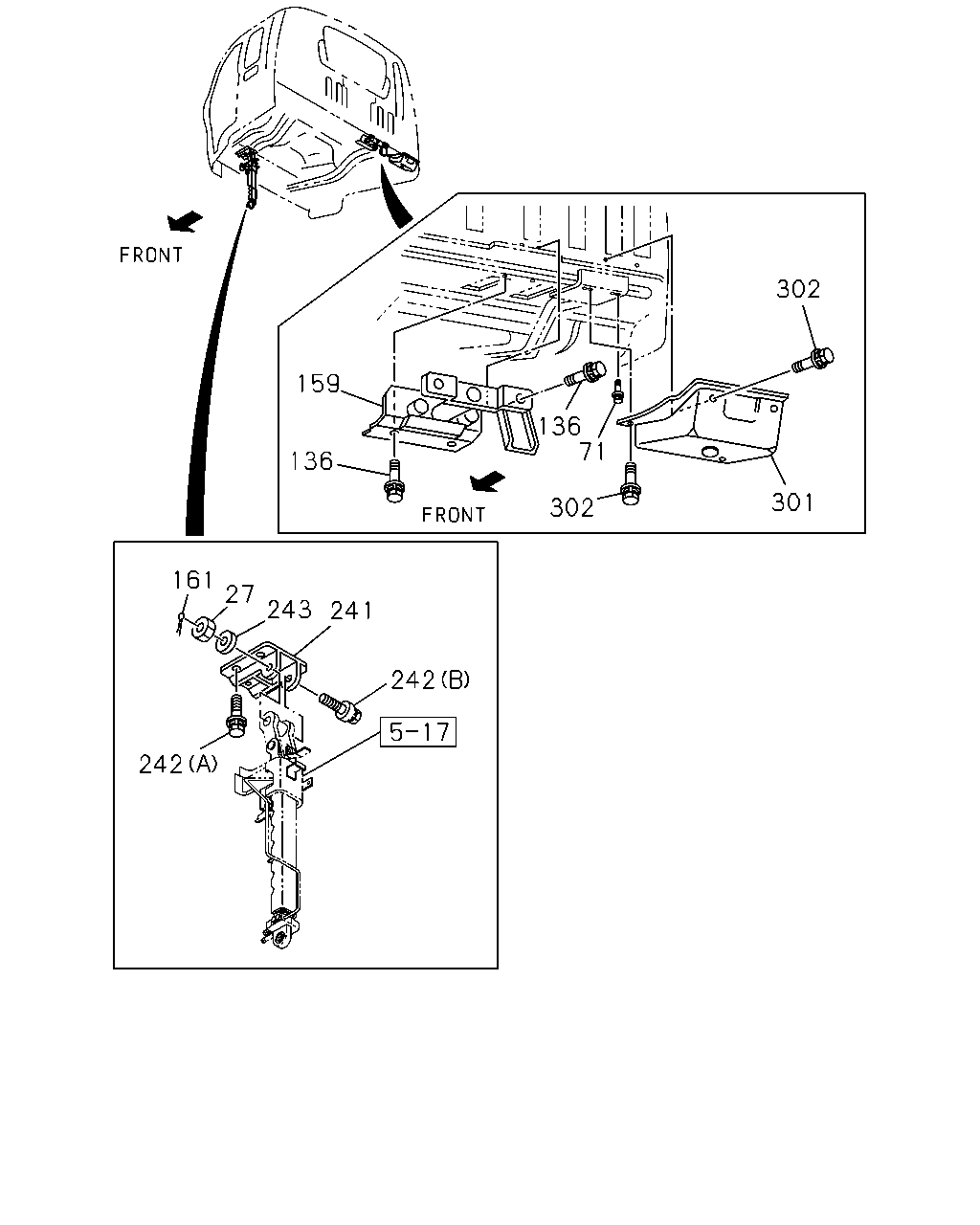

[515A] BRACKET,PIN AND OTHER PARTS (12 parça)

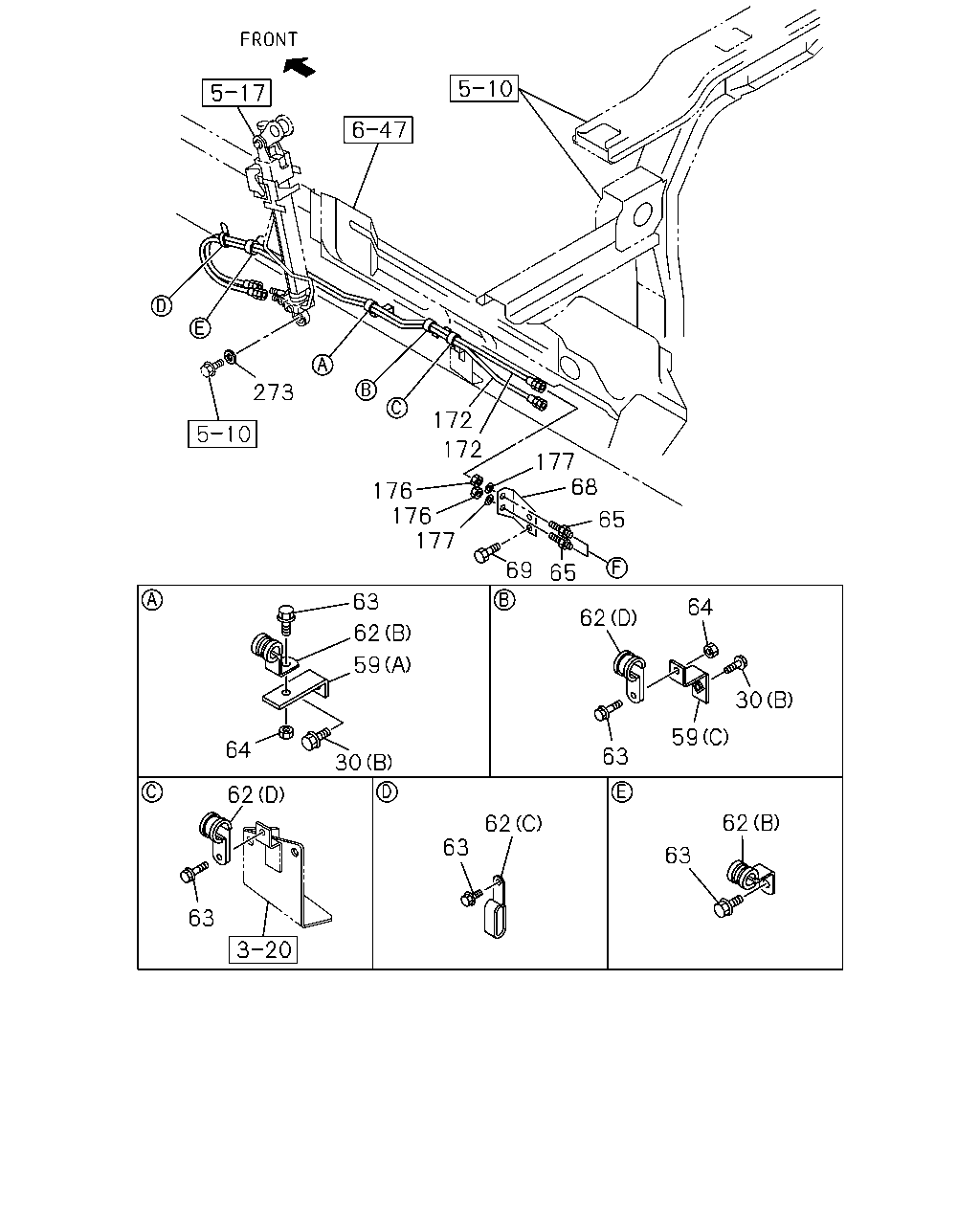

[515A] CAB TILT PIPING;FRAME SIDE (20 parça)
▶
56
58
326
325
62
58
62
179
35
178
59
30
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
0804-
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
0804-
35
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0804-
56
HOSE; FLEX,OIL PIPE
L=750
1-09365-058-0
01
1
0804-
58
PIPE; OIL,POWER UNIT
(A) L=989
1-49166-916-0
01
1
0804-
58
PIPE; OIL,POWER UNIT
(B) L=1017 SERVICED BY L=1100
1-47428-731-0
01
1
0804-
59
BRACKET; CLIP
(C)
1-47475-881-0
01
1
0804-
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
01
1
0804-
59
BRACKET; CLIP
(B)
1-47477-317-0
01
1
0804-
62
CLIP; OIL PIPE
(D) ID=24 L=27
1-09700-809-0
02
1
0804-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
02
1
0804-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
0804-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
0804-
178
CLIP; FLEX HOSE
ID=8 H=20 L=20
1-09700-604-0
02
1
0804-
179
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
0-28650-820-0
02
1
0804-
180
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0804-1003
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
0804-
326
UNION; PUMP
M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
0804-
302
159
136
71
136
301
302
161
27
243
241
242
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; OIL CYL
M14 SLOTTED
0-91116-514-0
01
1
0804-
71
BOLT
M10X25 W/LK&PL WASHER
1-09980-488-0
02
1
0804-
136
BOLT; CAB LK
M8X24.5 W/LK&PL WASHER
8-94279-217-0
04
1
0804-
159
PIN
1-79717-627-1
01
1
0804-
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
0804-
241
BRACKET; POWER CYL UPR,CAB TILT
1-53458-338-1
01
1
0804-
242
BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER
1-09980-546-0
05
1
0804-
242
BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70
1-53458-633-0
01
1
0804-
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-514-0
01
1
0804-0805
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-814-0
01
1
0806-
301
BRACKET; RR MTG,CAB
1-62570-866-1
02
1
0804-
302
BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER
1-09980-488-0
08
1
0804-
273
172
172
177
68
176
176
177
65
69
65
63
64
62
62
59
30
59
64
63
30
62
62
62
63
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
0804-
30
BOLT; BRKT FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
0804-
59
BRACKET; CLIP
(C)
1-47475-881-0
01
1
0804-
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
01
1
0804-
59
BRACKET; CLIP
(B)
1-47477-317-0
01
1
0804-
62
CLIP; OIL PIPE
(D) ID=24 L=27
1-09700-809-0
02
1
0804-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
02
1
0804-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
0804-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
02
1
0804-
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
0804-
63
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0804-
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0804-
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
0804-
68
BRACKET; UNION
1-47479-429-0
01
1
0804-
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0804-
172
HOSE; FLEX,OIL TILT
L=1600
1-09365-052-1
02
1
0804-0909
172
HOSE; FLEX,OIL TILT
L=1600
8-97634-002-0
02
1
0910-
176
NUT; UNION
M12
9-09840-280-0
02
1
0804-
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
0804-
273
WASHER; PL,OIL CYL
ID=10.5 OD=32
0-91614-810-0
01
1
0804-
