Isuzu WW
▶
TRUCKS
▶
EXY
▶
11149 - EXY SOUTH AFRICA
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#15405) — 63 parça
◀

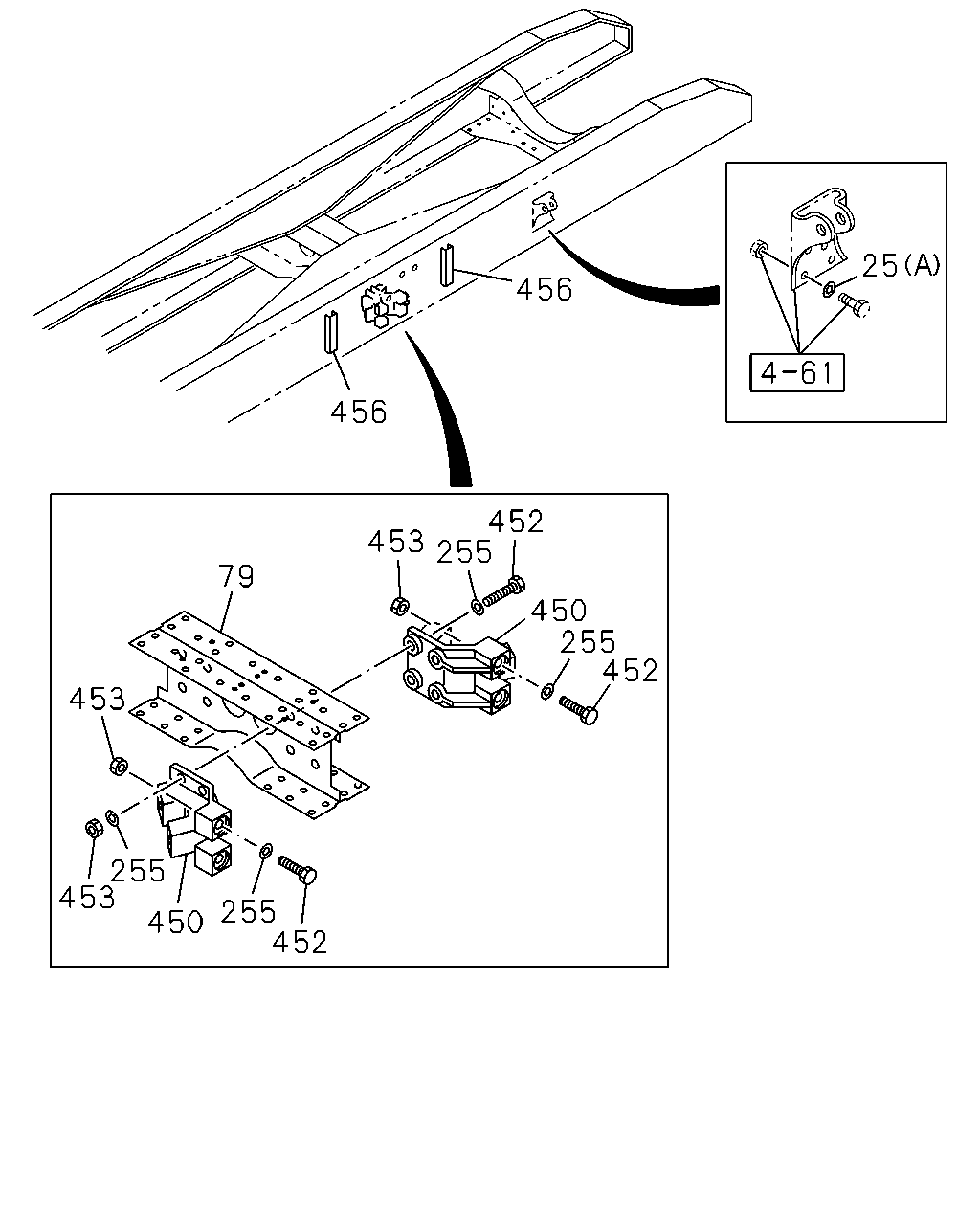

[501A] BRACKET;REAR (9 parça)
[501A] CROSS MEMBER (26 parça)
[501A] BRACKET;FRONT AND UNDER MEMBER (28 parça)
▶
25
456
456
452
453
255
79
450
255
452
453
255
453
255
452
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0804-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
32
1
0804-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
32
1
1202-
79
MEMBER; CROSS,TRUNNION ASM
1-53182-042-2
01
1
0804-
255
WASHER; PL,BRKT
ID=16.2
1-09503-223-0
16
1
0804-
450
BRACKET; V ROD
1-53353-122-1
04
1
0804-
452
BOLT; V ROD
M16X90
1-09000-675-0
16
1
0804-
453
NUT; V ROD
M16 FLANGE
1-09440-066-0
16
1
0804-
456
PATCH; STOPPER
1-53119-203-0
04
1
0804-

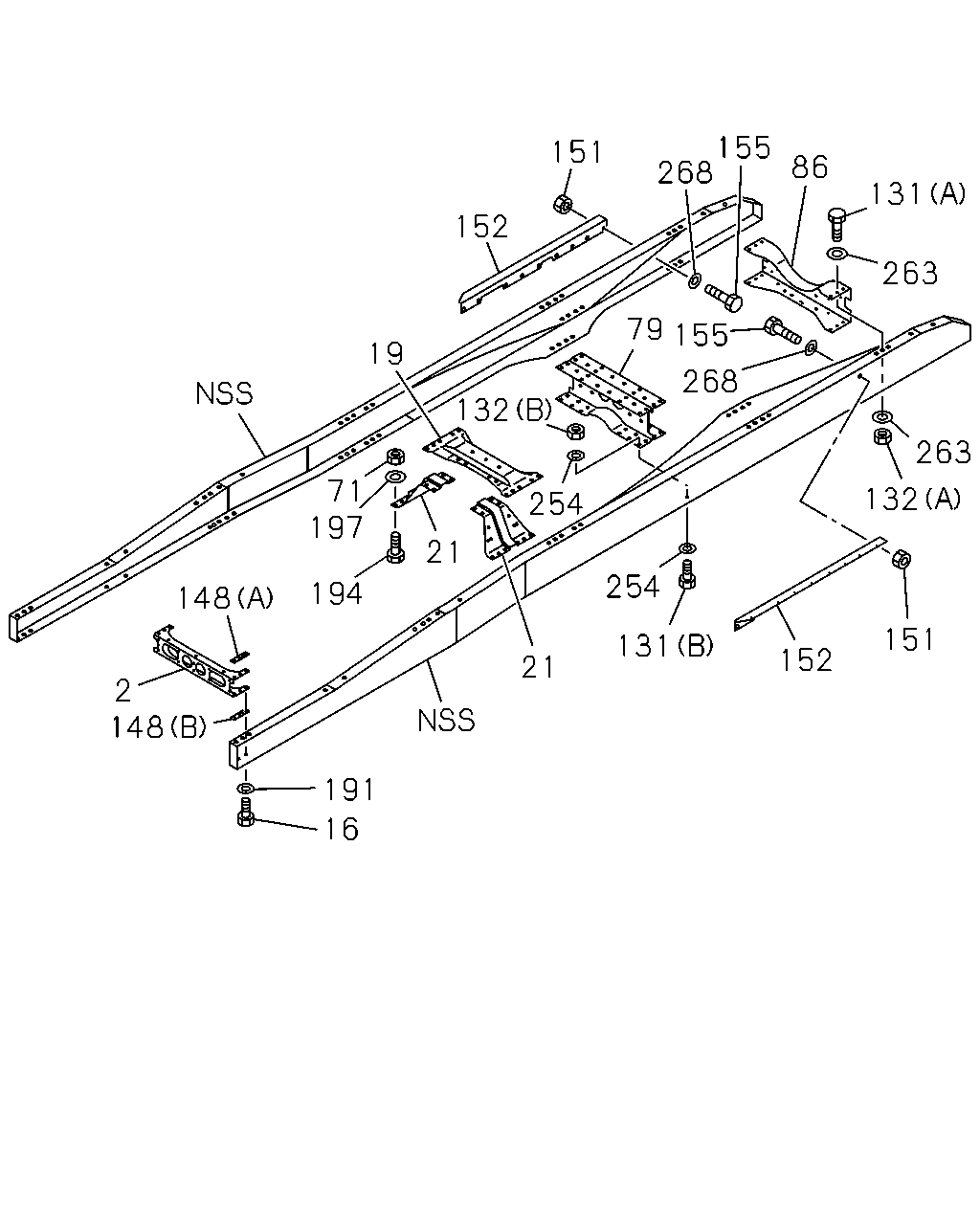

155
268
151
86
131
152
263
132
254
79
155
19
268
263
71
197
132
21
254
194
148
151
131
152
21
2
148
191
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0804-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
0804-
19
MEMBER; CROSS,2ND
1-53174-231-2
01
1
0804-
21
GUSSET; 2ND CROSS
1-53164-226-1
01
1
0804-
21
GUSSET; 2ND CROSS
1-53164-227-1
01
1
0804-
71
NUT; 2ND C/MBR
M14
0-91110-514-0
08
1
0804-
79
MEMBER; CROSS,TRUNNION ASM
1-53182-042-2
01
1
0804-
86
MEMBER; CROSS,RR SUSP RR
8-98093-593-0
01
1
0804-
131
BOLT; END C/MBR
(A) M12X40
0-20951-240-0
02
1
0804-
131
BOLT; END C/MBR
(B) M18X60
9-91066-860-0
16
1
0804-0805
131
BOLT; END C/MBR
(B) M18X60
8-98036-497-0
16
1
0806-
132
NUT; END C/MBR
(A) M12
0-91110-512-0
02
1
0804-
132
NUT; END C/MBR
(B) M18
0-91110-518-0
16
1
0804-
148
SPACER; C/MBR
(A)
1-53168-400-1
02
1
0804-
148
SPACER; C/MBR
(B)
1-53168-403-1
02
1
0804-
151
NUT; OUTRIGGER
M16
0-91110-516-0
18
1
0804-
152
OUTRIGGER
8-97623-582-0
01
1
0804-
152
OUTRIGGER
8-97623-583-0
01
1
0804-
155
BOLT; OUTRIGGER
M16X50
0-20951-650-0
22
1
0804-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-223-0
02
1
0804-
194
BOLT; 2ND C/MBR
M14X50
0-20951-450-0
08
1
0804-
197
WASHER; PL,2ND C/MBR
ID=15
9-09651-069-0
08
1
0804-1201
197
WASHER; PL,2ND C/MBR
ID=15
8-98010-627-1
08
1
1202-
254
WASHER; PL,C/MBR
ID=19
9-09160-518-0
32
1
0804-
263
WASHER; PL,SUB FRAME
ID=12.5
9-09164-512-0
04
1
0804-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
22
1
0804-

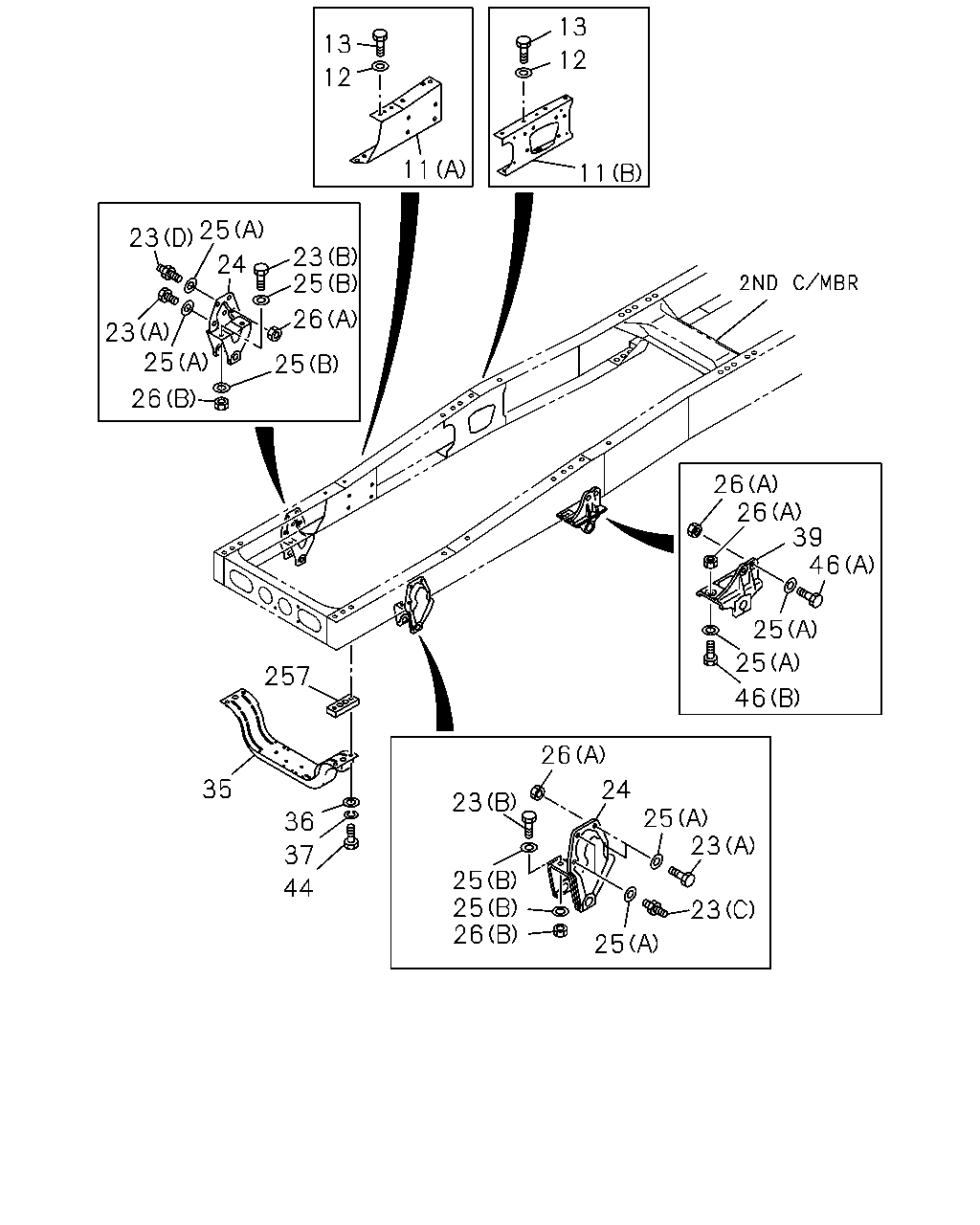

13
13
12
12
11
11
25
23
23
25
24
26
23
25
25
26
26
26
39
46
25
25
257
46
26
35
24
23
25
23
36
37
25
25
26
44
23
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0804-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0804-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
0804-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
0804-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
05
1
0804-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
05
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
05
1
0804-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
05
1
0804-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0804-
23
BOLT; BRKT,SPR
(D) M12X35,M14X45 L=100
1-09029-075-0
01
1
0804-
23
BOLT; BRKT,SPR
(C) M12X25,M14X45 L=81
1-09029-103-0
02
1
0804-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0804-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0804-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0804-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
32
1
0804-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
32
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
0804-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0804-
35
MEMBER; UNDER
1-53174-263-2
01
1
0804-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0804-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0804-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0804-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0804-
44
BOLT; UNDER MBR
M16X80
0-10961-680-0
04
1
0804-1504
44
BOLT; UNDER MBR
M16X80
8-98135-460-0
04
1
1505-
46
BOLT; BRKT FIX
(A) M14X40
0-20951-440-0
04
1
0804-
46
BOLT; BRKT FIX
(B) M14X50
0-20951-450-0
04
1
0804-
257
SPACER; UNDER MBR
1-53168-447-1
02
1
0804-
