0-30 — WATER PUMP AND CORROSION RESISTOR (#1540) — 31 parça

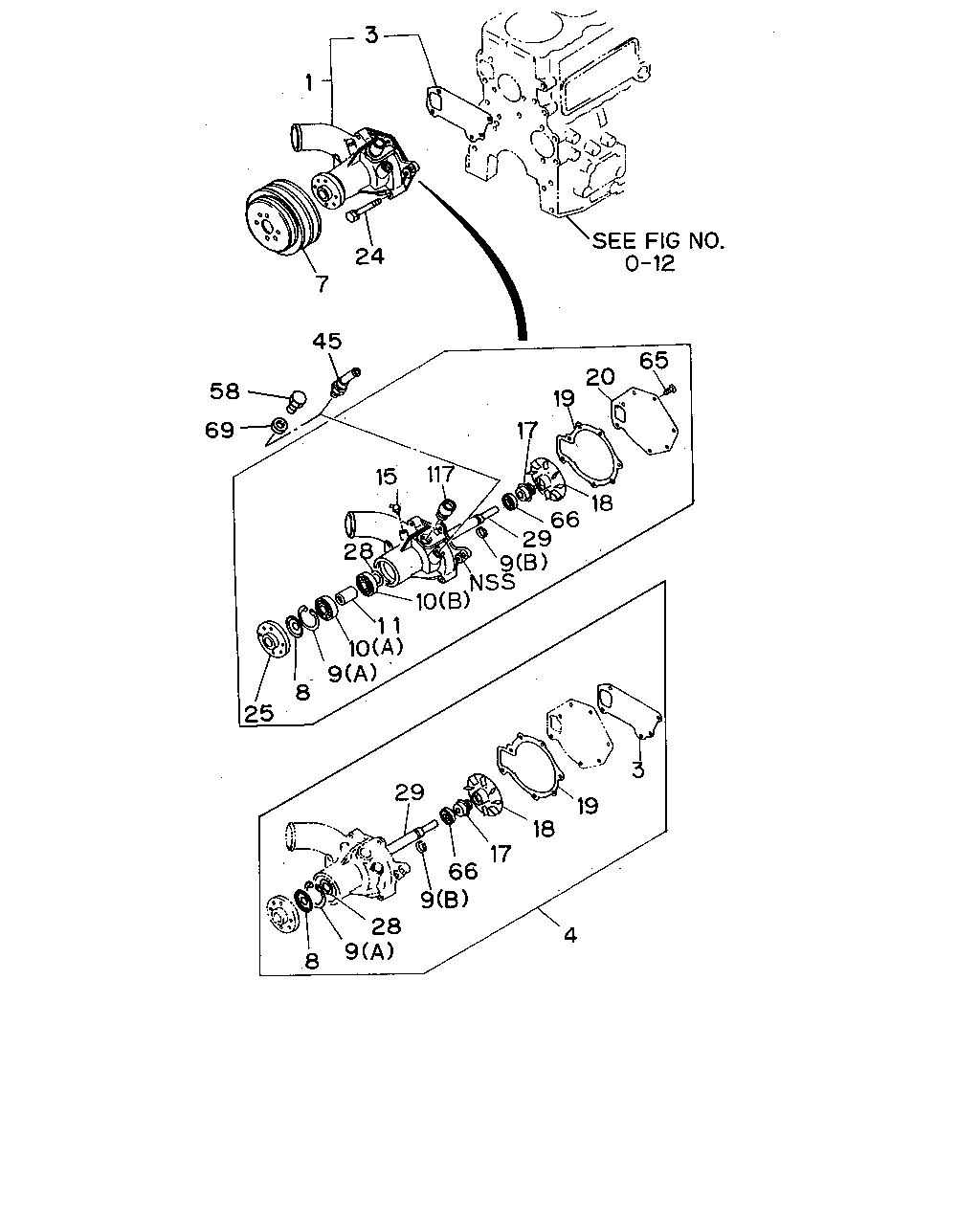

çizim 27827
1 3 24 7 58 69 45 65 20 19 17 18 66 29 9 117 15 28 8 25 11 10 9 10 3 19 18 17 29 66 4 9 28 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; WATER,W/GASKET 1-13610-819-0 01 1 9207-
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-013-1 01 1 9207-9510
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-661-0 01 1 9511-
4 REPAIR KIT; WATER PUMP 1-87810-937-0 01 1 9207-9510
4 REPAIR KIT; WATER PUMP 1-87811-253-0 01 1 9511-
7 PULLEY; WATER PUMP
2-GROOVE 		1-13641-165-0 01 1 9207-
8 THROWER; DUST,WATER PUMP 5-13639-001-0 01 1 9207-
9 RING; SNAP,WATER PUMP
(A) OD=56.2 		9-09180-152-0 01 1 9207-
9 RING; SNAP,WATER PUMP
(B) 		9-09952-143-0 01 1 9207-
10 BEARING; WATER PUMP
(A) NTN 		5-09800-059-0 01 1 9207-
10 BEARING; WATER PUMP
(B) NTN 		5-09800-060-0 01 1 9207-
10 BEARING; WATER PUMP
(B) NSK 		9-00090-059-0 01 1 9207-
10 BEARING; WATER PUMP
(A) NSK 		9-00090-113-0 01 1 9207-
11 SPACER; BRG,WATER PUMP 5-13634-002-0 01 1 9207-
15 NIPPLE; GREASE,WATER PUMP
PT1/8 ELBOW 67.5? 		9-09031-110-0 01 1 9207-
17 SEAL UNIT; WATER PUMP 5-13620-006-1 01 1 9207-
18 IMPELLER; WATER PUMP 9-13621-802-0 01 1 9207-
19 GASKET; COVER TO BODY 9-13613-613-0 01 1 9207-
20 COVER; WATER PUMP 1-13612-023-0 01 1 9207-
24 BOLT; WATER PUMP
M10X35 W/LK WASHER 		0-50041-035-0 01 1 9207-
24 BOLT; WATER PUMP
M10X50 W/LK WASHER 		0-50041-050-0 02 1 9207-
24 BOLT; WATER PUMP
M10X75 W/LK WASHER 		5-09030-010-1 01 1 9207-
25 CENTER; WATER PUMP 1-13642-003-0 01 1 9207-
28 WASHER; WATER PUMP 1-09503-070-0 01 1 9207-
29 SHAFT; WATER PUMP 5-13631-009-0 01 1 9207-
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER<C41> 		1-13619-039-1 01 1 9207-
58 PLUG; HTR
EXC. HEATER & DEFROSTER<C41> M20 		9-99202-320-0 01 1 9207-
65 SCREW; COVER,WATER PUMP
M8X20 CK-HEAD 		9-03090-820-0 03 1 9207-
66 SEAL; SECONDARY 5-09625-055-0 01 1 9207-
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER<C41> ID=20.5 OD=28.0 		9-09571-420-0 01 1 9207-
117 CONNECTOR; BYPASS 1-09660-119-2 01 1 9207-
