◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51603 - TFR/TFS MIDDLE EAST ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶
9-33 — REAR BODY; GATE AND SIDE GUARD (#153985) — 1315 parça

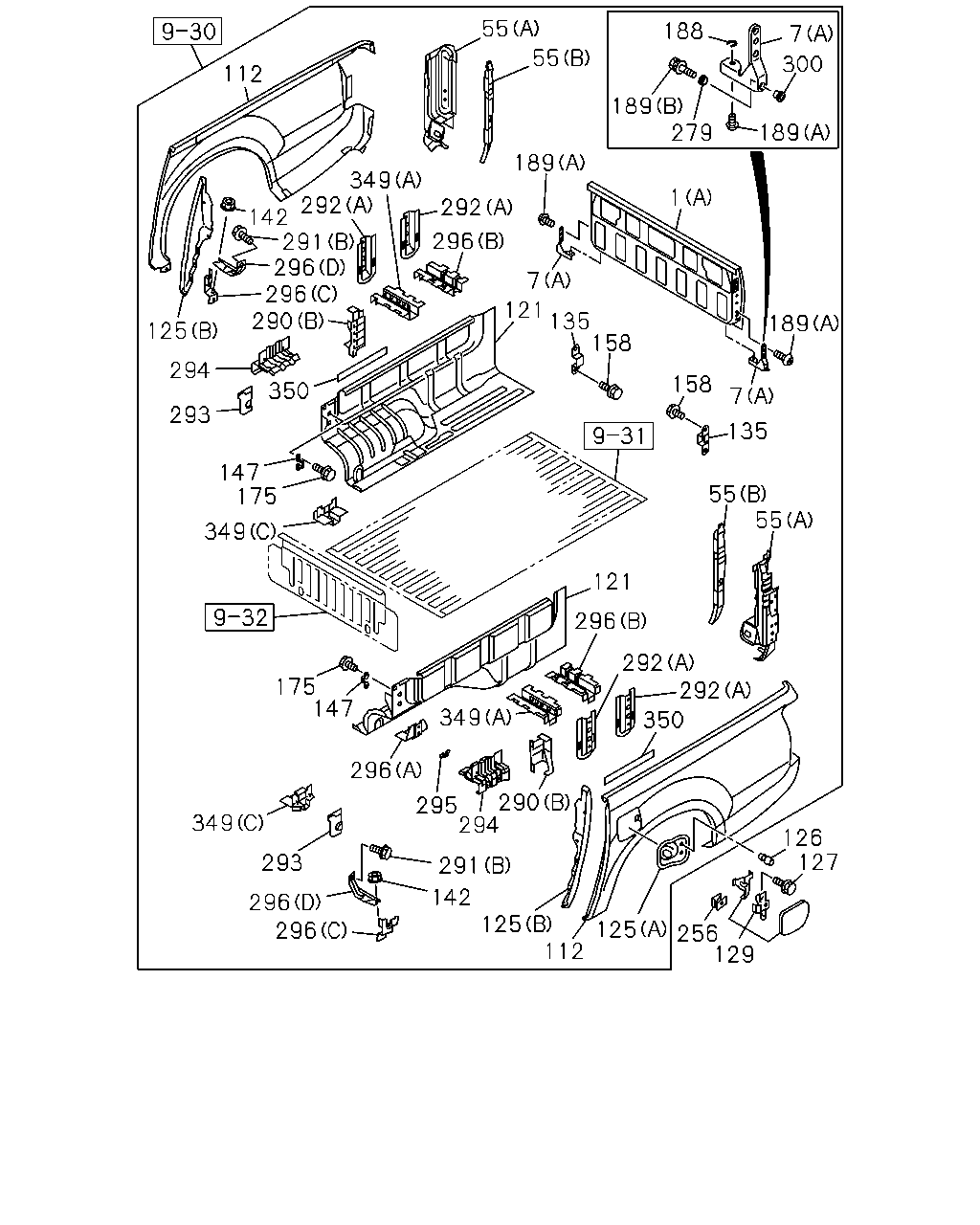

çizim 459185
112 55 188 55 189 7 279 189 300 1 189 7 135 158 55 121 55 296 292 292 350 126 127 129 256 125 112 125 142 296 296 349 293 295 294 296 147 175 349 290 291 349 175 147 293 294 125 290 350 296 296 291 142 292 349 189 292 7 296 121 158 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1412- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1511- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1511- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1511- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-548-9 01 1 1511- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-549-7 01 1 1511- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1412- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1412- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1412-1510 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1412-1510 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1412- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1412- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1412- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1412-1510 ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1511- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1412-1510 ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1511- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1412-1510 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1412-1510 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1511- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1511- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1412- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1412- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1412- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1511- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1511- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1511- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1511- ● ●
142 17.505 NUT
REAR BODY DBL WALL CTR PULL(E63) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1412-1510 ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1412-1510 ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1511- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1511- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1412- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1412- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1510 ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1510 ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1511- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1511- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1412-1510 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1412-1510 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1412-1510 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1412-1510 ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1511- ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1412-1510 ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1511- ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1412-1505 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506-1510 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506-1510 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1511- ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1511- ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1412- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1412- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1412-1510 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 04 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1412- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1412-1510 ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1511- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1511- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1511- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1412-1510 ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1412-1510 ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1412-1510 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1511- ● ● ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1412-1510 ● ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1511- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1412- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1412- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1412- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1412-1510 ● ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1511- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1412-1510 ● ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1511- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 02 1 1511- ●

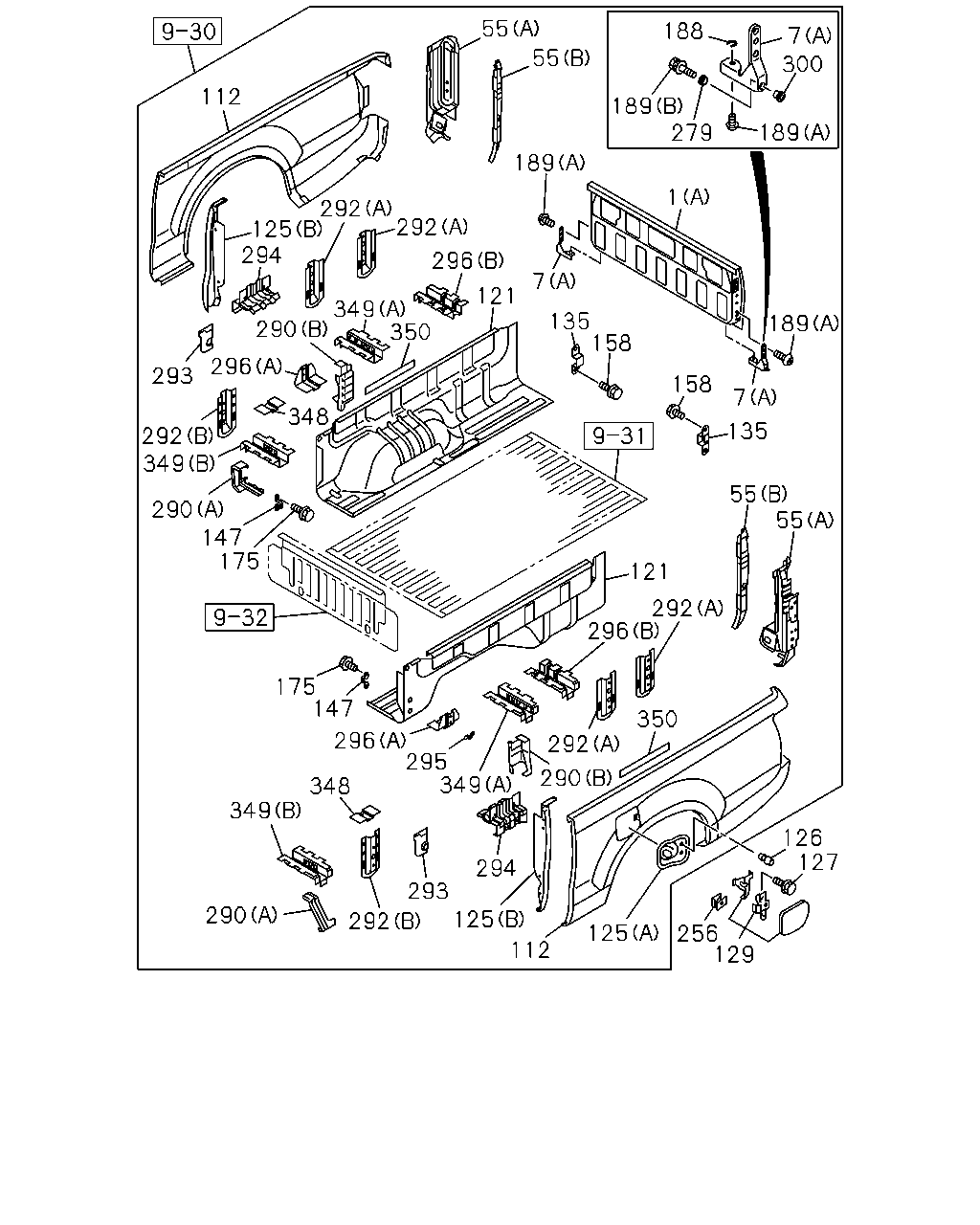

çizim 459347
112 55 189 188 7 189 189 279 300 1 7 158 135 189 158 55 135 7 55 121 292 296 350 292 290 294 125 112 256 125 129 126 127 292 290 293 349 295 296 348 349 147 175 175 147 290 349 292 293 296 348 290 294 125 292 296 349 121 350 292 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1412- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1511- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1511- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1511- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-548-9 01 1 1511- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-549-7 01 1 1511- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1412- ●

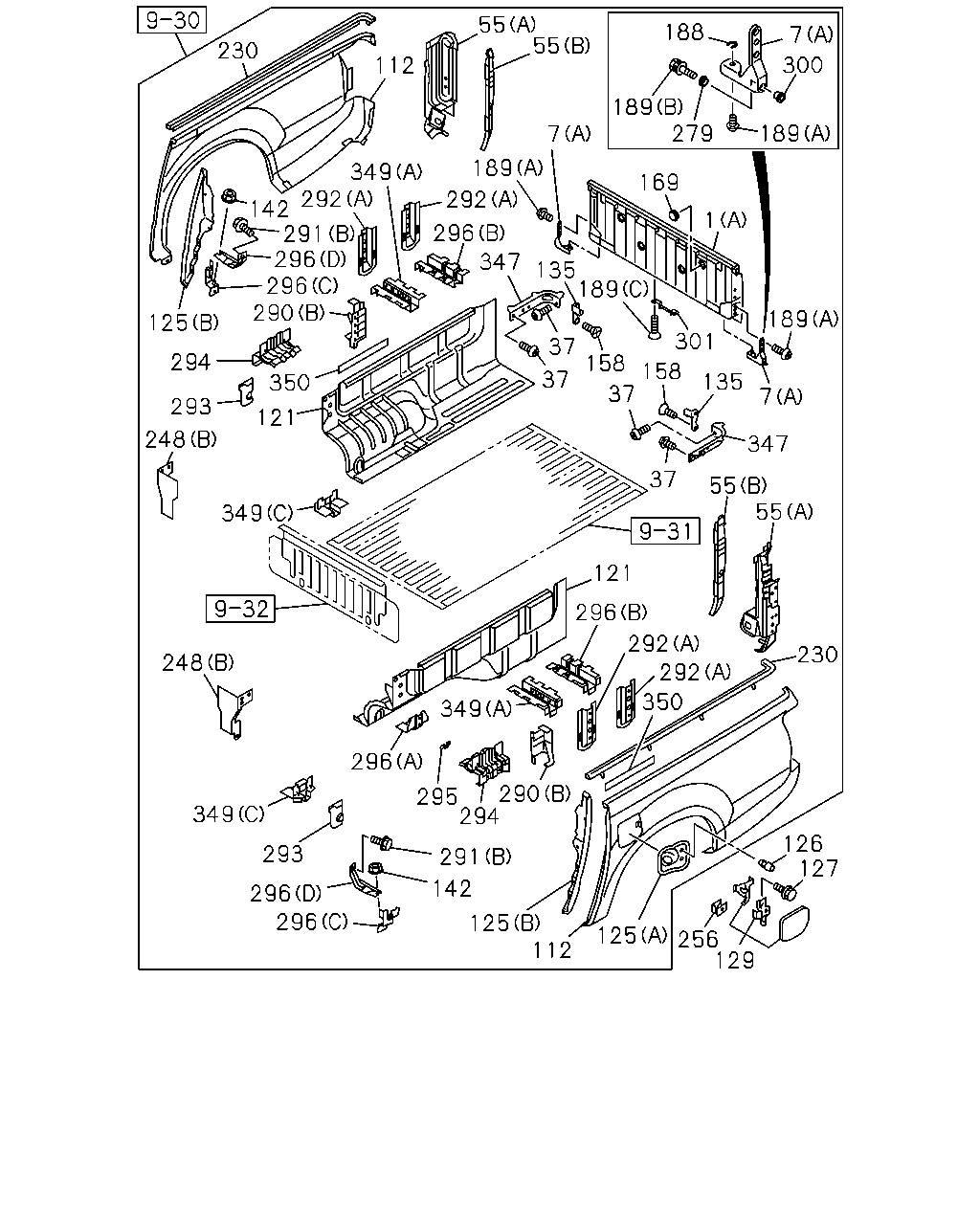

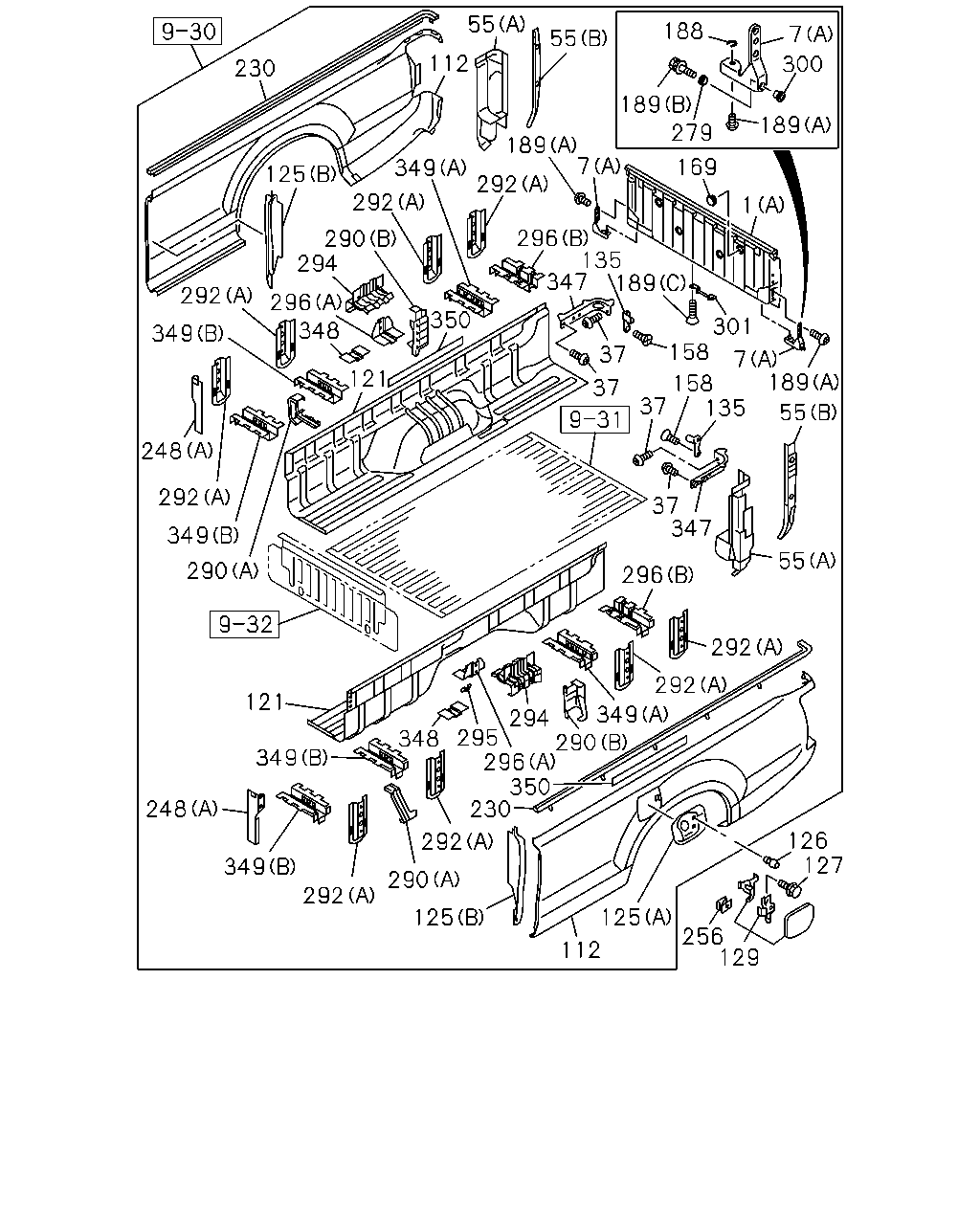

121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1412- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1412- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1412-1510 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1412-1510 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1412- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1412- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1412- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1412-1510 ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1511- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1412-1510 ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1511- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1412-1510 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1412-1510 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1511- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1511- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1412- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1412- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1412- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1511- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1511- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1511- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1511- ● ●

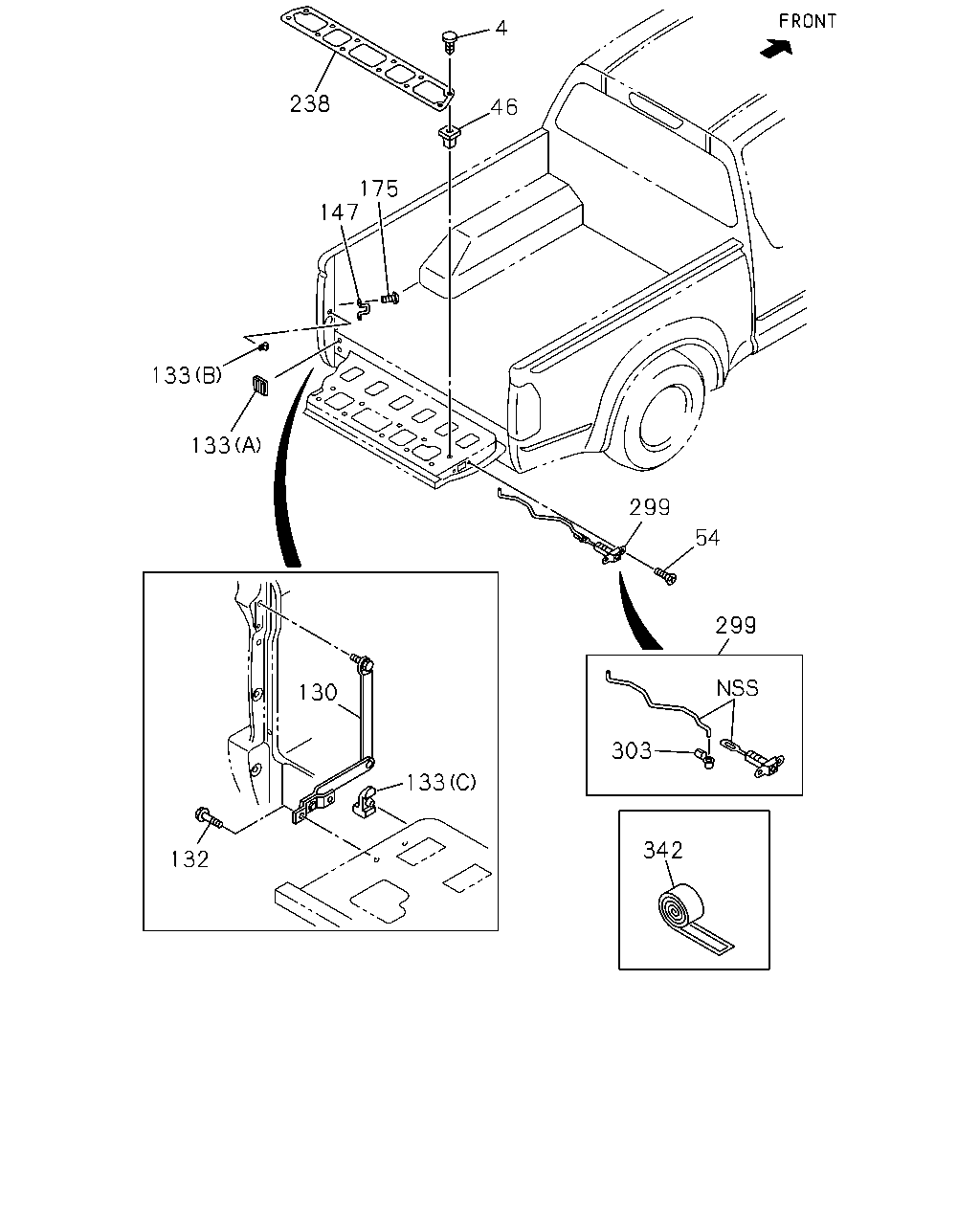

147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1412-1510 ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1412-1510 ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1511- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1511- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1412- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1412- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1510 ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1510 ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1511- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1511- ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1412-1510 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1412-1510 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1412-1510 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1412-1510 ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1511- ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1412-1510 ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1511- ● ● ● ● ●

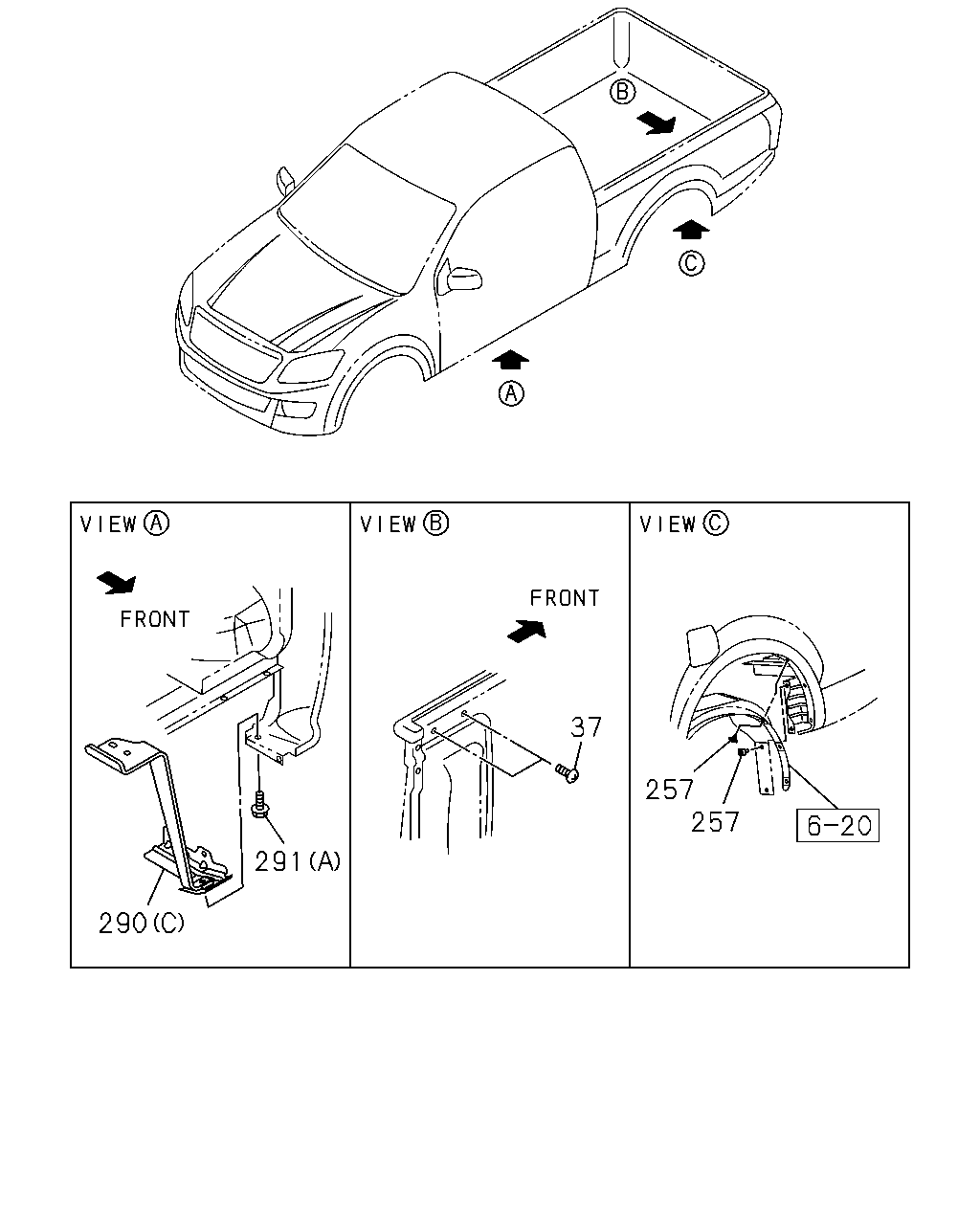

290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1412- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1412-1510 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 04 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1412- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1412-1510 ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1511- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1511- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1511- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1412-1510 ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1412-1510 ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1412-1510 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1511- ● ● ● ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-619-0 01 1 1511- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-619-0 01 1 1511- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1412-1510 ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1511- ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-619-0 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1412-1510 ● ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1511- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1412- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1412- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1412- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1412-1510 ● ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1511- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1412-1510 ● ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1511- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 02 1 1511- ●
çizim 459579
55 112 55 188 7 189 300 189 230 125 349 189 292 290 294 292 7 169 296 189 347 135 1 301 158 135 158 189 7 55 350 37 37 37 37 347 55 296 292 296 292 349 348 121 248 292 290 349 121 248 349 349 292 125 112 129 256 126 127 125 290 230 292 348 295 296 350 294 290 292 349 279
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1412- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1511- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1511- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1412- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1412-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1412-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1412-1510 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1412-1510 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1511- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1511- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-548-9 01 1 1511- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-549-7 01 1 1511- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1412- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1412- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1412-1510 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1412-1510 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1412- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1412- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1412- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1412-1510 ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1511- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1412-1510 ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1511- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1412-1510 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1412-1510 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1511- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1511- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1412- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1412- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1412- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1511- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1511- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1511- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1511- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1412- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1412- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1412- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-97166-110-0 04 1 1412- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1412-1510 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1412-1510 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1412-1510 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1412- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1412- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-983-1 01 1 1412- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-984-1 01 1 1412- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-333-0 01 1 1412- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-336-0 01 1 1412- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-590-0 01 1 1412- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-591-0 01 1 1412- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1412-1510 ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1511- ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1412-1510 ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1511- ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1412- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1412-1510 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 04 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1412- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1412-1510 ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1511- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1511- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1511- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1412-1510 ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1412-1510 ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1412-1510 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1511- ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1412- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1412- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1412- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-603-1 01 1 1412- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1412- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-604-1 01 1 1412- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-619-0 01 1 1511- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-619-0 01 1 1511- ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1412-1510 ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-619-0 02 1 1511- ● ●
348 17.442 REINFORCEMENT; RR BODY,INRL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-619-0 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1412-1510 ● ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1511- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1412- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1412- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1412- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1412-1510 ● ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1511- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1412-1510 ● ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1511- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 02 1 1511- ●
çizim 460154
55 112 230 349 292 142 296 290 296 291 125 293 294 350 296 292 189 7 347 121 248 349 248 349 293 296 296 125 112 256 129 125 142 294 291 127 126 295 290 296 349 296 292 292 350 230 121 55 37 347 55 135 158 37 37 37 135 301 158 7 189 169 189 188 7 189 279 1 189 55 300
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1412- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1511- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1511- ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1412- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1412-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1412-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1412-1510 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1412-1510 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1511- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-262-5 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-262-5 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-264-5 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-264-5 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-380-4 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-380-4 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-381-4 01 1 1412- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-381-4 01 1 1412- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-259-6 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-259-6 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-261-6 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-261-6 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-378-7 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-378-7 01 1 1511- ● ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1412-1510 ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-379-7 01 1 1511- ●
55 17.505 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-379-7 01 1 1511- ● ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-548-9 01 1 1511- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-549-7 01 1 1511- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-553-8 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-555-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-977-5 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-978-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-560-9 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-560-9 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-561-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-561-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-551-8 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) 		8-98104-552-6 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-518-7 01 1 1412- ●
112 17.455 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98122-519-9 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-316-6 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-318-6 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-608-4 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-609-4 01 1 1511- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-927-6 01 1 1412- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-928-5 01 1 1412- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-979-3 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-980-3 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-294-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-294-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-296-7 01 1 1412- ●
121 17.442 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-296-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-868-4 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98153-869-4 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1412-1510 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1412-1510 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-233-7 01 1 1511- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-180-1 01 1 1412- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-181-1 01 1 1412- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-599-0 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-600-0 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-234-7 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-189-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-189-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-192-4 01 1 1412- ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-192-4 01 1 1412- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1412-1510 ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-98144-635-1 03 1 1511- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1412-1510 ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 		8-98056-287-0 02 1 1511- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1412-1510 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1412-1510 ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-297-6 01 1 1511- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98103-297-6 01 1 1511- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98103-298-7 01 1 1412- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98103-298-7 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-656-2 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-656-2 01 1 1412- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98115-657-2 01 1 1412- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98115-657-2 01 1 1412- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-333-0 01 1 1511- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-333-0 01 1 1511- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1412-1510 ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98050-334-0 01 1 1511- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-334-0 01 1 1511- ● ●
142 17.505 NUT
REAR BODY DBL WALL CTR PULL(E63) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1412- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 17.208 M8X22 		8-98050-437-0 04 1 1412- ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 M8X22 		8-98050-437-0 04 1 1412- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ●
158 17.185 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1412- ● ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-97166-110-0 04 1 1412- ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1412-1510 ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97329-277-1 AR 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1412-1510 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (B) M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1412-1510 ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) 17.400 (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 06 1 1511- ● ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) (C) M8X22 		8-98050-437-0 02 1 1412- ● ●
189 17.208 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) M8X22 		8-98050-437-0 02 1 1412- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-565-2 01 1 1412- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-566-2 01 1 1412- ● ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-983-1 01 1 1412- ●
230 17.208 RAIL; SIDE GATE UPR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-984-1 01 1 1412- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-333-0 01 1 1412- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-336-0 01 1 1412- ● ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-590-0 01 1 1412- ●
248 17.442 PATCH; CARGO RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98124-591-0 01 1 1412- ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1412-1510 ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98141-610-3 01 1 1511- ● ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1412-1510 ● ● ● ●
279 17.505 SPACER
REAR BODY DBL WALL CTR PULL(E63) 		8-97357-403-0 02 1 1511- ● ● ● ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1412-1505 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506-1510 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506-1510 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1511- ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1511- ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1412- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-134-1 01 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98156-912-0 01 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 02 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 08 1 1412- ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1412-1510 ● ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-156-0 04 1 1511- ●
292 17.442 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-156-0 04 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-610-1 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98144-611-1 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-611-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1412-1510 ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-612-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-612-2 01 1 1511- ●
293 17.442 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98104-612-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-392-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1412-1510 ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-393-2 01 1 1511- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-405-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-406-3 01 1 1412- ●
294 17.445 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-406-3 01 1 1412- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1412-1510 ● ● ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1511- ● ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98104-666-1 01 1 1511- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-666-1 01 1 1511- ●
295 17.505 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-666-1 01 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 01 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1412-1510 ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-649-0 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1412-1510 ● ● ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1511- ● ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-665-1 02 1 1511- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-642-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-642-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (C) 		8-98138-643-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98138-643-3 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-648-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-648-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (D) 		8-98138-649-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98138-649-3 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-640-5 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-98138-641-5 01 1 1412- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-646-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1412-1505 ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (D) 		8-98138-647-2 01 1 1506- ●
296 17.442 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (D) 		8-98138-647-2 01 1 1506- ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1412-1510 ● ● ● ●
300 17.204 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) 		8-98057-114-0 02 1 1511- ● ● ● ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-899-0 01 1 1412- ● ●
301 17.204 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98053-899-0 01 1 1412- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-603-1 01 1 1412- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-603-1 01 1 1412- ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-604-1 01 1 1412- ● ●
347 17.442 REINFORCEMENT; RR BODY,SIDE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98104-604-1 01 1 1412- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-98104-613-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 01 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1412-1510 ● ● ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1511- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-98104-614-2 02 1 1511- ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-613-2 04 1 1412- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-650-1 01 1 1412- ● ●
349 17.442 REINFORCEMENT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98139-651-1 01 1 1412- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 01 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1412-1510 ● ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1511- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> UPPER 		8-98192-937-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1412-1510 ● ● ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1511- ● ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) LOWER 		8-98192-940-0 02 1 1511- ●
350 17.442 SEAL; TAPE
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> LOWER 		8-98192-940-0 02 1 1511- ●
çizim 460167
4 46 238 175 147 133 133 130 132 133 299 299 303 342 54
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M4X10 		8-97043-528-0 12 1 1412-1510 ●
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 1412-1510 ●
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M4X10 		8-97043-528-0 12 1 1511- ●
4 17.185 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 		8-97043-528-0 12 1 1511- ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98165-002-2 12 1 1412-1510 ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) 		8-98165-002-2 12 1 1412-1510 ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98165-002-2 12 1 1511- ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
REAR BODY DBL WALL CTR PULL(E63) 		8-98165-002-2 12 1 1511- ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 		8-97247-699-0 04 1 1412-1510 ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 		8-97247-699-0 04 1 1412-1510 ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> M8X20 		8-97247-699-0 04 1 1511- ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X20 		8-97247-699-0 04 1 1511- ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-461-1 01 1 1412-1510 ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-461-1 01 1 1511- ● ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-462-1 01 1 1412-1510 ● ● ● ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98180-462-1 01 1 1511- ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1412-1510 ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1511- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-185-2 02 1 1412-1510 ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-185-2 02 1 1511- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98110-231-2 02 1 1412-1510 ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98110-231-2 02 1 1511- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-088-1 01 1 1412- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0> (A) 		8-98126-088-1 01 1 1412- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) 		8-98126-089-1 01 1 1412- ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0> (A) 		8-98126-089-1 01 1 1412- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0>,OUTER ROPE HOOKS<7MZ> (A) 		8-98134-726-1 01 1 1412- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0> (A) 		8-98134-726-1 01 1 1412- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0>,OUTER ROPE HOOKS<7MZ> (A) 		8-98134-727-1 01 1 1412- ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),SALES PACKAGE SPORTY <XK0> (A) 		8-98134-727-1 01 1 1412- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1412-1510 ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1412-1510 ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97264-487-0 04 1 1511- ●
147 17.505 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) 		8-97264-487-0 04 1 1511- ● ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1510 ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1510 ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1511- ●
175 17.505 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1511- ● ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98181-076-2 01 1 1412-1510 ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98181-076-2 01 1 1412-1510 ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98181-076-2 01 1 1511- ●
238 17.185 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98181-076-2 01 1 1511- ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-971-3 01 1 1412-1510 ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-971-3 01 1 1412-1510 ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-971-3 01 1 1511- ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-971-3 01 1 1511- ● ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-972-3 01 1 1412-1510 ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-972-3 01 1 1412-1510 ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-972-3 01 1 1511- ●
299 17.204 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98102-972-3 01 1 1511- ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-276-0 01 1 1412-1510 ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 1412-1510 ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-276-0 01 1 1511- ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-276-0 01 1 1511- ● ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-277-0 01 1 1412-1510 ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 1412-1510 ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-97381-277-0 01 1 1511- ●
303 17.204 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97381-277-0 01 1 1511- ● ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-775-4 01 1 1412-1510 ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98139-775-4 01 1 1412-1510 ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-775-4 01 1 1511- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98139-775-4 01 1 1511- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98139-775-4 01 1 1511- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1412- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98139-776-4 01 1 1412- ●
342 17.505 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98139-776-4 01 1 1412- ●
çizim 460168
53 215 170 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98061-099-0 02 1 1412- ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98061-099-0 02 1 1412- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> 		8-98102-969-3 01 1 1511- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-968-3 01 1 1412-1510 ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) 		8-98102-968-3 01 1 1412-1510 ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 		8-98102-968-3 01 1 1511- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) 		8-98102-968-3 01 1 1511- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 		8-98102-968-3 01 1 1511- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20>,OUTER ROPE HOOKS<7MZ> 		8-98102-967-3 01 1 1412-1510 ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20> 		8-98102-967-3 01 1 1412-1510 ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20>,OUTER ROPE HOOKS<7MZ> 		8-98102-967-3 01 1 1511- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20> 		8-98102-967-3 01 1 1511- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20>,LOCK END GATE<8CW> 		8-98102-967-3 01 1 1511- ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1412- ● ●
170 17.635 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 09.744 M6X20 W/WASHER 		8-98056-282-0 04 1 1412- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> M6X14 FLANGE 		8-97247-698-0 01 1 1511- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1511- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1511- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1511- ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1412-1510 ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) 10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1412-1510 ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) LOCK END GATE<8CW> 10.765 M6X8 FLANGE 		8-98048-996-0 01 1 1511- ●
çizim 460187
291 290 37 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1412-1505 ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> EXC. HIGH RIDE SUSPENSION(7YC) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1412-1505 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ● ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 06 1 1506- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1412-1510 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1412-1510 ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1511- ●
37 17.202 SCREW
REAR BODY DBL WALL CTR PULL(E63) 17.400 M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 04 1 1511- ● ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> 17.490 		8-98057-864-0 04 1 1412- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.490 		8-98057-864-0 04 1 1412- ●
257 17.505 RIVET
REAR BODY DBL WALL CTR PULL(E63) 17.490 		8-98057-864-0 04 1 1412- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-543-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1412-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98126-544-0 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-062-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-062-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1506-1510 ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1506-1510 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98104-063-2 01 1 1511- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ>,HIGH RIDE SUSPENSION(7YC) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-063-2 01 1 1511- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-244-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-244-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) EXC. OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) (B) 		8-98113-245-2 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98113-245-2 01 1 1506- ● ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-117-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-117-0 01 1 1506- ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (C) 		8-98187-118-0 01 1 1412-1505 ●
290 17.400 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98187-118-0 01 1 1506- ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1412-1505 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1506-1506 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506-1510 ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506-1510 ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1511- ● ● ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1511- ● ● ●
291 17.400 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 01.540 (B) M8X32.5 W/PL WASHER 		8-98136-077-0 02 1 1412- ● ●
çizim 503602
277 65 75 287 13 27 27 28 108 65 13 11 9 14 1 11 11 19 20 18 65 108 7 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98198-539-2 01 1 1412- ● ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> (A) 		8-98198-539-2 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY FLAT BED(E39) (B) 		8-98165-718-1 01 1 1412- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1412-1510 ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTER ROPE HOOKS<7MZ> (A) 		8-98104-362-9 01 1 1511- ●
1 17.185 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-362-9 01 1 1511- ● ●
5 17.204 NUT; LATCH HANDLE
REAR BODY FLAT BED(E39) 04.439 M12 		0-91111-512-0 04 1 1412- ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-948-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1412-1510 ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98180-949-0 01 1 1511- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 03 1 1412- ●
9 17.204 HANDLE; LATCH,RR GATE
REAR BODY FLAT BED(E39) 		8-98171-141-0 01 1 1412- ●
9 17.204 HANDLE; LATCH,RR GATE
REAR BODY FLAT BED(E39) 		8-98171-142-0 01 1 1412- ●
11 17.198 LOCK ASM; VERTICAL
REAR BODY FLAT BED(E39) 		8-98166-532-0 01 1 1412- ●
11 17.198 LOCK ASM; VERTICAL
REAR BODY FLAT BED(E39) 		8-98166-533-0 01 1 1412- ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
REAR BODY FLAT BED(E39) (A) 		8-97354-210-0 02 1 1412- ●
13 17.615 RUBBER; GATE HANDLE,RR BODY
REAR BODY FLAT BED(E39) (B) 		8-97354-213-0 02 1 1412- ●
14 17.204 WASHER; PL,HANDLE
REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 1412- ●
18 17.198 PIN; VERTICAL LOCK
REAR BODY FLAT BED(E39) 		8-97353-379-0 02 1 1412- ●
19 17.198 PIN; SPLIT,VERTICAL LOCK
REAR BODY FLAT BED(E39) 04.439 OD=2.8 L=18 		0-81123-018-0 02 1 1412- ●
20 17.198 WASHER; PL,VERTICAL LOCK
REAR BODY FLAT BED(E39) ID=10.5 		0-91610-510-0 02 1 1412- ●
27 17.208 PIN; HINGE,SIDE GATE
REAR BODY FLAT BED(E39) (A) 		8-98171-884-0 11 1 1412- ●
27 17.208 PIN; HINGE,SIDE GATE
REAR BODY FLAT BED(E39) (B) ID=6 		9-09185-006-0 11 1 1412- ●
28 17.208 HINGE; UPR,SIDE GATE
REAR BODY FLAT BED(E39) 		8-98171-876-0 08 1 1412- ●
65 17.490 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (A) 		8-97354-204-0 06 1 1412- ●
65 17.490 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (B) 		8-97354-205-0 02 1 1412- ●
65 17.490 RUBBER; BUMPER
REAR BODY FLAT BED(E39) (C) 		8-97354-209-0 02 1 1412- ●
75 17.490 WASHER; PL
REAR BODY FLAT BED(E39) 00.413 ID=6.4 		0-91610-606-0 06 1 1412- ●
108 17.505 GATE ASM; SIDE
REAR BODY FLAT BED(E39) 		8-98172-551-2 01 1 1412- ●
108 17.505 GATE ASM; SIDE
REAR BODY FLAT BED(E39) 		8-98172-554-2 01 1 1412- ●
277 17.505 BOLT; CUSHION
REAR BODY FLAT BED(E39) 17.202 M6X30 W/PL WASHER 		0-36210-630-0 06 1 1412- ●
287 17.505 NUT; CUSHION
REAR BODY FLAT BED(E39) 		8-98171-949-0 06 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
