9-31 — REAR BODY; FLOOR AND FENDER (#153983) — 128 parça

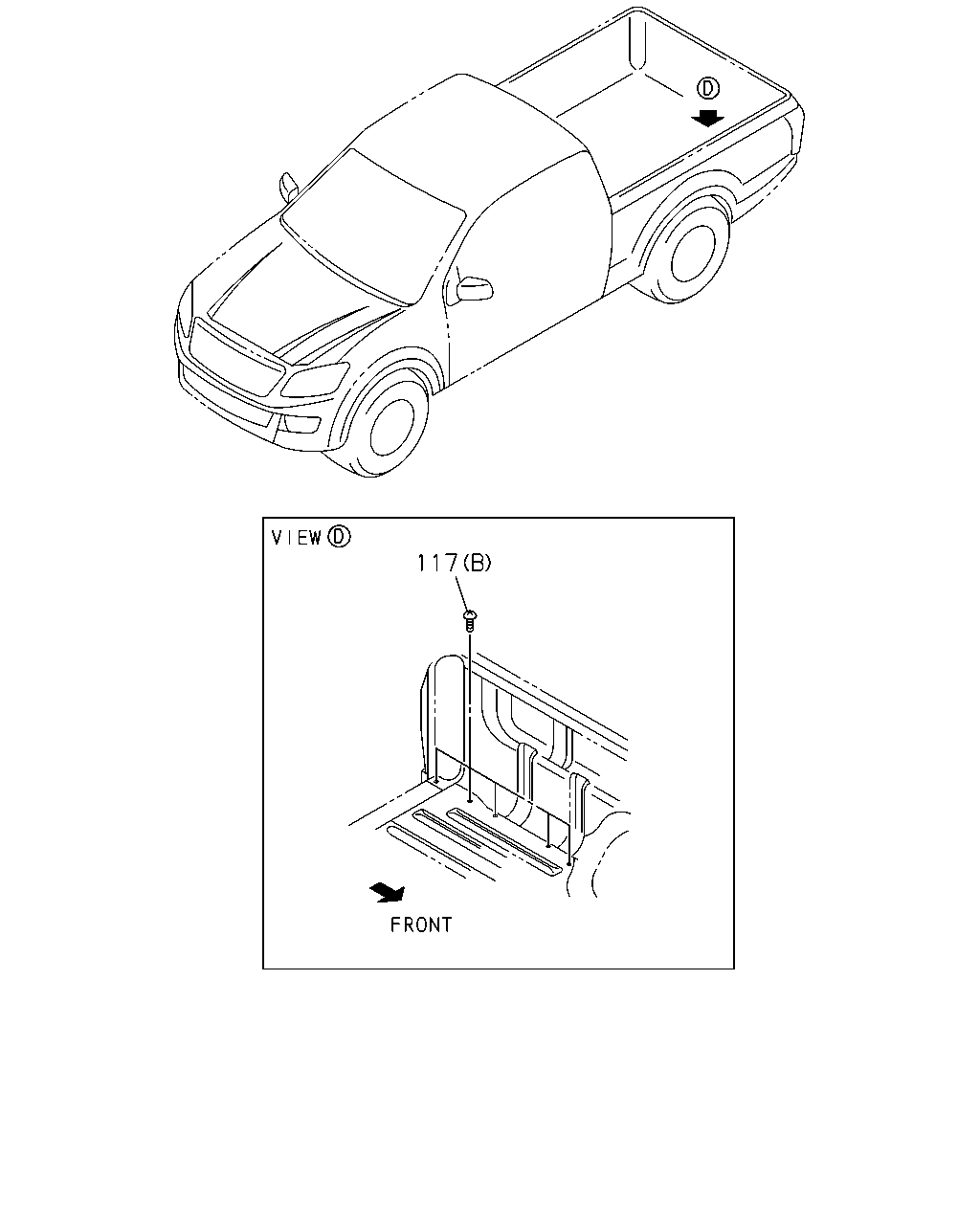

çizim 459532
117
BalonParca AdiParca NoAdetTipApplied Date A B C D E
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 06 1 1511- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1412 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1412-1510 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1412-1510 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22 		8-98050-437-0 02 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 		8-98050-437-0 02 1 1412- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 12 1 1412-1412 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 12 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1412-1505 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ●

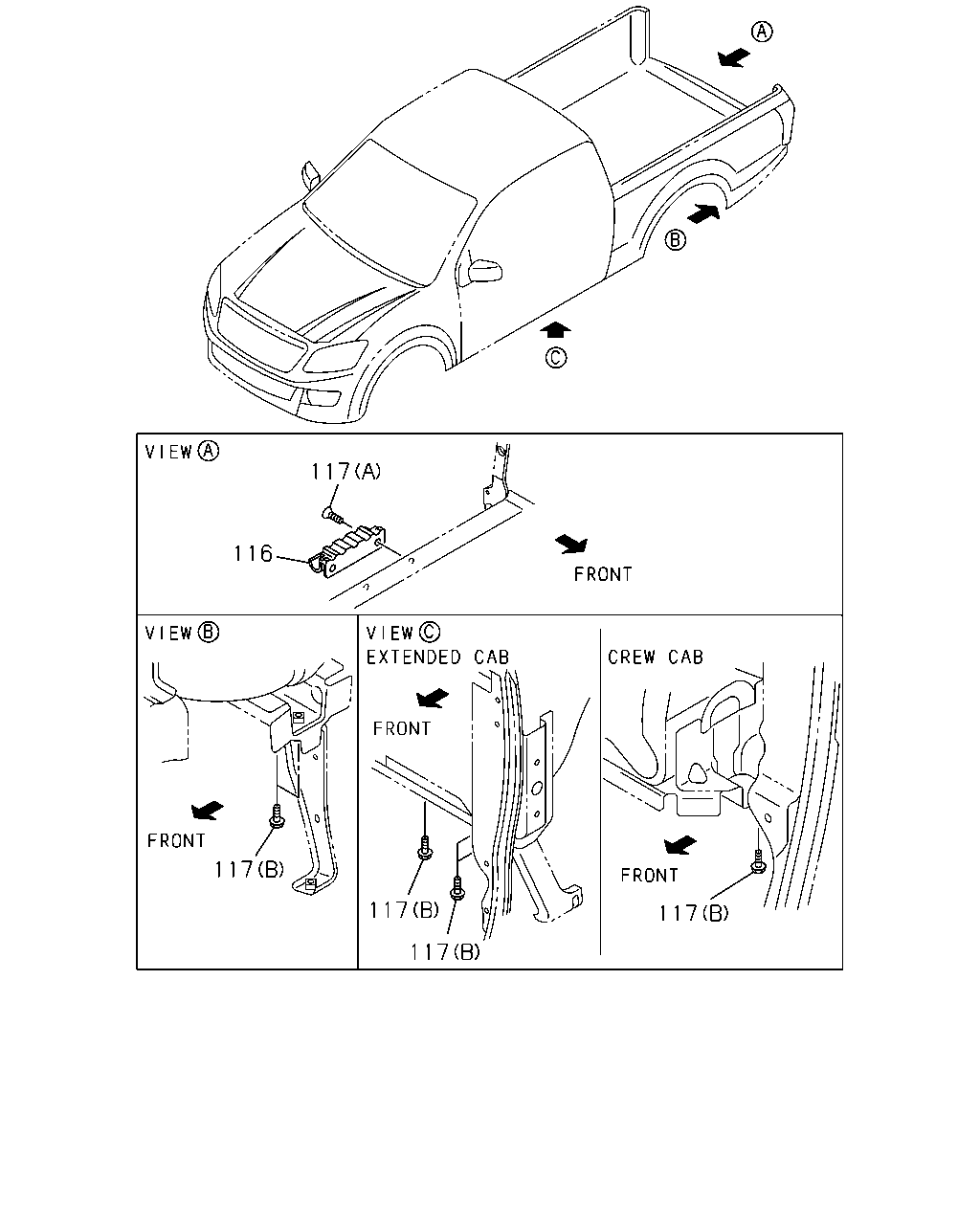

çizim 459643
117 116 117 117 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E
116 17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-017-1 01 1 1412- ● ●
116 17.400 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 		8-98104-017-1 01 1 1412- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 06 1 1511- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1412 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1412-1510 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1412-1510 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22 		8-98050-437-0 02 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 		8-98050-437-0 02 1 1412- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 12 1 1412-1412 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 12 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1412-1505 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ●

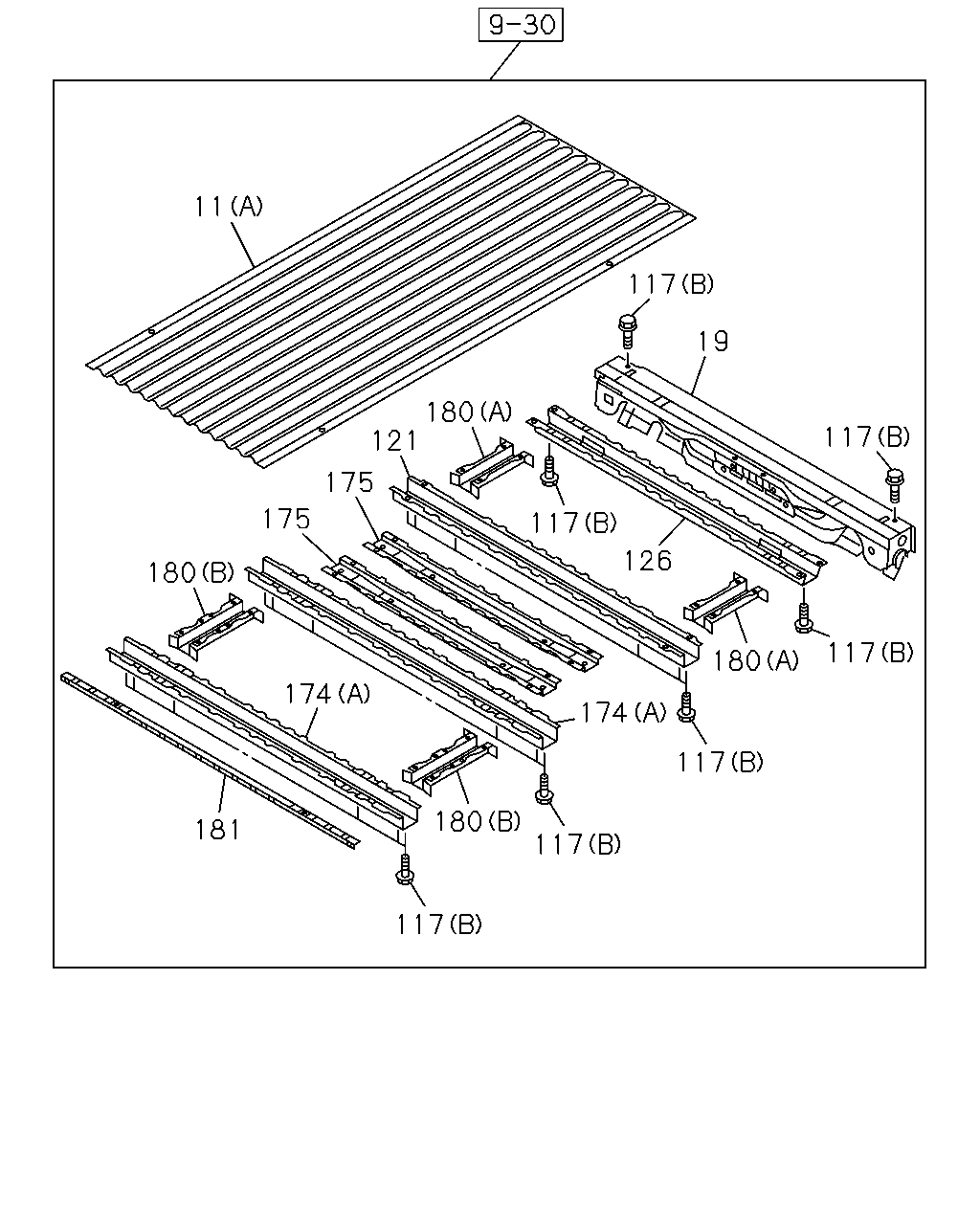

çizim 460013
11 180 175 175 121 174 181 180 117 180 117 117 174 117 180 117 117 19 117 126
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-154-1 01 1 1511- ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-150-1 01 1 1412- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-159-2 01 1 1412- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) 		8-98210-518-0 01 1 1412-1510 ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) 		8-98210-518-0 01 1 1511- ● ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98104-216-7 01 1 1412-1510 ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98104-216-7 01 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 06 1 1511- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1412 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1412-1510 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1412-1510 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22 		8-98050-437-0 02 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 		8-98050-437-0 02 1 1412- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 12 1 1412-1412 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 12 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1412-1505 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1412-1510 ● ● ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1511- ● ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1412-1510 ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1511- ● ● ● ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98140-852-4 01 1 1511- ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-179-1 02 1 1412- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-258-3 01 1 1412- ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1412-1510 ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1511- ● ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 01 1 1412- ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1412-1510 ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1511- ● ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-185-0 02 1 1412- ● ●
181 17.447 EXTENSION; PUBX,SILL
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-171-1 01 1 1412- ● ●

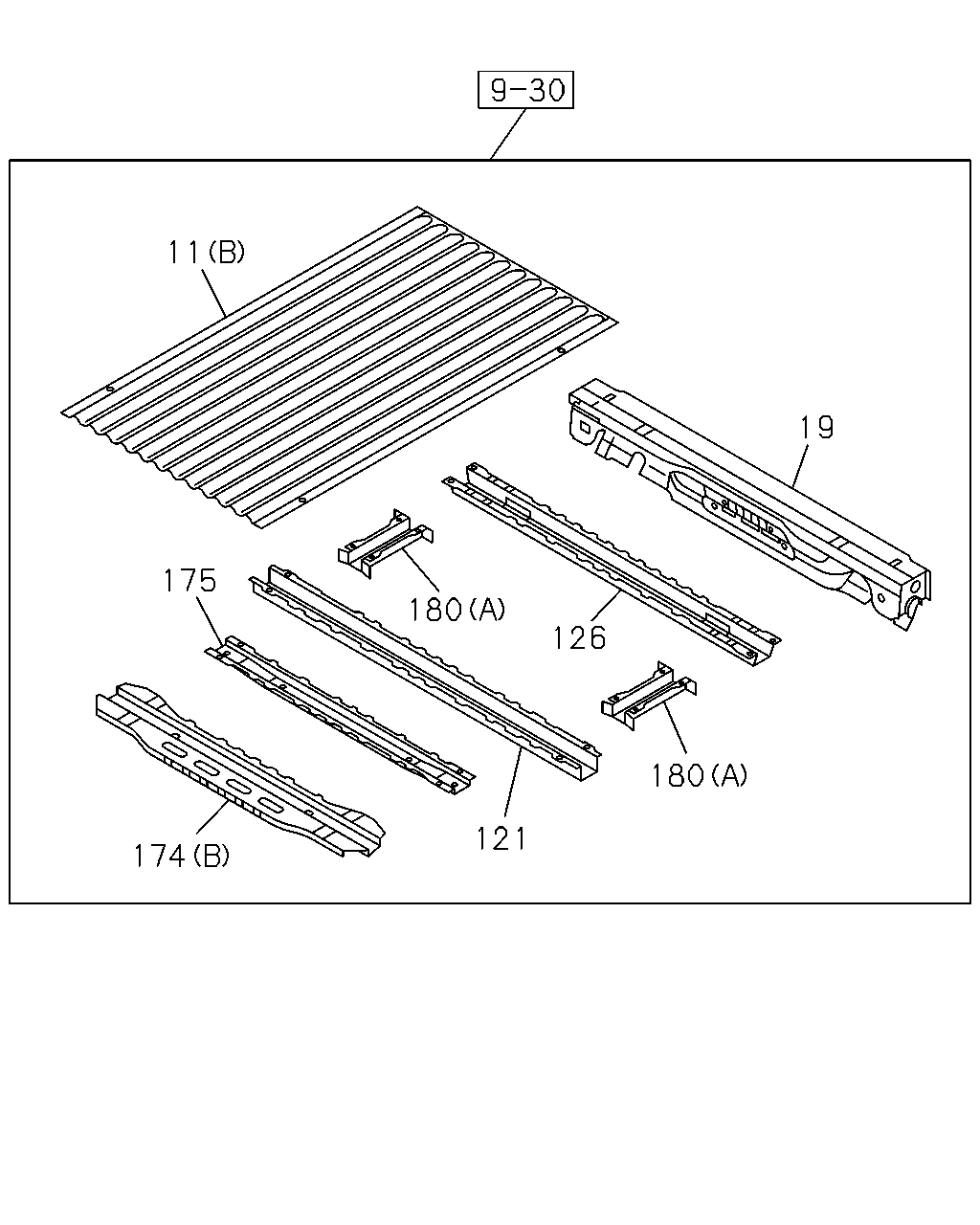

çizim 460032
11 175 180 126 180 121 174 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-154-1 01 1 1511- ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-150-1 01 1 1412- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-159-2 01 1 1412- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) 		8-98210-518-0 01 1 1412-1510 ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) 		8-98210-518-0 01 1 1511- ● ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98104-216-7 01 1 1412-1510 ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98104-216-7 01 1 1511- ● ● ● ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1412-1510 ● ● ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1511- ● ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1412-1510 ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1511- ● ● ● ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98140-852-4 01 1 1511- ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-179-1 02 1 1412- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-258-3 01 1 1412- ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1412-1510 ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1511- ● ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 01 1 1412- ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1412-1510 ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1511- ● ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-185-0 02 1 1412- ● ●

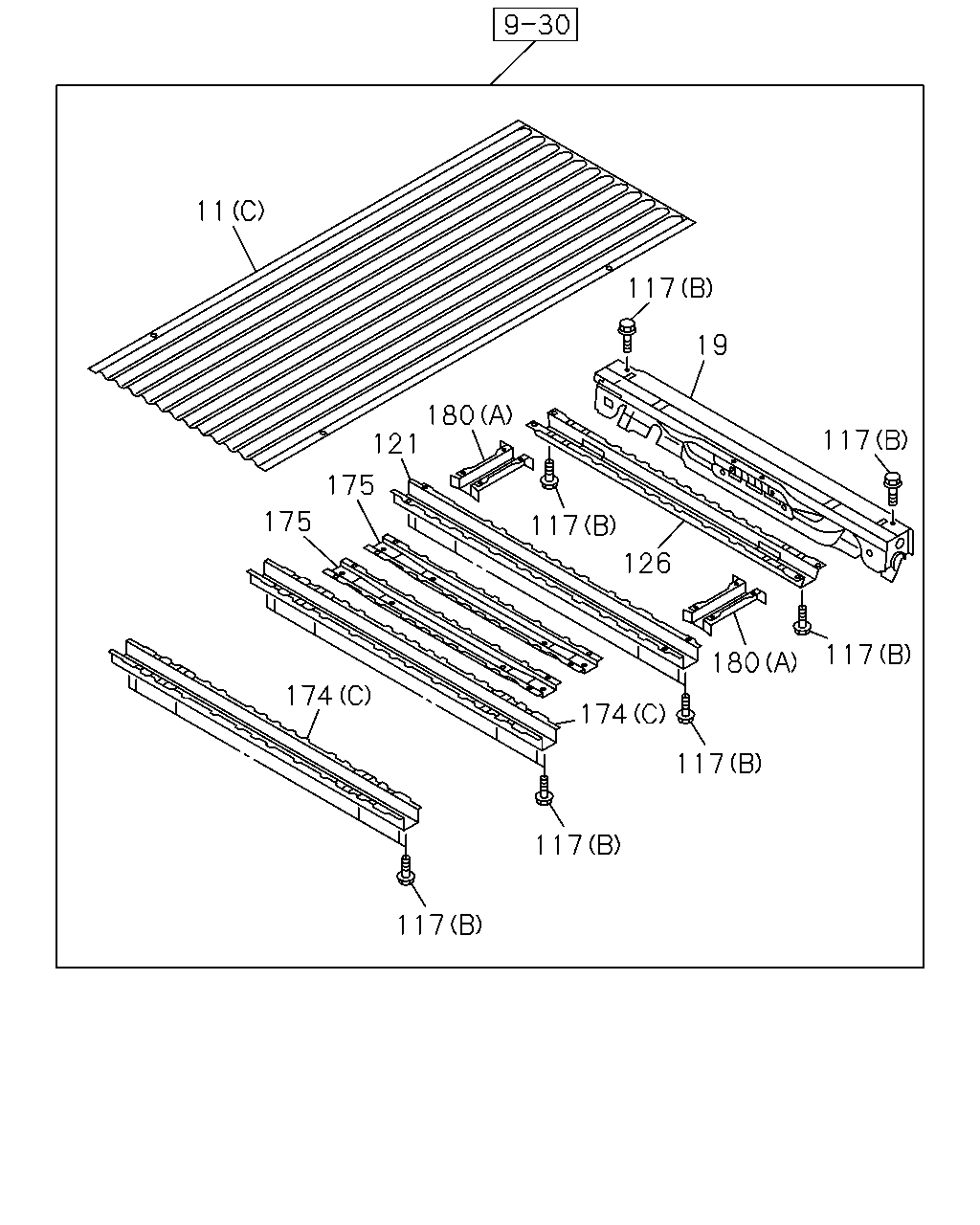

çizim 460053
11 117 19 180 121 175 175 174 117 117 117 117 117 126 117 180 174
BalonParca AdiParca NoAdetTipApplied Date A B C D E
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98104-154-1 01 1 1511- ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-150-1 01 1 1412- ● ●
11 17.400 PANEL; FLOOR BOARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-159-2 01 1 1412- ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) 		8-98210-518-0 01 1 1412-1510 ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) REAR STEP BUMPER(VF6),REAR STEP BUMPERCHROME(V42) 		8-98210-518-0 01 1 1511- ● ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98104-216-7 01 1 1412-1510 ● ● ● ●
19 17.208 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98104-216-7 01 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 06 1 1511- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 08 1 1412-1412 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1412-1510 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 08 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1412-1510 ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 10 1 1511- ● ● ● ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) 17.208 (A) M8X22 		8-98050-437-0 02 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) OUTER ROPE HOOKS<7MZ> 17.208 (A) M8X22 		8-98050-437-0 02 1 1412- ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 12 1 1412-1412 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20 		8-98294-857-0 12 1 1412- ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X20.5 HEXALOBULAR SOCKET 		8-98152-995-2 02 1 1412-1505 ● ●
117 17.400 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 HEXALOBULAR SOCKET 		8-98290-484-0 02 1 1506- ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1412-1510 ● ● ● ●
121 17.208 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-194-2 01 1 1511- ● ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1412-1510 ● ● ● ●
126 17.505 BOLSTER; FRT END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-201-2 01 1 1511- ● ● ● ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98140-852-4 01 1 1511- ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-179-1 02 1 1412- ● ●
174 17.447 SILL; RR BODY CROSS NO.1
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-258-3 01 1 1412- ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1412-1510 ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 02 1 1511- ● ● ●
175 17.447 SILL; RR BODY CROSS NO.2
REAR BODY DBL WALL CTR PULL(E63) 		8-98104-191-2 01 1 1412- ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1412-1510 ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98104-197-0 02 1 1511- ● ● ● ● ●
180 17.447 REINFORCEMENT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98104-185-0 02 1 1412- ● ●

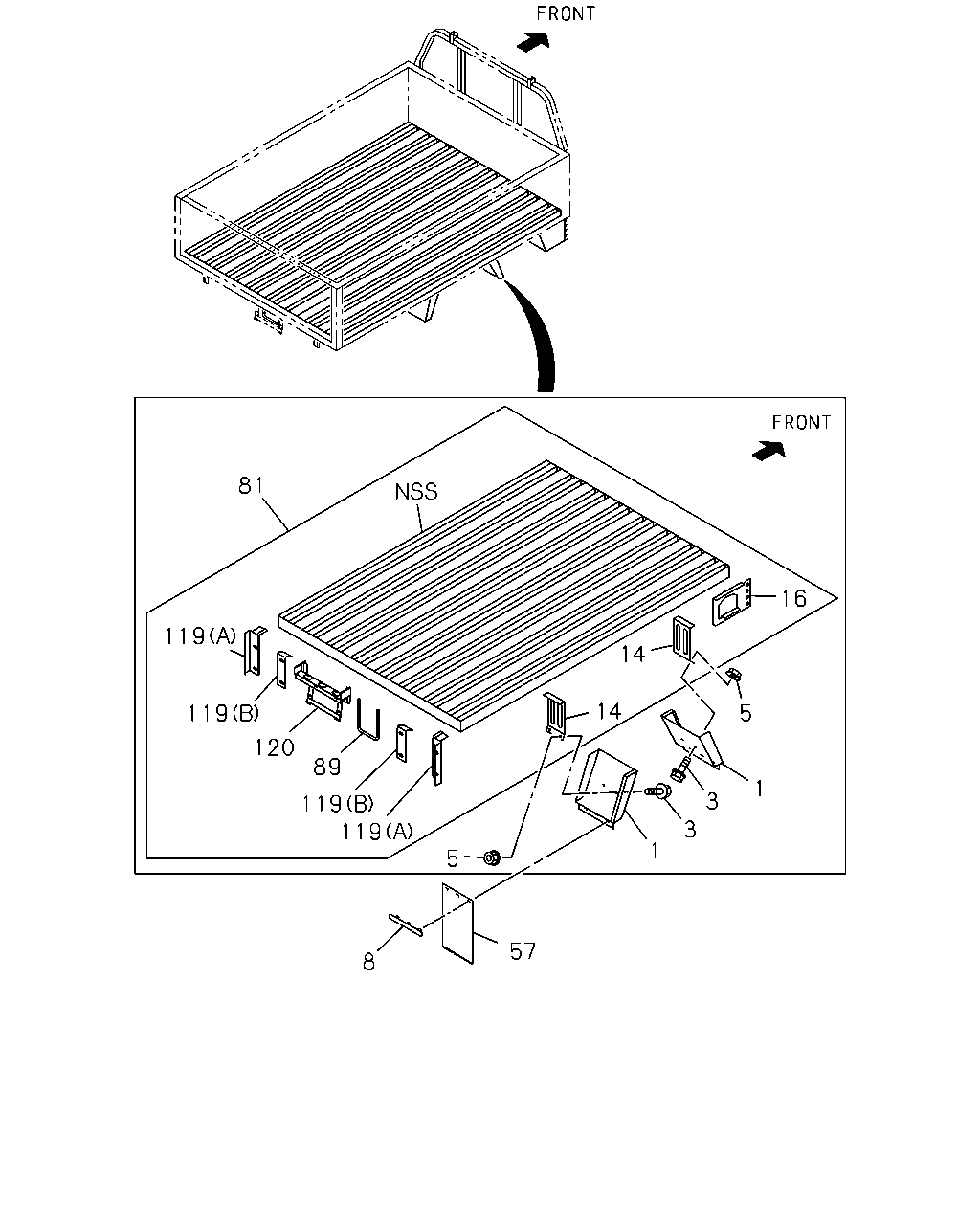

çizim 503585
81 16 14 14 5 3 3 1 1 5 57 8 89 119 119 120 119 119
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 08.203 FENDER; RR,RR BODY
REAR BODY FLAT BED(E39) FRONT 		8-97263-540-2 01 1 1412- ●
1 08.203 FENDER; RR,RR BODY
REAR BODY FLAT BED(E39) FRONT 		8-97263-541-2 01 1 1412- ●
1 08.203 FENDER; RR,RR BODY
REAR BODY FLAT BED(E39) REAR 		8-97263-542-3 01 1 1412- ●
1 08.203 FENDER; RR,RR BODY
REAR BODY FLAT BED(E39) REAR 		8-97263-543-3 01 1 1412- ●
3 08.203 BOLT; FENDER TO RR BODY
REAR BODY FLAT BED(E39) 		8-98171-948-0 16 1 1412- ●
5 17.447 NUT; FENDER TO BRKT
REAR BODY FLAT BED(E39) 		8-98171-951-0 08 1 1412- ●
8 08.212 HOLDER; FLAP RUBBER
REAR BODY FLAT BED(E39) 		8-97354-203-0 02 1 1412- ●
14 08.212 SUPPORT; RR FENDER
REAR BODY FLAT BED(E39) 		8-98165-714-1 04 1 1412- ●
16 17.455 CONNECTOR; GUARD FRAME
REAR BODY FLAT BED(E39) 		8-98165-804-0 01 1 1412- ●
16 17.455 CONNECTOR; GUARD FRAME
REAR BODY FLAT BED(E39) 		8-98165-805-0 01 1 1412- ●
57 08.214 RUBBER; FLAP RR
REAR BODY FLAT BED(E39) 		8-97354-206-0 02 1 1412- ●
81 17.400 FLOOR ASM; RR BODY
REAR BODY FLAT BED(E39) 		8-98165-674-4 01 1 1412- ●
89 17.400 STEP; RR
REAR BODY FLAT BED(E39) 		8-97262-129-0 01 1 1412- ●
119 02.662 BRACKET; COMB LAMP
REAR BODY FLAT BED(E39) (A) 		8-97263-708-0 01 1 1412- ●
119 02.662 BRACKET; COMB LAMP
REAR BODY FLAT BED(E39) (A) 		8-97263-709-0 01 1 1412- ●
119 02.662 BRACKET; COMB LAMP
REAR BODY FLAT BED(E39) (B) 		8-97322-728-0 02 1 1412- ●
120 07.800 BRACKET; NUMBER PLATE
REAR BODY FLAT BED(E39) 		8-98165-704-0 01 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
