8-75 — CONDENSER (#153978) — 50 parça

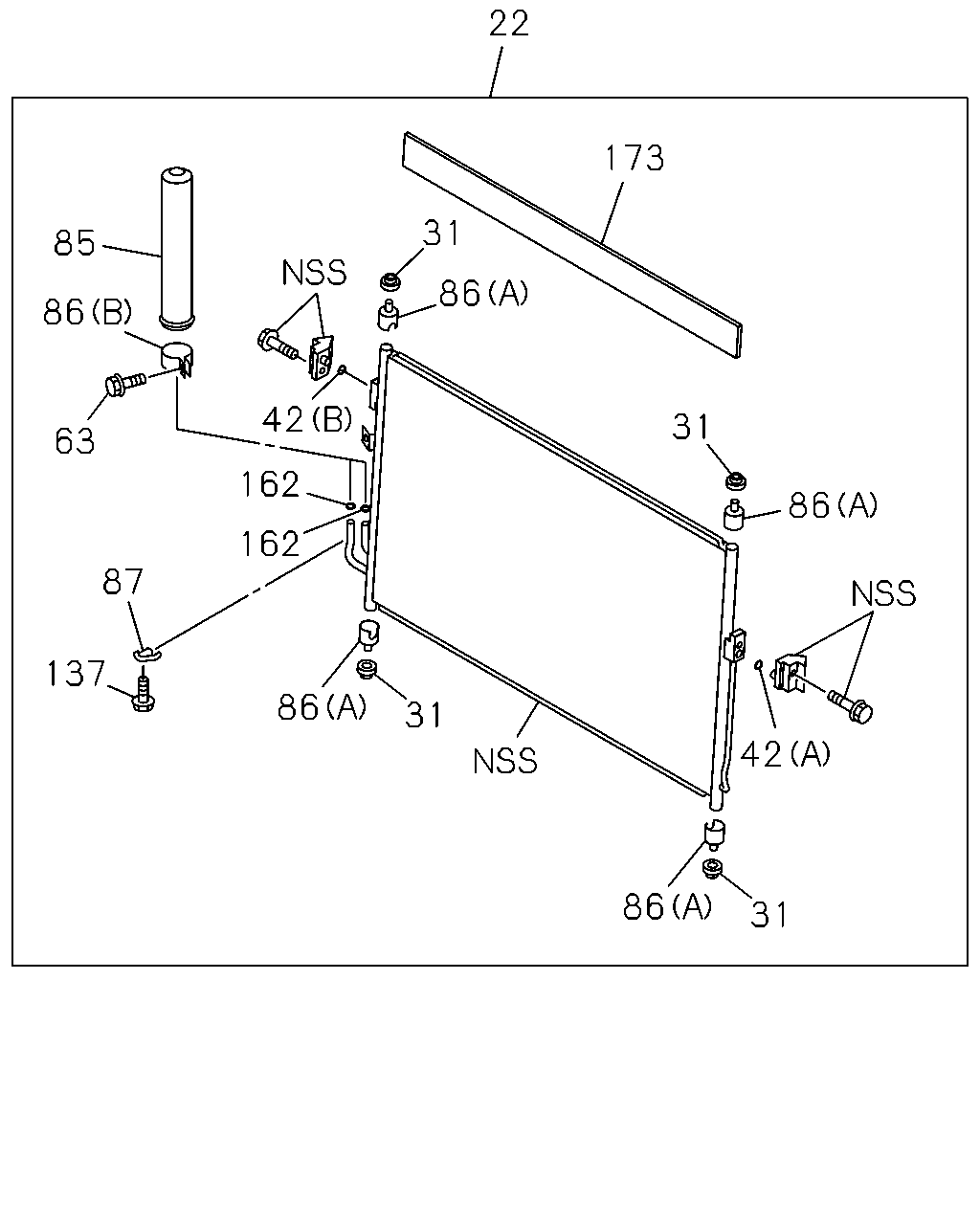

85 86 63 87 137 86 162 162 86 31 22 173 31 31 86 31 42 42 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	09.190 CONDENSER ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98052-634-3	01	1	1412-1510	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98052-634-3	01	1	1511-	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98052-635-3	01	1	1412-	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98193-616-0	04	1	1412-1510	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98193-616-0	04	1	1511-	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) ID=8	8-98193-614-0	01	1	1412-1510	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) ID=8	8-98193-614-0	01	1	1511-	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) ID=12	8-98193-615-0	01	1	1412-1510	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) ID=12	8-98193-615-0	01	1	1511-	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M5X16	8-98193-604-0	01	1	1412-1510	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M5X16	8-98193-604-0	01	1	1511-	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98233-381-0	01	1	1412-1510	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98233-381-0	01	1	1511-	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B)	8-98193-599-0	01	1	1412-1510	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B)	8-98193-599-0	01	1	1511-	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A)	8-98193-618-0	04	1	1412-1510	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A)	8-98193-618-0	04	1	1511-	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98193-602-0	01	1	1412-1510	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98193-602-0	01	1	1511-	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M6X12	8-98193-603-0	01	1	1412-1510	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M6X12	8-98193-603-0	01	1	1511-	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 09.190 ID=8	8-98193-614-0	02	1	1412-1510	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 09.190 ID=8	8-98193-614-0	02	1	1511-	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98233-382-0	01	1	1412-1510	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98233-382-0	01	1	1511-	●	●	●	●	●

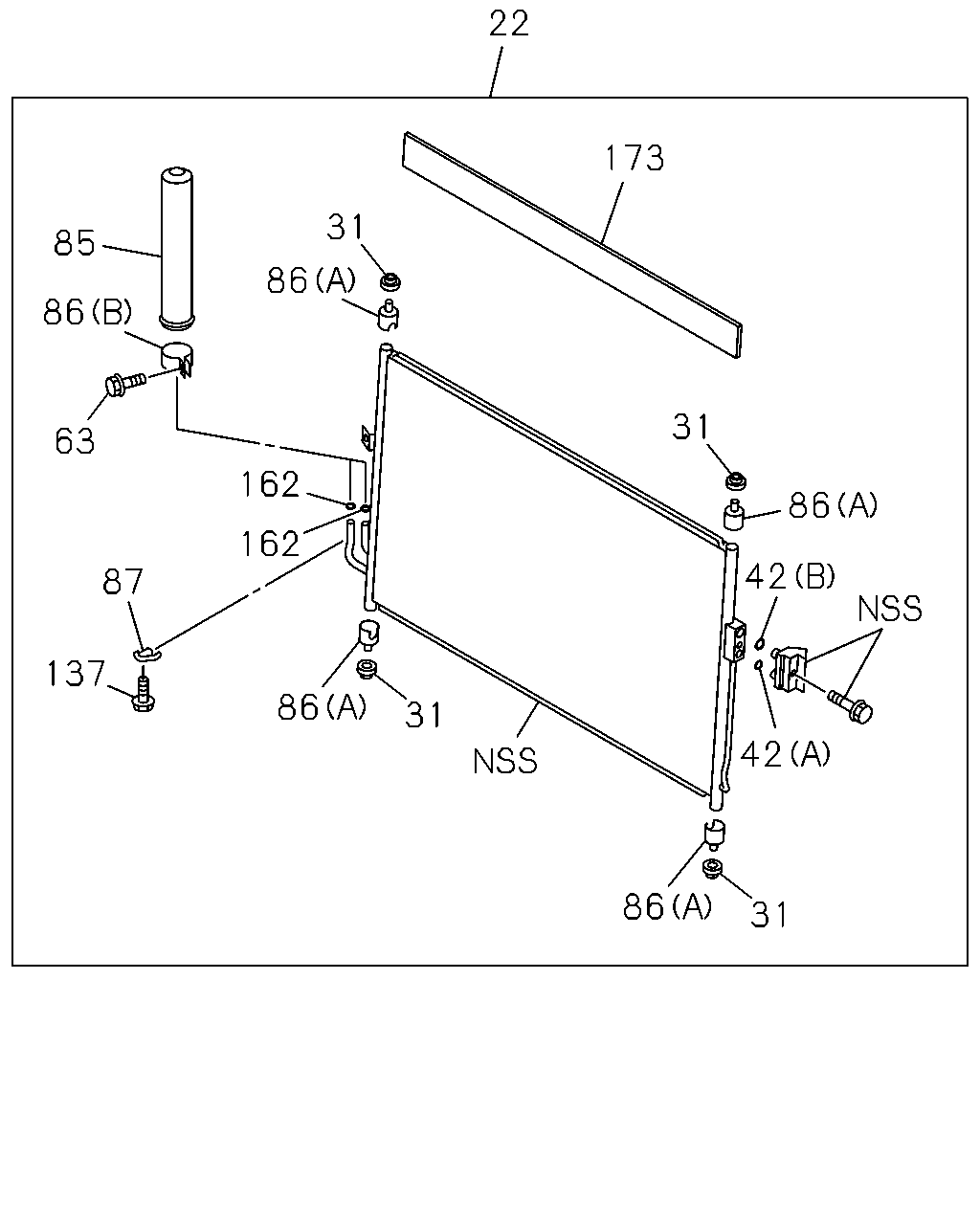

22 173 31 85 86 63 42 162 162 87 137 86 31 86 31 42 86 31 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
22	09.190 CONDENSER ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98052-634-3	01	1	1412-1510	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98052-634-3	01	1	1511-	●	●	●	●	●
22	09.190 CONDENSER ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98052-635-3	01	1	1412-	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98193-616-0	04	1	1412-1510	●	●	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98193-616-0	04	1	1511-	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) ID=8	8-98193-614-0	01	1	1412-1510	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A) ID=8	8-98193-614-0	01	1	1511-	●	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) ID=12	8-98193-615-0	01	1	1412-1510	●	●	●	●
42	09.190 GASKET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B) ID=12	8-98193-615-0	01	1	1511-	●	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M5X16	8-98193-604-0	01	1	1412-1510	●	●	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M5X16	8-98193-604-0	01	1	1511-	●	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98233-381-0	01	1	1412-1510	●	●	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98233-381-0	01	1	1511-	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B)	8-98193-599-0	01	1	1412-1510	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (B)	8-98193-599-0	01	1	1511-	●	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A)	8-98193-618-0	04	1	1412-1510	●	●	●	●
86	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) (A)	8-98193-618-0	04	1	1511-	●	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98193-602-0	01	1	1412-1510	●	●	●	●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98193-602-0	01	1	1511-	●	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M6X12	8-98193-603-0	01	1	1412-1510	●	●	●	●
137	09.196 BOLT; BRKT,DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) M6X12	8-98193-603-0	01	1	1511-	●	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 09.190 ID=8	8-98193-614-0	02	1	1412-1510	●	●	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65) 09.190 ID=8	8-98193-614-0	02	1	1511-	●	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98233-382-0	01	1	1412-1510	●	●	●	●
173	09.190 INSULATOR; CONDENSER AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61),COOLER W/FRESH AIR(C65)	8-98233-382-0	01	1	1511-	●	●	●	●	●
