Sayfa 8-73 - Isuzu EPC

8-73 — BLOWER UNIT (#153977) — 180 parça

3 3 34 10 14 140 137 13 141 54 92 3 39 78 23 142 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-047-1	01	1	1412-1510	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-047-1	01	1	1511-	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A)	8-98233-042-1	01	1	1412-1510	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A)	8-98233-042-1	01	1	1511-	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1412-1510		●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1511-		●		●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C)	8-98233-043-1	01	1	1412-1510		●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C)	8-98233-043-1	01	1	1511-		●		●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1412-1510	●	●	●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1511-	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1412-1510	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1511-	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1412-1510		●		●
13	08.856 LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1511-		●		●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1412-1510	●	●	●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1511-	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1412-1510	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1511-	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1412-1510	●	●	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1511-	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1412-1510	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1511-	●	●	●	●	●
54	08.856 SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-1	02	1	1412-1510		●		●
54	08.856 SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-1	02	1	1511-		●		●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1412-1510	●	●	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1511-	●	●	●	●	●
92	08.857 ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-411-0	01	1	1412-1510		●		●
92	08.857 ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-411-0	01	1	1511-		●		●	●
137	08.855 MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1412-1510		●		●
137	08.855 MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1511-		●		●	●
140	08.857 SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1412-1510		●		●
140	08.857 SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1511-		●		●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98233-651-0	01	1	1412-1510	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98233-651-0	01	1	1511-	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1412-1510		●		●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1511-		●		●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1412-1510	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1511-	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-653-0	01	1	1412-1510	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-653-0	01	1	1511-	●	●	●	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1412-1510		●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1511-		●		●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-654-0	01	1	1412-1510		●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-654-0	01	1	1511-		●		●	●

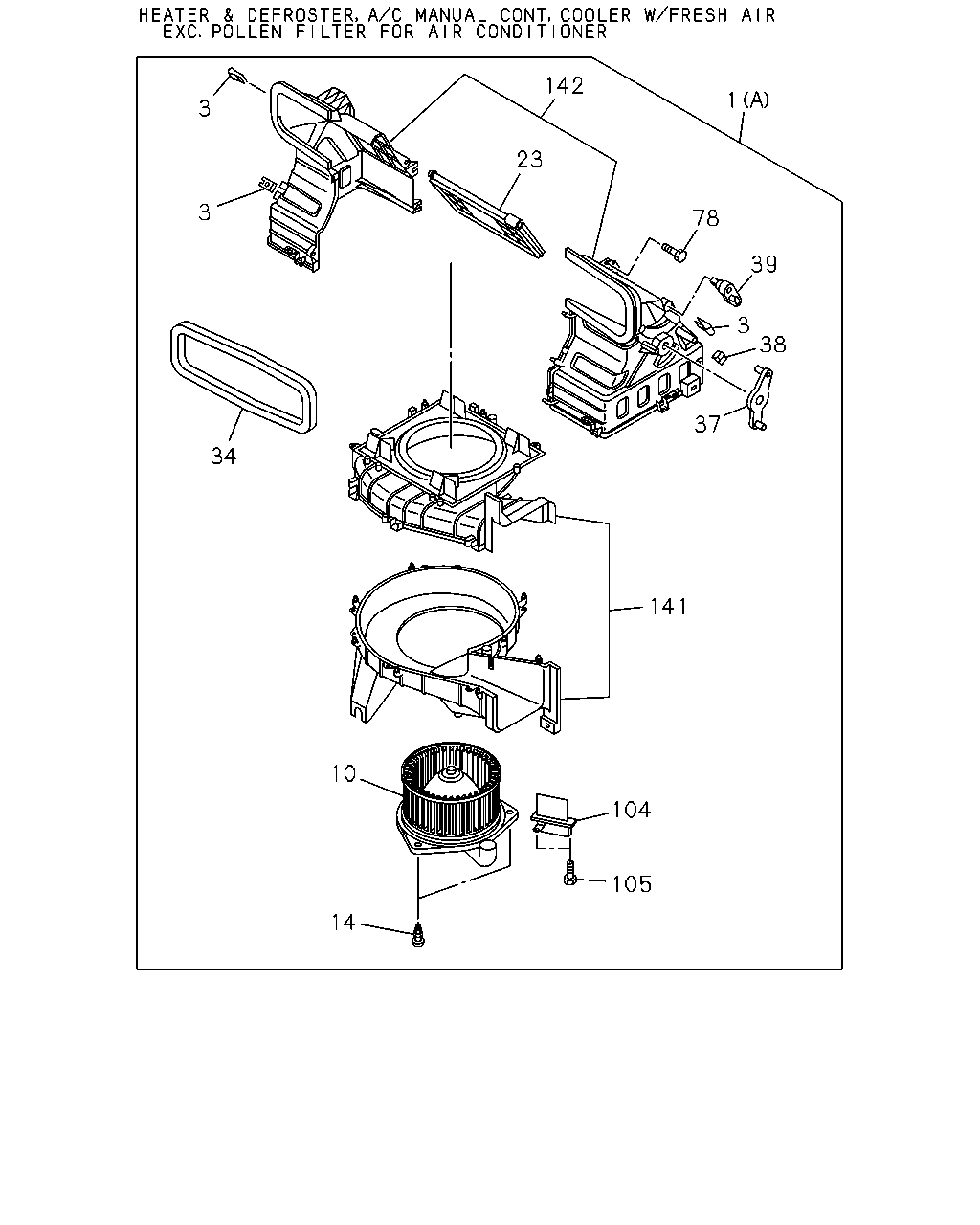

3 3 142 23 1 78 39 3 38 37 141 104 105 10 14 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-047-1	01	1	1412-1510	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-047-1	01	1	1511-	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A)	8-98233-042-1	01	1	1412-1510	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A)	8-98233-042-1	01	1	1511-	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1412-1510		●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1511-		●		●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C)	8-98233-043-1	01	1	1412-1510		●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C)	8-98233-043-1	01	1	1511-		●		●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1412-1510	●	●	●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1511-	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1412-1510	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1511-	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1412-1510	●	●	●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1511-	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1412-1510	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1511-	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1412-1510	●	●	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1511-	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98165-410-0	01	1	1412-1510	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98165-410-0	01	1	1511-	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98139-422-1	01	1	1412-1510	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98139-422-1	01	1	1511-	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1412-1510	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1511-	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1412-1510	●	●	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1511-	●	●	●	●	●
104	08.855 RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98183-234-0	01	1	1412-1510	●	●	●	●
104	08.855 RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98183-234-0	01	1	1511-	●	●	●	●	●
105	08.855 SCREW; RESISTOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852	8-98139-395-1	02	1	1412-1510	●	●	●	●
105	08.855 SCREW; RESISTOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852	8-98139-395-1	02	1	1511-	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98233-651-0	01	1	1412-1510	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98233-651-0	01	1	1511-	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1412-1510		●		●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1511-		●		●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1412-1510	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1511-	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-653-0	01	1	1412-1510	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-653-0	01	1	1511-	●	●	●	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1412-1510		●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1511-		●		●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-654-0	01	1	1412-1510		●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-654-0	01	1	1511-		●		●	●

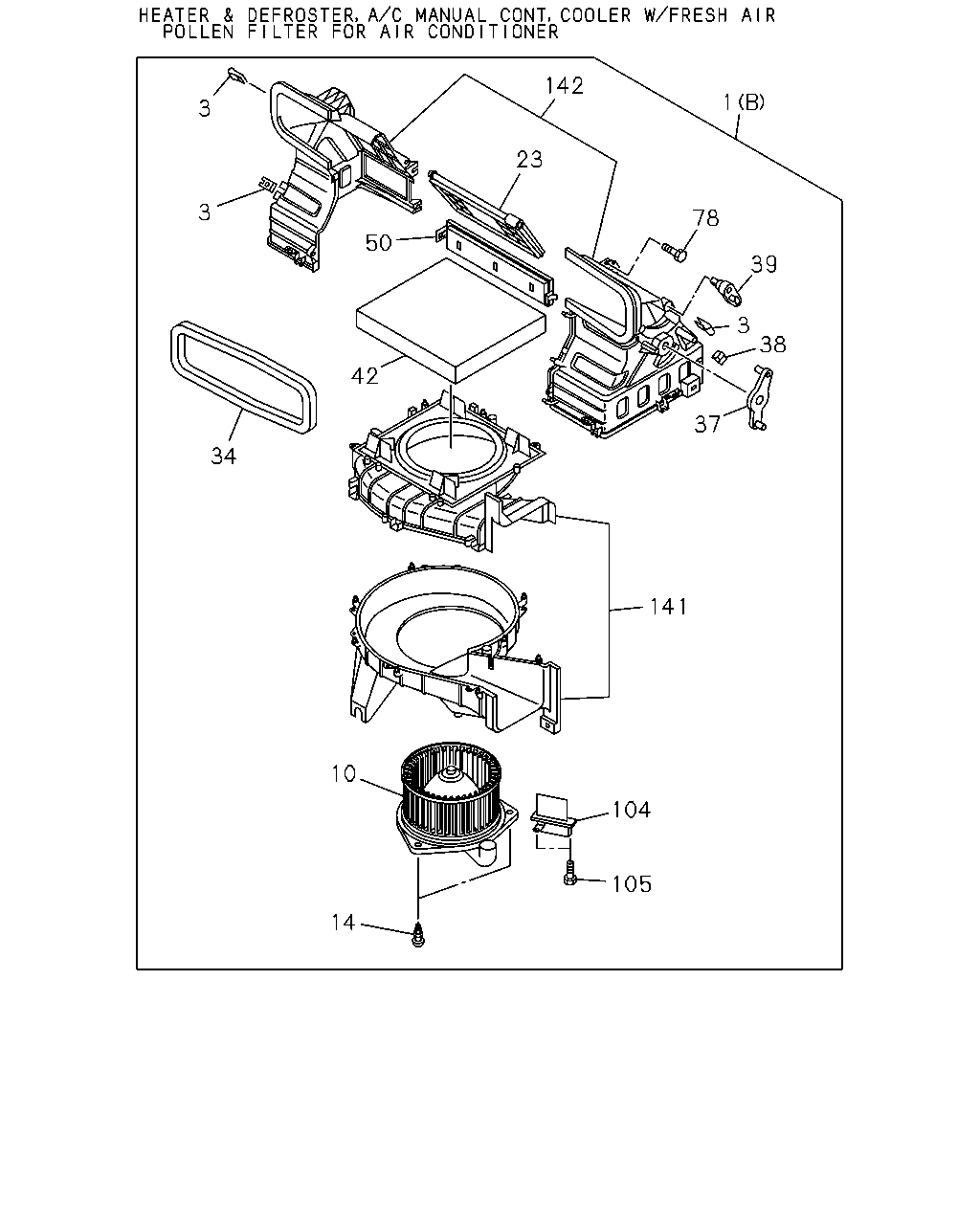

3 3 50 42 34 10 14 105 104 141 37 38 3 39 78 23 142 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-047-1	01	1	1412-1510	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-047-1	01	1	1511-	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A)	8-98233-042-1	01	1	1412-1510	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A)	8-98233-042-1	01	1	1511-	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1412-1510		●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1511-		●		●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C)	8-98233-043-1	01	1	1412-1510		●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C)	8-98233-043-1	01	1	1511-		●		●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1412-1510	●	●	●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1511-	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1412-1510	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1511-	●	●	●	●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1412-1510	●	●	●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1511-	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1412-1510	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1511-	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1412-1510	●	●	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1511-	●	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98165-410-0	01	1	1412-1510	●	●	●	●
37	09.786 LEVER; MODE LEVER HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98165-410-0	01	1	1511-	●	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98139-422-1	01	1	1412-1510	●	●	●	●
38	09.787 CLIP; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98139-422-1	01	1	1511-	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1412-1510	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1511-	●	●	●	●	●
42	08.857 FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1412-1510	●	●	●	●
42	08.857 FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1511-	●	●	●	●	●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1412-1510	●	●	●	●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1511-	●	●	●	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1412-1510	●	●	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1511-	●	●	●	●	●
104	08.855 RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98183-234-0	01	1	1412-1510	●	●	●	●
104	08.855 RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98183-234-0	01	1	1511-	●	●	●	●	●
105	08.855 SCREW; RESISTOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852	8-98139-395-1	02	1	1412-1510	●	●	●	●
105	08.855 SCREW; RESISTOR HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) 08.852	8-98139-395-1	02	1	1511-	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98233-651-0	01	1	1412-1510	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98233-651-0	01	1	1511-	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1412-1510		●		●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1511-		●		●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1412-1510	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1511-	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-653-0	01	1	1412-1510	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-653-0	01	1	1511-	●	●	●	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1412-1510		●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1511-		●		●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-654-0	01	1	1412-1510		●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-654-0	01	1	1511-		●		●	●

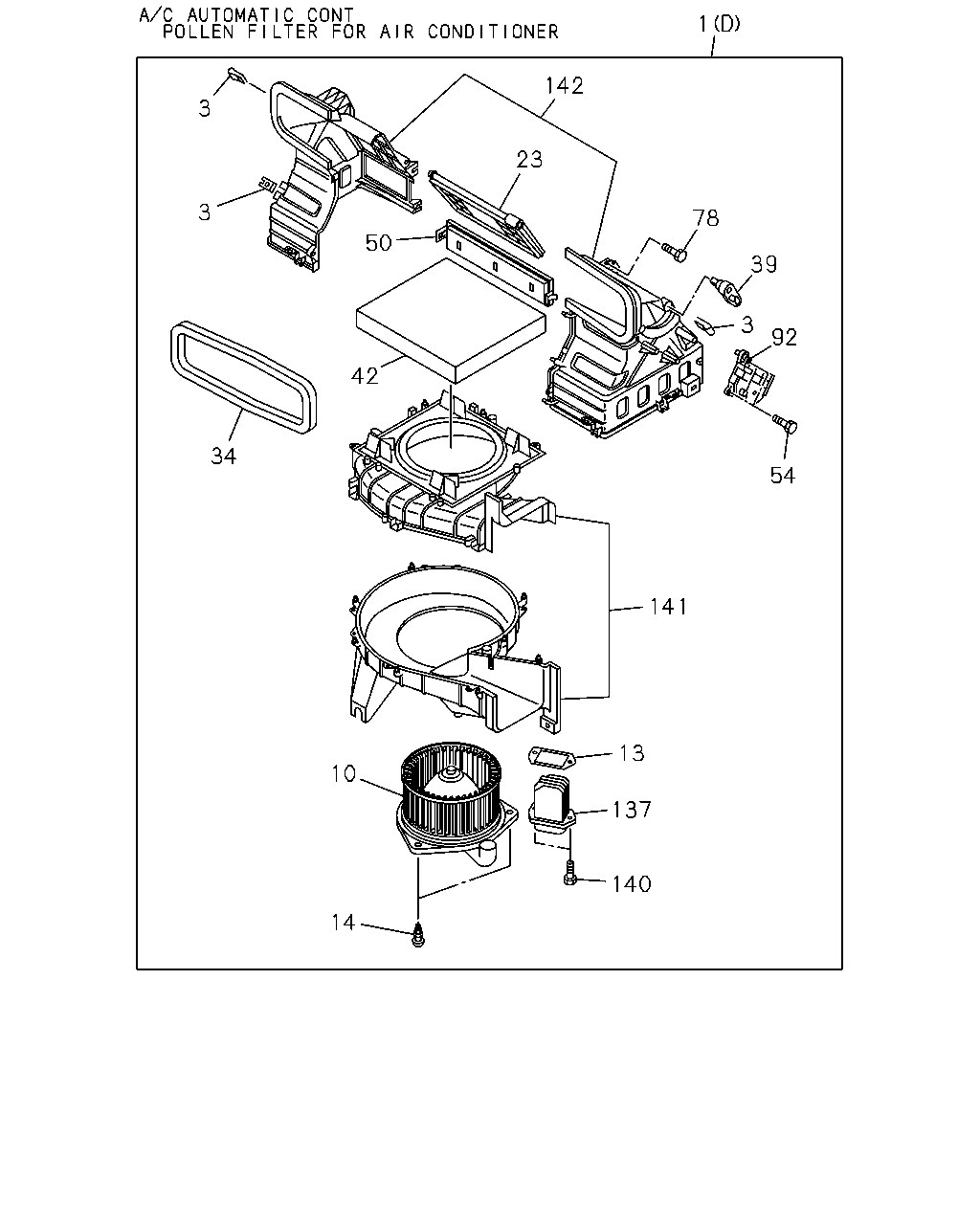

3 3 50 42 34 10 14 140 137 13 141 54 92 3 39 78 23 142 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-047-1	01	1	1412-1510	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-047-1	01	1	1511-	●	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A)	8-98233-042-1	01	1	1412-1510	●	●	●	●
1	08.855 BLOWER ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (A)	8-98233-042-1	01	1	1511-	●	●	●	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1412-1510		●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (D)	8-98233-048-1	01	1	1511-		●		●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C)	8-98233-043-1	01	1	1412-1510		●		●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM> (C)	8-98233-043-1	01	1	1511-		●		●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1412-1510	●	●	●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1511-	●	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1412-1510	●	●	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98165-412-0	01	1	1511-	●	●	●	●	●
13	08.856 LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1412-1510		●		●
13	08.856 LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1511-		●		●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1412-1510	●	●	●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1511-	●	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1412-1510	●	●	●	●
23	08.857 SHUTTER; BLOWER UNIT	8-98295-682-0	01	1	1511-	●	●	●	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1412-1510	●	●	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1511-	●	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1412-1510	●	●	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98165-409-0	01	1	1511-	●	●	●	●	●
42	08.857 FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1412-1510	●	●	●	●
42	08.857 FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1511-	●	●	●	●	●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1412-1510	●	●	●	●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1511-	●	●	●	●	●
54	08.856 SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-1	02	1	1412-1510		●		●
54	08.856 SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-1	02	1	1511-		●		●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1412-1510	●	●	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1511-	●	●	●	●	●
92	08.857 ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-411-0	01	1	1412-1510		●		●
92	08.857 ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98165-411-0	01	1	1511-		●		●	●
137	08.855 MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1412-1510		●		●
137	08.855 MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1511-		●		●	●
140	08.857 SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1412-1510		●		●
140	08.857 SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1511-		●		●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98233-651-0	01	1	1412-1510	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65)	8-98233-651-0	01	1	1511-	●	●	●	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1412-1510		●		●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-652-0	01	1	1511-		●		●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1412-1510	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-655-0	01	1	1511-	●	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-653-0	01	1	1412-1510	●	●	●	●
142	08.857 CASE ASM HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-653-0	01	1	1511-	●	●	●	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1412-1510		●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-656-0	01	1	1511-		●		●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-654-0	01	1	1412-1510		●		●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER <8CM>	8-98233-654-0	01	1	1511-		●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
