Sayfa 8-71 - Isuzu EPC

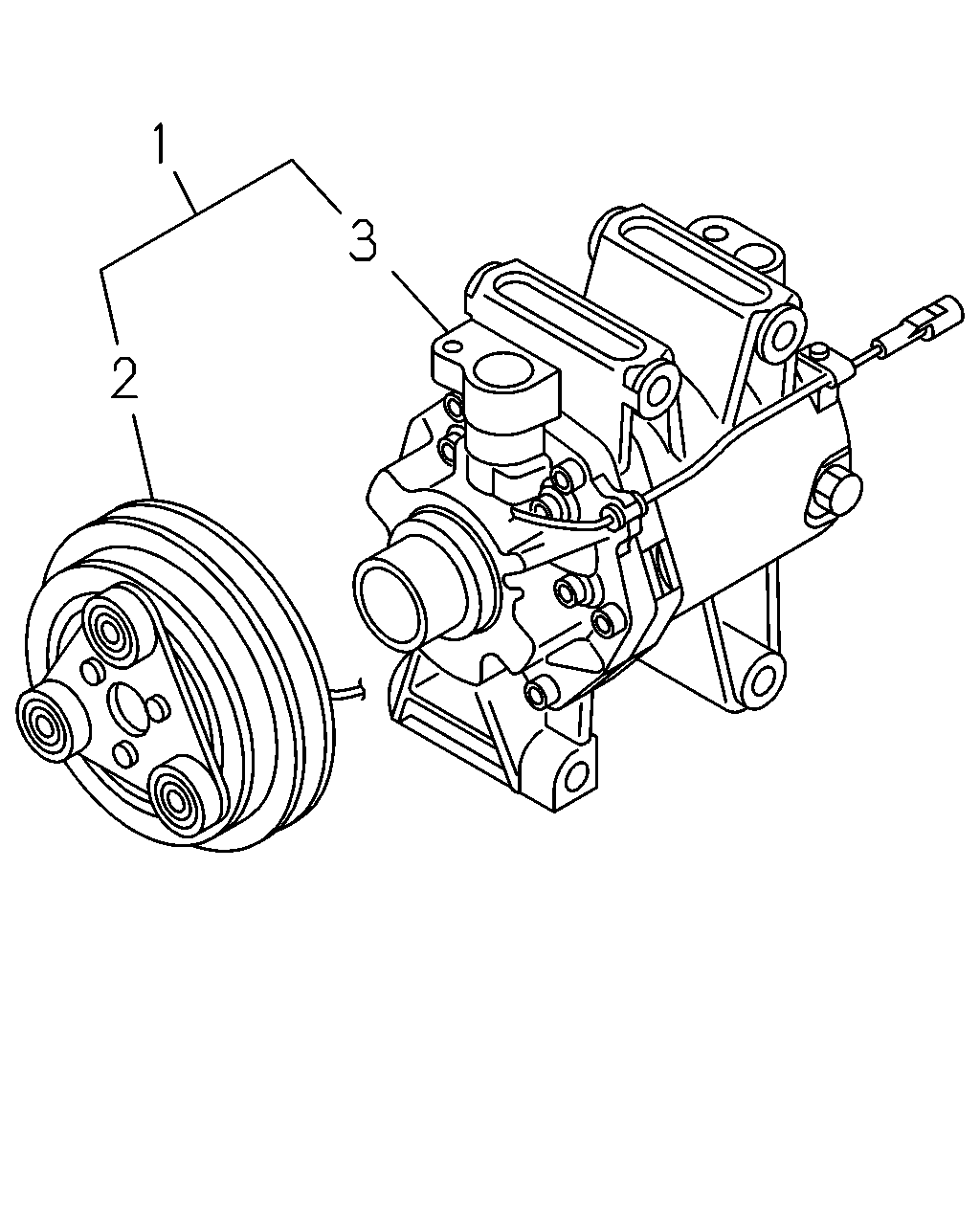

8-71 — COMPRESSOR; AIR CONDITIONING (#153976) — 9 parça

1 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.170 COMPRESSOR ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98102-824-1	01	1	1412-1510	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98102-824-1	01	1	1511-	●	●	●	●	●
1	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98200-246-1	01	1	1412-	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98139-936-1	01	1	1412-1510	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98139-936-1	01	1	1511-	●	●	●	●	●
2	09.188 CLUTCH; MAGNET,A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98258-537-0	01	1	1412-	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98139-935-1	01	1	1412-1510	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JK1-TCS ENG(LKZ),4JK1-TCX ENG(LR0), 4JJ1-TCX ENG(LS0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98139-935-1	01	1	1511-	●	●	●	●	●
3	09.170 COMPRESSOR ASM; A/C 4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLERW/FRESH AIR(C65)	8-98258-536-0	01	1	1412-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
